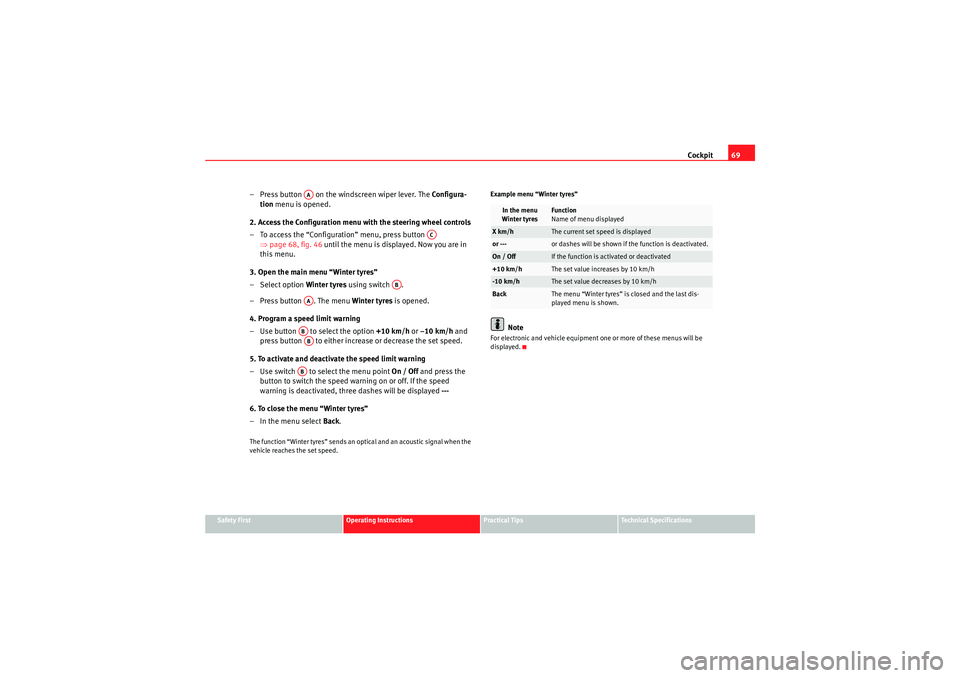

– Press button on the windscreen wiper lever. The Configura-
tion menu is opened.
2. Access the Configuration menu with the steering wheel controls
– To access the “Configuration” menu, press button ⇒page 68, fig. 46 until the menu is displayed. Now you are in
this menu.
3. Open the main menu “Winter tyres”
– Select option Winter tyres using switch .
– Press button . The menu Winter tyres is opened.
4. Program a speed limit warning
– Use button to select the option +10 km/h or –10 km/h and
press button to either increase or decrease the set speed.
5. To activate and deactivate the speed limit warning
– Use switch to se lect the menu point On / Off and press the
button to switch the speed warning on or off. If the speed
warning is deactivated, three dashes will be displayed ---
6. To close the menu “Winter tyres”
–In the menu select Back .The function “Winter tyres” sends an optical and an acoustic signal when the
vehicle reaches the set speed. Example menu “Winter tyres”
Note
For electronic and vehicle equipment one or more of these menus will be
displayed.
AA
AC
AB
AAABABAB
In the menu
Winter tyres
Function
Name of menu displayed
X km/h
The current set speed is displayed
or ---
or dashes will be shown if the function is deactivated.
On / Off
If the function is activated or deactivated
+10 km/h
The set value increases by 10 km/h
-10 km/h
The set value decreases by 10 km/h
Back
The menu “Winter tyres” is closed and the last dis-
played menu is shown.
Altea_EN.book Seite 69 Donnersta g, 2. September 2010 2:00 14

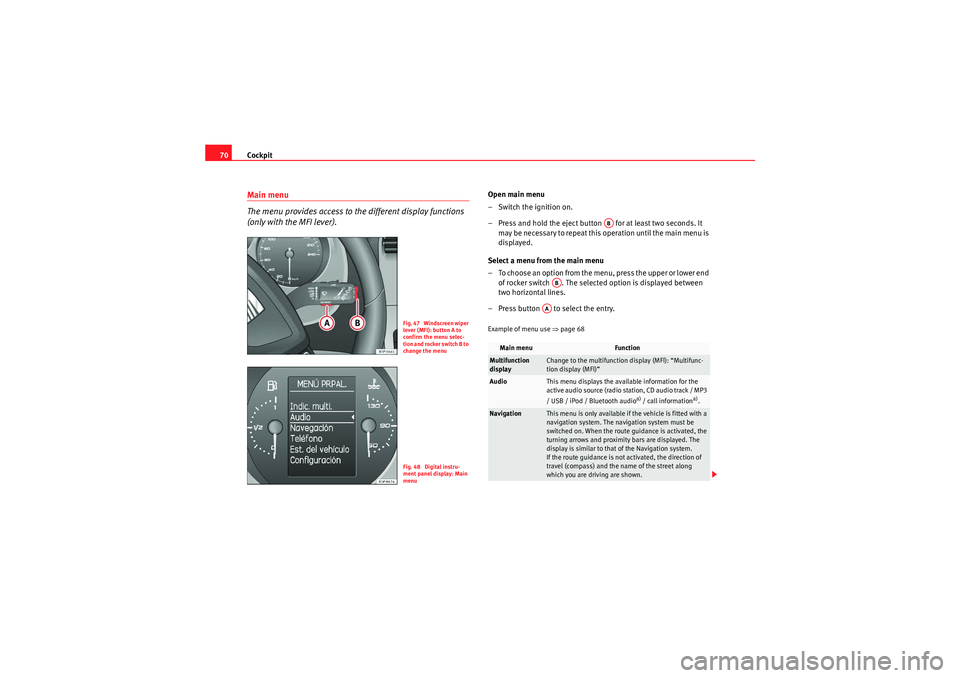

Cockpit
70Main menu
The menu provides access to the different display functions
(only with the MFI lever).
Open main menu
– Switch the ignition on.
– Press and hold the eject button for at least two seconds. It
may be necessary to repeat this operation until the main menu is
displayed.
Select a menu from the main menu
– To choose an option from the menu, press the upper or lower end of rocker switch . The selected option is displayed between
two horizontal lines.
– Press button to select the entry.Example of menu use ⇒page 68
Fig. 47 Windscreen wiper
lever (MFI): button A to
confirm the menu selec-
tion and rocker switch B to
change the menuFig. 48 Digital instru-
ment panel display: Main
menu
Main menu
Function
Multifunction
display
Change to the multifunction display (MFI): “Multifunc-
tion display (MFI)”
Audio
This menu displays the available information for the
active audio source (radio station, CD audio track / MP3
/ USB / iPod / Bluetooth audio
a) / call information
a).
Navigation
This menu is only available if the vehicle is fitted with a
navigation system. The navigation system must be
switched on. When the route guidance is activated, the
turning arrows and proximity bars are displayed. The
display is similar to that of the Navigation system.
If the route guidance is not activated, the direction of
travel (compass) and the name of the street along
which you are driving are shown.
AB
AB
AA
Altea_EN.book Seite 70 Donnersta g, 2. September 2010 2:00 14

Cockpit71
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Note
For electronic and vehicle equipment one or more of these menus will be
displayed.

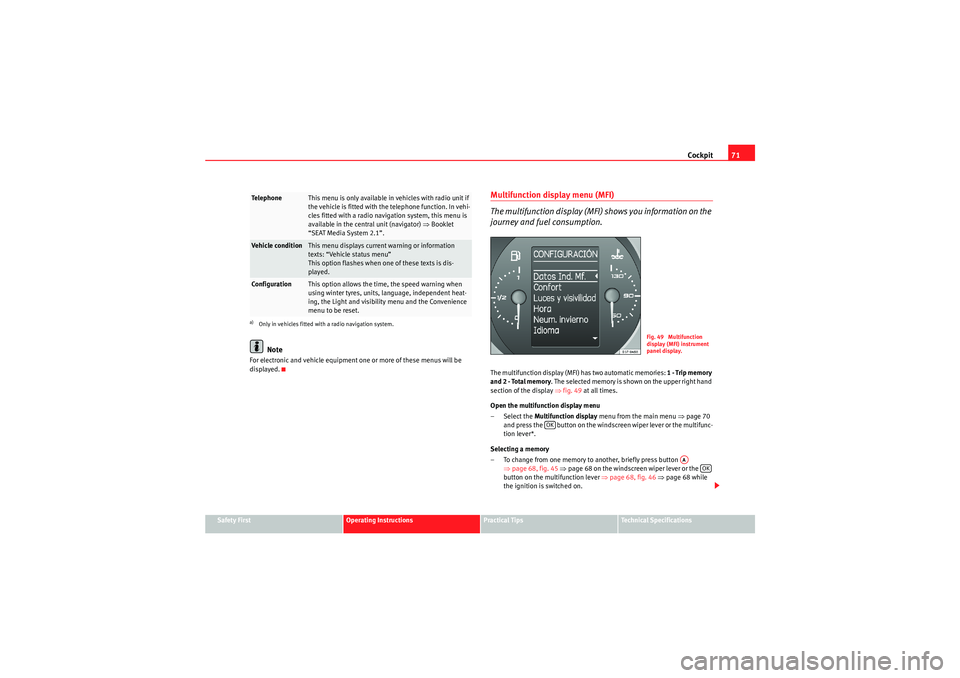

Multifunction disp lay menu (MFI)
The multifunction display (MFI) shows you information on the
journey and fuel consumption.The multifunction display (MFI) has two automatic memories: 1 - Trip memory
and 2 - Total memory . The selected memory is shown on the upper right hand
section of the display ⇒fig. 49 at all times.
Open the multifunction display menu
–Select the Multifunction display menu from the main menu ⇒page 70
and press the button on the windscreen wiper lever or the multifunc-
tion lever*.
Selecting a memory
– To change from one memory to another, briefly press button ⇒page 68, fig. 45 ⇒ page 68 on the windscreen wiper lever or the
button on the multifunction lever ⇒page 68, fig. 46 ⇒page 68 while
the ignition is switched on.
Te l e p h o n e
This menu is only available in vehicles with radio unit if
the vehicle is fitted with the telephone function. In vehi-
cles fitted with a radio navigation system, this menu is
available in the central unit (navigator) ⇒ Booklet
“SEAT Media System 2.1”.
Vehicle condition
This menu displays current warning or information
texts: “Vehicle status menu”
This option flashes when one of these texts is dis-
played.
Configuration
This option allows the time, the speed warning when
using winter tyres, units, language, independent heat-
ing, the Light and visibility menu and the Convenience
menu to be reset.
a)Only in vehicles fitted with a radio navigation system.
Fig. 49 Multifunction
display (MFI) instrument
panel display.
OK
AA
OK
Altea_EN.book Seite 71 Donnersta g, 2. September 2010 2:00 14

Cockpit

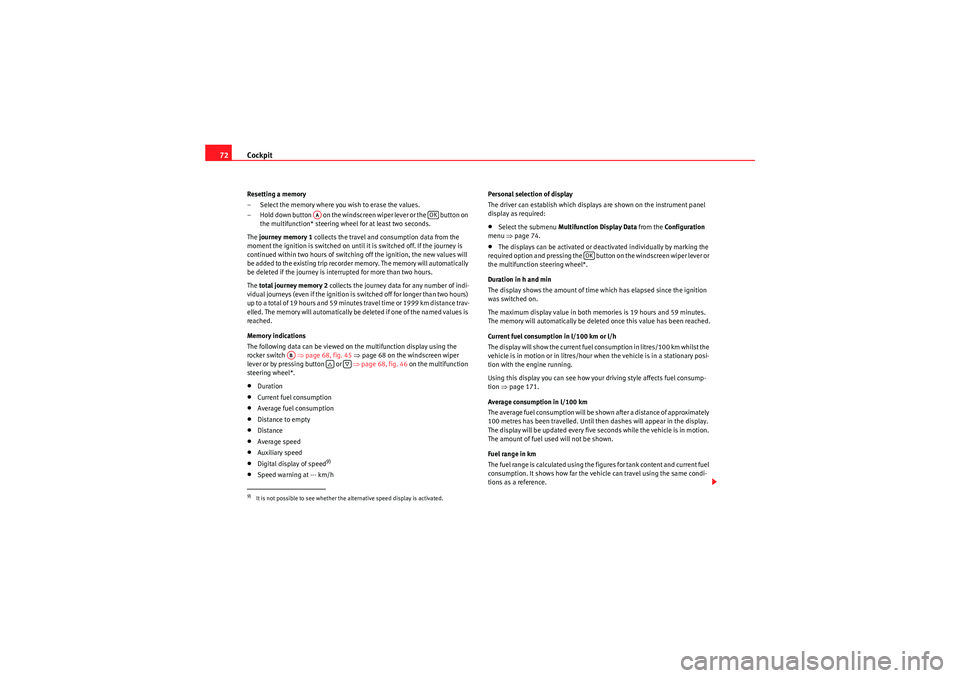

72Resetting a memory
– Select the memory where you wish to erase the values.
– Hold down button on the windscreen wiper lever or the button on
the multifunction* steering wheel for at least two seconds.
The journey memory 1 collects the travel and consumption data from the
moment the ignition is switched on until it is switched off. If the journey is
continued within two hours of switching off the ignition, the new values will
be added to the existing trip recorder memory. The memory will automatically
be deleted if the journey is interrupted for more than two hours.
The total journey memory 2 collects the journey data for any number of indi-
vidual journeys (even if the ignition is switched off for longer than two hours)
up to a total of 19 hours and 59 minutes travel time or 1999 km distance trav-
elled. The memory will automatically be deleted if one of the named values is
reached.
Memory indications
The following data can be viewed on the multifunction display using the
rocker switch ⇒page 68, fig. 45 ⇒page 68 on the windscreen wiper
lever or by pressing button or ⇒page 68, fig. 46 on the multifunction
steering wheel*.•Duration•Current fuel consumption•Average fuel consumption•Distance to empty•Distance•Average speed•Auxiliary speed•Digital display of speed
9)
•Speed warning at --- km/h Personal selection of display
The driver can establish which displays are shown on the instrument panel
display as required:
•Select the submenu
Multifunction Display Data from the Configuration
menu ⇒page 74.•The displays can be activated or deactivated individually by marking the
required option and pressing the button on the windscreen wiper lever or
the multifunction steering wheel*.
Duration in h and min
The display shows the amount of time which has elapsed since the ignition
was switched on.
The maximum display value in both me mories is 19 hours and 59 minutes.
The memory will automatically be deleted once this value has been reached.
Current fuel consumption in l/100 km or l/h
The display will show the current fuel consumption in litres/100 km whilst the
vehicle is in motion or in litres/hour when the vehicle is in a stationary posi-
tion with the engine running.
Using this display you can see how your driving style affects fuel consump-
tion ⇒page 171.
Average consumption in l/100 km
The average fuel consumption will be shown after a distance of approximately
100 metres has been travelled. Until then dashes will appear in the display.
The display will be updated every five seconds while the vehicle is in motion.
The amount of fuel used will not be shown.
Fuel range in km
The fuel range is calculated using the figures for tank content and current fuel
consumption. It shows how far the vehicle can travel using the same condi-
tions as a reference.
9)It is not possible to see whether the alternative speed display is activated.
AA
OK
AB
…
†
OK
Altea_EN.book Seite 72 Donnersta g, 2. September 2010 2:00 14

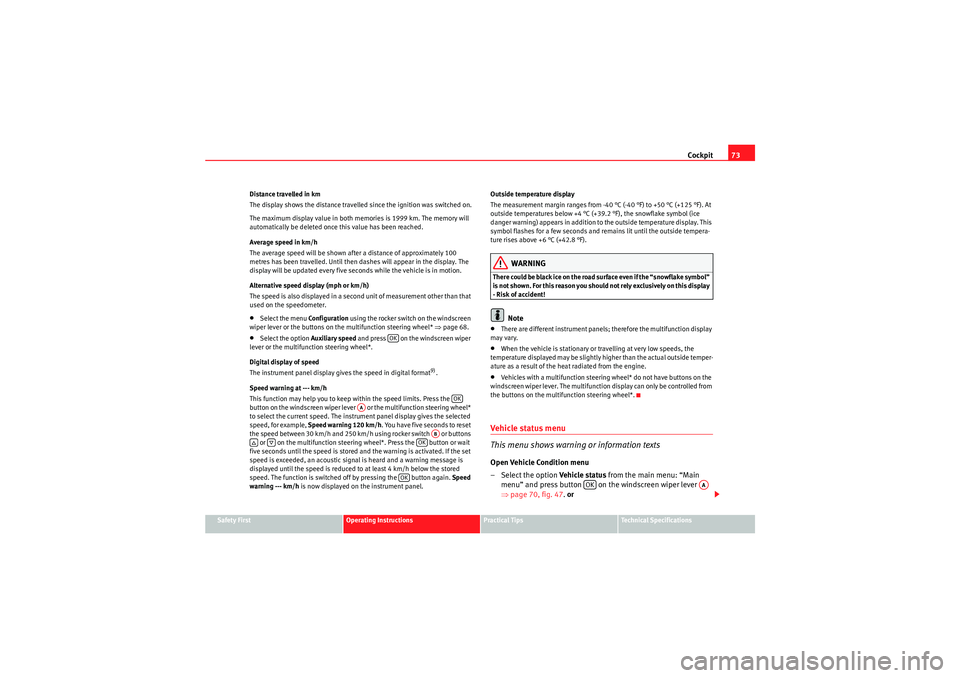

Cockpit73
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Distance travelled in km
The display shows the distance travelled since the ignition was switched on.
The maximum display value in both memories is 1999 km. The memory will
automatically be deleted once this value has been reached.
Average speed in km/h
The average speed will be shown after a distance of approximately 100
metres has been travelled. Until then dashes will appear in the display. The
display will be updated every five seconds while the vehicle is in motion.
Alternative speed display (mph or km/h)
The speed is also displayed in a second unit of measurement other than that
used on the speedometer.
•Select the menu
Configuration using the rocker switch on the windscreen
wiper lever or the buttons on the multifunction steering wheel* ⇒page 68.•Select the option Auxiliary speed and press on the windscreen wiper
lever or the multifunction steering wheel*.
Digital display of speed
The instrument panel display gives the speed in digital format
9).
Speed warning at --- km/h
This function may help you to keep within the speed limits. Press the
button on the windscreen wiper lever or the multifunction steering wheel*
to select the current speed. The instrument panel display gives the selected
speed, for example, Speed warning 120 km/h . You have five seconds to reset
the speed between 30 km/h and 250 km/h using rocker switch or buttons or on the multifunction steering wheel*. Press the button or wait
five seconds until the speed is stored and the warning is activated. If the set
speed is exceeded, an acoustic signal is heard and a warning message is
displayed until the speed is reduced to at least 4 km/h below the stored
speed. The function is switched off by pressing the button again. Speed
warning --- km/h is now displayed on the instrument panel. Outside temperature display
The measurement margin ranges from -40 °C (-40 °F) to +50 °C (+125 °F). At
outside temperatures below +4 °C (+39.2 °F), the snowflake symbol (ice
danger warning) appears in addition to the outside temperature display. This
symbol flashes for a few seconds and remains lit until the outside tempera-
ture rises above +6 °C (+42.8 °F).
WARNING
There could be black ice on the road surface even if the “snowflake symbol”
is not shown. For this reason you should not rely exclusively on this display
- Risk of accident!
Note
•There are different instrument panels; therefore the multifunction display
may vary.•When the vehicle is stationary or travelling at very low speeds, the
temperature displayed may be slightly higher than the actual outside temper-
ature as a result of the heat radiated from the engine.•Vehicles with a multifunction steering wheel* do not have buttons on the
windscreen wiper lever. The multifunction display can only be controlled from
the buttons on the multifunction steering wheel*.Vehicle status menu
This menu shows warning or information textsOpen Vehicle Condition menu
– Select the option Veh i cle status from the main menu: “Main
menu” and press button on the windscreen wiper lever
⇒ page 70, fig. 47 . or
OK
OK
AA
AB


OK
OK
OK
AA
Altea_EN.book Seite 73 Donnersta g, 2. September 2010 2:00 14

Cockpit
74
– Press button or on the multifunction steering wheel* ⇒page 68, fig. 46 until the Vehicle Status menu is displayed.Priority 2 warning messages and information texts: “Information and warning
messages on the screen” will automatically disappear from the screen after a
time and will be stored in the Vehicle status menu.
The warning and information texts may be viewed in this menu. If there is no
warning or information message, the option Vehicle status is not displayed.
If there are several messages, each one is shown for a few seconds.
Example of menu use ⇒page 68
Note
If there are no warning messages, this menu is not available.Configuration menu
This menu is used to make th e settings for the vehicle func-
tions.Open Configuration menu
– Select the option Configuration from the main menu: “Main
menu” and press button ⇒page 68, fig. 45 on the wind-
screen wiper lever. or

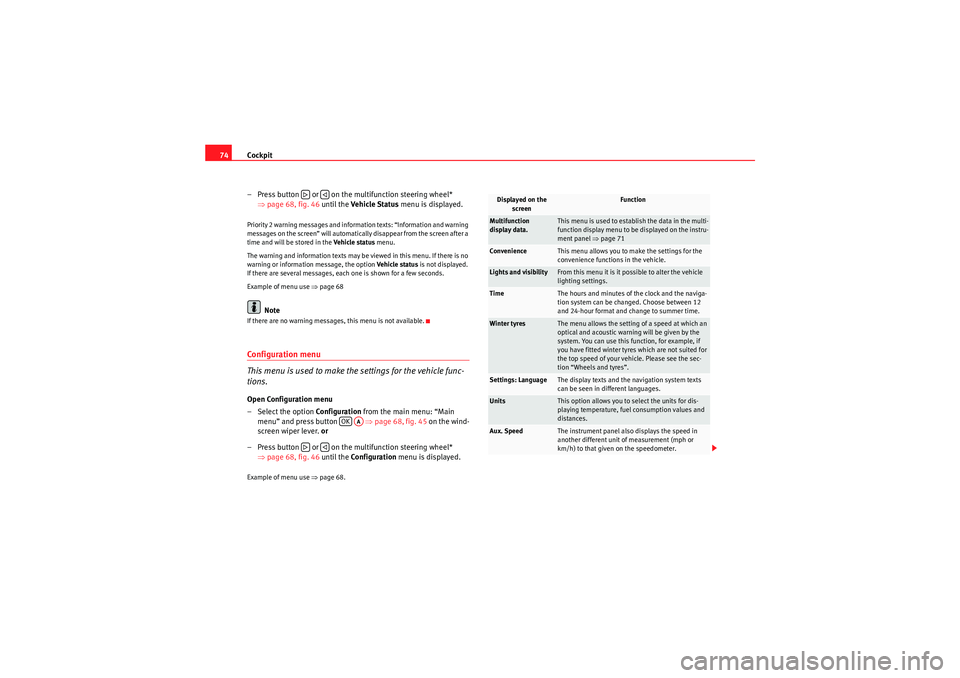

– Press button or on the multifunction steering wheel* ⇒page 68, fig. 46 until the Configuration menu is displayed.Example of menu use ⇒page 68.
„
ƒ
OK
AA
„
ƒ
Displayed on the
screen
Function
Multifunction
display data.
This menu is used to establish the data in the multi-
function display menu to be displayed on the instru-
ment panel ⇒page 71
Convenience
This menu allows you to make the settings for the
convenience functions in the vehicle.
Lights and visibility
From this menu it is it possible to alter the vehicle
lighting settings.
Time
The hours and minutes of the clock and the naviga-
tion system can be changed. Choose between 12
and 24-hour format and change to summer time.
Winter tyres
The menu allows the setting of a speed at which an
optical and acoustic warning will be given by the
system. You can use this function, for example, if
you have fitted winter tyres which are not suited for
the top speed of your vehicle. Please see the sec-
tion “Wheels and tyres”.
Settings: Language
The display texts and the navigation system texts
can be seen in different languages.
Units
This option allows you to select the units for dis-
playing temperature, fuel consumption values and
distances.
Aux. Speed
The instrument panel also displays the speed in
another different unit of measurement (mph or
km/h) to that given on the speedometer.
Altea_EN.book Seite 74 Donnersta g, 2. September 2010 2:00 14

Cockpit75
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Note
•For electronic and vehicle equipment one or more of these menus will be
displayed.•SEAT dealers are able to programme other functions or change the
existing functions depending upon the vehicle equipment.•The Configuration menu is only accessible when the vehicle is at a
standstill.Convenience menu

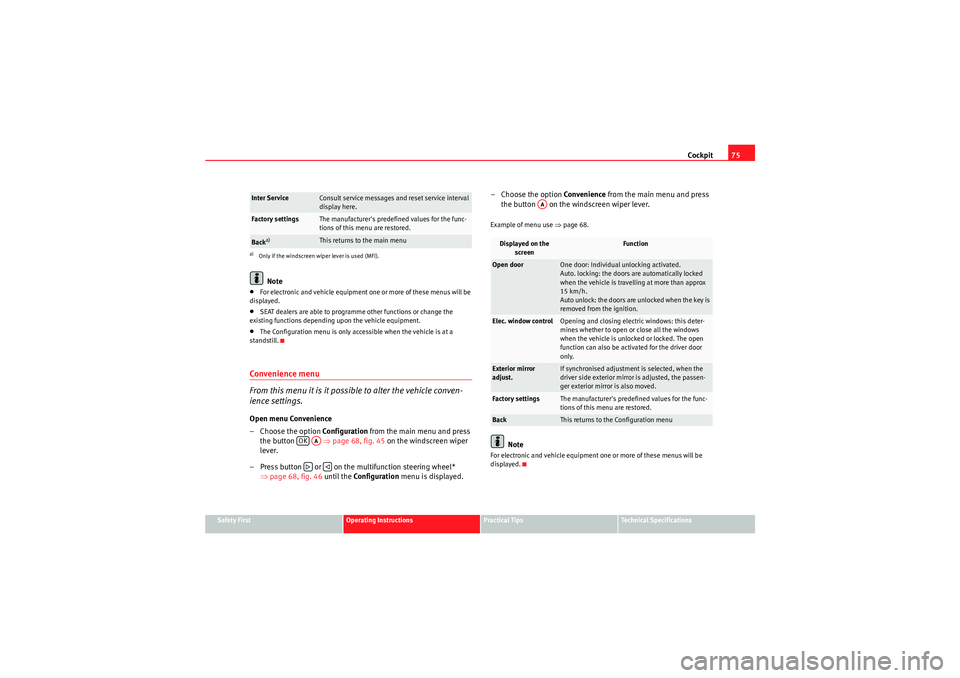

From this menu it is it possible to alter the vehicle conven-
ience settings.Open menu Convenience
– Choose the option Configuration from the main menu and press
the button ⇒ page 68, fig. 45 on the windscreen wiper
lever.
– Press button or on the multifunction steering wheel* ⇒page 68, fig. 46 until the Configuration menu is displayed. – Choose the option
Convenience from the main menu and press
the button on the windscreen wiper lever.
Example of menu use ⇒page 68.
Note
For electronic and vehicle equipment one or more of these menus will be
displayed.
Inter Service
Consult service messages and reset service interval
display here.
Factory settings
The manufacturer's predefined values for the func-
tions of this menu are restored.
Back
a)
This returns to the main menu
a)Only if the windscreen wiper lever is used (MFI).
OK
AA„
ƒ
Displayed on the
screen
Function
Open door
One door: Individual unlocking activated.
Auto. locking: the doors are automatically locked
when the vehicle is travelling at more than approx
15 km/h.
Auto unlock: the doors are unlocked when the key is
removed from the ignition.
Elec. window control
Opening and closing electric windows: this deter-
mines whether to open or close all the windows
when the vehicle is unlocked or locked. The open
function can also be activated for the driver door
only.
Exterior mirror
adjust.
If synchronised adjustment is selected, when the
driver side exterior mirror is adjusted, the passen-
ger exterior mirror is also moved.
Factory settings
The manufacturer's predefined values for the func-
tions of this menu are restored.
Back
This returns to the Configuration menu
AA
Altea_EN.book Seite 75 Donnersta g, 2. September 2010 2:00 14

Cockpit
76Lights and visibility menu

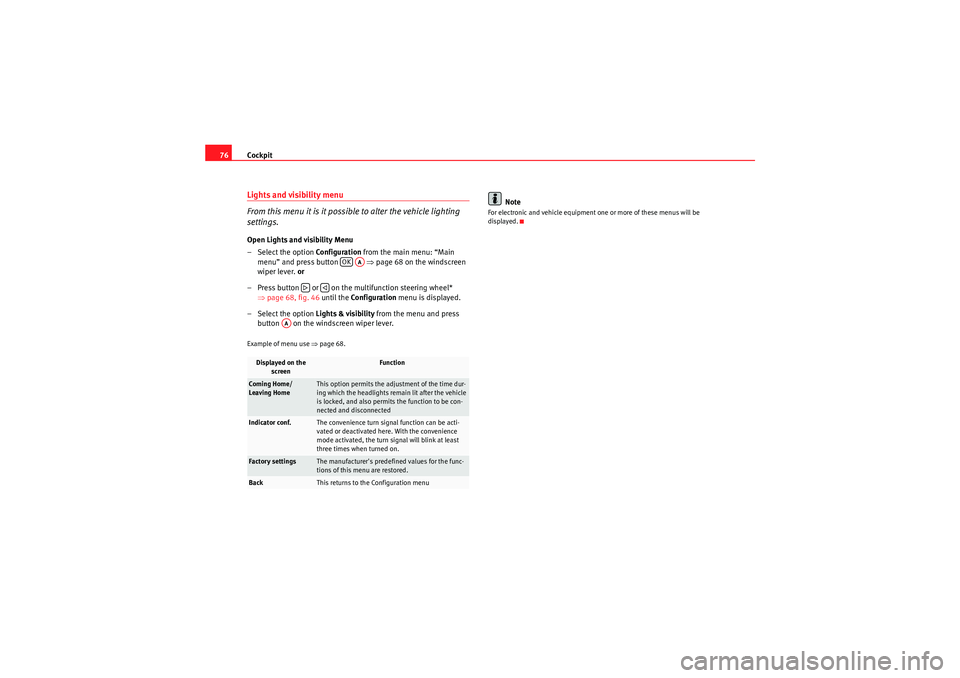

From this menu it is it possible to alter the vehicle lighting
settings.Open Lights and visibility Menu
– Select the option Configuration from the main menu: “Main
menu” and press button ⇒page 68 on the windscreen
wiper lever. or
– Press button or on the multifunction steering wheel* ⇒page 68, fig. 46 until the Configuration menu is displayed.
– Select the option Lights & visibility from the menu and press
button on the windscreen wiper lever.Example of menu use ⇒page 68.
Note
For electronic and vehicle equipment one or more of these menus will be
displayed.
Displayed on the
screen
Function
Coming Home/
Leaving Home
This option permits the adjustment of the time dur-
ing which the headlights remain lit after the vehicle
is locked, and also permits the function to be con-
nected and disconnected
Indicator conf.
The convenience turn signal function can be acti-
vated or deactivated here. With the convenience
mode activated, the turn signal will blink at least
three times when turned on.
Factory settings
The manufacturer's predefined values for the func-
tions of this menu are restored.
Back
This returns to the Configuration menu
OK
AA
„
ƒ
AA
Altea_EN.book Seite 76 Donnersta g, 2. September 2010 2:00 14

Cockpit77
Safety First
Operating Instructions
Practical Tips
Technical Specifications

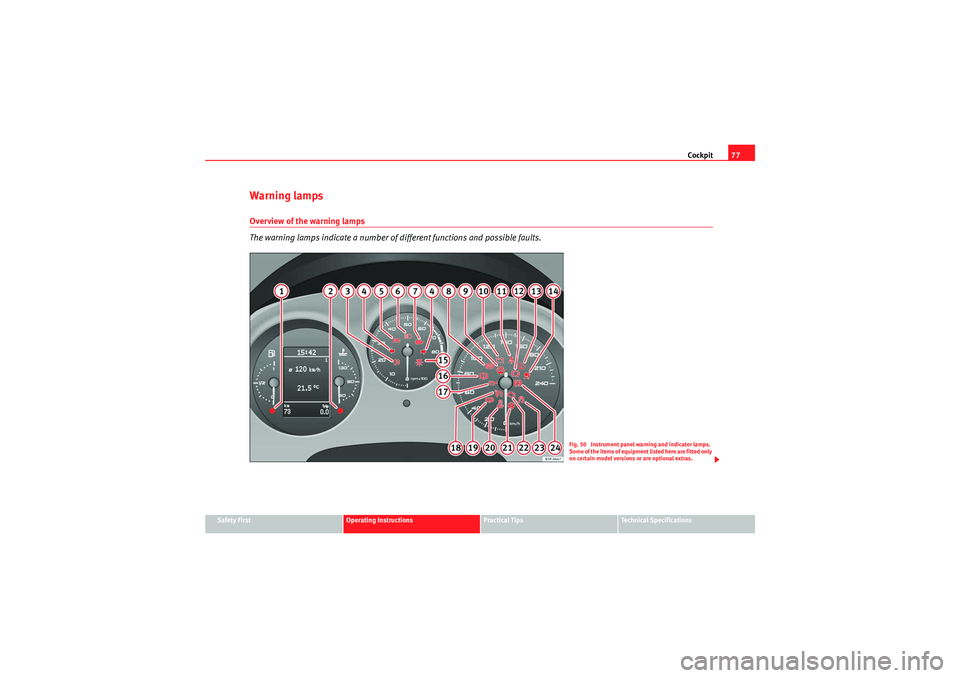

Warning lampsOverview of the warning lamps
The warning lamps indicate a number of different functions and possible faults.
Fig. 50 Instrument panel warning and indicator lamps.
Some of the items of equipment listed here are fitted only
on certain model versions or are optional extras.
Altea_EN.book Seite 77 Donnersta g, 2. September 2010 2:00 14

Cockpit
78Item
Symbol
Meaning of warning and
indicator lamps
Further
information
z
Fuel level / reserve
⇒ page 82
v
Coolant level / coolant temperature
⇒page 82


Rear fog light switched on
⇒page 83

Turn signals in operation
⇒page 83
%0#
Engine fault (petrol engine)
⇒page 83
D
Glow plug system for diesel engine
⇒page 83

Main beam switched on
⇒page 84

Soot accumulation in the diesel engine
particulate filter
⇒page 84
J
ABS system fault
⇒page 84
Y
Windscreen washer fluid level
⇒page 85
F
Alternator fault
⇒page 85
h
Fasten seat belts!
⇒page 19
I
Brake pad worn
⇒page 85
~
Tyr e pre ssu re
⇒page 85
A1A2A3A4A5A6A7A8A9A10A11A12A13
T
Airbag or belt tensioner system fault or
airbag disabled
⇒page 28
⇒ page 31

Bulb defective
⇒page 87
H
Handbrake applied,
low brake fluid level or
fault in brake system
⇒page 86
E
Red:
Engine oil pressure
⇒ page 87
Ye l l o w :
If flashing: engine oil sensor faulty
If it remains lit: insufficient engine oil

Cruise control system switched on
⇒page 87
o
Door open indicator
⇒page 88
l
If it stays lit: TCS disabled
⇒page 88
⇒ page 89
⇒ page 172

Electromechanical steering
⇒page 88

Fault in the emission control system
⇒page 88
 If flashing: Electronic Stability Pro-
gramme (ESP) or the TCS is working
If it remains lit: ESP or TCS faulty
⇒page 88
⇒ page 89
⇒ page 172
K
Selector lever lock (automatic gearbox)
⇒page 89
Item
Symbol
Meaning of warning and
indicator lamps
Further
information
A14A15A16A17A18A19A20A21A22A23A24
Altea_EN.book Seite 78 Donnersta g, 2. September 2010 2:00 14
