technical specifications Seat Altea XL 2010 User Guide

Technical Data297
Safety First
Operating instructions
Practical tips
Technical Data

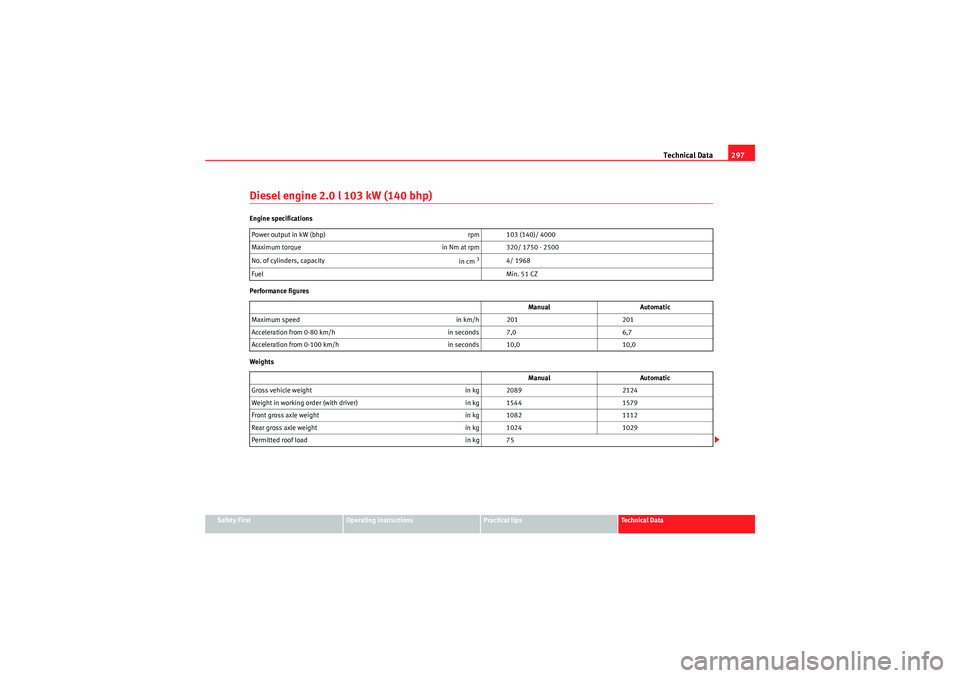

Diesel engine 2.0 l 103 kW (140 bhp)Engine specifications
Performance figures
WeightsPower output in kW (bhp)
rpm 103 (140)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Fuel Min. 51 CZ
Manual Automatic
Maximum speed in km/h 201201
Acceleration from 0-80 km/h in seconds 7,06,7
Acceleration from 0-100 km/h in seconds 10,010,0
Manual Automatic
Gross vehicle weight in kg 20892124
Weight in working order (with driver) in kg 15441579
Front gross axle weight in kg 10821112
Rear gross axle weight in kg 10241029
Permitted roof load in kg 75
AlteaXL_EN.book Seite 297 Dienstag, 1. September 2009 10:37 10

Technical Data

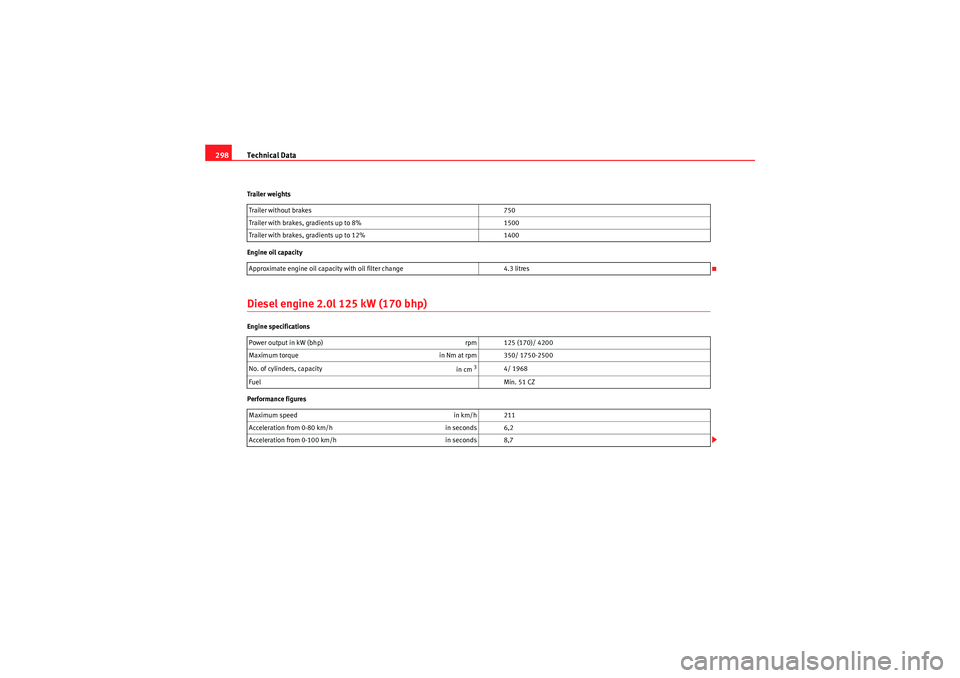

298Trailer weights
Engine oil capacityDiesel engine 2.0l 125 kW (170 bhp)Engine specifications
Performance figures Trailer without brakes
750
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (bhp) rpm 125 (170)/ 4200
Maximum torque in Nm at rpm 350/ 1750-2500
No. of cylinders, capacity in cm
3
4/ 1968
Fuel Min. 51 CZ
Maximum speed in km/h 211
Acceleration from 0-80 km/h in seconds 6,2
Acceleration from 0-100 km/h in seconds 8,7
AlteaXL_EN.book Seite 298 Dienstag, 1. September 2009 10:37 10
