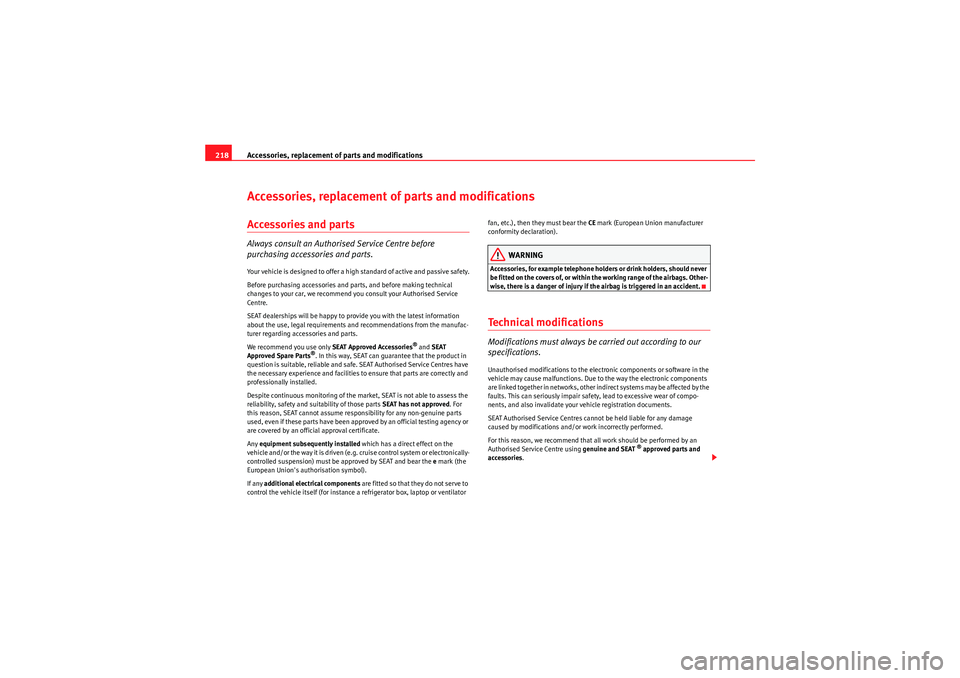

Accessories, replacement of parts and modifications
218Accessories, replacement of parts and modificationsAccessories and partsAlways consult an Authorised Service Centre before
purchasing accessories and parts.Your vehicle is designed to offer a high standard of active and passive safety.
Before purchasing accessories and parts, and before making technical
changes to your car, we recommend you consult your Authorised Service
Centre.
SEAT dealerships will be happy to provide you with the latest information
about the use, legal requirements and recommendations from the manufac-
turer regarding accessories and parts.
We recommend you use only SEAT Approved Accessories
® and SEAT
Approved Spare Parts
®. In this way, SEAT can guarantee that the product in
question is suitable, reliable and safe. SEAT Authorised Service Centres have
the necessary experience and facilities to ensure that parts are correctly and
professionally installed.
Despite continuous monitoring of the market, SEAT is not able to assess the
reliability, safety and suitability of those parts SEAT has not approved. For
this reason, SEAT cannot assume responsibility for any non-genuine parts
used, even if these parts have been approved by an official testing agency or
are covered by an official approval certificate.
Any equipment subsequently installed which has a direct effect on the
ve hi cle a nd/ or the way i t is d ri ve n ( e. g. cr u is e co ntrol s ys te m o r e lec tro ni ca lly-
controlled suspension) must be approved by SEAT and bear the e mark (the
European Union's authorisation symbol).
If any additional electrical components are fitted so that they do not serve to
control the vehicle itself (for instance a refrigerator box, laptop or ventilator fan, etc.), then they must bear the
CE mark (European Union manufacturer
conformity declaration).
WARNING
Accessories, for example telephone holders or drink holders, should never
be fitted on the covers of, or within the working range of the airbags. Other-
wise, there is a danger of injury if the airbag is triggered in an accident.Technical modificationsModifications must always be carried out according to our
specifications.Unauthorised modifications to the electronic components or software in the
vehicle may cause malfunctions. Due to the way the electronic components
are linked together in networks, other indirect systems may be affected by the
faults. This can seriously impair safety, lead to excessive wear of compo-
nents, and also invalidate your vehicle registration documents.
SEAT Authorised Service Centres cannot be held liable for any damage
caused by modifications and/or work incorrectly performed.
For this reason, we recommend that all work should be performed by an
Authorised Service Centre using genuine and SEAT
® approved parts and
accessories .
AlteaXL_EN.book Seite 218 Dienstag, 1. September 2009 10:37 10

Checking and refilling levels231
Safety First
Operating instructions
Practical tips
Technical Data

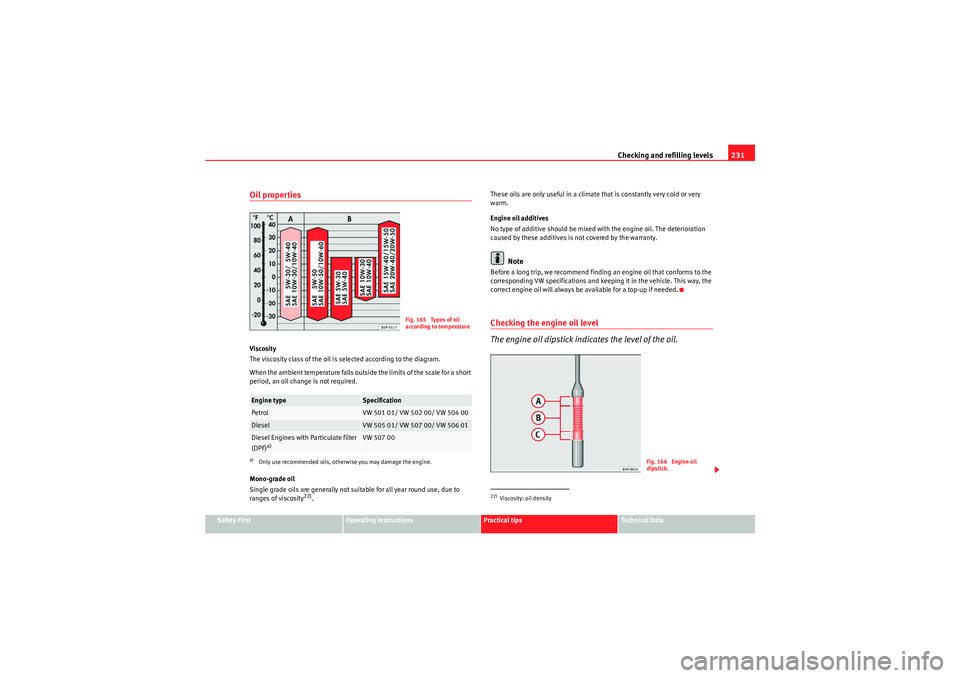

Oil propertiesViscosity
The viscosity class of the oil is selected according to the diagram.
When the ambient temperature falls outside the limits of the scale for a short
period, an oil change is not required.
Mono-grade oil
Single grade oils are generally not suitable for all year round use, due to
ranges of viscosity
22). These oils are only useful in a climate that is constantly very cold or very
warm.
Engine oil additives
No type of additive should be mixed with the engine oil. The deterioration
caused by these additives is not covered by the warranty.
Note
Before a long trip, we recommend finding an engine oil that conforms to the
corresponding VW specifications and keeping it in the vehicle. This way, the
correct engine oil will always be available for a top-up if needed.Checking the engine oil level
The engine oil dipstick indi
cates the level of the oil.
Engine type
Specification
Petrol
VW 501 01/ VW 502 00/ VW 504 00
Diesel
VW 505 01/ VW 507 00/ VW 506 01
Diesel Engines with Particulate filter
(DPF)
a)
a)Only use recommended oils, otherwise you may damage the engine.
VW 507 00
Fig. 165 Types of oil
according to temperature
22)Viscosity: oil density
Fig. 166 Engine oil
dipstick.
AlteaXL_EN.book Seite 231 Dienstag, 1. September 2009 10:37 10

Checking and refilling levels235
Safety First
Operating instructions
Practical tips
Technical Data

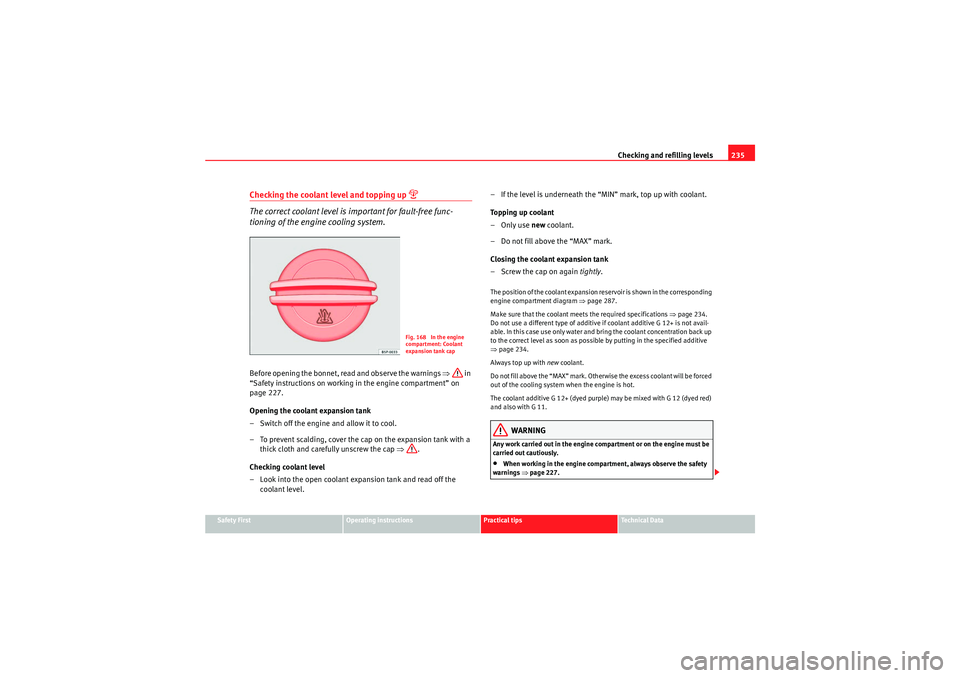

Checking the coolant level and topping up

The correct coolant level is important for fault-free func-
tioning of the engine cooling system.Before opening the bonnet, read and observe the warnings ⇒ in
“Safety instructions on working in the engine compartment” on
page 227.
Opening the coolant expansion tank
– Switch off the engine and allow it to cool.
– To prevent scalding, cover the cap on the expansion tank with a
thick cloth and carefully unscrew the cap ⇒.
Checking coolant level
– Look into the open coolant expansion tank and read off the coolant level. – If the level is underneath the “MIN” mark, top up with coolant.
To p p i n g u p c o o l a n t
–Only use
new coolant.
– Do not fill above the “MAX” mark.
Closing the coolant expansion tank
– Screw the cap on again tightly.
The position of the coolant expansion reservoir is shown in the corresponding
engine compartment diagram ⇒page 287.
Make sure that the coolant meets the required specifications ⇒ page 234.
Do not use a different type of additive if coolant additive G 12+ is not avail-
able. In this case use only water and bring the coolant concentration back up
to the correct level as soon as possible by putting in the specified additive
⇒ page 234.
Always top up with new coolant.
Do not fill above the “MAX” mark. Otherwise the excess coolant will be forced
out of the cooling system when the engine is hot.
The coolant additive G 12+ (dyed purple) may be mixed with G 12 (dyed red)
and also with G 11.
WARNING
Any work carried out in the engine compartment or on the engine must be
carried out cautiously.•When working in the engine compartment, always observe the safety
warnings ⇒page 227.
Fig. 168 In the engine
compartment: Coolant
expansion tank cap
AlteaXL_EN.book Seite 235 Dienstag, 1. September 2009 10:37 10

Technical Data

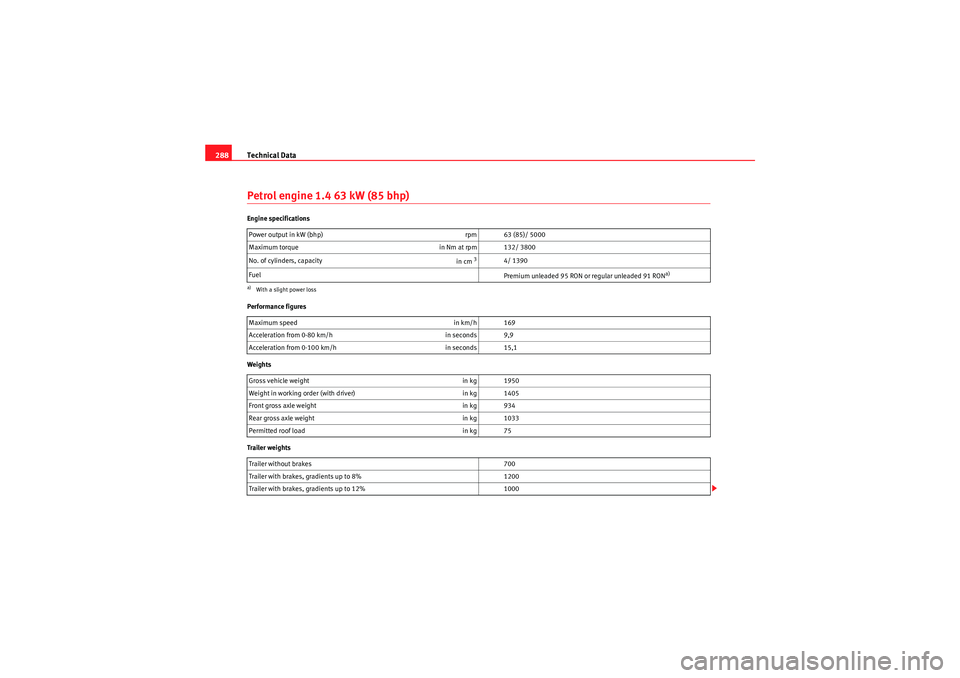

288Petrol engine 1.4 63 kW (85 bhp)Engine specifications
Performance figures
Weights
Trailer weights Power output in kW (bhp)
rpm 63 (85)/ 5000
Maximum torque in Nm at rpm 132/ 3800
No. of cylinders, capacity in cm
3
4/ 1390
Fuel Premium unleaded 95 RON or regular unleaded 91 RON
a)
a)With a slight power lossMaximum speedin km/h 169
Acceleration from 0-80 km/h in seconds 9,9
Acceleration from 0-100 km/h in seconds 15,1
Gross vehicle weight in kg 1950
Weight in working order (with driver) in kg 1405
Front gross axle weight in kg 934
Rear gross axle weight in kg 1033
Permitted roof load in kg 75
Trailer without brakes 700
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000
AlteaXL_EN.book Seite 288 Dienstag, 1. September 2009 10:37 10

Technical Data289
Safety First
Operating instructions
Practical tips
Technical Data

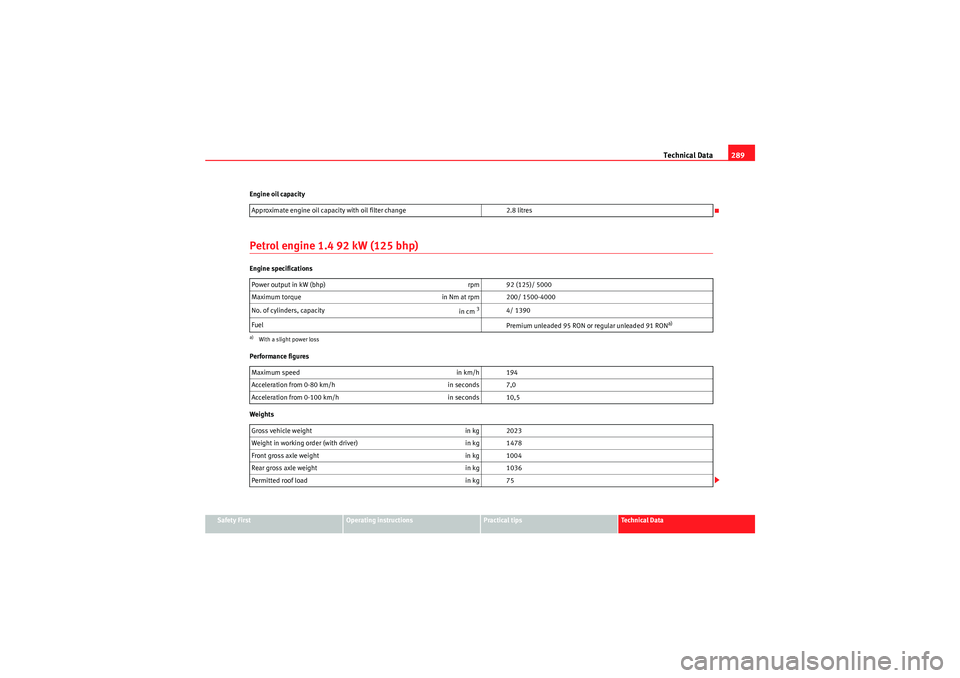

Engine oil capacity
Petrol engine 1.4 92 kW (125 bhp)Engine specifications
Performance figures
Weights
Approximate engine oil capacity with oil filter change
2.8 litres
Power output in kW (bhp) rpm 92 (125)/ 5000
Maximum torque in Nm at rpm 200/ 1500-4000
No. of cylinders, capacity in cm
3
4/ 1390
Fuel Premium unleaded 95 RON or regular unleaded 91 RON
a)
a)With a slight power lossMaximum speedin km/h 194
Acceleration from 0-80 km/h in seconds 7,0
Acceleration from 0-100 km/h in seconds 10,5
Gross vehicle weight in kg 2023
Weight in working order (with driver) in kg 1478
Front gross axle weight in kg 1004
Rear gross axle weight in kg 1036
Permitted roof load in kg 75
AlteaXL_EN.book Seite 289 Dienstag, 1. September 2009 10:37 10

Technical Data
290Trailer weights
Engine oil capacityPetrol engine 1.6 75 kW (102 bhp)Engine specifications
Performance figures Trailer without brakes
730
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1300
Approximate engine oil capacity with oil filter change 3.3 litres
Running on LPG Running on petrol
Power output in kW (HP) rpm 72 (98)/ 560075 (102)/ 5600
Maximum torque in Nm at rpm 144/ 3800148/ 3800
No. of cylinders, capacity in cm
3
4/ 15954/ 1595
Fuel LPGSuper 95 octane rating or Regular 91
octane rating
a)
a)Slight power loss.
Running on LPG
Running on petrol
Maximum speed in km/h 178181
Acceleration from 0-80 km/h in seconds 9,39
Acceleration from 0-100 km/h in seconds 1413,4
AlteaXL_EN.book Seite 290 Dienstag, 1. September 2009 10:37 10

Technical Data291
Safety First
Operating instructions
Practical tips
Technical Data

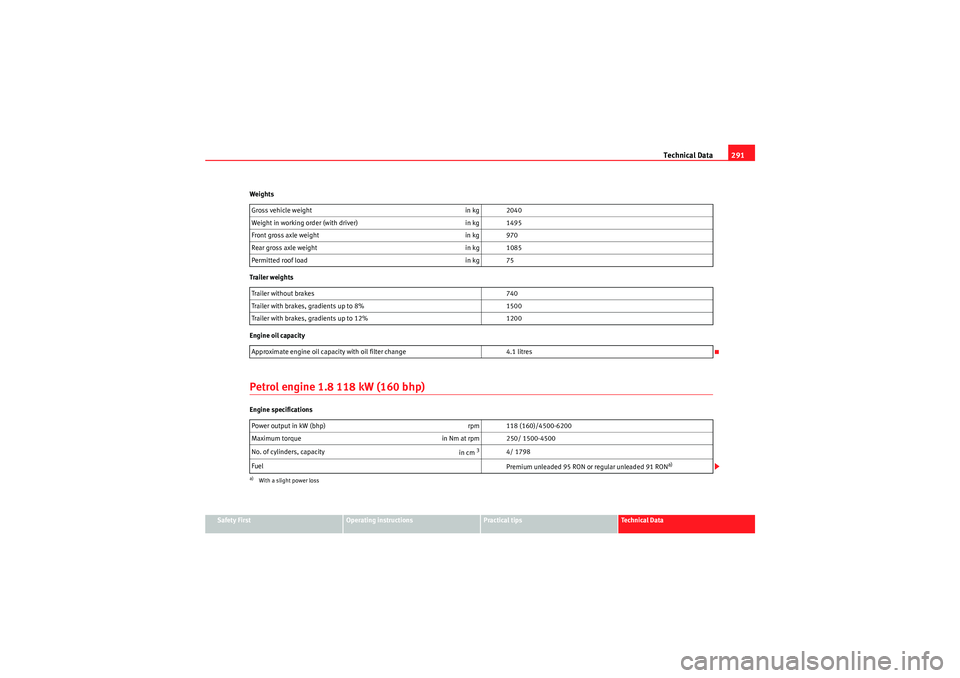

Weights
Trailer weights
Engine oil capacity
Petrol engine 1.8 118 kW (160 bhp)Engine specifications
Gross vehicle weight
in kg 2040
Weight in working order (with driver) in kg 1495
Front gross axle weight in kg 970
Rear gross axle weight in kg 1085
Permitted roof load in kg 75
Trailer without brakes 740
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1200
Approximate engine oil capacity with oil filter change 4.1 litres
Power output in kW (bhp) rpm 118 (160)/4500-6200
Maximum torque in Nm at rpm 250/ 1500-4500
No. of cylinders, capacity in cm
3
4/ 1798
Fuel Premium unleaded 95 RON or regular unleaded 91 RON
a)
a)With a slight power loss
AlteaXL_EN.book Seite 291 Dienstag, 1. September 2009 10:37 10

Technical Data293
Safety First
Operating instructions
Practical tips
Technical Data

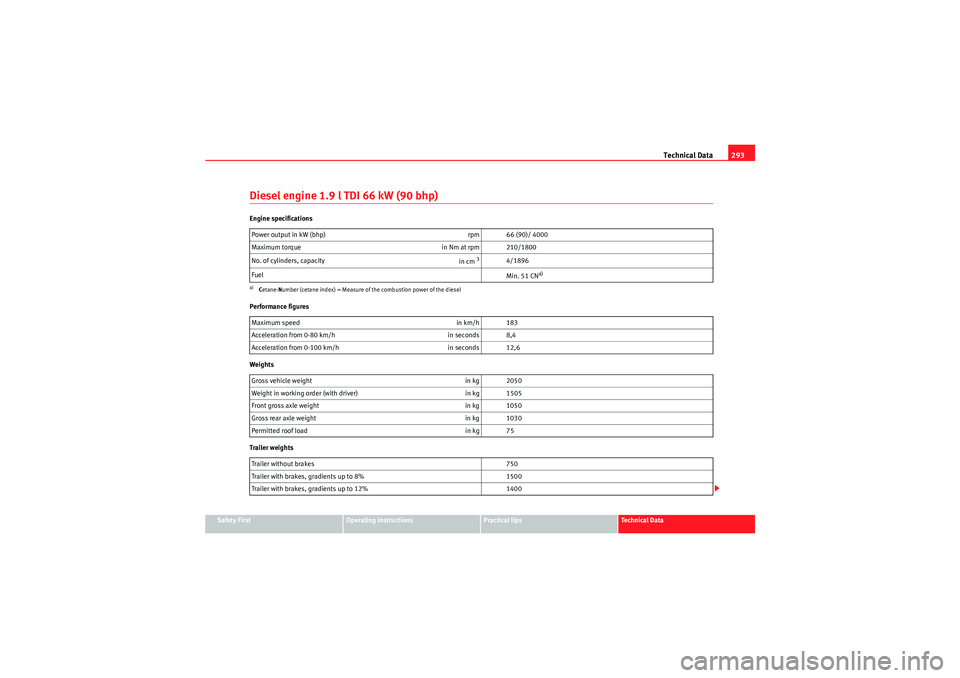

Diesel engine 1.9 l TDI 66 kW (90 bhp)Engine specifications
Performance figures
Weights
Trailer weightsPower output in kW (bhp)
rpm 66 (90)/ 4000
Maximum torque in Nm at rpm 210/1800
No. of cylinders, capacity in cm
3
4/1896
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the dieselMaximum speed in km/h 183
Acceleration from 0-80 km/h in seconds 8,4
Acceleration from 0-100 km/h in seconds 12,6
Gross vehicle weight in kg 2050
Weight in working order (with driver) in kg 1505
Front gross axle weight in kg 1050
Gross rear axle weight in kg 1030
Permitted roof load in kg 75
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
AlteaXL_EN.book Seite 293 Dienstag, 1. September 2009 10:37 10

Technical Data

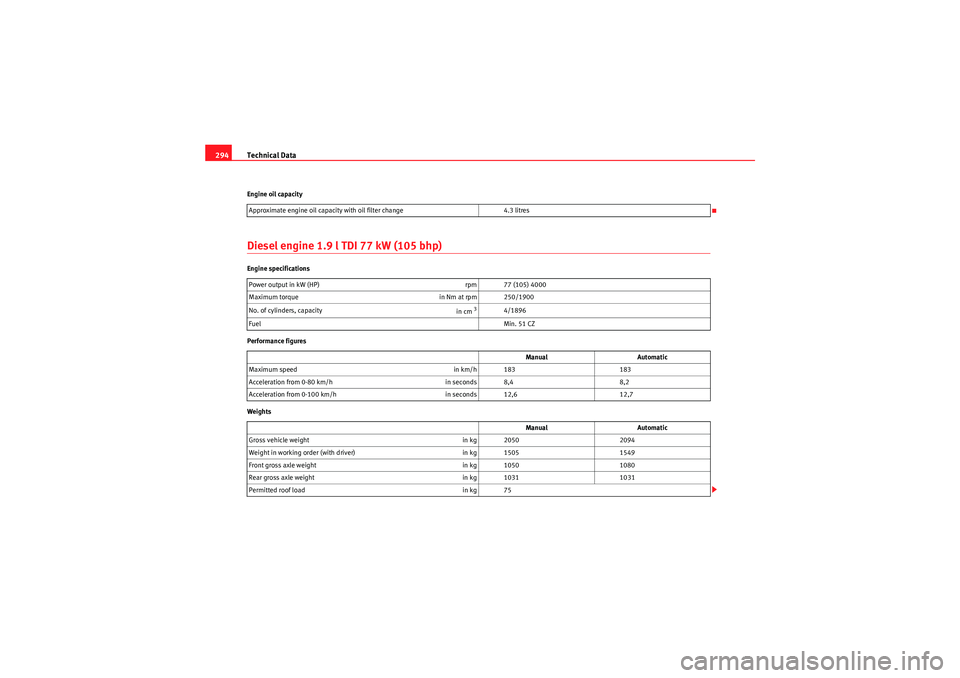

294Engine oil capacityDiesel engine 1.9 l TDI 77 kW (105 bhp)Engine specifications
Performance figures
Weights Approximate engine oil capacity with oil filter change
4.3 litres
Power output in kW (HP) rpm 77 (105) 4000
Maximum torque in Nm at rpm 250/1900
No. of cylinders, capacity in cm
3
4/1896
Fuel Min. 51 CZ
Manual Automatic
Maximum speed in km/h 183183
Acceleration from 0-80 km/h in seconds 8,48,2
Acceleration from 0-100 km/h in seconds 12,612,7
Manual Automatic
Gross vehicle weight in kg 20502094
Weight in working order (with driver) in kg 15051549
Front gross axle weight in kg 10501080
Rear gross axle weight in kg 10311031
Permitted roof load in kg 75
AlteaXL_EN.book Seite 294 Dienstag, 1. September 2009 10:37 10

Technical Data295
Safety First
Operating instructions
Practical tips
Technical Data

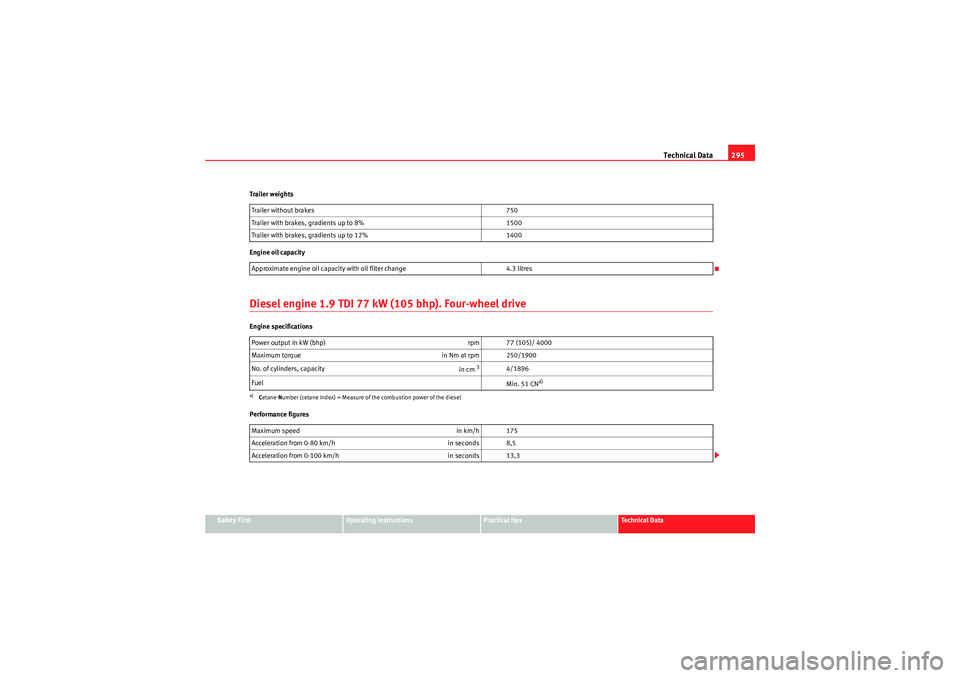

Trailer weights
Engine oil capacity
Diesel engine 1.9 TDI 77 kW (105 bhp). Four-wheel driveEngine specifications
Performance figures
Trailer without brakes
750
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (bhp) rpm 77 (105)/ 4000
Maximum torque in Nm at rpm 250/1900
No. of cylinders, capacity in cm
3
4/1896
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the dieselMaximum speed in km/h 175
Acceleration from 0-80 km/h in seconds 8,5
Acceleration from 0-100 km/h in seconds 13,3
AlteaXL_EN.book Seite 295 Dienstag, 1. September 2009 10:37 10
