Technical SpecificationsDescription of specificationsImportant informationImportant
The information in the vehicle documentation always has
precedence.All technical specifications provided in this manual are valid for the standard
model in Spain. The vehicle data card included in the Inspection and Mainte-
nance Plan in the vehicle documents shows which engine is installed in the
vehicle.
The figures may be different depending on if additional equipment is fitted,
for different models, for special vehicles and for other countries. Abbreviations used in the Technical Specifications section
Abbrevia-
tion
Meaning
kW
Kilowatt, engine power measurement.
PS
Pferdestärke (horsepower), formerly used to denote engine
power.
rpm
Revolutions per minute - engine speed.
Nm
Newton metres, unit of engine torque.
l/100 km
Fuel consumption in litres per 100 km.
g/km
Carbon dioxide emissions in grams per km travelled.
CO2
Carbon dioxide
CN
Cetane number, indication of the diesel combustion power.
RON
Research octane number, indication of the knock resistance
of petrol.
AlteaXL_EN.book Seite 289 Donnerstag, 9. September 2010 12:13 12

Description of specifications
290Vehicle identification data
The most important information is given on the identification
plate and the vehicle data sticker.Vehicles for certain export countries do not have an identification plate.
Identification plate
The identification plate is located on the left rib inside the engine compart-
ment.
Vehicle identification number
The vehicle identification number (chassis number) can be read from outside
the vehicle through a viewer in the windscreen. This is located on the left-
hand side of the vehicle in the lower area of the windscreen. It is also located
on the right hand side of the engine compartment. Vehicle data
The data sticker is placed on the inside of the spare wheel recess in the
luggage compartment.
The following information is provided on the vehicle data sticker:
⇒fig. 209
These data are also provided in the Maintenance Programme. Production control number
Vehicle identification number (chassis number)
Model code number
Model designation / engine power output
Engine and gearbox code letters
Paintwork number / interior trim code
Optional equipment codes
Consumption values
CO
2 emission values.
Data from 2 to 9 are also provided in the Maintenance Programme.
Consumption figures and CO
2
Consumption (litres/100 km) / CO
2 emissions (g/km), urban.
Consumption (litres/100 km) / CO2 emissions (g/km), road.
Consumption (litres/100 km) / CO2 emissions (g/km), combination.

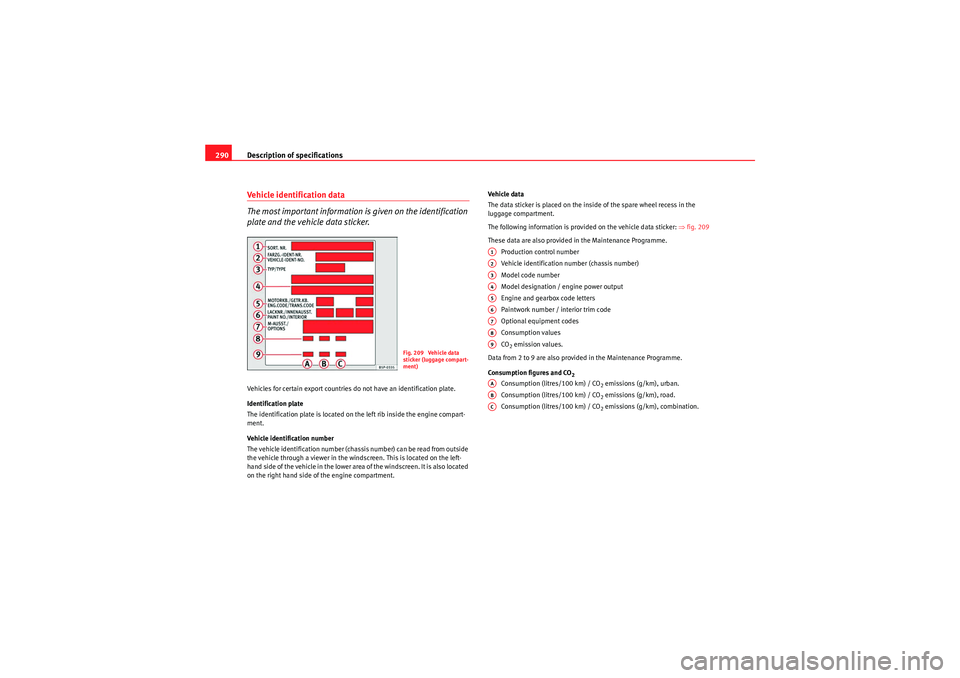

Fig. 209 Vehicle data
sticker (luggage compart-
ment)
A1A2A3A4A5A6A7A8A9AAABAC
AlteaXL_EN.book Seite 290 Donnerstag, 9. September 2010 12:13 12

Description of specifications291
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Information on fuel consumptionFuel consumption
The consumption and emission details shown on the vehicle
data sticker differ from one vehicle to another.The fuel consumption and CO
2 emissions of the vehicle can be found on the
vehicle data sticker.
The fuel consumption and emissions figures given are based on the vehicle
weight category, which is determined according to the engine/gearbox
combination and the equipment fitted.
The consumption and emission figures are calculated in accordance with the
tests indicated in regulations 715/2007/EC and 692/2008/EC.
Note
•Actual consumption may vary from quoted test values, depending on
personal driving style, road and traffic conditions, the weather and the
vehicle condition.WeightsKerb weight refers to the basic model with a fuel tank filled to 90% capacity
and without optional extras. The figure quoted includes 75 kg to allow for the
weight of the driver.
For special versions and optional equipment fittings or for the addition of
accessories, the weight of the vehicle will increase ⇒.
WARNING
•Please note that the centre of gravity may shift when transporting
heavy objects; this may affect the vehicle’s handling and lead to an acci-
dent. Always adjust your speed and driving style to suit road conditions
and requirements.•Never exceed the gross axle weight rating or the gross vehicle weight
rating. If the allowed axle load or the allowed total weight is exceeded, the
driving characteristics of the vehicle may change, leading to accidents,
injuries and damage to the vehicle.
To w i n g a t r a i l e rTrailer weightsTrailer weight
The trailer weights and drawbar loads approved are selected in intensive
trials according to precisely defined criteria. The approved trailer weights are
valid for vehicles in the EU for maximum speeds of 80 km/h (in certain
circumstances up to 100 km/h). The figures may be different in other coun-
tries. All data in the official vehicle documents take precedence over these
data ⇒ .
Drawbar load
The maximum permitted drawbar load on the ball joint of the towing bracket
must not exceed 75 kg.
In the interest of road safety, we recommend that you always tow
approaching the maximum drawbar load. The response of the trailer on the
road will be poor if the drawbar load is too small.
AlteaXL_EN.book Seite 291 Donnerstag, 9. September 2010 12:13 12

Description of specifications

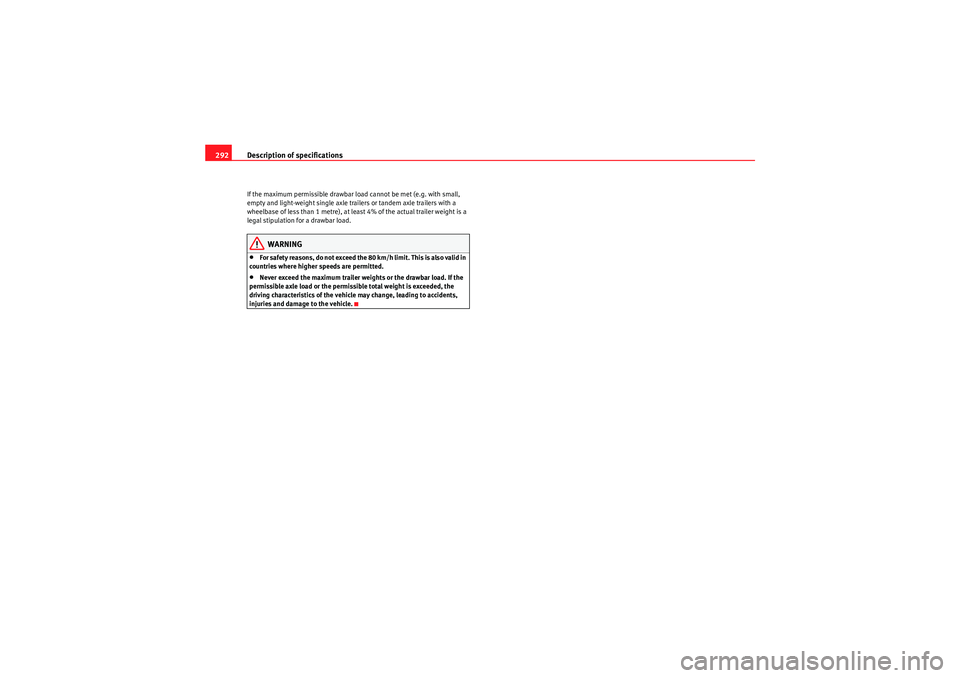

292If the maximum permissible drawbar load cannot be met (e.g. with small,
empty and light-weight single axle trailers or tandem axle trailers with a
wheelbase of less than 1 metre), at least 4% of the actual trailer weight is a
legal stipulation for a drawbar load.
WARNING
•For safet y reas ons , d o not excee d the 8 0 k m/h limit . Th is is als o valid in
countries where higher speeds are permitted.•Never exceed the maximum trailer weights or the drawbar load. If the
permissible axle load or the permissible total weight is exceeded, the
driving characteristics of the vehicle may change, leading to accidents,
injuries and damage to the vehicle.
AlteaXL_EN.book Seite 292 Donnerstag, 9. September 2010 12:13 12

Technical Specifications293
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Technical SpecificationsChecking fluid levelsFrom time to time, the levels of the different fluids in the
vehicle must be checked. Never fill with incorrect fluids,
otherwise serious damage to the engine may be caused.
Coolant expansion tank
Windscreen washer fluid reservoir
Engine oil filler cap
Engine oil dipstick
Brake fluid reservoir
Vehicle battery (underneath the cover)
The checking and refilling of service fluids are carried out on the components
mentioned above. These operations are described in the ⇒page 233. Overview
You will find further explanations, instructions and restrictions on the tech-
nical specifications as of
⇒page 289.

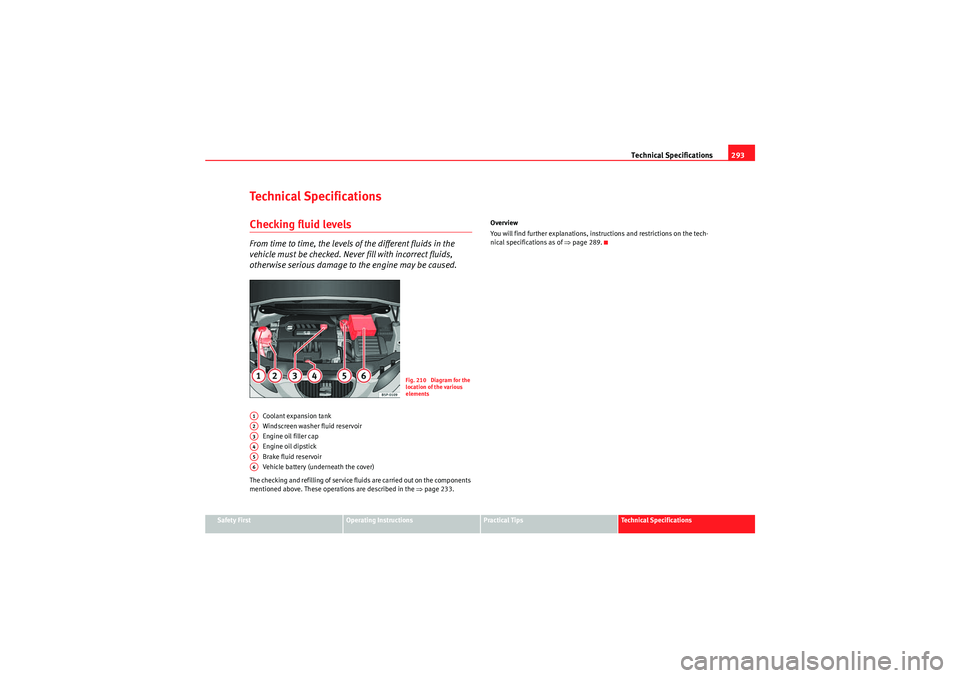

Fig. 210 Diagram for the
location of the various
elements
A1A2A3A4A5A6
AlteaXL_EN.book Seite 293 Donnerstag, 9. September 2010 12:13 12

Technical Specifications
294Petrol engine 1.4 63 kW (85 PS)Engine specifications
Performance
Weights
Trailer weight Power output in kW (PS)
rpm 63 (85)/ 5000
Maximum torque in Nm at rpm 132/ 3800
No. of cylinders/ capacity in cm
3
4/ 1390
Fuel Super unleaded 95 RON or Normal unleaded 91 RON
a)
a)With a slight power lossMaximum speedin km/h 169
Acceleration from 0-80 km/h in sec. 10.1
Acceleration from 0-100 km/h in sec. 15.4
Gross vehicle weight in kg 1949
Weight in running order (with driver) in kg 1405
Gross front axle weight in kg 934
Gross rear axle weight in kg 1033
Permitted roof load in kg 75
Trailer without brakes 700
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000
AlteaXL_EN.book Seite 294 Donnerstag, 9. September 2010 12:13 12

Technical Specifications295
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Engine oil capacity

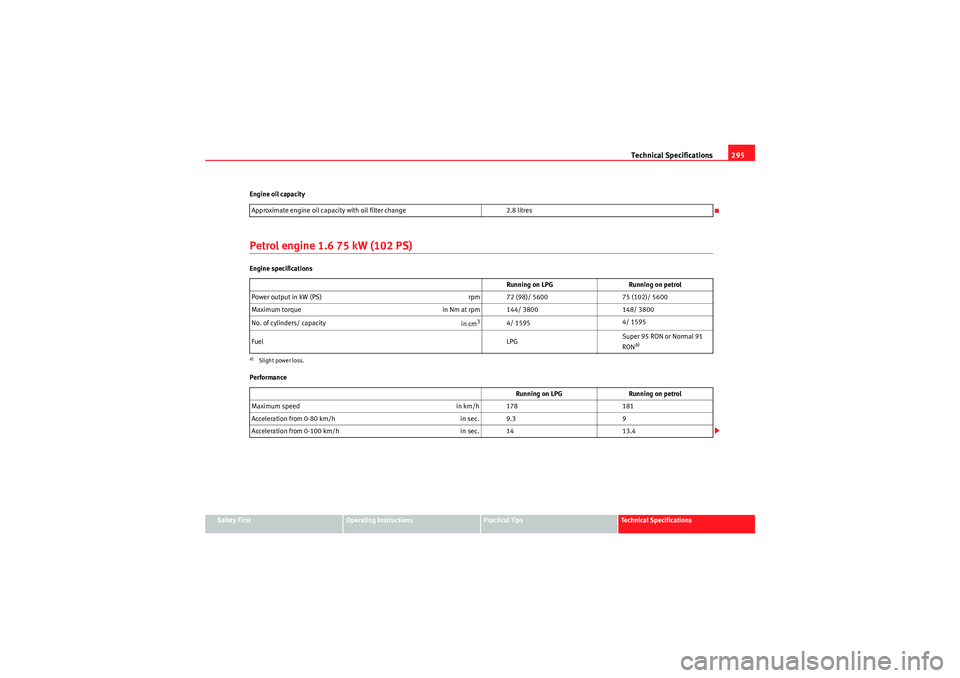

Petrol engine 1.6 75 kW (102 PS)Engine specifications
Performance
Approximate engine oil capacity with oil filter change
2.8 litres
Running on LPG Running on petrol
Power output in kW (PS) rpm 72 (98)/ 560075 (102)/ 5600
Maximum torque in Nm at rpm 144/ 3800148/ 3800
No. of cylinders/ capacity in cm
3
4/ 15954/ 1595
Fuel LPGSuper 95 RON or Normal 91
RON
a)
a)Slight power loss.
Running on LPG
Running on petrol
Maximum speed in km/h 178181
Acceleration from 0-80 km/h in sec. 9.39
Acceleration from 0-100 km/h in sec. 1413.4
AlteaXL_EN.book Seite 295 Donnerstag, 9. September 2010 12:13 12

Technical Specifications
296Weights
Trailer weight

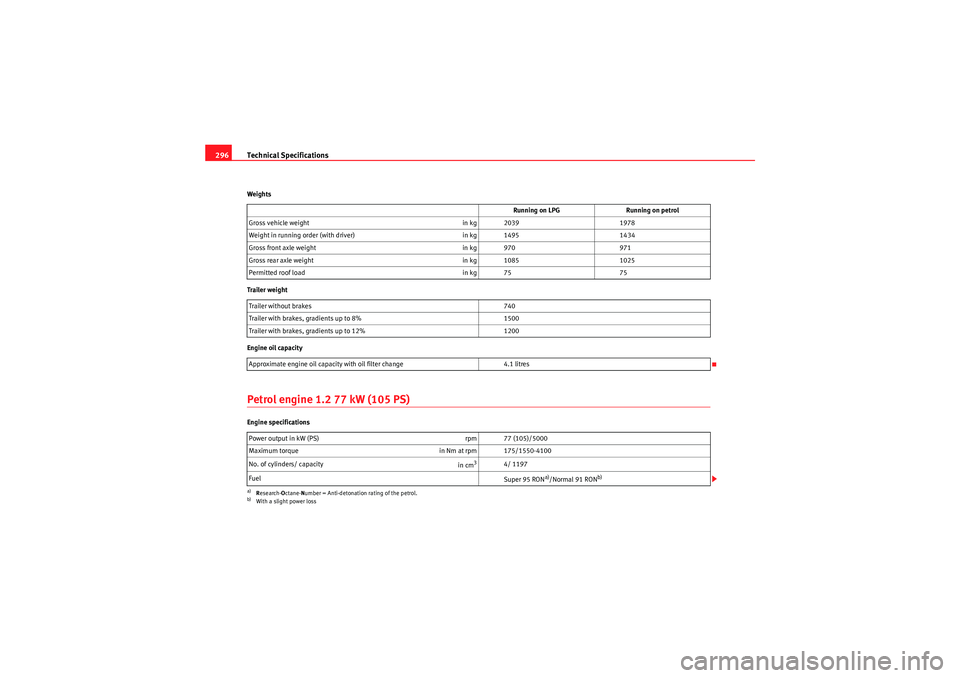

Engine oil capacityPetrol engine 1.2 77 kW (105 PS)Engine specifications Running on LPG
Running on petrol
Gross vehicle weight in kg 20391978
Weight in running order (with driver) in kg 14951434
Gross front axle weight in kg 970971
Gross rear axle weight in kg 10851025
Permitted roof load in kg 7575
Trailer without brakes 740
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1200
Approximate engine oil capacity with oil filter change 4.1 litres
Power output in kW (PS) rpm 77 (105)/5000
Maximum torque in Nm at rpm 175/1550-4100
No. of cylinders/ capacity in cm
3
4/ 1197
Fuel Super 95 RON
a)/Normal 91 RON
b)
a)Research- Octane- Number = Anti-detonation rating of the petrol.b)With a slight power loss
AlteaXL_EN.book Seite 296 Donnerstag, 9. September 2010 12:13 12

Technical Specifications297
Safety First
Operating Instructions
Practical Tips
Technical Specifications

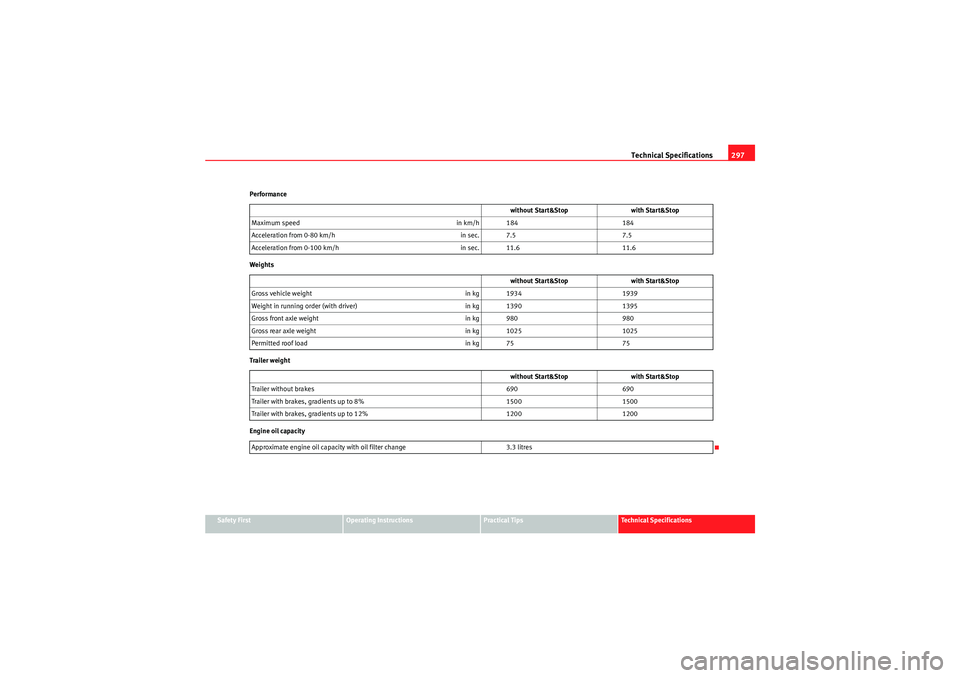

Performance
Weights
Trailer weight
Engine oil capacity
without Start&Stop
with Start&Stop
Maximum speed in km/h 184184
Acceleration from 0-80 km/h in sec. 7.57.5
Acceleration from 0-100 km/h in sec. 11.611.6
without Start&Stop with Start&Stop
Gross vehicle weight in kg 19341939
Weight in running order (with driver) in kg 13901395
Gross front axle weight in kg 980980
Gross rear axle weight in kg 10251025
Permitted roof load in kg 7575
without Start&Stop with Start&Stop
Trailer without brakes 690690
Trailer with brakes, gradients up to 8% 15001500
Trailer with brakes, gradients up to 12% 12001200
Approximate engine oil capacity with oil filter change 3.3 litres
AlteaXL_EN.book Seite 297 Donnerstag, 9. September 2010 12:13 12

Technical Specifications

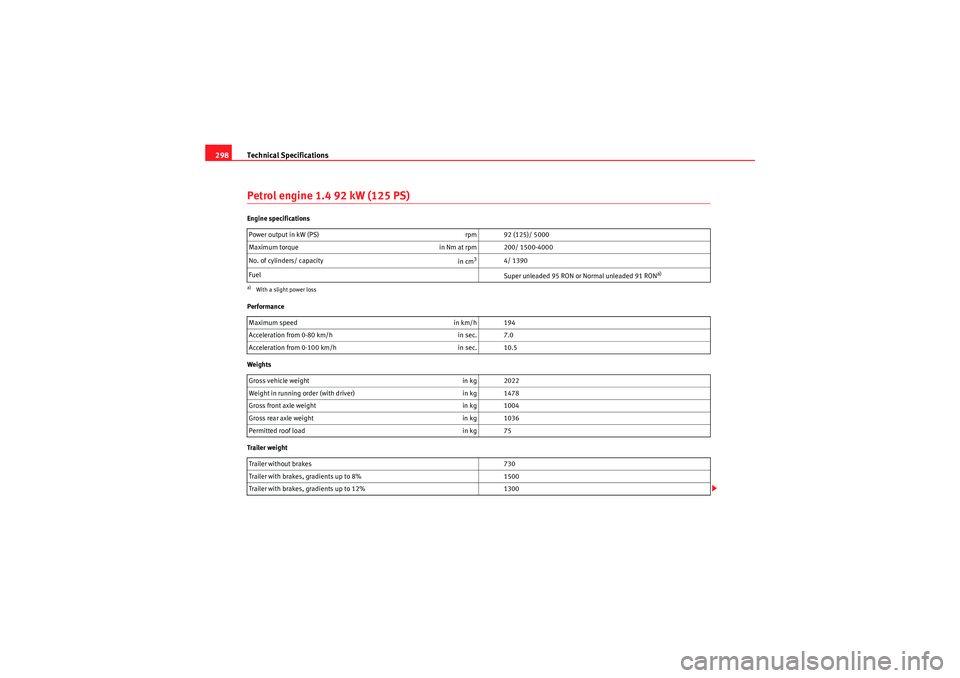

298Petrol engine 1.4 92 kW (125 PS)Engine specifications
