FusesChanging a fuse

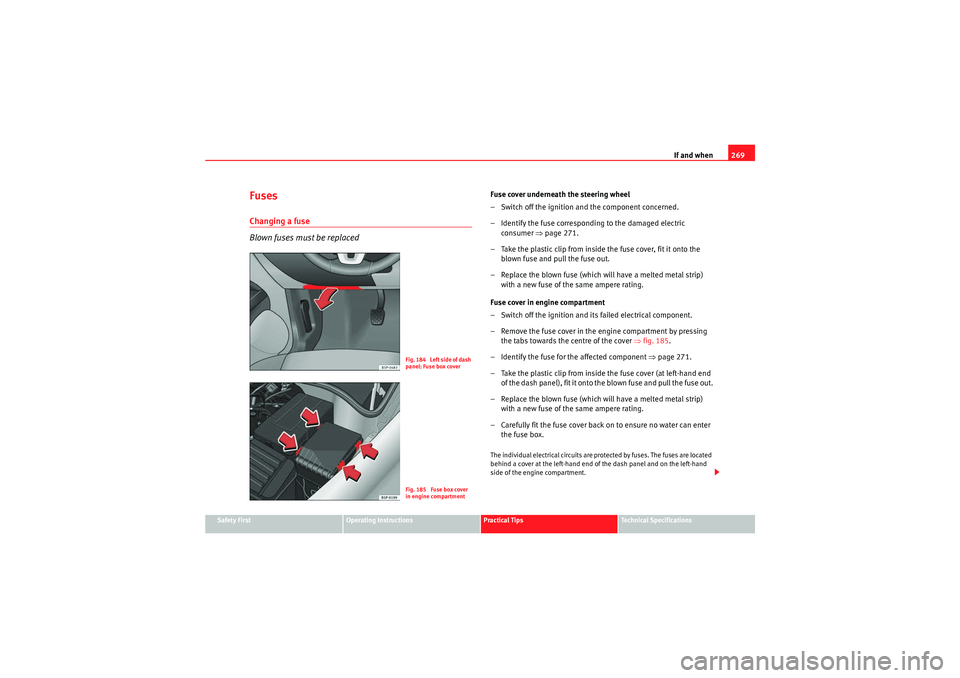

Blown fuses must be replaced
Fuse cover underneath the steering wheel
– Switch off the ignition and the component concerned.
– Identify the fuse corresponding to the damaged electric
consumer ⇒page 271.
– Take the plastic clip from inside the fuse cover, fit it onto the blown fuse and pull the fuse out.
– Replace the blown fuse (which will have a melted metal strip) with a new fuse of the same ampere rating.
Fuse cover in engine compartment
– Switch off the ignition and its failed electrical component.
– Remove the fuse cover in the engine compartment by pressing the tabs towards the centre of the cover ⇒fig. 185 .
– Identify the fuse for the affected component ⇒ page 271.
– Take the plastic clip from inside the fuse cover (at left-hand end of the dash panel), fit it onto the blown fuse and pull the fuse out.
– Replace the blown fuse (which will have a melted metal strip) with a new fuse of the same ampere rating.
– Carefully fit the fuse cover back on to ensure no water can enter the fuse box.The individual electrical circuits are protected by fuses. The fuses are located
behind a cover at the left-hand end of the dash panel and on the left-hand
side of the engine compartment.
Fig. 184 Left side of dash
panel: Fuse box coverFig. 185 Fuse box cover
in engine compartment
AlteaXL_EN.book Seite 269 Donnerstag, 9. September 2010 12:13 12

If and when
270The electric windows are protected by circuit breakers . These reset automat-
ically after a few seconds when the overload (caused for example by frozen
windows) has been corrected.
Fuses colour code
WARNING
Never “repair” damaged fuses and never replace them with fuses with a
higher rating. Failure to comply could result in fire. This could also cause
damage to other parts of the electrical system.
Note
•If a newly replaced fuse blows again after a short time, the electrical
system must be checked by a specialised workshop as soon as possible.
•If you replace a fuse with higher-rating fuse, you could cause damage to
another location in the electrical system.•Always keep some spare fuses in the vehicle. These are available from
SEAT dealers.•In addition to the fuses listed in the following tables, there are other fuses
which must be replaced by the Technical Service Workshop.
Colour
Amps
light brown
5
Red
10
Blue
15
Ye ll ow
20
Natural (white)
25
Green
30
orange
40
Red
50
white
80
Blue
100
grey
150
violet
200
AlteaXL_EN.book Seite 270 Donnerstag, 9. September 2010 12:13 12

If and when271
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Fuses on left side of dash panelFusesNumber
Consumer
Amps
1
Va can t
2
Va can t
3
Va can t
4
Va can t
5
Va can t
6
Va can t
7
Va can t
8
Va can t
9
Airbag
5
10
RSE input (roof screen)
10
11
Va can t
12
Left xenon headlight
10
13
Instrument panel (oil level)/Switchboard wiring
(BCM)/Heater / ABS, ESP/ Park Pilot/ Gate-
way/Flow meter
5
14
Gearbox/Power steering/Brake light sensor/
Trailer/ ABS, ESP/ Haldex/ Light switch
10
15
Heated windscreen / Instrument lighting / Diag-
nosis switchboard/Engine management/Addi-
tional heating/AFS headlamps/Park Pilot
10
16
Right xenon headlight
10
17
Engine management / RSE system with START
STOP
10
18
Kombi / levers with START STOP
5
19
Navigation/ radio with START STOP
15
20
Park Pilot (parking aid) / Gear lever/ ESP switch-
board
10
21
Va can t
22
Volumetric alarm sensor/ Alarm horn
5
23
Diagnosis / Rain sensor / Light switch
10
24
Trailer hook pre-installation assistant
15
25
Va can t
26
Vacuum pump
20
27
RSE supply (Ceiling display) without START STOP
10
28
Rear window wiper motor
20
29
Va can t
30
Cigarette lighter / socket
20
31
Va can t
32
Va can t
33
Heater
40
34
Va can t
35
Va can t
36
Va can t
37
Va can t
38
Va can t
39
Trailer control unit (coupling)
15
Number
Consumer
Amps
AlteaXL_EN.book Seite 271 Donnerstag, 9. September 2010 12:13 12

If and when
272Some of the electrical items listed in the table are only fitted on certain
models or are optional extras. Please note that the above list, while correct at the time of printing, is subject
to alterations. If discrepancies should occur, please refer to the sticker on the
inside of the fuse cover for the correct information for your model.
Fuses layout, engine compartment, left partFuses
40
Trailer control unit (turn signals, brakes and left
side)
20
41
Trailer control unit (fog light, reverse light and
right side)
20
42
BCM wiring switchboard
20
43
Trailer pre-installation
40
44
Heated rear window
25
45
Electric windows (front)
30
46
Rear electric windows
30
47
Engine (Fuel control unit, petrol relay)
15
48
Convenience controls
20
49
Heating controls
40
50
Heated seats
30
51
Sunroof
20
52
Headlight washer system
20
53
Trailer hook pre-installation assistant
20
54
Taxi (taximeter power supply)
5
55
Trailer hook pre-installation assistant
20
56
Taxi (taximeter power supply)
15
57
Telephone power supply with START STOP
10
58
Central locking control unit
30
Number
Consumer
Amps
Number
Consumer
Amps

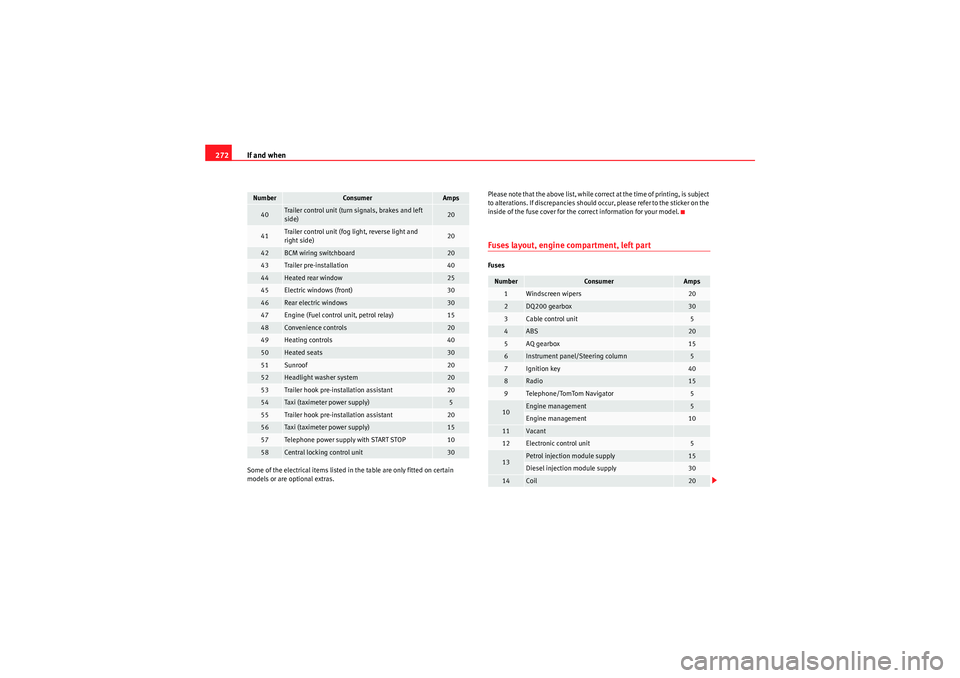

1
Windscreen wipers
20
2
DQ200 gearbox
30
3
Cable control unit
5
4
ABS
20
5
AQ gearbox
15
6
Instrument panel/Steering column
5
7
Ignition key
40
8
Radio
15
9
Telephone/TomTom Navigator
5
10
Engine management
5
Engine management
10
11
Vacant
12
Electronic control unit
5
13
Petrol injection module supply
15
Diesel injection module supply
30
14
Coil
20
AlteaXL_EN.book Seite 272 Donnerstag, 9. September 2010 12:13 12

If and when273
Safety First
Operating Instructions
Practical Tips
Technical Specifications

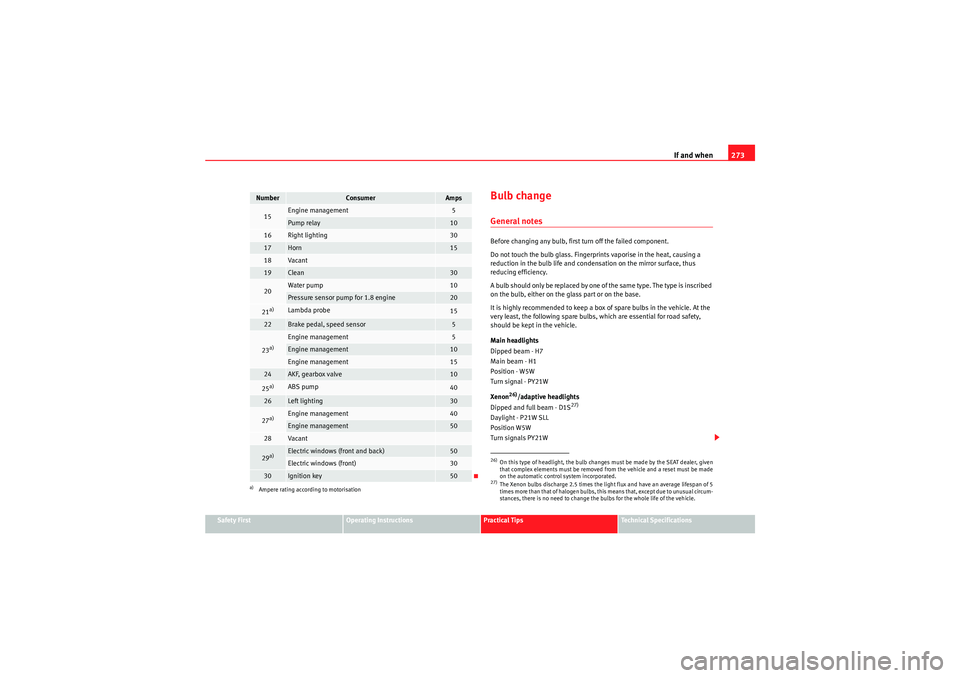

Bulb changeGeneral notesBefore changing any bulb, first turn off the failed component.
Do not touch the bulb glass. Fingerprints vaporise in the heat, causing a
reduction in the bulb life and condensation on the mirror surface, thus
reducing efficiency.
A bulb should only be replaced by one of the sam e type. The type is inscribed
on the bulb, either on the glass part or on the base.
It is highly recommended to keep a box of spare bulbs in the vehicle. At the
very least, the following spare bulbs, which are essential for road safety,
should be kept in the vehicle.
Main headlights
Dipped beam - H7
Main beam - H1
Position - W5W
Turn signal - PY21W
Xenon
26)/adaptive headlights
Dipped and full beam - D1S
27)
Daylight - P21W SLL
Position W5W
Turn signals PY21W
15
Engine management
5
Pump relay
10
16
Right lighting
30
17
Horn
15
18
Vaca n t
19
Clean
30
20
Water pump
10
Pressure sensor pump for 1.8 engine
20
21a)
Lambda probe
15
22
Brake pedal, speed sensor
5
23a)
Engine management
5
Engine management
10
Engine management
15
24
AKF, gearbox valve
10
25a)
ABS pump
40
26
Left lighting
30
27a)
Engine management
40
Engine management
50
28
Vaca n t
29a)
Electric windows (front and back)
50
Electric windows (front)
30
30
Ignition key
50
a)Ampere rating according to motorisationNumber
Consumer
Amps
26)On this type of headlight, the bulb changes must be made by the SEAT dealer, given
that complex elements must be removed from the vehicle and a reset must be made
on the automatic control system incorporated.27)The Xenon bulbs discharge 2.5 times the light flux and have an average lifespan of 5
times more than that of halogen bulbs, this means that, except due to unusual circum-
stances, there is no need to change the bulbs for the whole life of the vehicle.
AlteaXL_EN.book Seite 273 Donnerstag, 9. September 2010 12:13 12

If and when
274Fog lights
Fog lights - H3
Fixed tail light
Stop/Position - P21W
28)
Turn signal - P21W
Mobile tailgate light
Fog light (driver side) - P21W
Reverse (passenger side) - P21W
Position - W5W
Side turn signal
Side turn signal - W5W
Number plate light
Number plate light - C5W
Note
•Depending on weather conditions (cold or wet), the front lights, the fog
lights, the tail lights and the turn signals may be temporarily misted. This has
no influence on the useful life of the lighting system. By switching on the
lights, the area through which the beam of light is projected will quickly be
demisted. However, the edges may continue to be misted.•Please check at regular intervals that all lighting (especially the exterior
lighting) on your vehicle is functioning properly. This is not only in the interest
of your own safety, but also that of all other road users.•Due to the difficulty in accessing some of the bulbs, any replacement work
should be done by a SEAT dealer. However, the following is a description of
how to change the lamps except for the fog lights* and interior lamps.

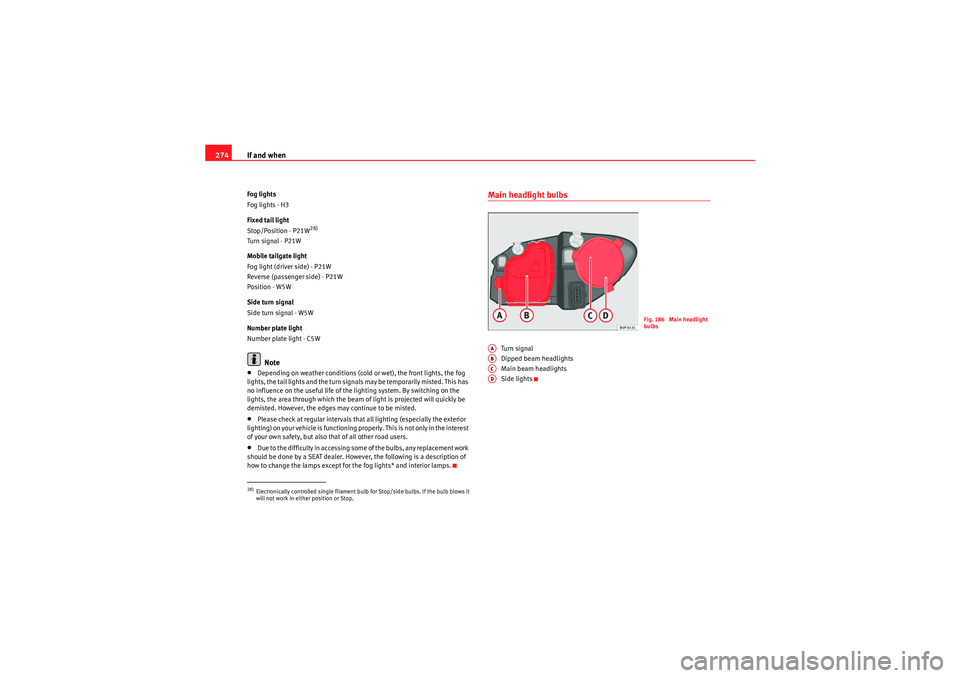

Main headlight bulbs
Turn signal
Dipped beam headlights
Main beam headlights
Side lights
28)Electronically controlled single filament bulb for Stop/side bulbs. If the bulb blows it
will not work in either position or Stop.
Fig. 186 Main headlight
bulbs
AAABACAD
AlteaXL_EN.book Seite 274 Donnerstag, 9. September 2010 12:13 12

If and when275
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Turn signal bulbs– Raise the bonnet.
– Rotate the bulb holder ⇒fig. 187 to the left and pull.
– Remove the bulb by pressing on the bulb holder and rotating at the same time to the left.
– Installation is done in the reverse order.
Dipped beam headlights– Raise the bonnet.
Fig. 187 Turn signal
AA
Fig. 188 Dipped beam
headlightsFig. 189 Dipped beam
headlights
AlteaXL_EN.book Seite 275 Donnerstag, 9. September 2010 12:13 12

If and when
276
– Remove the loops ⇒page 275, fig. 188 in the direction of
the arrow and remove the cover.
– Remove the connector ⇒page 275, fig. 189 from the bulb.
– Unclip the retainer spring ⇒page 275, fig. 189 pressing
inwards to the right.
– Remove the bulb and fit the replacement so that the rim of the attachment plate is on the reflector cut-out.Main beam headlights

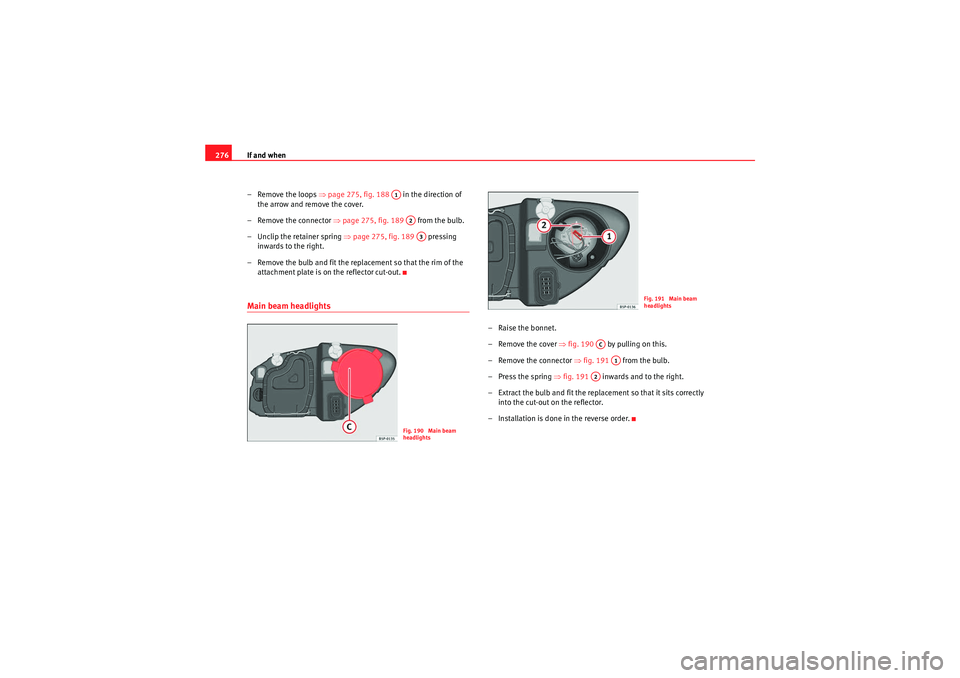

– Raise the bonnet.
– Remove the cover ⇒fig. 190 by pulling on this.
– Remove the connector ⇒fig. 191 from the bulb.
–Press the spring ⇒fig. 191 inwards and to the right.
– Extract the bulb and fit the replacement so that it sits correctly into the cut-out on the reflector.
– Installation is done in the reverse order.
A1
A2A3
Fig. 190 Main beam
headlights
Fig. 191 Main beam
headlights
AC
A1
A2
AlteaXL_EN.book Seite 276 Donnerstag, 9. September 2010 12:13 12

If and when277
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Side lights– Raise the bonnet.
– Remove the cover ⇒fig. 192 by pulling on this. – Extract the bulb holder
⇒fig. 193 outwards.
– Replace the bulb by pulling it out and inserting the replacement.
– Installation is done in the reverse order.
Ta i l l i g h t s•On the body
– Turn signal, side and brake light•On the tailgate
– Left side: side and fog lights.
– Right side: side and reverse.
Fig. 192 Side lightsFig. 193 Side lights
AD
A1
AlteaXL_EN.book Seite 277 Donnerstag, 9. September 2010 12:13 12

If and when

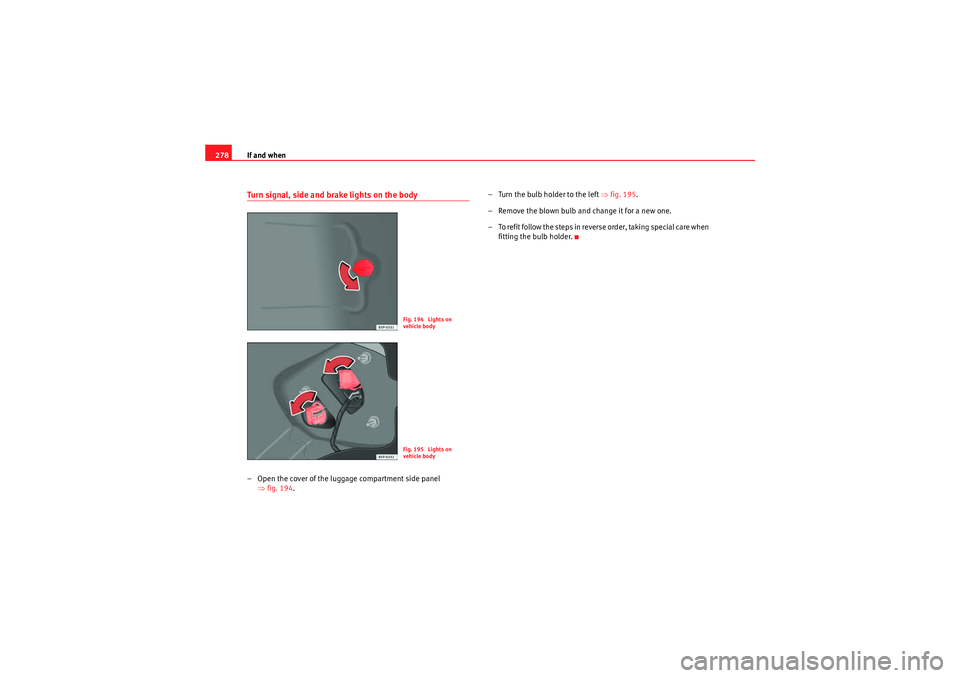

278Turn signal, side and brake lights on the body– Open the cover of the luggage compartment side panel
⇒fig. 194 . – Turn the bulb holder to the left
⇒fig. 195 .
– Remove the blown bulb and change it for a new one.
– To refit follow the steps in reverse order, taking special care when fitting the bulb holder.
Fig. 194 Lights on
vehicle bodyFig. 195 Lights on
vehicle body
AlteaXL_EN.book Seite 278 Donnerstag, 9. September 2010 12:13 12
