Seat Altea XL 2013 Owner's Manual

299
Technical specifications
Diesel engine 1.6 TDI CR 66 kW (90 PS) with/without DPF
Engine specifications Power output in kW (PS) rpm 66 (90)/ 4200
Maximum torque in Nm at rpm 230/1500-2500
No. of cylinders/capacity in cm3
4/1598
Fuel Min, diesel acc. to DIN EN 590 51 CN a)
a)
Cetane Number (cetane index) = Measure of the combustion power of the diesel
Performance Maximum speed in km/h (mph) 172
Acceleration from 0-80 km/h (0-50 mph) in sec. 9,3
Acceleration from 0-100 km/h (0-60 mph) in sec. 14,1
Weights
Gross vehicle weight in kg 2029
Weight in running order (with driver) in kg 1485
Gross front axle weight in kg 1040
Gross rear axle weight in kg 1010
Permitted roof load in kg 75
Trailer weight
Trailer without brakes in kg 740
Trailer with brakes, gradients up to 8% in kg 1500
Trailer with brakes, gradients up to 12% in kg 1400

Safety FirstOperating InstructionsPractical TipsTechnical Specifications

300Technical specifications

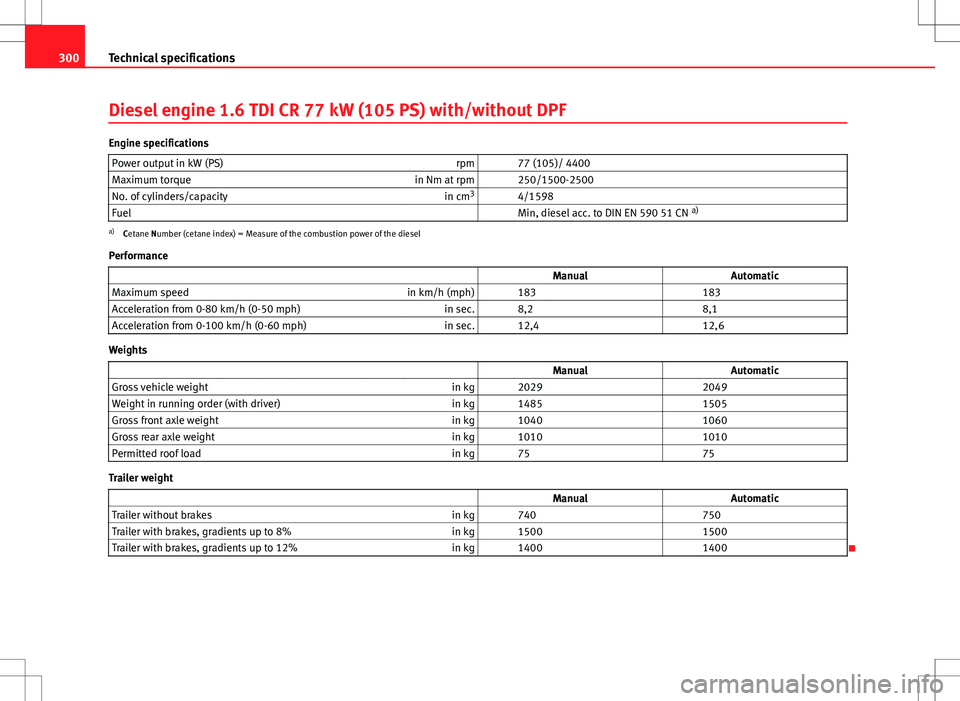

Diesel engine 1.6 TDI CR 77 kW (105 PS) with/without DPF
Engine specifications
Power output in kW (PS) rpm 77 (105)/ 4400
Maximum torque in Nm at rpm 250/1500-2500
No. of cylinders/capacity in cm3
4/1598
Fuel Min, diesel acc. to DIN EN 590 51 CN a)
a)
Cetane Number (cetane index) = Measure of the combustion power of the diesel
Performance ManualAutomatic
Maximum speed in km/h (mph) 183 183
Acceleration from 0-80 km/h (0-50 mph) in sec. 8,2 8,1
Acceleration from 0-100 km/h (0-60 mph) in sec. 12,4 12,6
Weights
Manual Automatic
Gross vehicle weight in kg 2029 2049
Weight in running order (with driver) in kg 1485 1505
Gross front axle weight in kg 1040 1060
Gross rear axle weight in kg 1010 1010
Permitted roof load in kg 75 75
Trailer weight
ManualAutomatic
Trailer without brakes in kg 740 750
Trailer with brakes, gradients up to 8% in kg 1500 1500
Trailer with brakes, gradients up to 12% in kg 1400 1400


301
Technical specifications

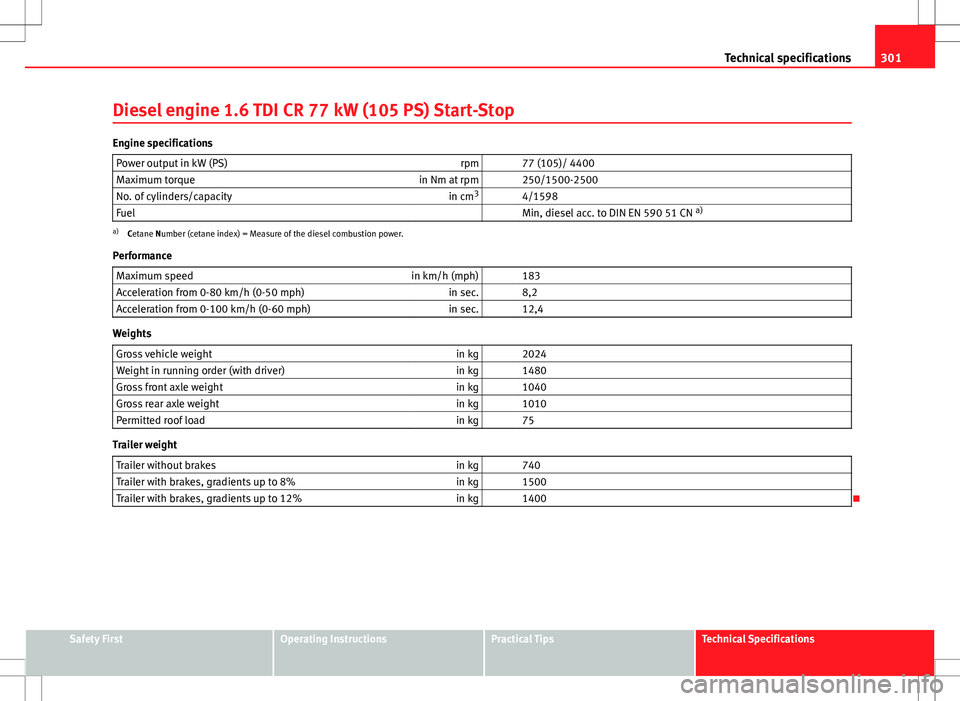

Diesel engine 1.6 TDI CR 77 kW (105 PS) Start-Stop
Engine specifications Power output in kW (PS) rpm 77 (105)/ 4400
Maximum torque in Nm at rpm 250/1500-2500
No. of cylinders/capacity in cm3
4/1598
Fuel Min, diesel acc. to DIN EN 590 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
Performance Maximum speed in km/h (mph) 183
Acceleration from 0-80 km/h (0-50 mph) in sec. 8,2
Acceleration from 0-100 km/h (0-60 mph) in sec. 12,4
Weights
Gross vehicle weight in kg 2024
Weight in running order (with driver) in kg 1480
Gross front axle weight in kg 1040
Gross rear axle weight in kg 1010
Permitted roof load in kg 75
Trailer weight
Trailer without brakes in kg 740
Trailer with brakes, gradients up to 8% in kg 1500
Trailer with brakes, gradients up to 12% in kg 1400

Safety FirstOperating InstructionsPractical TipsTechnical Specifications

302Technical specifications

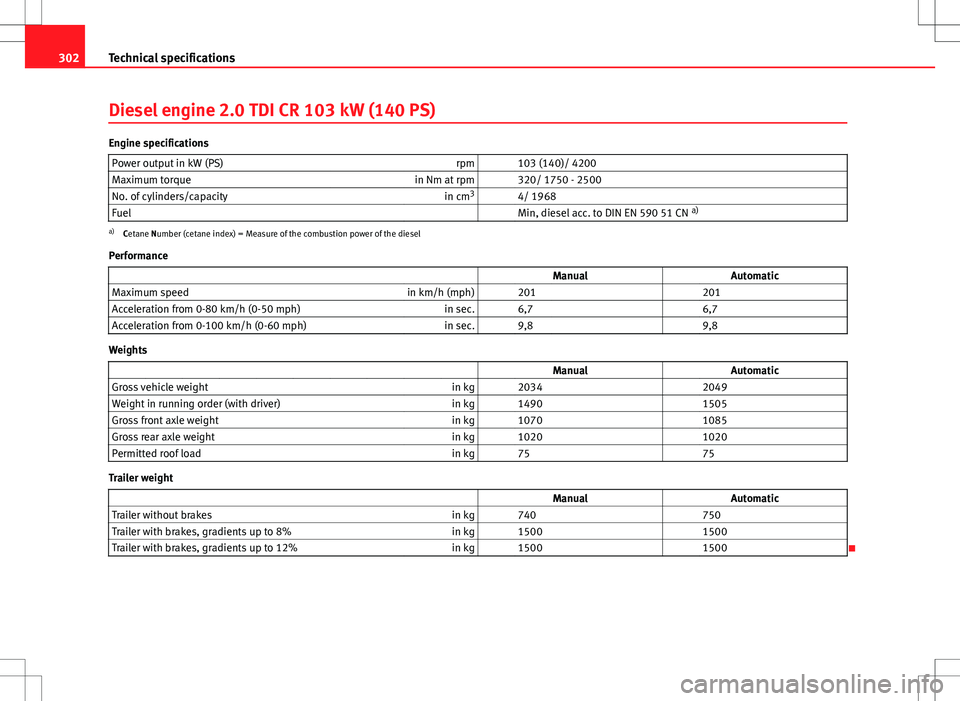

Diesel engine 2.0 TDI CR 103 kW (140 PS)
Engine specifications
Power output in kW (PS) rpm 103 (140)/ 4200
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders/capacity in cm3
4/ 1968
Fuel Min, diesel acc. to DIN EN 590 51 CN a)
a)
Cetane Number (cetane index) = Measure of the combustion power of the diesel
Performance ManualAutomatic
Maximum speed in km/h (mph) 201 201
Acceleration from 0-80 km/h (0-50 mph) in sec. 6,7 6,7
Acceleration from 0-100 km/h (0-60 mph) in sec. 9,8 9,8
Weights
Manual Automatic
Gross vehicle weight in kg 2034 2049
Weight in running order (with driver) in kg 1490 1505
Gross front axle weight in kg 1070 1085
Gross rear axle weight in kg 1020 1020
Permitted roof load in kg 75 75
Trailer weight
Manual Automatic
Trailer without brakes in kg 740 750
Trailer with brakes, gradients up to 8% in kg 1500 1500
Trailer with brakes, gradients up to 12% in kg 1500 1500


303
Technical specifications

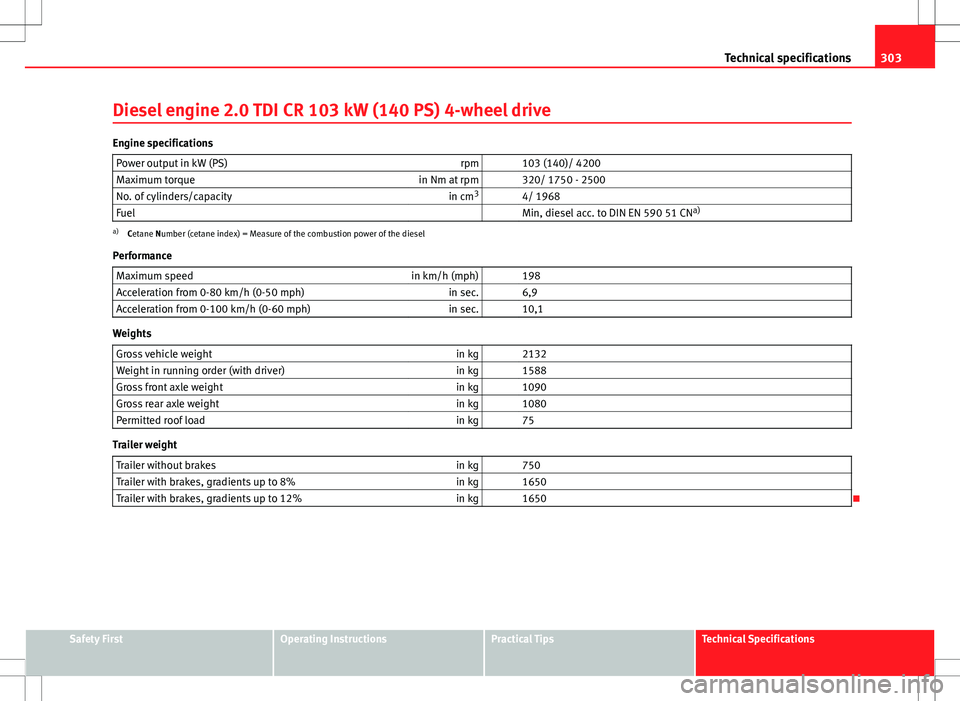

Diesel engine 2.0 TDI CR 103 kW (140 PS) 4-wheel drive
Engine specifications Power output in kW (PS) rpm 103 (140)/ 4200
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders/capacity in cm3
4/ 1968
Fuel Min, diesel acc. to DIN EN 590 51 CN a)
a)
Cetane Number (cetane index) = Measure of the combustion power of the diesel
Performance Maximum speed in km/h (mph) 198
Acceleration from 0-80 km/h (0-50 mph) in sec. 6,9
Acceleration from 0-100 km/h (0-60 mph) in sec. 10,1
Weights
Gross vehicle weight in kg 2132
Weight in running order (with driver) in kg 1588
Gross front axle weight in kg 1090
Gross rear axle weight in kg 1080
Permitted roof load in kg 75
Trailer weight
Trailer without brakes in kg 750
Trailer with brakes, gradients up to 8% in kg 1650
Trailer with brakes, gradients up to 12% in kg 1650

Safety FirstOperating InstructionsPractical TipsTechnical Specifications

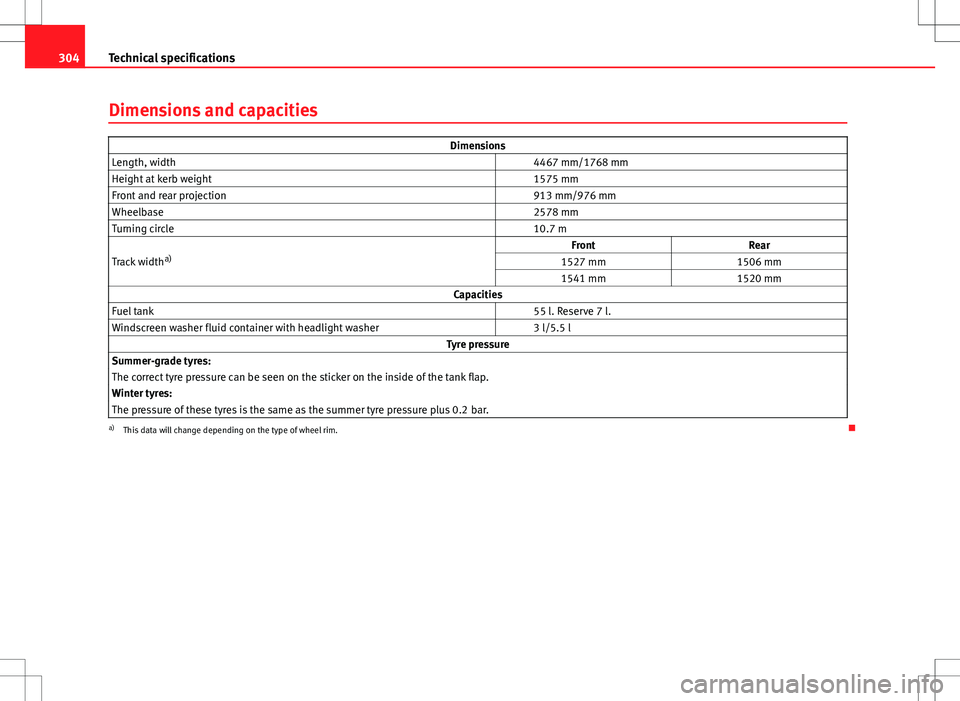

304Technical specifications
Dimensions and capacities
Dimensions
Length, width 4467 mm/1768 mm
Height at kerb weight 1575 mm
Front and rear projection 913 mm/976 mm
Wheelbase 2578 mm
Turning circle 10.7 m
Track width a) Front
Rear
1527 mm 1506 mm
1541 mm 1520 mm
Capacities
Fuel tank 55 l. Reserve 7 l.
Windscreen washer fluid container with headlight washer 3 l/5.5 l
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
a) This data will change depending on the type of wheel rim. 

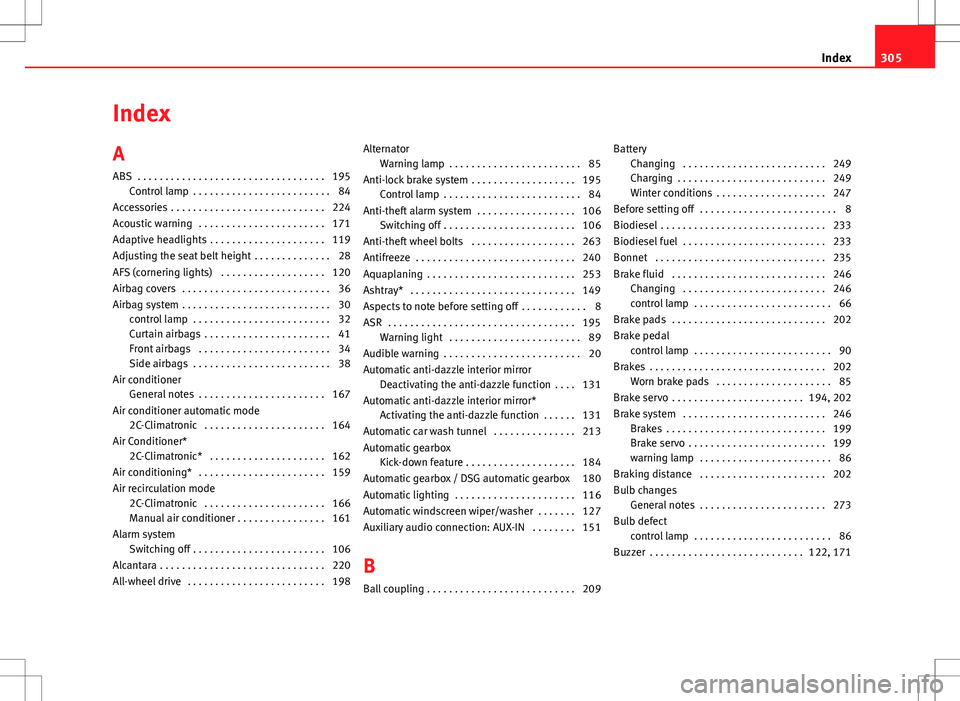

Index
A
ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 84
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Acoustic warning . . . . . . . . . . . . . . . . . . . . . . . 171
Adaptive headlights . . . . . . . . . . . . . . . . . . . . . 119
Adjusting the seat belt height . . . . . . . . . . . . . . 28
AFS (cornering lights) . . . . . . . . . . . . . . . . . . . 120
Airbag covers . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 32
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 41
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . 34
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . 38
Air conditioner General notes . . . . . . . . . . . . . . . . . . . . . . . 167
Air conditioner automatic mode 2C-Climatronic . . . . . . . . . . . . . . . . . . . . . . 164
Air Conditioner* 2C-Climatronic* . . . . . . . . . . . . . . . . . . . . . 162
Air conditioning* . . . . . . . . . . . . . . . . . . . . . . . 159
Air recirculation mode 2C-Climatronic . . . . . . . . . . . . . . . . . . . . . . 166
Manual air conditioner . . . . . . . . . . . . . . . . 161
Alarm system Switching off . . . . . . . . . . . . . . . . . . . . . . . . 106
Alcantara . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
All-wheel drive . . . . . . . . . . . . . . . . . . . . . . . . . 198 Alternator
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 85
Anti-lock brake system . . . . . . . . . . . . . . . . . . . 195 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 84
Anti-theft alarm system . . . . . . . . . . . . . . . . . . 106 Switching off . . . . . . . . . . . . . . . . . . . . . . . . 106
Anti-theft wheel bolts . . . . . . . . . . . . . . . . . . . 263
Antifreeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Aquaplaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Ashtray* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Aspects to note before setting off . . . . . . . . . . . . 8
ASR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195 Warning light . . . . . . . . . . . . . . . . . . . . . . . . 89
Audible warning . . . . . . . . . . . . . . . . . . . . . . . . . 20
Automatic anti-dazzle interior mirror Deactivating the anti-dazzle function . . . . 131
Automatic anti-dazzle interior mirror* Activating the anti-dazzle function . . . . . . 131
Automatic car wash tunnel . . . . . . . . . . . . . . . 213
Automatic gearbox Kick-down feature . . . . . . . . . . . . . . . . . . . . 184
Automatic gearbox / DSG automatic gearbox 180
Automatic lighting . . . . . . . . . . . . . . . . . . . . . . 116
Automatic windscreen wiper/washer . . . . . . . 127
Auxiliary audio connection: AUX-IN . . . . . . . . 151
B
Ball coupling . . . . . . . . . . . . . . . . . . . . . . . . . . . 209 Battery
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Winter conditions . . . . . . . . . . . . . . . . . . . . 247
Before setting off . . . . . . . . . . . . . . . . . . . . . . . . . 8
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Biodiesel fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 246
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 66
Brake pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Brake pedal control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 90
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202 Worn brake pads . . . . . . . . . . . . . . . . . . . . . 85
Brake servo . . . . . . . . . . . . . . . . . . . . . . . . 194, 202
Brake system . . . . . . . . . . . . . . . . . . . . . . . . . . 246 Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Brake servo . . . . . . . . . . . . . . . . . . . . . . . . . 199
warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 86
Braking distance . . . . . . . . . . . . . . . . . . . . . . . 202
Bulb changes General notes . . . . . . . . . . . . . . . . . . . . . . . 273
Bulb defect control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 86
Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122, 171
305
Index

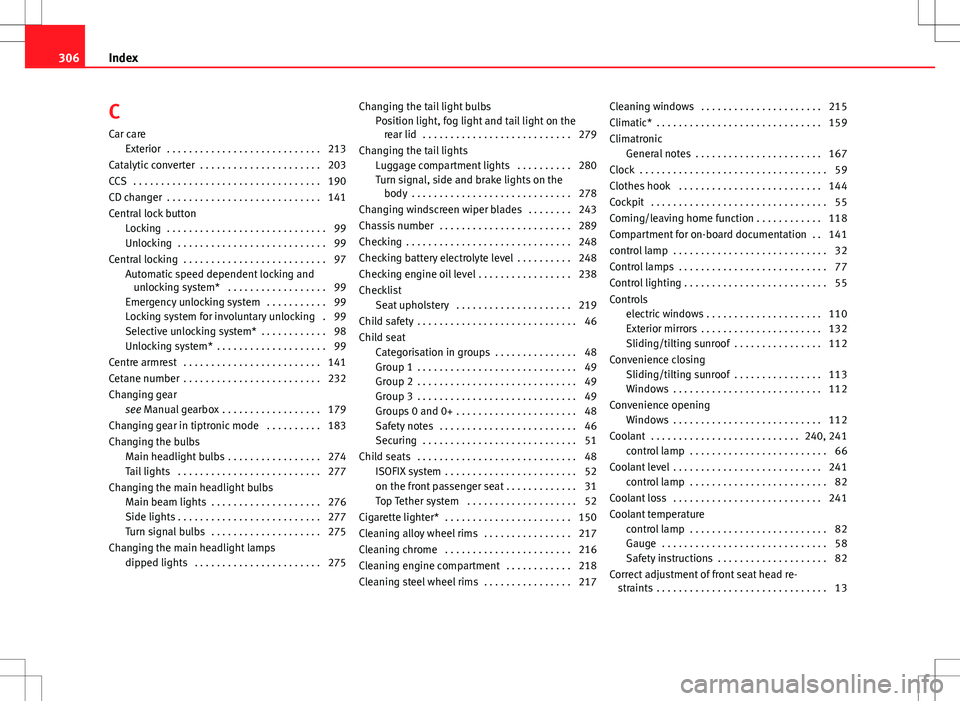

C
Car care Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . 203
CCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
CD changer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Central lock button Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . 97 Automatic speed dependent locking andunlocking system* . . . . . . . . . . . . . . . . . . 99
Emergency unlocking system . . . . . . . . . . . 99
Locking system for involuntary unlocking . 99
Selective unlocking system* . . . . . . . . . . . . 98
Unlocking system* . . . . . . . . . . . . . . . . . . . . 99
Centre armrest . . . . . . . . . . . . . . . . . . . . . . . . . 141
Cetane number . . . . . . . . . . . . . . . . . . . . . . . . . 232
Changing gear see Manual gearbox . . . . . . . . . . . . . . . . . . 179
Changing gear in tiptronic mode . . . . . . . . . . 183
Changing the bulbs Main headlight bulbs . . . . . . . . . . . . . . . . . 274
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . 277
Changing the main headlight bulbs Main beam lights . . . . . . . . . . . . . . . . . . . . 276
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . 277
Turn signal bulbs . . . . . . . . . . . . . . . . . . . . 275
Changing the main headlight lamps dipped lights . . . . . . . . . . . . . . . . . . . . . . . 275 Changing the tail light bulbs
Position light, fog light and tail light on therear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
Changing the tail lights Luggage compartment lights . . . . . . . . . . 280
Turn signal, side and brake lights on thebody . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Changing windscreen wiper blades . . . . . . . . 243
Chassis number . . . . . . . . . . . . . . . . . . . . . . . . 289
Checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
Checking battery electrolyte level . . . . . . . . . . 248
Checking engine oil level . . . . . . . . . . . . . . . . . 238
Checklist Seat upholstery . . . . . . . . . . . . . . . . . . . . . 219
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Child seat Categorisation in groups . . . . . . . . . . . . . . . 48
Group 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Group 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Group 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Groups 0 and 0+ . . . . . . . . . . . . . . . . . . . . . . 48
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 46
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . 52
on the front passenger seat . . . . . . . . . . . . . 31
Top Tether system . . . . . . . . . . . . . . . . . . . . 52
Cigarette lighter* . . . . . . . . . . . . . . . . . . . . . . . 150
Cleaning alloy wheel rims . . . . . . . . . . . . . . . . 217
Cleaning chrome . . . . . . . . . . . . . . . . . . . . . . . 216
Cleaning engine compartment . . . . . . . . . . . . 218
Cleaning steel wheel rims . . . . . . . . . . . . . . . . 217 Cleaning windows . . . . . . . . . . . . . . . . . . . . . . 215
Climatic* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Climatronic
General notes . . . . . . . . . . . . . . . . . . . . . . . 167
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Clothes hook . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Coming/leaving home function . . . . . . . . . . . . 118
Compartment for on-board documentation . . 141
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Control lighting . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Controls electric windows . . . . . . . . . . . . . . . . . . . . . 110
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . 132
Sliding/tilting sunroof . . . . . . . . . . . . . . . . 112
Convenience closing Sliding/tilting sunroof . . . . . . . . . . . . . . . . 113
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Convenience opening Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . 240, 241 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 66
Coolant level . . . . . . . . . . . . . . . . . . . . . . . . . . . 241 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 82
Coolant loss . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
Coolant temperature control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 82
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Safety instructions . . . . . . . . . . . . . . . . . . . . 82
Correct adjustment of front seat head re- straints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
306 Index

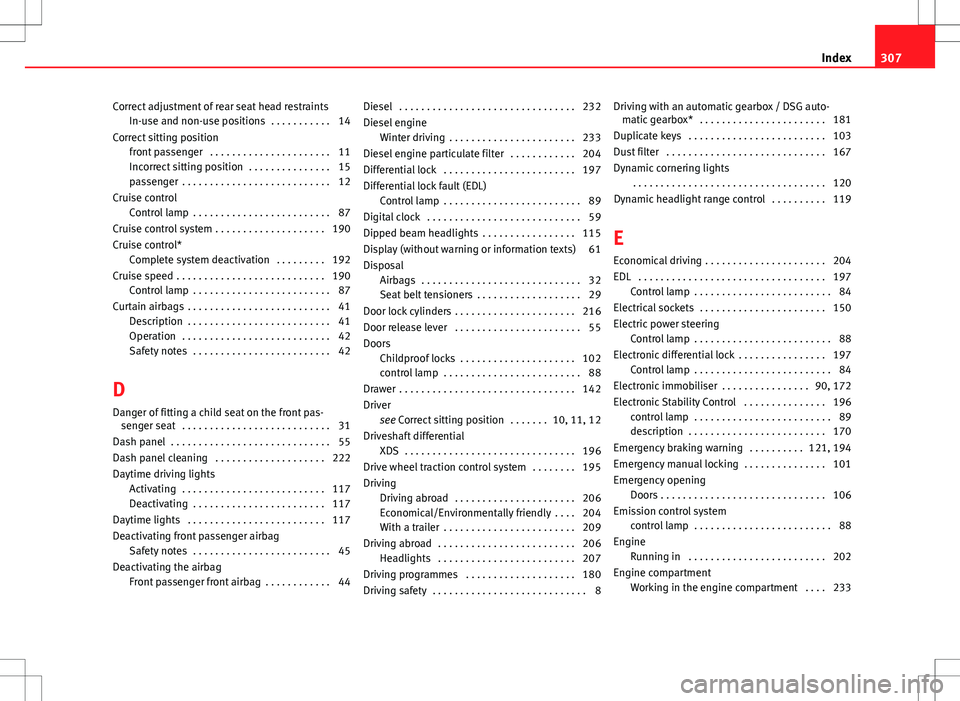

Correct adjustment of rear seat head restraintsIn-use and non-use positions . . . . . . . . . . . 14
Correct sitting position front passenger . . . . . . . . . . . . . . . . . . . . . . 11
Incorrect sitting position . . . . . . . . . . . . . . . 15
passenger . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cruise control Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 87
Cruise control system . . . . . . . . . . . . . . . . . . . . 190
Cruise control* Complete system deactivation . . . . . . . . . 192
Cruise speed . . . . . . . . . . . . . . . . . . . . . . . . . . . 190 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 87
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 42
D Danger of fitting a child seat on the front pas- senger seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Dash panel cleaning . . . . . . . . . . . . . . . . . . . . 222
Daytime driving lights Activating . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Deactivating . . . . . . . . . . . . . . . . . . . . . . . . 117
Daytime lights . . . . . . . . . . . . . . . . . . . . . . . . . 117
Deactivating front passenger airbag Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 45
Deactivating the airbag Front passenger front airbag . . . . . . . . . . . . 44 Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Diesel engine
Winter driving . . . . . . . . . . . . . . . . . . . . . . . 233
Diesel engine particulate filter . . . . . . . . . . . . 204
Differential lock . . . . . . . . . . . . . . . . . . . . . . . . 197
Differential lock fault (EDL) Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 89
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Dipped beam headlights . . . . . . . . . . . . . . . . . 115
Display (without warning or information texts) 61
Disposal Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Seat belt tensioners . . . . . . . . . . . . . . . . . . . 29
Door lock cylinders . . . . . . . . . . . . . . . . . . . . . . 216
Door release lever . . . . . . . . . . . . . . . . . . . . . . . 55
Doors Childproof locks . . . . . . . . . . . . . . . . . . . . . 102
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 88
Drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Driver see Correct sitting position . . . . . . . 10, 11, 12
Driveshaft differential XDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Drive wheel traction control system . . . . . . . . 195
Driving Driving abroad . . . . . . . . . . . . . . . . . . . . . . 206
Economical/Environmentally friendly . . . . 204
With a trailer . . . . . . . . . . . . . . . . . . . . . . . . 209
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . 206 Headlights . . . . . . . . . . . . . . . . . . . . . . . . . 207
Driving programmes . . . . . . . . . . . . . . . . . . . . 180
Driving safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Driving with an automatic gearbox / DSG auto-
matic gearbox* . . . . . . . . . . . . . . . . . . . . . . . 181
Duplicate keys . . . . . . . . . . . . . . . . . . . . . . . . . 103
Dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Dynamic cornering lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Dynamic headlight range control . . . . . . . . . . 119
E
Economical driving . . . . . . . . . . . . . . . . . . . . . . 204
EDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 84
Electrical sockets . . . . . . . . . . . . . . . . . . . . . . . 150
Electric power steering Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 88
Electronic differential lock . . . . . . . . . . . . . . . . 197 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 84
Electronic immobiliser . . . . . . . . . . . . . . . . 90, 172
Electronic Stability Control . . . . . . . . . . . . . . . 196 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 89
description . . . . . . . . . . . . . . . . . . . . . . . . . 170
Emergency braking warning . . . . . . . . . . 121, 194
Emergency manual locking . . . . . . . . . . . . . . . 101
Emergency opening Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Emission control system control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 88
Engine Running in . . . . . . . . . . . . . . . . . . . . . . . . . 202
Engine compartment Working in the engine compartment . . . . 233
307
Index

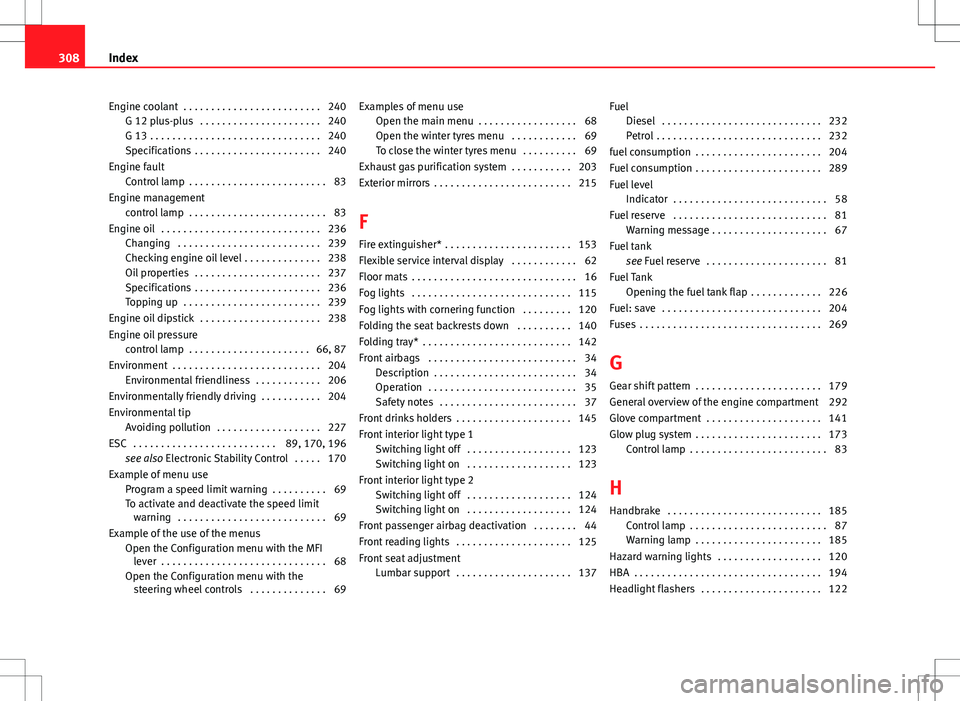

Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . 240G 12 plus-plus . . . . . . . . . . . . . . . . . . . . . . 240
G 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Specifications . . . . . . . . . . . . . . . . . . . . . . . 240
Engine fault Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 83
Engine management control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 83
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Checking engine oil level . . . . . . . . . . . . . . 238
Oil properties . . . . . . . . . . . . . . . . . . . . . . . 237
Specifications . . . . . . . . . . . . . . . . . . . . . . . 236
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . 239
Engine oil dipstick . . . . . . . . . . . . . . . . . . . . . . 238
Engine oil pressure control lamp . . . . . . . . . . . . . . . . . . . . . . 66, 87
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . 204 Environmental friendliness . . . . . . . . . . . . 206
Environmentally friendly driving . . . . . . . . . . . 204
Environmental tip Avoiding pollution . . . . . . . . . . . . . . . . . . . 227
ESC . . . . . . . . . . . . . . . . . . . . . . . . . . 89, 170, 196 see also Electronic Stability Control . . . . . 170
Example of menu use Program a speed limit warning . . . . . . . . . . 69
To activate and deactivate the speed limitwarning . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Example of the use of the menus Open the Configuration menu with the MFIlever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Open the Configuration menu with the steering wheel controls . . . . . . . . . . . . . . 69 Examples of menu use
Open the main menu . . . . . . . . . . . . . . . . . . 68
Open the winter tyres menu . . . . . . . . . . . . 69
To close the winter tyres menu . . . . . . . . . . 69
Exhaust gas purification system . . . . . . . . . . . 203
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 215
F
Fire extinguisher* . . . . . . . . . . . . . . . . . . . . . . . 153
Flexible service interval display . . . . . . . . . . . . 62
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Fog lights with cornering function . . . . . . . . . 120
Folding the seat backrests down . . . . . . . . . . 140
Folding tray* . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 37
Front drinks holders . . . . . . . . . . . . . . . . . . . . . 145
Front interior light type 1 Switching light off . . . . . . . . . . . . . . . . . . . 123
Switching light on . . . . . . . . . . . . . . . . . . . 123
Front interior light type 2 Switching light off . . . . . . . . . . . . . . . . . . . 124
Switching light on . . . . . . . . . . . . . . . . . . . 124
Front passenger airbag deactivation . . . . . . . . 44
Front reading lights . . . . . . . . . . . . . . . . . . . . . 125
Front seat adjustment Lumbar support . . . . . . . . . . . . . . . . . . . . . 137 Fuel
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
fuel consumption . . . . . . . . . . . . . . . . . . . . . . . 204
Fuel consumption . . . . . . . . . . . . . . . . . . . . . . . 289
Fuel level Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Fuel reserve . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81 Warning message . . . . . . . . . . . . . . . . . . . . . 67
Fuel tank see Fuel reserve . . . . . . . . . . . . . . . . . . . . . . 81
Fuel Tank Opening the fuel tank flap . . . . . . . . . . . . . 226
Fuel: save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
G
Gear shift pattern . . . . . . . . . . . . . . . . . . . . . . . 179
General overview of the engine compartment 292
Glove compartment . . . . . . . . . . . . . . . . . . . . . 141
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . 173 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 83
H
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 87
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 185
Hazard warning lights . . . . . . . . . . . . . . . . . . . 120
HBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Headlight flashers . . . . . . . . . . . . . . . . . . . . . . 122
308 Index
