Seat Altea XL 2013 Owner's Manual

289

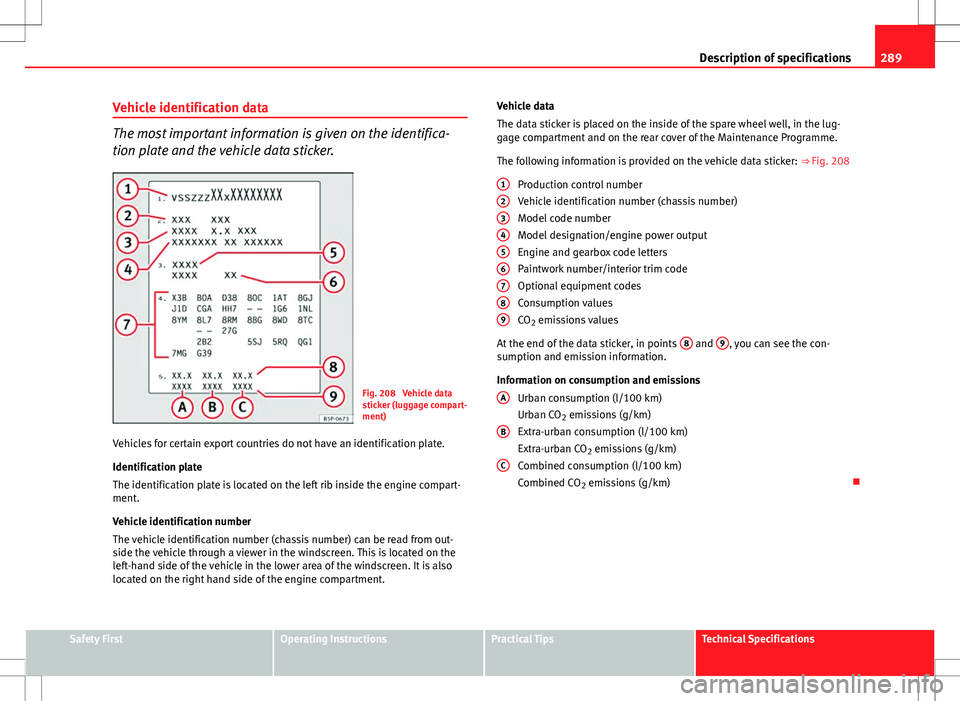

Description of specifications
Vehicle identification data
The most important information is given on the identifica-
tion plate and the vehicle data sticker.
Fig. 208 Vehicle data
sticker (luggage compart-
ment)
Vehicles for certain export countries do not have an identification plate.
Identification plate
The identification plate is located on the left rib inside the engine compart-
ment.
Vehicle identification number
The vehicle identification number (chassis number) can be read from out-
side the vehicle through a viewer in the windscreen. This is located on the
left-hand side of the vehicle in the lower area of the windscreen. It is also
located on the right hand side of the engine compartment. Vehicle data
The data sticker is placed on the inside of the spare wheel well, in the lug-
gage compartment and on the rear cover of the Maintenance Programme.
The following information is provided on the vehicle data sticker:
⇒ Fig. 208
Production control number
Vehicle identification number (chassis number)
Model code number
Model designation/engine power output
Engine and gearbox code letters
Paintwork number/interior trim code
Optional equipment codes
Consumption values
CO 2 emissions values
At the end of the data sticker, in points 8
and 9, you can see the con-
sumption and emission information.
Information on consumption and emissions
Urban consumption (l/100 km)
Urban CO 2 emissions (g/km)
Extra-urban consumption (l/100 km)
Extra-urban CO 2 emissions (g/km)
Combined consumption (l/100 km)
Combined CO 2 emissions (g/km)

1
23456789
A
B
C
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

290Description of specifications

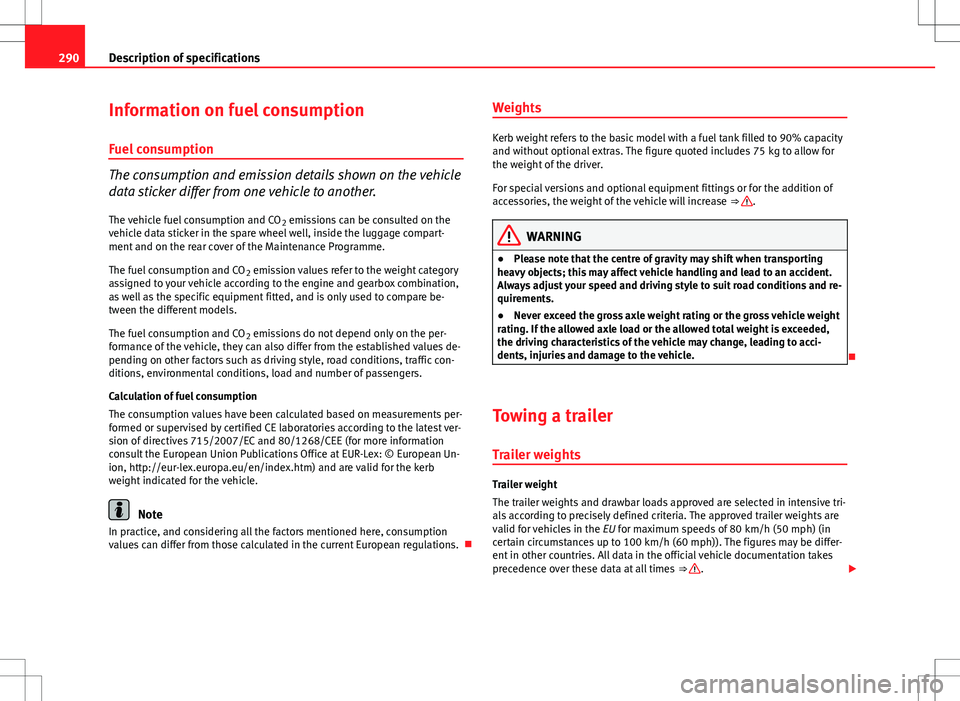

Information on fuel consumption
Fuel consumption
The consumption and emission details shown on the vehicle
data sticker differ from one vehicle to another.
The vehicle fuel consumption and CO 2 emissions can be consulted on the
vehicle data sticker in the spare wheel well, inside the luggage compart-
ment and on the rear cover of the Maintenance Programme.
The fuel consumption and CO 2 emission values refer to the weight category
assigned to your vehicle according to the engine and gearbox combination,
as well as the specific equipment fitted, and is only used to compare be-
tween the different models.
The fuel consumption and CO 2 emissions do not depend only on the per-
formance of the vehicle, they can also differ from the established values de-
pending on other factors such as driving style, road conditions, traffic con-
ditions, environmental conditions, load and number of passengers.
Calculation of fuel consumption
The consumption values have been calculated based on measurements per-
formed or supervised by certified CE laboratories according to the latest ver-
sion of directives 715/2007/EC and 80/1268/CEE (for more information
consult the European Union Publications Office at EUR-Lex: © European Un-
ion, http://eur-lex.europa.eu/en/index.htm) and are valid for the kerb
weight indicated for the vehicle.
Note
In practice, and considering all the factors mentioned here, consumption
values can differ from those calculated in the current European regulations. Weights
Kerb weight refers to the basic model with a fuel tank filled to 90% capacity
and without optional extras. The figure quoted includes 75 kg to allow for
the weight of the driver.
For special versions and optional equipment fittings or for the addition of
accessories, the weight of the vehicle will increase
⇒ 
.
WARNING
● Please note that the centre of gravity may shift when transporting
heavy objects; this may affect vehicle handling and lead to an accident.
Always adjust your speed and driving style to suit road conditions and re-
quirements.
● Never exceed the gross axle weight rating or the gross vehicle weight
rating. If the allowed axle load or the allowed total weight is exceeded,
the driving characteristics of the vehicle may change, leading to acci-
dents, injuries and damage to the vehicle.

Towing a trailer Trailer weights
Trailer weight
The trailer weights and drawbar loads approved are selected in intensive tri-
als according to precisely defined criteria. The approved trailer weights are
valid for vehicles in the EU for maximum speeds of 80 km/h (50 mph) (in
certain circumstances up to 100 km/h (60 mph)). The figures may be differ-
ent in other countries. All data in the official vehicle documentation takes
precedence over these data at all times ⇒ 
.

291
Description of specifications

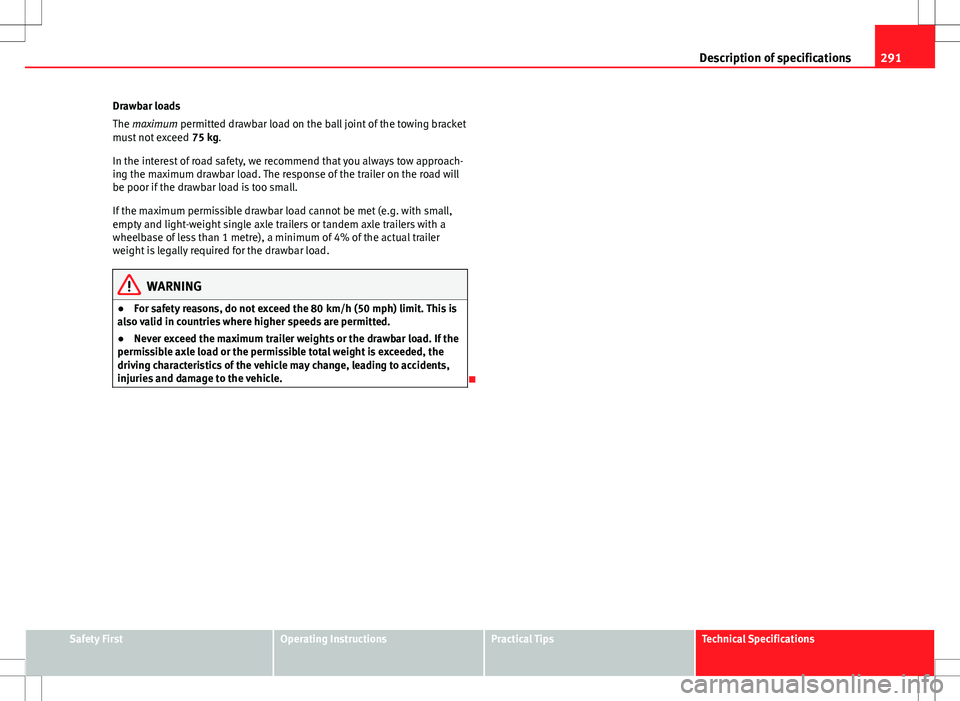

Drawbar loads
The maximum permitted drawbar load on the ball joint of the towing bracket
must not exceed 75 kg.
In the interest of road safety, we recommend that you always tow approach-
ing the maximum drawbar load. The response of the trailer on the road will
be poor if the drawbar load is too small.
If the maximum permissible drawbar load cannot be met (e.g. with small,
empty and light-weight single axle trailers or tandem axle trailers with a
wheelbase of less than 1 metre), a minimum of 4% of the actual trailer
weight is legally required for the drawbar load.
WARNING
● For safety reasons, do not exceed the 80 km/h (50 mph) limit. This is
also valid in countries where higher speeds are permitted.
● Never exceed the maximum trailer weights or the drawbar load. If the
permissible axle load or the permissible total weight is exceeded, the
driving characteristics of the vehicle may change, leading to accidents,
injuries and damage to the vehicle.

Safety FirstOperating InstructionsPractical TipsTechnical Specifications

292Technical specifications
Technical specifications

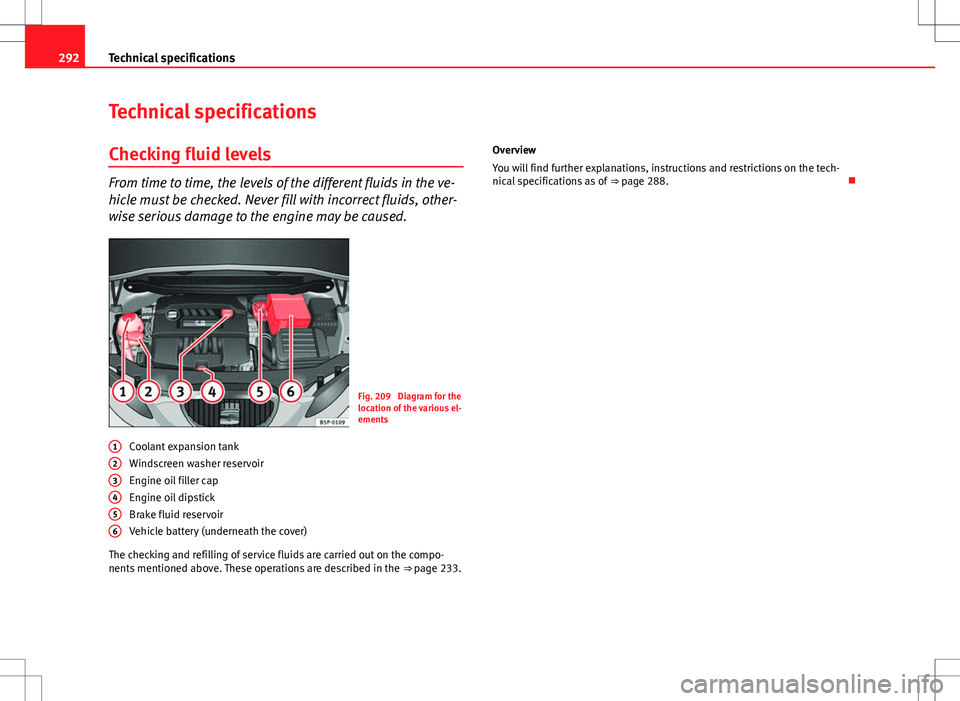

Checking fluid levels
From time to time, the levels of the different fluids in the ve-
hicle must be checked. Never fill with incorrect fluids, other-
wise serious damage to the engine may be caused.
Fig. 209 Diagram for the
location of the various el-
ements
Coolant expansion tank
Windscreen washer reservoir
Engine oil filler cap
Engine oil dipstick
Brake fluid reservoir
Vehicle battery (underneath the cover)
The checking and refilling of service fluids are carried out on the compo-
nents mentioned above. These operations are described in the ⇒ page 233.
1
23456
Overview
You will find further explanations, instructions and restrictions on the tech-
nical specifications as of
⇒ page 288. 

293
Technical specifications

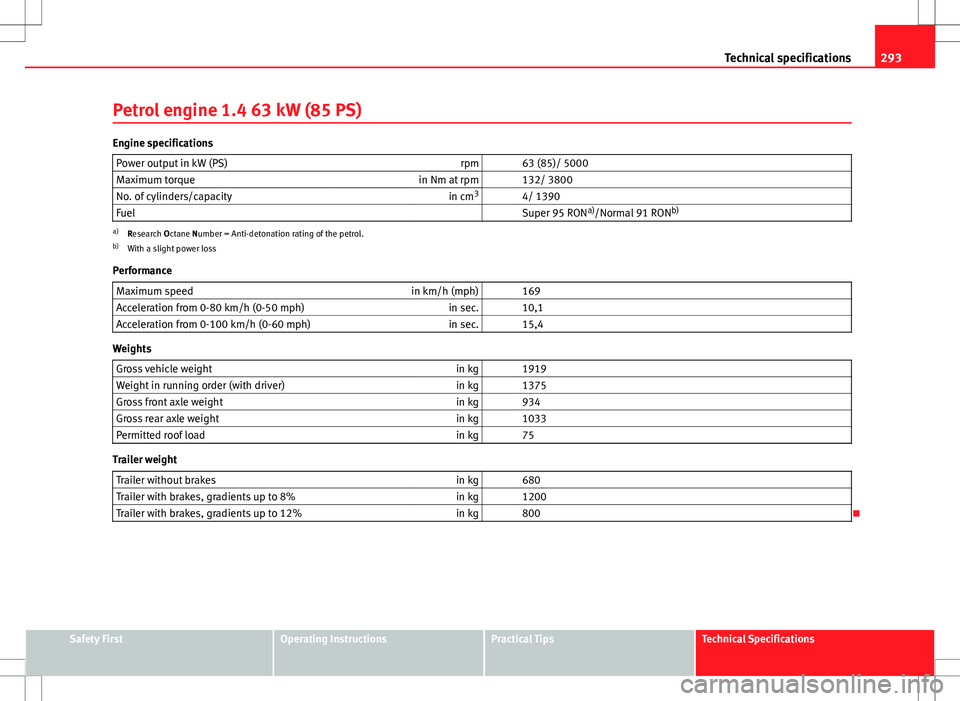

Petrol engine 1.4 63 kW (85 PS)
Engine specifications Power output in kW (PS) rpm 63 (85)/ 5000
Maximum torque in Nm at rpm 132/ 3800
No. of cylinders/capacity in cm3
4/ 1390
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) With a slight power loss
Performance Maximum speed in km/h (mph) 169
Acceleration from 0-80 km/h (0-50 mph) in sec. 10,1
Acceleration from 0-100 km/h (0-60 mph) in sec. 15,4
Weights
Gross vehicle weight in kg 1919
Weight in running order (with driver) in kg 1375
Gross front axle weight in kg 934
Gross rear axle weight in kg 1033
Permitted roof load in kg 75
Trailer weight
Trailer without brakes in kg 680
Trailer with brakes, gradients up to 8% in kg 1200
Trailer with brakes, gradients up to 12% in kg 800

Safety FirstOperating InstructionsPractical TipsTechnical Specifications

294Technical specifications

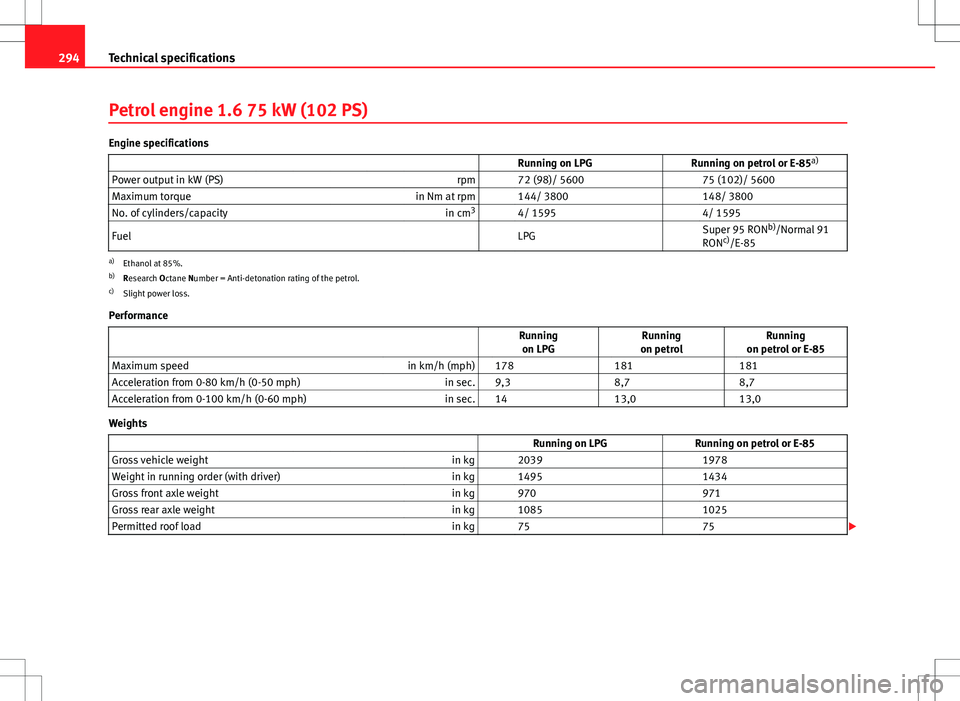

Petrol engine 1.6 75 kW (102 PS)
Engine specifications
Running on LPG Running on petrol or E-85a)
Power output in kW (PS) rpm 72 (98)/ 5600 75 (102)/ 5600
Maximum torque in Nm at rpm 144/ 3800 148/ 3800
No. of cylinders/capacity in cm3
4/ 1595 4/ 1595
Fuel LPG Super 95 RON
b)
/Normal 91
RON c)
/E-85
a) Ethanol at 85%.
b) Research Octane Number = Anti-detonation rating of the petrol.
c) Slight power loss.
Performance Running
on LPG Running
on petrol Running
on petrol or E-85
Maximum speed in km/h (mph) 178 181 181
Acceleration from 0-80 km/h (0-50 mph) in sec. 9,3 8,7 8,7
Acceleration from 0-100 km/h (0-60 mph) in sec. 14 13,0 13,0
Weights
Running on LPG Running on petrol or E-85
Gross vehicle weight in kg 2039 1978
Weight in running order (with driver) in kg 1495 1434
Gross front axle weight in kg 970 971
Gross rear axle weight in kg 1085 1025
Permitted roof load in kg 75 75

295
Technical specifications

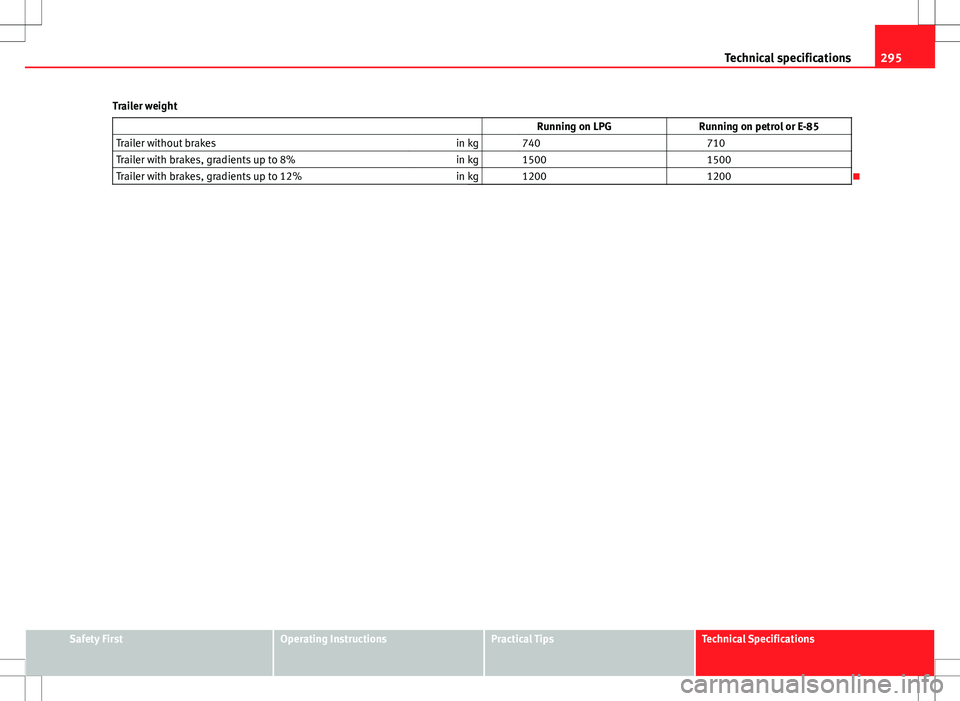

Trailer weight Running on LPGRunning on petrol or E-85
Trailer without brakes in kg 740 710
Trailer with brakes, gradients up to 8% in kg 1500 1500
Trailer with brakes, gradients up to 12% in kg 1200 1200

Safety FirstOperating InstructionsPractical TipsTechnical Specifications

296Technical specifications

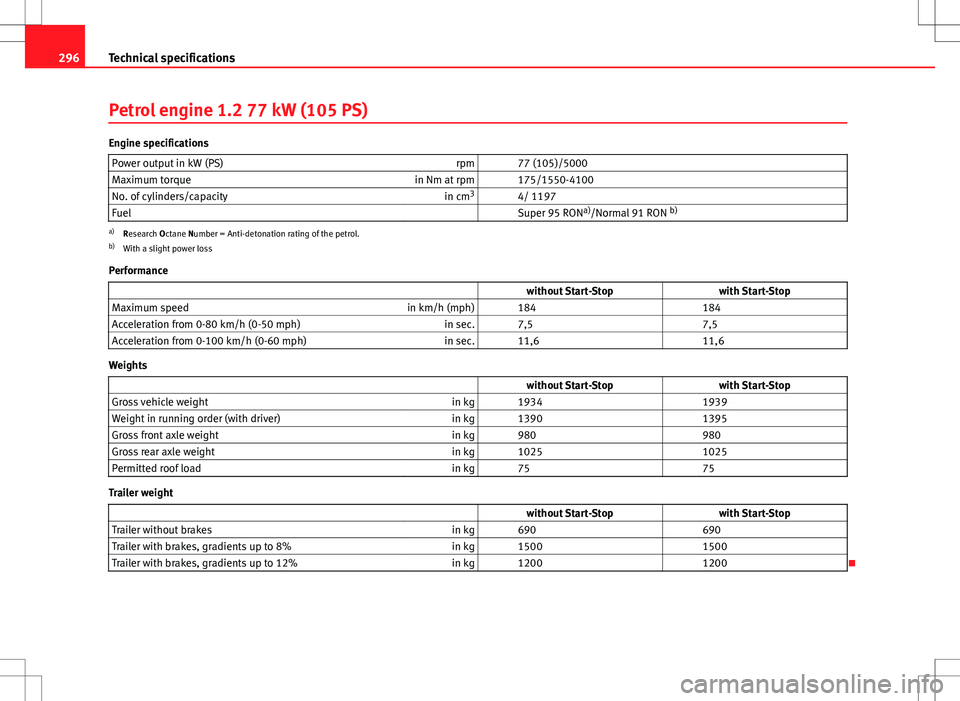

Petrol engine 1.2 77 kW (105 PS)
Engine specifications
Power output in kW (PS) rpm 77 (105)/5000
Maximum torque in Nm at rpm 175/1550-4100
No. of cylinders/capacity in cm3
4/ 1197
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) With a slight power loss
Performance without Start-Stopwith Start-Stop
Maximum speed in km/h (mph) 184 184
Acceleration from 0-80 km/h (0-50 mph) in sec. 7,5 7,5
Acceleration from 0-100 km/h (0-60 mph) in sec. 11,6 11,6
Weights
without Start-Stop with Start-Stop
Gross vehicle weight in kg 1934 1939
Weight in running order (with driver) in kg 1390 1395
Gross front axle weight in kg 980 980
Gross rear axle weight in kg 1025 1025
Permitted roof load in kg 75 75
Trailer weight
without Start-Stopwith Start-Stop
Trailer without brakes in kg 690 690
Trailer with brakes, gradients up to 8% in kg 1500 1500
Trailer with brakes, gradients up to 12% in kg 1200 1200


297
Technical specifications

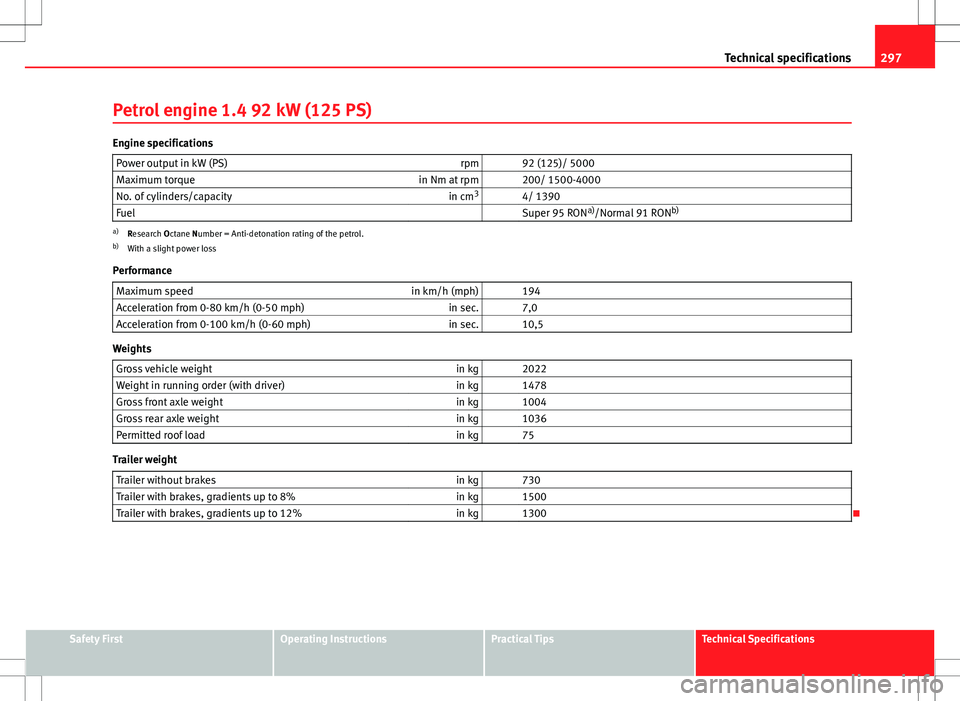

Petrol engine 1.4 92 kW (125 PS)
Engine specifications Power output in kW (PS) rpm 92 (125)/ 5000
Maximum torque in Nm at rpm 200/ 1500-4000
No. of cylinders/capacity in cm3
4/ 1390
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) With a slight power loss
Performance Maximum speed in km/h (mph) 194
Acceleration from 0-80 km/h (0-50 mph) in sec. 7,0
Acceleration from 0-100 km/h (0-60 mph) in sec. 10,5
Weights
Gross vehicle weight in kg 2022
Weight in running order (with driver) in kg 1478
Gross front axle weight in kg 1004
Gross rear axle weight in kg 1036
Permitted roof load in kg 75
Trailer weight
Trailer without brakes in kg 730
Trailer with brakes, gradients up to 8% in kg 1500
Trailer with brakes, gradients up to 12% in kg 1300

Safety FirstOperating InstructionsPractical TipsTechnical Specifications

298Technical specifications

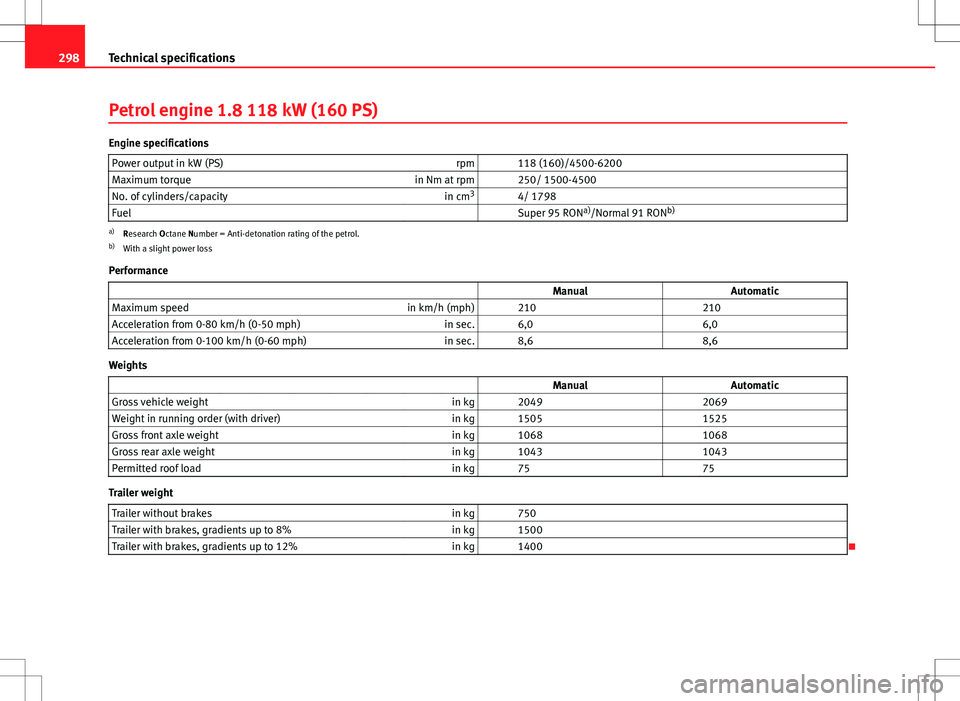

Petrol engine 1.8 118 kW (160 PS)
Engine specifications
Power output in kW (PS) rpm 118 (160)/4500-6200
Maximum torque in Nm at rpm 250/ 1500-4500
No. of cylinders/capacity in cm3
4/ 1798
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) With a slight power loss
Performance ManualAutomatic
Maximum speed in km/h (mph) 210 210
Acceleration from 0-80 km/h (0-50 mph) in sec. 6,0 6,0
Acceleration from 0-100 km/h (0-60 mph) in sec. 8,6 8,6
Weights
Manual Automatic
Gross vehicle weight in kg 2049 2069
Weight in running order (with driver) in kg 1505 1525
Gross front axle weight in kg 1068 1068
Gross rear axle weight in kg 1043 1043
Permitted roof load in kg 75 75
Trailer weight
Trailer without brakes in kg 750
Trailer with brakes, gradients up to 8% in kg 1500
Trailer with brakes, gradients up to 12% in kg 1400

