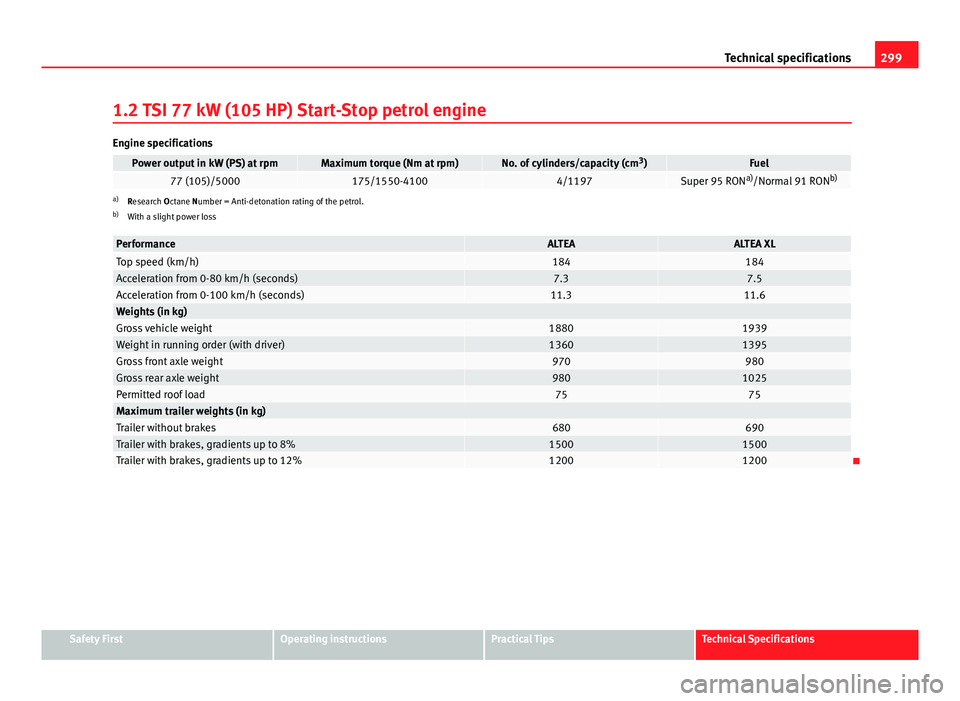

Seat Altea XL 2014 Owner's Manual

299
Technical specifications
1.2 TSI 77 kW (105 HP) Start-Stop petrol engine
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm 3
)Fuel77 (105)/5000175/1550-41004/1197Super 95 RON a)
/Normal 91 RON b)a)
Research Octane Number = Anti-detonation rating of the petrol.
b) With a slight power loss
PerformanceALTEAALTEA XLTop speed (km/h)184184Acceleration from 0-80 km/h (seconds)7.37.5Acceleration from 0-100 km/h (seconds)11.311.6Weights (in kg)Gross vehicle weight18801939Weight in running order (with driver)13601395Gross front axle weight970980Gross rear axle weight9801025Permitted roof load7575Maximum trailer weights (in kg)Trailer without brakes680690Trailer with brakes, gradients up to 8%15001500Trailer with brakes, gradients up to 12%12001200
Safety FirstOperating instructionsPractical TipsTechnical Specifications

300Technical specifications
Petrol engine 1.4 92 kW (125 PS)
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm 3
)Fuel92 (125)/ 5000200/ 1500-40004/1390Super 95 RON a)
/Normal 91 RON b)a)
Research Octane Number = Anti-detonation rating of the petrol.
b) With a slight power loss
PerformanceALTEAALTEA XLALTEA FREETRACKTop speed (km/h)194194188Acceleration from 0-80 km/h (seconds)6.97.07.2Acceleration from 0-100 km/h (seconds)10.310.510.8Weights (in kg)Gross vehicle weight195920222032Weight in running order (with driver)143914781488Gross front axle weight100810041010Gross rear axle weight98710361035Permitted roof load757575Maximum trailer weights (in kg)Trailer without brakes710730740Trailer with brakes, gradients up to 8%150015001500Trailer with brakes, gradients up to 12%130013001300

301
Technical specifications
Petrol engine 2.0 155 kW (211 PS)
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm 3
)Fuel155 (211)/ 5300-6200280/ 1700 - 52004/1984Super 95 RON a)
/Normal 91 RON b)a)
Research Octane Number = Anti-detonation rating of the petrol.
b) With a slight power loss
PerformanceALTEA FREETRACK
Frontwheel driveALTEA FREETRACK Four-wheel drive
Top speed (km/h)220218Acceleration from 0-80 km/h (seconds)5.55.3Acceleration from 0-100 km/h (seconds)7.77.6Weights (in kg)Gross vehicle weight21502205Weight in running order (with driver)16061661Gross front axle weight11151140Gross rear axle weight10551085Permitted roof load7575Maximum trailer weights (in kg)Trailer without brakes750750Trailer with brakes, gradients up to 8%16501650Trailer with brakes, gradients up to 12%14001650
Safety FirstOperating instructionsPractical TipsTechnical Specifications

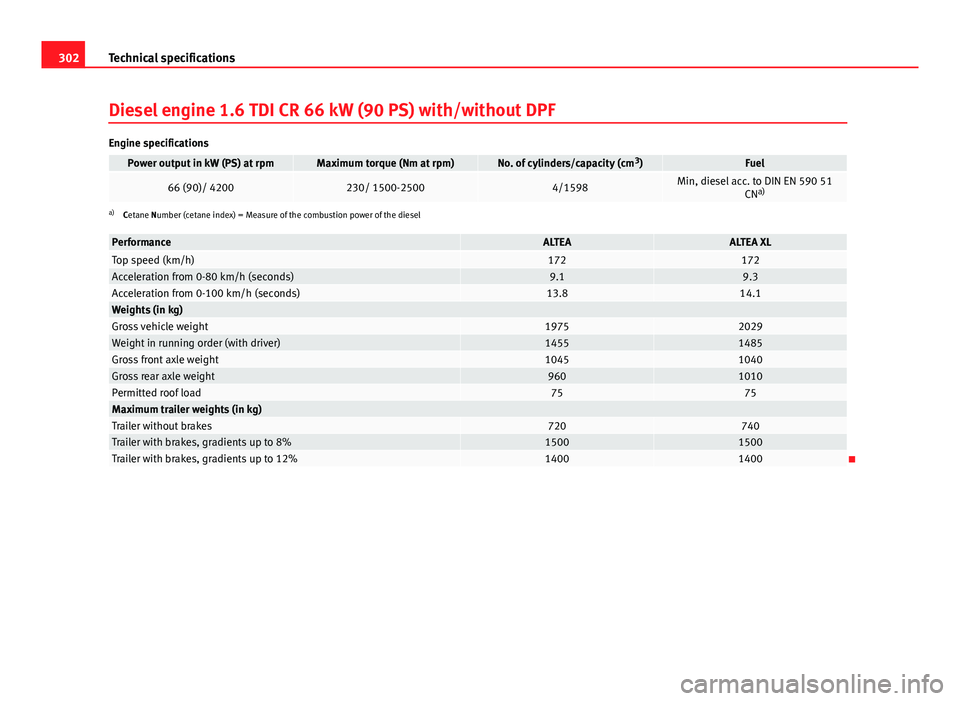

302Technical specifications
Diesel engine 1.6 TDI CR 66 kW (90 PS) with/without DPF
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm 3
)Fuel
66 (90)/ 4200230/ 1500-25004/1598Min, diesel acc. to DIN EN 590 51
CNa)
a)
Cetane Number (cetane index) = Measure of the combustion power of the diesel
PerformanceALTEAALTEA XLTop speed (km/h)172172Acceleration from 0-80 km/h (seconds)9.19.3Acceleration from 0-100 km/h (seconds)13.814.1Weights (in kg)Gross vehicle weight19752029Weight in running order (with driver)14551485Gross front axle weight10451040Gross rear axle weight9601010Permitted roof load7575Maximum trailer weights (in kg)Trailer without brakes720740Trailer with brakes, gradients up to 8%15001500Trailer with brakes, gradients up to 12%14001400

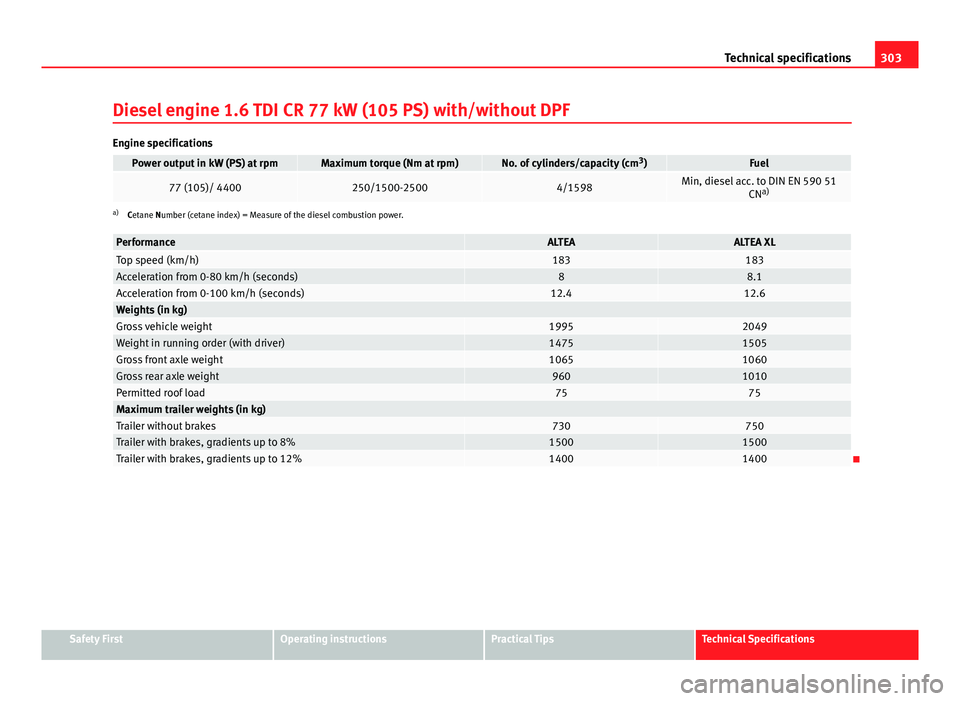

303
Technical specifications
Diesel engine 1.6 TDI CR 77 kW (105 PS) with/without DPF
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm 3
)Fuel
77 (105)/ 4400250/1500-25004/1598Min, diesel acc. to DIN EN 590 51
CNa)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
PerformanceALTEAALTEA XLTop speed (km/h)183183Acceleration from 0-80 km/h (seconds)88.1Acceleration from 0-100 km/h (seconds)12.412.6Weights (in kg)Gross vehicle weight19952049Weight in running order (with driver)14751505Gross front axle weight10651060Gross rear axle weight9601010Permitted roof load7575Maximum trailer weights (in kg)Trailer without brakes730750Trailer with brakes, gradients up to 8%15001500Trailer with brakes, gradients up to 12%14001400
Safety FirstOperating instructionsPractical TipsTechnical Specifications

304Technical specifications
Diesel engine 1.6 TDI CR 77 kW (105 PS) DPF Start-Stop
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm 3
)Fuel
77 (105)/ 4400250/1500-25004/1598Min, diesel acc. to DIN EN 590 51
CNa)
a)
Cetane Number (cetane index) = Measure of the combustion power of the diesel
PerformanceALTEAALTEA XLALTEA FREETRACKTop speed (km/h)183183177Acceleration from 0-80 km/h (seconds)88.28.3Acceleration from 0-100 km/h (seconds)12.212.412.6Weights (in kg)Gross vehicle weight197020242049Weight in running order (with driver)145014801505Gross front axle weight104510401045Gross rear axle weight96010101035Permitted roof load757575Maximum trailer weights (in kg)Trailer without brakes720740740Trailer with brakes, gradients up to 8%150015001500Trailer with brakes, gradients up to 12%140014001400

305
Technical specifications
Diesel engine 2.0 TDI CR 103 kW (140 PS)
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm 3
)Fuel
103 (140) / 4200320/ 1750 - 25004/1968Min, diesel acc. to DIN EN 590 51
CNa)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
PerformanceALTEAALTEA XLALTEA XL
Four-wheel driveALTEA FREETRACK Four-wheel drive
Top speed (km/h)201201198193Acceleration from 0-80 km/h (seconds)6.66.76.96.9Acceleration from 0-100 km/h (seconds)9.79.810.110.2Weights (in kg)Gross vehicle weight1985203421322159Weight in running order (with driver)1465149015881615Gross front axle weight1065107010901110Gross rear axle weight955102010801070Permitted roof load75757575Maximum trailer weights (in kg)Trailer without brakes730740750750Trailer with brakes, gradients up to 8%1500150016501650Trailer with brakes, gradients up to 12%1500150016501650
Safety FirstOperating instructionsPractical TipsTechnical Specifications

306Technical specifications
Diesel engine 2.0 TDI CR 125 kW (170 PS)
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm 3
)Fuel
125 (170)/ 4200350/1750-25004/1968Min, diesel acc. to DIN EN 590 51
CNa)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
PerformanceALTEA FREETRACK
Four-wheel drive
Top speed (km/h)204Acceleration from 0-80 km/h (seconds)5.9Acceleration from 0-100 km/h (seconds)8.7Weights (in kg)Gross vehicle weight2159Weight in running order (with driver)1615Gross front axle weight1110Gross rear axle weight1070Permitted roof load75Maximum trailer weights (in kg)Trailer without brakes750Trailer with brakes, gradients up to 8%1650Trailer with brakes, gradients up to 12%1650

307
Technical specifications
Dimensions and capacities
Dimensions
ALTEAALTEA XLALTEA FREETRACKLength / Width (mm)4282/17684467/17684493/1778Height at kerb weight (mm)154615751615Front and rear projections (mm)916/788913/976940/977Wheelbase (mm)257825782578Turning circle diameter (m)10.710.710.7Front/rear a)
track width (mm)1525 / 1509
1539 / 15231527 / 1506
1541 / 15201534 / 1519
1542 / 1527
a) This data will change depending on the type of wheel rim.
Capacities
Fuel tank (I)Vehicles with front-wheel driveVehicles with four-wheel drive55 - Reserve 760 - Reserve 8LPG Fuel tank (I)39Windscreen washer fluid container / with headlight washer (I)3/5.5
Tyre pressure
Summer-grade tyres:The correct tyre pressure can be seen on the sticker on the inside of the tank flap.Winter tyres:The pressure of these tyres is 0.2 bar higher than that of summer tyres (2.9 psi / 20 kPa).
