jack points Seat Arona 2017 Owner's Manual

The essentials

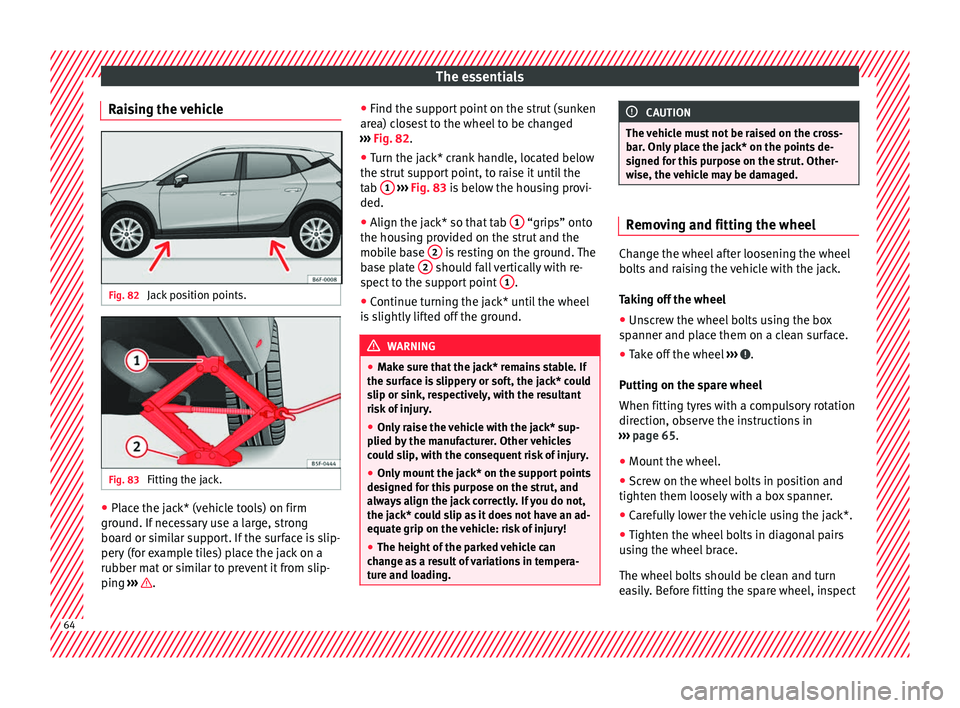

Raising the vehicle Fig. 82
Jack position points. Fig. 83
Fitting the jack. ●
Place the jack* (vehicle tools) on firm
gr ou
nd. If
necessary use a large, strong
board or similar support. If the surface is slip-
pery (for example tiles) place the jack on a
rubber mat or similar to prevent it from slip-
ping ››› . ●
Find the s up
por

t point on the strut (sunken
area) closest to the wheel to be changed
››› Fig. 82.
● Turn the jack* crank handle, located below
the strut s
upport point, to raise it until the
tab 1
› ››
Fig. 83
i
s below the housing provi-
ded.
● Align the jack* so that tab 1 “grips” onto
the hou s
in

g provided on the strut and the
mobile base 2 is resting on the ground. The
b a
se p

late 2 should fall vertically with re-
s pect
t
o the support point 1 .
● Continue turning the jack* until the wheel
i s
s

lightly lifted off the ground. WARNING
● Mak e s

ure that the jack* remains stable. If
the surface is slippery or soft, the jack* could
slip or sink, respectively, with the resultant
risk of injury.
● Only raise the vehicle with the jack* sup-
plied by
the manufacturer. Other vehicles
could slip, with the consequent risk of injury.
● Only mount the jack* on the support points
designed f
or this purpose on the strut, and
always align the jack correctly. If you do not,
the jack* could slip as it does not have an ad-
equate grip on the vehicle: risk of injury!
● The height of the parked vehicle can
chan
ge as a result of variations in tempera-
ture and loading. CAUTION
The vehicle must not be raised on the cross-
bar . On

ly place the jack* on the points de-
signed for this purpose on the strut. Other-
wise, the vehicle may be damaged. Removing and fitting the wheel
Change the wheel after loosening the wheel
bolts
and r

aising the vehicle with the jack.
Taking off the wheel
● Unscrew the wheel bolts using the box
sp anner and p

lace them on a clean surface.
● Take off the wheel ›››
.
P uttin
g on the s
pare wheel
When fitting tyres with a compulsory rotation
direction, observe the instructions in
››› page 65.
● Mount the wheel.
● Screw on the wheel bolts in position and
tighten them loosely
with a box spanner.
● Carefully lower the vehicle using the jack*.
● Tighten the wheel bolts in diagonal pairs
usin
g the wheel brace.
The wheel bolts should be clean and turn
easily. Before fitting the spare wheel, inspect 64

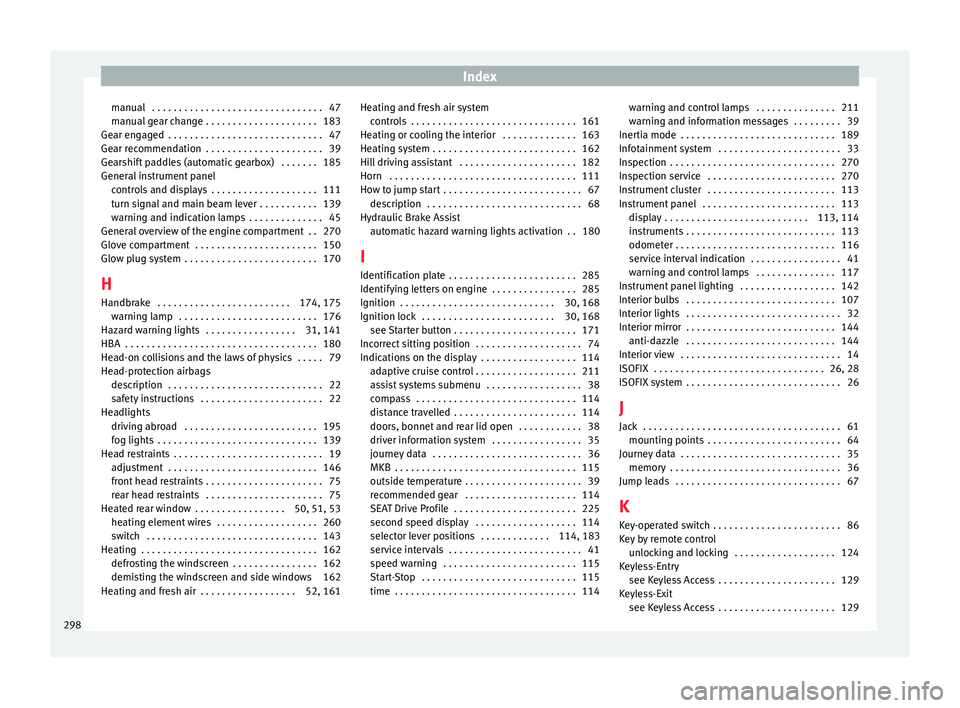

Index
manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
m anual
g
ear change . . . . . . . . . . . . . . . . . . . . . 183
Gear engaged . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Gear recommendation . . . . . . . . . . . . . . . . . . . . . . 39
Gearshift paddles (automatic gearbox) . . . . . . . 185
General instrument panel controls and displays . . . . . . . . . . . . . . . . . . . . 111
turn signal and main beam lever . . . . . . . . . . . 139
warning and indication lamps . . . . . . . . . . . . . . 45
General overview of the engine compartment . . 270
Glove compartment . . . . . . . . . . . . . . . . . . . . . . . 150
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . . . 170
H Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . 174, 175 warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Hazard warning lights . . . . . . . . . . . . . . . . . 31, 141
HBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Head-on collisions and the laws of physics . . . . . 79
Head-protection airbags description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
safety instructions . . . . . . . . . . . . . . . . . . . . . . . 22
Headlights driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . 195
fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
front head restraints . . . . . . . . . . . . . . . . . . . . . . 75
rear head restraints . . . . . . . . . . . . . . . . . . . . . . 75
Heated rear window . . . . . . . . . . . . . . . . . 50, 51, 53 heating element wires . . . . . . . . . . . . . . . . . . . 260
switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162 defrosting the windscreen . . . . . . . . . . . . . . . . 162
demisting the windscreen and side windows 162
Heating and fresh air . . . . . . . . . . . . . . . . . . 52, 161 Heating and fresh air system
contro ls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Heating or cooling the interior . . . . . . . . . . . . . . 163
Heating system . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Hill driving assistant . . . . . . . . . . . . . . . . . . . . . . 182
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
How to jump start . . . . . . . . . . . . . . . . . . . . . . . . . . 67 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Hydraulic Brake Assist automatic hazard warning lights activation . . 180
I Identification plate . . . . . . . . . . . . . . . . . . . . . . . . 285
Identifying letters on engine . . . . . . . . . . . . . . . . 285
Ignition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30, 168
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . 30, 168 see Starter button . . . . . . . . . . . . . . . . . . . . . . . 171
Incorrect sitting position . . . . . . . . . . . . . . . . . . . . 74
Indications on the display . . . . . . . . . . . . . . . . . . 114 adaptive cruise control . . . . . . . . . . . . . . . . . . . 211
assist systems submenu . . . . . . . . . . . . . . . . . . 38
compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
distance travelled . . . . . . . . . . . . . . . . . . . . . . . 114
doors, bonnet and rear lid open . . . . . . . . . . . . 38
driver information system . . . . . . . . . . . . . . . . . 35
journey data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
MKB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
outside temperature . . . . . . . . . . . . . . . . . . . . . . 39
recommended gear . . . . . . . . . . . . . . . . . . . . . 114
SEAT Drive Profile . . . . . . . . . . . . . . . . . . . . . . . 225
second speed display . . . . . . . . . . . . . . . . . . . 114
selector lever positions . . . . . . . . . . . . . 114, 183
service intervals . . . . . . . . . . . . . . . . . . . . . . . . . 41
speed warning . . . . . . . . . . . . . . . . . . . . . . . . . 115
Start-Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114 warning and control lamps . . . . . . . . . . . . . . . 211
warning and inf
ormation messages . . . . . . . . . 39
Inertia mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Infotainment system . . . . . . . . . . . . . . . . . . . . . . . 33
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
Inspection service . . . . . . . . . . . . . . . . . . . . . . . . 270
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . 113
Instrument panel . . . . . . . . . . . . . . . . . . . . . . . . . 113 display . . . . . . . . . . . . . . . . . . . . . . . . . . . 113, 114
instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
service interval indication . . . . . . . . . . . . . . . . . 41
warning and control lamps . . . . . . . . . . . . . . . 117
Instrument panel lighting . . . . . . . . . . . . . . . . . . 142
Interior bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144 anti-dazzle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Interior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
ISOFIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26, 28
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
J Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 mounting points . . . . . . . . . . . . . . . . . . . . . . . . . 64
Journey data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
K Key-operated switch . . . . . . . . . . . . . . . . . . . . . . . . 86
Key by remote control unlocking and locking . . . . . . . . . . . . . . . . . . . 124
Keyless-Entry see Keyless Access . . . . . . . . . . . . . . . . . . . . . . 129
Keyless-Exit see Keyless Access . . . . . . . . . . . . . . . . . . . . . . 129
