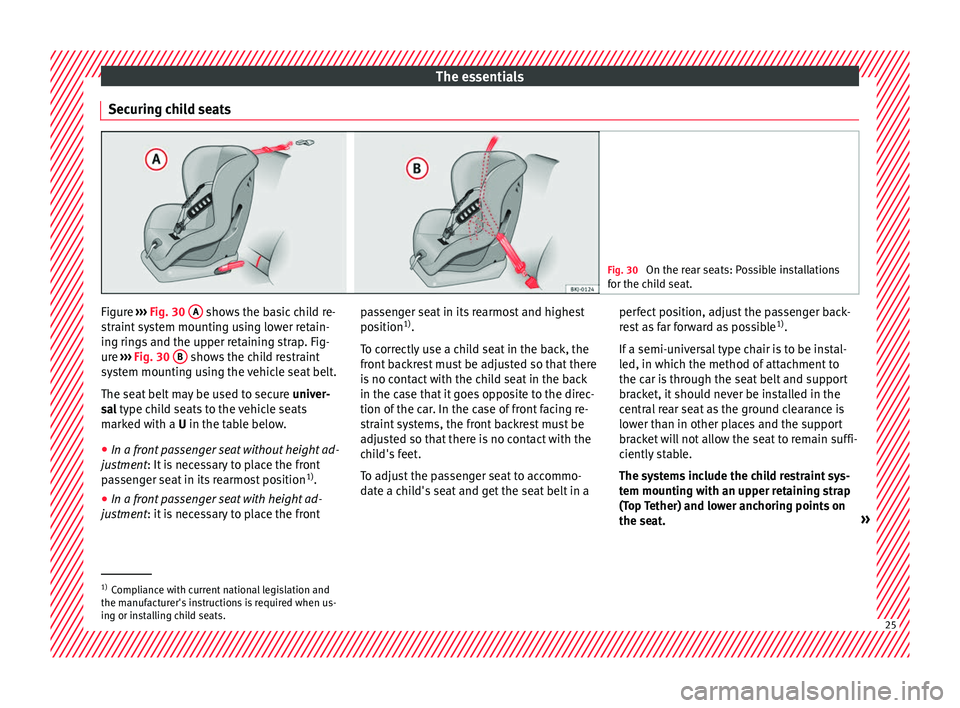

The essentials
Securing child seats Fig. 30
On the rear seats: Possible installations
for the c hi
ld seat. Figure
›››
Fig. 30
A shows the basic child re-
s tr
aint

system mounting using lower retain-
ing rings and the upper retaining strap. Fig-
ure ››› Fig. 30 B shows the child restraint
sy s
t

em mounting using the vehicle seat belt.
The seat belt may be used to secure univer-
sal type child seats to the vehicle seats
marked with a U in the table below.
● In a front passenger seat without height ad-
justment
: It is necessary to place the front
passenger seat in its rearmost position 1)
.
● In a front passenger seat with height ad-
justment
: it is necessary to place the front passenger seat in its rearmost and highest
position
1)
.
T

o correctly use a child seat in the back, the
front backrest must be adjusted so that there
is no contact with the child seat in the back
in the case that it goes opposite to the direc-
tion of the car. In the case of front facing re-
straint systems, the front backrest must be
adjusted so that there is no contact with the
child's feet.
To adjust the passenger seat to accommo-
date a child's seat and get the seat belt in a perfect position, adjust the passenger back-
res
t as far forward as possible 1)
.
If a semi-universal type chair is to be instal-
led, in which the method of attachment to
the car is through the seat belt and support
bracket, it should never be installed in the
central rear seat as the ground clearance is
lower than in other places and the support
bracket will not allow the seat to remain suffi-
ciently stable.
The systems include the child restraint sys-
tem mounting with an upper retaining strap
(Top Tether) and lower anchoring points on
the seat. »1)
Compliance with current national legislation and
the manuf act

urer's instructions is required when us-
ing or installing child seats. 25

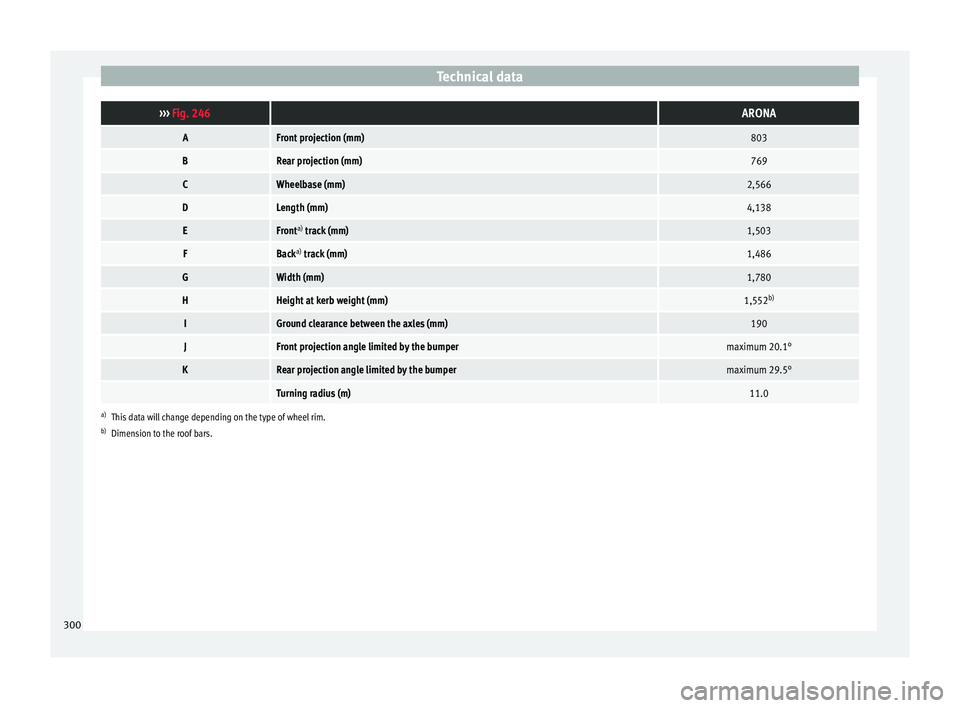

Technical data›››
Fig. 246 ARONA
AFront projection (mm)803
BRear projection (mm)769
CWheelbase (mm)2,566
DLength (mm)4,138
EFront a)
track (mm)1,503
FBack a)
track (mm)1,486
GWidth (mm)1,780
HHeight at kerb weight (mm)1,552 b)
IGround clearance between the axles (mm)190
JFront projection angle limited by the bumpermaximum 20.1°
KRear projection angle limited by the bumpermaximum 29.5°
Turning radius (m)11.0
a)
This data will change depending on the type of wheel rim.
b) Dimension to the roof bars.
300
