Page 71 of 316
The essentials
the wheel condition and hub mounting surfa-
c e
s.
These surfaces must be clean before fit-
ting the wheel.
Wheel bolt tightening torque
The prescribed tightening torque for wheel
bolts for steel and alloy wheels is 120 Nm.
After changing a wheel, have the tightening
torque checked immediately with a torque
wrench that is working perfectly.
Before checking tightening torque, have any
rusty wheel bolts that are difficult to screw re-
placed and clean the wheel hub threads.
Never apply grease or oil to wheel bolts or to
the wheel hub threads. Even if the bolts have
been tightened to the prescribed torque, they
could come loose while driving. WARNING
If the wheel bolts are not properly tightened,
they c ou
ld come loose while driving and
cause an accident, serious injury and loss of
vehicle control.
● Use only wheel bolts which correspond to
the rim in question.
● Nev
er use different wheel bolts.
● Wheel bolts and threads should be clean,
free of oi
l and grease, and it should be possi-
ble to screw them easily.
● To loosen and tighten wheel bolts, only use
the wheel wrenc
h that came with the car from
the factory. ●
Loo sen the wheel
bolts only about one turn
before raising the vehicle with the jack.
● Never apply grease or oil to wheel bolts or
to the wheel hub thr
eads. Even if the bolts
have been tightened to the prescribed tor-
que, they could come loose while driving.
● Never loosen the screwed joints of wheel
rims with bo
lted ring trims.
● If wheel bolts are tightened below the pre-
scribed t
orque, the bolts and rims could come
loose while driving. If tightening torque is too
high, the wheel bolts or threads can be dam-
aged. CAUTION
When removing/fitting the wheel, the rim
ma y
hit and damage the brake disc. For this
reason, please take care and get a second
person to assist you. Tyres with compulsory direction of ro-
t
ation A directional tread pattern can be identified
b
y
the arr
ows on the sidewall that point in
the direction of rotation. Always observe the
direction of rotation indicated when fitting
the wheel to guarantee optimum properties
of this type of tyres with regard to grip,
noises, wear and aquaplaning.
If it is absolutely necessary to fit the spare
tyre* against the direction of rotation, drive with care as this means the tyre does not of-
fer optimum drivin
g properties. This is of par-
ticular importance when the road surface is
wet.
To return to directional tread tires, replace
the punctured tyre as soon as possible and
restore the obligatory direction of rotation of
all tyres.
Subsequent work ●
Alloy wheels: rep
l
ace the wheel bolt caps.
● Plate wheels: repl
ace the wheel hubcap.
● Return all tools to their proper storing loca-
tion.
● If the replaced wheel does not fit in the
spar
e wheel housing, store it safely in the
luggage compartment ›››
page 158.
● Check the tyre pressure of the newly moun-
ted tyr
e as soon as possible.
● In vehicles fitted with a tyre pressure indi-
cator
, adjust the pressure and store it in
memory ›››
page 287.
● Have the tightening torque of the wheel
bolts c
hecked as soon as possible with a tor-
que wrench (it should be 120 Nm). Mean-
while, drive carefully.
● Have the flat tyre replaced as quickly as
pos s
ible. 69

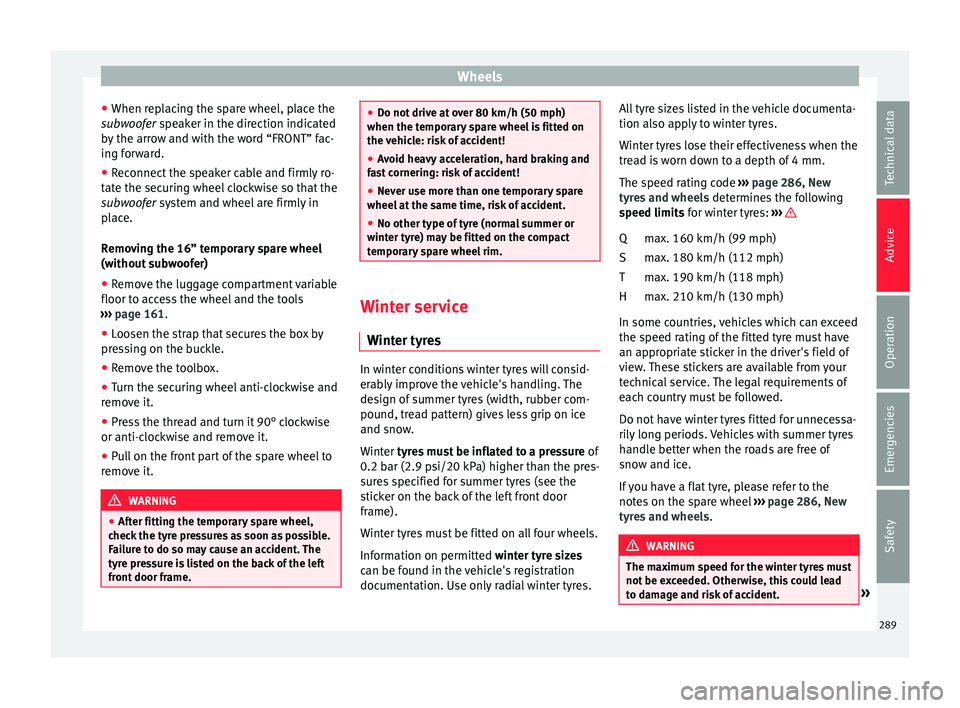

Page 291 of 316
Wheels
● When r ep
l
acing the spare wheel, place the
subwoofer speaker in the direction indicated
by the arrow and with the word “FRONT” fac-
ing forward.
● Reconnect the speaker cable and firmly ro-
tate the sec
uring wheel clockwise so that the
subwoofer system and wheel are firmly in
place.
Removing the 16” temporary spare wheel
(without subwoofer)
● Remove the luggage compartment variable
floor to acc
ess the wheel and the tools
››› page 161.
● Loosen the strap that secures the box by
pres
sing on the buckle.
● Remove the toolbox.
● Turn the securing wheel anti-clockwise and
remov
e it.
● Press the thread and turn it 90° clockwise
or anti-clock
wise and remove it.
● Pull on the front part of the spare wheel to
remov
e it. WARNING
● Aft er fittin
g the temporary spare wheel,
check the tyre pressures as soon as possible.
Failure to do so may cause an accident. The
tyre pressure is listed on the back of the left
front door frame. ●
Do not driv e at
over 80 km/h (50 mph)
when the temporary spare wheel is fitted on
the vehicle: risk of accident!
● Avoid heavy acceleration, hard braking and
fas
t cornering: risk of accident!
● Never use more than one temporary spare
wheel at the s
ame time, risk of accident.
● No other type of tyre (normal summer or
winter ty
re) may be fitted on the compact
temporary spare wheel rim. Winter service
W int
er ty
res In winter conditions winter tyres will consid-
er
ab
ly
improve the vehicle's handling. The
design of summer tyres (width, rubber com-
pound, tread pattern) gives less grip on ice
and snow.
Winter tyres must be inflated to a pressure of
0.2 bar (2.9 psi/20 kPa) higher than the pres-
sures specified for summer tyres (see the
sticker on the back of the left front door
frame).
Winter tyres must be fitted on all four wheels.
Information on permitted winter tyre sizes
can be found in the vehicle's registration
documentation. Use only radial winter tyres. All tyre sizes listed in the vehicle documenta-
tion also app
ly to winter tyres.
Winter tyres lose their effectiveness when the
tread is worn down to a depth of 4 mm.
The speed rating code ››› page 286, New
tyres and wheels determines the following
speed limits for winter tyres: ››› max. 160 km/h (99 mph)
m
ax. 180 km/h (112 mph)
m ax. 190 km/h (118 mph)
m
ax. 210 km/h (130 mph)
In some countries, vehicles which can exceed
the speed rating of the fitted tyre must have
an appropriate sticker in the driver's field of
view. These stickers are available from your
technical service. The legal requirements of
each country must be followed.
Do not have winter tyres fitted for unnecessa-
rily long periods. Vehicles with summer tyres
handle better when the roads are free of
snow and ice.
If you have a flat tyre, please refer to the
notes on the spare wheel ››› page 286, New
tyres and wheels . WARNING
The maximum speed for the winter tyres must
not be e x
ceeded. Otherwise, this could lead
to damage and risk of accident. » Q
S
T
H
289
Technical data
Advice
Operation
Emergencies
Safety
Page 313 of 316
Index
electrical socket . . . . . . . . . . . . . . . . . . . . . . . . 255
hit c
hin
g . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
parking aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
rear lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
safety lug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
tow rope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
Trailer turn signals control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Trailer weights . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
Transporting children . . . . . . . . . . . . . . . . . . . . . . . 92
Transporting items fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . 160
roof carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
roof carrier system . . . . . . . . . . . . . . . . . . . . . . 162
Transporting objects roof carrier system . . . . . . . . . . . . . . . . . . . . . . 163
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Turn signals control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Tyre Mobility Set components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Tyre Mobility System see Anti-puncture kit . . . . . . . . . . . . . . . . . . . . . 98
Tyre pressure . . . . . . . . . . . . . . . . . . . . . . . 285, 293
Tyre profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Tyre repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Tyre repair kit see Anti-puncture kit . . . . . . . . . . . . . . . . . . . . . 98
Tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283 changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
new tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 286
pressure . . . . . . . . . . . . . . . . . . . . . 284, 285, 287
service life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
wear indicators . . . . . . . . . . . . . . . . . . . . . . . . . 285
with directional tread . . . . . . . . . . . . . . . . . . . . . 69
with directional tread pattern . . . . . . . . . . . . . 284 Tyre tread depth . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Tyr
e wear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
U Unfastening your seat belt . . . . . . . . . . . . . . . . . . 84
Unfasten the seat belt . . . . . . . . . . . . . . . . . . . . . . 19
Unlocking and locking by remote control . . . . . . . . . . . . . . . . . . . . . . . 130
with Keyless Access . . . . . . . . . . . . . . . . . . . . . 135
with the central lock button . . . . . . . . . . . . . . . 134
Unlocking manually rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Upholstery: cleaning alcantara . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
upholstery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
USB/AUX-IN Port . . . . . . . . . . . . . . . . . . . . . . . . . 129
V Vanity mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Vehicle data label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
identification data . . . . . . . . . . . . . . . . . . . . . . 291
identification number . . . . . . . . . . . . . . . . . . . . 291
raising . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
unlocking and locking with Keyless Access . . 135
vehicle identification number . . . . . . . . . . . . . 291
Vehicle battery . . . . . . . . . . . . . . . . . . . . . . . 60, 281 assisted starting . . . . . . . . . . . . . . . . . . . . . . . . . 71
changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
connecting and disconnecting . . . . . . . . . . . . 281
disconnect and connect . . . . . . . . . . . . . . . . . . . 44
electrolyte level . . . . . . . . . . . . . . . . . . . . . . . . 282
winter conditions . . . . . . . . . . . . . . . . . . . . . . . 281
Vehicle care windscreen wipers service position . . . . . . . . . 73 Vehicle documentation compartment . . . . . . . . 156
Vehicl
e interior monitoring and anti-tow system 140
activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Vehicle paintwork code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
products for vehicle maintenance . . . . . . . . . . 260
Vehicle seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Vehicle tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Vehicle underbody protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
Vehicle washing . . . . . . . . . . . . . . . . . . . . . . . . . . 261
Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Ventilation slits . . . . . . . . . . . . . . . . . . . . . . . . . . 159
W Warning messages red . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
yellow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Warning symbols . . . . . . . . . . . . . . . . . . . . . . . . . 121 see also Control and warning lamps . . . . . . . . 121
Warning triangle . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Washing care of the vehicle exterior . . . . . . . . . . . . . . . . 261
Washing the vehicle . . . . . . . . . . . . . . . . . . . . . . . 261 adhesive sheets . . . . . . . . . . . . . . . . . . . . . . . . 262
high pressure cleaners . . . . . . . . . . . . . . . . . . . 262
sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
What negatively affects driving safety? . . . . . . . . 75
Wheel balance . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . 67, 293 anti-theft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
caps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
tightening torque . . . . . . . . . . . . . . . . . . . 69, 287
311
