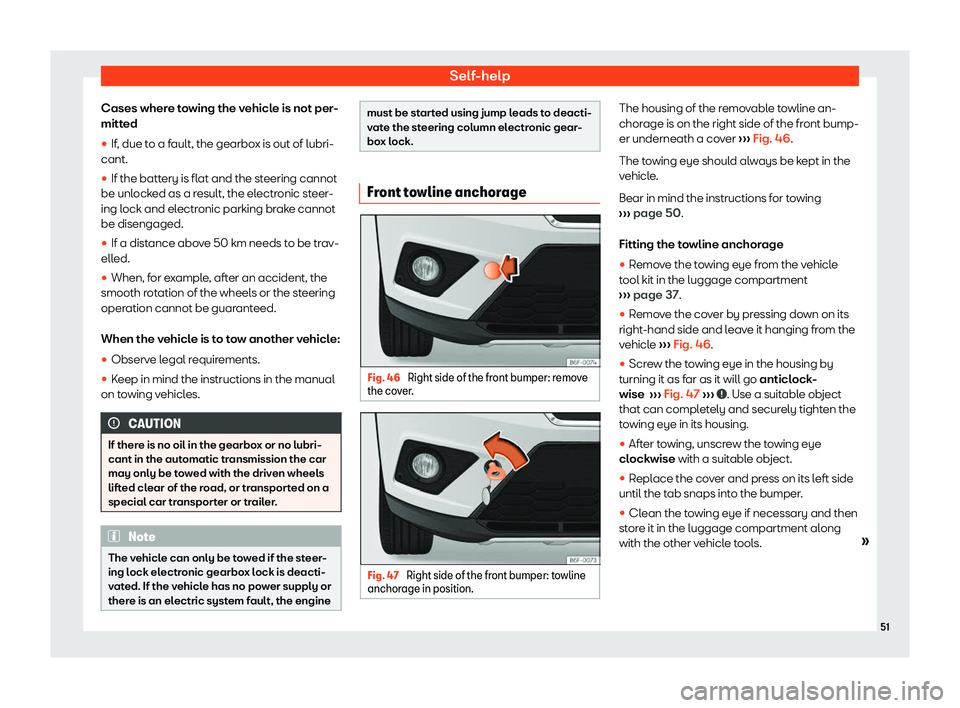

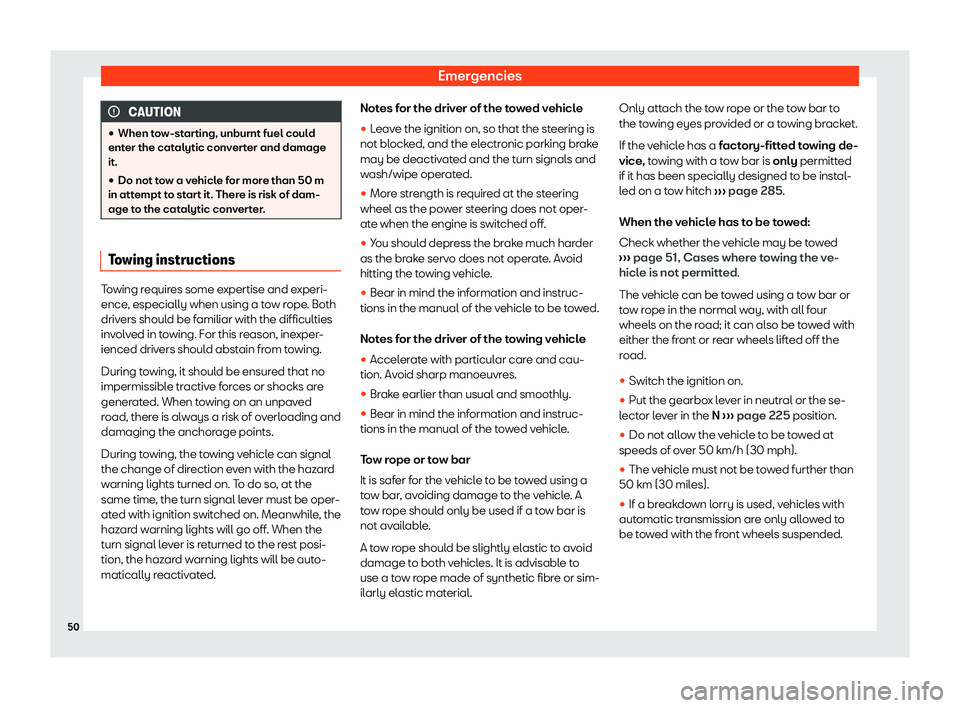

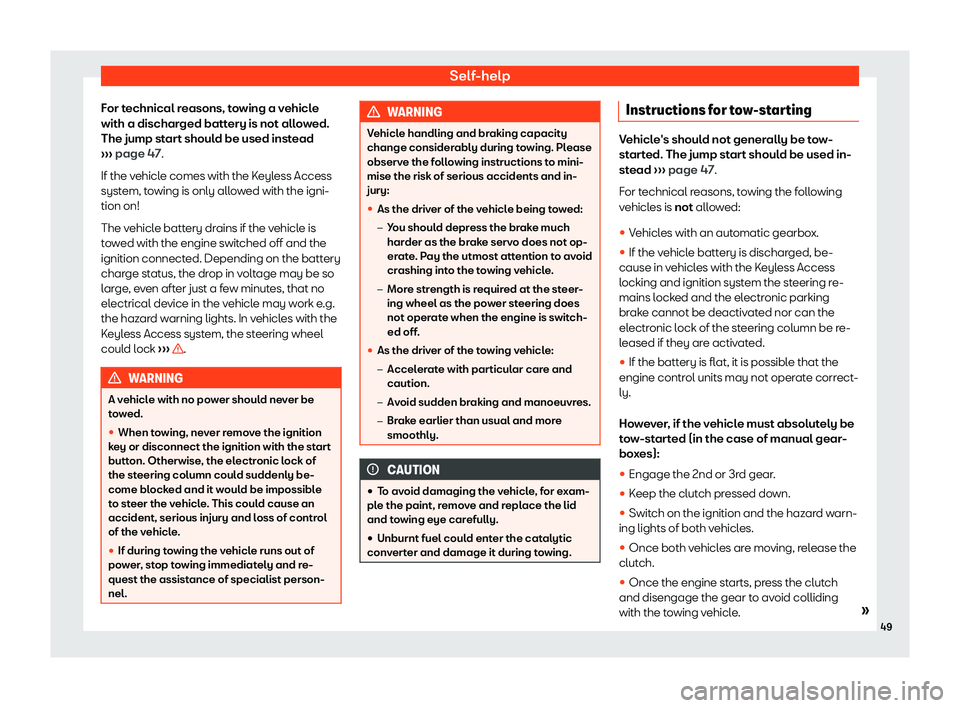

Emergencies
CAUTION
The towing eye must always be completely
and firmly tightened. Otherwise, it could be
r el

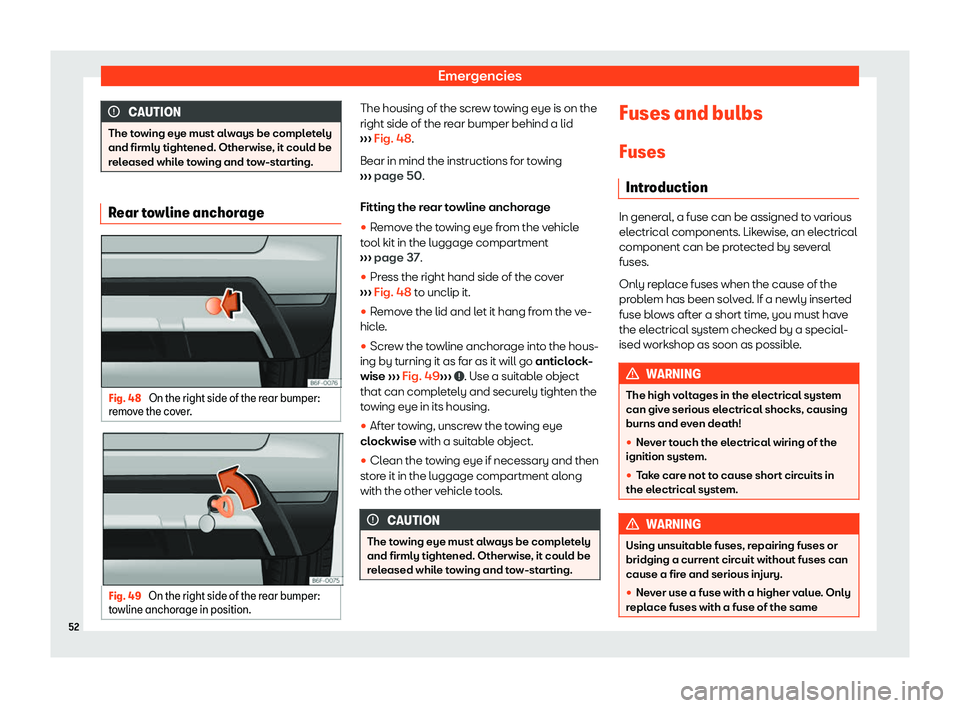

eased while towing and tow-starting. Rear towline anchorage
Fig. 48
On the right side of the rear bumper:
r emo v
e the co v
er. Fig. 49
On the right side of the rear bumper:
t o
wline anchor age in position. The housing of the screw towing eye is on the
right side of the r
ear bumper behind a lid
Fuses and bulbs
No. Consumer/Amps
19 Radio, Multimedia System 25
20 Heated rear window 30
21 SCR Control Unit 30
23 Rear View Camera 7.5
24 Connectivity Box, external audio
source wiring (Double USB-Aux IN),
MIB display 5
25 St
eering column electronics (MFL) 7.5
26 Gateway 7.5
27 Active suspension control unit 7.5
28 DWA Sensor 7.5
29 DWA Horn 7.5
31 9AA/9AB climate control unit 7.5
9AK Climatronic control unit
15
32 Steering Column LSS, without Kessy 7.5
33 Left Door Window Control 30
35 Left lights power supply 40
36 Signal Horn 20
37 Heated seats control unit 30
38 BCM Power C63 30
39 BSD, PDC, MRR, PLA 10 No. Consumer/Amps
40 Light switch, diagnosis input, head-
lamp range regul
at
or, LSS steering
column: lamps, halogen lamps,
switch, reverse gear, electrochromic
mirror, RKA without radio. 7.5
41 Regulation of unfolded exterior mir-
rors, 7.5
42 Clutch pedal
, ignition r
elays, CNG
relay coil, AC pr essur
e sensor7.5
43 DWP relay coil, rear window wiper motor, heated no zzl
es 15
44 Airbag 7.5
45 Left full LED headlight 7.5
46 Right full LED headlight 7.5
48 Steering column lock, Kessy Control
Unit 7.5
49 SCR relay 7.5
53 Automatic gearbox lever, ZSS 7.5
58 Windscreen washer pump 7.5
59 Heated rear view mirrors 10
60 Tow hook 30
61 Tow hook 30 Fuse arrangement in engine compartment
No. Consumer/Amps
1 MPI Engine Injection Module
10
TSI Engine Injection Module 15
Diesel Engine Injection Module 30
2 Fuel metering valve (TJ4/T6P/TJ7),
Low temper
at
ure coolant pump
(TJ4/T6P/TJ7); Oil pressure regulat-
ing valve (TJ1), AGR coolant valve
(TJ1), High and low pressure water
pumps (TJ1), SCR relay coil, cylin-
der head water valve 7.5
3 Lambda probes 15
4 Engine petrol pump relay (MPI),
Gauge control unit (TSI and diesel) 15
5 Electric f
an (EC), LDR v
alve, canni-
ster and variable distribution val
ve,
oil pressure regulating valve, cylin-
der disconnection valves, WIV sen-
sor and CNG pressure regulator 10
6 Spark plugs (MPI and TSI)
20
Glow plug relay, Suction hose resis-
t or (diesel) 7.5
7 Vacuum pump (TSI, CNG) 15
8 Inject
ors and EKP relay coil (MPI),
Fuel metering valve (diesel) 10
9
Servo sensor 7.5
Emergencies
No. Consumer/Amps
10 Vref Battery: Gateway, BDM and
BCM 7.5
12 Detachable compressor 10
14 Injection Module, Engine Hauptre-
lay, ESC / ABS, Relay Coil 87 7.5
15 Aut
omatic gearbo
x DQ200 and
AQ160 30
17 50 Diag 7.5
18 BDM starter motor 30
20 ESC (Pump)
60
ABS (Pump) 40
21 ESC/ABS (Valves) 25
24 TH4 Electric fan without A/C for
moder
ate climate countries 30
25 TH4 f
an with A/C or T5I f
or moder-
ate climate countries 20
PTC1 40
26 T
J1/TJ4/TJ7/T6P or TH4/T5I Electric
fan for warm climate countries 50
27 TH4 f
an with A/C or T5I for moder-
ate climate countries 30
PT C2 40
28
PTC3 40 Note
Fuses and bulbs

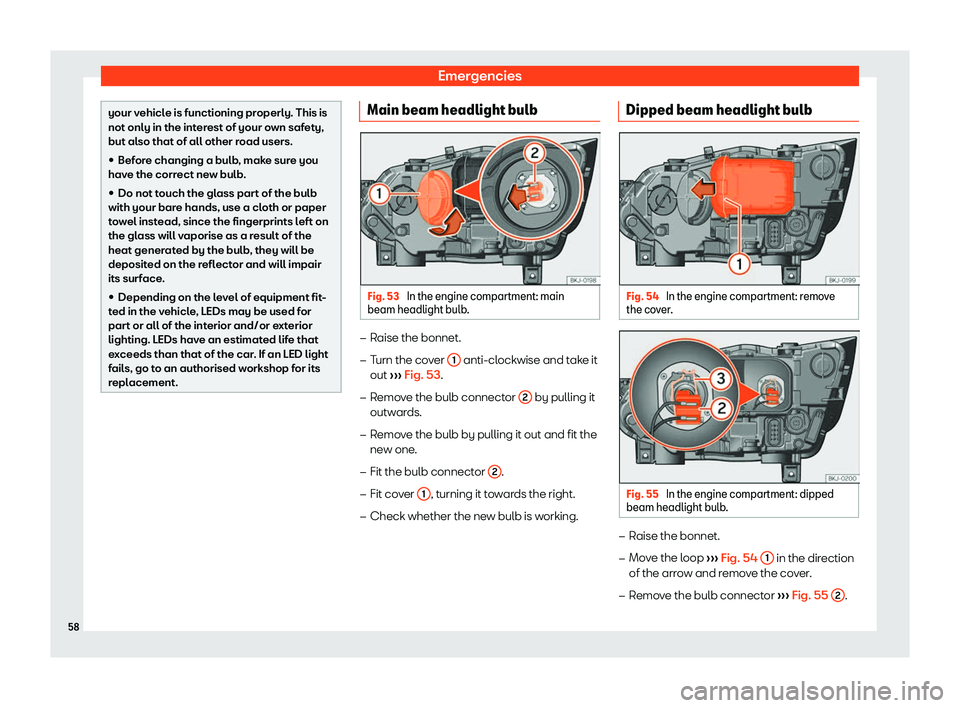

Light source used for each function Halogen headlights. Type
Dipped beam headlights H7
Main beam headlights H7
Side light/DRL (daytime running
light) W21W
Turn signal PY 21WHalogen headlight with
LED DRL
Type
Dipped beam headlights H7
Main beam headlights H7
Turn signal PY 21W
Side light/DRL (daytime running
light) LED
a) a)
In case of a LED failure, go to an authorised work-
shop t o hav
e it repl
aced. Full-LED main headlights Type
No bulbs may be replaced. All functions are with
LEDs. In case of a LED failure, go t o an authorised
w
orkshop to have it replaced. Bulb light
a)
Left Right
Brake lights 2 x P21WLL 2 x P21WLL
Side lights
Retro fog light P21 WLL
