Seat Arona 2020 Owner's Guide
Manufacturer: SEAT, Model Year: 2020, Model line: Arona, Model: Seat Arona 2020Pages: 372, PDF Size: 7.8 MB
Page 31 of 372
Transporting children safely
Age group Weight of the child
Group 0 Up to 10 kg
Group 0+ Up to 13 kg
Group 1 From 9 to 18 kg
Group 2 From 15 to 25 kg
Group 3 From 22 to 36 kgChild seats that have been tested and ap-
proved under the ECE-R 44 or ECE-R 129
st
andar
d bear the test mark ECE-R 44 or
ECE-R 129 on the seat (the letter E in a circle
with the test number below it).
Follow the manufacturer
Page 32 of 372
Safety
Page 33 of 372
Transporting children safely
Page 34 of 372
Safety

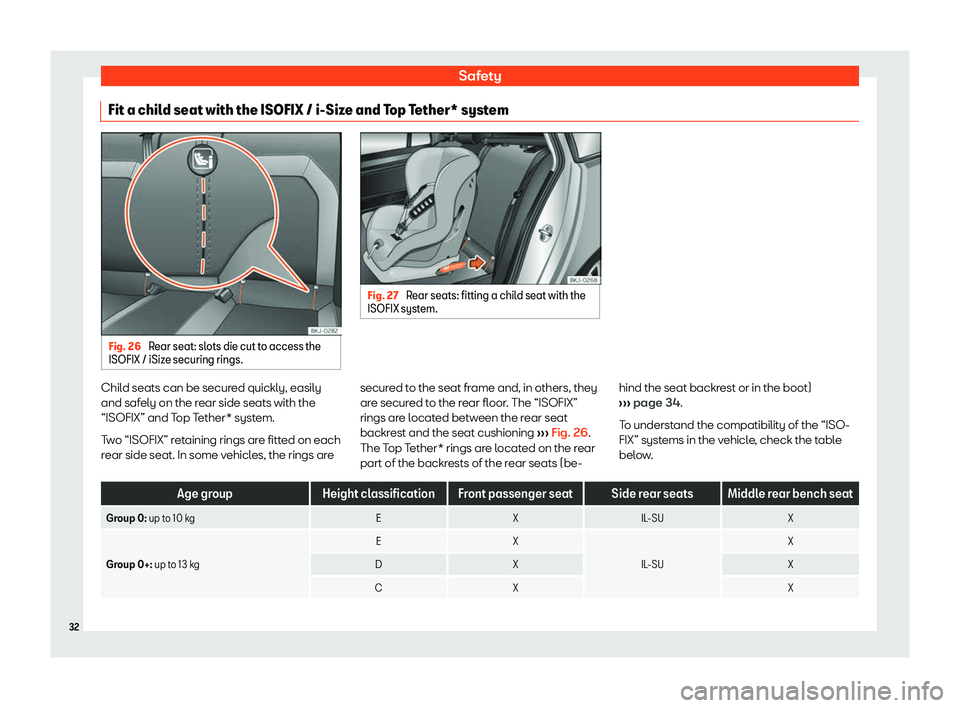

Fit a child seat with the ISOFIX / i-Size and Top Tether* system Fig. 26
Rear seat: slots die cut to access the
ISOFIX / iSize securing rings. Fig. 27
Rear seats: fitting a child seat with the
ISOFIX system. Child seats can be secured quickly, easily
and saf
ely on the r ear side seats with the
“ISOFIX” and T op Tether* syst
em.
Two “ISOFIX” retaining rings are fitted on each
rear side seat. In some vehicles, the rings are secured to the seat frame and, in others, they
are secured to the rear fl
oor. The “ISOFIX”
rings are located between the rear seat
backrest and the seat cushioning
Page 35 of 372
Transporting children safely

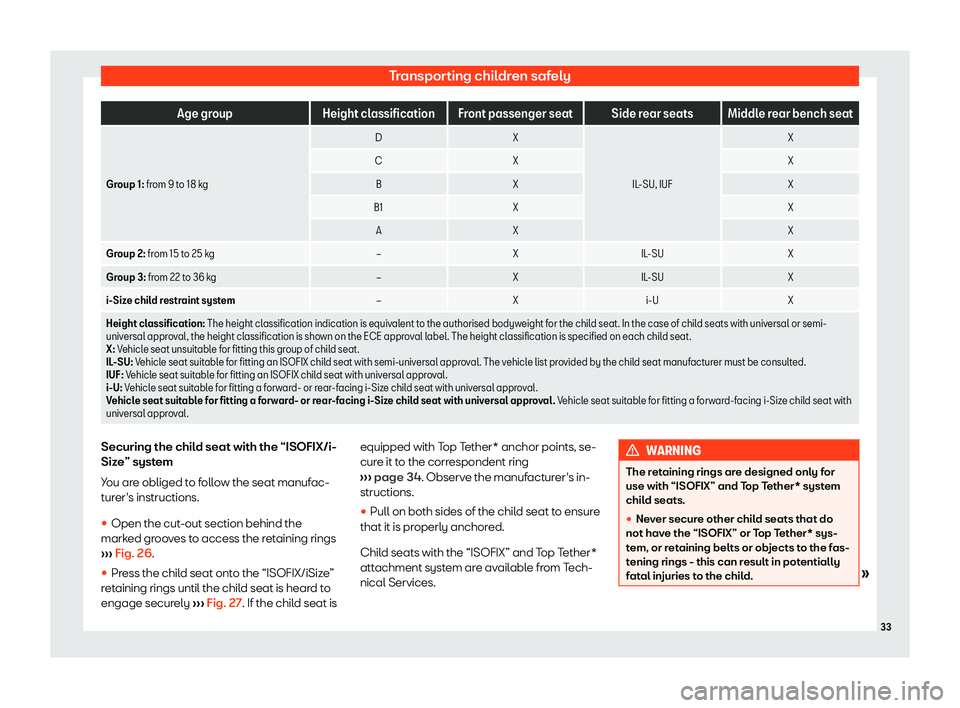

Age group
Height classification Front passenger seat Side rear seats Middle rear bench seat
Group 1: from 9 to 18 kg D
X
IL-SU, IUF X
C X X
B X X
B1 X X
A X X
Group 2: fr
om 15 to 25 kg
Page 36 of 372
Safety
Page 37 of 372
Transporting children safely

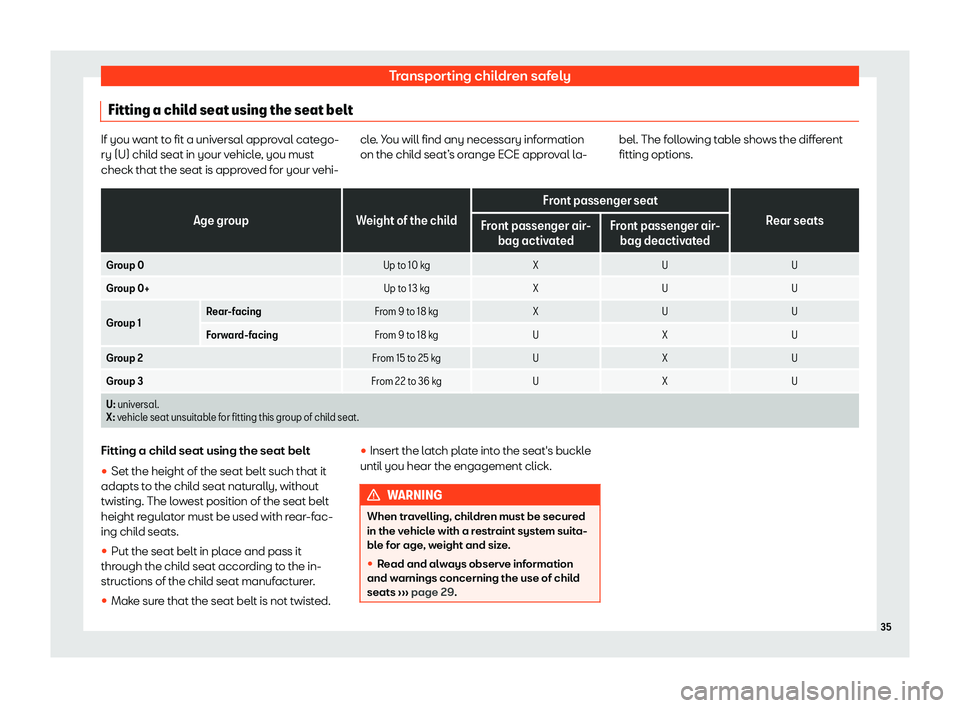

Fitting a child seat using the seat belt If you want to fit a universal approval catego-
ry (U) child seat in your vehicle
, you must
check that the seat is appr
oved for your vehi-cle. You will find any necessary information
on the child seat
Page 38 of 372
Safety

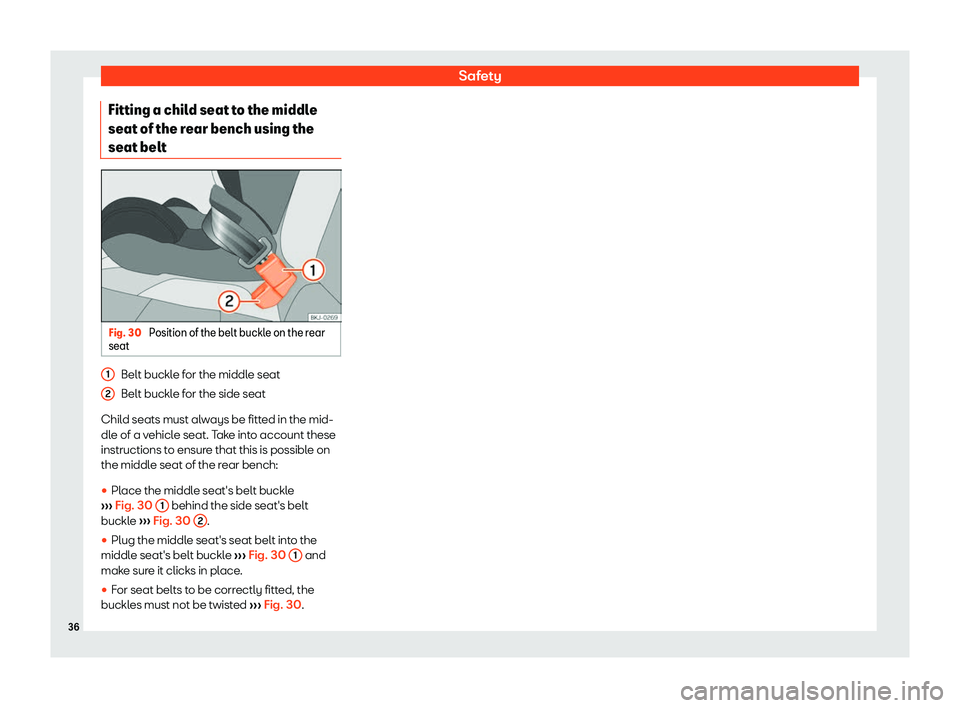

Fitting a child seat to the middle
seat of the r ear bench using the
seat belt Fig. 30
Position of the belt buckle on the rear
seat Belt buckle for the middle seat
Belt buckl
e f
or the side seat
Chil d seats must al
w
ays be fitted in the mid-
dle of a vehicle seat. Take into account these
instructions to ensure that this is possible on
the middle seat of the rear bench:
Page 39 of 372
Self-help
Emergencies
Self -help
Emer gency equipment
First aid kit, w arning triangl
e and
fir
e extinguishers* Warning triangle
The use of reflective w
arning triangl
es is
obligatory in emergencies in some countries.
As are the first aid kit and a set of spare light
bulbs.
The warning triangle is under the storage
compartment which is located under the lug-
gage compartment floor.
First aid kit
The first-aid kit can go in the storage com-
partment which is located under the luggage
compartment floor.
The first aid kit must comply with legal re-
quirements. Check the expiry date of the
contents of the first aid kit.
Fire extinguisher
The fire extinguisher* is attached to the lug-
gage compartment carpet with Velcro. The fire extinguisher must conform to legal
requirements, be ready f
or use and be
check
ed regularly. Check the certification
seal on the extinguisher. WARNING
Loose objects in the vehicle interior can be
violently thrown in case of a sudden ma- noeuvr e or br
aking and especially in acci-
dents causing serious injury.
Page 40 of 372
Emergencies
WARNING
When the vehicle tool kit, tyre mobility set
and spare wheel are loose in the int erior
they can be viol
ently thrown in case of a
sudden manoeuvre or braking and espe-
cially in accidents, causing serious injury.
