technical specifications Seat Ateca 2018 User Guide

Technical specifications

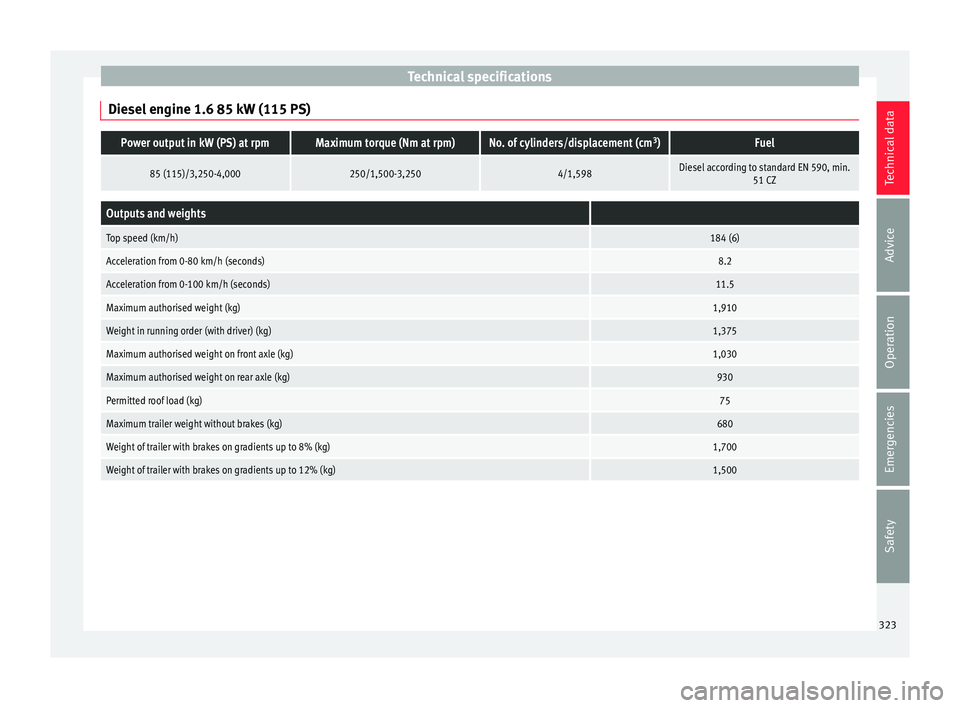

Diesel engine 1.6 85 kW (115 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
85 (115)/3,250-4,000250/1,500-3,2504/1,598Diesel according to standard EN 590, min.
51 CZ
Outputs and weights
Top speed (km/h)184 (6)
Acceleration from 0-80 km/h (seconds)8.2
Acceleration from 0-100 km/h (seconds)11.5
Maximum authorised weight (kg)1,910
Weight in running order (with driver) (kg)1,375
Maximum authorised weight on front axle (kg)1,030
Maximum authorised weight on rear axle (kg)930
Permitted roof load (kg)75
Maximum trailer weight without brakes (kg)680
Weight of trailer with brakes on gradients up to 8% (kg)1,700
Weight of trailer with brakes on gradients up to 12% (kg)1,500 323
Technical data
Advice
Operation
Emergencies
Safety

Technical specifications

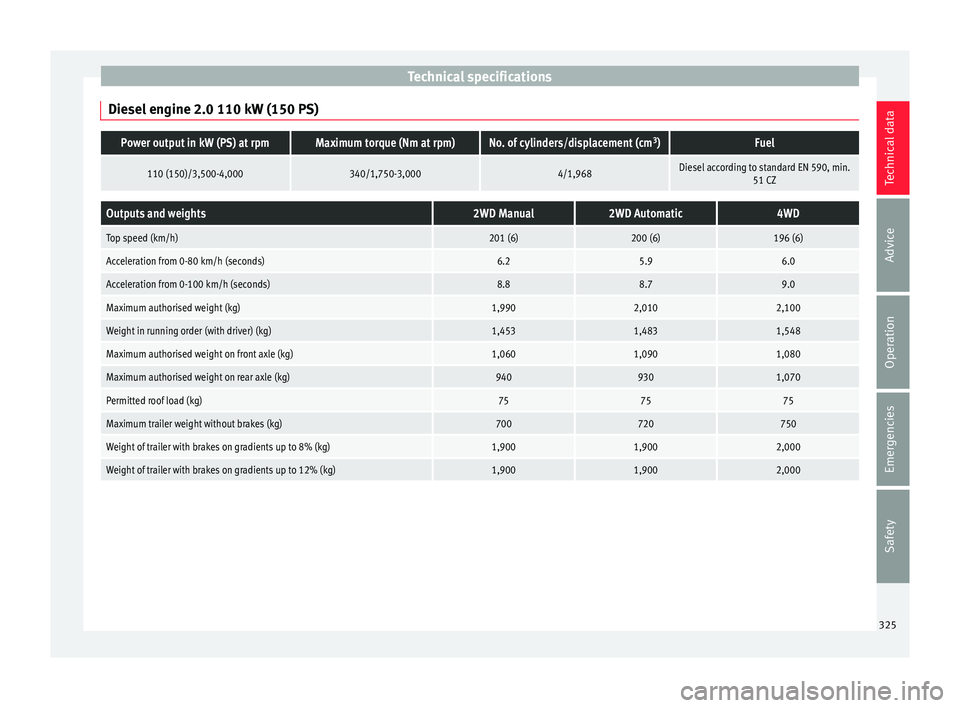

Diesel engine 2.0 110 kW (150 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
110 (150)/3,500-4,000340/1,750-3,0004/1,968Diesel according to standard EN 590, min.
51 CZ
Outputs and weights2WD Manual2WD Automatic4WD
Top speed (km/h)201 (6)200 (6)196 (6)
Acceleration from 0-80 km/h (seconds)6.25.96.0
Acceleration from 0-100 km/h (seconds)8.88.79.0
Maximum authorised weight (kg)1,9902,0102,100
Weight in running order (with driver) (kg)1,4531,4831,548
Maximum authorised weight on front axle (kg)1,0601,0901,080
Maximum authorised weight on rear axle (kg)9409301,070
Permitted roof load (kg)757575
Maximum trailer weight without brakes (kg)700720750
Weight of trailer with brakes on gradients up to 8% (kg)1,9001,9002,000
Weight of trailer with brakes on gradients up to 12% (kg)1,9001,9002,000 325
Technical data
Advice
Operation
Emergencies
Safety

Technical specifications

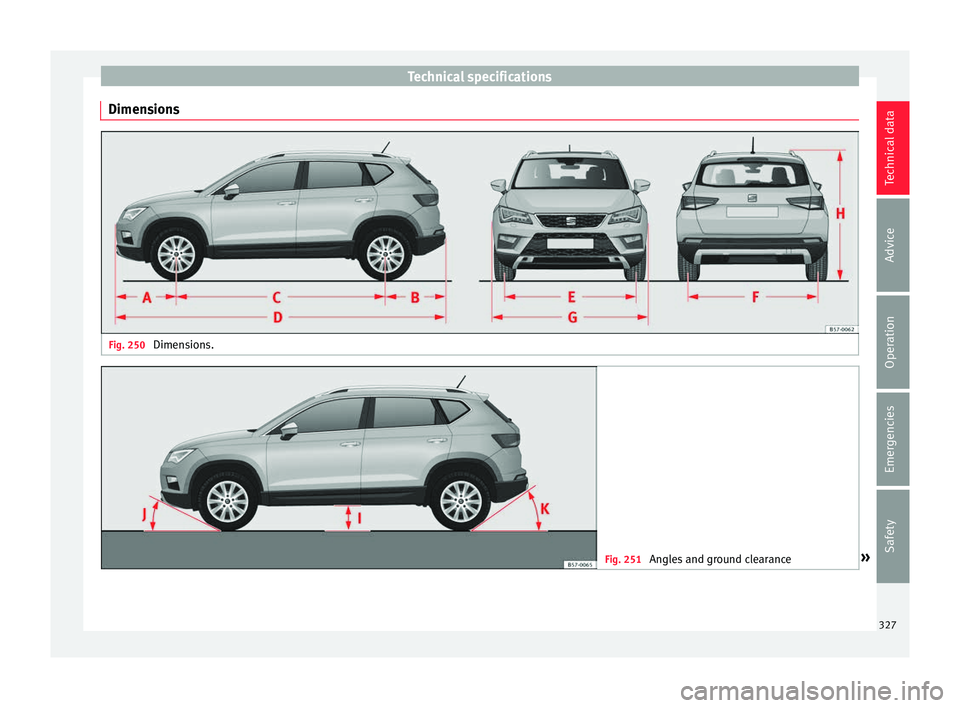

Dimensions Fig. 250
Dimensions. Fig. 251
Angles and ground clearance » 327Technical data
Advice
Operation
Emergencies
Safety

Index
the engine does not switch off . . . . . . . . . . . . 209
the en gine s
t
arts by itself . . . . . . . . . . . . . . . . 209
Starter button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . 181
Starting the vehicle . . . . . . . . . . . . . . . . . . . . . . . . 30
Steering electromechanical steering . . . . . . . . . . . . . . . 200
engaging the steering lock . . . . . . . . . . . . . . . 182
Steering wheel adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
gear shift paddles (automatic gearbox) . . . . . 195
Storage area front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Storage compartments . . . . . . . . . . . . . . . 160, 161 glove compartment . . . . . . . . . . . . . . . . . . . . . 161
glove compartment lighting . . . . . . . . . . . . . . 152
Storing objects trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
Sun blinds anti-trap function (sunroof) . . . . . . . . . . . . . . . 143
sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Sun protection . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141 anti-trap function . . . . . . . . . . . . . . . . . . . . . . . 143
closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
operating malfunction . . . . . . . . . . . . . . . . . . . 142
sun blind . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Switch hazard warning lights . . . . . . . . . . . . . . . . . . . 149
Switching off the engine with the key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Switching off the lights . . . . . . . . . . . . . . . . . . . . 144
Switching on the lights . . . . . . . . . . . . . . . . . . . . 144
Switching the ignition on and off . . . . . . . . 30, 181 System Easy Connect . . . . . . . . . . . . . . . . . . . . . . 120
T Tail
board for transporting long items . . . . . . . . . 164
Tail lights changing a bulb . . . . . . . . . . . . . . . . . . . . . . . . 106
Taking care of your vehicle . . . . . . . . . . . . . . . . . 285 exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289
Technical data capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 304
roof load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
vertical load on the coupling . . . . . . . . . . . . . . 273
Technical modifications . . . . . . . . . . . . . . . . . . . . 284
Technical specifications . . . . . . . . . . . . . . . . . . . . 317
Textiles: cleaning . . . . . . . . . . . . . . . . . . . . . . . . . 289
Things to note towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Tightening torque of wheel bolts . . . . . . . . . . . . 319
Tiptronic (automatic gearbox) . . . . . . . . . . 193, 195
Top speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Top Tether . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26, 29
Top Tether system . . . . . . . . . . . . . . . . . . . . . . 26, 29
Top View Camera . . . . . . . . . . . . . . . . . . . . . . . . . 265 see Top View Camera system . . . . . . . . . . . . . . 265
Top View Camera system Instructions for use . . . . . . . . . . . . . . . . . . . . . 268
menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Tow-starting the engine . . . . . . . . . . . . . . . . . . . . . 99 special characteristics . . . . . . . . . . . . . . . . . . . . 98
Tow hitch control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
electrical unlocking . . . . . . . . . . . . . . . . . . . . . 276 Towing
blind spot detector (BSD) . . . . . . . . . . . . . . . . 242
special characteristics . . . . . . . . . . . . . . . . . . . 242
Towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . 276 also see Trailer . . . . . . . . . . . . . . . . . . . . . . . . . 276
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
electrical unlocking tow hitch . . . . . . . . . . . . . 276
fitting a bicycle rack . . . . . . . . . . . . . . . . . . . . . 277
malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
retrofitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
Towing the vehicle . . . . . . . . . . . . . . . . . . 68, 98, 99 automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . 99
driving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
four-wheel drive . . . . . . . . . . . . . . . . . . . . . . . . . 99
front towing eye . . . . . . . . . . . . . . . . . . . . . . . . 100
manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . 99
rear towing eye . . . . . . . . . . . . . . . . . . . . . . . . . 101
special characteristics . . . . . . . . . . . . . . . . . . . . 98
things to note . . . . . . . . . . . . . . . . . . . . . . . . . . 100
tow bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
towing not allowed . . . . . . . . . . . . . . . . . . . . . . . 99
with towing bracket . . . . . . . . . . . . . . . . . . . . . . 99
Towline anchorages . . . . . . . . . . . . . . . . . . . . . 68, 95
Tow rope . . . . . . . . . . . . . . . . . . . . . . . . . . . 275, 278
Traffic Jam Assist . . . . . . . . . . . . . . . . . . . . . . . . . 233 malfunctions . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
situations in which Traffic Jam Assist must beswitched off . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Traffic sign detection system . . . . . . . . . . . . . . . . 245 limited operation . . . . . . . . . . . . . . . . . . . . . . . 247
operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
speed warning . . . . . . . . . . . . . . . . . . . . . . . . . 247
trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
windscreen damage . . . . . . . . . . . . . . . . . . . . . 245
Traffic Sign Detection System . . . . . . . . . . . . . . . 246 indication on display . . . . . . . . . . . . . . . . . . . . 246
Traffic signs indication on display . . . . . . . . . . . . . . . . . . . . 246 339
