Page 8 of 408

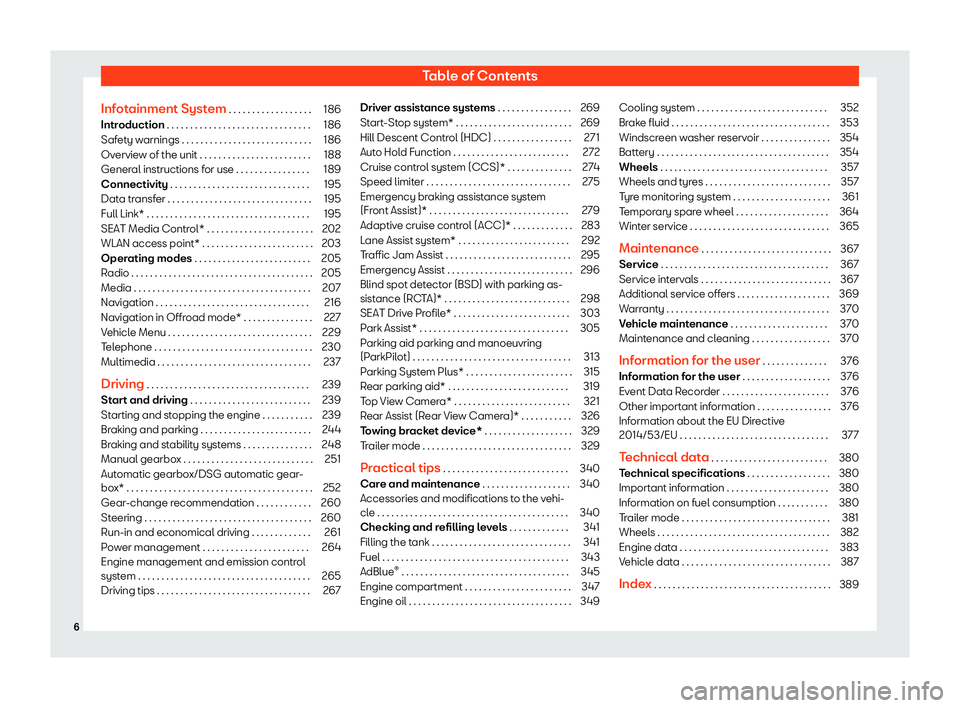

Table of Contents
Infotainment System . . . . . . . . . . . . . . . . . . 186
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Safety warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Overview of the unit . . . . . . . . . . . . . . . . . . . . . . . . 188
General instructions for use . . . . . . . . . . . . . . . . 189
Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Data transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Full Link* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 195
SEAT Media Control* . . . . . . . . . . . . . . . . . . . . . . . 202
WLAN access point* . . . . . . . . . . . . . . . . . . . . . . . . 203
Operating modes . . . . . . . . . . . . . . . . . . . . . . . . . 205
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . 205
Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 207
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 216
Navigation in Offroad mode* . . . . . . . . . . . . . . . 227
Vehicle Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 230
Multimedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 237
Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239Start and driving . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Starting and stopping the engine . . . . . . . . . . . 239
Braking and parking . . . . . . . . . . . . . . . . . . . . . . . . 244
Braking and stability systems . . . . . . . . . . . . . . . 248
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Automatic gearbox/DSG automatic gear-
bo x* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
252
Gear
-change recommendation . . . . . . . . . . . . 260
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . 260
Run-in and economical driving . . . . . . . . . . . . . 261
Power management . . . . . . . . . . . . . . . . . . . . . . . 264
Engine management and emission control
system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 265
Driving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
267Driver assistance systems . . . . . . . . . . . . . . . . 269
Start-Stop system* . . . . . . . . . . . . . . . . . . . . . . . . . 269
Hill Descent Control (HDC) . . . . . . . . . . . . . . . . . 271
Auto Hold Function . . . . . . . . . . . . . . . . . . . . . . . . . 272
Cruise control system (CCS)* . . . . . . . . . . . . . . 274
Speed limiter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
Emergency braking assistance system
(Front Assist)* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 279
Adaptiv
e cruise control (ACC)* . . . . . . . . . . . . . 283
Lane Assist system* . . . . . . . . . . . . . . . . . . . . . . . . 292
Traffic Jam Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
Emergency Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . 296
Blind spot detector (BSD) with parking as-
sistance (RCT
A)* . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
SEAT Drive Profile* . . . . . . . . . . . . . . . . . . . . . . . . . 303
Park Assist* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 305
Parking aid parking and manoeuvring
(ParkPilot) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
313
Parking System Plus* . . . . . . . . . . . . . . . . . . . . . . . 315
Rear parking aid* . . . . . . . . . . . . . . . . . . . . . . . . . . 319
Top View Camera* . . . . . . . . . . . . . . . . . . . . . . . . . 321
Rear Assist (Rear View Camera)* . . . . . . . . . . . 326
Towing bracket device* . . . . . . . . . . . . . . . . . . . 329
Trailer mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329
Practical tips . . . . . . . . . . . . . . . . . . . . . . . . . . . 340 Care and maintenance . . . . . . . . . . . . . . . . . . . 340
Accessories and modifications to the vehi-
cle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 340
Checking and r
efilling levels . . . . . . . . . . . . . 341
Filling the tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 341
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . 343
AdBlue
Page 265 of 408

Start and driving
Foresight when driving
Accel er
ation causes the v
ehicle to consume
more fuel. If you think ahead when driving,
you will need to brake less and thus acceler-
ate less. Wherever possible, let the car roll
slowly to a stop, with a gear engaged (for in-
stance when you can see that the next traffic
lights are red). This takes advantage of the
engine braking effect, reducing wear on the
brakes and tyres. Emissions and fuel con-
sumption will drop to zero due to the overrun
fuel cut-off.
Changing gear to save energy
An effective way of saving is to change in ad-
vance to a higher gear. Running the engine at
high rpm in the lower gears uses an unneces-
sary amount of fuel.
Manual transmission: shift up from first to
second gear as soon as possible. In any case,
we recommend that you change to a higher
gear upon reaching 2,000 rpm. Choosing the
right gear enables fuel savings. Select the
highest possible gear appropriate for the
driving situation (the engine should continue
functioning with cyclical regularity).
Automatic transmission: accelerate gradu-
ally and without reaching the “kick-down”
position. Avoid driving at high speed
Avoid trav
elling at top speed, whenever pos-
sible. Fuel consumption, emission of harmful
gases and noise pollution multiply dispropor-
tionately as speed is increased. Driving at
moderate speeds will help to save fuel.
Reduce idling time
In vehicles with the Start-Stop system idling is
automatically reduced. In vehicles without
the Start-Stop system it is worth switching off
the engine, for example, at level crossings
and at traffic lights that remain red for long
periods of time. When an engine has reached
operating temperature, and depending on
the cylinder capacity, keeping it switched off
for a minimum of about 5 seconds already
saves more than the amount of fuel necessa-
ry for restarting.
The engine takes a long time to warm up
when it is idling. Mechanical wear and pollu-
tant emissions are also especially high during
this initial warm-up phase. It is therefore best
to drive off immediately after starting the en-
gine. Avoid running the engine at high speed.
Regular maintenance
Regular servicing helps in saving fuel even
before the engine is started. A well-serviced
engine gives you the benefit of improved fuel
efficiency as well as maximum reliability and
an enhanced resale value. A badly serviced engine can consume up to 10% more fuel
than necessary.
Avoid short journeys
The engine and cat
alytic converter need to
reach their optimal operating temperature
in order to minimise fuel consumption and
emissions.
A cold engine consumes a disproportionate
amount of fuel. The engine reaches its work-
ing temperature after about four kilometres
(2.5 miles), when fuel consumption will return
to a normal level.
Check tyre pressure
Always make sure the tyres are inflated to the
correct pressures
Page 345 of 408

Checking and refilling levels

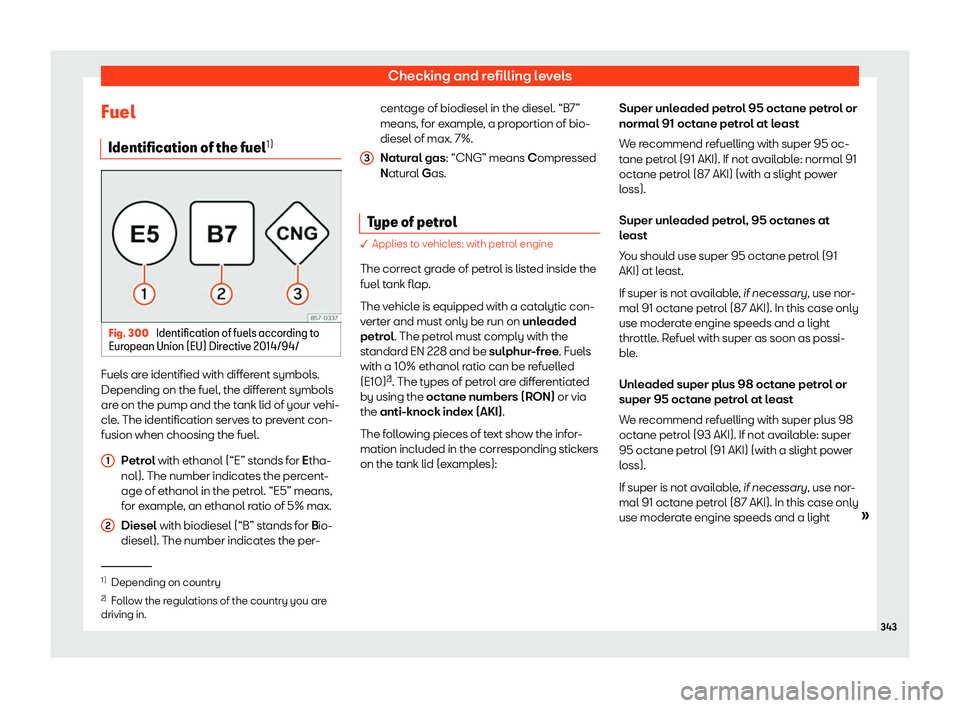

Fuel Identification of the fuel 1)Fig. 300
Identification of fuels according to
Eur opean Union (EU) Dir
ectiv
e 2014/94/Fuels are identified with different symbols.
Depending on the fuel, the diff
er
ent symbol
s
are on the pump and the tank lid of your vehi-
cle. The identification serves to prevent con-
fusion when choosing the fuel.
Petrol with ethanol (“E” stands for Etha-
nol). The number indicates the percent-
age of ethanol in the petrol. “E5” means,
for example, an ethanol ratio of 5% max.
Diesel with biodiesel (“B” stands for Bio-
diesel). The number indicates the per-
1 2 centage of biodiesel in the diesel. “B7”
means, f
or e
x
ample, a proportion of bio-
diesel of max. 7%.
Natural gas: “CNG” means Compressed
Natural Gas.
Type of petrol Applies to vehicles: with petrol engine
The corr ect gr
ade of petrol is listed inside the
fuel tank flap.
The vehicle is equipped with a catalytic con-
verter and must only be run on unleaded
petrol. The petrol must comply with the
standard EN 228 and be sulphur-free. Fuels
with a 10% ethanol ratio can be refuelled
(E10) 2)
. The types of petrol are differentiated
by using the octane numbers (RON) or via
the anti-knock index (AKI).
The following pieces of text show the infor-
mation included in the corresponding stickers
on the tank lid (examples): 3 Super unleaded petrol 95 octane petrol or
normal 91 oct
ane petr
ol at l
east
We recommend refuelling with super 95 oc-
tane petrol (91 AKI). If not available: normal 91
octane petrol (87 AKI) (with a slight power
loss).
Super unleaded petrol, 95 octanes at
least
You should use super 95 octane petrol (91
AKI) at least.
If super is not available, if necessary, use nor-
mal 91 octane petrol (87 AKI). In this case only
use moderate engine speeds and a light
throttle. Refuel with super as soon as possi-
ble.
Unleaded super plus 98 octane petrol or
super 95 octane petrol at least
We recommend refuelling with super plus 98
octane petrol (93 AKI). If not available: super
95 octane petrol (91 AKI) (with a slight power
loss).
If super is not available, if necessary, use nor-
mal 91 octane petrol (87 AKI). In this case only
use moderate engine speeds and a light
Page 349 of 408

Checking and refilling levels
Engine compartment W orking in the engine compar
t
-
ment Read the additional information carefully
Page 351 of 408

Checking and refilling levels
Checking levels Fig. 303
Diagram for the location of the various el-
ements. From time to time, the levels of the different
fluids in the v
ehicl
e must be check
ed. Never
fill with incorrect fluids, otherwise serious
damage to the engine may be caused.
Coolant expansion tank
Engine oil dipstick
Engine oil filler cap
Brake fluid reservoir
Vehicle battery (underneath the cover)
Windscreen washer reservoir
The checking and refilling of service fluids are
carried out on the components mentioned 1 2
3
4
5
6 above. These operations are described in
Page 353 of 408

Checking and refilling levels

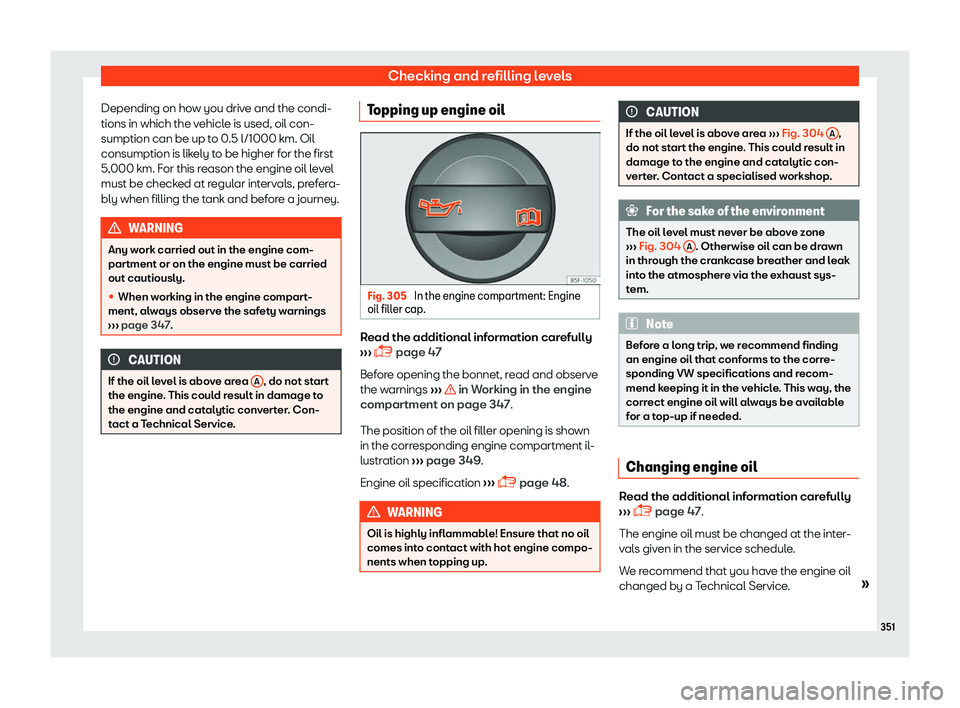

Depending on how you drive and the condi-
tions in which the v ehicl
e is used, oil con-
sumption can be up t
o 0.5 l/1000 km. Oil
consumption is likely to be higher for the first
5,000 km. For this reason the engine oil level
must be checked at regular intervals, prefera-
bly when filling the tank and before a journey. WARNING
Any work carried out in the engine com-
partment or on the engine must be carried out cautiously.
Page 393 of 408

Index
Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 47 AdBlue t ank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
345
windscr
een washer water . . . . . . . . . . . . . . . . . 354
CCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . 40
CD-ROM player (navigation) . . . . . . . . . . . . . . . . 166
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127 adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 130
anti-theft alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
central locking switch . . . . . . . . . . . . . . . . . . . . . 130
electric windows . . . . . . . . . . . . . . . . . . . . . . . . . . 143
emergency locking . . . . . . . . . . . . . . . . . . . . . . . . . 16
Keyless Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Panoramic sliding/tilting sunroof . . . . . . . . . . 143
remote control key . . . . . . . . . . . . . . . . . . . . . . . . 129
selective unlocking system . . . . . . . . . . . . . . . . 129
Central wheel trim . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Centre console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Cetane number (diesel fuel) . . . . . . . . . . . . . . . . 344
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
54 subsequent work . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 96 dipped beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 97
fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 98
main beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 97
number plate light . . . . . . . . . . . . . . . . . . . . . . . . 100
rear bulb in the side panel . . . . . . . . . . . . . . . . . . 99
rear light in the rear lid . . . . . . . . . . . . . . . . . . . . 100
turn signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . 97
Changing gear engaging gears (manual gearbox) . . . . . . . . 251
Changing the blades . . . . . . . . . . . . . . . . . . . . . . . . . 88
Changing the wiper blades . . . . . . . . . . . . . . . . . . . 61
Charging the battery . . . . . . . . . . . . . . . . . . . . . . . 356
Checking levels engine compartment . . . . . . . . . . . . . . . . . . . . . 349 Child-proof locking
electric windows . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25, 82
Child seats categorisation into groups . . . . . . . . . . . . . . . . . 82
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
safety instructions . . . . . . . . . . . . . . . . . . . . . . . 25, 81
securing with the seat belt . . . . . . . . . . . . . . . . . 26
Top Tether system . . . . . . . . . . . . . . . . . . . . . . . 28, 31
Cleaning Alcantara leather . . . . . . . . . . . . . . . . . . . . . . . . . 373
carbon fibre . . . . . . . . . . . . . . . . . . . . . . . . . . 372, 374
control panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 373
decorative sheets . . . . . . . . . . . . . . . . . . . . . . . . . 373
exhaust tail pipes . . . . . . . . . . . . . . . . . . . . . . . . . . 372
exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 372
fabrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . 373
headlights / tail lights . . . . . . . . . . . . . . . . . . . . . 372
high pressure cleaners . . . . . . . . . . . . . . . . . . . . 370
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 373
leather . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . 373
paint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 372
plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 373
seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 373
sensors/camera lenses . . . . . . . . . . . . . . . . . . . 372
special care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 374
the radio screen . . . . . . . . . . . . . . . . . . . . . . . . . . . 373
trims/covers . . . . . . . . . . . . . . . . . . . . . . . . . . 372, 373
washing the vehicle . . . . . . . . . . . . . . . . . . . . . . . 370
wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 372
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 373
windscreen wipers . . . . . . . . . . . . . . . . . . . . . . . . 372
Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
43 Clocks
analogue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
1 16
digital . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . 116
set time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 116
Close sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 145
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 127 bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
18, 347
rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 139
sun blind (sunroof) . . . . . . . . . . . . . . . . . . . . . . . . . 145
sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 145
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
142
Clutch (warning lamp) . . . . . . . . . . . . . . . . . . . . . . 259
Coming Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 151
Coming Home function . . . . . . . . . . . . . . . . . . . . . . 151
Communication between the Infotainment system and mobile devices . . . . . . . . . . . . . . . . 195
Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195 Full Link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 195
SEAT Media Control . . . . . . . . . . . . . . . . . . . . . . 202
WLAN point of access . . . . . . . . . . . . . . . . . . . . . 203
Connectivity Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Control and warning lamps . . . . . . . . . . . . . . 39, 122 ABS anti-blocking system . . . . . . . . . . . . . . . . . 248
adaptive cruise control . . . . . . . . . . . . . . . . . . . 284
airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 78
airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
alternator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 355
applying the brake . . . . . . . . . . . . . . . . . . . . . . . . 284
ASR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248, 250
audible warning signal . . . . . . . . . . . . . . . . . . . . . 122
blind spot detector (BSD) . . . . . . . . . . . . . . . . . 298
blocking of the steering column . . . . . . . . . . . 261
brake systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
cruise control system (CCS) . . . . . . . . . . . . . . 274
391
Page 394 of 408

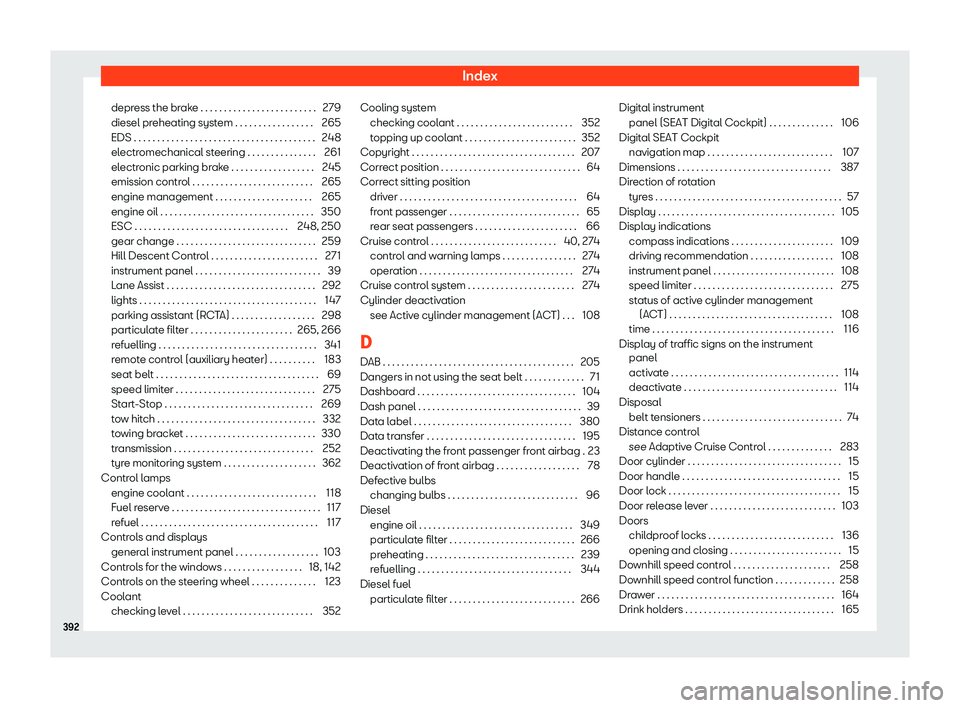

Index
depress the brake . . . . . . . . . . . . . . . . . . . . . . . . . 279
diesel pr eheating syst
em . . . . . . . . . . . . . . . . .
265
EDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 248
electromechanical steering . . . . . . . . . . . . . . . 261
electronic parking brake . . . . . . . . . . . . . . . . . . 245
emission control . . . . . . . . . . . . . . . . . . . . . . . . . . 265
engine management . . . . . . . . . . . . . . . . . . . . . 265
engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 350
ESC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248, 250
gear change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
Hill Descent Control . . . . . . . . . . . . . . . . . . . . . . . 271
instrument panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Lane Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 292
lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . 147
parking assistant (RCTA) . . . . . . . . . . . . . . . . . . 298
particulate filter . . . . . . . . . . . . . . . . . . . . . . 265, 266
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 341
remote control (auxiliary heater) . . . . . . . . . . 183
seat belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 69
speed limiter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
Start-Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
tow hitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 332
towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
tyre monitoring system . . . . . . . . . . . . . . . . . . . . 362
Control lamps engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Fuel reserve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
refuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 117
Controls and displays general instrument panel . . . . . . . . . . . . . . . . . . 103
Controls for the windows . . . . . . . . . . . . . . . . . 18, 142
Controls on the steering wheel . . . . . . . . . . . . . . 123
Coolant checking level . . . . . . . . . . . . . . . . . . . . . . . . . . . . 352 Cooling system
checking coolant . . . . . . . . . . . . . . . . . . . . . . . . . 352
t
opping up coolant . . . . . . . . . . . . . . . . . . . . . . . . 352
Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 207
Correct position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
64
Correct sitting position driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . 64
front passenger . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
rear seat passengers . . . . . . . . . . . . . . . . . . . . . . 66
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . 40, 274 control and warning lamps . . . . . . . . . . . . . . . . 274
operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . 274
Cylinder deactivation see Active cylinder management (ACT) . . . 108
D DAB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . 205
Dangers in not using the seat belt . . . . . . . . . . . . . 71
Dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 39
Data label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
380
Data transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Deactivating the front passenger front airbag . 23
Deactivation of front airbag . . . . . . . . . . . . . . . . . . 78
Defective bulbs changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Diesel engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 349
particulate filter . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
preheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
239
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 344
Diesel fuel particulate filter . . . . . . . . . . . . . . . . . . . . . . . . . . . 266 Digital instrument
panel (SEAT Digital Cockpit) . . . . . . . . . . . . . . 106
Digit
al SEAT Cockpit
navigation map . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 387
Direction of rotation tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . 57
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . 105
Display indications compass indications . . . . . . . . . . . . . . . . . . . . . . 109
driving recommendation . . . . . . . . . . . . . . . . . . 108
instrument panel . . . . . . . . . . . . . . . . . . . . . . . . . . 108
speed limiter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
status of active cylinder management(ACT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 108
time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . 116
Display of traffic signs on the instrument panel
activate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 114
deactivate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Disposal belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Distance control see Adaptive Cruise Control . . . . . . . . . . . . . . 283
Door cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 15
Door handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Door lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 15
Door release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Doors childproof locks . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
opening and closing . . . . . . . . . . . . . . . . . . . . . . . . 15
Downhill speed control . . . . . . . . . . . . . . . . . . . . . 258
Downhill speed control function . . . . . . . . . . . . . 258
Drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . 164
Drink holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
392
Page 396 of 408

Index
Engine compartment . . . . . . . . . . . . . . . . . . 347, 349 batt ery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
50, 354
br
ake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49, 353
coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49, 352
engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47, 351
opening and closing . . . . . . . . . . . . . . . . . . . 18, 347
safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347
windscreen washer reservoir . . . . . . . . . . 50, 354
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
G 12 plus-plus . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 49
G 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . 49
specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 49
temperature display . . . . . . . . . . . . . . . . . . . . . . . 118
warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Engine data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 383
Engine management . . . . . . . . . . . . . . . . . . . . . . . . 265 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 47, 349 changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349, 351
checking oil level . . . . . . . . . . . . . . . . . . . . . . . . . 350
consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350
dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . 350
inspection service . . . . . . . . . . . . . . . . . . . . . . . . 349
maintenance intervals . . . . . . . . . . . . . . . . . . . . 349
specifications . . . . . . . . . . . . . . . . . . . . . . . . . 48, 349
topping up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 351
Engine oil pressure control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350
Environment ecological driving . . . . . . . . . . . . . . . . . . . . . . . . . 262
environmental compatibility . . . . . . . . . . . . . . 262
Environmental tips filling the tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 341 Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167, 340
ESC
electronic st
ability control (ESC) . . . . . . . . . . 248
Multi-collision Brake . . . . . . . . . . . . . . . . . . . . . . 249
Sport Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
250
Ethanol (fuel) . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . 344
Event Data Recorder . . . . . . . . . . . . . . . . . . . . . . . . 376
Exhaust purification system for vehicles with diesel engines . . . . . . . . . . . . . . . . . . . . . . . . . . . . 345
Exiting a parking space with Park Assist . . . . . . 312
Exterior lighting changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Exterior mirrors adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 21
driving with a trailer . . . . . . . . . . . . . . . . . . . . . . . . 331
Exterior rear-view mirrors adjusting the exterior rear-view mirrors . . . . 159
exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 159
heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 159
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7, 8
External aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
340
F Fabrics: cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 373
Fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Fatigue detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Filling the tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 341
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 68
Fluid level control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
FM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . 205
Fog lights with cornering light function . . . . . . . . . 151
Fog light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 98
Fog lights with cornering light function . . . . . . . 151
Folding table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165 Four-wheel drive
snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 7
towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . 89
winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
Frequency band AM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . 205
change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 205
DAB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 205
FM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . 205
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22, 76
Front armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Front Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . 248 indications on the display . . . . . . . . . . . . . . . . . 279
Front passenger front airbag control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
deactivation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Front seats manual adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 19
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . 47, 343 consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 380
diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 344
ethanol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 344
fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 117
identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 343
petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 343
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 341
saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 262
Fuel consumption engine cut-off due to inertia . . . . . . . . . . . . . . . 262
Why does fuel consumption increase? . . . . 266
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 117 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Fuel tank cap opening and closing . . . . . . . . . . . . . . . . . . . . . . . . 47
394
Page 402 of 408

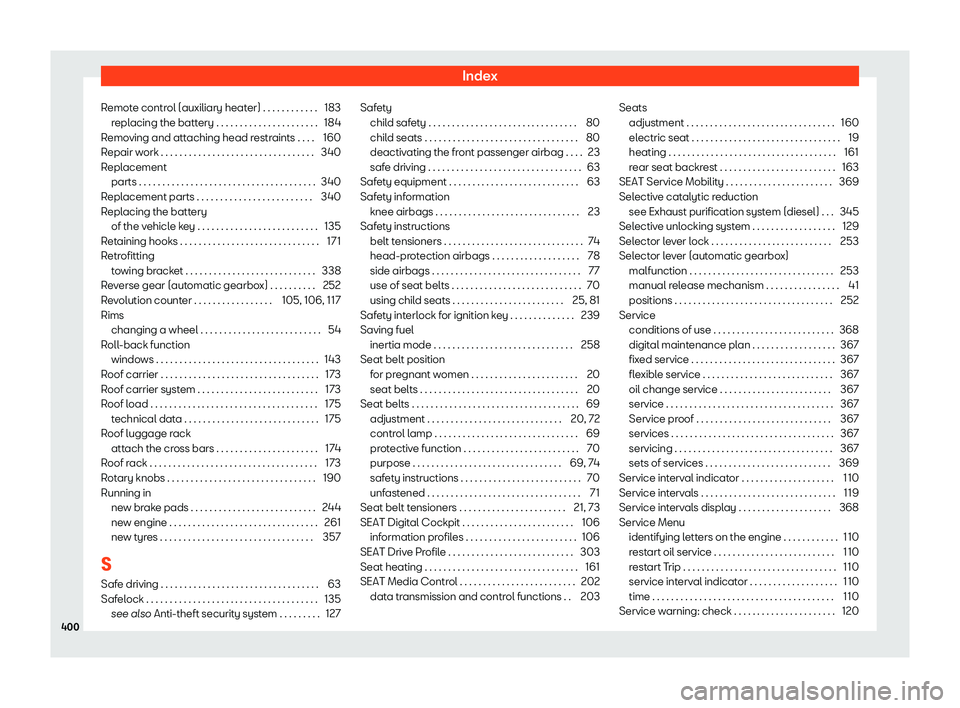

Index
Remote control (auxiliary heater) . . . . . . . . . . . . 183 repl
acing the batt
ery . . . . . . . . . . . . . . . . . . . . . . 184
Removing and attaching head restraints . . . . 160
Repair work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340
Replacement parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 340
Replacement parts . . . . . . . . . . . . . . . . . . . . . . . . . 340
Replacing the battery of the vehicle key . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Retaining hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
171
Retrofitting towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338
Reverse gear (automatic gearbox) . . . . . . . . . . 252
Revolution counter . . . . . . . . . . . . . . . . . 105, 106, 117
Rims changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Roll-back function windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
143
Roof carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 173
Roof carrier system . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Roof load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 175 technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Roof luggage rack attach the cross bars . . . . . . . . . . . . . . . . . . . . . . 174
Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 173
Rotary knobs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 190
Running in new brake pads . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
new engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
261
new tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 357
S Safe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 63
Safelock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 135 see also Anti-theft security system . . . . . . . . . 127 Safety
child safet y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 80
deactivating the front passenger airbag . . . . 23
safe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 63
Safety equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Safety information knee airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 23
Safety instructions belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
head-protection airbags . . . . . . . . . . . . . . . . . . . 78
side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 77
use of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 70
using child seats . . . . . . . . . . . . . . . . . . . . . . . . 25, 81
Safety interlock for ignition key . . . . . . . . . . . . . . 239
Saving fuel inertia mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
258
Seat belt position for pregnant women . . . . . . . . . . . . . . . . . . . . . . . 20
seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . 20
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . 69 adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20, 72
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
protective function . . . . . . . . . . . . . . . . . . . . . . . . . 70
purpose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69, 74
safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . 70
unfastened . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Seat belt tensioners . . . . . . . . . . . . . . . . . . . . . . . 21, 73
SEAT Digital Cockpit . . . . . . . . . . . . . . . . . . . . . . . . 106 information profiles . . . . . . . . . . . . . . . . . . . . . . . . 106
SEAT Drive Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . 303
Seat heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . 161
SEAT Media Control . . . . . . . . . . . . . . . . . . . . . . . . . 202 data transmission and control functions . . 203 Seats
adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 160
electric seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
19
heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 161
rear seat backrest . . . . . . . . . . . . . . . . . . . . . . . . . 163
SEAT Service Mobility . . . . . . . . . . . . . . . . . . . . . . . 369
Selective catalytic reduction see Exhaust purification system (diesel) . . . 345
Selective unlocking system . . . . . . . . . . . . . . . . . . 129
Selector lever lock . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Selector lever (automatic gearbox) malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 253
manual release mechanism . . . . . . . . . . . . . . . . 41
positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 252
Service conditions of use . . . . . . . . . . . . . . . . . . . . . . . . . . 368
digital maintenance plan . . . . . . . . . . . . . . . . . . 367
fixed service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
367
flexible service . . . . . . . . . . . . . . . . . . . . . . . . . . . . 367
oil change service . . . . . . . . . . . . . . . . . . . . . . . . 367
service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 367
Service proof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 367
services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . 367
servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 367
sets of services . . . . . . . . . . . . . . . . . . . . . . . . . . . 369
Service interval indicator . . . . . . . . . . . . . . . . . . . . 110
Service intervals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Service intervals display . . . . . . . . . . . . . . . . . . . . 368
Service Menu identifying letters on the engine . . . . . . . . . . . . 110
restart oil service . . . . . . . . . . . . . . . . . . . . . . . . . . 110
restart Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
service interval indicator . . . . . . . . . . . . . . . . . . . 110
time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . 110
Service warning: check . . . . . . . . . . . . . . . . . . . . . . 120
400
