Seat Cordoba 2005 ALANA

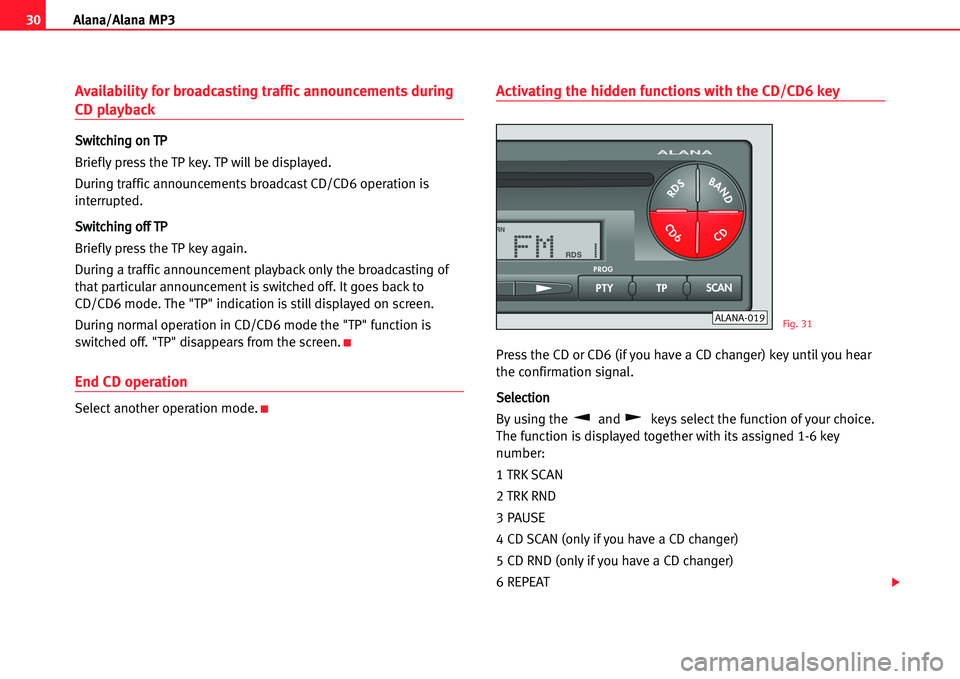

30Alana/Alana MP3
Availability for broadcasting traffic announcements during
CD playback
SSwwiittcchhiinngg oonn TTPP
Briefly press the TP key. TP will be displayed.
During traffic announcements broadcast CD/CD6 operation is
interrupted.
SSwwiittcchhiinngg ooffff TTPP
Briefly press the TP key again.
During a traffic announcement playback only the broadcasting of
thatparticular announcement is switched off. It goes back to
CD/CD6 mode. The "TP" indication isstill displayed on screen.
During normal operation in CD/CD6 mode the "TP" function is
switched off. "TP" disappears from the screen.
K
End CD operation
Select another operation mode.K
Activating the hidden functions with the CD/CD6 key
Press the CD or CD6 (if you have a CD changer) key until you hear
the confirmation signal.
SSeelleeccttiioonn
By using the and keys select the function of your choice.
The function is displayed together with its assigned 16 key
number:
1 TRK SCAN
2 TRK RND
3 PAUSE
4
CD SCAN (only if you have a CD changer)
5 CD RND (only if you have a CD changer)
6 REPEAT
Fig. 31ALANA019
23
1 456PTYTPSCANALANAPROGCD6RDSBANDCDFLAIX FMLEARNRDS1BASSTREBFADBALRDSBANDCD

31
A lana/Alana MP3

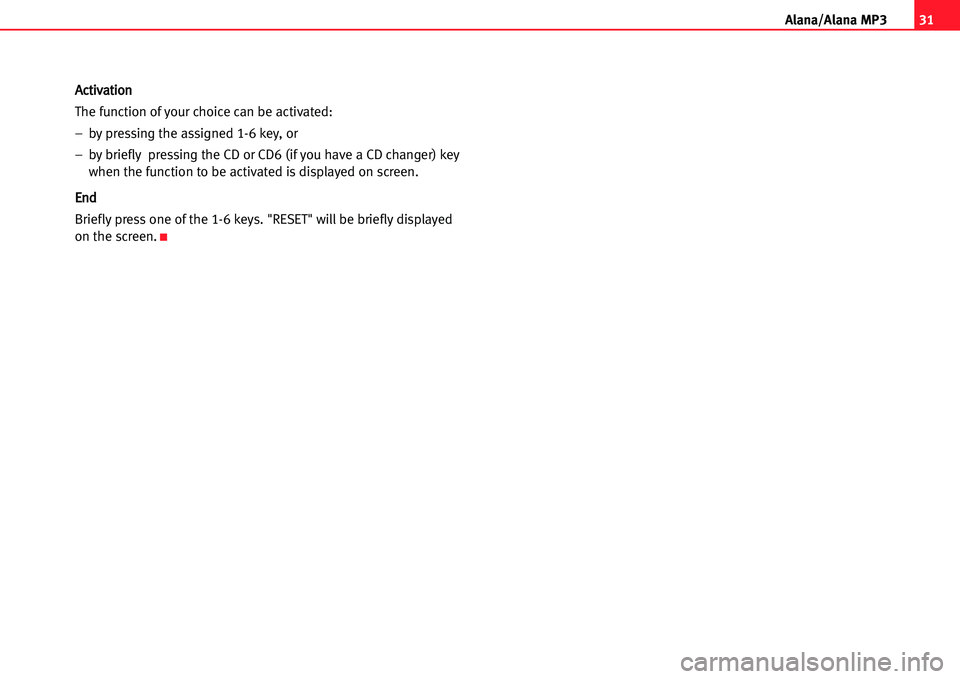

AAccttiivvaattiioonn
The function of your choice can be activated:
– by pressing the assigned 16 key, or
– by briefly pressing the CD or CD6 (if you have a CD changer) key
when the function to be activated is displayed on screen.
EEnndd
Briefly press one of the 16 keys. "RESET" will be briefly displayed
on the screen.
K

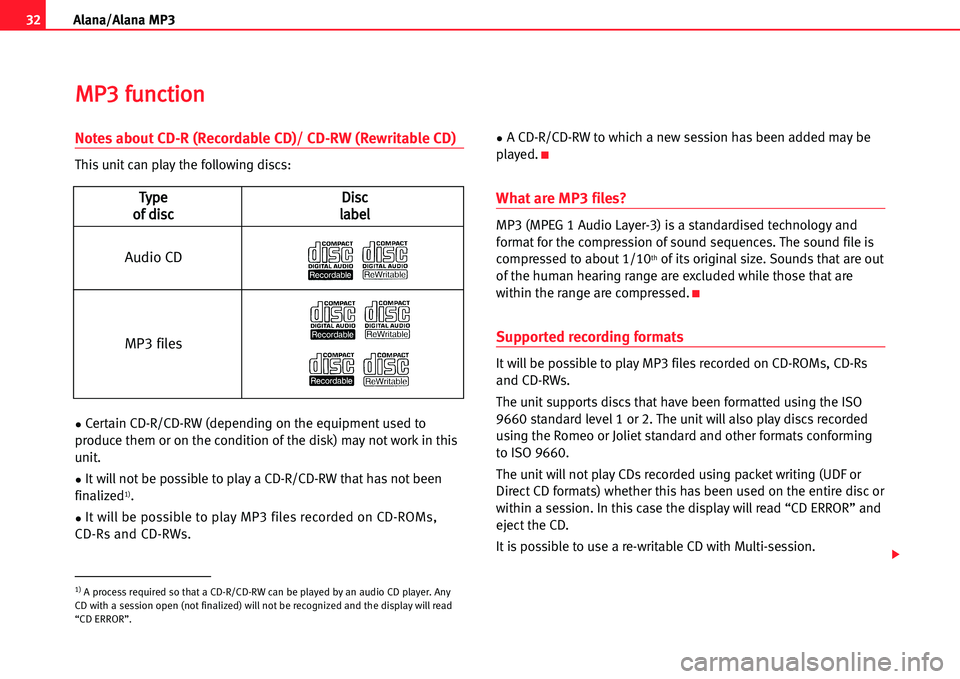

32Alana/Alana MP3
Notes about CDR (Recordable CD)/ CDRW (Rewritable CD)
This unit can play the following discs:
•Certain CDR/CDRW (depending on the equipment used to
produce them or on the condition of the disk) may not work in this
unit.
•It will not be possible to play a CDR/CDRW that has not been
finalized
1).
•Itwill be possible to play MP3 files recorded on CDROMs,
CDRsand CDRWs.•A CDR/CDRW to which a new session has been added may be
played.
K
What are MP3 files?
MP3 (MPEG 1 Audio Layer3) is a standardised technology and
format for the compression of sound sequences. The sound file is
compressed to about 1/10
thof its original size. Sounds that are out
ofthe human hearing range are excluded while those that are
within the range are compressed.
K
Supported recording formats
It will be possible to play MP3 files recorded on CDROMs, CDRs
and CDRWs.
The unit supports discs that have been formatted using the ISO
9660 standard level 1 or 2. The unit will also play discs recorded
using the Romeo or Joliet standard and other formats conformingto ISO 9660.
The unit will not play CDs recorded using packet writing (UDF or
DirectCD formats) whether this has been used on the entire disc or
within a session. In this case the display will read “CD ERROR” and
eject the CD.
It is possible to use a rewritable CD with Multisession.
MMPP33 ffuunnccttiioonn
TTyyppeeDDiisscc
ooff ddiissccllaabbeell
Audio CD
MP3 files
1)A process required so that a CDR/CDRW can be played by an audio CD player. Any
CD with a session open (not finalized) will not be recognized and the display will read
“CD ERROR”.

33
A lana/Alana MP3

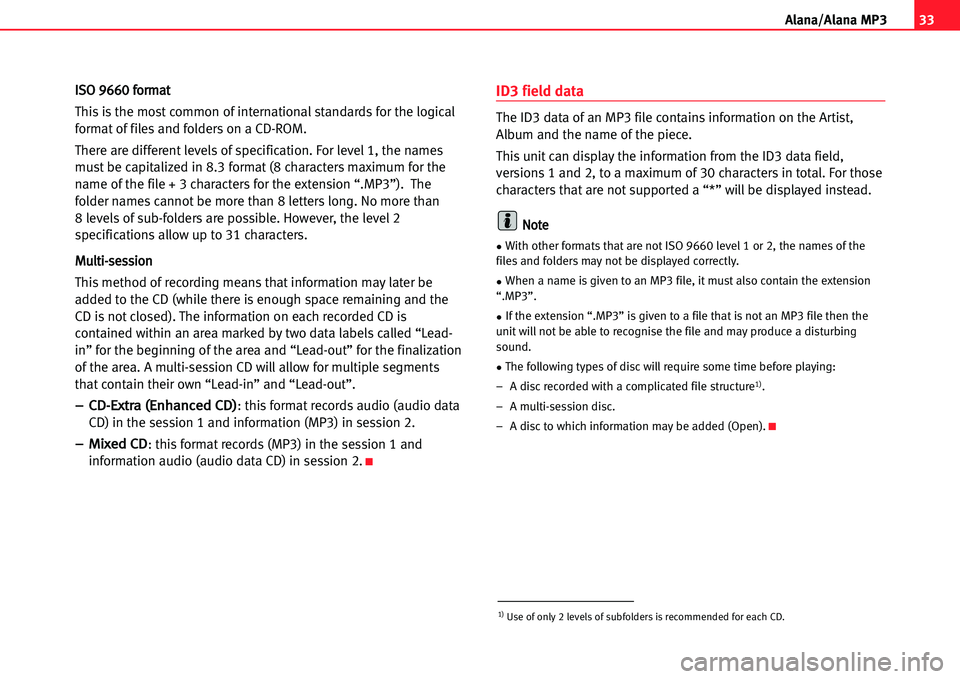

IISSOO 99666600 ffoorrmmaatt
This is the most common of international standards for the logical
format of files and folders on a CDROM.
There are different levels of specification. For level 1, the names
must be capitalized in 8.3 format (8 characters maximum for the
name of the file + 3 characters for the extension “.MP3”). The
folder names cannot be more than 8 letters long. No more than
8 levels of subfolders are possible. However, the level 2
specifications allow up to 31 characters.
MMuullttiisseessssiioonn
Thismethod ofrecording means that information may later be
added to the CD (while there is enough space remaining and the
CD is not closed). The information on each recorded CD is
contained within an area marked by two data labels called “Lead
in” for the beginning of the area and “Leadout” for the finalization
of the area. A multisession CD will allow for multiple segments
that contain their own “Leadin” and “Leadout”.
––CCDDEExxttrraa ((EEnnhhaanncceedd CCDD)): this format records audio (audio data
CD) in the session 1 and information (MP3) in session 2.
––MMiixxeedd CCDD: thisformat records (MP3) in the session 1 and
information audio (audio data CD) in session 2.
K
ID3 field data
The ID3 data of an MP3 file contains information on the Artist,
Album and the name of the piece.
This unit can display the information from the ID3 data field,
versions 1 and 2, to a maximum of 30 characters in total. For those
characters that are not supported a “*” will be displayed instead.
NNoottee
•With other formats that are not ISO 9660 level 1 or 2, the names of the
files and folders may not be displayed correctly.
•When a name is given to an MP3 file, it must also contain the extension
“.MP3”.
•Ifthe extension “.MP3” is given to a file that is not an MP3 file then the
unitwillnotbe able to recognise the file and may produce a disturbing
sound.
•The following types of disc will require some time before playing:
–A disc recorded with a complicated file structure
1).
–A multisession disc.
–A disc to which information may be added (Open).
K
1)Use ofonly2 levelsof subfolders is recommended for each CD.

34Alana/Alana MP3
* The root folder of the CD is number one and is named ROOT
(e.g. in the case ofF001 T001 the scroll would show
“ROOT – Name of first track”).NNoottee
WMA audio files are recognised by the player but will not be played.K
The device assigns folder
numbers.
The maximum number of
folders is 254 (including
the root folder and empty
folders).
Foldersthatdo notcontain
MP3 fileswill be omitted
and the device will pass to
the next, jumping a
number in the folder
numbering system.
It will be possible to
access MP3 files located
atup to a level of
8 subfolders.The maximum number
of MP3 files per folder
is 254.
Ifa mixed CD is
played, Audio CD
mode will begin first
and then the playerwill change to MP3
mode.
LevelLevel Level ...
12 3
*

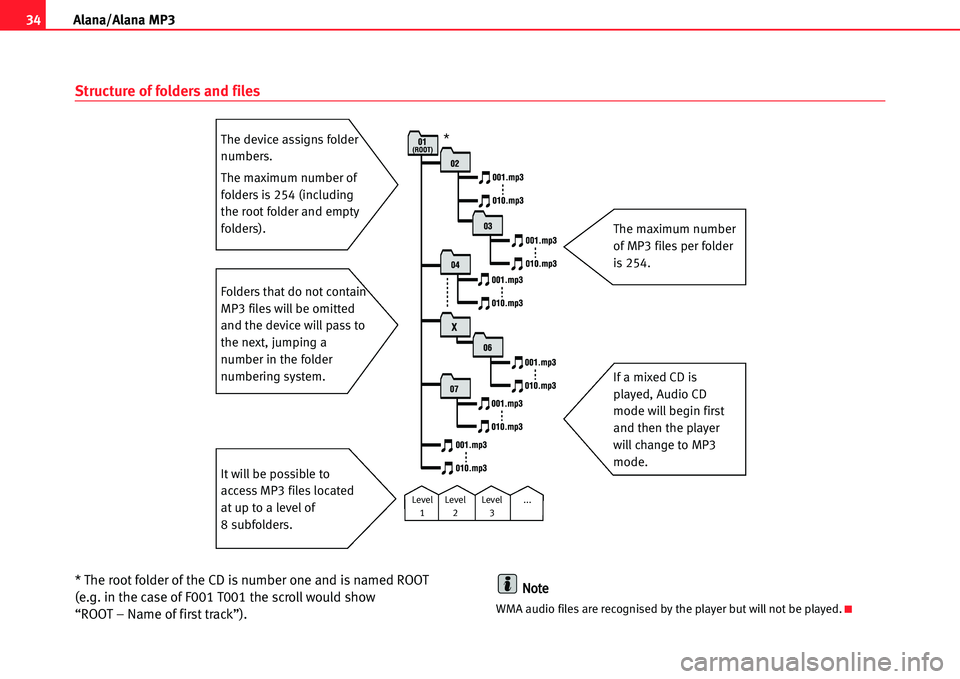

Structure of folders and files

35
A lana/Alana MP3

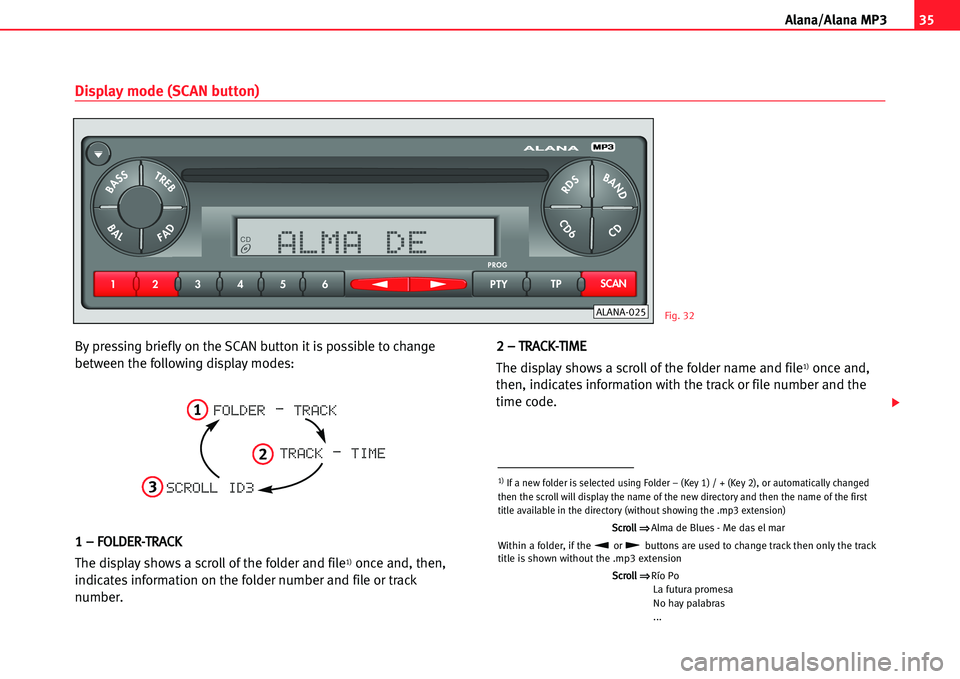

By pressing briefly on the SCAN button it is possible to change
between the following display modes:
11 –– FFOOLLDDEERRTTRRAACCKK
The display shows a scroll of the folder and file1)once and, then,
indicates information on the folder number and file or track
number.
22 –– TTRRAACCKKTTIIMMEE
The display shows a scroll of the folder name and file1)once and,
then, indicates information with the track or file number and the
time code.
ALANA025Fig. 32
Display mode (SCAN button)
1)Ifa new folder is selected using Folder – (Key 1) / + (Key 2), or automatically changed
then the scroll will display the name of the new directory and then the name of the first
title available in the directory (without showing the .mp3 extension)
SSccrroollll Alma de Blues Me das el mar
Within a folder, if theor buttons are used to change track then only the track
title is shown without the .mp3 extension
SSccrroollll Río Po
La futura promesa
No haypalabras
...
FOLDER TRACK1
TRACK TIME2
SCROLL ID33
34 56PTYTPSCANPROGCD6RDSBANDCDBASSTREBFADBAL2
1ALMA DE CD

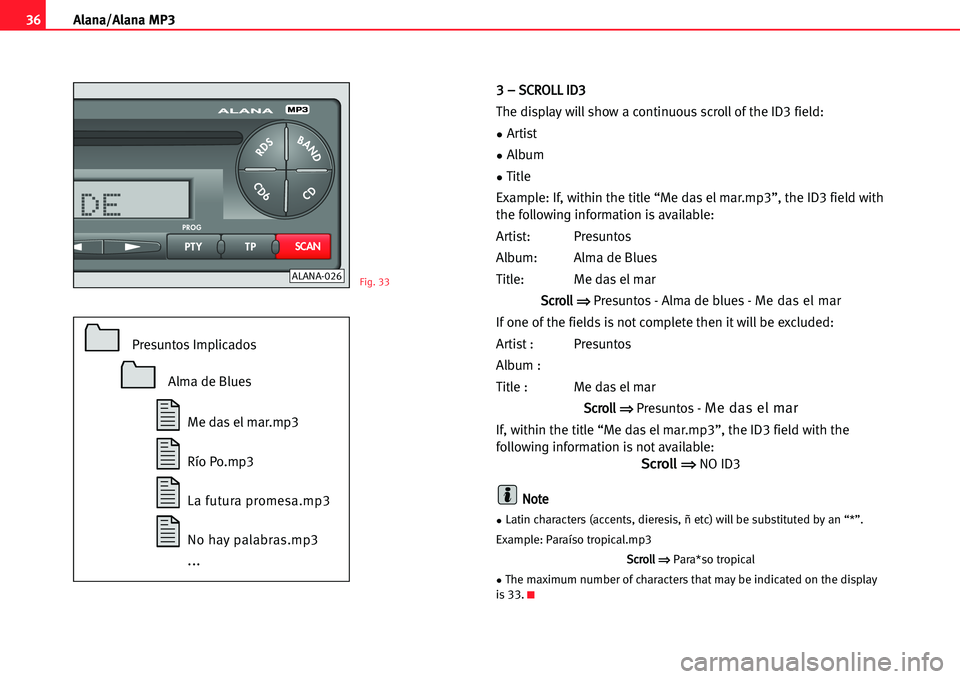

33 –– SSCCRROOLLLL IIDD33
The display will show a continuous scroll of the ID3 field:
•Artist
•Album
•Title
Example: If, within the title “Me das el mar.mp3”, the ID3 field with
the following information is available:
Artist: Presuntos
Album: Alma de Blues
Title: Me das el mar
SSccrroollll Presuntos Alma de blues Me das el mar
Ifone of the fields is not complete then it will be excluded:
Artist : Presuntos
Album :
Title :Me das el mar
SSccrroollll Presuntos Me das el mar
If, within the title “Me das el mar.mp3”, the ID3 field with the
following information is not available:
SSccrroollll NO ID3
NNoottee
•Latin characters (accents, dieresis, ñ etc) will be substituted by an “*”.
Example: Paraíso tropical.mp3
SSccrroollll Para*so tropical
•The maximum number of characters that may be indicated on the display
is33.
K
36Alana/Alana MP3
Fig. 33ALANA026
Presuntos Implicados
Alma de Blues
Me das el mar.mp3
Río Po.mp3
La futura promesa.mp3
No hay palabras.mp3
... 34 56PTYTPPROGCD6RDSBANDCDBASSTREBFADBAL2
1ALMA DE CDS C A N

37
A lana/Alana MP3

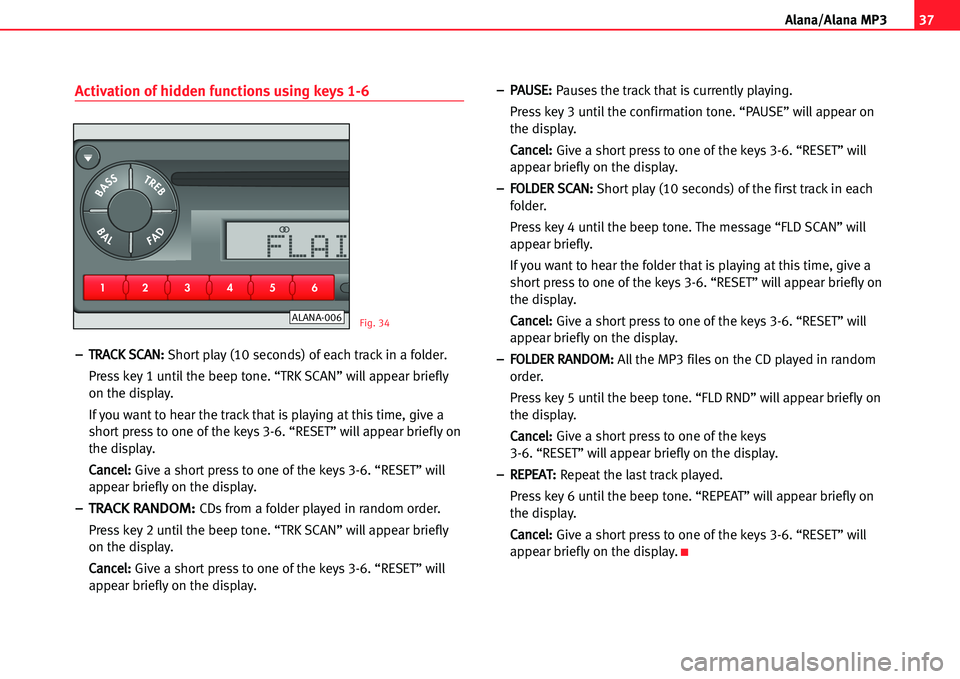

Activation of hidden functions using keys 16
––TTRRAACCKK SSCCAANN::Short play (10 seconds) of each track in a folder.
Press key 1 until the beep tone. “TRK SCAN” will appear briefly
on the display.
If you want to hear the track that is playing at this time, give a
short press to one of the keys 36. “RESET” will appear briefly on
the display.
CCaanncceell:: Give a short press to one of the keys 36. “RESET” will
appear briefly on the display.
––TTRRAACCKK RRAANNDDOOMM::CDs from a folder played in random order.
Presskey2 until the beep tone. “TRK SCAN” will appear briefly
on the display.
CCaanncceell:: Give a shortpressto one ofthe keys 36. “RESET” will
appear briefly on the display.
––PPAAUUSSEE:: Pauses the track that is currently playing.
Press key 3 until the confirmation tone. “PAUSE” will appear on
the display.
CCaanncceell::Give a short press to one of the keys 36. “RESET” will
appear briefly on the display.
––FFOOLLDDEERR SSCCAANN::Short play (10 seconds) of the first track in each
folder.
Press key 4 until the beep tone. The message “FLD SCAN” will
appear briefly.
If you want to hear the folder that is playing at this time, give a
shortpress to one of the keys 36. “RESET” will appear briefly on
the display.
CCaanncceell:: Give a short press to one of the keys 36. “RESET” will
appear brieflyon the display.
––FFOOLLDDEERR RRAANNDDOOMM::All the MP3 files on the CD played in random
order.
Press key 5 until the beep tone. “FLD RND” will appear briefly on
the display.
CCaanncceell:: Give a short press to one of the keys
36. “RESET” will appear briefly on the display.
––RREEPPEEAATT::Repeat the last track played.
Press key 6 until the beep tone. “REPEAT” will appear briefly on
the display.
CCaanncceell:: Give a short press to one of the keys 36. “RESET” will
appear brieflyon the display.
K
ALANA006Fig. 3423
1 456PTYTPSCANA
LANAPROGSRCRDSBANDCDFLAIX FMLEARNRDS1BASSTREBFADBAL

38Alana/Alana MP3

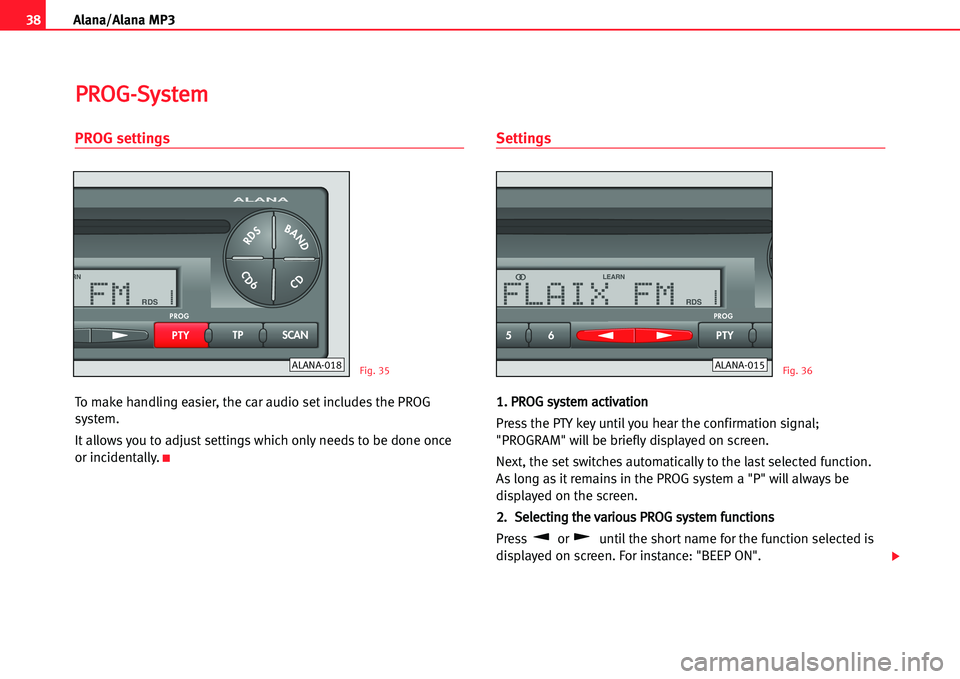

PROG settings
To make handling easier, the car audio set includes the PROG
system.
It allows you to adjust settings which only needs to be done once
or incidentally.
K
Settings
11.. PPRROOGG ssyysstteemm aaccttiivvaattiioonn
Press the PTY key until you hear the confirmation signal;
"PROGRAM" will be briefly displayed on screen.
Next, the set switches automatically to the last selected function.
As long as it remains in the PROG system a "P" will always be
displayed on the screen.
22..SSeelleeccttiinngg tthhee vvaarriioouuss PPRROOGG ssyysstteemm ffuunnccttiioonnss
Press or until the short name for the function selected is
displayed on screen. For instance: "BEEP ON".
PPRROOGGSSyysstteemm
Fig. 35Fig. 36ALANA015ALANA018
23
1 456PTYTPSCANALANAPROGSRCRDSBANDCDFLAIX FMLEARNRDS1BASSTREBFADBAL 23
1 456PTYTPSCANALANAPROGCD6RDSBANDCDFLAIX FMLEARNRDS1BASSTREBFADBAL

39
A lana/Alana MP3
33.. MMooddiiffyyiinngg ffuunnccttiioonn sseettttiinngg
Briefly press the PTY key; the "BEEP ON" indication will flash.
Press or ; the indication displayed switches over to
"BEEP OFF".
44.. AAccttiivvaattiinngg nneeww sseettttiinngg
Briefly press the PTY key; the "BEEP OFF" indication will stop
flashing.
Once having reached this point we can select and set any other
function by repeating points 2 to 5, or:
55.. EEnndd sseettttiinnggss
Hold the PTY/PROG key until you hear the confirmation signal.K
Possible PROGSystem functions and settings
Display on screen sequence:
"BEEP", "LRN", "REG", "IGN", "ON VOL", "TA VOL", "SM VOL", "SCV",
"CODE/SAFE" and "SPKR".
CCoonnffiirrmmaattiioonn ssiiggnnaall ((OONN//OOFFFF))
"BEEP ON" A long pulse confirmation signal sound.
"BEEP OFF" A long pulse confirmation silence.
AAuuttoommaattiicc LLEEAARRNN ((iinn rraaddiioo ooppeerraattiioonn mmooddee))
Searches for the local stations.
If you are in a bad RDS with traffic announcements frequency
reception area, you should switch off the automatic LEARN function
(LRN)
"LRN ON" Automatic LEARN
"LRN OFF" Switches off the automatic LEARN.
AAuuttoommaattiicc sswwiittcchhiinngg oovveerr ooff rreeggiioonnaall pprrooggrraammmmiinngg
Itsearches for the station programme in that area.
When the car audio set receives in RDS operation several regional
stations it may happen that it switches over between severalregional programmes.
"REG ON"Automatic switching of regional programming.
"REG OFF" Does not switch over to any other regional
programme.
CCaarr aauuddiioo sseett sswwiittcchhiinngg OONN//OOFFFF wwiitthh tthhee ccoonnttaacctt kkeeyy
"IGN ON"The setisswitched on/off with the contact keyFig. 37ALANA018 23
1 456PTYTPSCANALANAPROGCD6RDSBANDCDFLAIX FMLEARNRDS1BASSTREBFADBAL
