Seat Cordoba 2006 ALANA

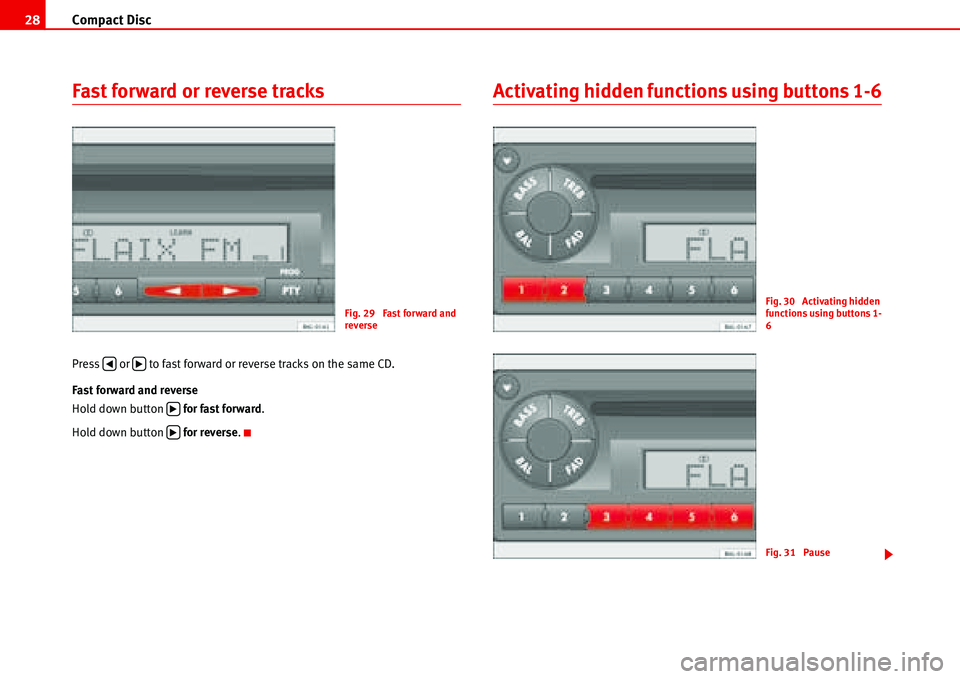

Compact Disc 28
Fast forward or reverse tracks
Press or to fast forward or reverse tracks on the same CD.
Fast forward and reverse
Hold down button for fast forward.
Hold down button for reverse.
Activating hidden functions using buttons 1-6
Fig. 29 Fast forward and
reverse
‚b
b
b
Fig. 30 Activating hidden
functions using buttons 1-
6
Fig. 31 Pause

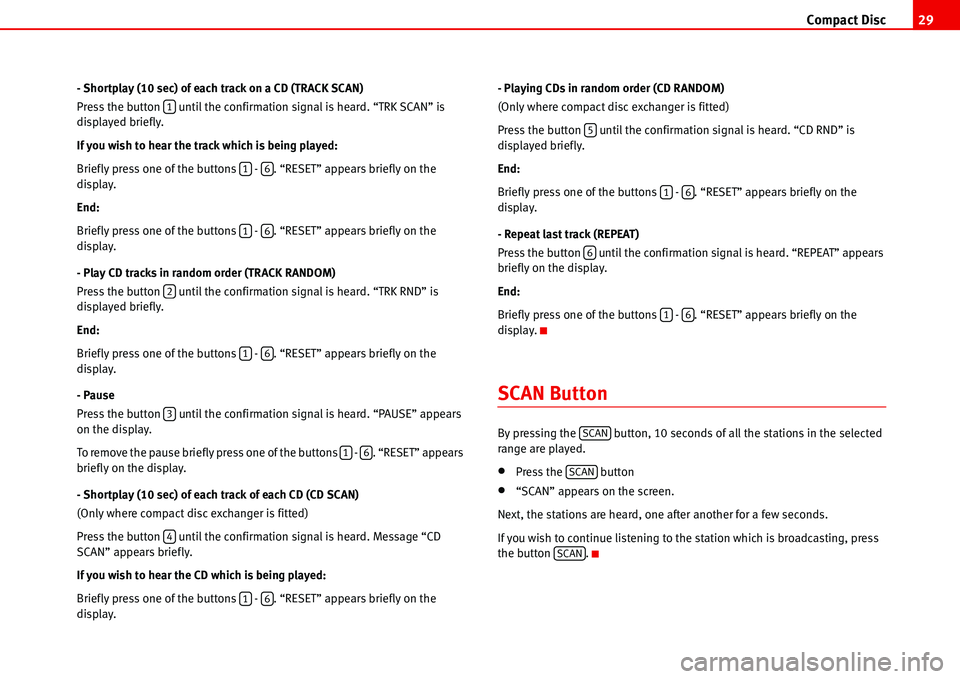

Compact Disc29
- Shortplay (10 sec) of each track on a CD (TRACK SCAN)
Press the button until the confirmation signal is heard. “TRK SCAN” is
displayed briefly.
If you wish to hear the track which is being played:
Briefly press one of the buttons - . “RESET” appears briefly on the
display.
End:
Briefly press one of the buttons - . “RESET” appears briefly on the
display.
- Play CD tracks in random order (TRACK RANDOM)
Press the button until the confirmation signal is heard. “TRK RND” is
displayed briefly.
End:
Briefly press one of the buttons - . “RESET” appears briefly on the
display.
- Pause
Press the button until the confirmation signal is heard. “PAUSE” appears
on the display.
To remove the pause briefly press one of the buttons - . “RESET” appears
briefly on the display.
- Shortplay (10 sec) of each track of each CD (CD SCAN)
(Only where compact disc exchanger is fitted)
Press the button until the confirmation signal is heard. Message “CD
SCAN” appears briefly.
If you wish to hear the CD which is being played:
Briefly press one of the buttons - . “RESET” appears briefly on the
display.- Playing CDs in random order (CD RANDOM)
(Only where compact disc exchanger is fitted)
Press the button until the confirmation signal is heard. “CD RND” is
displayed briefly.
End:
Briefly press one of the buttons - . “RESET” appears briefly on the
display.
- Repeat last track (REPEAT)
Press the button until the confirmation signal is heard. “REPEAT” appears
briefly on the display.
End:
Briefly press one of the buttons - . “RESET” appears briefly on the
display.
SCAN Button
By pressing the button, 10 seconds of all the stations in the selected
range are played.
•Press the button
•“SCAN” appears on the screen.
Next, the stations are heard, one after another for a few seconds.
If you wish to continue listening to the station which is broadcasting, press
the button .
1
16
16
2
16
3
16
4
16
5
16
6
16
SCAN
SCAN
SCAN

Compact Disc 30
Device for broadcasting traffic messages
while CD is playing
Activate TP
Press the button briefly. TP is shown on the display.
While the traffic message is being broadcast, the CD/CD6 stops playing.
Deactivate TP
Press the button briefly again.
While the traffic message is being broadcast, only the broadcasting of that
message is deactivated.
The player returns to CD/CD6 mode. The word “TP” remains on the display.
During normal CD/CD6 operating mode: if the “TP” function is deactivated.
“TP” goes from the display.
Ending CD mode
Select another operating mode.
Activating hidden functions using CD/CD6
button
Press the button or (if CD interchanger is fitted) until the confirma-
tion signal is heard.
Selection
Using the buttons or select the desired function. The function will be
shown on the display together with the associated button number - :
1TRK SCAN
2TRK RND
3PAUSE
4 CD SCAN (only if CD interchanger is fitted)
5 CD RND (only if CD interchanger is fitted)
6 REPEAT
Activation
The desired function can be activated:
TP
TP
Fig. 32 Activating hidden
functions using CD/CD6
button
CDCD6
‚b16

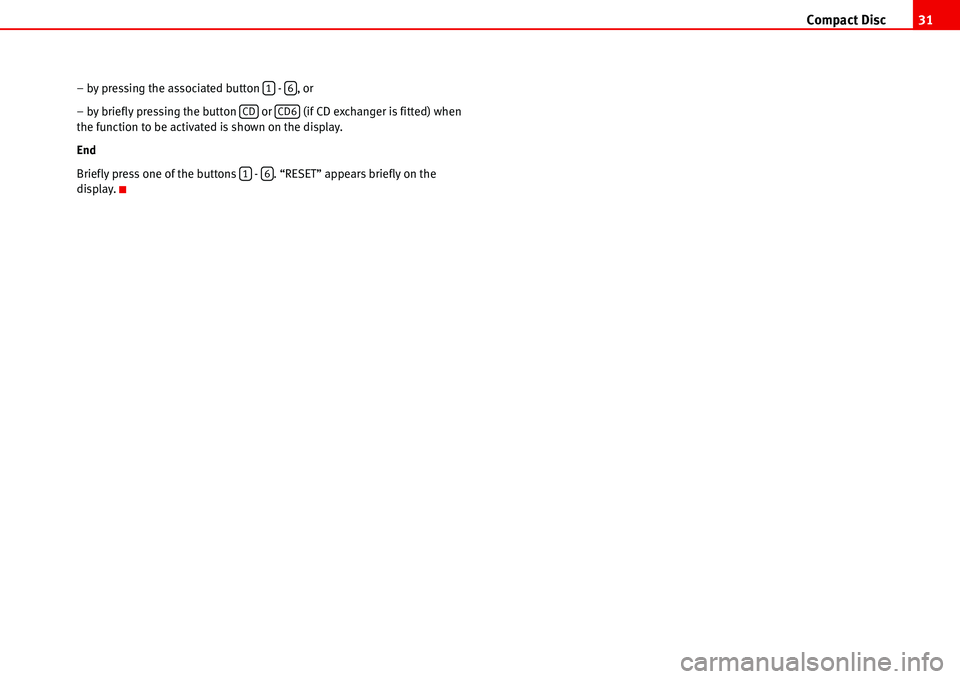

Compact Disc31
– by pressing the associated button - , or
– by briefly pressing the button or (if CD exchanger is fitted) when
the function to be activated is shown on the display.
End
Briefly press one of the buttons - . “RESET” appears briefly on the
display.16
CDCD6
16

AUX* mode 32
AUX* mode
Select mode AUX operation
To select AUX operation mode, press the key to activate the CD interchanger
or the auxiliary input.
Insert portable device*
A JACK - JACK
3) audio adaptor is required
Insert an Audio player portable device (MP3, Walkman, CD, etc....) in the AUX
connector, ensuring that the pins and sockets are correctly connected. The
folders, tracks, volume,.....are controlled through the connected
equipment.
Device for broadcasting traffic messages
while AUX is playing
Activate TP
Press the button briefly. TP is shown on the display.
While the traffic message is being broadcast, the AUX stops playing.
Deactivate TP
Press the button briefly again.
While the traffic message is being broadcast, only the broadcasting of that
message is deactivated.
The player returns to AUX mode. The word “TP” remains on the display.
During normal AUX operating mode: if the “TP” function is deactivated, the
signal “TP” disappears from the screen.
Ending AUX mode
Select another operating mode.
3)The cable is not supplied by the manufacturer.
Fig. 33 Select mode AUX
TP
TP

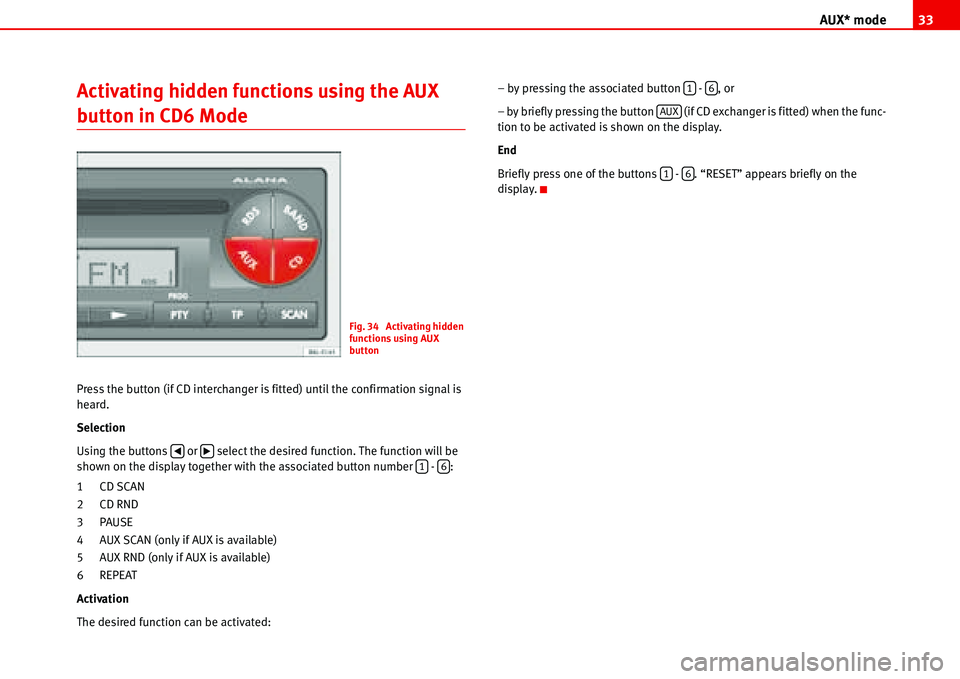

AUX* mode33
Activating hidden functions using the AUX
button in CD6 Mode
Press the button (if CD interchanger is fitted) until the confirmation signal is
heard.
Selection
Using the buttons or select the desired function. The function will be
shown on the display together with the associated button number - :
1CD SCAN
2CD RND
3PAUSE
4 AUX SCAN (only if AUX is available)
5 AUX RND (only if AUX is available)
6 REPEAT
Activation
The desired function can be activated:– by pressing the associated button - , or
– by briefly pressing the button (if CD exchanger is fitted) when the func-
tion to be activated is shown on the display.
End
Briefly press one of the buttons - . “RESET” appears briefly on the
display.
Fig. 34 Activating hidden
functions using AUX
button
‚b16
16
AUX
16

Apple* iPod ® connection 34
Apple* iPod ® connection
General information
iPod® by Apple
The iPod®4) is a portable MP3 player by Apple Computer Inc with several
models on the market.
These instructions describe the use of the iPod
® adaptor and its control
through the car radio 5) or the navigator5). Read them carefully and keep
them handy for future reference.
Consult the manufacturer's instructions for information on the iPod
®
From here on, any instructions for the iPod ®, refer to the compatible author-
ised models of iPod® of 3rd, 4th and 5th generation
•iPod® with 20 GB capacity
•iPod® with 30 GB capacity
•iPod® with 40 GB capacity
•iPod® with 60 GB capacity
•iPod® mini
•iPod® nano
•iPod® photo with 60 GB capacity
•iPod® video with 30 GB capacity
•iPod® video with 60 GB capacity
•iPod® Special Editionthe iPod
® shuffle and the iPod® photo with 30 GB cannot be used, nor
devices by other brands.
Authorised and compatible radio equipment and radio navigator systems
Connecting the iPod
® directly into the radio equipment or navigation system
enables reproduction of stored music through the vehicle loudspeakers
Compatible music formats
The following formats are compatible:
•AAC (from 8 to 320 Kbit/s)
•AAC protected (from iTunes® Music Store, M4A, M4B, M4P)
•AIFF
•Apple Lossless
•Audible (formats 2, 3 and 4)
•MP3 (from 8 to 320 Kbit/s)
•MP3 VBR
•WAV
Frequency range: between 20 and 20,000 Hz
Possible functions
The following functions are available through the sound system controls
•Direct playback selection up to 6 playlists
•Playback of all tracks on iPod®
•Random playback function
•SCAN function (10 seconds of each track)
•Change one playlist for another
•Forward and rewind in track4)iPod® is a registered trademark of Apple Computer, Inc.5)Optional equipment

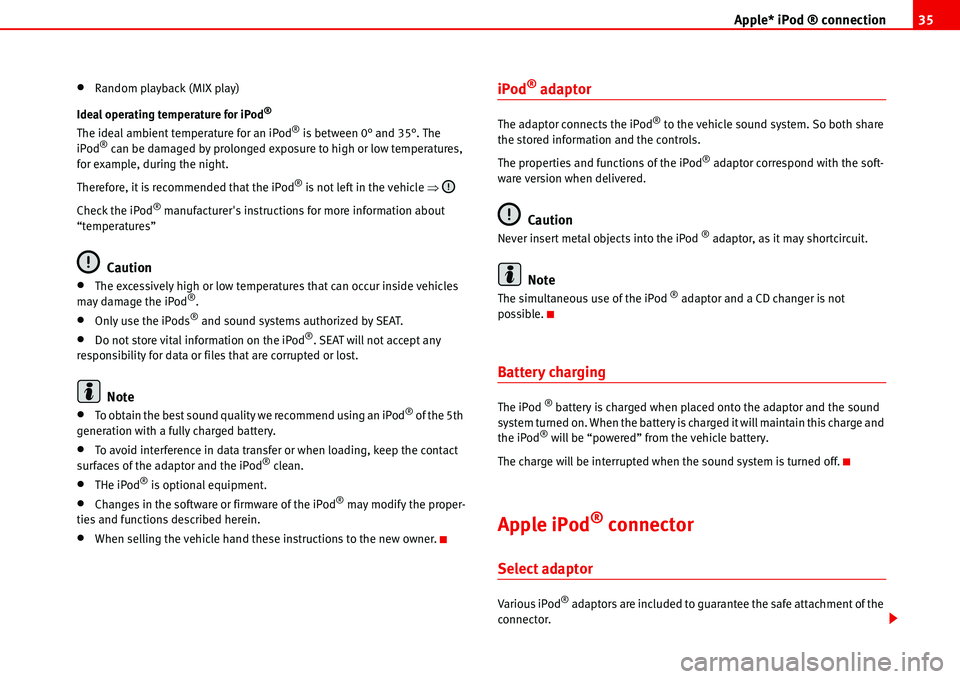

Apple* iPod ® connection35
•Random playback (MIX play)
Ideal operating temperature for iPod
®
The ideal ambient temperature for an iPod® is between 0° and 35°. The
iPod® can be damaged by prolonged exposure to high or low temperatures,
for example, during the night.
Therefore, it is recommended that the iPod
® is not left in the vehicle Ÿ
Check the iPod
® manufacturer's instructions for more information about
“temperatures”
Caution
•The excessively high or low temperatures that can occur inside vehicles
may damage the iPod®.
•Only use the iPods® and sound systems authorized by SEAT.
•Do not store vital information on the iPod®. SEAT will not accept any
responsibility for data or files that are corrupted or lost.
Note
•To obtain the best sound quality we recommend using an iPod® of the 5th
generation with a fully charged battery.
•To avoid interference in data transfer or when loading, keep the contact
surfaces of the adaptor and the iPod® clean.
•THe iPod® is optional equipment.
•Changes in the software or firmware of the iPod® may modify the proper-
ties and functions described herein.
•When selling the vehicle hand these instructions to the new owner.
iPod® adaptor
The adaptor connects the iPod® to the vehicle sound system. So both share
the stored information and the controls.
The properties and functions of the iPod
® adaptor correspond with the soft-
ware version when delivered.
Caution
Never insert metal objects into the iPod ® adaptor, as it may shortcircuit.
Note
The simultaneous use of the iPod ® adaptor and a CD changer is not
possible.
Battery charging
The iPod ® battery is charged when placed onto the adaptor and the sound
system turned on. When the battery is charged it will maintain this charge and
the iPod
® will be “powered” from the vehicle battery.
The charge will be interrupted when the sound system is turned off.
Apple iPod® connector
Select adaptor
Various iPod® adaptors are included to guarantee the safe attachment of the
connector.

Apple* iPod ® connection 36
Use the large adaptor for the smallest iPod®. Insert the adaptor into the
connector and then place the iPod®.
The larger iPods
® use the smaller adaptors when necessary. These adaptors
can be entered with the widest side upwards in the central connector dock. If
necessary use a lateral spacer to stabilise it.
Check which of the adaptors supplied is best for your iPod
® and position it
safely.
Attach the iPod®
Depending on the vehicle, the iPod® connector may be found
in the central armrest, in the passenger glove compartment
or beneath the passenger seat.
For optimum playback, activate the volume adjustment function and
disactivate the equaliser before connecting the iPod ® adaptor
according to the instructions.
Attach the iPod
®
– First change the input source for the sound system, for example
from CD to FM or to the radio.
– Open the compartment where the iPod
® adaptor is fitted.
– If required, attach an adaptor to the connector Ÿpage 35.
–Central armrest compartment adaptor: attach the iPod
® with the
screen facing right in relation to the forward direction of the
vehicle.
–Adaptor under the passenger seat: Attach the iPod
® with the
screen facing upwards and the contact to the front.–Adaptor under the passenger seat: Attach the iPod
® with the
screen facing upwards and the contact to the rear.
–The iPod
® will switch on automatically.
– After a few seconds, the sound system will detect it. The tracks
stored can be played through the sound system.
– Close the compartment.
WARNING
It is vital that attention is not diverted from the traffic. Use the iPod ® only
when the situation allows. Any distraction may lead to an accident, with
the risk of injury.
•Never lose visual contact with the road in order to adjust or use the
iPod® and the sound system.
•Use the iPod® only when the state of the road, the weather and traffic
conditions permit.
•Never attach the iPod ® while driving.
Caution
•Attaching the iPod ® to the adaptor will leave marks.
•New iPods® that have not been used for some time have to be charged
according to the manufacturer's instructions, before using it for the first time
with the iPod
® adaptor.
Note
•If the iPod® is not detected in the adaptor by the sound system, “reset the
iPod®”. For more information consult the iPod® instructions.

Apple* iPod ® connection37
•If the iPod® does not work correctly despite being a compatible model,
we recommend updating the firmware. For more information, consult the
Apple Computer Inc webpage.
•The iPod® controls will not work when it is attached to the adaptor.
Remove the iPod® from the adaptor
– First change the input source for the sound system, for example
from CD to FM or to the radio.
– Open the compartment where the iPod
® adaptor is fitted.
– Remove the iPod
® from the adaptor Ÿ
– Close the compartment.
WARNING
It is vital that attention is not diverted from the traffic. Use the iPod ® only
when the situation allows. Any distraction may lead to an accident, with
the risk of injury.
•Never lose visual contact with the road in order to adjust or use the
iPod® and the sound system.
•Use the iPod® only when the state of the road, the weather and traffic
conditions permit.
•Never detach the iPod ® while driving.
Caution
•Detaching the iPod ® from the adaptor will leave marks.
•Never detach the iPod® when the sound source selected is the adaptor
(CD). Otherwise the iPod® memory could be damaged.
Apple iPod® connector
Select adaptor
Various iPod® adaptors are included to guarantee the safe attachment of the
connector.
Use the large adaptor for the smallest iPod
®. Insert the adaptor into the
connector and then place the iPod®.
The larger iPods
® use the smaller adaptors when necessary. These adaptors
can be entered with the widest side upwards in the central connector dock. If
necessary use a lateral spacer to stabilise it.
Check which of the adaptors supplied is best for your iPod
® and position it
safely.
