Technical Data
236Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Weights
Trailer weights
Engine oil capacity Maximum speed
in km/h 177
Accelera tion from 0-80 km/h in sec. 8.9
Accelera tion from 0-100 km/h in sec. 13.2
Urban cycle 5.7/154 5.8/157
Extra urban cycle 4.1/111 4.2/113
Combined 4.6/124 4.7/127
Gross vehicle weight in kg 1662
Weight in working order (with driver) in kg 1219/1318
Gross axle weight, front in kg 887
Gross axle weight, rear in kg 840
Permitted roof load in kg 75
With no brakes, gradients up to 12% 600
With brakes, gradients up to 12% 1200
Engine oil capacity with oil filter change. 4.3 litres
cordoba_ingles Seite 236 Freitag, 7. Oktober 2005 6:00 18

Technical Data237
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Diesel engine 1.9l SDI 47 kW (64 bhp)General engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Power output in kW (bhp)
rpm 47(64)/ 4000
Maximum torque in Nm at rpm 125/ 1600-2800
No. of cylinders, capacity in cm
3
4/ 1896
Compression 19.5
Fuel Min 49 CN
a)
a)Cetane-Number (cetane index) = Measure of the co mbustion power of the diesel.Maximum speed in km/h 165
Acceleration from 0-80 km/h in sec. 11.7
Acceleration from 0-100 km/h in sec. 17.9
Urban cycle 6.3/170 6.4/173
Extra urban cycle 4.0/108 4.1/111
Combined 5.8/130 4.9/132
cordoba_ingles Seite 237 Freitag, 7. Oktober 2005 6:00 18

Technical Data
238Weights
Trailer weights
Engine oil capacity Gross vehicle weight
in kg 1647
Weight in working order (with driver) in kg 1227/1317
Gross axle weight, front in kg 882
Gross axle weight, rear in kg 825
Permitted roof load in kg 75
With no brakes, gradients up to 12% 600
With brakes, gradients up to 12% 1200
Engine oil capacity with oil filter change. 4.3 litres
cordoba_ingles Seite 238 Freitag, 7. Oktober 2005 6:00 18

Technical Data239
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Diesel engine 1.9l TDI 47 kW (101 bhp)General engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Power output in kW (bhp)
rpm 74(101)/ 4000
Maximum torque in Nm at rpm 240/ 1800-2400
No. of cylinders, capacity in cm
3
4/ 1896
Compression 19
Fuel Min 49 CN
a)
a)Cetane-Number (cetane index) = Measure of the co mbustion power of the diesel.Maximum speed in km/h 192
Acceleration from 0-80 km/h in sec. 7.6
Acceleration from 0-100 km/h in sec. 11.1
Urban 6.4/173 6.5/176
Extra urban cycle 4.0/108 4.1/111
Combined 5.9/132 5.0/135
cordoba_ingles Seite 239 Freitag, 7. Oktober 2005 6:00 18

Technical Data
240Weights
Trailer weights
Engine oil capacity Gross vehicle weight
in kg 1683
Weight in working order (with driver) in kg 1263/1375
Gross axle weight, front in kg 882
Gross axle weight, rear in kg 825
Permitted roof load in kg 75
With no brakes, gradients up to 12% 600
With brakes, gradients up to 12% 1200
Engine oil capacity with oil filter change. 4.3 litres
cordoba_ingles Seite 240 Freitag, 7. Oktober 2005 6:00 18

Technical Data241
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Diesel engine 1.9l TDI 96 kW (131 bhp)General engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Power output in kW (bhp)
rpm 96(131)/ 4000
Maximum torque in Nm at rpm 310/ 1900
No. of cylinders, capacity in cm
3
4/ 1896
Compression 19
Fuel Min 49 CN
a)
a)Cetane-Number (cetane index) = Measure of the co mbustion power of the diesel.Maximum speed in km/h 210
Acceleration from 0-80 km/h in sec. 6.6
Acceleration from 0-100 km/h in sec. 9.5
Urban cycle 6.9/186
Extra urban cycle 4.4/119
Combined 5.3/143
cordoba_ingles Seite 241 Freitag, 7. Oktober 2005 6:00 18

Technical Data
242Weights
Trailer weights
Engine oil capacity Gross vehicle weight
in kg 1733
Weight in working order (with driver) in kg 1313/1402
Gross axle weight, front in kg 955
Gross axle weight, rear in kg 830
Permitted roof load in kg 75
With no brakes, gradients up to 12% 600
With brakes, gradients up to 12% 1200
Engine oil capacity with oil filter change. 4.3 litres
cordoba_ingles Seite 242 Freitag, 7. Oktober 2005 6:00 18

Index

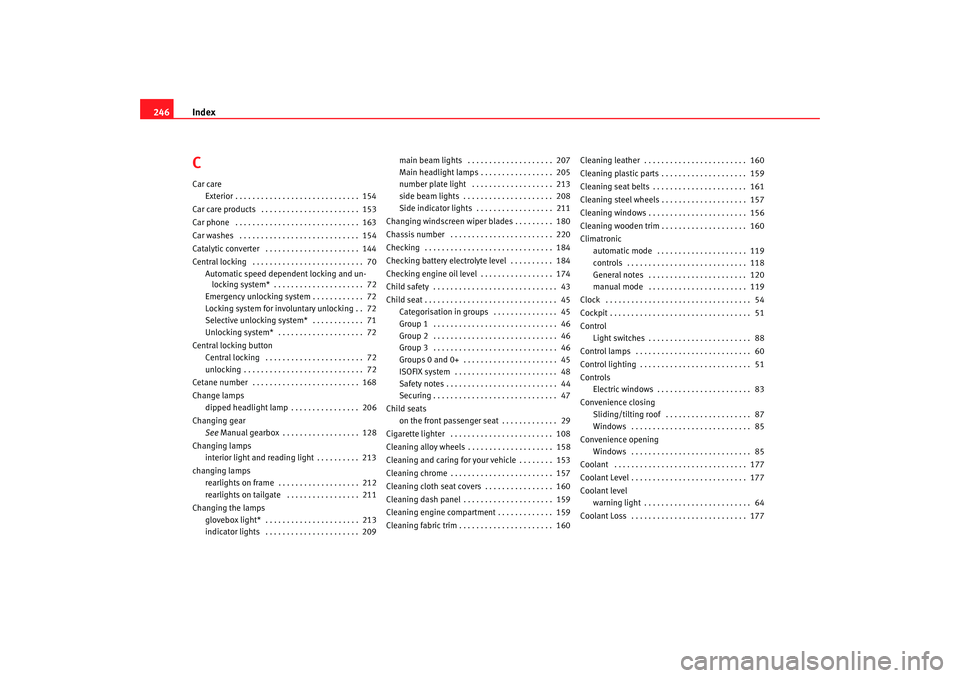

246CCar care
Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Car care products . . . . . . . . . . . . . . . . . . . . . . . 153
Car phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Car washes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . 144
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . 70 Automatic speed dependent locking and un-locking system* . . . . . . . . . . . . . . . . . . . . . 72
Emergency unlocking system . . . . . . . . . . . . 72
Locking system for invo luntary unlocking . . 72
Selective unlocking system* . . . . . . . . . . . . 71
Unlocking system* . . . . . . . . . . . . . . . . . . . . 72
Central locking button Central locking . . . . . . . . . . . . . . . . . . . . . . . 72
unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Cetane number . . . . . . . . . . . . . . . . . . . . . . . . . 168
Change lamps dipped headlight lamp . . . . . . . . . . . . . . . . 206
Changing gear See Manual gearbox . . . . . . . . . . . . . . . . . . 128
Changing lamps interior light and reading light . . . . . . . . . . 213
changing lamps rearlights on frame . . . . . . . . . . . . . . . . . . . 212
rearlights on tailgate . . . . . . . . . . . . . . . . . 211
Changing the lamps glovebox light* . . . . . . . . . . . . . . . . . . . . . . 213
indicator lights . . . . . . . . . . . . . . . . . . . . . . 209 main beam lights . . . . . . . . . . . . . . . . . . . . 207
Main headlight lamps . . . . . . . . . . . . . . . . . 205
number plate light . . . . . . . . . . . . . . . . . . . 213
side beam lights . . . . . . . . . . . . . . . . . . . . . 208
Side indicator lights . . . .
. . . . . . . . . . . . . . 211
Changing windscreen wiper blades . . . . . . . . . 180
Chassis number . . . . . . . . . . . . . . . . . . . . . . . . 220
Checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Checking battery electrolyte level . . . . . . . . . . 184
Checking engine oil level . . . . . . . . . . . . . . . . . 174
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Categorisation in groups . . . . . . . . . . . . . . . 45
Group 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Group 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Group 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Groups 0 and 0+ . . . . . . . . . . . . . . . . . . . . . . 45
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . 48
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Child seats on the front passenger seat . . . . . . . . . . . . . 29
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . 108
Cleaning alloy wheels . . . . . . . . . . . . . . . . . . . . 158
Cleaning and caring for your vehicle . . . . . . . . 153
Cleaning chrome . . . . . . . . . . . . . . . . . . . . . . . . 157
Cleaning cloth seat covers . . . . . . . . . . . . . . . . 160
Cleaning dash panel . . . . . . . . . . . . . . . . . . . . . 159
Cleaning engine compartment . . . . . . . . . . . . . 159
Cleaning fabric trim . . . . . . . . . . . . . . . . . . . . . . 160 Cleaning leather . . . . . . . . . . . . . . . . . . . . . . . . 160
Cleaning plastic parts . . . . . . . . . . . . . . . . . . . . 159
Cleaning seat belts . . . . . . . . . . . . . . . . . . . . . . 161
Cleaning steel wheels . . . . . . . . . . . . . . . . . . . . 157
Cleaning windows . . . . . . . . . . . . . . . . . . . . . . . 156
Cleaning wooden trim . . . . . . . . . . . . . . . . . . . . 160
Climatronic
automatic mode . . . . . . . . . . . . . . . . . . . . . 119
controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
General notes . . . . . . . . . . . . . . . . . . . . . . . 120
manual mode . . . . . . . . . . . . . . . . . . . . . . . 119
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Control Light switches . . . . . . . . . . . . . . . . . . . . . . . . 88
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Control lighting . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Controls Electric windows . . . . . . . . . . . . . . . . . . . . . . 83
Convenience closing Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . 87
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Convenience opening Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Coolant Level . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Coolant level warning light . . . . . . . . . . . . . . . . . . . . . . . . . 64
Coolant Loss . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
cordoba_ingles Seite 246 Freitag, 7. Oktober 2005 6:00 18

Index247

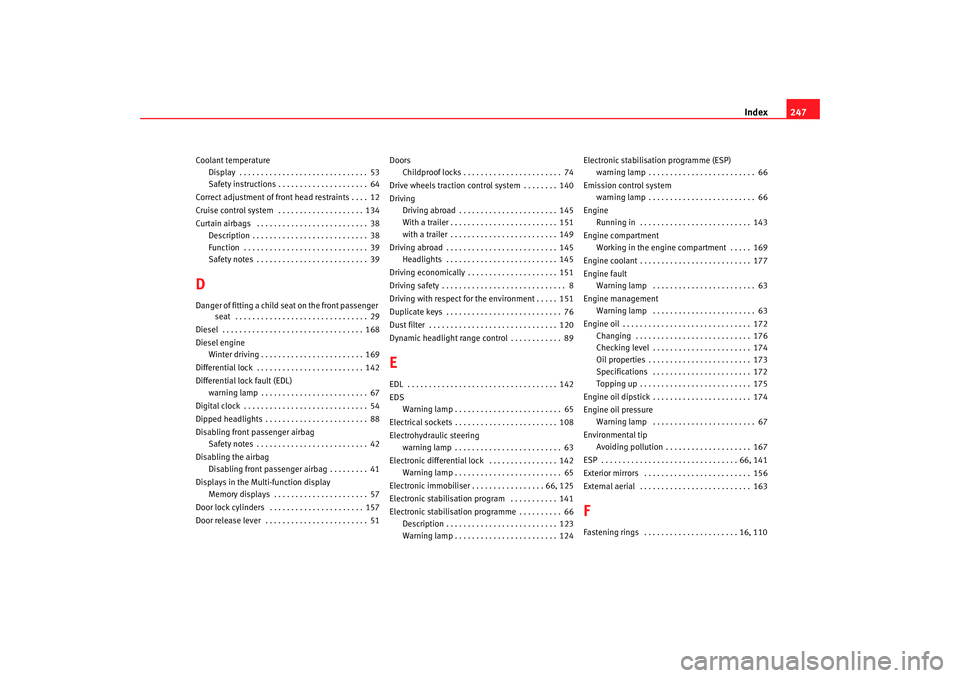

Coolant temperature
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Safety instructions . . . . . . . . . . . . . . . . . . . . . 64
Correct adjustment of front head restraints . . . . 12
Cruise control system . . . . . . . . . . . . . . . . . . . . 134
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 39DDanger of fitting a child seat on the front passenger seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Diesel engine Winter driving . . . . . . . . . . . . . . . . . . . . . . . . 169
Differential lock . . . . . . . . . . . . . . . . . . . . . . . . . 142
Differential lock fault (EDL) warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 67
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Dipped headlights . . . . . . . . . . . . . . . . . . . . . . . . 88
Disabling front passenger airbag Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Disabling the airbag Disabling front passenger airbag . . . . . . . . . 41
Displays in the Multi-function display Memory displays . . . . . . . . . . . . . . . . . . . . . . 57
Door lock cylinders . . . . . . . . . . . . . . . . . . . . . . 157
Door release lever . . . . . . . . . . . . . . . . . . . . . . . . 51 Doors
Childproof locks . . . . . . . . . . . . . . . . . . . . . . . 74
Drive wheels traction control system . . . . . . . . 140
Driving Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 145
With a trailer . . . . . . . . . . . . . . . . . . . . . . . . . 151
with a trailer . . . . . . . . . . . . . . . . . . . . . . . . . 149
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . . 145 Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Driving economically . . . . . . . . . . . . . . . . . . . . . 151
Driving safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Driving with respect for the environment . . . . . 151
Duplicate keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Dynamic headlight range control . . . . . . . . . . . . 89
EEDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
EDS Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 65
Electrical sockets . . . . . . . . . . . . . . . . . . . . . . . . 108
Electrohydraulic steering warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 63
Electronic differential lock . . . . . . . . . . . . . . . . 142 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 65
Electronic immobiliser . . . . . . . . . . . . . . . . . 66, 125
Electronic stabilisation program . . . . . . . . . . . 141
Electronic stabilisation programme . . . . . . . . . . 66 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 124 Electronic stabilisation programme (ESP)
warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 66
Emission control system warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 66
Engine Running in . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Engine compartment Working in the engine compartment . . . . . 169
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Engine fault Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 63
Engine management Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 63
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Checking level . . . . . . . . . . . . . . . . . . . . . . . 174
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . 173
Specifications . . . . . . . . . . . . . . . . . . . . . . . 172
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Engine oil dipstick . . . . . . . . . . . . . . . . . . . . . . . 174
Engine oil pressure Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 67
Environmental tip Avoiding pollution . . . . . . . . . . . . . . . . . . . . 167
ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66, 141
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 156
External aerial . . . . . . . . . . . . . . . . . . . . . . . . . . 163
FFastening rings . . . . . . . . . . . . . . . . . . . . . . 16, 110
cordoba_ingles Seite 247 Freitag, 7. Oktober 2005 6:00 18

Index
248Fire extinguisher . . . . . . . . . . . . . . . . . . . . . . . . 109
First aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Description . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Front ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Front cup holder* . . . . . . . . . . . . . . . . . . . . . . . 106
Front interior light . . . . . . . . . . . . . . . . . . . . . . . . 92
Front passenger airbag deactivation . . . . . . . . . 41
Front reading light . . . . . . . . . . . . . . . . . . . . . . . . 93
Front seat adjustment Lumbar support . . . . . . . . . . . . . . . . . . . . . . 102
Fuel Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Fuel level Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Fuel reserve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Fuel Tank Opening the fuel tank flap . . . . . . . . . . . . . 166
Fuel tank See Fuel reserve . . . . . . . . . . . . . . . . . . . . . . 64
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197GG 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Gear shift pattern . . . . . . . . . . . . . . . . . . . . . . . 128 General overview of the engine compartment 224
Glove compartment . . . . . . . . . . . . . . . . . . . . . . 105
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . 127
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 63
HHandbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133Warning lamp . . . . . . . . . . . . . . . . . . . . 65, 133
Hazard warning lights . . . . . . . . . . . . . . . . . . . . . 90
head restraints Adjusting . . . . . . . . . . . . . . . . . . . . . . . 100, 101
adjustment of the head restraint angle . . . 101
Removing . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Headlight flasher . . . . . . . . . . . . . . . . . . . . . . . . 91
Headlight range control . . . . . . . . . . . . . . . . . . . 89
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88 Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 145
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Washer system . . . . . . . . . . . . . . . . . . . . . . . 96
Heated front seats . . . . . . . . . . . . . . . . . . . . . . . 103
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Heating system . . . . . . . . . . . . . . . . . . . . . . . . . 113
High pressure cleaners . . . . . . . . . . . . . . . . . . . 155
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51IIdentification number . . . . . . . . . . . . . . . . . . . . 220
Ignition key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124 Indicator lights
indication lamp . . . . . . . . . . . . . . . . . . . . . . . 63
Instrument and switch lighting . . . . . . . . . . . . . 89
Instrument lighting . . . . . . . . . . . . . . . . . . . . . . . 51
Instrument panel . . . . . . . . . . . . . . . . . . . . . . . . . 51
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Intermittent wipe, windscreen . . . . . . . . . . . . . . 94
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
JJump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Jump-starting: description . . . . . . . . . . . . . . . . 215KKey tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75LLamp changes general notes . . . . . . . . . . . . . . . . . . . . . . . 204
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Load compartment See Luggage compartment . . . . . . . . . . . . . 15
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Luggage compartment . . . . . . . . . . . . . . . . 15, 109 See also Luggage compartment . . . . . . . . . 15
Luggage compartment cover . . . . . . . . . . . . . . 110
cordoba_ingles Seite 248 Freitag, 7. Oktober 2005 6:00 18
