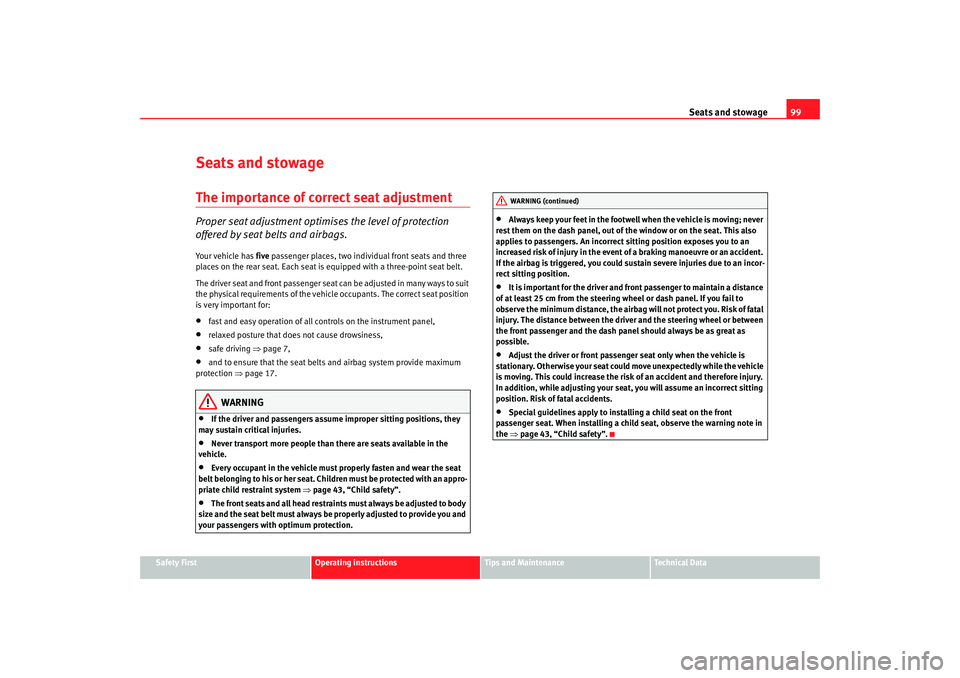

Seats and stowageThe importance of correct seat adjustmentProper seat adjustment optimi ses the level of protection
offered by seat belts and airbags.Your vehicle has five passenger places, two individual front seats and three
places on the rear seat. Each seat is equipped with a three-point seat belt.
The driver seat and front passenger seat can be adjusted in many ways to suit
the physical requirements of the vehicle occupants. The correct seat position
is very important for:•
fast and easy operation of all controls on the instrument panel,
•
relaxed posture that does not cause drowsiness,
•
safe driving ⇒ page 7,
•
and to ensure that the seat belts and airbag system provide maximum
protection ⇒page 17.
WARNING
•
If the driver and passengers assume improper sitting positions, they
may sustain critical injuries.
•
Never transport more people than there are seats available in the
vehicle.
•
Every occupant in the vehicle must properly fasten and wear the seat
belt belonging to his or her seat. Children must be protected with an appro-
priate child restraint system ⇒page 43, “Child safety”.
•
The front seats and all head restraints must always be adjusted to body
size and the seat belt must always be properly adjusted to provide you and
your passengers with optimum protection.
•
Always keep your feet in the footwell when the vehicle is moving; never
rest them on the dash panel, out of the window or on the seat. This also
applies to passengers. An incorrect sitting position exposes you to an
increased risk of injury in the event of a braking manoeuvre or an accident.
If the airbag is triggered, you could sustain severe injuries due to an incor-
rect sitting position.
•
It is important for the driver and front passenger to maintain a distance
of at least 25 cm from the steering wheel or dash panel. If you fail to
observe the minimum distance, the airbag will not protect you. Risk of fatal
injury. The distance between the driver and the steering wheel or between
the front passenger and the dash panel should always be as great as
possible.
•
Adjust the driver or front passenger seat only when the vehicle is
stationary. Otherwise your seat coul d move unexpectedly while the vehicle
is moving. This could increase the risk of an accident and therefore injury.
In addition, while adjusting your seat, you will assume an incorrect sitting
position. Risk of fatal accidents.
•
Special guidelines apply to installing a child seat on the front
passenger seat. When installing a child seat, observe the warning note in
the ⇒page 43, “Child safety”.WARNING (continued)
cordoba_ingles Seite 99 Freitag, 7. Oktober 2005 6:00 18

Seats and stowage

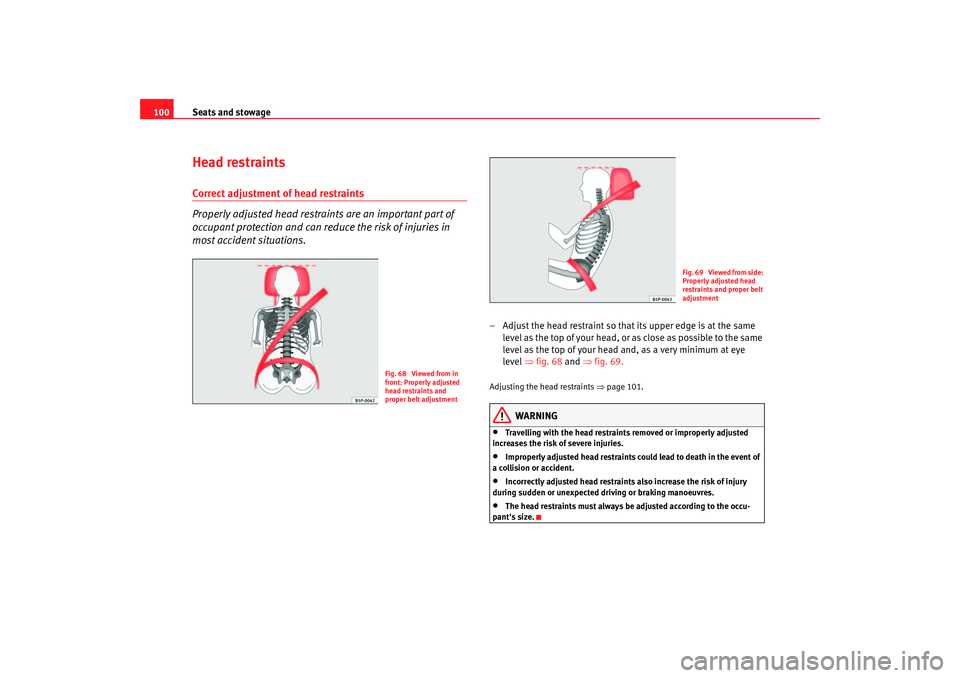

100Head restraintsCorrect adjustment of head restraints
Properly adjusted head restraints are an important part of
occupant protection and can redu ce the risk of injuries in
most accident situations.
– Adjust the head restraint so that its upper edge is at the same
level as the top of your head, or as close as possible to the same
level as the top of your head and, as a very minimum at eye
level ⇒ fig. 68 and ⇒ fig. 69.Adjusting the head restraints ⇒ page 101.
WARNING
•
Travelling with the head restraints removed or improperly adjusted
increases the risk of severe injuries.
•
Improperly adjusted head restraints could lead to death in the event of
a collision or accident.
•
Incorrectly adjusted head restraints also increase the risk of injury
during sudden or unexpected driving or braking manoeuvres.
•
The head restraints must always be adjusted according to the occu-
pant's size.
Fig. 68 Viewed from in
front: Properly adjusted
head restraints and
proper belt adjustment
Fig. 69 Viewed from side:
Properly adjusted head
restraints and proper belt
adjustment
cordoba_ingles Seite 100 Freitag, 7. Oktober 2005 6:00 18

Seats and stowage101
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

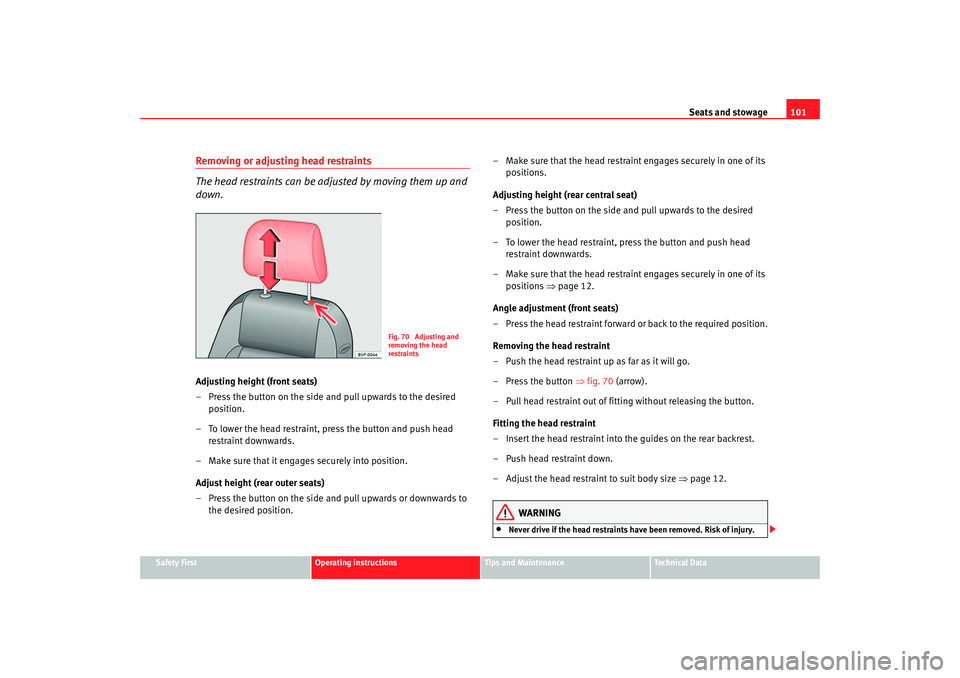

Removing or adjusting head restraints
The head restraints can be adju sted by moving them up and
down.Adjusting height (front seats)
– Press the button on the side and pull upwards to the desired
position.
– To lower the head restraint, press the button and push head restraint downwards.
– Make sure that it engages securely into position.
Adjust height (rear outer seats)
– Press the button on the side an d pull upwards or downwards to
the desired position. – Make sure that the head restraint engages securely in one of its
positions.
Adjusting height (rear central seat)
– Press the button on the side and pull upwards to the desired position.
– To lower the head restraint, press the button and push head restraint downwards.
– Make sure that the head restraint engages securely in one of its positions ⇒ page 12.
Angle adjustment (front seats)
– Press the head restraint forward or back to the required position.
Removing the head restraint
– Push the head restraint up as far as it will go.
– Press the button ⇒fig. 70 (arrow).
– Pull head restraint out of fitting without releasing the button.
Fitting the head restraint
– Insert the head restraint into the guides on the rear backrest.
– Push head restraint down.
– Adjust the head restraint to suit body size ⇒page 12.
WARNING
•
Never drive if the head restraints have been removed. Risk of injury.
Fig. 70 Adjusting and
removing the head
restraints
cordoba_ingles Seite 101 Freitag, 7. Oktober 2005 6:00 18

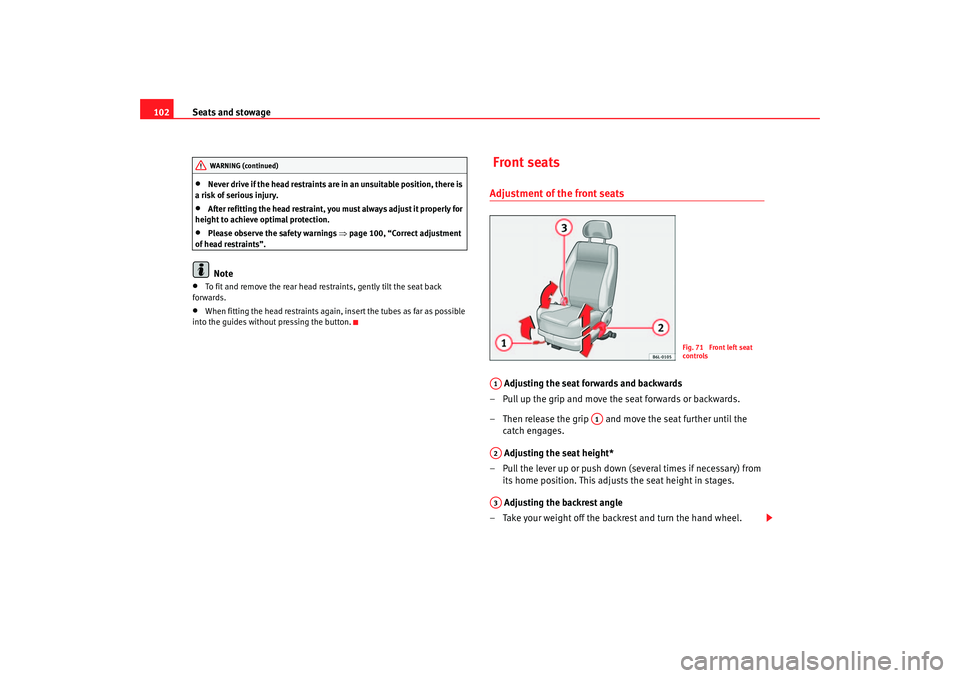

Seats and stowage
102•
Never drive if the head restraints ar e in an unsuitable position, there is
a risk of serious injury.
•
After refitting the head restraint, you must always adjust it properly for
height to achieve optimal protection.
•
Please observe the safety warnings ⇒page 100, “Correct adjustment
of head restraints”.Note
•
To fit and remove the rear head restraints, gently tilt the seat back
forwards.
•
When fitting the head restraints again, insert the tubes as far as possible
into the guides without pressing the button.
Front seatsAdjustment of the front seats
Adjusting the seat forwards and backwards
– Pull up the grip and move the seat forwards or backwards.
– Then release the grip and move the seat further until the catch engages.
Adjusting the seat height*
– Pull the lever up or push down (several times if necessary) from its home position. This adjusts the seat height in stages.
Adjusting the backrest angle
– Take your weight off the backrest and turn the hand wheel.
WARNING (continued)
Fig. 71 Front left seat
controls
A1
A1
A2A3
cordoba_ingles Seite 102 Freitag, 7. Oktober 2005 6:00 18

Seats and stowage103
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
WARNING
•
Never adjust the driver or front pass enger seat while the vehicle is in
motion. While adjusting your seat, you will assume an incorrect sitting
position. Risk of fatal accidents. Adjust the driver or front passenger seat
only when the vehicle is stationary.
•
To reduce the risk of injury to the driver and front passenger during
sudden braking manoeuvres or an accident, never drive with the backrest
tilted far to the rear. The maximum pr otection of the seat belt can be
achieved only when the backrests are in an upright position and the driver
and front passenger have properly adjusted their seat belts. The further
the backrests are tilted to the rear, the greater the risk of injury due to
improper positioning of the belt web!
•
Exercise caution when adjusting the seat height or forwards/back-
wards position. Injuries can be caused if the backrest is tilted without due
care and attention.

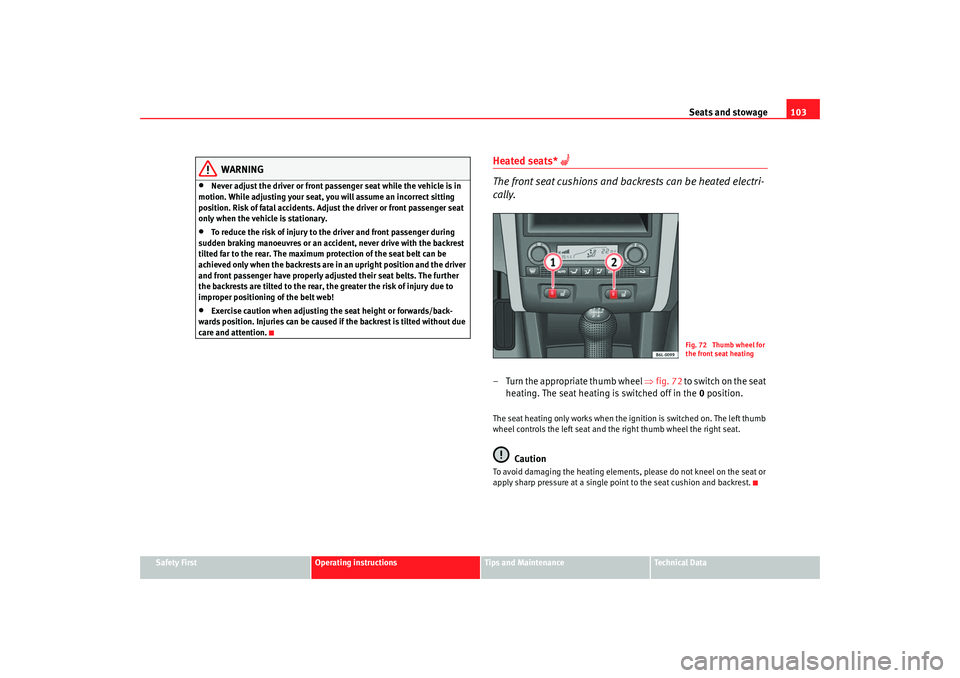

Heated seats*

The front seat cushions and backrests can be heated electri-
cally.
– Turn the appropriate thumb wheel ⇒ fig. 72 to switch on the seat
heating. The seat heating is switched off in the 0 position.The seat heating only works when the ignition is switched on. The left thumb
wheel controls the left seat and the right thumb wheel the right seat.
Caution
To avoid damaging the heating elements, please do not kneel on the seat or
apply sharp pressure at a single point to the seat cushion and backrest.
Fig. 72 Thumb wheel for
the front seat heating
cordoba_ingles Seite 103 Freitag, 7. Oktober 2005 6:00 18

Seats and stowage

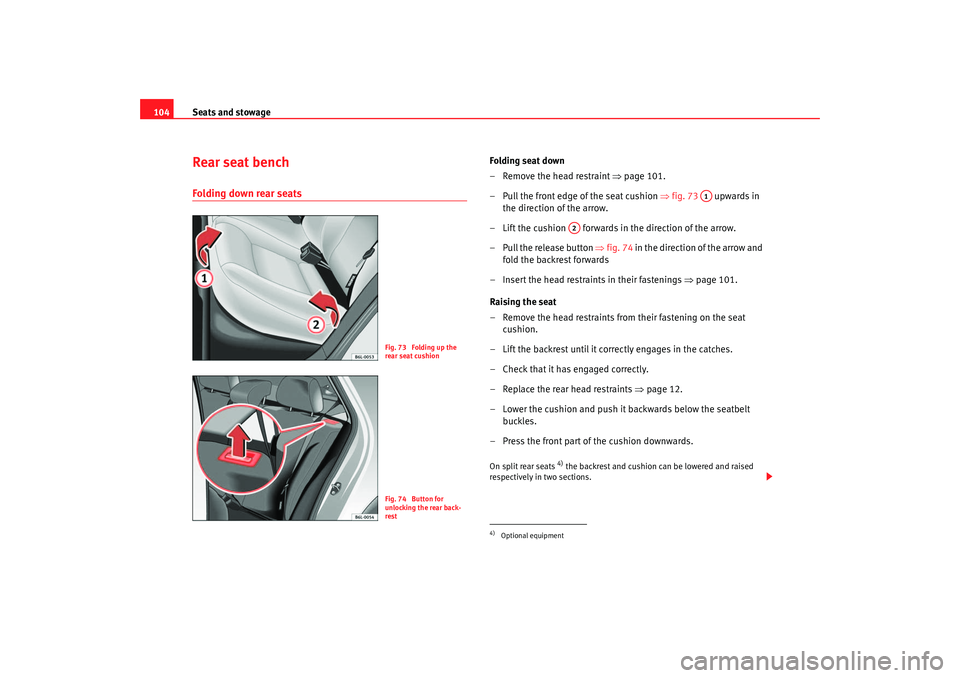

104Rear seat benchFolding down rear seats
Folding seat down
– Remove the head restraint ⇒page 101.
– Pull the front edge of the seat cushion ⇒fig. 73 upwards in
the direction of the arrow.
– Lift the cushion forwards in the direction of the arrow.
– Pull the release button ⇒fig. 74 in the direction of the arrow and
fold the backrest forwards
– Insert the head restraints in their fastenings ⇒ page 101.
Raising the seat
– Remove the head restraints from their fastening on the seat cushion.
– Lift the backrest until it correctly engages in the catches.
– Check that it has engaged correctly.
– Replace the rear head restraints ⇒page 12.
– Lower the cushion and push it backwards below the seatbelt buckles.
– Press the front part of the cushion downwards.On split rear seats
4) the backrest and cushion can be lowered and raised
respectively in two sections.
Fig. 73 Folding up the
rear seat cushionFig. 74 Button for
unlocking the rear back-
rest
4)Optional equipment
A1
A2
cordoba_ingles Seite 104 Freitag, 7. Oktober 2005 6:00 18

Seats and stowage105
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
WARNING
•
Please be careful when folding back the backrest! Injuries can be
caused if the backrest is tilted without due care and attention.
•
Do no trap or damage seatbelts when raising the backrest.
•
After raising the backrest, check it has engaged properly in position .
•
The three point automatic seat belt only works correctly when the back-
rest of the central seat is correctly engaged.

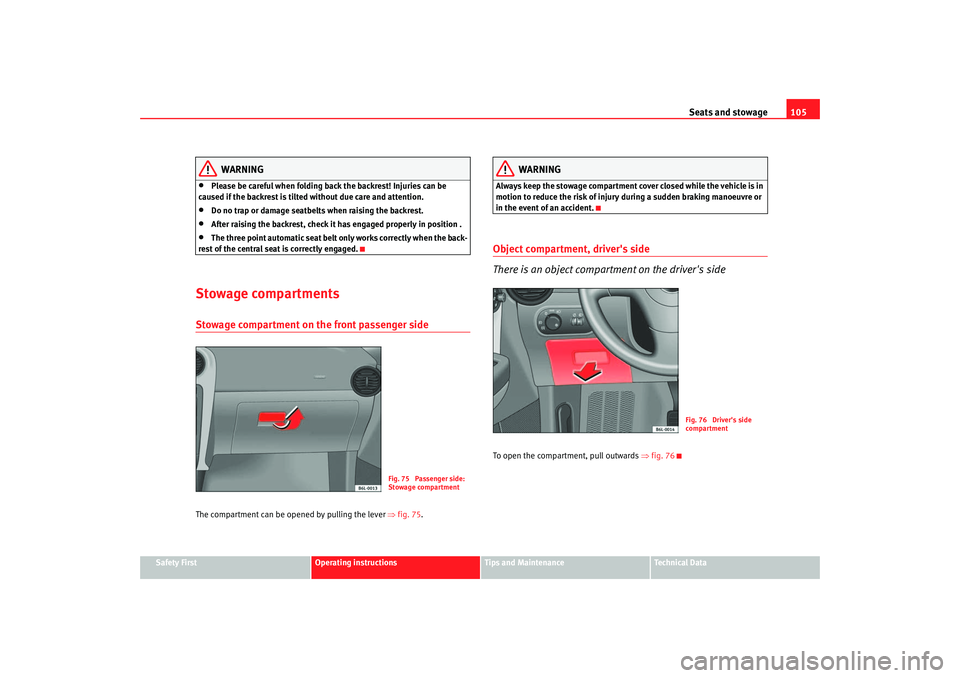

Stowage compartmentsStowage compartment on the front passenger sideThe compartment can be opened by pulling the lever ⇒fig. 75 .
WARNING
Always keep the stowage compartment cover closed while the vehicle is in
motion to reduce the risk of injury during a sudden braking manoeuvre or
in the event of an accident.Object compartment, driver's side
There is an object compartment on the driver's sideTo open the compartment, pull outwards ⇒ fig. 76
Fig. 75 Passenger side:
Stowage compartment
Fig. 76 Driver's side
compartment
cordoba_ingles Seite 105 Freitag, 7. Oktober 2005 6:00 18

Seats and stowage

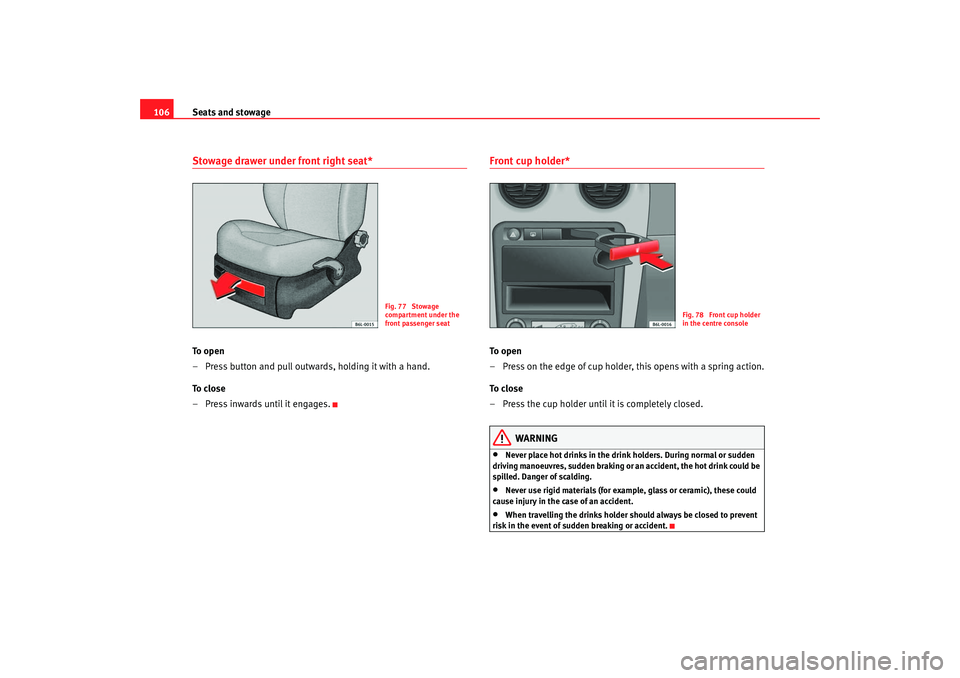

106Stowage drawer under front right seat*To o p e n
– Press button and pull outwards, holding it with a hand.
To close
– Press inwards until it engages.
Front cup holder* To o p e n
– Press on the edge of cup holder, this opens with a spring action.
To close
– Press the cup holder until it is completely closed.
WARNING
•
Never place hot drinks in the drink holders. During normal or sudden
driving manoeuvres, sudden braking or an accident, the hot drink could be
spilled. Danger of scalding.
•
Never use rigid materials (for example, glass or ceramic), these could
cause injury in the case of an accident.
•
When travelling the drinks holder should always be closed to prevent
risk in the event of sudden breaking or accident.
Fig. 77 Stowage
compartment under the
front passenger seat
Fig. 78 Front cup holder
in the centre console
cordoba_ingles Seite 106 Freitag, 7. Oktober 2005 6:00 18

Seats and stowage107
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

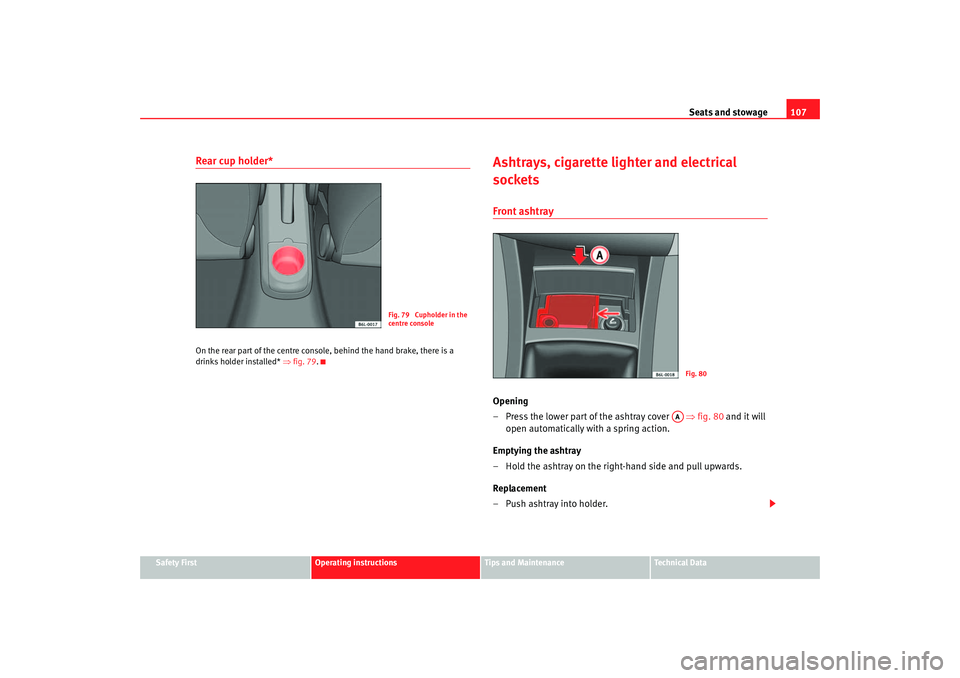

Rear cup holder* On the rear part of the centre console, behind the hand brake, there is a
drinks holder installed*⇒fig. 79 .
Ashtrays, cigarette lighter and electrical
socketsFront ashtrayOpening
– Press the lower part of the ashtray cover ⇒fig. 80 and it will
open automatically with a spring action.
Emptying the ashtray
– Hold the ashtray on the right-hand side and pull upwards.
Replacement
– Push ashtray into holder.
Fig. 79 Cupholder in the
centre console
Fig. 80
AA
cordoba_ingles Seite 107 Freitag, 7. Oktober 2005 6:00 18

Seats and stowage
108
Closing
– Move the ashtray cover towards the gearstick until it engages.
WARNING
Never put paper in the ashtray. Hot ash could ignite the paper in the
ashtray.Cigarette lighter– Press on the cigarette lighter ⇒fig. 81 to activate it ⇒.
– Wait for the lighter to pop out slightly.
– Pull out the cigarette lighter and light the cigarette on the glowing coil.
WARNING
•
Improper use of the cigarette lighter can lead to serious injuries or start
a fire.
•
Take care when using the cigarette lighter. Carelessness or negligence
when using the cigarette lighter can cause burns, risk of injury.
•
The cigarette lighter also works when the ignition is off and when the
ignition key is removed. To avoid the risk of fire, never leave children unsu-
pervised in the vehicle.
Electrical sockets The 12 Volt cigarette lighter socket can also be used for other electrical
components with a power rating of up to 120 Watt. When the engine is
switched off, however, the vehicle battery will discharge. For further informa-
tion ⇒page 162
WARNING
The electrical sockets and any appliances connected to them are also func-
tional with the ignition switched off and the key removed. Improper use of
the sockets or electrical accessories can lead to serious injuries or cause a
fire. To avoid the risk of injury, never leave children unsupervised in the
vehicle.
Note
•
Using electrical appliances with the engine switched off will drain the
battery.
•
Before using any electrical accessories, see the instructions on
⇒ page 162.
Fig. 81 Cigarette lighter
cordoba_ingles Seite 108 Freitag, 7. Oktober 2005 6:00 18
