Seat Cordoba 2007 ALANA

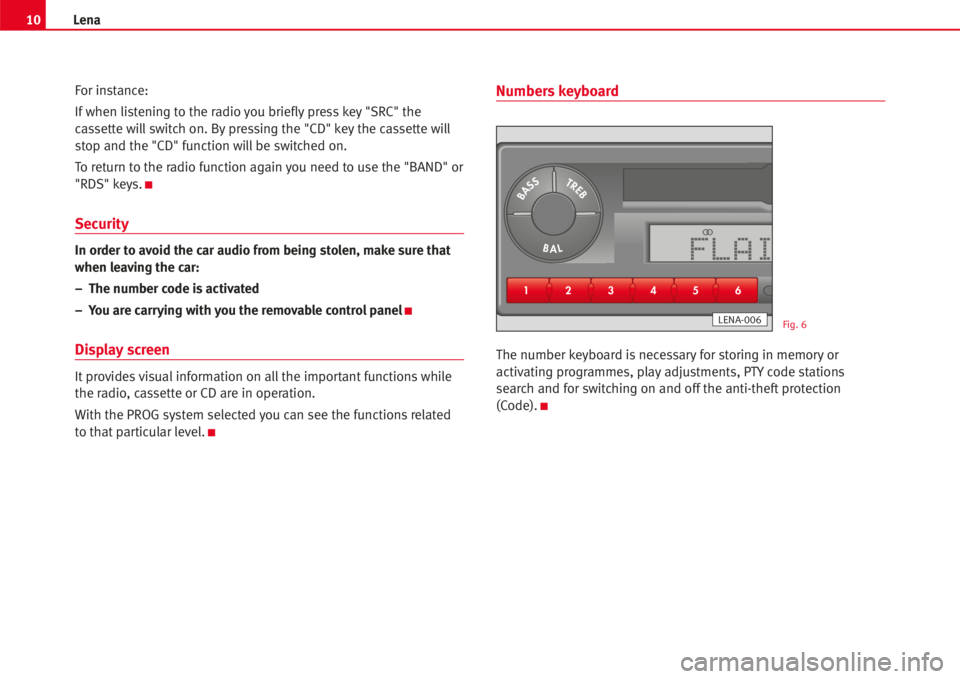

10Lena
For instance:
Ifwhen listening to the radio you brieflypress key "SRC" the
cassette willswitch on. By pressing the "CD" key the cassette will
stop and the "CD" function willbe switched on.
To return to the radio function again you need to use the "BAND" or
"RDS" keys.
K
Security
In order to avoid the car audio from being stolen, make sure that
when leaving the car:
– The number code is activated
– You are carrying with you the removable control panel
K
Display screen
Itprovides visualinformation on allthe importantfunctionswhile
the radio, cassette or CD are in operation.
With the PROG system selected you can see the functionsrelated
to that particular level.
K
Numbers keyboard
The number keyboard isnecessaryfor storing in memoryor
activating programmes, play adjustments, PTYcode stations
search and for switching on and off the anti-theft protection
(Code).
K
23 1 456
BASSTREB
BALFLAI
LENA-006Fig. 6

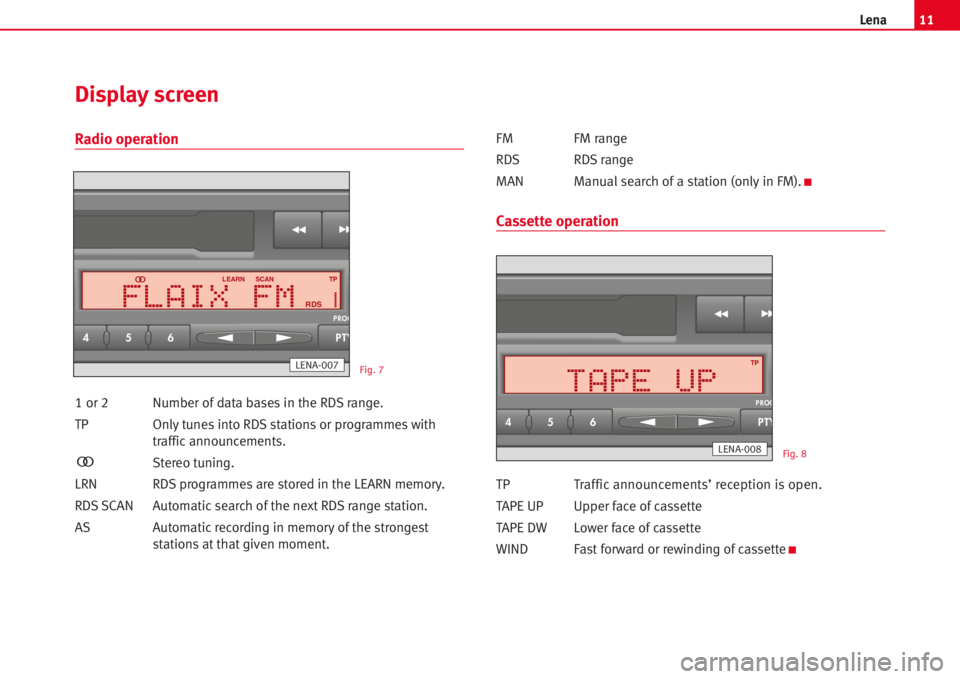

11Lena
Radio operation
1 or 2Number ofdata basesin the RDSrange.
TPOnlytunesinto RDS stationsor programmeswith
trafficannouncements.
Stereo tuning.
LRN RDS programmes are stored in the LEARN memory.
RDS SCANAutomaticsearch of the next RDSrange station.
AS
Automaticrecording in memory of the strongest
stationsatthatgiven moment.FM FM range
RDS RDSrange
MANManualsearch of a station (onlyin FM).
K
Cassette operation
TP Trafficannouncements’ reception is open.
TAPEUPUpper face of cassette
TAPEDW Lower face of cassette
WIND Fast forward or rewinding of cassette
K
456PTY
PROGFLAIX FM
LEARN
RDS1
SCAN TP
LENA-007Fig. 7
456PTY
PROG TAPE UP
TP
LENA-008Fig. 8
Display screen

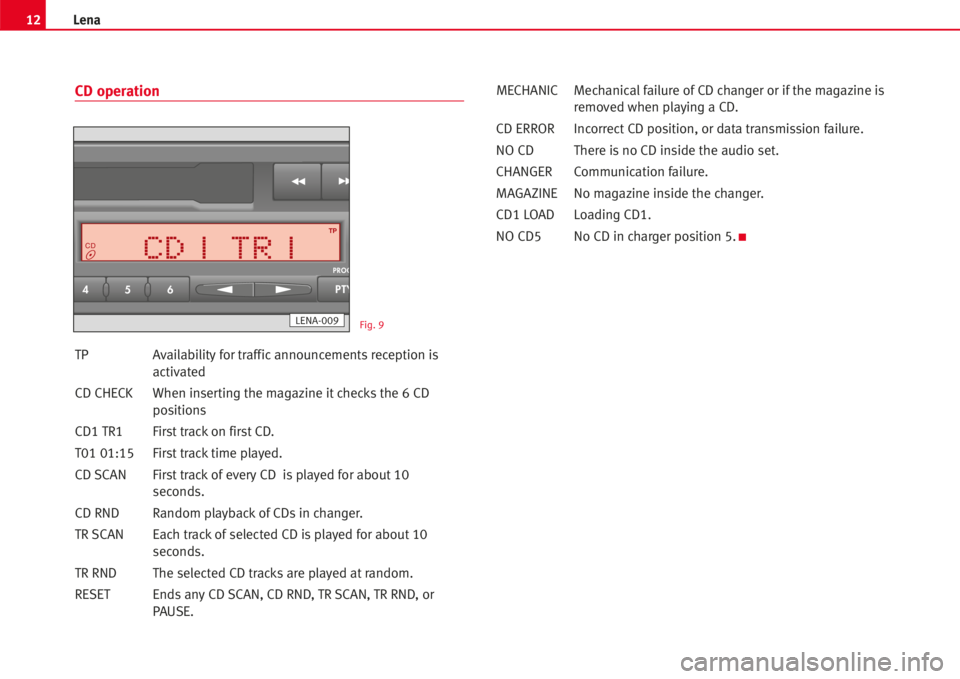

12Lena
CD operation
TP Availability for trafficannouncementsreception is
activated
CD CHECK When inserting the magazine it checks the 6 CD
positions
CD1 TR1 First track on first CD.
T01 01:15 First track time played.
CD SCANFirst track of every CD isplayed for about10
seconds.
CD RND Rand
om playback of CDsin changer.
TR SCAN Each track of selected CD isplayed for about10
seconds.
TR RNDThe selected CD tracks are played atrandom.
RESETEndsany CD SCAN, CD RND, TR SCAN, TR RND, or
PAUSE.MECHANICMechanicalfailure of CD changer or if the magazine is
re
moved when playing a CD.
CD ERRORIncorrect CD position, or data transmission failure.
NO CDThere isno CD inside the audio set.
CHANGER Communication failure.
MAGAZINE No magazine inside the changer.
CD1 LOADLoading CD1.
NO CD5 No CD in charger position
5.K
456PTY
PROG CD1 TR1
TPCD
LENA-009Fig. 9

Switching On/Off
Pressmain controlA.K
Volume
Turn main control. "VOL 00 ... VOL 46" willbe displayed on the
screen.
K
Treble (TREB)
Start setting
Press the TREB key briefly. The screen will display "TREB xxx". The
setting isdone byusing the main control
Abetween the
"TREB –7" ... "TREB 00" ... "TREB +7"... values.Automatic return to average position ("TREB 00")
Press the TREB keyuntilthe confirmation signalisheard.
End setting
Once the required value is set press the TREB key brieflyagain or
waitfor automaticexitafter about 3 seconds.
K
Bass (BASS)
Start setting
Press the "BASS" key briefly. The screen will display "BASS xx". The
adjusting isdone with the main control
Abetween the
"BASS –7" ... "BASS 00" ... "BASS +7" values.
Automatic return to average position ("BASS 00")
Press the BASS keyuntilthe confirmation signalisheard.
End adjusting
Once the required value is set press the "BASS" key brieflyagain or
waitfor automaticexitafter about 3 seconds.
K
Balance (BAL)
Itmoves the sound to the right hand-side or left hand-side
speakers.

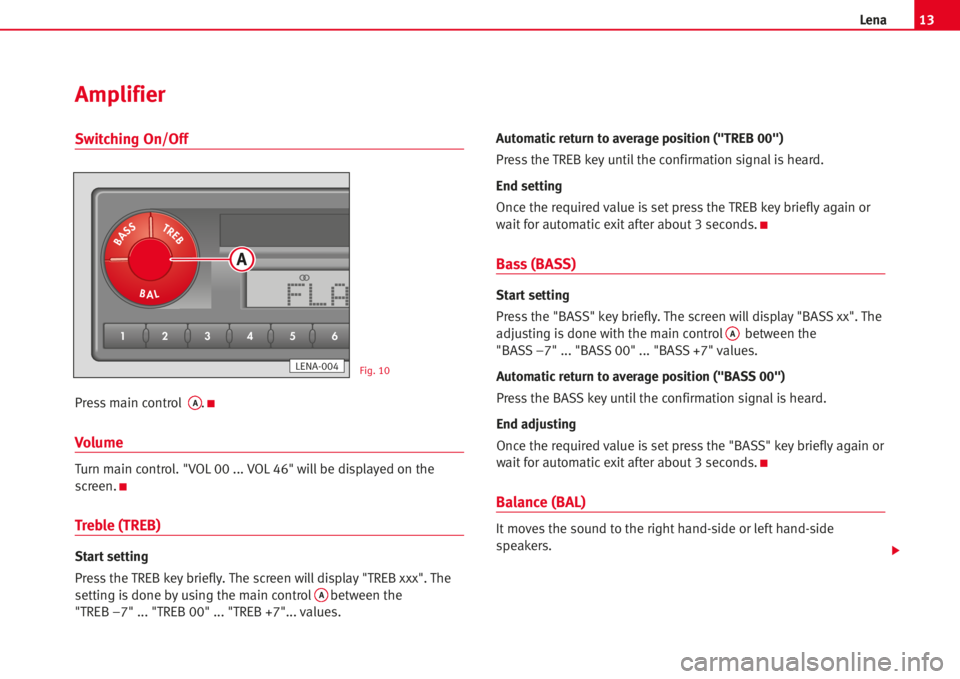

13Lena
23 1 456
BASSTREB
BALFLA
A
LENA-004Fig. 10
Amplifier

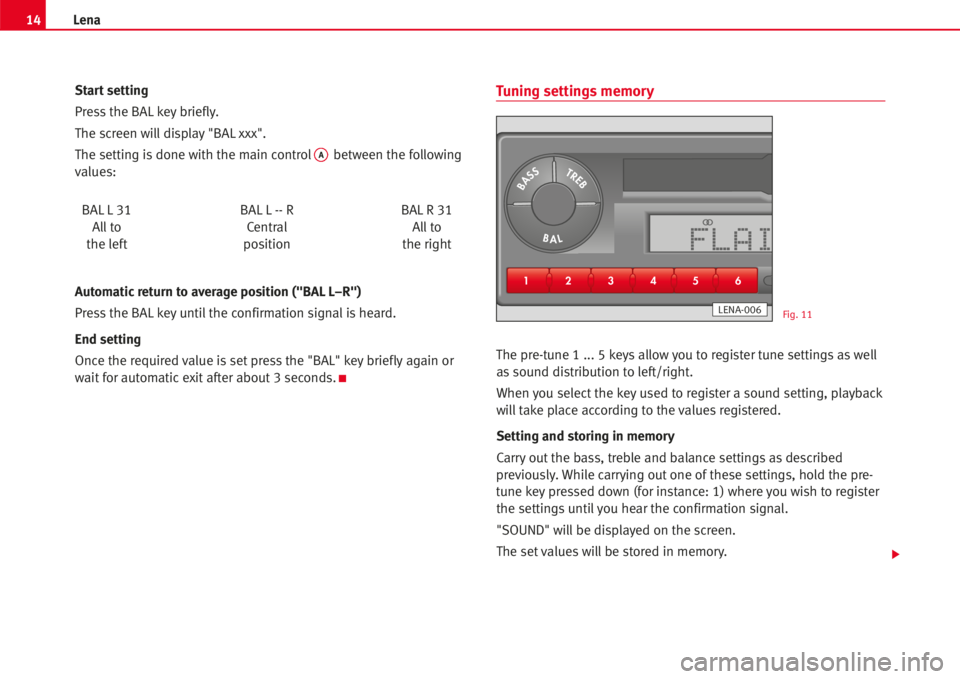

14Lena
Start setting
Press the BALkeybriefly.
The screen will display "BAL xxx".
The setting isdone with the main control
Abetween the following
values:
BALL31 BAL L -- R BALR 31
Allto CentralAllto
the left positionthe right
Automatic return to average position ("BAL L–R")
Press the BALkeyuntilthe confirmation signalisheard.
End setting
Once the required value is set press the "BAL" key brieflyagain or
waitfor automaticexi
tafter about 3 seconds.K
Tuning settings memory
The pre-tune 1 ... 5 keys allow you to register tune settings aswell
as sound distribution to left/right.
When you select the keyused to register a sound setting, playback
willtake place according to the valuesregistered.
Setting and storing in memory
Carryout the bass, treble and balance settings asdesc
ribed
previously. While carrying outone of these settings, hold the pre-
tune key pressed down (for instance: 1) where you wish to register
the settingsuntilyou hear the confirmation signal.
"SOUND" willbe displayed on the screen.
The set valu
eswillbe stored in memory.
23 1 456
BASSTREB
BALFLAI
LENA-006Fig. 11

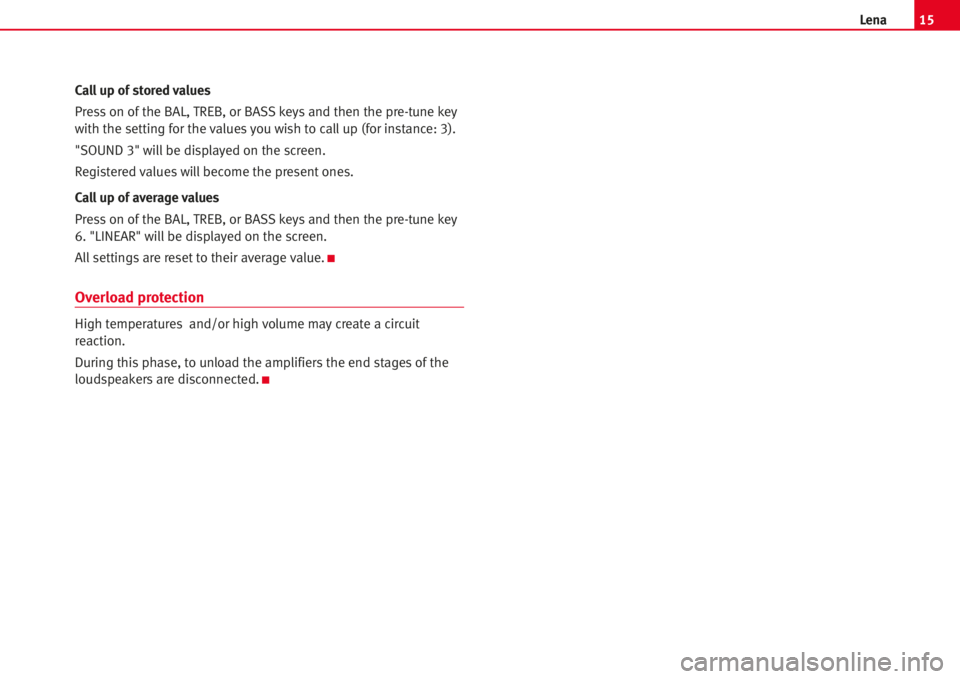

15Lena
Call up of stored values
Press on of the BAL, TREB, or BASS keys and then the pre-tune key
with the setting for the values you wish to call up (for instance: 3).
"SOUND 3" willbe displayed on the screen.
Registered valueswillbecome the presentones.
Call up of average values
Press on of the BAL, TREB, or BASS keys and then the pre-tune key
6. "LINEAR"
willbe displayed on the screen.
Allsettings are reset to their average value.
K
Overload protection
High temperatures and/or high volume may create a circuit
reaction.
During this phase, to unload the amplifiers the end stages of the
loudspeakersare disconnected.
K

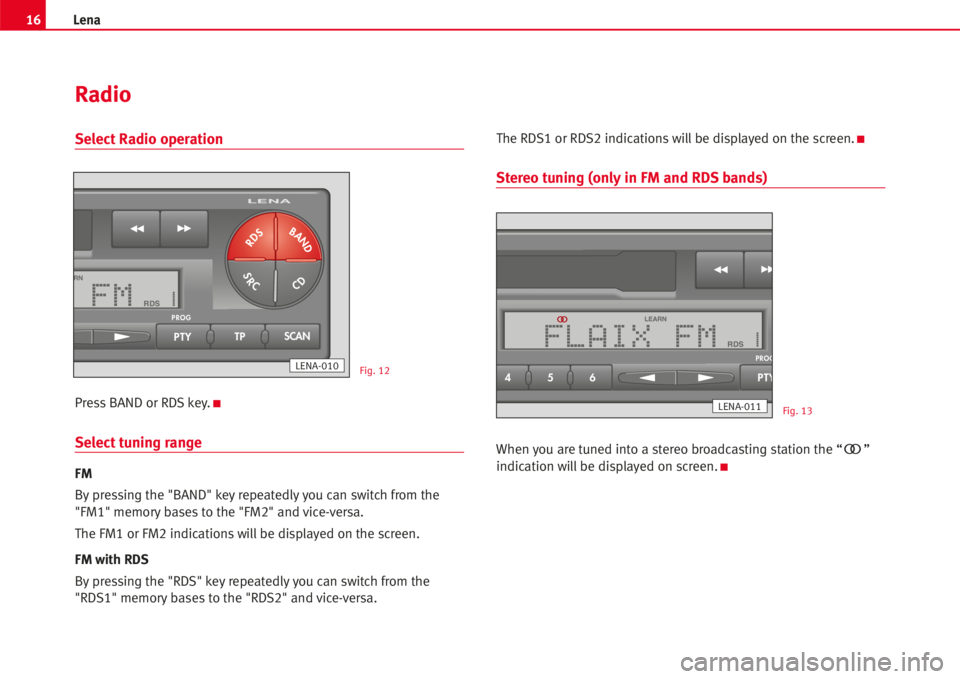

16Lena
Select Radio operation
Press BAND or RDS key.K
Select tuning range
FM
By pressing the "BAND" keyrepeatedlyyou can switch from the
"FM1" memory bases to the "FM2" and vice-versa.
The FM1 or FM2 indicationswillbe displayed on the screen.
FM with RDS
By pressing the "RDS" keyrepeatedlyyou can switch from the
"RDS1" memory bases to the "RDS2" and vice-versa.The RDS1 or RDS2 indication
swillbe displayed on the screen.K
Stereo tuning (only in FM and RDS bands)
When you are tuned into a stereo broadcasting station the “ ”
indication willbe displayed on screen.
K
PTYTPSCAN
LENA
PROG
TAPE
RDSBAND
CD
FM
RN
RDS1
SRCCD
LENA-010Fig. 12456PTY
PROGFLAIX FM
LEARN
RDS1
LENA-011Fig. 13
Radio

17Lena

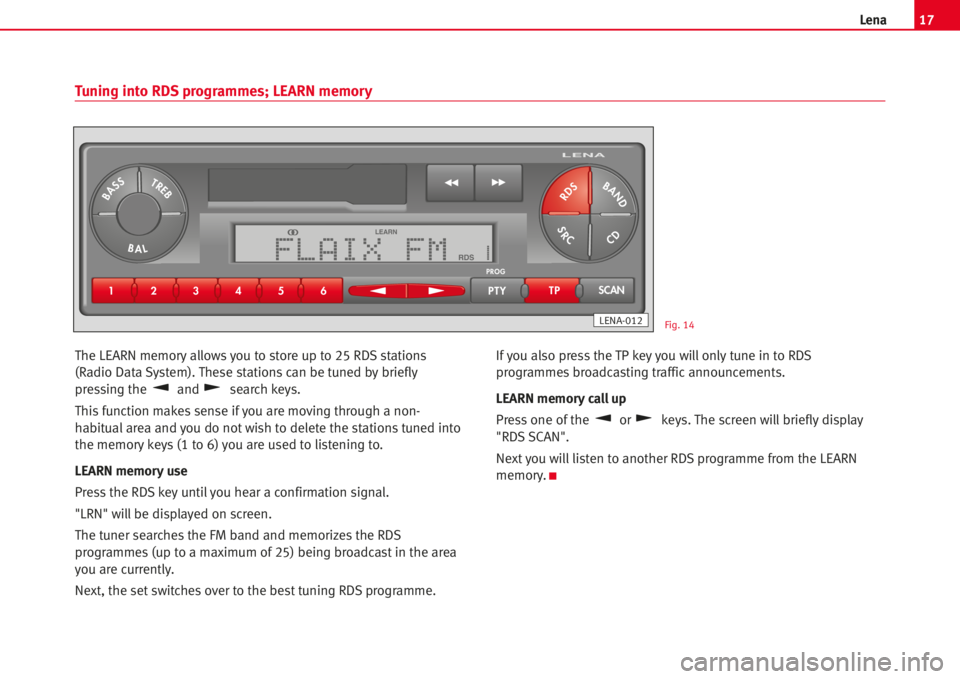

The LEARN memoryallowsyou to store up to 25 RDS stations
(Radio Data System). These stationscan be tuned by briefly
pressing the and search keys.
Thisfunction makes sense ifyou are moving through a non-
habitualarea and you do
notwish to delete the stationstuned into
the memory keys (1 to 6) you are used to listening to.
LEARN memory use
Press the RDS keyuntilyou hear a confirmation signal.
"LRN" willbe displayed on screen.
The tuner searches the FM band and memorizes the RDS
programm
es (up to a maximum of 25) being broadcastin the area
you are currently.
Next, the set switches over to the best tuning RDS programme.Ifyou also press the TP key you willonlytune in to RDS
programmes broadcasting trafficannouncements.
LEARN memory call up
Press one of the or keys. The screen willb
rieflydisplay
"RDS SCAN".
Next you will listen to another RDS programme from the LEARN
memory.
K
23 1 456PTYTPSCAN
LENA
BASSTREB
BAL
PROG
TAPE
RDSFM
CD
FLAIX FM
LEARN
RDS1
SRC
RDSBAND
CD
LENA-012
Tuning into RDS programmes; LEARN memory
Fig. 14

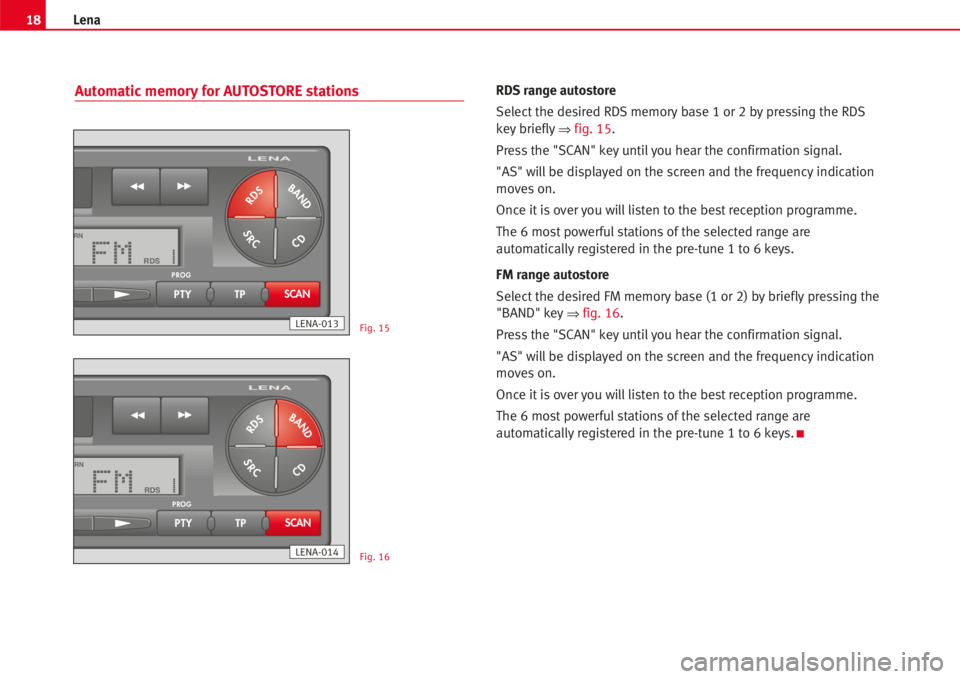

18Lena
Automatic memory for AUTOSTORE stationsRDS range autostore
Select the desired RDSmemory base 1 or 2 by pressing the RDS
key briefly
⇒fig. 15.
Press the "SCAN" keyuntilyou hear the confirmation signal.
"AS" willbe displayed on the screen and the frequencyindication
moves on.
Once itisover you will listen to the bestreception programme.
The 6 most powerfulstat
ions of the selected range are
automaticallyregistered in the pre-tune 1 to 6 keys.
FM range autostore
Select the desired FM memory base (1 or 2) by brieflypressing the
"BAND" key
⇒fig. 16.
Press the "SCAN" keyuntilyou hear the confirmation signal.
"AS" willbe displayed on the screen and the frequencyindication
moves on.
Once itisover you will listen to the bestreception programme.
The 6 most powerfulstat
ions of the selected range are
automaticallyregistered in the pre-tune 1 to 6 keys.
K
PTYTPSCAN
LENA
PROG
TAPE
RDSFM
CD
FM
RN
RDS1
SRC
RDSBAND
CD
LENA-013Fig. 15
PTYTPSCAN
LENA
PROG
TAPE
RDSBAND
CD
FM
ARN
RDS1
SRC
RDSBAN
CD
LENA-014Fig. 16

19Lena
FM stations Automatic Search tuning
Select the FM1 or FM2 band. The screen will display for instance:
"FM 87.50".
To startautomaticsearch, press either or keys.
Search willstop at the next station.
Automaticsearch of FM bands operates at two sensitivitylevels. If
during its first search on the tuning band for powe
rfulfield stations
(localstations) no station isfound, the setwillcarryout a second
search for less powerfulfield stations.Manual frequency tuning
1. Select the FM1 or FM2 band
2. Hold the or keydown untilyou hear the signaland the
"MAN" indication and
the currentfrequency are displayed on
the screen.
3.Tune into the frequency of your choice by pressing the or
keys.
Ifyou press these keys briefly the tuning moves step by step
(50 KHz steps) and ifyou hold them pressed down the
frequencies change fast.
Alternative Frequency selection (AF)
RDS FM radio stationscan
transmit their signalatdifferent
frequencies. Your radio automatically chooses the strongest signal
for the selected station. Ifyou are driving through an area with bad
coverage, each automaticre-tune will resul
tin shortbreaksin the
audio. In order to avoid this, turn the AFfunction off.
Turning AF function on/off
Keep the DX/MAN key pressed untilthe confirmation signal
sounds. The AFfunction willbe alternativelyenabled or disabled.
The AFfuncti
on statusisalso stored in the memorywhen a radio
station isstored and willbe enabled again when a preset station is
selected.
K
PTYTPSCAN
LENA
PROG
TAPE
RDSBAND
CD
IX FM
LEARN
RDS1
SRC
RDSB
CD
LENA-015Fig. 17
