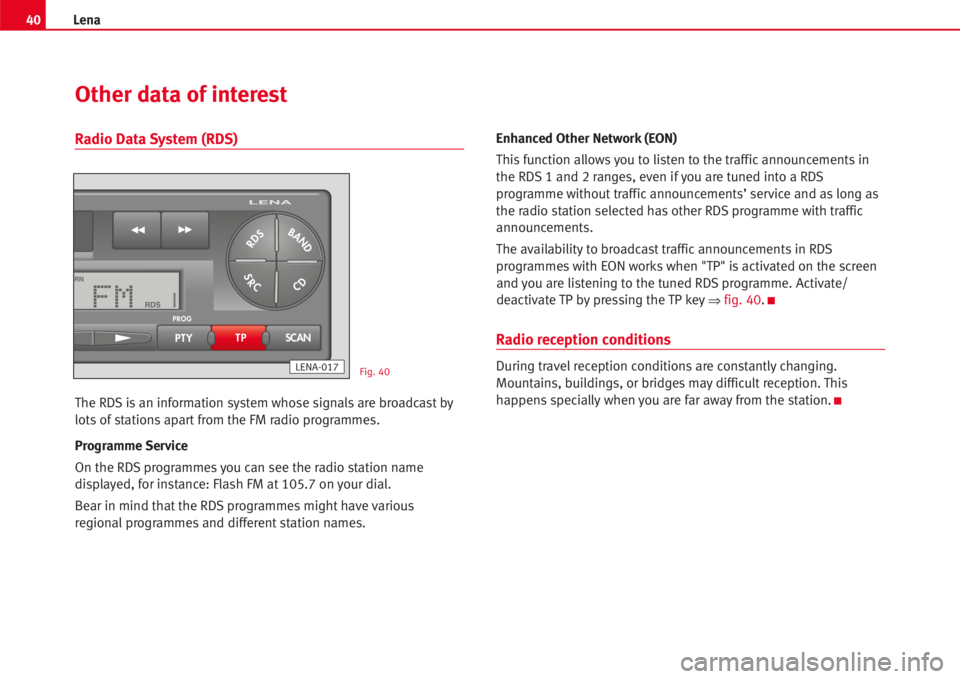

Seat Cordoba 2007 ALANA

40Lena
Radio Data System (RDS)
The RDSisan information system whose signalsare broadcast by
lots of stationsapartfrom the FM radio programmes.
Programme Service
On the RDS programmesyou can see the radio station name
displayed, for instance: Flash FM at 105.7 on your dial.
Bear in mind that the RDS programmesmight have various
regionalprogrammes and differentstation names.Enhanced Other Network (EON)
Thisfunction allowsyou to listen to the trafficannouncementsin
the RDS 1 and 2 ranges, even ifyou are tuned
into a RDS
programme withouttrafficannouncements’ service and aslong as
the radio station selected has other RDS programme with traffic
announcements.
The availability to broadcast trafficannouncementsin RDS
prog
rammeswith EON workswhen "TP" is activated on the screen
and you are listening to the tuned RDS programme. Activate/
deactivate TP by pressing the TP key
⇒fig. 40.K
Radio reception conditions
During travelreception conditionsare constantlychanging.
Mountains, buildings, or bridgesmaydifficultreception. This
happens speciallywhen you are far away from the station.
K
Other data of interest
PTYTPSCAN
LENA
PROG
SRC
RDSBAND
CD
FM
ARN
RDS1
LENA-017Fig. 40

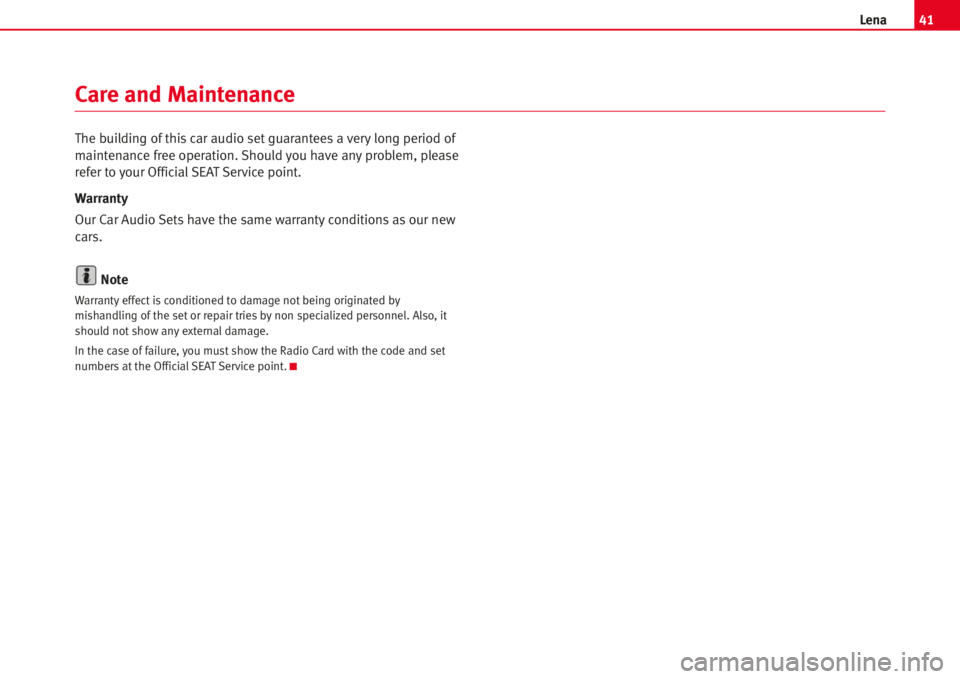

41Lena
The building of thiscar audio set guarantees a verylong period of
maintenance free operation. Should you have anyproblem, please
refer to your OfficialSEAT Service point.
Warranty
Our Car Audio Sets have the same warranty conditionsasour n
ew
cars.
Note
Warranty effectisconditioned to damage not being originated by
mishandling of the set or repair tries bynon specialized personnel. Also, it
should not show anyexternaldamage.
In the case of failure, you must show the Radio Card with the code and set
numbers at the Offi
cialSEAT Service point. K
Care and Maintenance

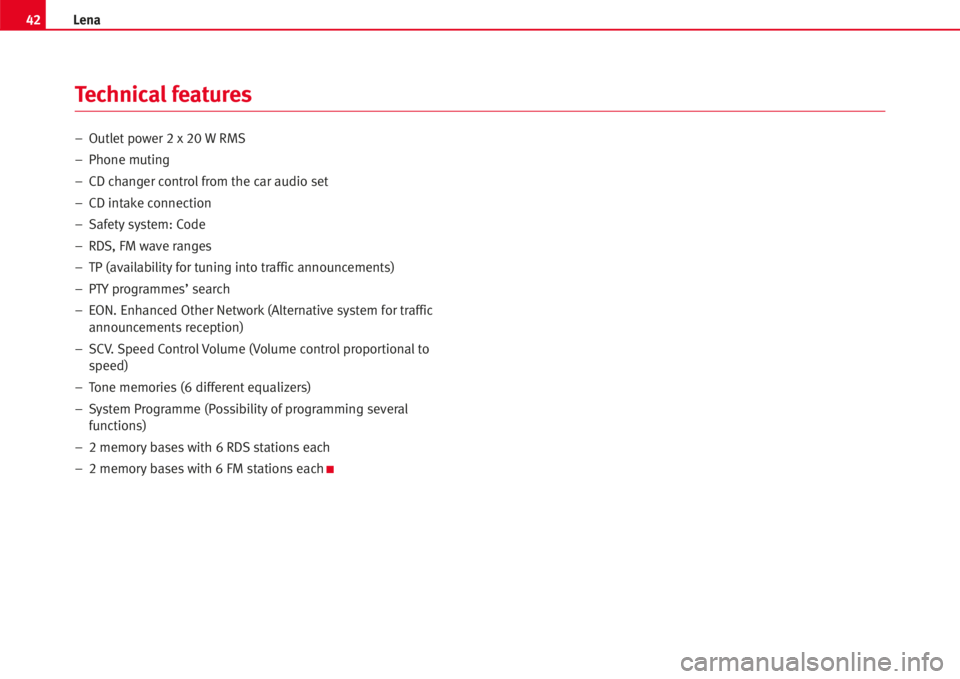

42Lena
–Outlet power 2 x 20 W RMS
–Phone muting
– CD changer controlfrom the car audio set
– CD intake connection
– Safety system: Code
– RDS, FM wave ranges
–TP (availability for tuning into trafficannouncements)
–PTYprogrammes’ search
– EON. Enhanced
Other Network(Alternative system for traffic
announcementsreception)
– SCV. Speed ControlVolume (Volume controlproportionalto
speed)
–Tone memories (6 differentequalizers)
–System Programme (P
ossibility of programming several
functions)
–2 memorybaseswith 6 RDS stationseach
–2 memorybaseswith 6 FM stationseach
K
Technical features

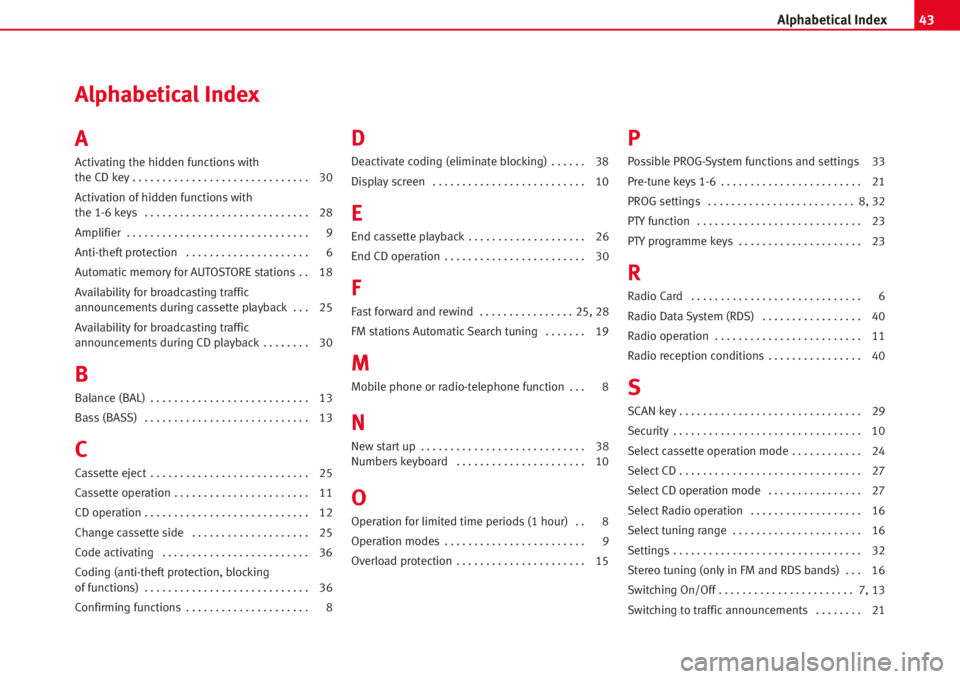

43Alphabetical Index
Alphabetical Index
A
Activating the hidden functionswith
the CD key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Activation of hidden functionswith
the 1-6 keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Anti-theft protection . . . . . . . . . . . . . . . . . . . . . 6
Automaticmemoryfor AUTOSTORE stations . . 18
Availability for broadcasting traffic
announcementsduring cassette playback . . . 25
Availability for broadcasting traffic
announcementsduring CD playback . . . . . . . . 30
B
Balance (BAL) . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Bass (BASS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
C
Cassette eject . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Cassette operation . . . . . . . . . . . . . . . . . . . . . . . 11
CD operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Change cassette side . . . . . . . . . . . . . . . . . . . . 25
Code activating . . . . . . . . . . . . . . . . . . . . . . . . . 36
Coding (anti-theft protection, blocking
of functions) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Confirming functions . . . . . . . . . . . . . . . . . . . . . 8
D
Deactivate coding (eliminate blocking) . . . . . . 38
Display screen . . . . . . . . . . . . . . . . . . . . . . . . . . 10
E
End cassette playback . . . . . . . . . . . . . . . . . . . . 26
End CD operation . . . . . . . . . . . . . . . . . . . . . . . . 30
F
Fast forward and rewind . . . . . . . . . . . . . . . . 25, 28
FM stationsAutomaticSearch tuning . . . . . . . 19
M
Mobile phone or radio-telephone function . . . 8
N
New startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Numberskeyboard . . . . . . . . . . . . . . . . . . . . . . 10
O
Operation for limited time periods (1 hour) . . 8
Operation modes . . . . . . . . . . . . . . . . . . . . . . . .9
Overload protection . . . . . . . . . . . . . . . . . . . . . . 15
P
Possible PROG-System functionsand settings 33
Pre-tune keys 1-6 . . . . . . . . . . . . . . . . . . . . . . . . 21
PROG settings . . . . . . . . . . . . . . . . . . . . . . . . . 8, 32
PTYfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
PTYprogramme keys . . . . . . . . . . . . . . . . . . . . . 23
R
Radio Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Radio Data System (RDS) . . . . . . . . . . . . . . . . . 40
Radio operation . . . . . . . . . . . . . . . . . . . . . . . . . 11
Radio reception conditions . . . . . . . . . . . . . . . . 40
S
SCAN key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Select cassette operation mode . . . . . . . . . . . . 24
Select CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Select CD operation mode . . . . . . . . . . . . . . . . 27
Select Radio operation . . . . . . . . . . . . . . . . . . . 16
Select tuning range . . . . . . . . . . . . . . . . . . . . . . 16
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Stereo tuning (onlyin FM and RDS bands) . . . 16
Switching On/Off . . . . . . . . . . . . . . . . . . . . . . . 7, 13
Switching to trafficannouncements . . . . . . . . 21

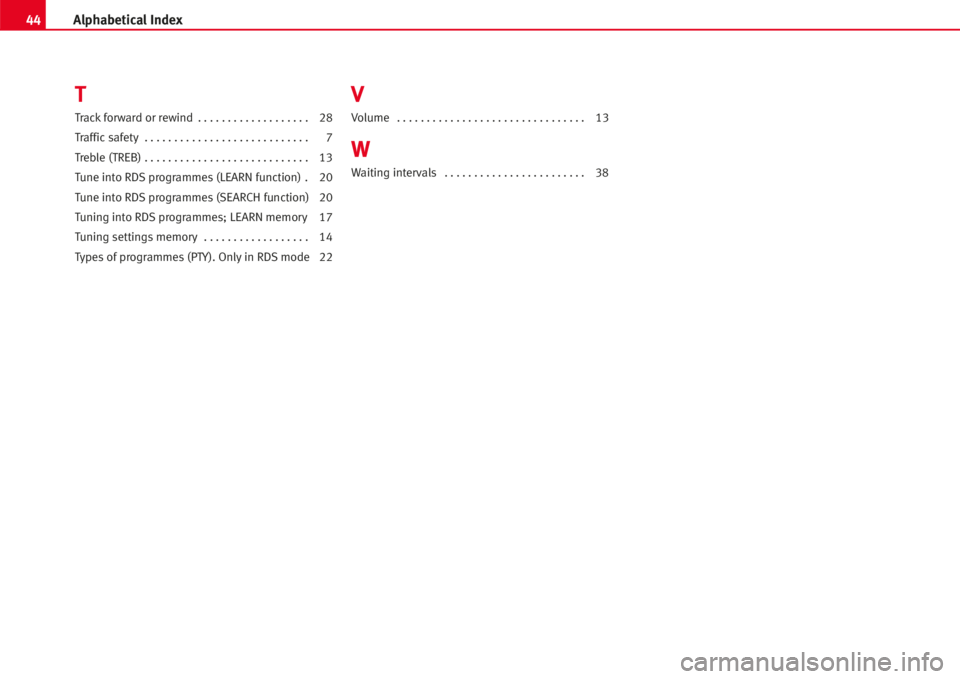

44Alphabetical Index
T
Track forward or rewind . . . . . . . . . . . . . . . . . . . 28
Traffic safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Treble (TREB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Tune into RDS programmes (LEARN function) . 20
Tune into RDS programmes (SEARCH function)20
Tuning into RDS programmes; LEARN memory17
Tuning settingsmemory . . . . . . . . . . . . . . . . . . 14
Typesofprogrammes (PTY). Onlyin RDSm
ode22
V
Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
W
Waiting intervals . . . . . . . . . . . . . . . . . . . . . . . . 38

Inglés, Portugués 6L0012006AA (02.05) (GT9)auto emoción
