Page 21 of 46
20Lena

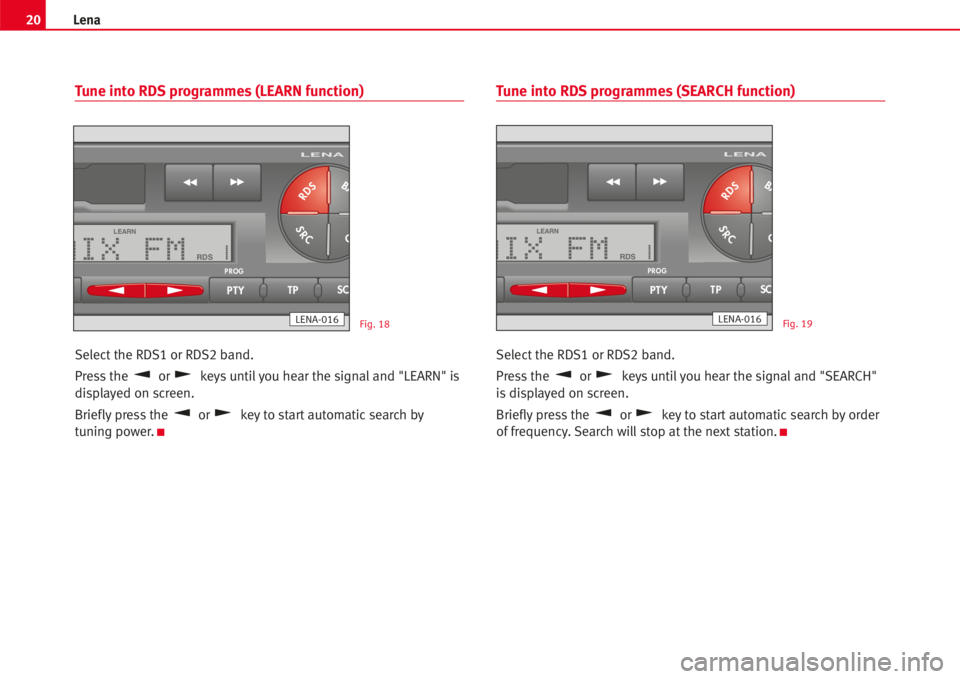

Tune into RDS programmes (LEARN function)
Select the RDS1 or RDS2 band.
Press the or keysuntilyou hear the signaland "LEARN" is
displayed on screen.
Brieflypress the or key to startautomaticsearch by
tuning power.
K
Tune into RDS programmes (SEARCH function)
Select the RDS1 or RDS2 band.
Press the or keysuntilyou hear the signaland "SEARCH"
isdisplayed on screen.
Brieflypress the or key to startautomaticsearch by order
of frequency. Search willstop at the next station.
K
PTYTPSCA
LENA
PROG
TAPE
RDSFM
CAIX FM
LEARN
RDS1
SRC
RDSBA
C
LENA-016
PTYTPSCA
LENA
PROG
TAPE
RDSFM
CAIX FM
LEARN
RDS1
SRC
RDSBA
C
LENA-016Fig. 18Fig. 19
Page 22 of 46
21Lena

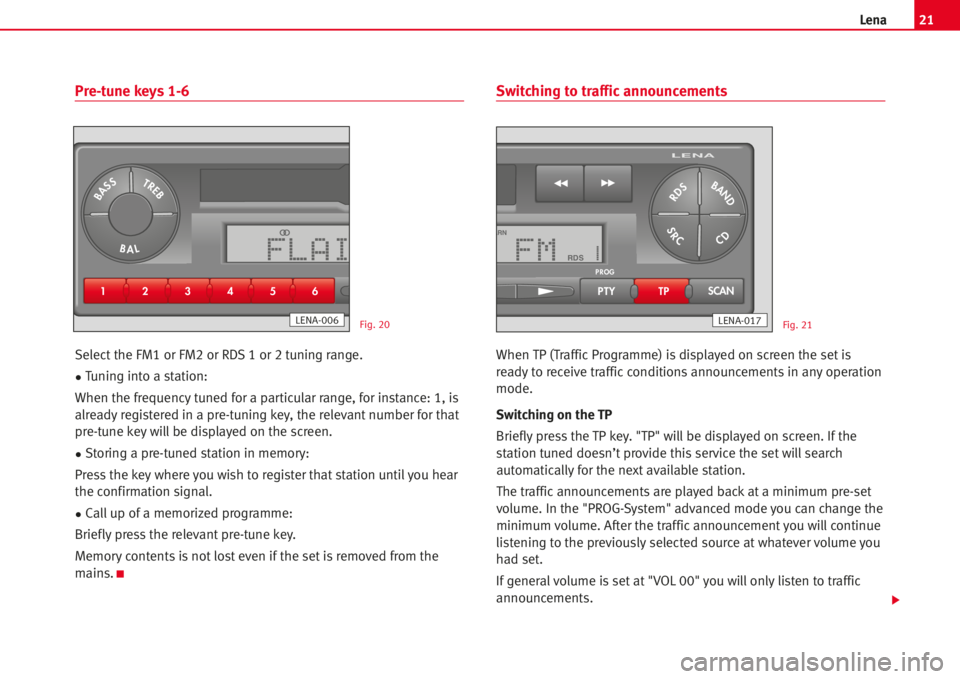

Pre-tune keys 1-6
Select the FM1 or FM2 or RDS 1 or 2 tuning range.
•Tuning into a station:
When the frequency tuned for a particular range, for instance: 1, is
alreadyregistered in a pre-tuning key, the relevantnumber for that
pre-tune keywillbe displaye
d on the screen.
•Storing a pre-tuned station in memory:
Press the keywhere you wish to register that station untilyou hear
the confirmation signal.
•Call up of a memorized programme:
Brieflypress the releva
ntpre-tune key.
Memorycontentsisnotlost even if the setisremoved from the
mains.
K
Switching to traffic announcements
When TP (TrafficProgramme) isdisplayed on screen the setis
readyto receive trafficconditionsannouncementsin any operation
mode.
Switching on the TP
Brieflypress the TP key. "TP" willbe displayed on screen. If the
statio
n tuned doesn’tprovide thisservice the setwillsearch
automaticallyfor the next available station.
The trafficannouncements are played back at a minimum pre-set
volume. In the "PROG-System" advanced mode you can change the
minimum volume. After
the trafficannouncementyou willcontinue
listening to the previouslyselected source atwhatever volume you
had set.
Ifgeneralvolume is set at "VOL 00" you willonlylisten to traffic
announcements.
23 1 456
BASSTREB
BALFLAI
LENA-006Fig. 20
PTYTPSCAN
LENA
PROG
SRC
RDSBAND
CD
FM
ARN
RDS1
LENA-017Fig. 21
Page 23 of 46
22Lena

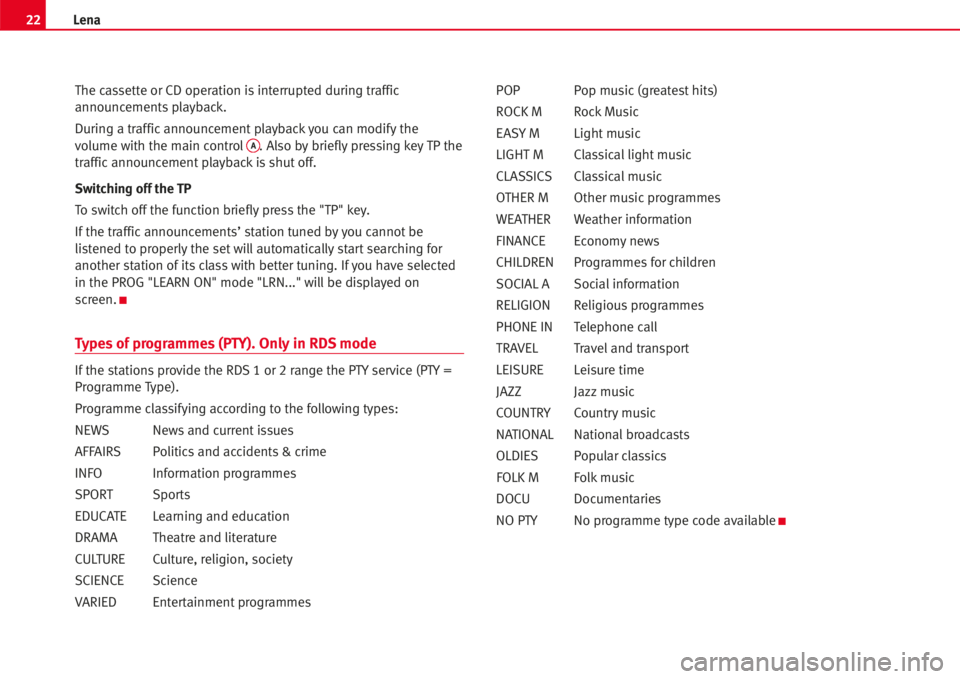

The cassette or CD operation isinterrupted during traffic
announcements playback.
During a trafficannouncementplayback you can modify the
volume with the main control
A. Also by brieflypressing keyTP the
trafficannouncementplaybackisshut off.
Switching off the TP
To switch off the function brieflypress the "TP" key.
If the trafficannouncements’ station tuned by you cannot be
listened to properly the setwillautomaticallystartsea
rching for
another station ofits classwith better tuning. Ifyou have selected
in the PROG "LEARN ON" mode "LRN..." willbe displayed on
screen.
K
Types of programmes (PTY). Only in RDS mode
If the stationsprovide the RDS 1 or 2 range the PTYservice (PTY=
Programme Type).
Programme classifying according to the following types:
NEWS Newsand currentissues
AFFAIRSPolitics and accidents & crime
INFOInformation programmes
SPORT
Sports
EDUCATELearning and education
DRAMATheatre and literature
CULTURE Culture, religion, society
SCIENCE Science
VARIED EntertainmentprogrammesPOPPop music(greatest hits)
ROCK M Rock Music
EASY M Lightmusic
LI
GHT MClassicallightmusic
CLASSICS Classicalmusic
OTHER M Other musicprogrammes
WEATHER Weather information
FINANCE Economynews
CHILDRENProgrammes for children
SOCIALASocialinformation
RELIGION Relig
iousprogrammes
PHONEINTelephone call
TRAVELTraveland transport
LEISURE Leisure time
JAZZ Jazzmusic
COUNTRY Countrymusic
NAT IONAL Nationalbroadcasts
OLDIESPopular classics
FOLK M Folkmusic
DOCU Docum
entaries
NO PTY No programme type code available
K
Page 24 of 46
23Lena

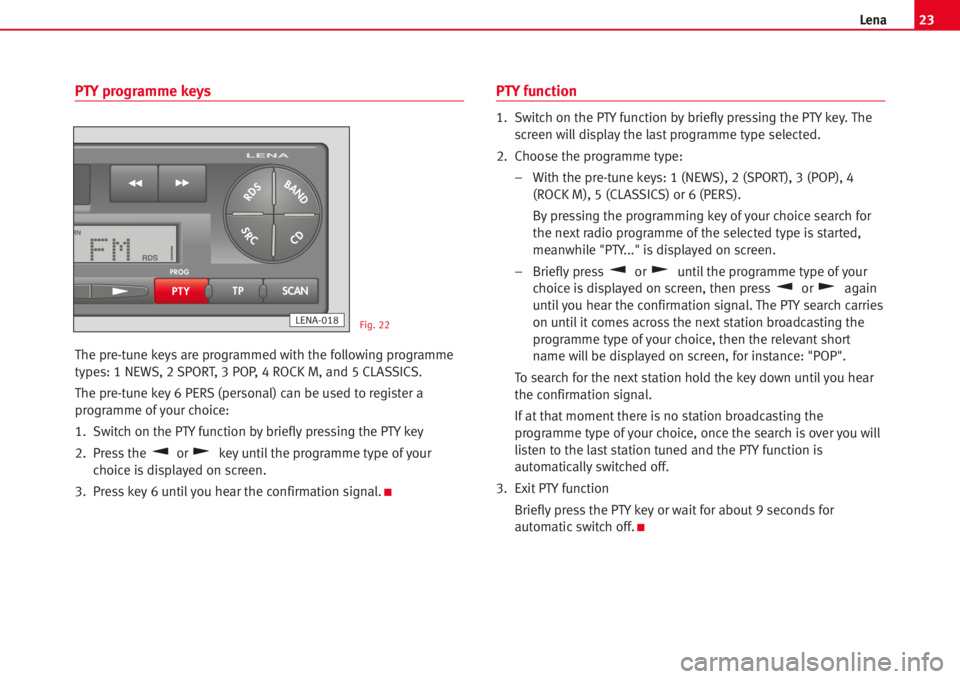

PTY programme keys
The pre-tune keys are programmed with the following programme
types: 1 NEWS, 2 SPORT, 3 POP, 4 ROCK M, and 5 CLASSICS.
The pre-tune key 6 PERS (personal) can be used to register a
programme of your choice:
1. Switch on the PTYfunction by brieflypressing the
PTYkey
2.Press the or keyuntilthe programme type of your
choice isdisplayed on screen.
3.Press key 6 untilyou hear the confirmation signal.
K
PTY function
1. Switch on the PTYfunction by brieflypressing the PTY key. The
screen will display the last programme type selected.
2. Choose the programme type:
–With the pre-tune keys: 1 (NEWS), 2 (SPORT), 3 (POP), 4
(ROCK M), 5 (CLASSICS) or 6 (PERS).
By pressing the programming key of your choice search for
the nextradi
o programme of the selected type isstarted,
meanwhile "PTY..." isdisplayed on screen.
–Brieflypress or untilthe programme type of your
choice isdisplayed on screen, then press or again
untilyou hear the confirmation sig
nal. The PTYsearch carries
on until itcomes across the next station broadcasting the
programme type of your choice, then the relevant short
name willbe displayed on screen, for instance: "POP".
To search for the next station hold the keydown
untilyou hear
the confirmation signal.
Ifatthatmoment there isno station broadcasting the
programme type of your choice, once the search isover you will
listen to the last station tuned and the PTYfunction is
automati
callyswitched off.
3. ExitPTYfunction
Brieflypress the PTYkeyor waitfor about9 secondsfor
automaticswitch off.
K
PTYTPSCAN
LENA
PROG
SRC
RDSBAND
CD
FM
RN
RDS1
LENA-018Fig. 22
Page 25 of 46
24Lena

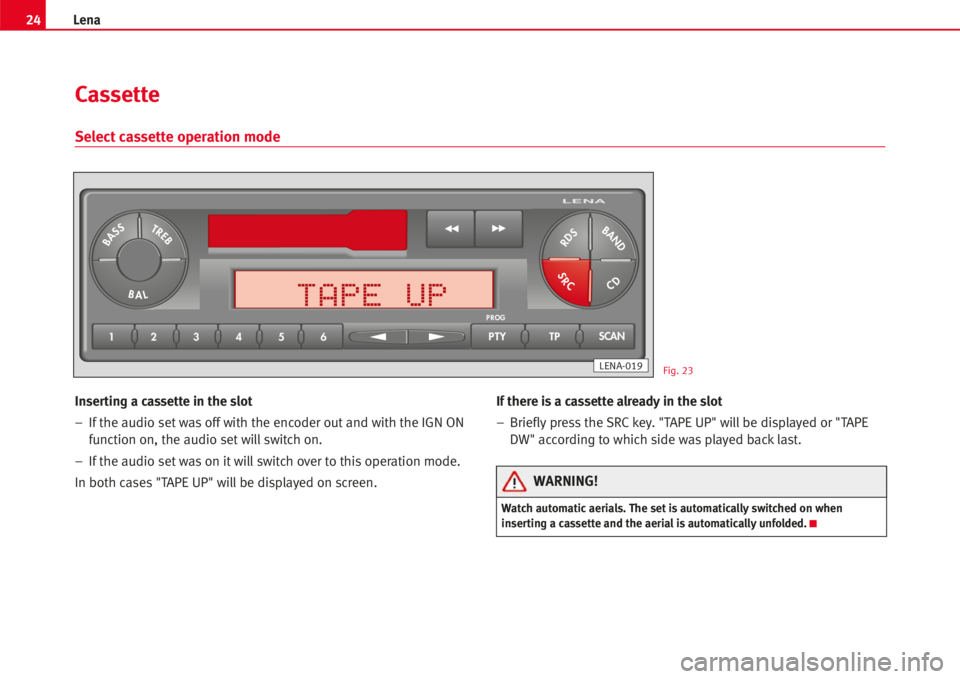

Inserting a cassette in the slot
–If the audio setwas offwith the encoder outand with the IGN ON
function on, the audio setwillswitch on.
–If the audio setwas on itwillswitch over to this operation mode.
In both cases "TAPEUP" willbe displayed on screen.If there is a cassette already in the slot
–Brieflypress the SRC key. "TAPEUP
" willbe displayed or "TAPE
DW" according to which side was played backlast.
23 1 456PTYTPSCAN
LENA
BASSTREB
BAL
PROG
SRC
RDSFM
CD
TAPE UP
SRC
RDSBAND
CD
LENA-019
Cassette
Select cassette operation mode
Fig. 23
Watch automatic aerials. The set is automatically switched on when
inserting a cassette and the aerial is automatically unfolded.K
WARNING!
Page 26 of 46
25Lena

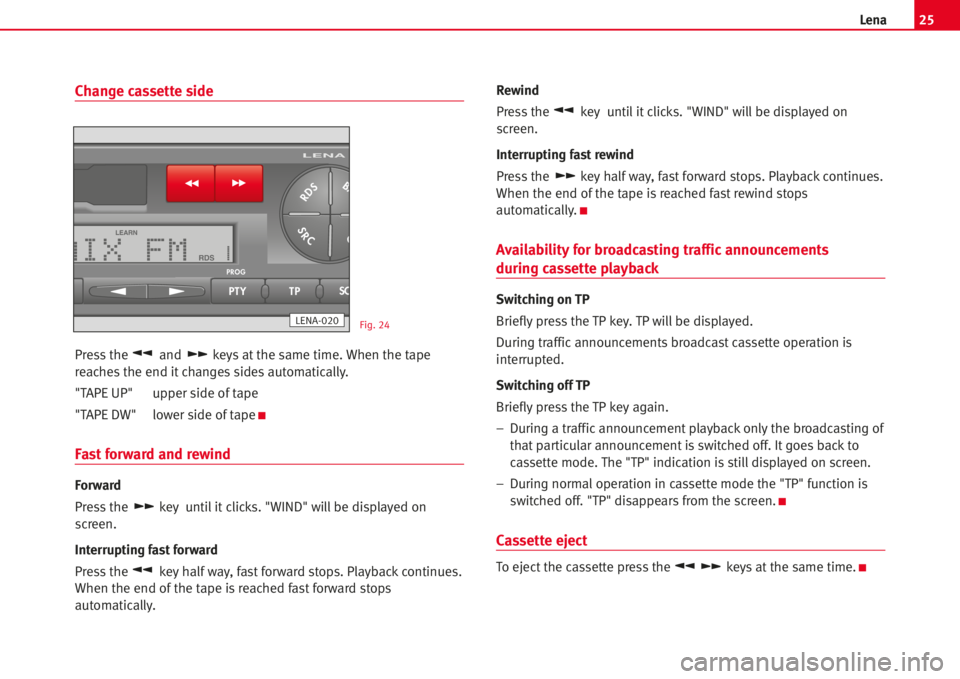

Change cassette side
Press the and keys at the same time. When the tape
reaches the end itchanges sides automatically.
"TAPEUP"upper side of tape
"TAPEDW"lower side of tape
K
Fast forward and rewind
Forward
Press the keyuntil itclicks. "WIND" willbe displayed on
screen.
Interrupting fast forward
Press the key halfway, fast forward stops. Playback continues.
When the end of the tape isreached fast forward stops
automatically.Rewind
Press the keyuntil itclicks. "WIND" willbe displayed on
screen.
Interrupting fast rewind
Press the key halfway, fast forward
stops. Playback continues.
When the end of the tape isreached fastrewind stops
automatically.
K
Availability for broadcasting traffic announcements
during cassette playback
Switching on TP
Brieflypress the TP key. TP willbe displayed.
During trafficannouncements broadcast cassette operation is
interrupted.
Switching off TP
Brieflypress the TP key again.
–During a trafficannouncementplayback only the broadcasting of
that particular anno
uncementisswitched off. Itgoesbackto
cassette mode. The "TP" indication isstill displayed on screen.
–During normaloperation in cassette mode the "TP" function is
switched off. "TP" disappearsfrom the screen.
K
Cassette eject
To eject the cassette press the keys at the same time.K
PTYTPSC
LENA
PROG
SRC
RDSBA
CAIX FM
LEARN
RDS1
LENA-020Fig. 24
Page 27 of 46
26Lena

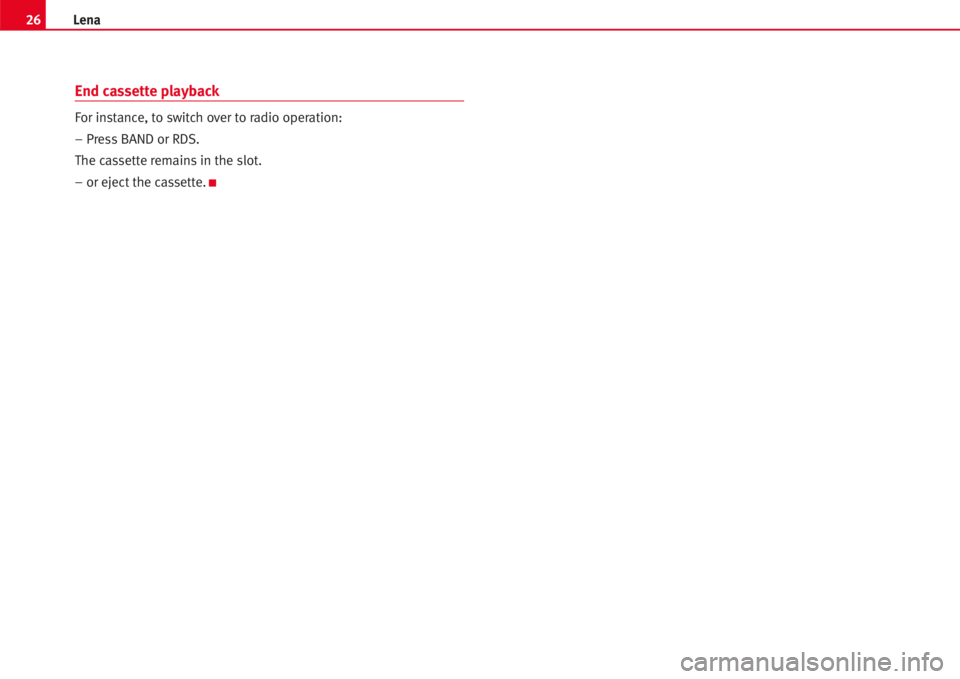

End cassette playback
For instance, to switch over to radio operation:
– Press BAND or RDS.
The cassette remainsin the slot.
– or eject the cassette.
K
Page 28 of 46
27Lena

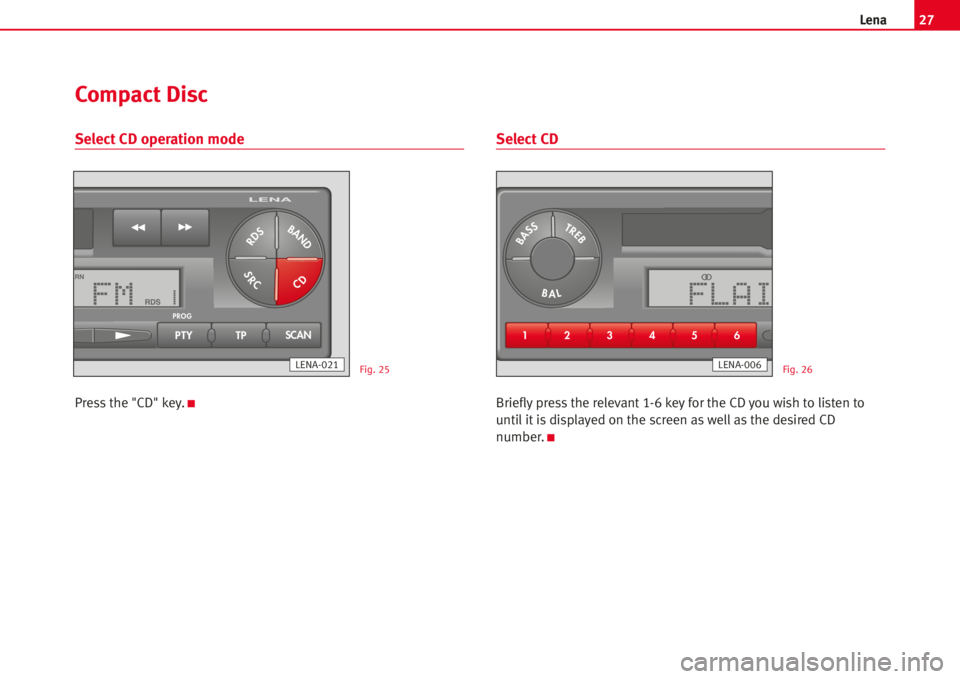

Select CD operation mode
Press the "CD" key.K
Select CD
Brieflypress the relevant 1-6 key for the CD you wish to listen to
until itisdisplayed on the screen aswellas the desired CD
number.
K
PTYTPSCAN
LENA
PROG
TAPE
RDSFM
CD
FM
ARN
RDS1
SRC
RDSBAND
CD
LENA-021
23 1 456
BASSTREB
BALFLAI
LENA-006Fig. 25Fig. 26
Compact Disc
Page 29 of 46

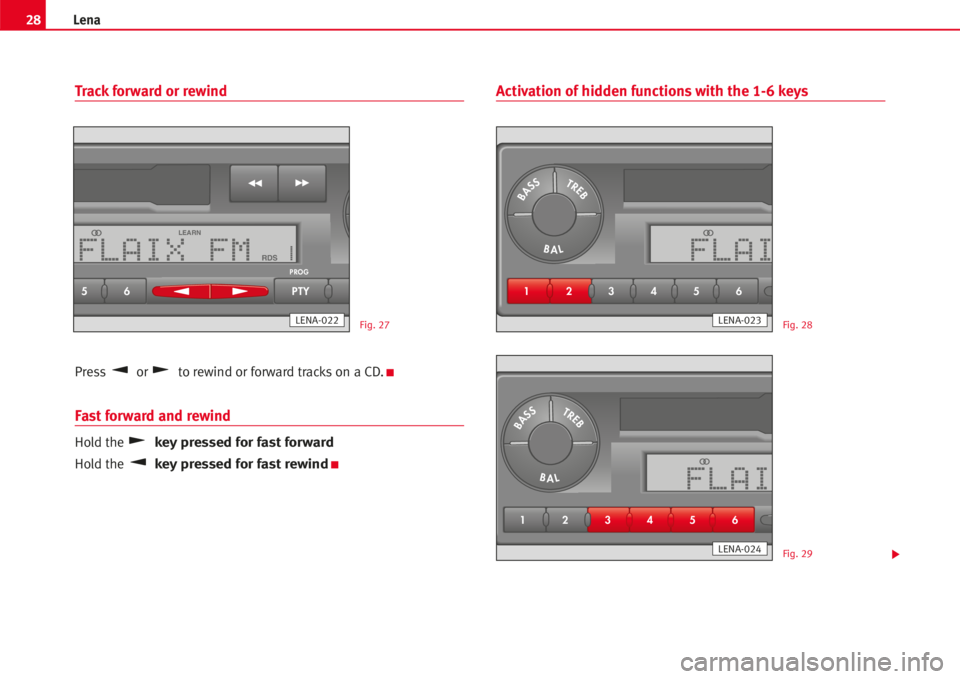

Track forward or rewind
Press or to rewind or forward tracks on a CD.K
Fast forward and rewind
Hold the key pressed for fast forward
Hold the key pressed for fast rewindK
Activation of hidden functions with the 1-6 keys
28Lena
56PTY
PROGFLAIX FM
LEARN
RDS1
LENA-022
23 1 456
BASSTREB
BALFLAI
LENA-023Fig. 27Fig. 28
23 1 456
BASSTREB
BALFLAI
LENA-024Fig. 29
Page 30 of 46
29Lena

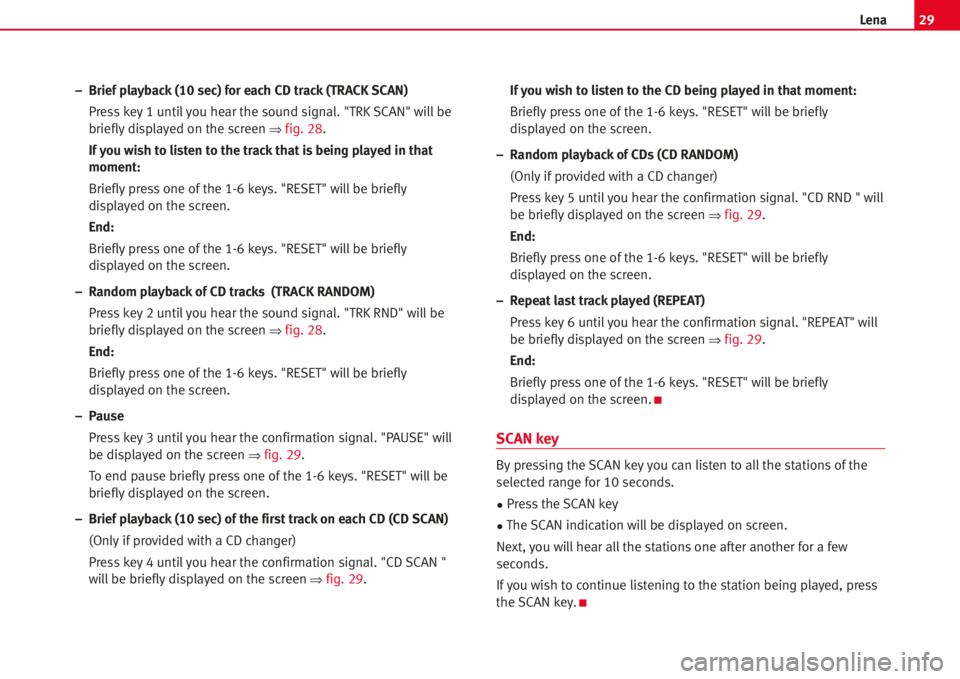

– Brief playback (10 sec) for each CD track (TRACK SCAN)
Press key 1 untilyou hear the sound signal. "TRK SCAN" willbe
brieflydisplayed on the screen
⇒fig. 28.
If you wish to listen to the track that is being played in that
moment:
Brieflypress one of the 1-6 keys. "RESET" willbe briefly
displayed on the screen.
End:
Brieflypress one of the 1-6 keys. "RESET" willbe briefly
displayed on the screen.
– Random playback of CD tracks (TRACK RANDOM)
Press key 2 untilyou hear the sound signal. "TRK RND" willbe
brieflydisplayed on the sc
reen ⇒fig. 28.
End:
Brieflypress one of the 1-6 keys. "RESET" willbe briefly
displayed on the screen.
– Pause
Press key 3 untilyou hear the confirmation signal. "PAUSE" will
be displayed on the screen
⇒fig. 29.
To end pause brieflypress one of the 1-6 keys. "RESET" willbe
brieflydisplayed on the screen.
– Brief playback (10 sec) of the first track on each CD (CD SCAN)
(Onlyifprovided with a CD changer)
Press key 4 untilyou hear the confirmation signal. "CD SCAN "
willbe brieflydisplayed on the screen
⇒fig. 29.If you wish to listen to the CD being played in that moment:
Brieflypress one of the 1-6 keys. "RESET" willbe briefly
displayed on the screen.
– Random playback of CDs (CD RANDOM)
(Onlyifprovided with a CD changer)
Press key 5 untilyou hear the confirmation signal. "CD RND " will
be brieflydisplayed on the screen
⇒fig. 29.
End:
Brieflypress one of the 1-6 keys. "RESET" willbe briefly
displayed on the screen.
– Repeat last track played (REPEAT)
Press key 6 untilyou hear the confirmation signal. "REPEAT" will
be brieflydisplayed on the screen
⇒fig. 29.
End:
Brieflypress one of the 1-6 keys. "RESET" willbe briefly
displayed on the screen.
K
SCAN key
By pressing the SCAN key you can listen to allthe stationsofthe
selected range for 10 seconds.
•Press the SCAN key
•The SCAN indication willbe displayed on screen.
Next, you willhear allthe stationsone after another for a few
seconds.
Ifyou wish to continue
listening to the station being played, press
the SCAN key.
K
