Seat Cordoba 2007 LENA

30Lena

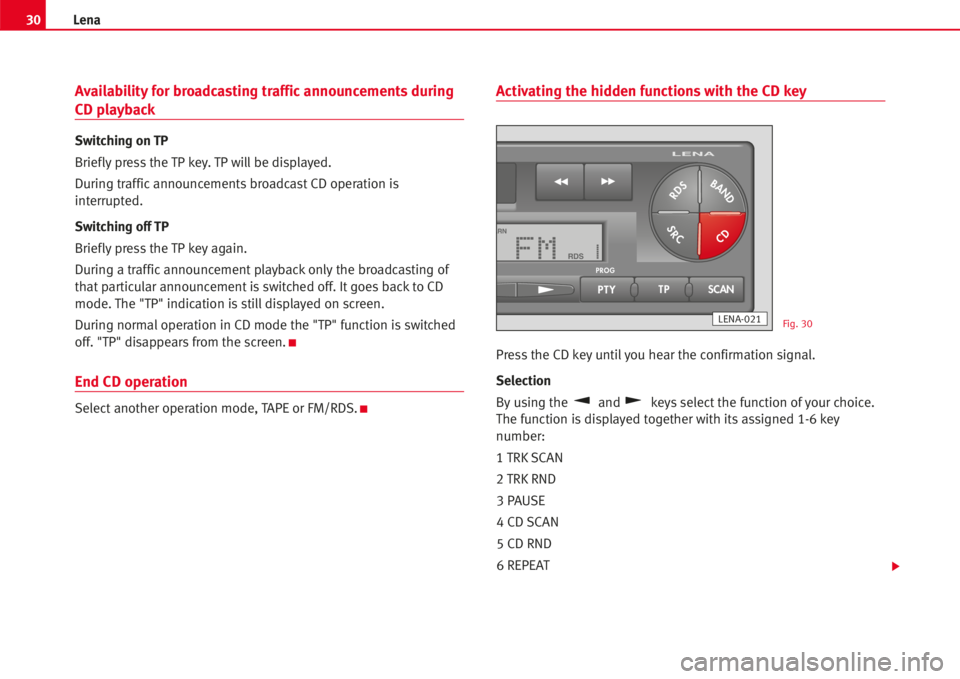

Availability for broadcasting traffic announcements during
CD playback
Switching on TP
Brieflypress the TP key. TP willbe displayed.
During trafficannouncements broadcast CD operation is
interrupted.
Switching off TP
Brieflypress the TP key again.
During a trafficannouncementplayback only the broadcasting of
that particular anno
uncementisswitched off. It goes back to CD
mode. The "TP" indication isstill displayed on screen.
During normaloperation in CD mode the "TP" function isswitched
off. "TP" disappearsfrom the screen.
K
End CD operation
Select another operation mode, TAPEor FM/RDS.K
Activating the hidden functions with the CD key
Press the CD keyuntilyou hear the confirmation signal.
Selection
Byusing the and keys select the function of your choice.
The function isdisplayed together with its assigned 1-6 key
number:
1 TRK SCAN
2 TRK RND
3 PAUSE
4 CD SCAN
5 CD RND
6 REPEAT
PTYTPSCAN
LENA
PROG
TAPE
RDSFM
CD
FM
ARN
RDS1
SRC
RDSBAND
CD
LENA-021Fig. 30

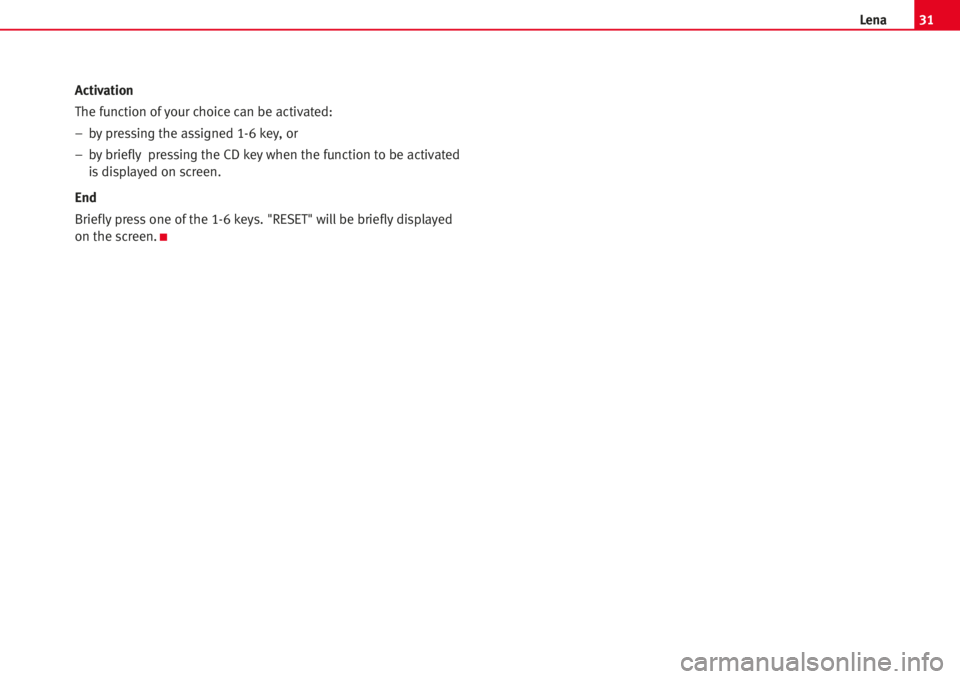

Activation
The function of your choice can be activated:
–bypressing the assigned 1-6 key, or
–bybrieflypressing the CD keywhen the function to be activated
isdisplayed on screen.
End
Brieflypress one of the 1-6 keys. "RESET" willbe brieflydisplayed
on the screen.
K
31Lena

32Lena

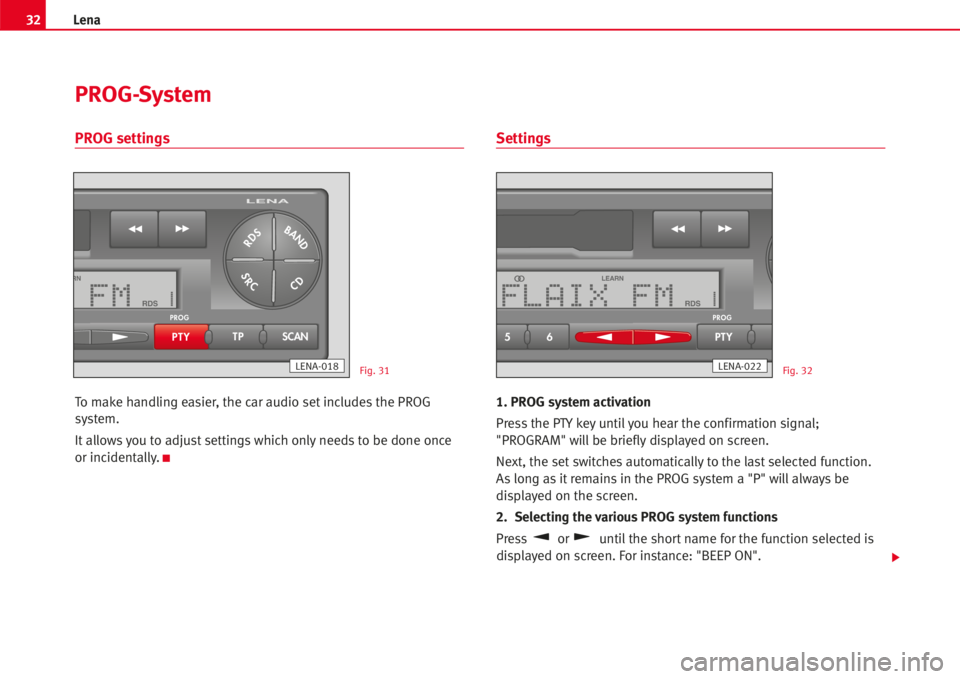

PROG settings
To make handling easier, the car audio setincludes the PROG
system.
Itallowsyou to adjust settingswhich onlyneeds to be done once
or incidentally.
K
Settings
1. PROG system activation
Press the PTYkeyuntilyou hear the confirmation signal;
"PROGRAM" willbe brieflydisplayed on screen.
Next, the set switches automatically to the last selected function.
Aslong asitremainsin the PROG system a "P" willalways be
disp
layed on the screen.
2. Selecting the various PROG system functions
Press or untilthe shortname for the function selected is
displayed on screen. For instance: "BEEP ON".
PROG-System
PTYTPSCAN
LENA
PROG
SRC
RDSBAND
CD
FM
RN
RDS1
LENA-018Fig. 31
56PTY
PROGFLAIX FM
LEARN
RDS1
LENA-022Fig. 32


33Lena

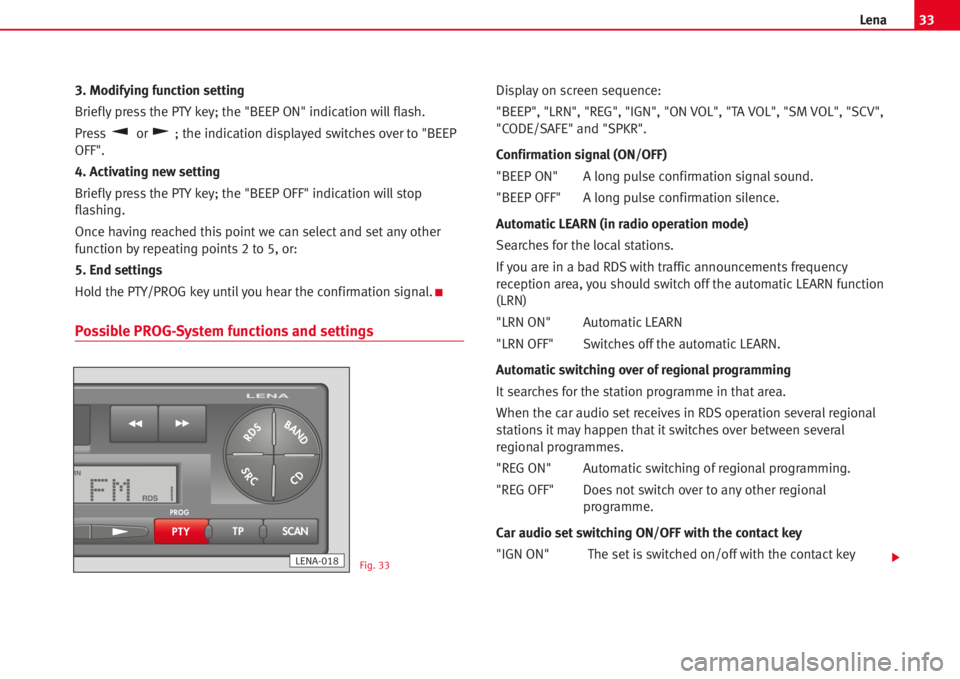

3. Modifying function setting
Brieflypress the PTY key; the "BEEP ON" indication willflash.
Press or ; the indication displayed switches over to "BEEP
OFF".
4. Activating new setting
Brieflypress the PTY key; the "BEEP OFF" indication willstop
flashing.
Once having reached thispointwe can select and set any other
function byr
epeating points 2 to 5, or:
5. End settings
Hold the PTY/PROG keyuntilyou hear the confirmation signal.
K
Possible PROG-System functions and settings
Display on screen sequence:
"BEEP", "LRN", "REG", "IGN", "ON VOL", "TA VOL", "SM VOL", "SCV",
"CODE/SAFE" and "SPKR".
Confirmation signal (ON/OFF)
"BEEP ON"A long pulse confirmation signalsound.
"BEEP OFF"A long pulse confirmation silence.
Automatic LEARN (in radio operation mode)
Searches for the localstations.
Ifyou are in
a bad RDSwith trafficannouncements frequency
reception area, you should switch off the automaticLEARN function
(LRN)
"LRN ON" AutomaticLEARN
"LRN OFF" Switches off the automaticLEARN.
Automatic switching over of regional programming
Itsearches for the station programme in that area.
When the car audio setrece
ivesin RDS operation severalregional
stationsitmay happen thatitswitches over between several
regionalprogrammes.
"REG ON"Automaticswitching ofregionalprogramming.
"REG OFF" Doesnot switch over to any other regional
p
rogramme.
Car audio set switching ON/OFF with the contact key
"IGN ON"The setisswitched on/offwith the contact key
PTYTPSCAN
LENA
PROG
SRC
RDSBAND
CD
FM
RN
RDS1
LENA-018Fig. 33

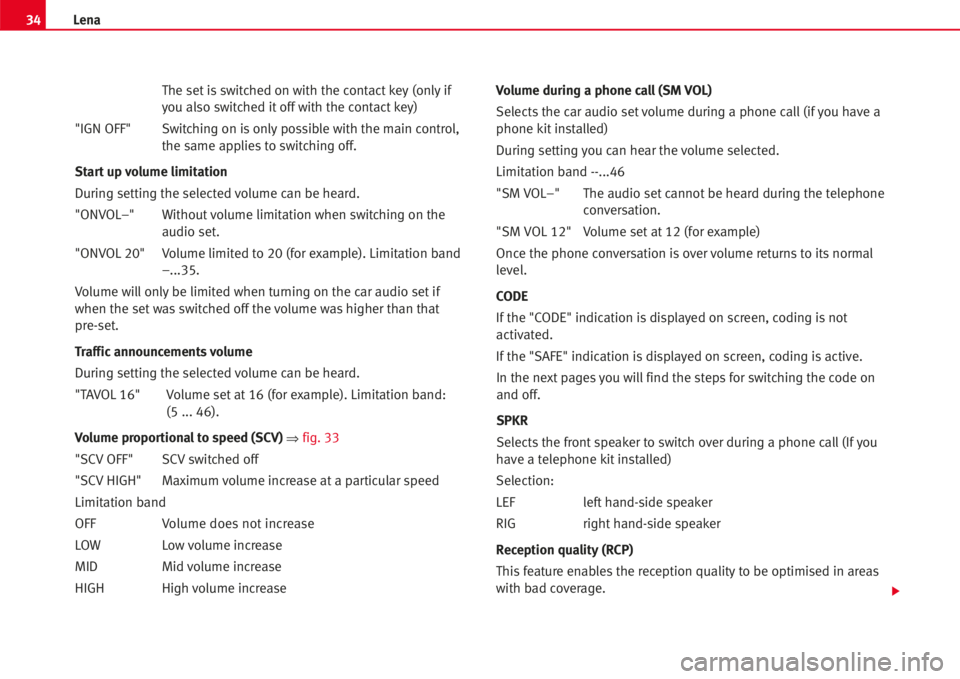

The setisswitched on with the contact key (onlyif
you also switched it offwith the contact key)
"IGN OFF" Switching on isonlypossible with the main control,
the same applies to switching off.
Start up volume limitation
During setting the selected volume can be heard.
"ONVOL–" Withoutvolume limitation w
hen switching on the
audio set.
"ONVOL 20" Volume limited to 20 (for example). Limitation band
–...35.
Volume willonly be limited when turning on the car audio setif
when the setwas switched off the volume was higher than that
pre-set.
Traffic announcements volume
During setting the selected volume can be heard.
"TAVOL 16" Volum
e set at 16 (for example). Limitation band:
(5 ... 46).
Volume proportional to speed (SCV)
⇒fig. 33
"SCV OFF" SCV switched off
"SCV HIGH" Maximum volume increase at a particular speed
Limitation band
OFF Volume doesnotincrease
LOW Low volume increase
MIDMid volume increase
HIGH High volume increaseVolume during a phone call (SM VOL)
Selects the car audio set volume during a phone call(ifyou have a
phone k
itinstalled)
During setting you can hear the volume selected.
Limitation band --...46
"SM VOL–"The audio set cannot be heard during the telephone
conversation.
"SM VOL 12" Volume set at 12 (for example)
Once the phone conversation isover volume returnsto itsnormal
level.
CODE
If the "CODE" indication isdisplayed on screen, coding isnot
activated.
If the "SAFE" indication isdisplayed on screen, coding is active.
In the next pages you willfind the steps for switching the code on
and off.
SPKR
Selects the front speaker to switch over durin
g a phone call(Ifyou
have a telephone kitinstalled)
Selection:
LEFleft hand-side speaker
RIGright hand-side speaker
Reception quality (RCP)
Thisfeature enables the reception quality to be optimised in areas
with bad coverage.
34Lena


35Lena

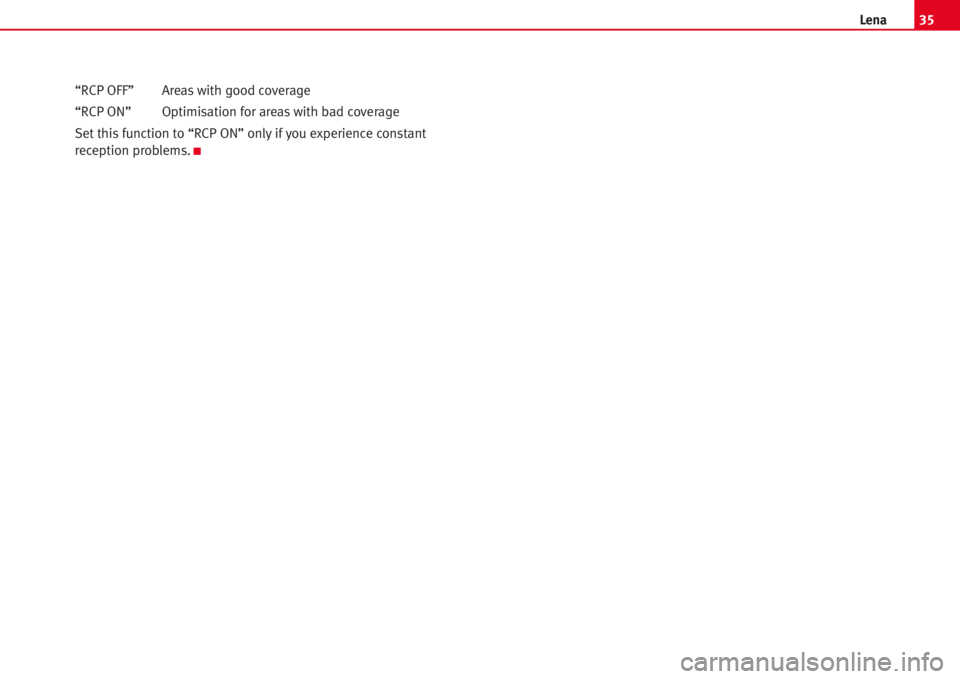

“RCP OFF”Areaswith good coverage
“RCP ON” Optimisation for areaswith bad coverage
Set thisfunction to “RCP ON” onlyifyou experience constant
reception problems.
K

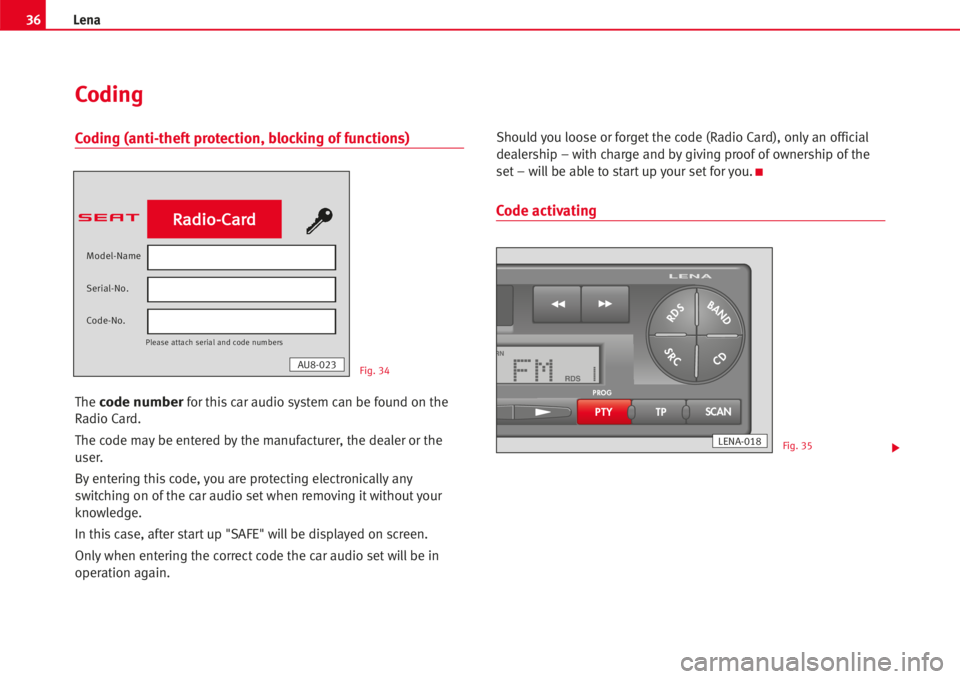

Coding (anti-theft protection, blocking of functions)
The code numberfor thiscar audio system can be found on the
Radio Card.
The code may be entered by the manufacturer, the dealer or the
user.
By entering thiscode, you are protecting electronicallyany
switching on of the car audio setwhen removin
g itwithoutyour
knowledge.
In this case, after startup "SAFE" willbe displayed on screen.
Onlywhen entering the correct code the car audio setwillbe in
operation again.Should you loose or forget the code (Radio Card), onlyan official
deal
ership – with charge and by giving proof of ownership of the
set – willbe able to startup your set for you.
K
Code activating
36Lena
Fig. 34
Coding
PTYTPSCAN
LENA
PROG
SRC
RDSBAND
CD
FM
RN
RDS1
LENA-018Fig. 35
Model-Name
Serial-No.
Code-No.
Please attach serialand code numbers
R
Ra
ad
di
io
o-
-C
Ca
ar
rd
d

AU8-023


37Lena

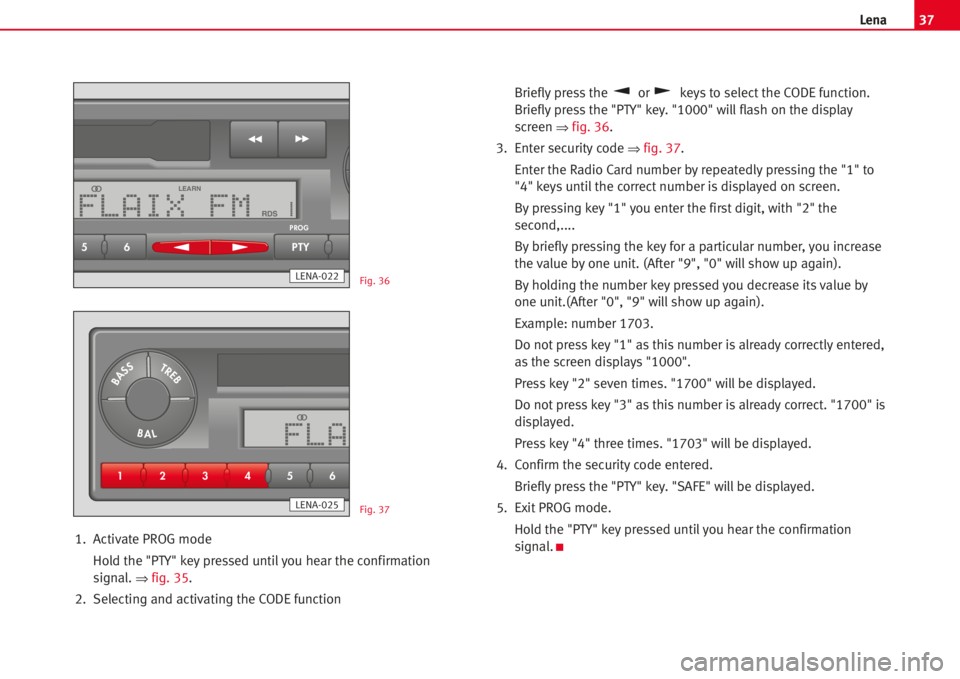

1.Activate PROG mode
Hold the "PTY" key pressed untilyou hear the confirmation
signal.
⇒fig. 35.
2. Selecting and activating the CODE functionBrieflypress the or keys to select the CODE function.
Brieflypress the "PTY" key. "1000" willflash on the display
screen
⇒fig. 36.
3. Enter security code
⇒fig. 37.
Enter the Radio Card number byrepeatedlypressing the "1" to
"4" keysuntilthe correctnumber isdisplayed on screen.
By pressing key "1" you enter the firstdigit, with "2" the
second,....
By brieflypressing the key for a particular number, you increase
the value by one unit. (After "9", "0" willshow up again).
By holding the number key pressed you decrease its value by
one unit.(After "0", "9" willshow up again).
Example: number 1703.
Do not press key "1" as thisnumber isalreadycorrectlyentered,
as the screen
displays "1000".
Press key "2" seven times. "1700" willbe displayed.
Do not press key "3" as thisnumber isalreadycorrect. "1700" is
displayed.
Press key "4" three times. "1703" willbe displayed.
4. Confirm the security code entered.
Brieflypress the "PTY" key. "SAFE" willbe displayed.
5. ExitPROG mo
de.
Hold the "PTY" key pressed untilyou hear the confirmation
signal.
K
56PTY
PROGFLAIX FM
LEARN
RDS1
LENA-022Fig. 36
23 1 456
BASSTREB
BALFLA
LENA-025Fig. 37

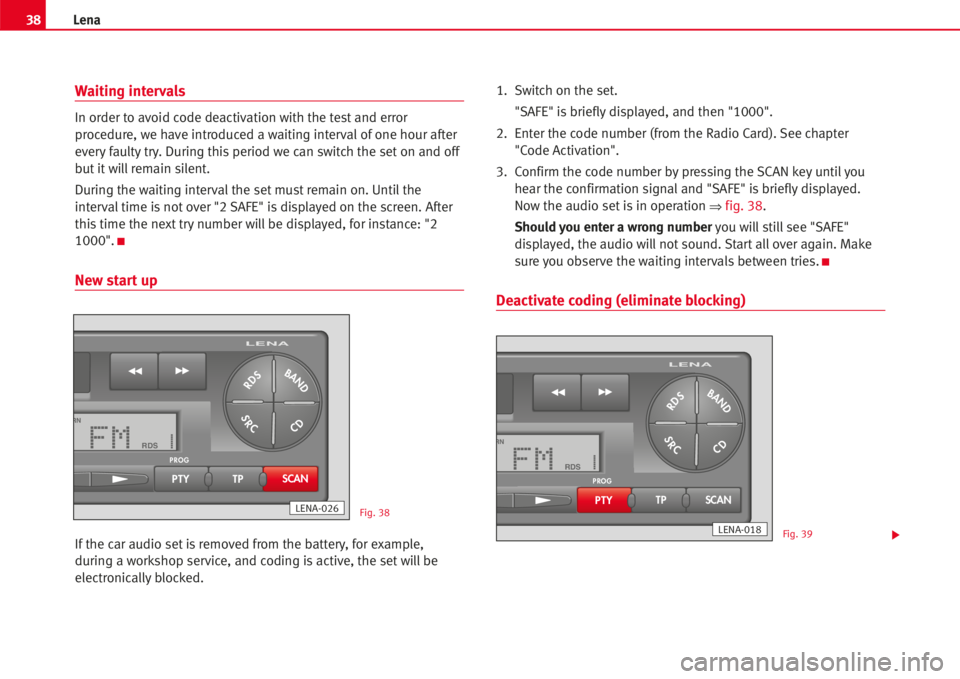

Waiting intervals
In order to avoid code deactivation with the test and error
procedure, we have introduced a waiting intervalof one hour after
everyfaulty try. During thisperiod we can switch the set on and off
butitwill remain silent.
During the w
aiting intervalthe setmustremain on. Untilthe
intervaltime isnot over "2 SAFE" isdisplayed on the screen. After
thistime the next trynumber willbe displayed, for instance: "2
1000".
K
New start up
If the car audio setisremoved from the battery, for example,
during a workshop service, and coding is active, the setwillbe
electronicallyblocked.1. Switch on the set.
"SAFE" isbrieflydisplayed, and then "1000".
2. Enter the code number (from the Radio Card
). See chapter
"Code Activation".
3. Confirm the code number by pressing the SCAN keyuntilyou
hear the confirmation signaland "SAFE" isbrieflydisplayed.
Now the audio setisin operation
⇒fig. 38.
Should you enter a wrong number you willstillsee "SAFE"
displayed, the audio will not sound. Startallover again. Make
sure you observe the waiting intervals between tries.
K
Deactivate coding (eliminate blocking)
38Lena
PTYTPSCAN
LENA
PROG
SRC
RDSBAND
CD
FM
RN
RDS1
LENA-026Fig. 38PTYTPSCAN
LENA
PROG
SRC
RDSBAND
CD
FM
RN
RDS1
LENA-018Fig. 39

39Lena

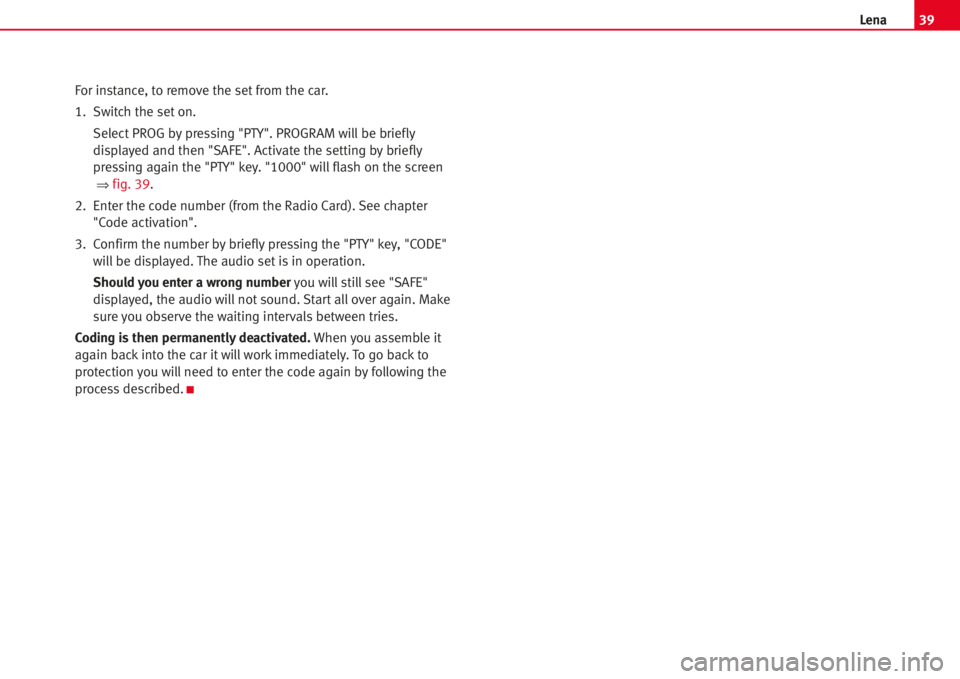

For instance, to remove the set from the car.
1. Switch the set on.
SelectPROG by pressing "PTY". PROGRAM willbe briefly
displayed and then "SAFE". Activate the setting by briefly
pressing again the "PTY" key. "1000" willflash on the screen
⇒fig. 39.
2. Enter the code number (from the Radio Card). See chapter
"Code activation".
3. Confirm the number by brieflypressing the "PTY" key, "CODE"
willbe displayed. The audio setisin operation.
Should you enter a wrong number you willstillsee "SAFE"
displayed, the audio will not sound. Startallove
r again. Make
sure you observe the waiting intervals between tries.
Coding is then permanently deactivated.When you assemble it
again backinto the car itwill workimmediately. To go back to
protection you will need to enter the code again by following the
processdescribed.
K
