Seat Cordoba 2007 Maintenance programme
Manufacturer: SEAT, Model Year: 2007, Model line: Cordoba, Model: Seat Cordoba 2007Pages: 43, PDF Size: 2.4 MB
Page 11 of 43
SEAT maintenance programme9
•
If biodiesel or any other fuel that does not conform to the DIN EN 14214
(FAME) standard is used then the fuel filter must be cl eaned every 15,000 km
(10,000 miles) and replaced every 30,000 km (20,000 mil es). Consult your
Service Centre.
PM ibi cor_ingles Seite 9 Mittwoch, 21. März 2007 5 :22 17

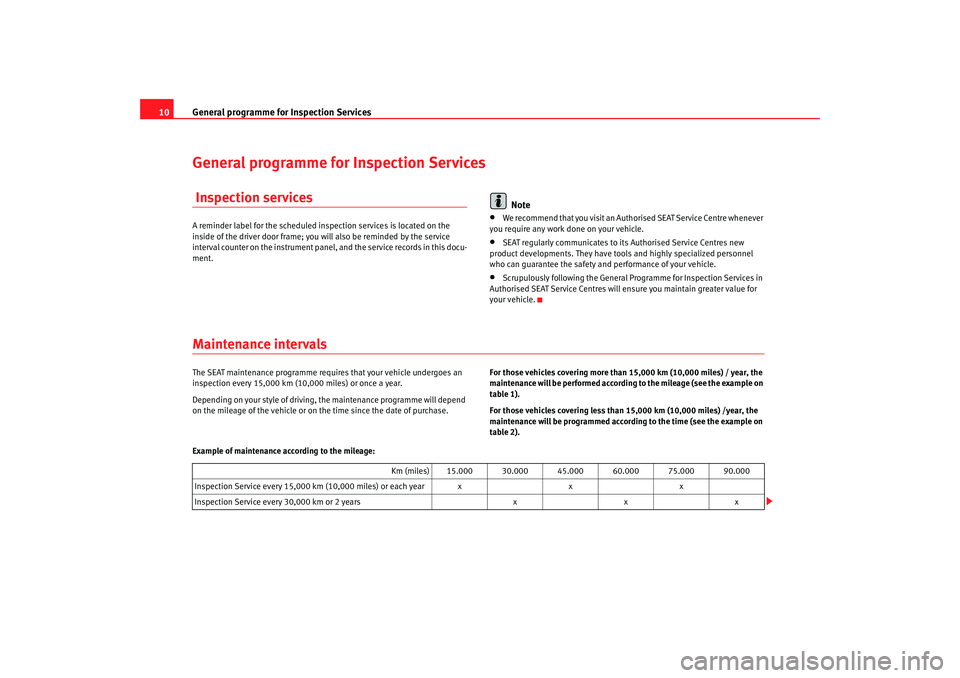

Page 12 of 43
General programme for Inspection Services
10General programme for Inspection Services Inspection servicesA reminder label for the scheduled inspection service s is located on the
inside of the driver door frame; you will also be reminded by the service
interval counter on the instrument pane l, and the service records in this docu-
ment.
Note
•
We recommend that you visit an Authorised SEAT Serv ice Centre whenever
you require any work done on your vehicle.
•
SEAT regularly communicates to its Authorised Servic e Centres new
product developments. They have tools and highly specialized personnel
who can guarantee the safety and performance of your ve hicle.
•
Scrupulously following the General Programme for Inspection Services in
Authorised SEAT Service Centres will ensure you maint ain greater value for
your vehicle.
Maintenance intervalsThe SEAT maintenance programme requires that your v ehicle undergoes an
inspection every 15,000 km (10,000 miles) or onc e a year.
Depending on your style of driving, the maintenance progr amme will depend
on the mileage of the vehicle or on the time since the d ate of purchase.For those vehicles covering more than 15,000 km (10,000 mil
es) / year, the
maintenance will be performed according to the mileage (see the example on
table 1).
For those vehicles covering less than 15,000 km (10 ,000 miles) /year, the
maintenance will be programmed according to the time (se e the example on
table 2).
Example of maintenance according to the mileage:
Km (miles) 15.000 30.000 45.000 60.000 75.000 90.000
Inspection Service every 15,000 km (10,000 miles) or e ach year xxx
Inspection Service every 30,000 km or 2 years x
xx
PM ibi cor_ingles Seite 10 Mittwoch, 21. März 2007 5:22 17
Page 13 of 43
General programme for Inspection Services11
Example of maintenance according to time
However, there are different specific “additional jo bs” depending on the
distance covered or the time passed since delivery . For ex ample:•
Timing belt change (depending on the mileage).
•
Change of brake fluid (for the first time after 3 years or 200,000 km
(125,000 miles), then every two years).
Inspection Service every 15,000 km or 1 yearOperations to be carried out on your vehicle•
“Next service” label: Write the date and mileage, and att ach it to the door
frame.
•
Engine oil and oil filter: Replace.
•
Front and rear brake pads: Check
•
Service interval indicator on the instrument panel: Re set.
•
Tyres, including the spare wheel: Check surface, tread and tyre pressure.
•
Interior and glove compartment lighting , cigarette lighter, warning lights
and horn: Check operation.
•
Front/rear lights, luggage compartmen t lighting, indicators and hazard
lights: Check operation
•
Windscreen wiper and headlight wiper system: Check operation and look
for possible damage, fill if necessary.
•
Exhaust installation: Check attachments and check fo r leaks and
damage.
Inspection Service every 30,000 km (20,000 miles) or every 2 yearsOperations to be performed on your vehicle:•
Exhaust installation: Check attachments and check fo r leaks and damage.
•
Steering system ball joints: Check attachments and c heck for leaks and
damage. Check for play.
•
“Next service” label: Write the date and mileage, and att ach it to the door
frame.
•
Automatic gearbox (differe ntial): Check the oil level, top up if necessary.
•
Battery: Test
•
Brake system: Check for leaks and damage.
•
Front and rear brake pads: check
•
Brake fluid level, according to brake pad wear: Check.
•
Self-diagnosis: Check fault memory in all systems.
•
Front/rear lights, luggage compartmen t lighting, indicators and hazard
lights: Check operation.
Time 1 year 2 years 3 years
4 years 5 years 6 years
Inspection Service every 15,000 km or 1 year x
xx
Inspection Service every 30,000 km or 2 years x
xx
PM ibi cor_ingles Seite 11 Mittwoch, 21. März 2007 5:22 17
Page 14 of 43
General programme for Inspection Services
12•
Poly-V belt: Check condition.
•
Poly-V belt: Check tension (only engines without autom atic tension
device).
•
Cooling system: Check the levels of the coolant and anti -freeze.
•
Engine and engine compartment components: Check for leaks and
damage (from above).
•
Engine and components in engine compartment, gea rbox and steering
knuckles: Check for leaks and damage (from above).
•
Engine oil and oil filter: Replace.
•
Test drive: Check brake operation, handbrake, gearbo x operation,
steering system operation, kick-down (for autom atic gearbox), air condi-
tioning and sliding roof.
•
Interior and glove compartment lighting , cigarette lighter, warning lights
and horn: Check operation.
•
Tyres, including the spare wheel: Check surface, tread and tyre pr essure.
•
Headlights: Check adjustment.
•
Windscreen wiper and headlight wiper system: Check
operation and look
for possible damage, fill if necessary.
•
Sliding roof: Check operation, clean guttering and lubricate guides.
•
Service interval indicator on the instrument panel: Re set.
•
Door and tailgate hinges: Lubricate.
•
Underbody protection: Check for damage
•
Power steering: Check oil level.
Additional workIn addition to the Inspection Service, additional maintenance jobs may have
to be carried out, depending on the conditions in wh ich your vehicle is used
and on the equipment carried. This addi tional work should be carried out in
accordance with time/distance travelled to ensure your vehicle remains reli-
able. Your Service Centre will provide detailed in formation about the addi-
tional work that may be necessary. This can be done independently of the
obligatory services, taking into account the notes i n the Maintenance
Programme (or the label: Next service). Your SEAT Service Centre will be
happy to advise you and quote the prices for this additi onal work. Additional
jobs completed are marked on the workshop sheet with the receipt.Every 7,500 km (5,000 miles)•
Engine oil and oil filter: Replace (only engines using high sulphur content
diesel fuel).
Every 30,000 km (20,000 miles)•
Air filter: Clean the housing and replace the filter element (Ibiz a Cupra
only).
•
Fuel filter: Drain.
•
Fuel filter: Replacement (only diesel engines using biodi esel, or using fuel
that does not comply with the DIN EN 590 standard)
•
Dust and pollen filter for the passenger compartment : Replace.
•
Manual gearbox: Check the oil level (only in the case of permeability).
PM ibi cor_ingles Seite 12 Mittwoch, 21. März 2007 5:22 17
Page 15 of 43
General programme for Inspection Services13
Every 60,000 km (40,000 miles)•
Automatic gearbox: Verify ATF level.
•
Fuel filter: Replacement (only diesel engines using fu el complying with
the DIN EN 590 standard)
•
Air filter: Clean the housing and replace the filter element.
•
Spark plugs: Replace.
At 90,000 km /60,000 miles (the first time), then every 30,000 km (20,000 miles)•
Camshaft timing belt: Verify conditio n and possibly replace (only petrol
engines).
Every 120,000 km (80,000 miles)•
Particulate filter: Check (1.9 TDI engines)
•
Camshaft timing belt: Replace (TDI engine with injector pump).
Every 150,000 km (100,000 miles)•
Particulate filter: Check (1.4 TDI engines)
•
Timing belt for camshaft operation: Replace (TDI and SDI engines).
Every 180,000 km (120,000 miles)•
Timing belt for camshaft operation: Replace (4 cylinder petrol engines
with 20 valves).
Every 240,000 km (160,000 miles)•
Camshaft timing belt tension device: Replace (only TDI engine w ith
injector pump).
Every 2 years•
Passenger compartment dust and pollen filter: replace ment (only for vehi-
cles with less than 30,000 km/ 20,000 miles).
After 3 years (or 200,0 00 km / 125,000 miles) the first time, then every 2 years•
Brake fluid: Replace
PM ibi cor_ingles Seite 13 Mittwoch, 21. März 2007 5:22 17
Page 16 of 43
General programme for Inspection Services
14Every 4 years•
Air filter: Clean the housing and replace the filter elem ent (Only for vehi-
cles with less than 60,000 km).
•
Puncture repair kit: Check the expiry date on the seali ng compound and
replace if necessary.
•
Spark plugs: Replace (only for vehicles with less than 60,000 km/ 40,000
miles).Note
•
We recommend that you visit an Authorised SEAT Serv ice Centre whenever
you require any work done on your vehicle.
•
SEAT regularly communicates to its Authorised Servic e Centres new
product developments. They have t ools and highly specialized personnel
who can guarantee the safety and performance of your ve hicle.
•
Scrupulously following the General Programme for Inspection Services in
Authorised SEAT Service Centres will ensure you maint ain greater value for
your vehicle.
PM ibi cor_ingles Seite 14 Mittwoch, 21. März 2007 5:22 17
Page 17 of 43
Other services available15
Other services availableLegal Inspection ServiceThe legal inspections must be carried out at the intervals
prescribed.Many countries have legal requirements obliging owner s to have their vehicle
tested at specified intervals for safety for the user a nd for other traffic, as well
as ensuring that vehicle exhaust emissions meet the c ountries' regulations.
These revisions must be overseen by officially certifi ed centres.
Your Authorised Service Centre can inform you about the in spections required
by law, and can check your vehicle in the course of an In spection Service. This
will save you both time and money.
The Authorised Service Centre can also carry out the insp ections required by
law at the client's request.
Even if you do not wish to take advantage of this service and dec ide to take
your car to an officially certified centre for this check, we re commend that you
speak to the person in charge of your Authorised Service Centre first.
This person will be able to inform you of any points that require attention so
that your car does not fail the test and have to be re-teste d.Approved spare partsAll parts of your vehicle have been approved by SEAT, especially those parts
on which your safety depends. For this reason, the parts used in the
Programmed Inspection Services or in any vehicle repair must correspond
exactly to the manufacturer-defined r equirements. The approved SEAT spare parts have been designed especially for your vehicle. For thi
s reason, we
recommend that Genuine approved SEAT spares are alw ays used.
In the Authorised SEAT Service Centres you will fi nd the most important
approved spare parts. If in an exceptional case, the necess ary parts are not in
stock, they can, in general, be obtained swiftly.
The SEAT Service Centres in the EU provide a 24 month warranty
1) for
Approved Spare parts from the date they are fitted or sold. It is therefore
advisable to retain the original invoice from the Au thorised Service Centre as
proof of the existing warranty.
More information about this may be obtained from yo ur Authorised Service
Centre.
Approved SEAT exchange partsThe approved SEAT exchange parts, conforming to th e manufacturer’s
requirements, constitute an additional service at y our disposal, offering you
the possibility to update entire assemblies, the most common being: the
short engine block, gearboxes, cylinder heads, contro l units, electrical
elements, etc.
Of course these are Approved parts and, as they have the same class as the
manufacturer parts, they share the same SEAT appro ved spare parts warranty.
However, these parts are considerably cheaper as they are f actory-recondi-
tioned used parts. Keep the invoice for the approved S EAT exchange parts as
proof of the start of the existing warranty.1)The warranty is not available for all export mark ets. For more information, please ask
your Authorised SEAT Service Centre.
PM ibi cor_ingles Seite 15 Mittwoch, 21. März 2007 5:22 17
Page 18 of 43
Other services available
16More information about this may be obtained at the A uthorised Service
Centre.Approved accessoriesWe recommend that you use only genuine SEAT accessories
and accessories approved by SEAT.If you wish to equip your car with accessories, you sho uld remember the
following points:
We recommend that you use only genuine SEAT and SEA T approved accesso-
ries.
SEAT provides a warranty for SEAT accessories valid from th e date of purchase
or fitting. It is therefore advisable to retain the original invoice from the
Authorised Service Centre as proof of the existing wa rranty.
More information about this may be obtained from your Au thorised Service
Centre.
The accessories service also offers you expert ad vice and, if required, fitting
by a specialist.
In addition, Authorised Service Centres can supply c ar care products and
parts subject to normal wear, such as tyres, batte ries and light bulbs.Paintwork and body serviceSEAT vehicles are designed in such a way that, in case of bodywork damage,
there is only need to replace and paint the parts th at have been really
affected. Both operations must be carried out according to the req
uirements of the
manufacturer; this is an essential cond ition for conservation of the bodywork
and paintwork warranties.
PM ibi cor_ingles Seite 16 Mittwoch, 21. März 2007 5:22 17
Page 19 of 43
Warranty17
WarrantyFault-free operation warrantyAccording to the clauses of the warranty applied to SE AT vehicles in the sales
contract, A fault-free operation warranty of 2 years in acc ordance with legal
requirements
2) 3)
is provided from the date of delivery.
We hope that it is understood that natural wear as well as damage caused by
the abuse of vehicle performance through inappr opriate use or by unaccept-
able modifications are excluded from the warranty. The warranty is also
invalid when the vehicle is damaged by the use of pa rts and accessories that
are not SEAT approved or damage due to ignorin g the maintenance and repair
requirements.
Paintwork and body warrantyAuthorised Service Centres provide a warranty on bodywork
and paintwork for vehicles sold in the EU.In addition to the warranty conditions for brand new S EAT vehicles (as
detailed in the purchase contract), a defined period warranty i s also provided
covering paintwork and bodywork rusting:•
3 year paintwork warranty following delivery date (ex cept the Alhambra
model).
•
12 years from the date of delivery against bodywork through-rusting (6
years for the Alhambra).
If, however, this type of damage should occur, it w ill be repaired free of charge
including parts and labour by any SEAT Authorised Servi ce Centre in Europe.
Warranty claims will not be accepted in the follow ing circumstances:
•
if damage is caused by external influence or carelessness , or
•
if damage to the body is not repaired promptly and appropriately in
accordance with the manufacturer's in structions using genuine, approved
spare parts and materials, or
•
if perforation rusting is caused by the use of non-genuine p arts and mate-
rials for body repairs and if these repairs were not c arried out in accordance
with the manufacturer's instructions.
If the bodywork is repaired or painted, your Authorised Service Centre will
certify your warranty against through-rusting for th e repaired sections.
Approved SEAT exchange partsThe approved SEAT exchange parts, conforming to th e manufacturer’s
requirements, constitute an additional service at your dis posal, offering you
the possibility to update entire assemblies, the most c ommon being: the
short engine block, gearboxes, cylinder heads, contro l units, electrical
elements, etc.
Of course these are Approved parts and, as they have the same class as the
manufacturer parts, they share the same SEAT approv ed spare parts warranty.
2)The warranty is not available for all export markets. For more information, please ask
your Authorised SEAT Service Centre.3)As well as the legally required warranty, SEAT o ffers an extended warranty to their cli-
ents in some European countries. The specific co nditions of this extended warranty
are detailed in the vehicle sales contract.
PM ibi cor_ingles Seite 17 Mittwoch, 21. März 2007 5:22 17
Page 20 of 43
Warranty
18However, these parts are considerably cheaper as they are f actory-recondi-
tioned used parts. Keep the invoice for the approved SEAT exchange parts as
proof of the start of the existing warranty.
More information about this may be obtained a t the Authorised Service
Centre.Approved accessoriesWe recommend that you use only genuine SEAT accessories
and accessories approved by SEAT.If you wish to equip your car with accessories, you sho uld remember the
following points:
We recommend that you use only genuine SEAT and SEA T approved accesso-
ries.
SEAT provides a warranty for SEAT accessories valid from th e date of purchase
or fitting. It is therefore advisable to retain the original invoice from the
Authorised Service Centre as proof of the existing w arranty.
More information about this may be obtained from yo ur Authorised Service
Centre.
The accessories service also offers you expert ad vice and, if required, fitting
by a specialist.
In addition, Authorised Service Centres can supply car care p roducts and
parts subject to normal wear, such as tyres, batte ries and light bulbs.
Paintwork and body serviceSEAT vehicles are designed in such a way that, in case of bodywork damage,
there is only need to replace and paint the parts that have been really
affected.
Both operations must be carried out according to the requirements of the
manufacturer; this is an essential cond ition for conservation of the bodywork
and paintwork warranties.
PM ibi cor_ingles Seite 18 Mittwoch, 21. März 2007 5:22 17
