compression ratio Seat Cordoba 2007 Owner's Manual

Technical Data231
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Petrol engine 1.2 litre 51 kW (69 bhp)General engine data
Performance figures
Weights
Trailer weightsPower output in kW (bhp)
rpm 51 (69)/ 5400
Maximum torque in Nm at rpm 112/ 3000
No. of cylinders, capacity in cm
3
3/ 1198
Compression 10,5+/- 0,3
Fuel Super 95 RON
a)/Normal 91 RON
a) b)
a)Research-Octane-Number = Measure of the predetonation power of the petrol.b)With a slight power lossMaximum speed in km/h 171
Acceleration from 0-80 km/h in sec. 9,7
Acceleration from 0-100 km/h in sec. 14,7
Gross vehicle weight in kg 1580
Weight in working order (with driver) in kg 1141
Gross axle weight, front in kg 810
Gross axle weight, rear in kg 830
Permitted roof load in kg 75
With no brakes, gradients up to 12% 500
With brakes, gradients up to 12% 800
cordoba_ingles_0706 Seite 231 Montag, 28. August 2006 1:18 13

Technical Data

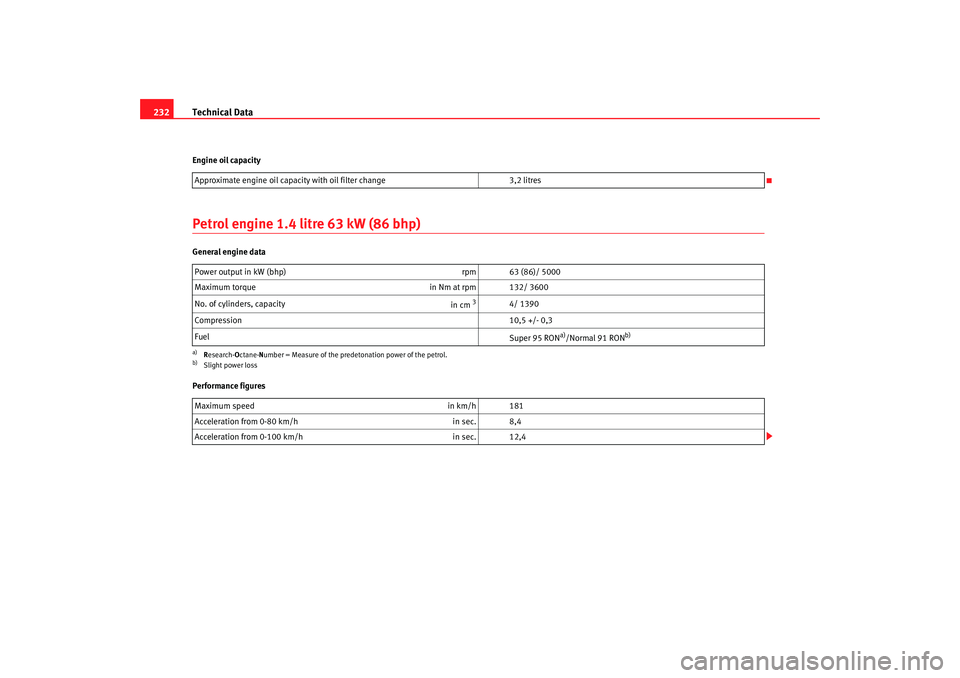

232Engine oil capacityPetrol engine 1.4 litre 63 kW (86 bhp)General engine data
Performance figures Approximate engine oil capacity with oil filter change
3,2 litres
Power output in kW (bhp) rpm 63 (86)/ 5000
Maximum torque in Nm at rpm 132/ 3600
No. of cylinders, capacity in cm
3
4/ 1390
Compression 10,5 +/- 0,3
Fuel Super 95 RON
a)/Normal 91 RON
b)
a)Research- Octane- Number = Measure of the predetonation power of the petrol.b)Slight power lossMaximum speed in km/h 181
Acceleration from 0-80 km/h in sec. 8,4
Acceleration from 0-100 km/h in sec. 12,4
cordoba_ingles_0706 Seite 232 Montag, 28. August 2006 1:18 13

Technical Data235
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

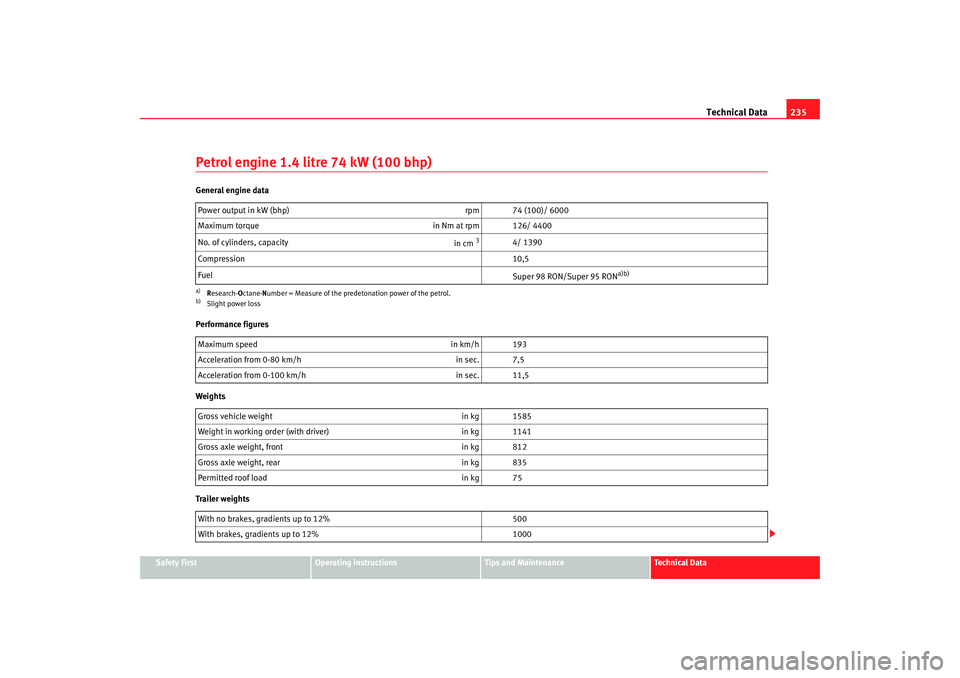

Petrol engine 1.4 litre 74 kW (100 bhp)General engine data
Performance figures
Weights
Trailer weightsPower output in kW (bhp)
rpm 74 (100)/ 6000
Maximum torque in Nm at rpm 126/ 4400
No. of cylinders, capacity in cm
3
4/ 1390
Compression 10,5
Fuel Super 98 RON/Super 95 RON
a)b)
a)Research- Octane- Number = Measure of the predetonation power of the petrol.b)Slight power lossMaximum speed in km/h 193
Acceleration from 0-80 km/h in sec. 7,5
Acceleration from 0-100 km/h in sec. 11,5
Gross vehicle weight in kg 1585
Weight in working order (with driver) in kg 1141
Gross axle weight, front in kg 812
Gross axle weight, rear in kg 835
Permitted roof load in kg 75
With no brakes, gradients up to 12% 500
With brakes, gradients up to 12% 1000
cordoba_ingles_0706 Seite 235 Montag, 28. August 2006 1:18 13

Technical Data

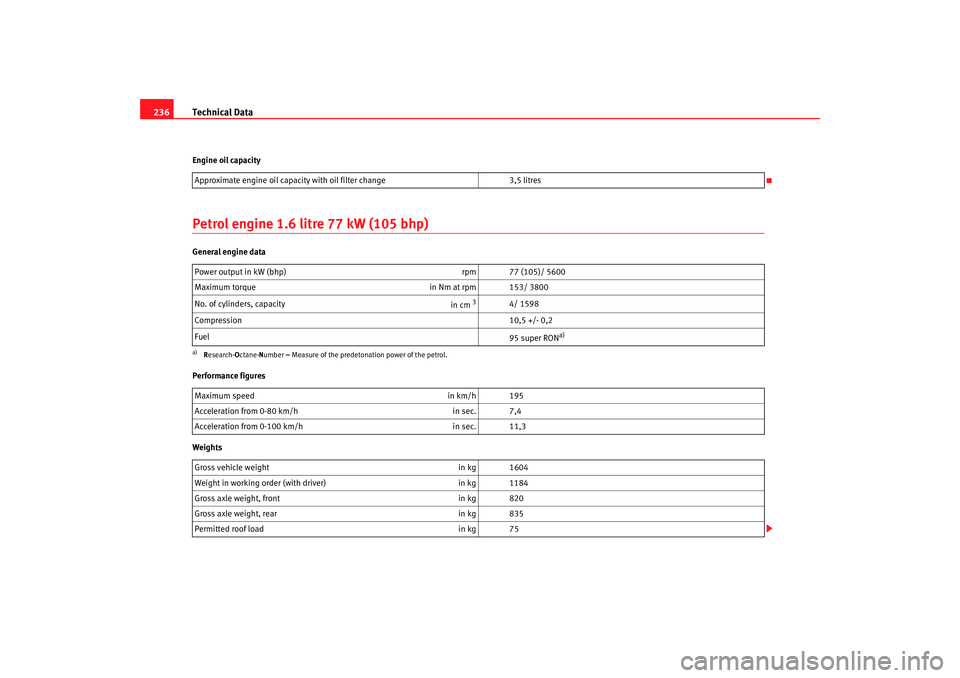

236Engine oil capacityPetrol engine 1.6 litre 77 kW (105 bhp)General engine data
Performance figures
Weights Approximate engine oil capacity with oil filter change
3,5 litres
Power output in kW (bhp) rpm 77 (105)/ 5600
Maximum torque in Nm at rpm 153/ 3800
No. of cylinders, capacity in cm
3
4/ 1598
Compression 10,5 +/- 0,2
Fuel 95 super RON
a)
a)Research- Octane- Number = Measure of the predetonation power of the petrol.Maximum speed in km/h 195
Acceleration from 0-80 km/h in sec. 7,4
Acceleration from 0-100 km/h in sec. 11,3
Gross vehicle weight in kg 1604
Weight in working order (with driver) in kg 1184
Gross axle weight, front in kg 820
Gross axle weight, rear in kg 835
Permitted roof load in kg 75
cordoba_ingles_0706 Seite 236 Montag, 28. August 2006 1:18 13

Technical Data237
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Trailer weights
Engine oil capacity

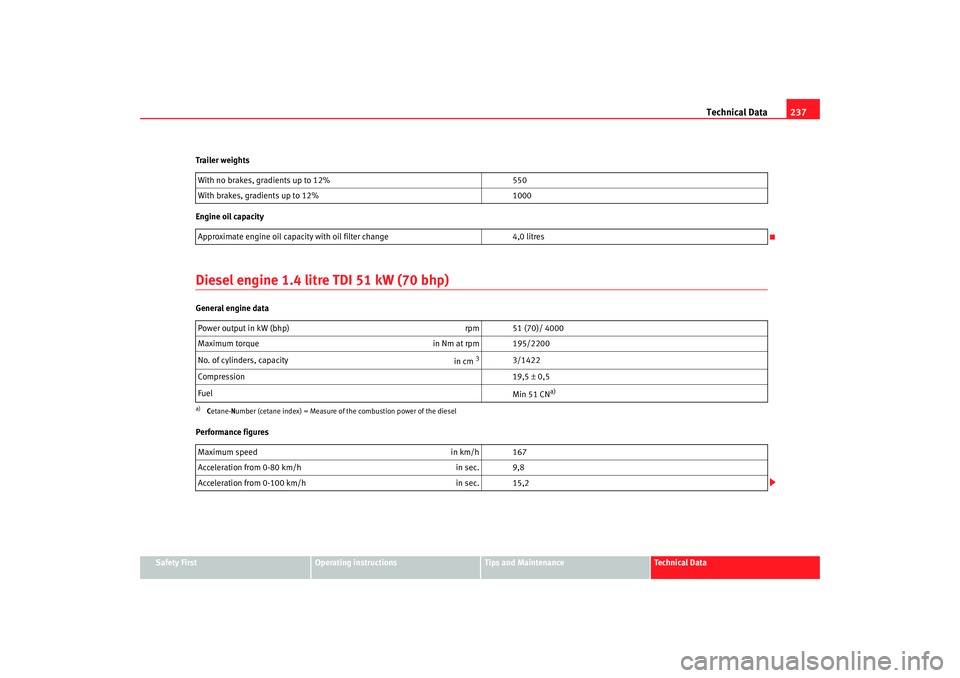

Diesel engine 1.4 litre TDI 51 kW (70 bhp)General engine data
Performance figures
With no brakes, gradients up to 12%
550
With brakes, gradients up to 12% 1000
Approximate engine oil capacity with oil filter change 4,0 litres
Power output in kW (bhp) rpm 51 (70)/ 4000
Maximum torque in Nm at rpm 195/2200
No. of cylinders, capacity in cm
3
3/1422
Compression 19,5 ± 0,5
Fuel Min 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the dieselMaximum speed in km/h 167
Acceleration from 0-80 km/h in sec. 9,8
Acceleration from 0-100 km/h in sec. 15,2
cordoba_ingles_0706 Seite 237 Montag, 28. August 2006 1:18 13

Technical Data

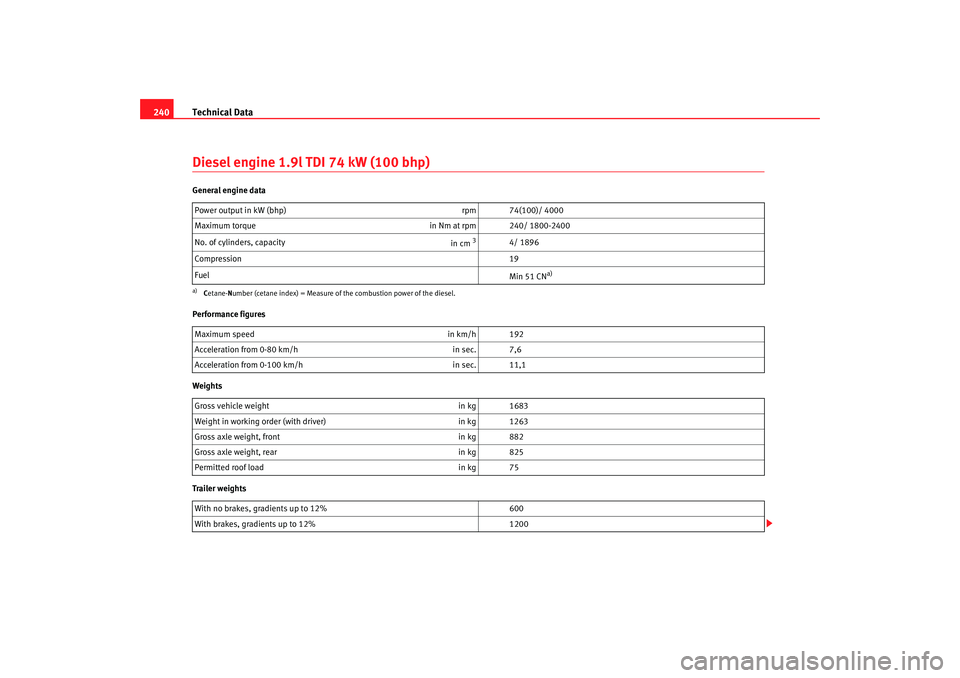

240Diesel engine 1.9l TDI 74 kW (100 bhp)General engine data
Performance figures
Weights
Trailer weights Power output in kW (bhp)
rpm 74(100)/ 4000
Maximum torque in Nm at rpm 240/ 1800-2400
No. of cylinders, capacity in cm
3
4/ 1896
Compression 19
Fuel Min 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the diesel.Maximum speed in km/h 192
Acceleration from 0-80 km/h in sec. 7,6
Acceleration from 0-100 km/h in sec. 11,1
Gross vehicle weight in kg 1683
Weight in working order (with driver) in kg 1263
Gross axle weight, front in kg 882
Gross axle weight, rear in kg 825
Permitted roof load in kg 75
With no brakes, gradients up to 12% 600
With brakes, gradients up to 12% 1200
cordoba_ingles_0706 Seite 240 Montag, 28. August 2006 1:18 13

Technical Data241
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Engine oil capacity

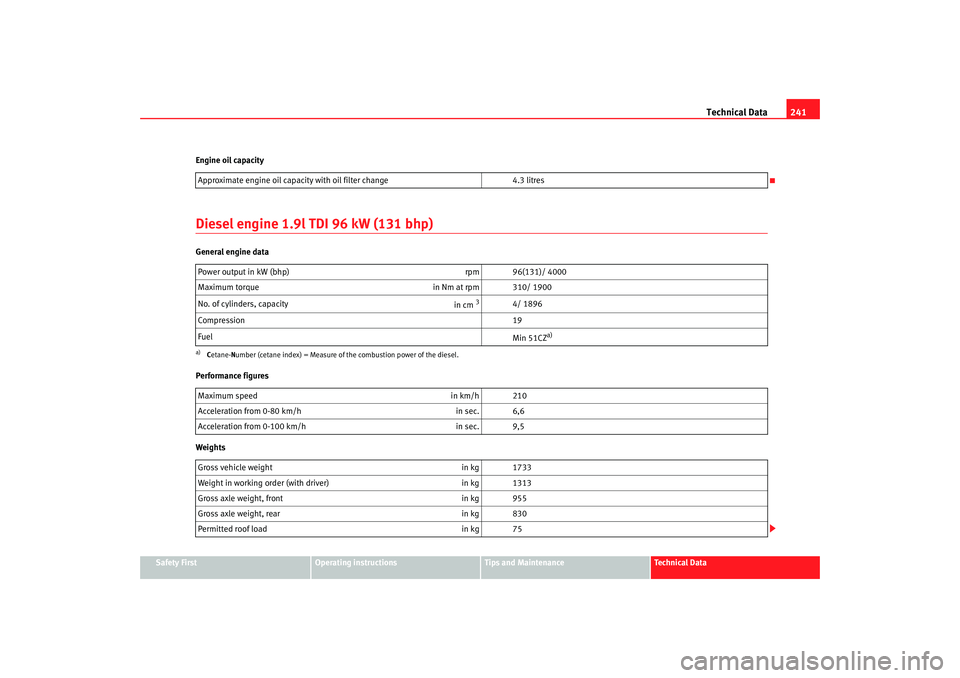

Diesel engine 1.9l TDI 96 kW (131 bhp)General engine data
Performance figures
Weights
Approximate engine oil capacity with oil filter change
4.3 litres
Power output in kW (bhp) rpm 96(131)/ 4000
Maximum torque in Nm at rpm 310/ 1900
No. of cylinders, capacity in cm
3
4/ 1896
Compression 19
Fuel Min 51CZ
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the diesel.Maximum speed in km/h 210
Acceleration from 0-80 km/h in sec. 6,6
Acceleration from 0-100 km/h in sec. 9,5
Gross vehicle weight in kg 1733
Weight in working order (with driver) in kg 1313
Gross axle weight, front in kg 955
Gross axle weight, rear in kg 830
Permitted roof load in kg 75
cordoba_ingles_0706 Seite 241 Montag, 28. August 2006 1:18 13
