204Fuses on left side of dash panelFuses
Number Electrical equipment Amperes
1 Secondary water pump 1.8 20 VT (T16) 15
2A BS/E S P 10
3 Vacant
4 Brake light, clutch switch, relay coils 5
5 Engine control unit (petrol) 5
6R ig h t s id e lig h t 5
7L eft s id e lig ht 5
8 Mirror heating unit 5
9 Lambda probe 10
10 Signal “S”
a). Radio unit 5
11 Electric mirror power supply 5
12 Headlamp height adjustment 5
13 Oil pressure/level sensor 5
14 Additional heati ng engine/fuel pump 10
15 Automatic gearbox unit 10
16 Heated seats 15
17 Engine control unit 5
18 Instrument panel /Heating and vent ilation, Navigation, Headlamp height adjustment, Electric mirror 10
19 Reverse light 10
20 Windscreen washer pump 10
21 Main beam headlight, right 10
cordoba_ingles_0706 Seite 204 Montag, 28. August 2006 1:18 13

If and when207
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

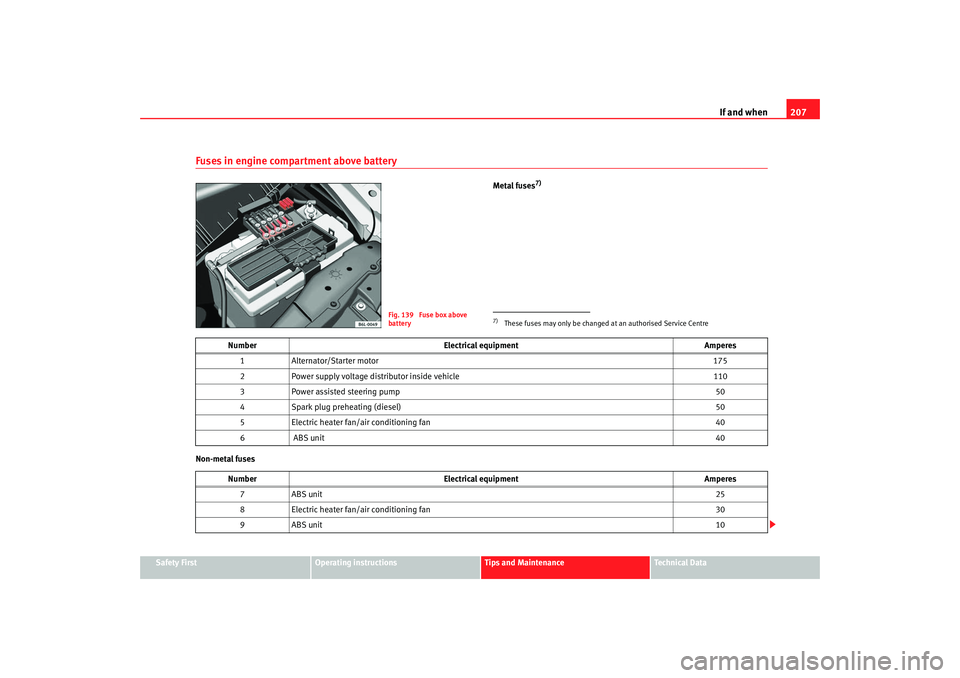

Fuses in engine compartment above battery
Metal fuses
7)
Non-metal fuses
Fig. 139 Fuse box above
battery
7)These fuses may only be changed at an authorised Service Centre
Number Electrical equipment Amperes
1 Alternator/Starter motor 175
2 Power supply voltage distributor inside vehicle 110
3 Power assisted steering pump 50
4 Spark plug preheating (diesel) 50
5 Electric heater fan/ air conditioning fan 40
6 A BS u nit 40
Number Electrical equipment Amperes
7A BS u nit 25
8 Electric heater fan/ air conditioning fan 30
9A BS u nit 10
