Seat Cordoba 2008 Owner's Manual
Manufacturer: SEAT, Model Year: 2008, Model line: Cordoba, Model: Seat Cordoba 2008Pages: 258, PDF Size: 7.87 MB
Page 111 of 258

Seats and stowage109
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l  D a t a
Stowage drawer under front right seat*To  o p e n
– Press button and pull outwards, holding it with a hand.
To  c l o s e
– Press inwards until it engages.
Seat storage pocket*There is a storage pocket on the rear of the front seats.
Fig. 78  Stowage
compartment under the
front passenger seat
Fig. 79  Seat storage
pocket
COR_ING_0707  Seite 109  Mittwoch, 1. August 2007  6:25 18
Page 112 of 258

Seats and stowage
110Front cup holder* To  o p e n
– Press on the edge of cup holder, this opens with a spring action.
To close
– Press the cup holder until it is completely closed.
WARNING
•
Never place hot drinks in the drink holders. During normal or sudden
driving manoeuvres, sudden braking or an accident, the hot drink could be
spilled. Danger of scalding.
•
Never use rigid materials (for example, glass or ceramic), these could
cause injury in the case of an accident.
•
When travelling the drinks holder should always be closed to prevent
risk in the event of sudden breaking or accident.
 Rear cup holder* On the rear part of the centre console, behind the hand brake, there is a
drinks holder installed*  ⇒fig. 81 .
Fig. 80  Front cup holder
in the centre console
Fig. 81  Cupholder in the
centre console
COR_ING_0707  Seite 110  Mittwoch, 1. August 2007  6:25 18
Page 113 of 258

Seats and stowage111
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l  D a t a
Ashtrays, cigarette lighter and electrical
socketsFront ashtrayOpening
– Press the lower part of the ashtray cover    ⇒fig. 82  and it will
open automatically with a spring action.
Emptying the ashtray
– Hold the ashtray on the right-hand side and pull upwards.
Replacement
– Push ashtray into holder. Closing
– Move the ashtray cover towards the gearstick until it engages.
WARNING
Never put paper in the ashtray. Hot ash could ignite the paper in the
ashtray.Cigarette lighter– Press on the cigarette lighter
⇒fig. 83  to activate it  ⇒.
– Wait for the lighter to pop out slightly.
– Pull out the cigarette lighter and light the cigarette on the  glowing coil.
Fig. 82
AA
Fig. 83  Cigarette lighter
COR_ING_0707  Seite 111  Mittwoch, 1. August 2007  6:25 18
Page 114 of 258

Seats and stowage
112
WARNING
•
Improper use of the cigarette lighter can lead to serious injuries or start
a fire.
•
Take care when using the cigarette lighter. Carelessness or negligence
when using the cigarette lighter can cause burns, risk of injury.
•
The lighter only works when the ignition is turned on or the engine is
running. To avoid the risk of fire, never leave children unsupervised in the
vehicle.
Electrical sockets The 12 Volt cigarette lighter socket can also be used for other electrical
components with a power rating of up to 120 Watt. When the engine is
switched off, however, the vehicle battery will discharge. Further information
⇒ page 167.
WARNING
The current sockets and the connected accessories will only operate when
the ignition is on or when the engine is running. Improper use of the
sockets or electrical accessories can lead to serious injuries or cause a fire.
To avoid the risk of injury, never leave children unsupervised in the vehicle.
Note
•
Using electrical appliances with the engine switched off will drain the
battery.
•
Before using any electrical accessories, see the instructions on
⇒ page 167.
Auxiliary audio connection (AUX-IN)– Lift the AUX. cover  ⇒fig. 84 .
– Insert the pin fully (See the radio manual).
Fig. 84  Auxiliary audio
connection
COR_ING_0707  Seite 112  Mittwoch, 1. August 2007  6:25 18
Page 115 of 258

Seats and stowage113
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l  D a t a
Connector for Apple* iPod
®
The iPod
® connector is in the glove compartment on the
passenger side.
For information concerning the use of this equipment, please see the Radio
handbook.
USB* connection
In the glove box on the passenger side there is a USB port.For information concerning the use of this equipment, please see the Radio
handbook.First-aid kit, warning triangle, fire
extinguisher*First aid kit, warning triangles and fire extinguisherThe use of reflective warning triangles is obligatory in emergencies in some
countries. As are the first aid kit and a set of spare lightbulbs.
The first aid kit can be fitted in one of the stowage compartments, located
below the boot floor mat. The warning tr iangle can be attached to the back of
Fig. 85  iPod connection
in glove box on passenger
side.
Fig. 86  USB connection*
in glove box on passenger
side.
COR_ING_0707  Seite 113  Mittwoch, 1. August 2007  6:25 18

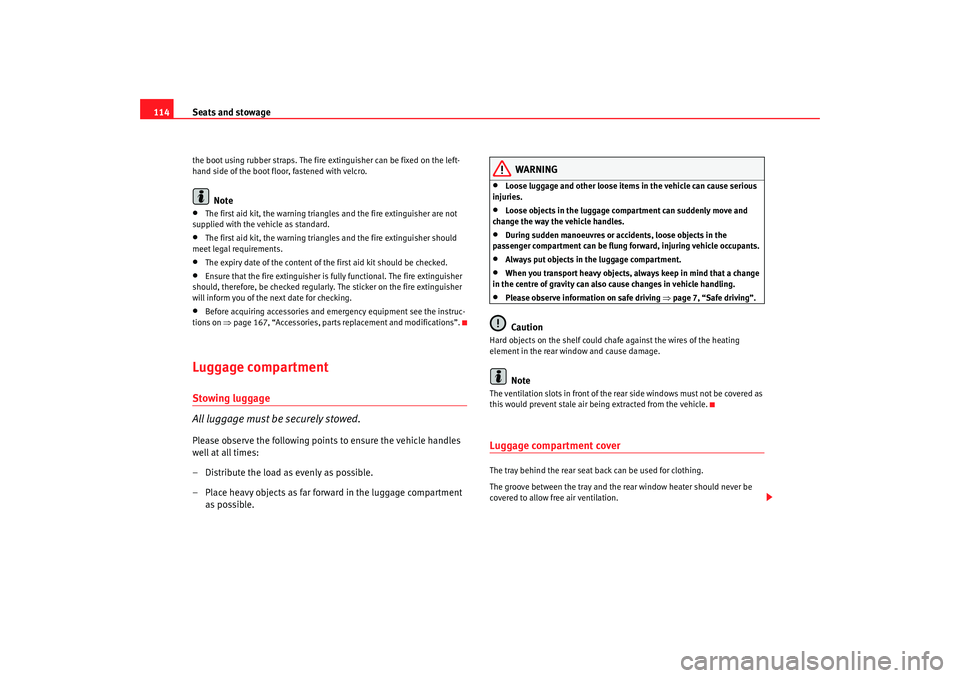

Page 116 of 258

Seats and stowage
114the boot using rubber straps. The fire ex tinguisher can be fixed on the left-
hand side of the boot floor, fastened with velcro.
Note
•
The first aid kit, the warning triangles and the fire extinguisher are not
supplied with the vehicle as standard.
•
The first aid kit, the warning triangles and the fire extinguisher should
meet legal requirements.
•
The expiry date of the content of the first aid kit should be checked.
•
Ensure that the fire extinguisher is fully functional. The fire extinguisher
should, therefore, be checked regularly. The sticker on the fire extinguisher
will inform you of the next date for checking.
•
Before acquiring accessories and emergency equipment see the instruc-
tions on ⇒ page 167, “Accessories, parts replacement and modifications”.
Luggage compartmentStowing luggage
All luggage must be securely stowed.Please observe the following points to ensure the vehicle handles
well at all times:
– Distribute the load as evenly as possible.
– Place heavy objects as far forward in the luggage compartment
as possible.
WARNING
•
Loose luggage and other loose items in the vehicle can cause serious
injuries.
•
Loose objects in the luggage compartment can suddenly move and
change the way the vehicle handles.
•
During sudden manoeuvres or accidents, loose objects in the
passenger compartment can be flung forward, injuring vehicle occupants.
•
Always put objects in the luggage compartment.
•
When you transport heavy objects, always keep in mind that a change
in the centre of gravity can also cause changes in vehicle handling.
•
Please observe information on safe driving  ⇒page 7, “Safe driving”.Caution
Hard objects on the shelf could chafe against the wires of the heating
element in the rear window and cause damage.
Note
The ventilation slots in front of the rear side windows must not be covered as
this would prevent stale air being extracted from the vehicle.Luggage compartment coverThe tray behind the rear seat back can be used for clothing.
The groove between the tray and the re ar window heater should never be
covered to allow free air ventilation.
COR_ING_0707  Seite 114  Mittwoch, 1. August 2007  6:25 18
Page 117 of 258

Seats and stowage115
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l  D a t a
WARNING
Do not place heavy or hard objects on the luggage compartment cover, this
will endanger the vehicle occupants in case of sudden braking.
Caution
•
Before closing the tailgate, ensure that the stowage compartment tray is
correctly fitted.
•
An overloaded boot could mean that the rear stowage tray is not correctly
seated and it may be bent or damaged.Note
•
Below the boot floor trim, next to the spare wheel, is a removable stowage
tray.
 Roof carrier*Please observe the following points if you intend to carry loads on the roof:•
For safety reasons, only luggage racks and accessories approved by SEAT
should be used.
•
It is imperative to precisely follow  the fitting instructions included for the
rack, taking special care when fitting  the front bar in the holes designed for
this and the rear bar between the marks on the upper part of the rear door
frame while respecting the correct direction of travel indicated in the installa-
tion manual. Not following these instructions may lead to paintwork damage
or marks on the bodywork.
•
Pay special attention to the tightening  torque of the attachment bolts and
check them following a short journey. If necessary, retighten the bolts and
check them at regular intervals.
•
Distribute the load evenly. A maximum  load of 40 kg only is permitted for
each roof carrier system support bar, the load must be distributed evenly over
the entire length. However, the maximum load permitted for the entire roof
(including the support system) of 75 kg must not be exceeded nor should the
total weight of the vehicle be exceeded. See the chapter on “Technical Data”.
•
When transporting heavy or large objects on the roof, any change in the
normal vehicle behaviour due to a change in the centre of gravity or an
increased wind resistance must be taken into account. For this reason, a suit-
able speed and driving style must be used.
•
For those vehicles fitted with a sunroof*, ensure that it does not interfere
with the load on the roof  carrier system when opened.
COR_ING_0707  Seite 115  Mittwoch, 1. August 2007  6:25 18
Page 118 of 258

Heating, Ventilation and Air conditioning
116Heating, Ventilation and Air conditioningHeating and ventilationControls– Using the controls  ⇒fig. 87    and   and with the switch
you can set the temperature, air distribution and the blower
speed.
– Press the button   to switch air recirculation mode on or off. A  button is illuminated by a yellow lamp for as long as the function
is switched on.Temperature
Switch   sets the temperature. The required temperature inside the vehicle
cannot be lower than the ambient temp erature. Maximum heat output, which  is needed to defrost the windows quickly, is only available when the engine
has reached its operating temperature.
Blower
The air flow can be set at four speeds with switch  . The blower should
always be set at the lowest speed when driving slowly.
Air distribution
Control   for setting the flow of
 air in the required direction.
 – Air distribution towards the windsc reen. Air recirculation is, for safety
reasons,  not possible in this position. – Air distribution  to the upper body. – Air distribution to footwell. – Air distribution to the windscreen and the footwell.
Air recirculation mode
Air recirculation   on (button symbol   lights up) prevents strong odours
in the outside air from entering the vehicle interior, for example when driving
through a tunnel or queuing in traffic  ⇒.
When the outside temperature is low, us ing air recirculation mode provides
more effective heating by heating air from the vehicle interior instead of cold
air from outside.
WARNING
•
For your safety, the windows should  never be fogged up or covered with
snow or ice. This is essential to ensure good visibility. Please familiarise
yourself with the correct operation of  the heating and ventilation system,
including the demist/defrost  functions for the windows.
Fig. 87  On the dash
panel: Heater controls
AA
AC
AB
AD
AA
AB
AC
AD
COR_ING_0707  Seite 116  Mittwoch, 1. August 2007  6:25 18

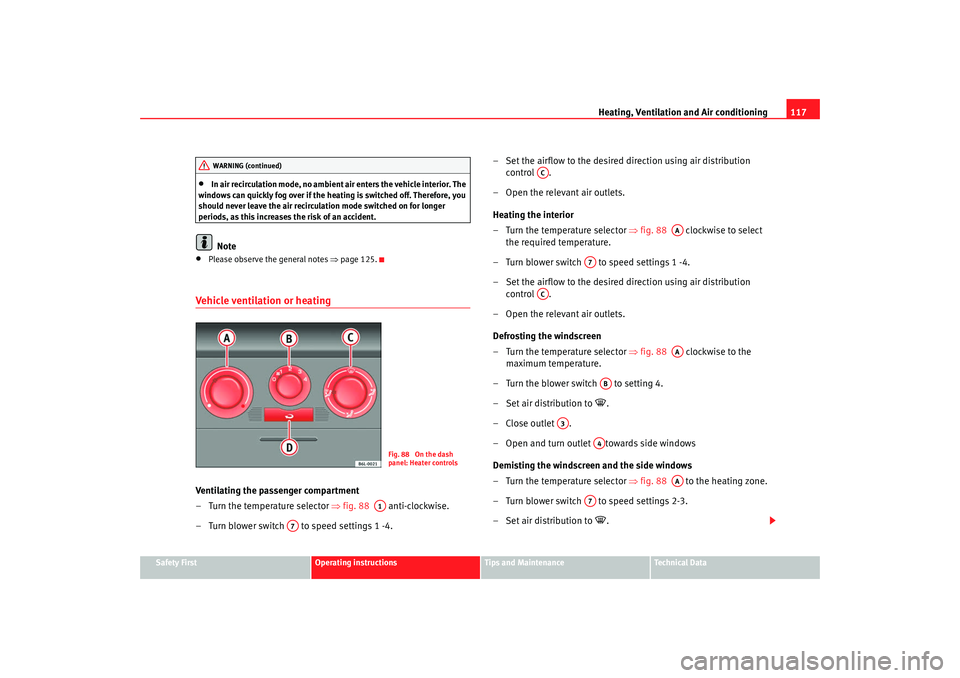

Page 119 of 258

Heating, Ventilation and Air conditioning 117
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l  D a t a
•
In air recirculation mode, no ambient  air enters the vehicle interior. The
windows can quickly fog over if the heating is switched off. Therefore, you
should never leave the air recirculat ion mode switched on for longer
periods, as this increases the risk of an accident.Note
•
Please observe the general notes  ⇒page 125.
Vehicle ventilation or heatingVentilating the passenger compartment
– Turn the temperature selector ⇒ fig. 88   anti-clockwise.
– Turn blower switch   to speed settings 1 -4. – Set the airflow to the desired direction using air distribution
control .
– Open the relevant air outlets.
Heating the interior
– Turn the temperature selector ⇒ fig. 88   clockwise to select
the required temperature.
– Turn blower switch   to speed settings 1 -4.
– Set the airflow to the desired direction using air distribution  control .
– Open the relevant air outlets.
Defrosting the windscreen
– Turn the temperature selector ⇒ fig. 88   clockwise to the
maximum temperature.
– Turn the blower switch   to setting 4.
– Set air distribution to
.
–Close outlet  .
– Open and turn outlet  towards side windows
Demisting the windscreen and the side windows
– Turn the temperature selector ⇒ fig. 88   to the heating zone.
– Turn blower switch   to speed settings 2-3.
– Set air distribution to
.
WARNING (continued)
Fig. 88  On the dash
panel: Heater controls
A1
A7
AC
AA
A7
AC
AA
AB
A3
A4
AA
A7
COR_ING_0707  Seite 117  Mittwoch, 1. August 2007  6:25 18
Page 120 of 258

Heating, Ventilation and Air conditioning
118
– Close outlets 3  .
– Open and turn outlets   towards side windowsWhen the windows are demisted and as a preventive measure, the switch
can be set in position
, thus obtaining greater comfort while preventing the
windows from misting again. Heating
Maximum heat output, which is needed to defrost the windows quickly, is
only available when the engine has reached its operating temperature.
Note
Remember that the temperature of the engine coolant should be optimum to
ensure that the heating system functions correctly ( except in vehicles fitted
with additional heating*)
Air outlets
A3
A4
AC
Fig. 89  Air vent
COR_ING_0707  Seite 118  Mittwoch, 1. August 2007  6:25 18
