Seat Cordoba 2008 Owner's Manual

If and when209
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Fuses below steering wheel in relay holderPTC fuses46
Windscreen wiper unit 20
47 Heated rear window unit 20
48 Indicator unit 15
49 Cigarette lighter 15
50 Locking unit 15
51 Radio/CD/GPS/Telephone 20
52 Horn 20
53 Dipped headlight (left side) 15
54 Right rear window control 25a)The signal “S”is a system which includes the starter and steering lock and enables, after the ignition is switched off and with out removing the key from the steering and starter lock,
certain electrical components to be switched on, including for example, the radio, the courtesy light, etc. This function is de activated on removing the key from the steering and starter
lock.
Number Consumer Amperes
1 PTCs (Supplementary electrical heating using air) 40
2 PTCs (Supplementary electrical heating using air) 40
3 PTCs (Supplementary electrical heating using air) 40
Number
Consumer Amperes
COR_ING_0707 Seite 209 Mittwoch, 1. August 2007 6:25 18

If and when
210Fuses in engine compartment above batteryMetal fuses
6)
Non-metal fuses
Fig. 139 Fuse box above
battery
6)These fuses may only be changed at an authorised Service Centre
Number Consumer Amperes
1 Alternator/Starter motor 175
2 Power supply voltage distributor inside vehicle 110
3 Power assisted steering pump 50
4 Spark plug preheating (diesel) 50
5 Electroblower clima heater/fan 40
6 A BS u nit 40
Number Consumer Amperes
7A BS u nit 25
8 Electroblower clima heater/fan 30
9A BS u nit 10
COR_ING_0707 Seite 210 Mittwoch, 1. August 2007 6:25 18

If and when211
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

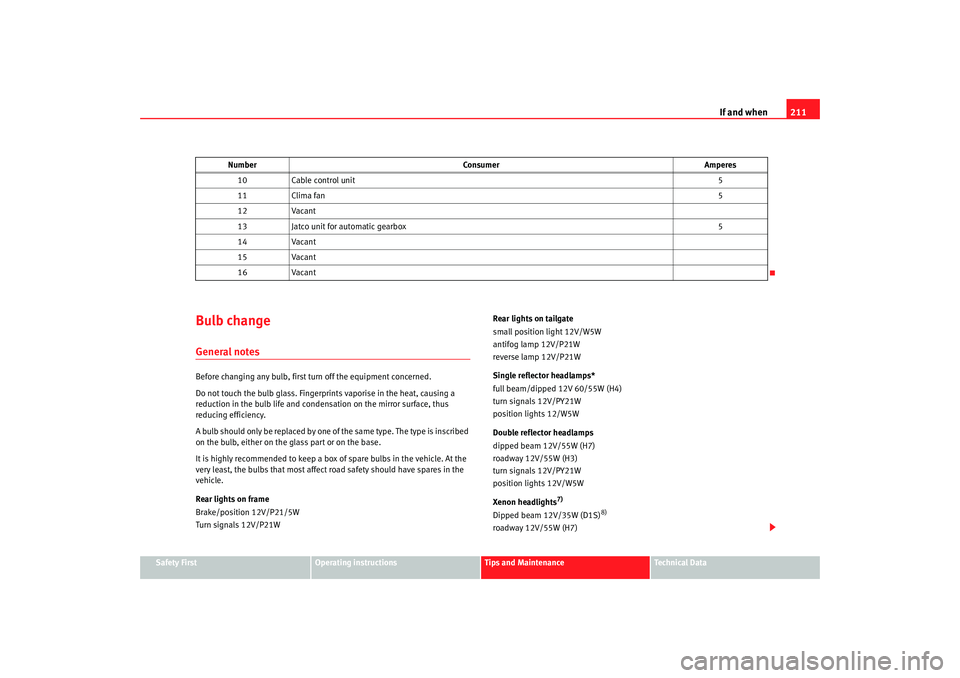

Bulb changeGeneral notesBefore changing any bulb, first turn off the equipment concerned.
Do not touch the bulb glass. Fingerprints vaporise in the heat, causing a
reduction in the bulb life and condensation on the mirror surface, thus
reducing efficiency.
A bulb should only be replaced by one of the same type. The type is inscribed
on the bulb, either on the glass part or on the base.
It is highly recommended to keep a box of spare bulbs in the vehicle. At the
very least, the bulbs that most affect road safety should have spares in the
vehicle.
Rear lights on frame
Brake/position 12V/P21/5W
Turn signals 12V/P21W Rear lights on tailgate
small position light 12V/W5W
antifog lamp 12V/P21W
reverse lamp 12V/P21W
Single reflector headlamps*
full beam/dipped 12V 60/55W (H4)
turn signals 12V/PY21W
position lights 12/W5W
Double reflector headlamps
dipped beam 12V/55W (H7)
roadway 12V/55W (H3)
turn signals 12V/PY21W
position lights 12V/W5W
Xenon headlights
7)
Dipped beam 12V/35W (D1S)
8)
roadway 12V/55W (H7)
10
Cable control unit 5
11 Clima fan 5
12 Vacant
13 Jatco unit for automatic gearbox 5
14 Vacant
15 Vacant
16 Vacant
Number
Consumer Amperes
COR_ING_0707 Seite 211 Mittwoch, 1. August 2007 6:25 18

If and when
212turn signals 12V/PY21W
position lights 12V/W5W
Fog lights*
Fog lights 12V/55W (H3)
Registration plate light
Registration plate light - C5W
Caution
•
The halogen lamps (H3, H7, H4...) are pressurised and might explode on
changing them.
•
Therefore protective gloves and glas ses should be worn when changing a
halogen lamp.Note
•
Due to the difficulty in accessing the lamps, any replacement work should
be done by a SEAT dealer. However, we shall explain how to change these
lamps, except for the xenon lights*.
Main headlight lamps
Dipped headlights
Main beam headlights
7)On this type of headlight, the bulb changes must be made by the SEAT dealer, given
that complex elements must be removed from the vehicle and a reset must be made
on the automatic control system incorporated.8)The Xenon bulbs discharge 2.5 times the light flux and have an average lifespan of 5
times more than that of halo gen bulbs, this means that, except due to unusual circum-
stances, there is no need to change the bulbs for the whole life of the vehicle.
Fig. 140 Main headlight
lampsFig. 141 Main headlight
lamps
AAAB
COR_ING_0707 Seite 212 Mittwoch, 1. August 2007 6:25 18

If and when213
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Side lights
Indicator lights

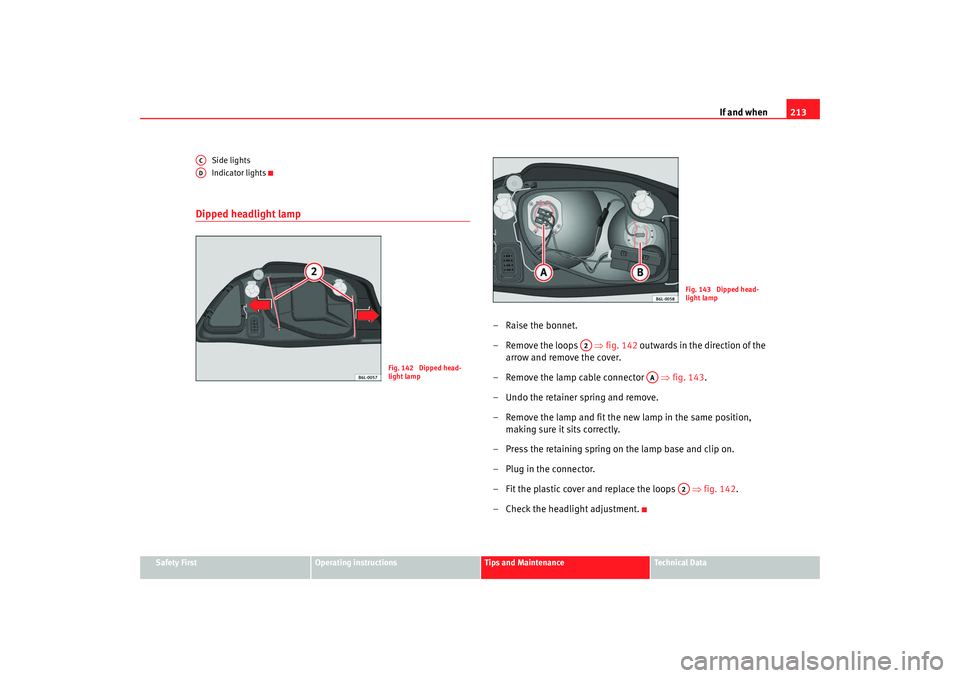

Dipped headlight lamp
– Raise the bonnet.
– Remove the loops
⇒fig. 142 outwards in the direction of the
arrow and remove the cover.
– Remove the lamp cable connector ⇒fig. 143.
– Undo the retainer spring and remove.
– Remove the lamp and fit the new lamp in the same position, making sure it sits correctly.
– Press the retaining spring on the lamp base and clip on.
– Plug in the connector.
– Fit the plastic cover and replace the loops ⇒fig. 142 .
– Check the headlight adjustment.
ACAD
Fig. 142 Dipped head-
light lamp
Fig. 143 Dipped head-
light lamp
A2
AA
A2
COR_ING_0707 Seite 213 Mittwoch, 1. August 2007 6:25 18

If and when

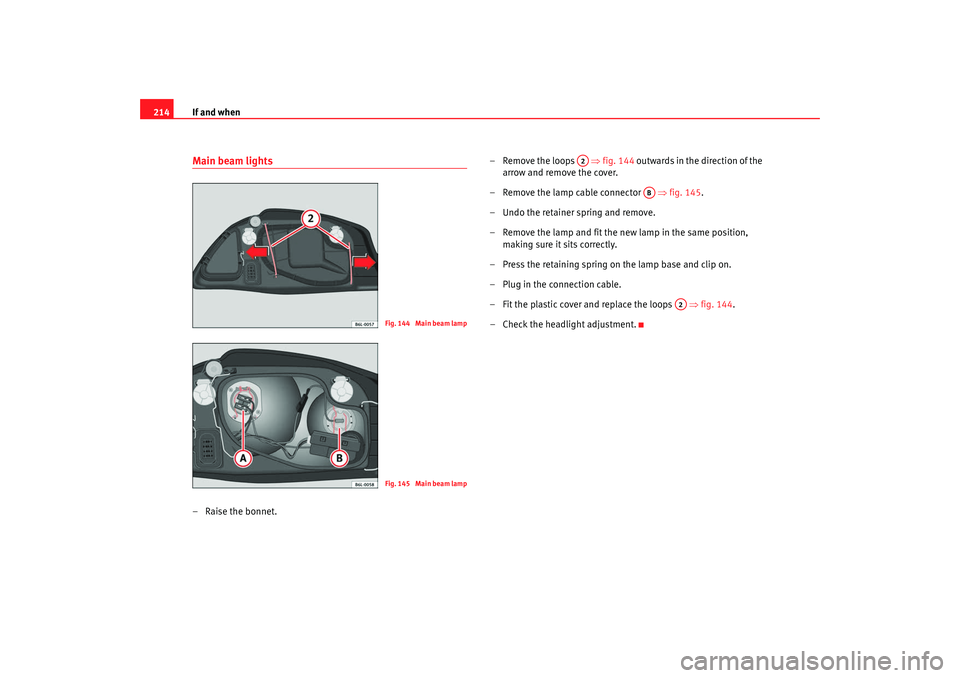

214Main beam lights– Raise the bonnet. – Remove the loops
⇒fig. 144 outwards in the direction of the
arrow and remove the cover.
– Remove the lamp cable connector ⇒fig. 145 .
– Undo the retainer spring and remove.
– Remove the lamp and fit the new lamp in the same position, making sure it sits correctly.
– Press the retaining spring on the lamp base and clip on.
– Plug in the connection cable.
– Fit the plastic cover and replace the loops ⇒fig. 144.
– Check the headlight adjustment.
Fig. 144 Main beam lampFig. 145 Main beam lamp
A2
AB
A2
COR_ING_0707 Seite 214 Mittwoch, 1. August 2007 6:25 18

If and when215
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

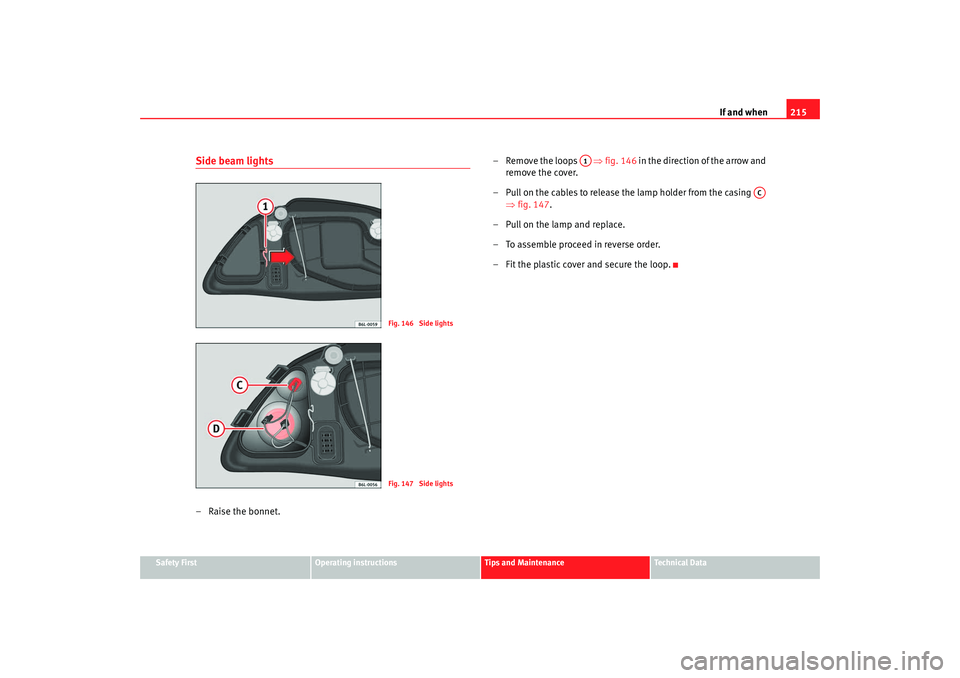

Side beam lights–Raise the bonnet. – Remove the loops
⇒fig. 146 in the direction of the arrow and
remove the cover.
– Pull on the cables to release the lamp holder from the casing ⇒fig. 147.
– Pull on the lamp and replace.
– To assemble proceed in reverse order.
– Fit the plastic cover and secure the loop.
Fig. 146 Side lightsFig. 147 Side lights
A1
AC
COR_ING_0707 Seite 215 Mittwoch, 1. August 2007 6:25 18

If and when

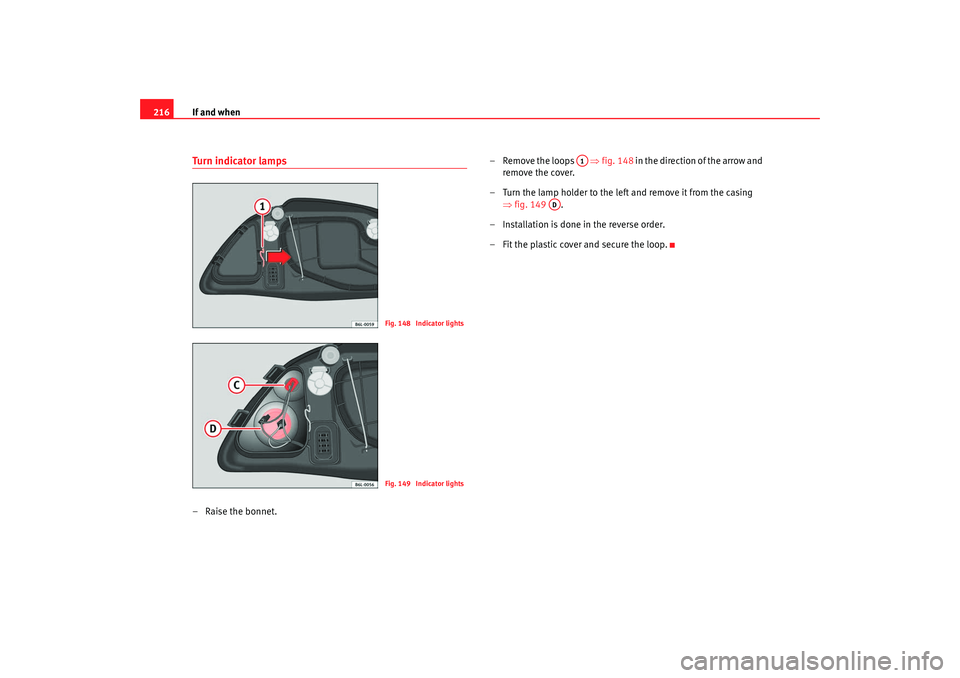

216Turn indicator lamps– Raise the bonnet. – Remove the loops
⇒fig. 148 in the direction of the arrow and
remove the cover.
– Turn the lamp holder to the left and remove it from the casing ⇒fig. 149 .
– Installation is done in the reverse order.
– Fit the plastic cover and secure the loop.
Fig. 148 Indicator lightsFig. 149 Indicator lights
A1
AD
COR_ING_0707 Seite 216 Mittwoch, 1. August 2007 6:25 18

If and when217
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

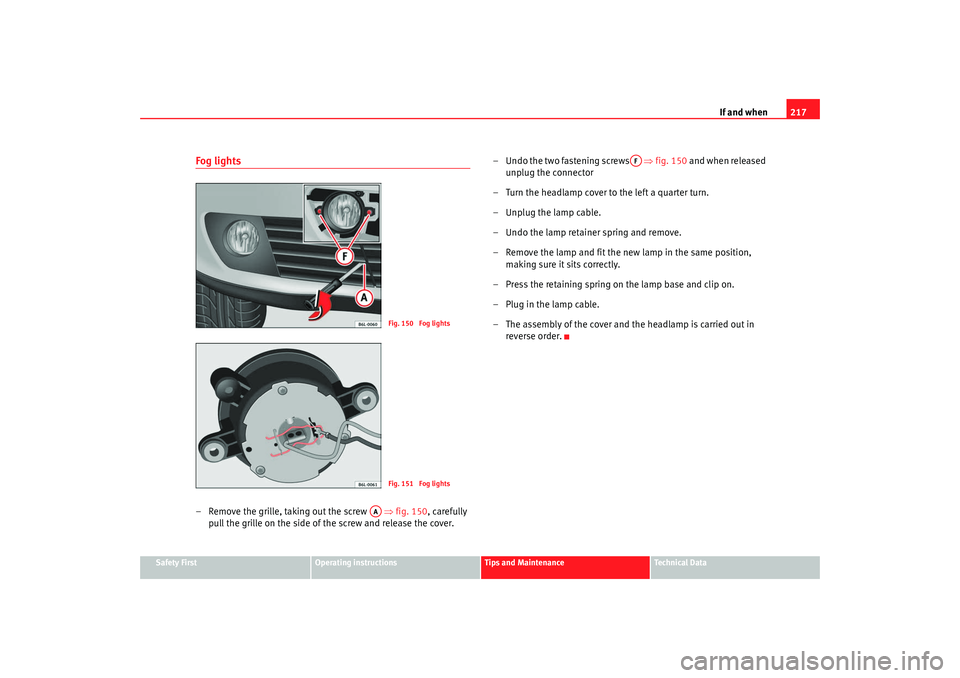

Fog lights– Remove the grille, taking out the screw ⇒fig. 150, carefully
pull the grille on the side of the screw and release the cover. – Undo the two fastening screws
⇒fig. 150 and when released
unplug the connector
– Turn the headlamp cover to the left a quarter turn.
– Unplug the lamp cable.
– Undo the lamp retainer spring and remove.
– Remove the lamp and fit the new lamp in the same position, making sure it sits correctly.
– Press the retaining spring on the lamp base and clip on.
–Plug in the lamp cable.
–The assembly of the cover and the headlamp is carried out in
reverse order.
Fig. 150 Fog lightsFig. 151 Fog lights
AA
AF
COR_ING_0707 Seite 217 Mittwoch, 1. August 2007 6:25 18

If and when

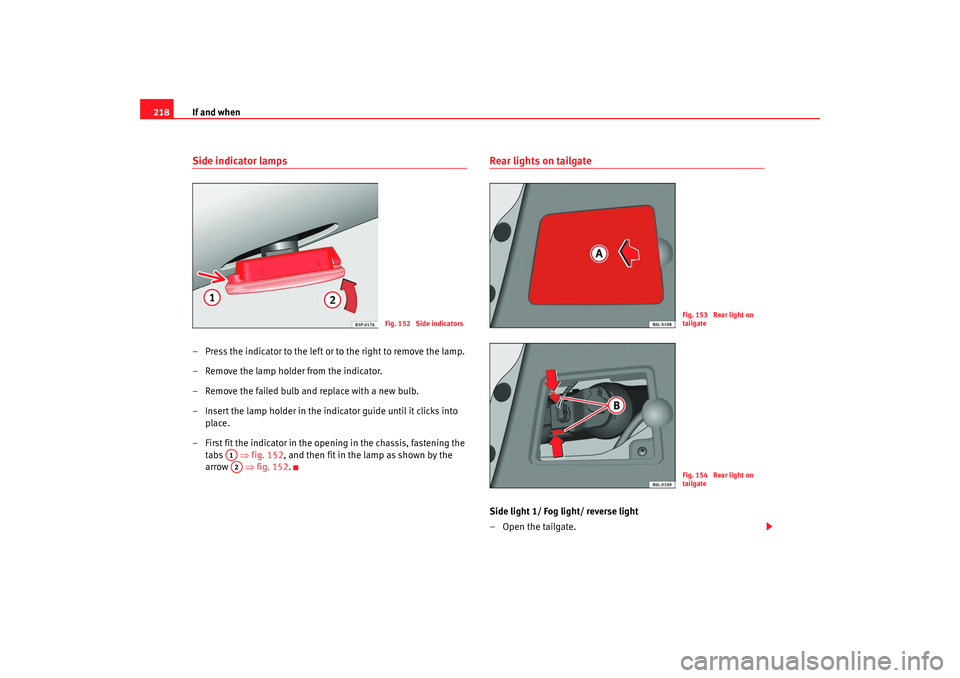

218Side indicator lamps– Press the indicator to the left or to the right to remove the lamp.
– Remove the lamp holder from the indicator.
– Remove the failed bulb and replace with a new bulb.
– Insert the lamp holder in the indicator guide until it clicks into
place.
– First fit the indicator in the opening in the chassis, fastening the tabs ⇒fig. 152, and then fit in the lamp as shown by the
arrow ⇒fig. 152.
Rear lights on tailgateSide light 1/ Fog light/ reverse light
–Open the tailgate.
Fig. 152 Side indicators
A1A2
Fig. 153 Rear light on
tailgateFig. 154 Rear light on
tailgate
