Seat Cordoba 2008 Owner's Manual

Technical Data239
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

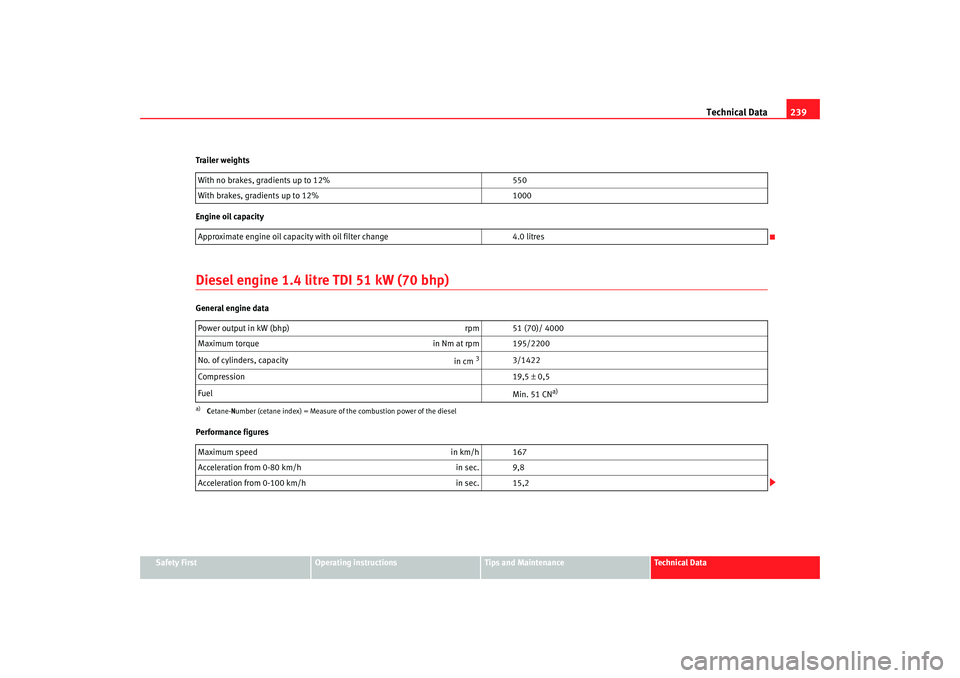

Trailer weights
Engine oil capacity
Diesel engine 1.4 litre TDI 51 kW (70 bhp)General engine data
Performance figures
With no brakes, gradients up to 12%
550
With brakes, gradients up to 12% 1000
Approximate engine oil capacity with oil filter change 4.0 litres
Power output in kW (bhp) rpm 51 (70)/ 4000
Maximum torque in Nm at rpm 195/2200
No. of cylinders, capacity in cm
3
3/1422
Compression 19,5 ± 0,5
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the dieselMaximum speed in km/h 167
Acceleration from 0-80 km/h in sec. 9,8
Acceleration from 0-100 km/h in sec. 15,2
COR_ING_0707 Seite 239 Mittwoch, 1. August 2007 6:25 18

Technical Data

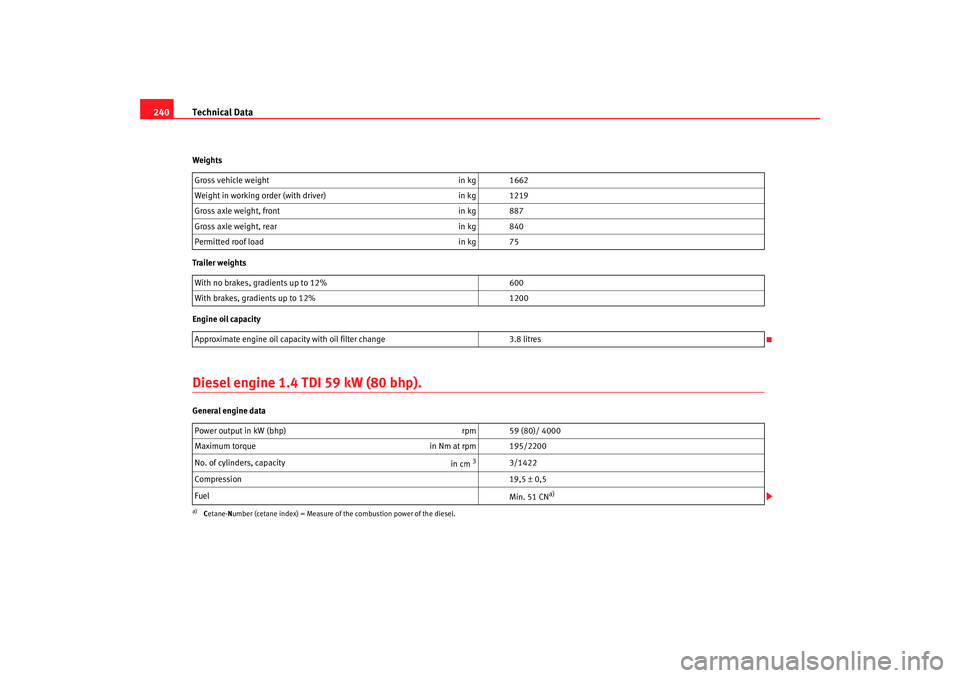

240Weights
Trailer weights
Engine oil capacityDiesel engine 1.4 TDI 59 kW (80 bhp).General engine data Gross vehicle weight
in kg 1662
Weight in working order (with driver) in kg 1219
Gross axle weight, front in kg 887
Gross axle weight, rear in kg 840
Permitted roof load in kg 75
With no brakes, gradients up to 12% 600
With brakes, gradients up to 12% 1200
Approximate engine oil capacity with oil filter change 3.8 litres
Power output in kW (bhp) rpm 59 (80)/ 4000
Maximum torque in Nm at rpm 195/2200
No. of cylinders, capacity in cm
3
3/1422
Compression 19,5 ± 0,5
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the diesel.
COR_ING_0707 Seite 240 Mittwoch, 1. August 2007 6:25 18

Technical Data241
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

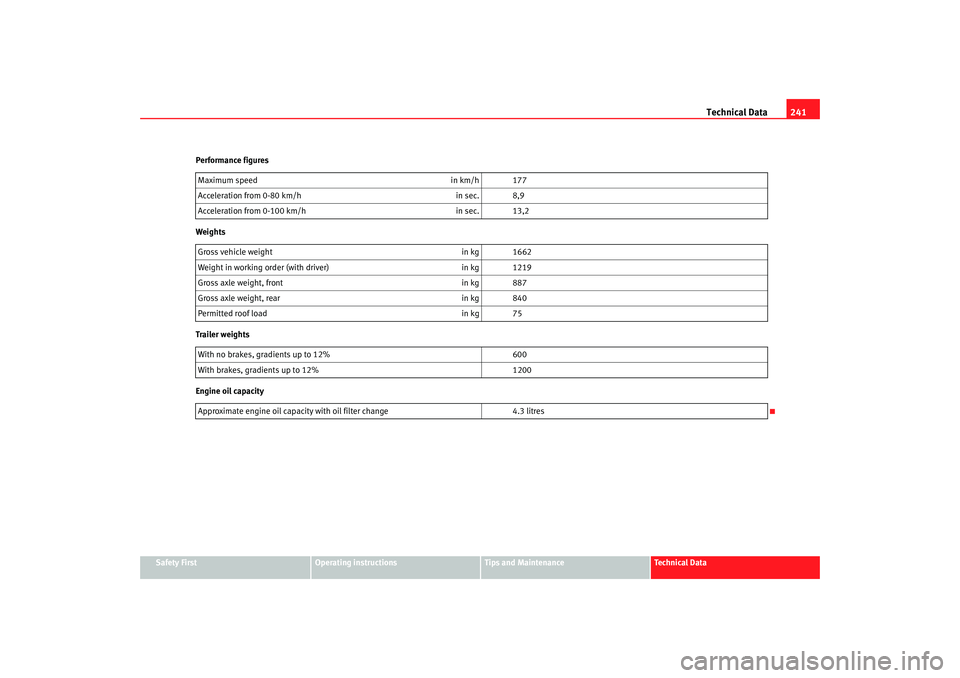

Performance figures
Weights
Trailer weights
Engine oil capacity
Maximum speed
in km/h 177
Acceleration from 0-80 km/h in sec. 8,9
Acceleration from 0-100 km/h in sec. 13,2
Gross vehicle weight in kg 1662
Weight in working order (with driver) in kg 1219
Gross axle weight, front in kg 887
Gross axle weight, rear in kg 840
Permitted roof load in kg 75
With no brakes, gradients up to 12% 600
With brakes, gradients up to 12% 1200
Approximate engine oil capacity with oil filter change 4.3 litres
COR_ING_0707 Seite 241 Mittwoch, 1. August 2007 6:25 18

Technical Data

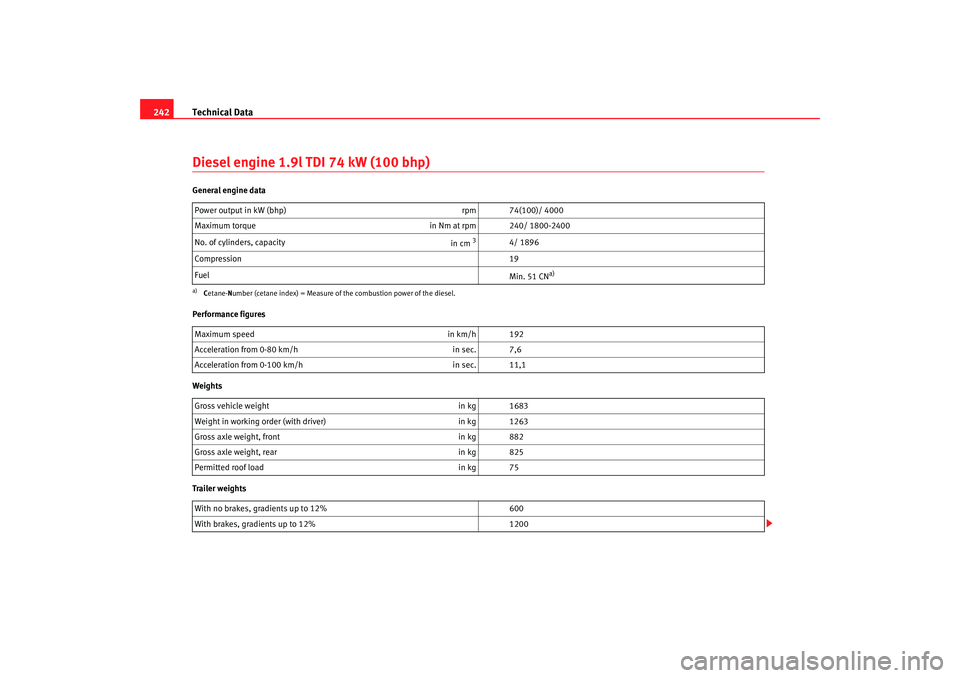

242Diesel engine 1.9l TDI 74 kW (100 bhp)General engine data
Performance figures
Weights
Trailer weights Power output in kW (bhp)
rpm 74(100)/ 4000
Maximum torque in Nm at rpm 240/ 1800-2400
No. of cylinders, capacity in cm
3
4/ 1896
Compression 19
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the diesel.Maximum speed in km/h 192
Acceleration from 0-80 km/h in sec. 7,6
Acceleration from 0-100 km/h in sec. 11,1
Gross vehicle weight in kg 1683
Weight in working order (with driver) in kg 1263
Gross axle weight, front in kg 882
Gross axle weight, rear in kg 825
Permitted roof load in kg 75
With no brakes, gradients up to 12% 600
With brakes, gradients up to 12% 1200
COR_ING_0707 Seite 242 Mittwoch, 1. August 2007 6:25 18

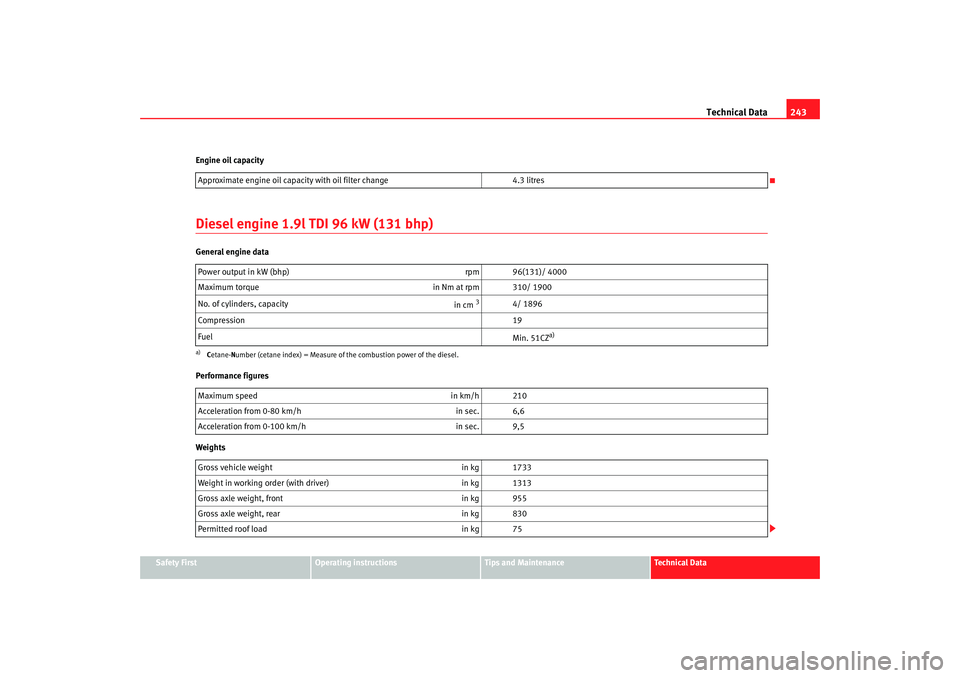

Technical Data243
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Engine oil capacity
Diesel engine 1.9l TDI 96 kW (131 bhp)General engine data
Performance figures
Weights
Approximate engine oil capacity with oil filter change
4.3 litres
Power output in kW (bhp) rpm 96(131)/ 4000
Maximum torque in Nm at rpm 310/ 1900
No. of cylinders, capacity in cm
3
4/ 1896
Compression 19
Fuel Min. 51CZ
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the diesel.Maximum speed in km/h 210
Acceleration from 0-80 km/h in sec. 6,6
Acceleration from 0-100 km/h in sec. 9,5
Gross vehicle weight in kg 1733
Weight in working order (with driver) in kg 1313
Gross axle weight, front in kg 955
Gross axle weight, rear in kg 830
Permitted roof load in kg 75
COR_ING_0707 Seite 243 Mittwoch, 1. August 2007 6:25 18

Technical Data

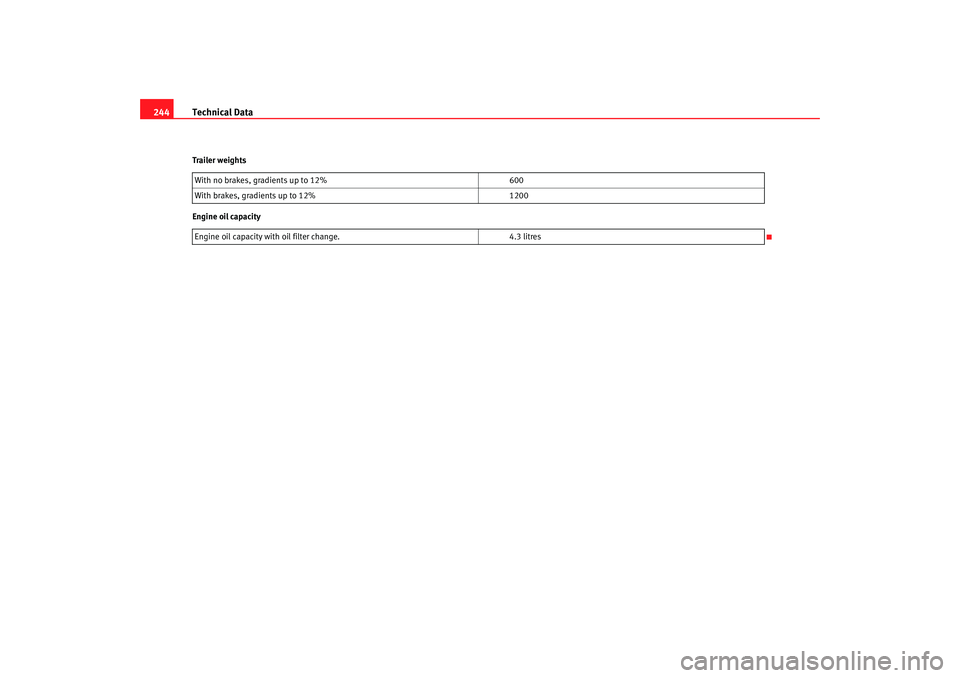

244Trailer weights
Engine oil capacity With no brakes, gradients up to 12%
600
With brakes, gradients up to 12% 1200
Engine oil capacity with oil filter change. 4.3 litres
COR_ING_0707 Seite 244 Mittwoch, 1. August 2007 6:25 18

Technical Data245
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

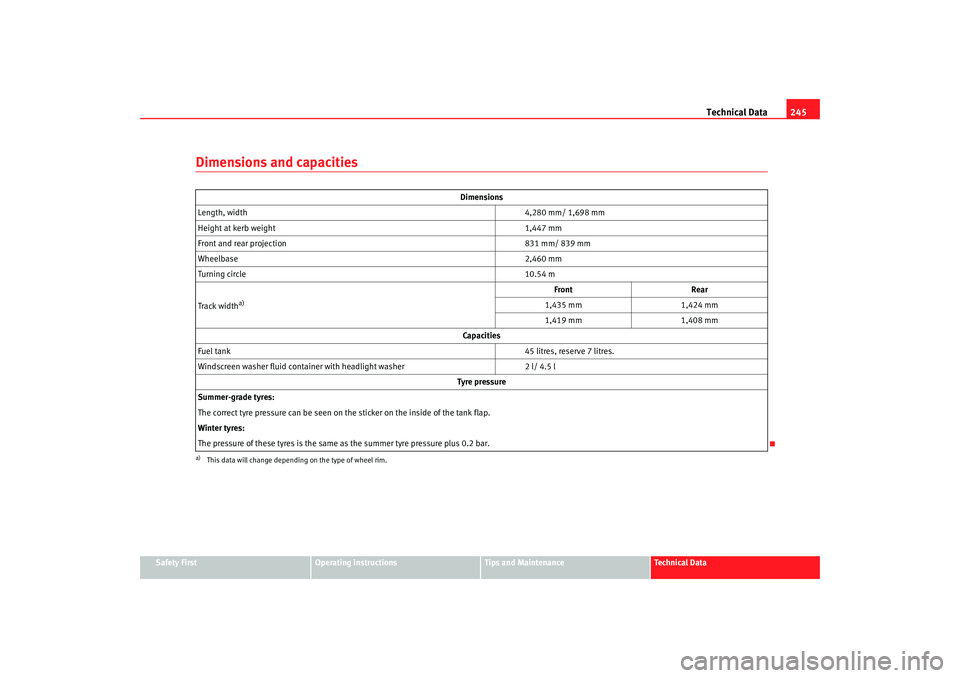

Dimensions and capacities
Dimensions
Length, width 4,280 mm/ 1,698 mm
Height at kerb weight 1,447 mm
Front and rear projection 831 mm/ 839 mm
Wheelbase 2,460 mm
Turning circle 10.54 m
Track width
a)
a)This data will change depending on the type of wheel rim.
Front Rear
1,435 mm 1,424 mm
1,419 mm 1,408 mm
Capacities
Fuel tank 45 litres, reserve 7 litres.
Windscreen washer fluid container with headlight washer 2 l/ 4.5 l
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
COR_ING_0707 Seite 245 Mittwoch, 1. August 2007 6:25 18

COR_ING_0707 Seite 246 Mittwoch, 1. August 2007 6:25 18

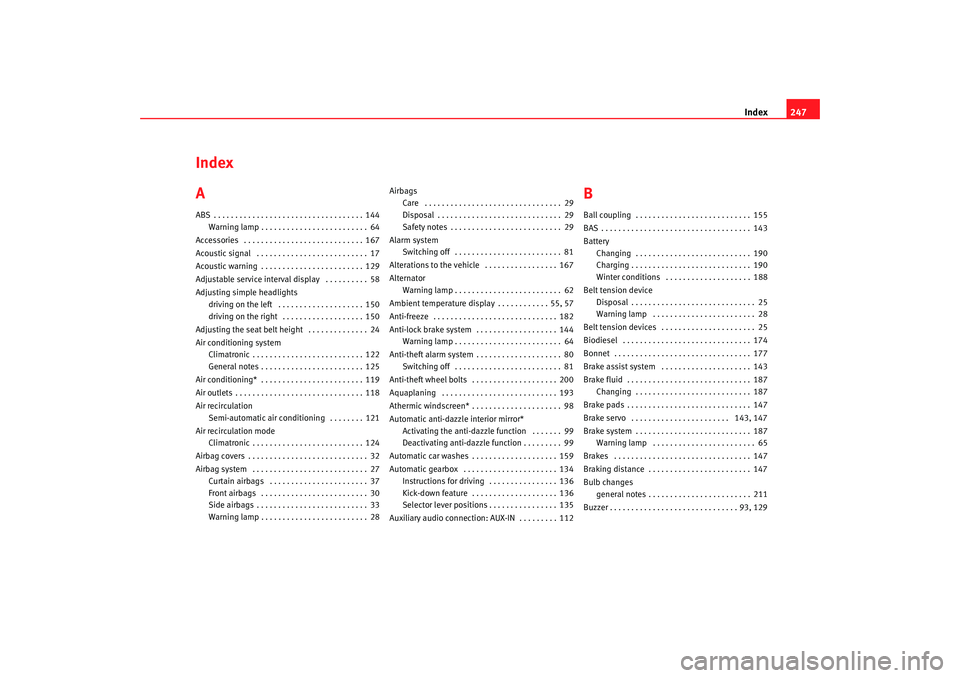

Index247
Index
AABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 64
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Acoustic signal . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Acoustic warning . . . . . . . . . . . . . . . . . . . . . . . . 129
Adjustable service interval display . . . . . . . . . . 58
Adjusting simp le headlights
driving on the left . . . . . . . . . . . . . . . . . . . . 150
driving on the right . . . . . . . . . . . . . . . . . . . 150
Adjusting the seat belt height . . . . . . . . . . . . . . 24
Air conditioning system Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . 122
General notes . . . . . . . . . . . . . . . . . . . . . . . . 125
Air conditioning* . . . . . . . . . . . . . . . . . . . . . . . . 119
Air outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Air recirculation Semi-automatic air conditi oning . . . . . . . . 121
Air recirculation mode Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Airbag covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 37
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . 30
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 28 Airbags
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Alarm system Switching off . . . . . . . . . . . . . . . . . . . . . . . . . 81
Alterations to the vehicle . . . . . . . . . . . . . . . . . 167
Alternator Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 62
Ambient temperature display . . . . . . . . . . . . 55, 57
Anti-freeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Anti-lock brake system . . . . . . . . . . . . . . . . . . . 144 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 64
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . . 80 Switching off . . . . . . . . . . . . . . . . . . . . . . . . . 81
Anti-theft wheel bolts . . . . . . . . . . . . . . . . . . . . 200
Aquaplaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Athermic windscreen* . . . . . . . . . . . . . . . . . . . . . 98
Automatic anti-dazzle interior mirror* Activating the anti-dazzle function . . . . . . . 99
Deactivating anti-dazzle function . . . . . . . . . 99
Automatic car washes . . . . . . . . . . . . . . . . . . . . 159
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . 134 Instructions for driving . . . . . . . . . . . . . . . . 136
Kick-down feature . . . . . . . . . . . . . . . . . . . . 136
Selector lever positions . . . . . . . . . . . . . . . . 135
Auxiliary audio connection: AUX-IN . . . . . . . . . 112
BBall coupling . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
BAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Battery Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Winter conditions . . . . . . . . . . . . . . . . . . . . 188
Belt tension device Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 28
Belt tension devices . . . . . . . . . . . . . . . . . . . . . . 25
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Brake assist system . . . . . . . . . . . . . . . . . . . . . 143
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Brake pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Brake servo . . . . . . . . . . . . . . . . . . . . . . . 143, 147
Brake system . . . . . . . . . . . . . . . . . . . . . . . . . . . 187 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 65
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Braking distance . . . . . . . . . . . . . . . . . . . . . . . . 147
Bulb changes general notes . . . . . . . . . . . . . . . . . . . . . . . . 211
Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93, 129
COR_ING_0707 Seite 247 Mittwoch, 1. August 2007 6:25 18

Index

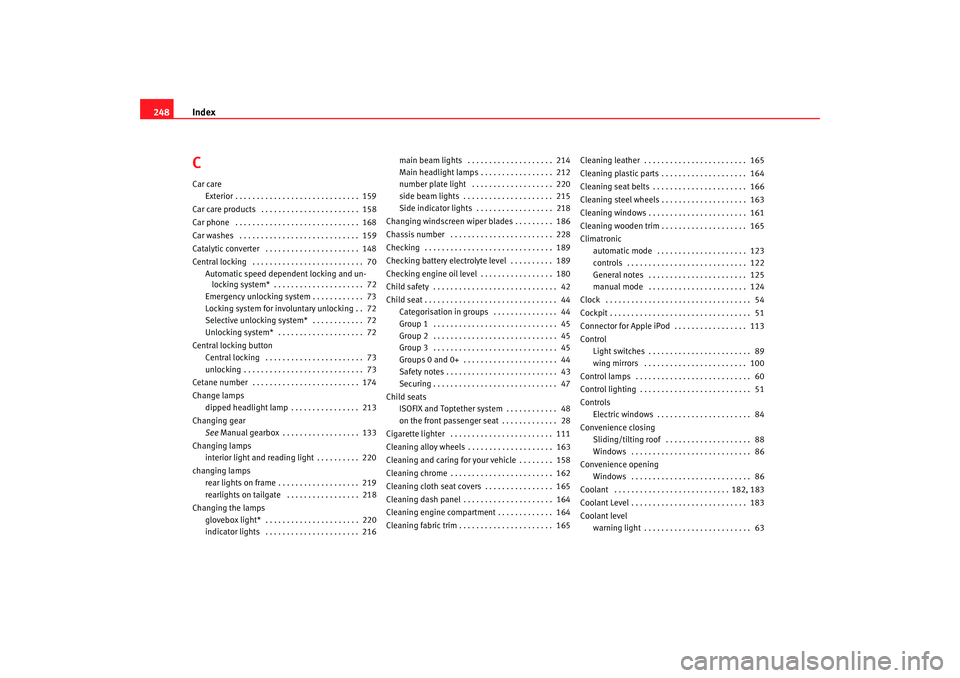

248CCar care
Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Car care products . . . . . . . . . . . . . . . . . . . . . . . 158
Car phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Car washes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . 148
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . 70 Automatic speed dependent locking and un-locking system* . . . . . . . . . . . . . . . . . . . . . 72
Emergency unlocking system . . . . . . . . . . . . 73
Locking system for invo luntary unlocking . . 72
Selective unlocking system* . . . . . . . . . . . . 72
Unlocking system* . . . . . . . . . . . . . . . . . . . . 72
Central locking button Central locking . . . . . . . . . . . . . . . . . . . . . . . 73
unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Cetane number . . . . . . . . . . . . . . . . . . . . . . . . . 174
Change lamps dipped headlight lamp . . . . . . . . . . . . . . . . 213
Changing gear See Manual gearbox . . . . . . . . . . . . . . . . . . 133
Changing lamps interior light and reading light . . . . . . . . . . 220
changing lamps rear lights on frame . . . . . . . . . . . . . . . . . . . 219
rearlights on tailgate . . . . . . . . . . . . . . . . . 218
Changing the lamps glovebox light* . . . . . . . . . . . . . . . . . . . . . . 220
indicator lights . . . . . . . . . . . . . . . . . . . . . . 216 main beam lights . . . . . . . . . . . . . . . . . . . . 214
Main headlight lamps . . . . . . . . . . . . . . . . . 212
number plate light . . . . . . . . . . . . . . . . . . . 220
side beam lights . . . . . . . . . . . . . . . . . . . . . 215
Side indicator lights . . . .
. . . . . . . . . . . . . . 218
Changing windscreen wiper blades . . . . . . . . . 186
Chassis number . . . . . . . . . . . . . . . . . . . . . . . . 228
Checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Checking battery electrolyte level . . . . . . . . . . 189
Checking engine oil level . . . . . . . . . . . . . . . . . 180
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Categorisation in groups . . . . . . . . . . . . . . . 44
Group 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Group 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Group 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Groups 0 and 0+ . . . . . . . . . . . . . . . . . . . . . . 44
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Child seats ISOFIX and Toptether system . . . . . . . . . . . . 48
on the front passenger seat . . . . . . . . . . . . . 28
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . 111
Cleaning alloy wheels . . . . . . . . . . . . . . . . . . . . 163
Cleaning and caring for your vehicle . . . . . . . . 158
Cleaning chrome . . . . . . . . . . . . . . . . . . . . . . . . 162
Cleaning cloth seat covers . . . . . . . . . . . . . . . . 165
Cleaning dash panel . . . . . . . . . . . . . . . . . . . . . 164
Cleaning engine compartment . . . . . . . . . . . . . 164
Cleaning fabric trim . . . . . . . . . . . . . . . . . . . . . . 165 Cleaning leather . . . . . . . . . . . . . . . . . . . . . . . . 165
Cleaning plastic parts . . . . . . . . . . . . . . . . . . . . 164
Cleaning seat belts . . . . . . . . . . . . . . . . . . . . . . 166
Cleaning steel wheels . . . . . . . . . . . . . . . . . . . . 163
Cleaning windows . . . . . . . . . . . . . . . . . . . . . . . 161
Cleaning wooden trim . . . . . . . . . . . . . . . . . . . . 165
Climatronic
automatic mode . . . . . . . . . . . . . . . . . . . . . 123
controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
General notes . . . . . . . . . . . . . . . . . . . . . . . 125
manual mode . . . . . . . . . . . . . . . . . . . . . . . 124
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Connector for Apple iPod . . . . . . . . . . . . . . . . . 113
Control Light switches . . . . . . . . . . . . . . . . . . . . . . . . 89
wing mirrors . . . . . . . . . . . . . . . . . . . . . . . . 100
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Control lighting . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Controls Electric windows . . . . . . . . . . . . . . . . . . . . . . 84
Convenience closing Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . 88
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Convenience opening Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . 182, 183
Coolant Level . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Coolant level warning light . . . . . . . . . . . . . . . . . . . . . . . . . 63
COR_ING_0707 Seite 248 Mittwoch, 1. August 2007 6:25 18
