Changing the DRL light bulb (day light)
The procedure for changing the bulbs on the front
passenger's side is the same as on the driver's side.– Switch off the ignition and the lights.
–Raise the bonnet.
– Turn the bulb holder anti-clockwise, pulling it by the grip
⇒fig. 202 and removing the bulb holder and the bulb.
– Replace the blown bulb in the bulb holder (press and turn anti- clockwise to remove) with a new bulb (press and turn clockwise
to insert).
– Installation is in the reverse order. Note
Although it is not necessary, pr
eviously remove the rigid cover ⇒page 261,
fig. 205 for easier day light bulb changes.
Fig. 202 DRL light (day
light)
Exeo_EN.book Seite 259 Freitag, 17. Oktober 2008 11:24 11

If and when

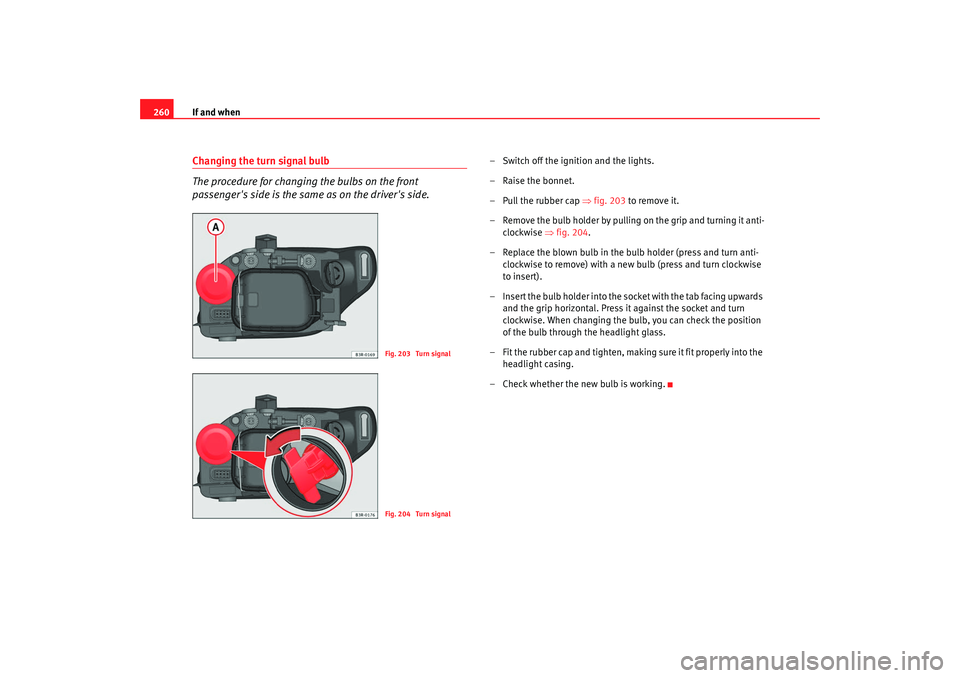

260Changing the turn signal bulb
The procedure for changing the bulbs on the front
passenger's side is the same as on the driver's side.
– Switch off the ignition and the lights.
–Raise the bonnet.
– Pull the rubber cap ⇒fig. 203 to remove it.
– Remove the bulb holder by pulling on the grip and turning it anti- clockwise ⇒fig. 204.
– Replace the blown bulb in the bulb holder (press and turn anti- clockwise to remove) with a new bulb (press and turn clockwise
to insert).
– Insert the bulb holder into the socket with the tab facing upwards and the grip horizontal. Press it against the socket and turn
clockwise. When changing the bulb, you can check the position
of the bulb through the headlight glass.
– Fit the rubber cap and tighten, making sure it fit properly into the headlight casing.
– Check whether the new bulb is working.
Fig. 203 Turn signalFig. 204 Turn signal
Exeo_EN.book Seite 260 Freitag, 17. Oktober 2008 11:24 11

If and when261
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

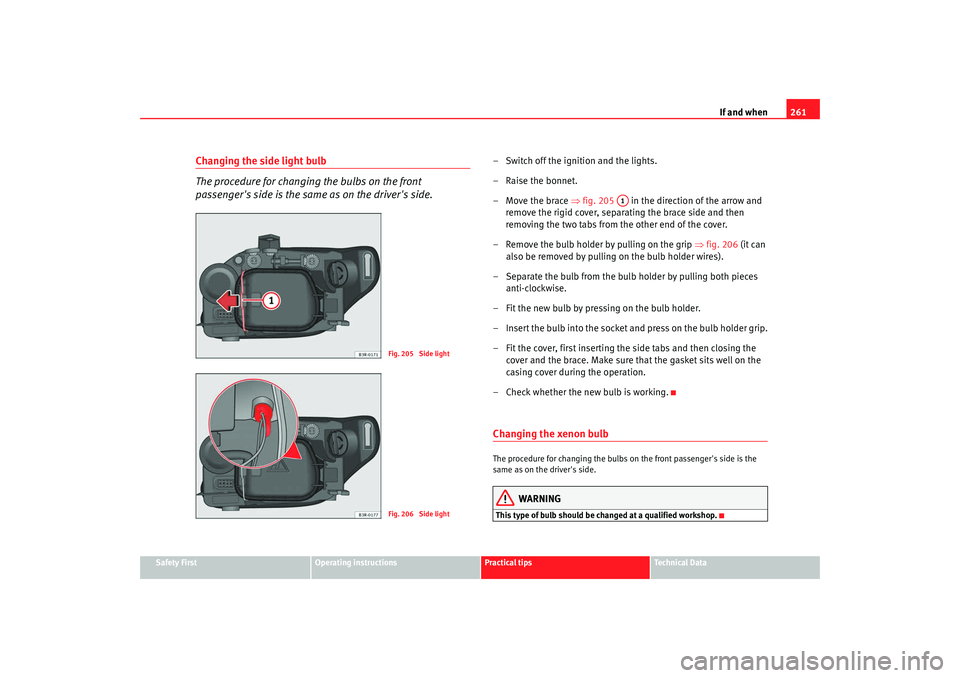

Changing the side light bulb
The procedure for changing the bulbs on the front
passenger's side is the same as on the driver's side.
– Switch off the ignition and the lights.
– Raise the bonnet.
– Move the brace ⇒fig. 205 in the direction of the arrow and
remove the rigid cover, separating the brace side and then
removing the two tabs from the other end of the cover.
– Remove the bulb holder by pulling on the grip ⇒fig. 206 (it can
also be removed by pulling on the bulb holder wires).
– Separate the bulb from the bulb holder by pulling both pieces anti-clockwise.
– Fit the new bulb by pressing on the bulb holder.
– Insert the bulb into the socket and press on the bulb holder grip.
– Fit the cover, first inserting the side tabs and then closing the cover and the brace. Make sure that the gasket sits well on the
casing cover during the operation.
– Check whether the new bulb is working.Changing the xenon bulbThe procedure for changing the bulbs on the front passenger's side is the
same as on the driver's side.
WARNING
This type of bulb should be changed at a qualified workshop.
Fig. 205 Side lightFig. 206 Side light
A1
Exeo_EN.book Seite 261 Freitag, 17. Oktober 2008 11:24 11

If and when

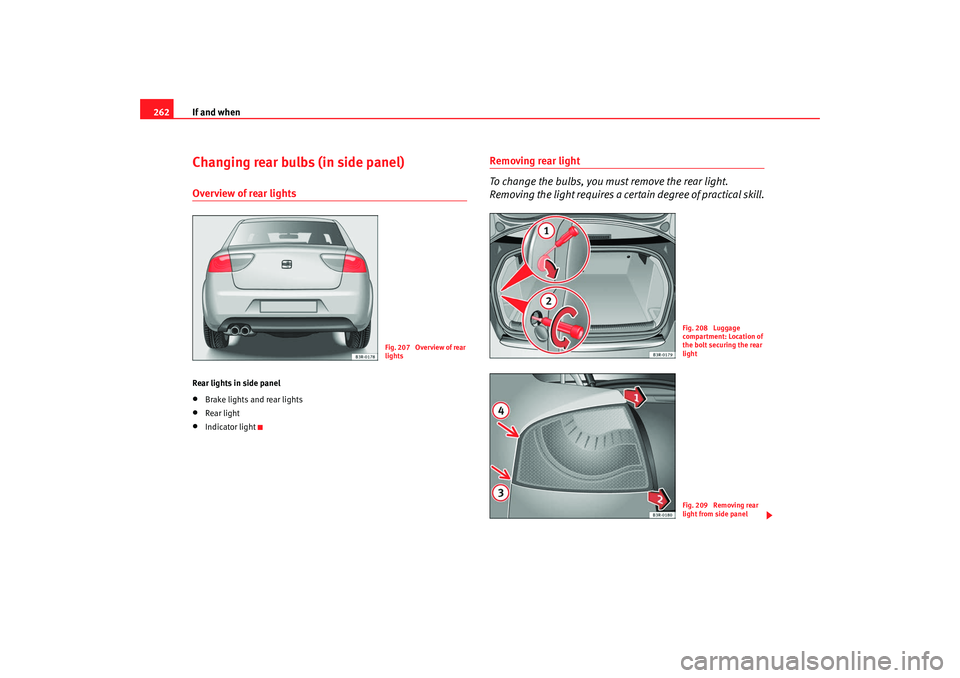

262Changing rear bulbs (in side panel)Overview of rear lightsRear lights in side panel•
Brake lights and rear lights
•
Rear light
•
Indicator light
Removing rear light
To change the bulbs, you must remove the rear light.
Removing the light requires a certain degree of practical skill.
Fig. 207 Overview of rear
lights
Fig. 208 Luggage
compartment: Location of
the bolt securing the rear
lightFig. 209 Removing rear
light from side panel
Exeo_EN.book Seite 262 Freitag, 17. Oktober 2008 11:24 11

If and when263
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

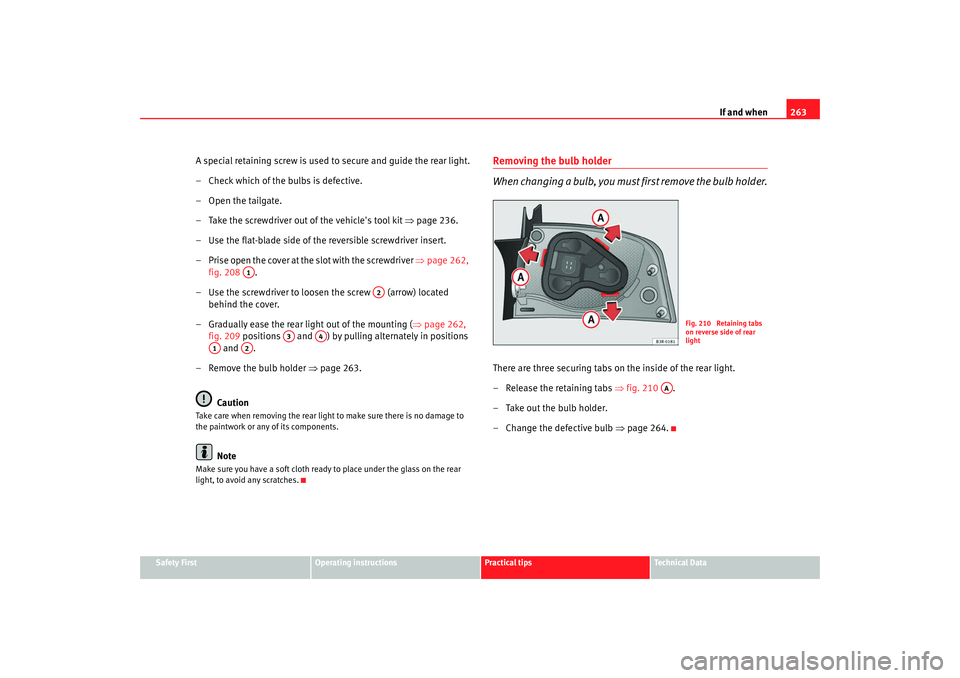

A special retaining screw is used to secure and guide the rear light.
– Check which of the bulbs is defective.
– Open the tailgate.
– Take the screwdriver out of the vehicle's tool kit ⇒ page 236.
– Use the flat-blade side of the reversible screwdriver insert.
– Prise open the cover at the slot with the screwdriver ⇒page 262,
fig. 208 .
– Use the screwdriver to loosen the screw (arrow) located behind the cover.
– Gradually ease the rear li ght out of the mounting (⇒page 262,
fig. 209 positions and ) by pulling alternately in positions and .
– Remove the bulb holder ⇒page 263.
CautionTake care when removing the rear light to make sure there is no damage to
the paintwork or any of its components.
Note
Make sure you have a soft cloth ready to place under the glass on the rear
light, to avoid any scratches.
Removing the bulb holder
When changing a bulb, you must first remove the bulb holder.There are three securing tabs on the inside of the rear light.
– Release the retaining tabs ⇒fig. 210 .
– Take out the bulb holder.
– Change the defective bulb ⇒page 264.
A1
A2
A3
A4
A1
A2
Fig. 210 Retaining tabs
on reverse side of rear
light
AA
Exeo_EN.book Seite 263 Freitag, 17. Oktober 2008 11:24 11

If and when
264Changing bulbs

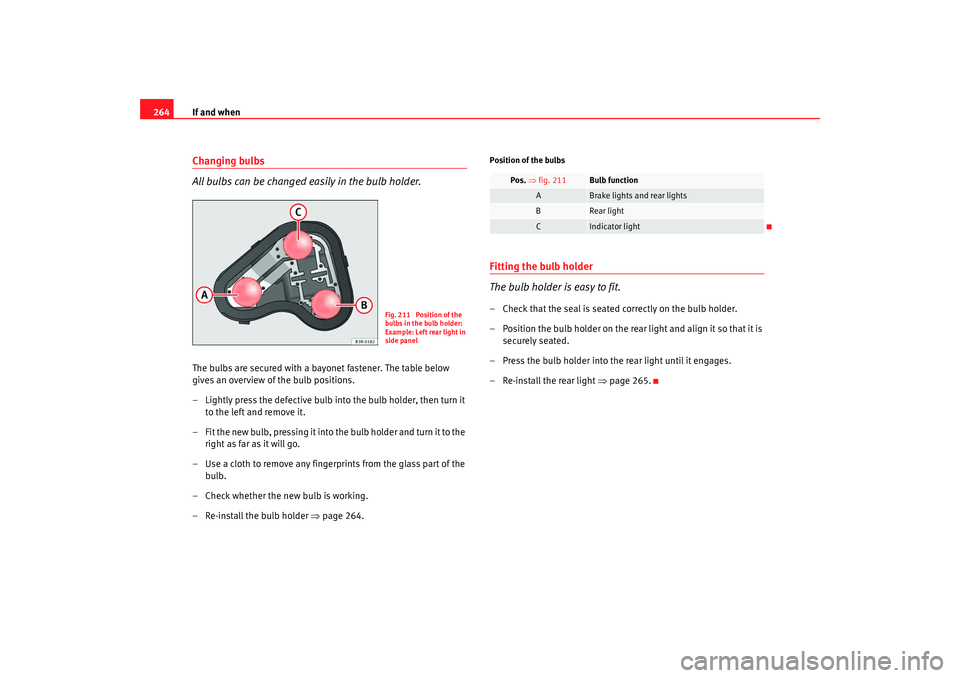

All bulbs can be changed easily in the bulb holder.The bulbs are secured with a bayonet fastener. The table below
gives an overview of the bulb positions.
– Lightly press the defective bulb into the bulb holder, then turn it
to the left and remove it.
– Fit the new bulb, pressing it into the bulb holder and turn it to the right as far as it will go.
– Use a cloth to remove any fingerprints from the glass part of the bulb.
– Check whether the new bulb is working.
– Re-install the bulb holder ⇒page 264.
Position of the bulbsFitting the bulb holder
The bulb holder is easy to fit.– Check that the seal is seated correctly on the bulb holder.
– Position the bulb holder on the rear light and align it so that it is
securely seated.
– Press the bulb holder into the rear light until it engages.
– Re-install the rear light ⇒page 265.
Fig. 211 Position of the
bulbs in the bulb holder:
Example: Left rear light in
side panel
Pos. ⇒ fig. 211
Bulb function
A
Brake lights and rear lights
B
Rear light
C
Indicator light
Exeo_EN.book Seite 264 Freitag, 17. Oktober 2008 11:24 11

If and when265
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

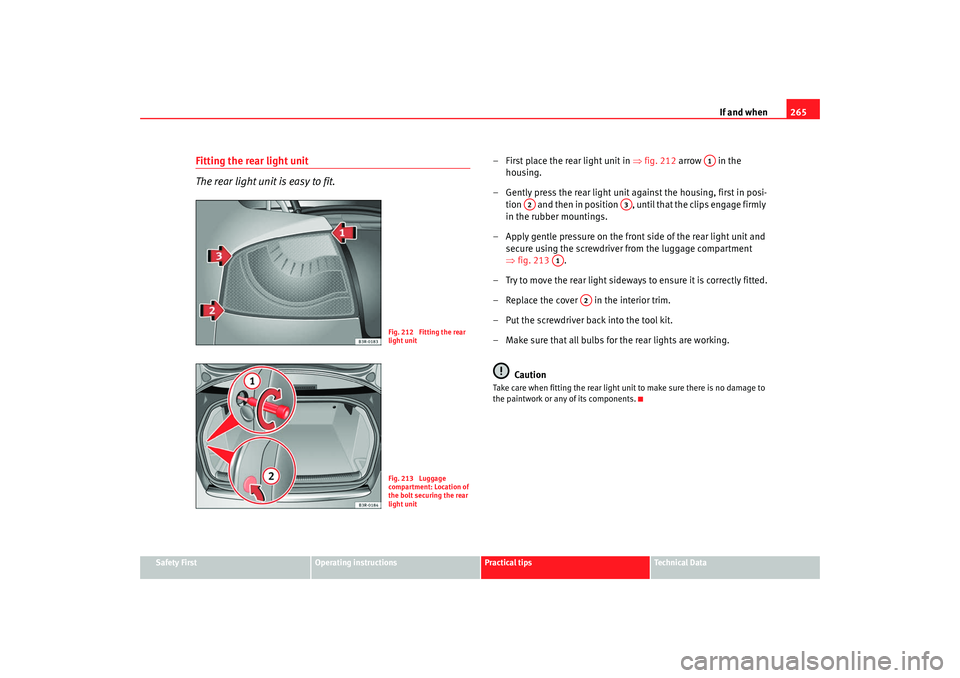

Fitting the rear light unit
The rear light unit is easy to fit.
– First place the rear light unit in ⇒fig. 212 arrow in the
housing.
– Gently press the rear light unit against the housing, first in posi- tion and then in position , until that the clips engage firmly
in the rubber mountings.
– Apply gentle pressure on the front side of the rear light unit and secure using the screwdriver from the luggage compartment
⇒ fig. 213 .
– Try to move the rear light sideways to ensure it is correctly fitted.
– Replace the cover in the interior trim.
– Put the screwdriver back into the tool kit.
– Make sure that all bulbs for the rear lights are working.
CautionTake care when fitting the rear light unit to make sure there is no damage to
the paintwork or any of its components.
Fig. 212 Fitting the rear
light unitFig. 213 Luggage
compartment: Location of
the bolt securing the rear
light unit
A1
A2
A3
A1
A2
Exeo_EN.book Seite 265 Freitag, 17. Oktober 2008 11:24 11

If and when
266Changing rear light bulbs (in boot lid)Overview of rear lightsRear lights in the boot lid•
Rear light
•
Fog lights
•
Reversing light
Removing the bulb holder
The tailgate must be open to change the bulbs.
Fig. 214 Overview of rear
lights
Fig. 215 Remove the
cover in the tailgateFig. 216 Remove the bulb
holder
Exeo_EN.book Seite 266 Freitag, 17. Oktober 2008 11:24 11

If and when267
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

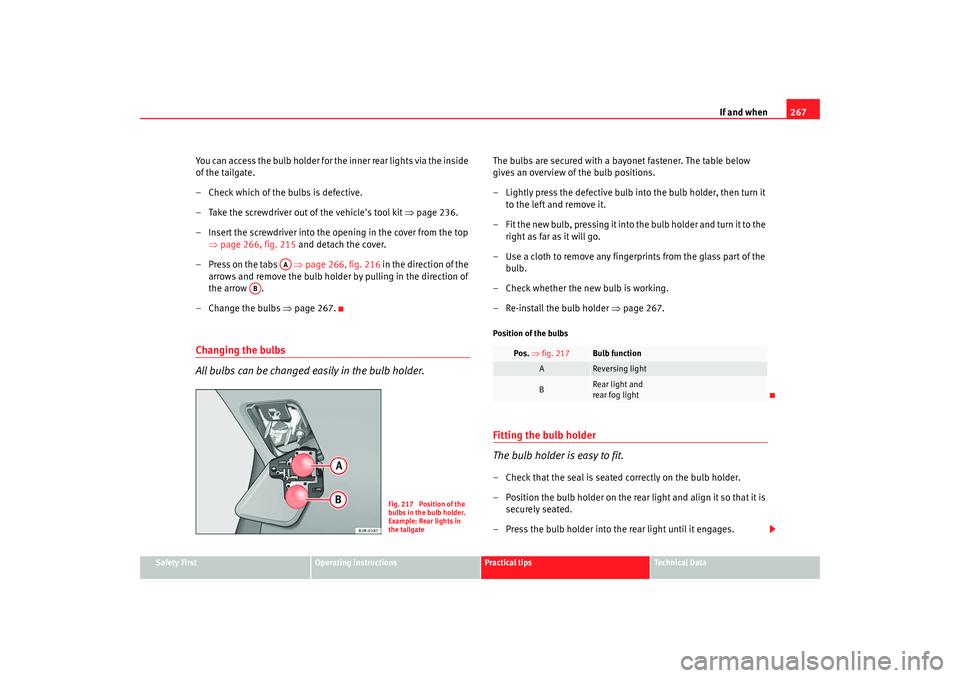

You can access the bulb holder for the inner rear lights via the inside
of the tailgate.
– Check which of the bulbs is defective.
– Take the screwdriver out of the vehicle's tool kit ⇒ page 236.
– Insert the screwdriver into the opening in the cover from the top ⇒page 266, fig. 215 and detach the cover.
– Press on the tabs ⇒ page 266, fig. 216 in the direction of the
arrows and remove the bulb holder by pulling in the direction of
the arrow .
– Change the bulbs ⇒page 267.Changing the bulbs
All bulbs can be changed easily in the bulb holder.
The bulbs are secured with a bayonet fastener. The table below
gives an overview of the bulb positions.
– Lightly press the defective bulb into the bulb holder, then turn it
to the left and remove it.
– Fit the new bulb, pressing it into the bulb holder and turn it to the right as far as it will go.
– Use a cloth to remove any fingerprints from the glass part of the bulb.
– Check whether the new bulb is working.
– Re-install the bulb holder ⇒page 267.Position of the bulbsFitting the bulb holder
The bulb holder is easy to fit.– Check that the seal is seated correctly on the bulb holder.
– Position the bulb holder on the rear light and align it so that it is
securely seated.
– Press the bulb holder into the rear light until it engages.
AA
AB
Fig. 217 Position of the
bulbs in the bulb holder.
Example: Rear lights in
the tailgate
Pos. ⇒ fig. 217
Bulb function
A
Reversing light
B
Rear light and
rear fog light
Exeo_EN.book Seite 267 Freitag, 17. Oktober 2008 11:24 11

If and when
268
– Fit the cover back in the interior trim so that it engages.
– Put the screwdriver back into the tool kit.

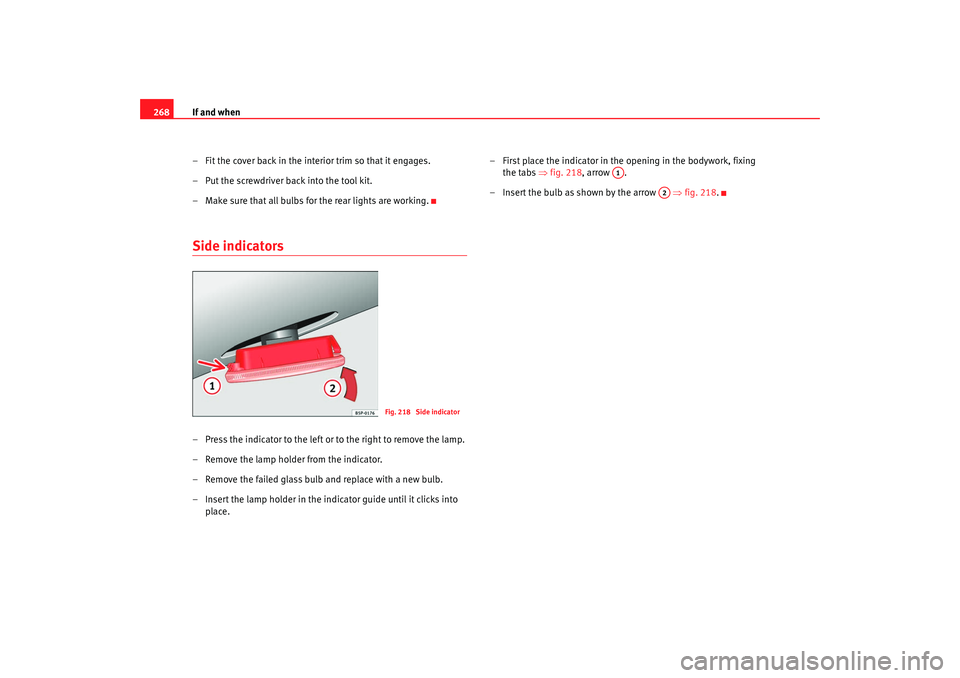

– Make sure that all bulbs for the rear lights are working.Side indicators– Press the indicator to the left or to the right to remove the lamp.
– Remove the lamp holder from the indicator.
– Remove the failed glass bulb and replace with a new bulb.
– Insert the lamp holder in the indicator guide until it clicks into place. – First place the indicator in the opening in the bodywork, fixing
the tabs ⇒fig. 218 , arrow .
– Insert the bulb as shown by the arrow ⇒fig. 218.
Fig. 218 Side indicator
A1
A2
