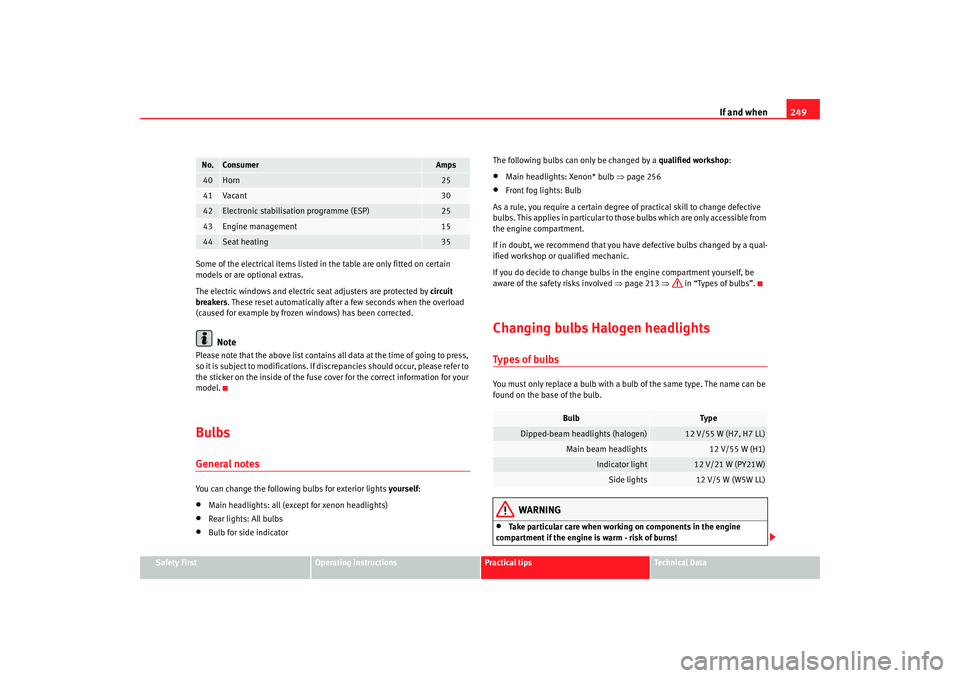

model.BulbsGeneral notesYou can change the following bulbs for exterior lights yourself:•
Main headlights: all (exc ept for xenon headlights)
•
Rear lights: All bulbs
•
Bulb for side indicator The following bulbs can only be changed by a
qualified workshop:
•
Main headlights: Xenon* bulb ⇒page 256
•
Front fog lights: Bulb
As a rule, you require a certain degree of practical skill to change defective
bulbs. This applies in particular to those bulbs which are only accessible from
the engine compartment.
If in doubt, we recommend that you have defective bulbs changed by a qual-
ified workshop or qualified mechanic.
If you do decide to change bulbs in the engine compartment yourself, be
aware of the safety risks involved ⇒page 213 ⇒ in “Types of bulbs”.
Changing bulbs Halogen headlightsTypes of bulbsYou must only replace a bulb with a bu lb of the same type. The name can be
found on the base of the bulb.
WARNING
•
Take particular care when working on components in the engine
compartment if the engine is warm - risk of burns!
40
Horn
25
41
Va ca n t
30
42
Electronic stabilisation programme (ESP)
25
43
Engine management
15
44
Seat heating
35
No.
Consumer
Amps
Bulb
Typ e
Dipped-beam headlights (halogen)
12 V/55 W (H7, H7 LL)
Main beam headlights
12 V/55 W (H1)
Indicator light
12 V/21 W (PY21W)
Side lights
12 V/5 W (W5W LL)
Exeo_EN.book Seite 249 Freitag, 17. Oktober 2008 11:24 11

If and when
250•
Bulbs are highly sensitive to pressure. The glass can break when you
touch the bulb, causing injury.
•
The high voltage element of gas discharge lamps* (xenon light) must
be handled correctly. Otherwise, there is a risk of death.
•
When changing bulbs, please take care not to injure yourself on sharp
parts in the headlight housing.Caution
•
Remove the ignition key before working on the electric system. If not, a
short circuit could occur.
•
Switch off the lights or parking lights before you change a bulb.For the sake of the environment
Please ask your specialist retailer how to dispose of used bulbs in the proper
manner.
Note
•
Depending on weather conditions (cold or wet), the front lights, the fog
lights, the rear lights and the indicato rs may be temporarily misted. This has
no influence on the life expectancy of the lighting system. By switching on the
lights, the area through which the beam of light is projected will quickly be
demisted. However, the edges may continue to be misted.
•
Please check at regular intervals that all lighting (especially the exterior
lighting) on your vehicle is functioning pr operly. This is not only in the interest
of your own safety, but also in that of all other road users.
•
Before changing a bulb, make sure you have the correct new bulb.
•
Do not touch the glass part of the bulb with your bare hands, use a cloth
or paper towel instead. Otherwise, the fingerprints left on the glass will vaporise as a result of the heat generated by the bulb, be deposited on the
reflector and impair its surface.

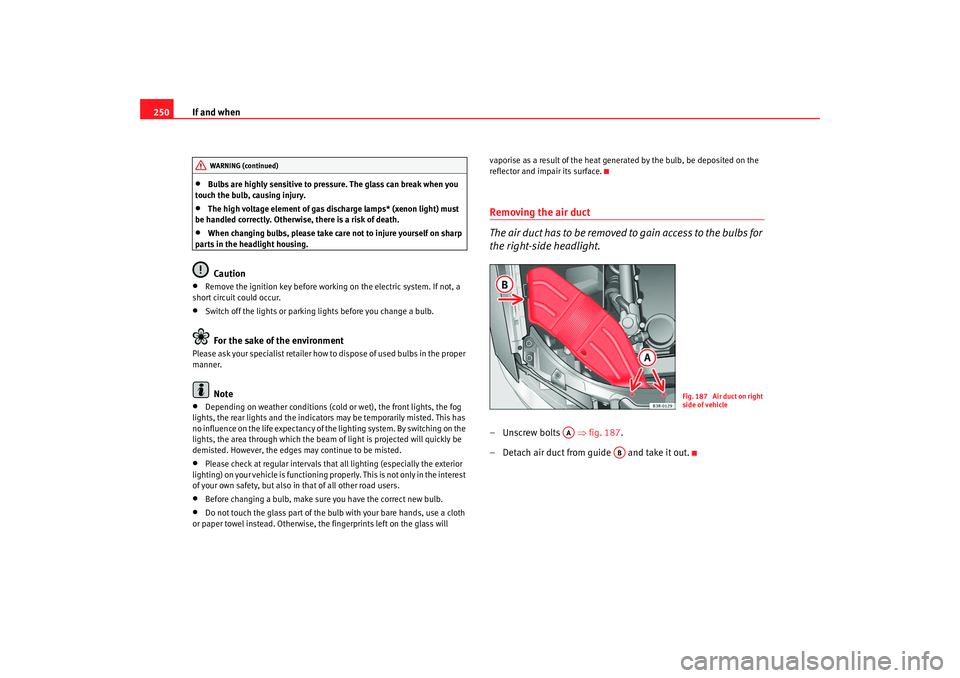

Removing the air duct
The air duct has to be removed to gain access to the bulbs for
the right-side headlight.–Unscrew bolts ⇒
fig. 187.
– Detach air duct from guide and take it out.
WARNING (continued)
Fig. 187 Air duct on right
side of vehicle
AA
AB
Exeo_EN.book Seite 250 Freitag, 17. Oktober 2008 11:24 11

If and when251
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

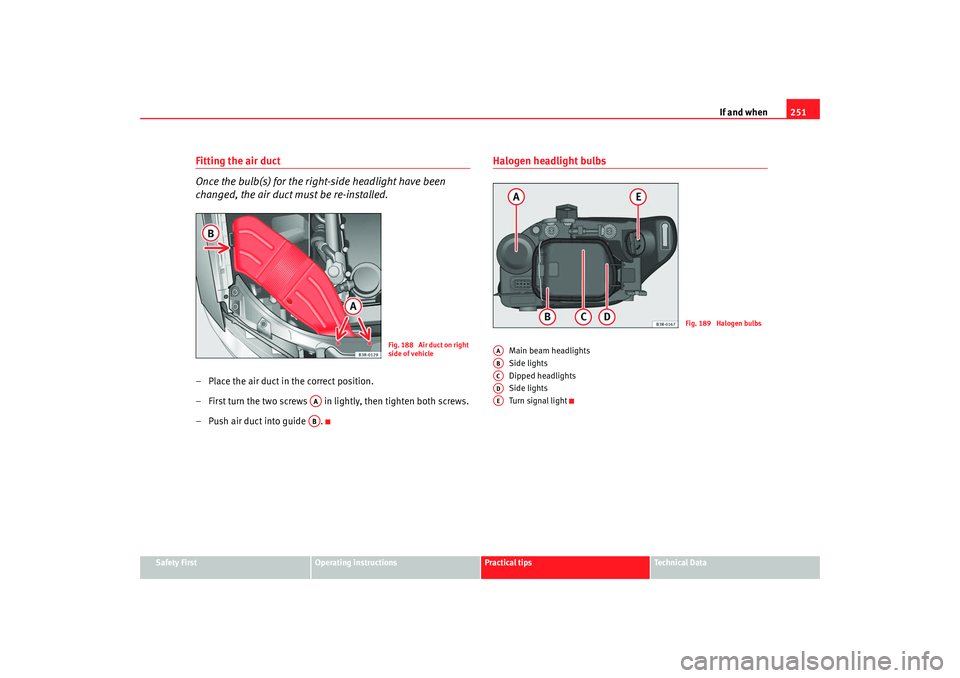

Fitting the air duct
Once the bulb(s) for the right-side headlight have been
changed, the air duct must be re-installed.– Place the air duct in the correct position.
– First turn the two screws in lightly, then tighten both screws.
– Push air duct into guide .
Halogen headlight bulbs
Main beam headlights
Side lights
Dipped headlights
Side lights
Turn signal light
Fig. 188 Air duct on right
side of vehicle
AAAB
Fig. 189 Halogen bulbs
AAABACADAE
Exeo_EN.book Seite 251 Freitag, 17. Oktober 2008 11:24 11

If and when

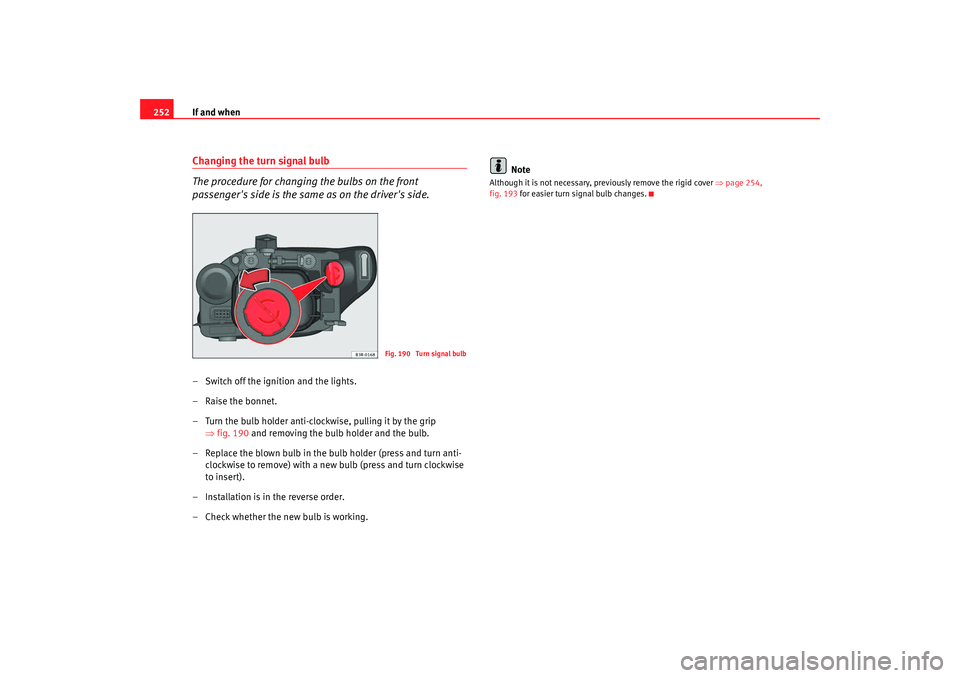

252Changing the turn signal bulb
The procedure for changing the bulbs on the front
passenger's side is the same as on the driver's side.– Switch off the ignition and the lights.
– Raise the bonnet.
– Turn the bulb holder anti-clockwise, pulling it by the grip
⇒fig. 190 and removing the bulb holder and the bulb.
– Replace the blown bulb in the bulb holder (press and turn anti- clockwise to remove) with a new bulb (press and turn clockwise
to insert).
– Installation is in the reverse order.
– Check whether the new bulb is working. Note
Although it is not necessary, previously remove the rigid cover
⇒page 254,
fig. 193 for easier turn signal bulb changes.
Fig. 190 Turn signal bulb
Exeo_EN.book Seite 252 Freitag, 17. Oktober 2008 11:24 11

If and when253
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

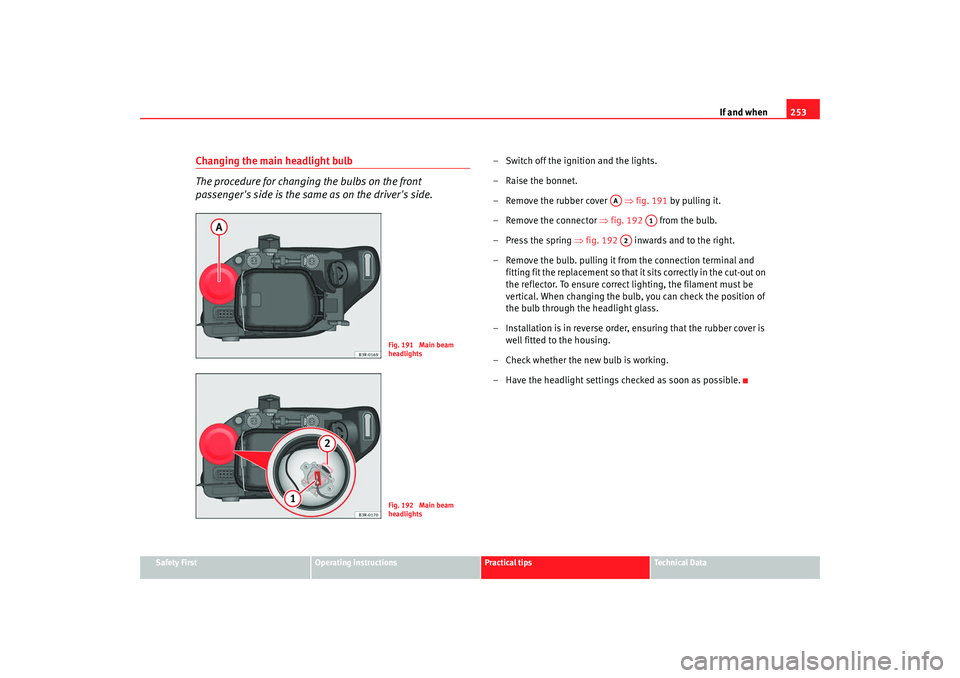

Changing the main headlight bulb
The procedure for changing the bulbs on the front
passenger's side is the same as on the driver's side.
– Switch off the ignition and the lights.
– Raise the bonnet.
– Remove the rubber cover ⇒ fig. 191 by pulling it.
– Remove the connector ⇒fig. 192 from the bulb.
– Press the spring ⇒fig. 192 inwards and to the right.
– Remove the bulb. pulling it from the connection terminal and fitting fit the replacement so that it sits correctly in the cut-out on
the reflector. To ensure correct lighting, the filament must be
vertical. When changing the bulb, you can check the position of
the bulb through the headlight glass.
– Installation is in reverse order, ensuring that the rubber cover is well fitted to the housing.
– Check whether the new bulb is working.
– Have the headlight settings checked as soon as possible.
Fig. 191 Main beam
headlightsFig. 192 Main beam
headlights
AA
A1
A2
Exeo_EN.book Seite 253 Freitag, 17. Oktober 2008 11:24 11

If and when
254Changing the dipped beam headlight bulb
The procedure for changing the bulbs on the front
passenger's side is the same as on the driver's side.
– Switch off the ignition and the lights.
–Raise the bonnet.
– Move the brace ⇒fig. 193 in the direction of the arrow and
remove the rigid cover, separating the brace side and then
removing the two tabs from the other end of the cover.
– Pull the connector ⇒fig. 194 from the bulb.
– Unclip the retainer spring ⇒fig. 194 pressing inwards to the
right.
– Remove the bulb and fit the new one in the headlight casing with the tab upwards, starting to position it from below.
– Clip on the spring, raising it and pressing it slightly while turning it anti-clockwise. To ensure correct lighting, the filament must be
vertical. When changing the bulb, you can check the position of
the bulb through the headlight glass.
– Connect the connector to the bulb.
– Fit the cover, first inserting the side tabs and then closing the cover and the brace. Make sure that the gasket sits well on the
casing cover during the operation.
– Check whether the new bulb is working.
– Have the headlight settings checked as soon as possible.
Fig. 193 Dipped head-
lightsFig. 194 Dipped head-
lights
A1A2
A3
Exeo_EN.book Seite 254 Freitag, 17. Oktober 2008 11:24 11

If and when255
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

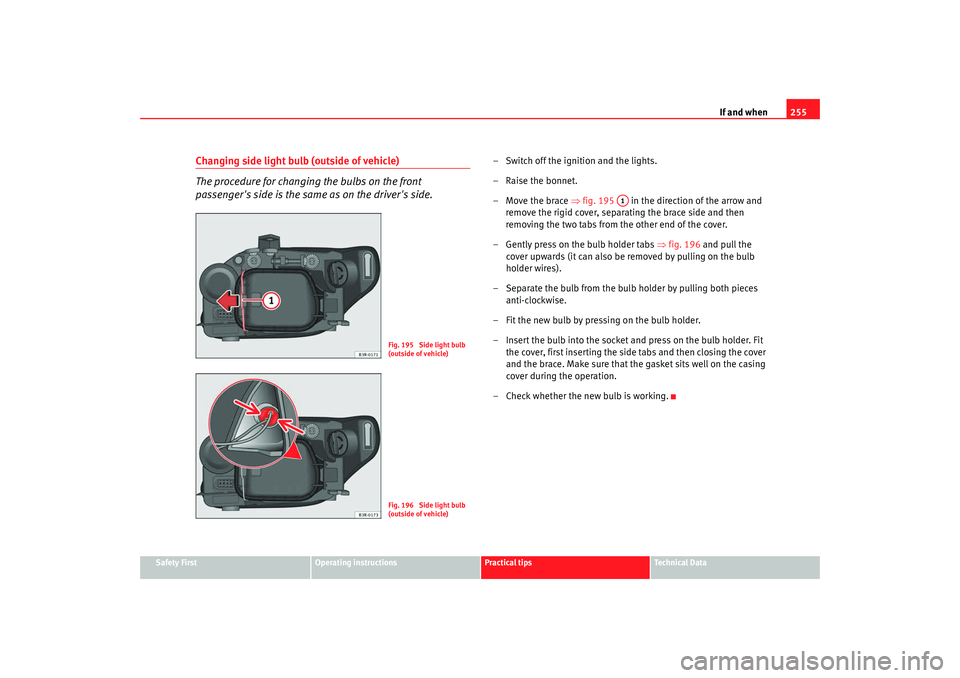

Changing side light bulb (outside of vehicle)
The procedure for changing the bulbs on the front
passenger's side is the same as on the driver's side.
– Switch off the ignition and the lights.
– Raise the bonnet.
– Move the brace ⇒fig. 195 in the direction of the arrow and
remove the rigid cover, separating the brace side and then
removing the two tabs from the other end of the cover.
– Gently press on the bulb holder tabs ⇒fig. 196 and pull the
cover upwards (it can also be removed by pulling on the bulb
holder wires).
– Separate the bulb from the bulb holder by pulling both pieces anti-clockwise.
– Fit the new bulb by pressing on the bulb holder.
– Insert the bulb into the socket and press on the bulb holder. Fit the cover, first inserting the side tabs and then closing the cover
and the brace. Make sure that the gasket sits well on the casing
cover during the operation.
– Check whether the new bulb is working.
Fig. 195 Side light bulb
(outside of vehicle)Fig. 196 Side light bulb
(outside of vehicle)
A1
Exeo_EN.book Seite 255 Freitag, 17. Oktober 2008 11:24 11

If and when

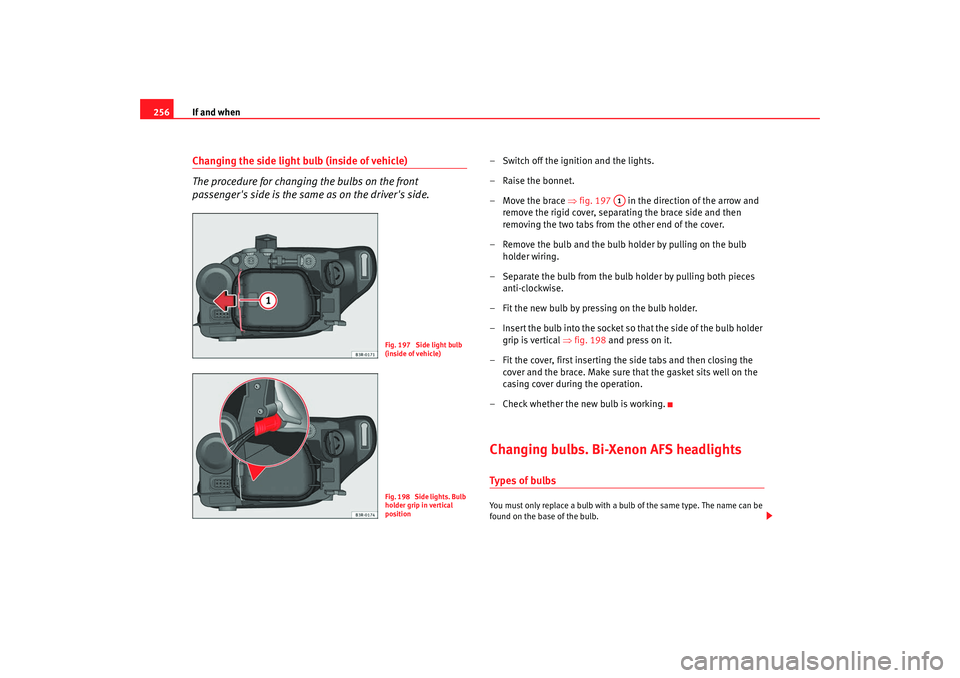

256Changing the side light bulb (inside of vehicle)
The procedure for changing the bulbs on the front
passenger's side is the same as on the driver's side.
– Switch off the ignition and the lights.
–Raise the bonnet.
– Move the brace ⇒fig. 197 in the direction of the arrow and
remove the rigid cover, separating the brace side and then
removing the two tabs from the other end of the cover.
– Remove the bulb and the bulb holder by pulling on the bulb holder wiring.
– Separate the bulb from the bulb holder by pulling both pieces anti-clockwise.
– Fit the new bulb by pressing on the bulb holder.
– Insert the bulb into the socket so that the side of the bulb holder grip is vertical ⇒fig. 198 and press on it.
– Fit the cover, first inserting the side tabs and then closing the cover and the brace. Make sure that the gasket sits well on the
casing cover during the operation.
– Check whether the new bulb is working.Changing bulbs. Bi-Xenon AFS headlightsTypes of bulbsYou must only replace a bulb with a bulb of the same type. The name can be
found on the base of the bulb.
Fig. 197 Side light bulb
(inside of vehicle)Fig. 198 Side lights. Bulb
holder grip in vertical
position
A1
Exeo_EN.book Seite 256 Freitag, 17. Oktober 2008 11:24 11

If and when257
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
WARNING
•
Take particular care when working on components in the engine
compartment if the engine is warm - risk of burns!
•
Bulbs are highly sensitive to pressure. The glass can break when you
touch the bulb, causing injury.
•
The high voltage element of gas discharge lamps* (xenon light) must
be handled correctly. Otherwise, there is a risk of death.
•
When changing bulbs, please take care not to injure yourself on sharp
parts in the headlight housing.Caution
•
Remove the ignition key before workin g on the electric system. If not, a
short circuit could occur.
•
Switch off the lights or parking lights before you change a bulb.For the sake of the environment
Please ask your specialist retailer how to dispose of used bulbs in the proper
manner.
Note
•
Depending on the weather conditions (cold, humidity), the front head-
lights and front lights, the rear pilots and the indicators could steam up. This phenomenon has no influence on the life
expectancy of the vehicle lights. If
headlamps are switched on, the area where the light shaft is projected, is
demisted in little time. However, the edges may be steamed up on the inte-
rior.
•
Please check at regular intervals that all lighting (especially the exterior
lighting) on your vehicle is functioning pr operly. This is not only in the interest
of your own safety, but also in that of all other road users.
•
Before changing a bulb, make sure you have the correct new bulb.
•
Do not touch the glass part of the bulb with your bare hands, use a cloth
or paper towel instead. Otherwise, the fingerprints left on the glass will
vaporise as a result of the heat generated by the bulb, be deposited on the
reflector and impair its surface.
Removing the air duct
The air duct has to be removed to gain access to the bulbs for
the right-side headlight.
Bulb
Typ e
Xenon bulbs
12 V/35 W (D1S)
DRL (day light)
12 V/21 W (P21W SLL)
Indicator light
12 V/21 W (PY21W)
Side lights
12 V/5 W (W5W blue LL)
Fig. 199 Air duct on right
side of vehicle
Exeo_EN.book Seite 257 Freitag, 17. Oktober 2008 11:24 11

If and when
258
–Unscrew bolts ⇒page 257, fig. 199 .
– Detach air duct from guide and take it out.Fitting the air duct
Once the bulb(s) for the righ t-side headlight have been
changed, the air duct must be re-installed.– Place the air duct in the correct position.
– First turn the two screws in lightly, then tighten both screws.
– Push air duct into guide .
Bi-Xenon AFS headlight bulbs
Indicator light
Xenon headlight (dipped beam/main beam)
Side lights
DRL light (day light)
AA
AB
Fig. 200 Air duct on right
side of vehicle
AAAB
Fig. 201 Bi-Xenon AFS
headlight bulbs
AAABACAD
Exeo_EN.book Seite 258 Freitag, 17. Oktober 2008 11:24 11
