Seat Exeo 2010 Owner's manual

Seats and storage compartments139
Safety First
Operating Instructions
Practical Tips
Technical Specifications
adjustment. Use of the button is recommended to disable the memory
system when the vehicle is being driven
temporarily by a different driver
whose settings do not need to be stored in the memory.
Note
You can also use the remote control to call up the stored settings
⇒ page 140.Storing settingsThe button must be in its down position (pressed in) before
you can store the desired settings.
– Adjust the driver seat as required ⇒page 136.
– Adjust both exterior mirrors ⇒page 132.
– Press and hold the button. At the same time, press one of the memory buttons for at least a second.
– Release both buttons. The settin g is now stored on the selected
memory button.Any new setting selected automatically cancels the existing setting stored on
the memory button. It is best to begin with memory button No. 1 for the first
driver and then assign the other memory buttons to each subsequent driver.
The seat and mirror positions are stored when the vehicle is locked with the
remote control and are assigned to the remote control key. The exterior
mirrors adjust automatically to the previous position when you unlock the
vehicle; the driver seat adjusts automatically when you open the driver door. However, this does not delete the settings stored in memory buttons 1 to 4.
These settings can be enabled at any time.
Activating settings
Stored settings can be recalled using either the memory
buttons or the remote control (remote control key).Using the memory buttons
– If the driver door is open, press the desired memory button
briefly.
– If the driver door is closed, press and hold down the appropriate memory button until the seat an d exterior mirrors reach their
programmed positions.
Using the remote control
– Unlock the vehicle using the remote control and open the driver door within the next ten minutes.The seat adjustment will have to be call ed up using the memory buttons if the
driver door is not opened within 10 minutes after unlocking the vehicle with
the remote control.
WARNING
•For safety reasons, the seat must only be adjusted when the vehicle is
at a standstill. Failure to do so could result in an accident.•In an emergency, the memory function can be stopped at any time by
pressing the STOP button or by briefly pressing any of the memory
buttons.
STOP
STOP
MEMO
exeo_EN.book Seite 139 Montag, 30. August 2010 4:45 16

Seats and storage compartments
140Assigning remote control keys
The key must be assigned to a memory button so that the
positions stored in the memory can also be recalled using the
remote control key.Assigning the remote control key to a memory button
– Using the memory button, recall the settings that are to be
programmed onto the key.
– Keeping the memory button pressed down, press the unlock button on the remote control key within 10 seconds.
– Wait for about 2 seconds before releasing the memory button.
Deleting assignment of the remote control key to the memory
button
– Press and hold the button and press the unlock button on the remote control key within 10 seconds.
– Wait for about 2 seconds before releasing the button.The previous settings are automatically cancelled when the keys are re-
assigned to different memory buttons.
Head restraintsFront head restraints
In combination with properly worn seat belts, the head
restraints offer effective protection, provided they are prop-
erly adjusted to suit the height of the occupant.Raising the head restraint
– Take hold of the sides of the head restraint with both hands.
– Pull up the head restraint.
Lowering the head restraint
– Press button and lower the head restraint.
MEMO
MEMO
Fig. 111 Front seats:
Head restraints
AA
exeo_EN.book Seite 140 Montag, 30. August 2010 4:45 16

Seats and storage compartments141
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Removing the head restraints
– Pull the head restraint up as far as it will go.
– Press button and pull out the head restraint.
Fitting the head restraint
– Insert the head restraint in its guides until it clicks into place.
Press button and lower the head restraint.The height of the head restraints is adjustable. They should be set to suit the
height of the occupant. In combination with the seat belts, the head
restraints offer effective protection, provided they are properly adjusted.
For best protection, the top of the head restraint should be at least at eye level
or higher.Head restraints on the side rear seats
Raising the head restraint
– Take hold of the sides of the head restraint with both hands.
– Pull the head restraint up as far as it will go.
Lowering the head restraint
– Press button ⇒fig. 112 and lower the head restraint.
Removing the head restraint
– Pull the head restraint up as far as it will go.
– Press button ⇒fig. 112 and pull out the head restraint.
Fitting the head restraint
– Insert the head restraint in its gu ides until it clicks into place.
Press button and lower the head restraint.When the rear seats are not occupied, the head restraints should be moved
to the lowest position so that they do not obstruct the driver’s field of
vision.
AAAA
Fig. 112 Outer rear seats:
Head restraints
AAAAAA
exeo_EN.book Seite 141 Montag, 30. August 2010 4:45 16

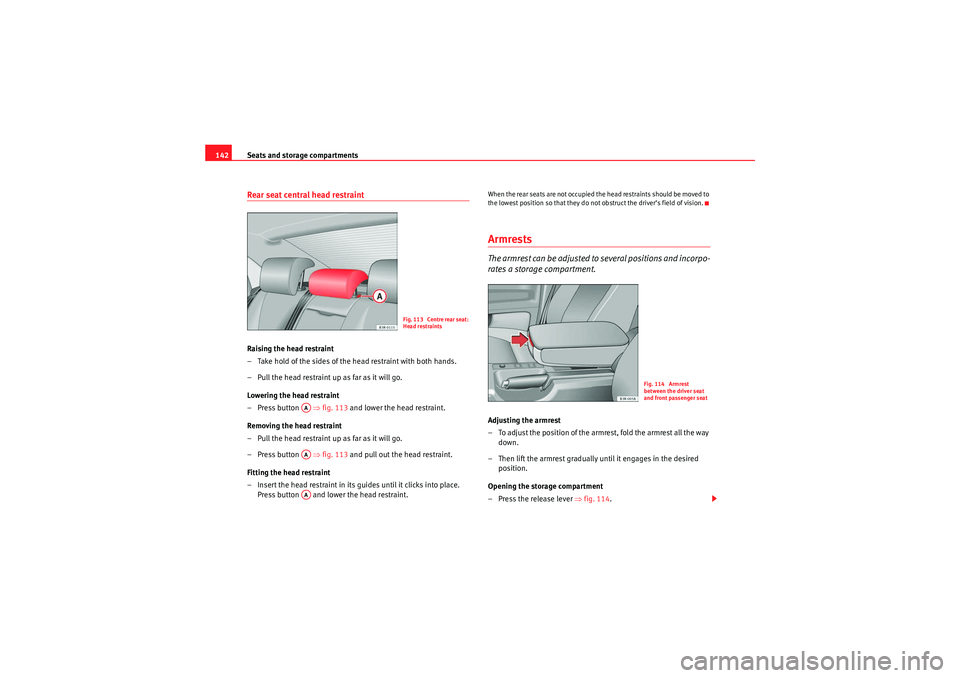

Seats and storage compartments
142Rear seat central head restraintRaising the head restraint
– Take hold of the sides of the head restraint with both hands.
– Pull the head restraint up as far as it will go.
Lowering the head restraint
–Press button ⇒fig. 113 and lower the head restraint.
Removing the head restraint
– Pull the head restraint up as far as it will go.
–Press button ⇒fig. 113 and pull out the head restraint.
Fitting the head restraint
– Insert the head restraint in its guides until it clicks into place. Press button and lower the head restraint.
When the rear seats are not occupied the head restraints should be moved to
the lowest position so that they do not obstruct the driver’s field of vision.ArmrestsThe armrest can be adjusted to several positions and incorpo-
rates a storage compartment.Adjusting the armrest
– To adjust the position of the armrest, fold the armrest all the way down.
– Then lift the armrest gradually until it engages in the desired position.
Opening the storage compartment
– Press the release lever ⇒fig. 114.
Fig. 113 Centre rear seat:
Head restraints
AAAAAA
Fig. 114 Armrest
between the driver seat
and front passenger seat
exeo_EN.book Seite 142 Montag, 30. August 2010 4:45 16

Seats and storage compartments143
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Please note that the armrest can restrict the driver’s movements when it is
lowered. The armrest should therefore be raised when driving in city traffic.
Luggage compartmentLoading the luggage compartment
Loads in the luggage compartment should be safely secured.To maintain safe handling on the road, please observe the following
points:
– Distribute the load evenly.
– Position heavy items as far forward as possible
⇒fig. 115 .
WARNING
•Unsecured objects in the luggage compartment can suddenly shift and
cause changes in the handling of the vehicle.•In an accident or a sudden manoeuvre, loose objects in the passenger
compartment can be flung forward and might injure vehicle occupants.•Always keep all objects in the luggage compartment and use appro-
priate grips to secure them, particularly in the case of heavy objects.•When you transport heavy objects, always bear in mind that a change
of the centre of gravity can also cause changes in vehicle handling.•Please refer to the notes on ⇒page 7.Note
The tyre pressure must be adjusted according to the load. Consult the label
with the pressure values inside the fuel tank flap when required ⇒ page 220,
fig. 163 .
Fig. 115 Position heavy
items as far forward as
possible.
exeo_EN.book Seite 143 Montag, 30. August 2010 4:45 16

Seats and storage compartments
144Extending the luggage compartment
The two sections of the backrest can be folded forwards either
together or separately to increase the capacity of the luggage
compartment.Folding the backrest forwards
– Press the release lever ⇒fig. 116 in the direction indicated
by the arrow.
– Fold down the backrest.
Returning the backrest to its upright position
– Push the backrest up until it engages securely ⇒ . The red
marking on the tab should no longer be visible when the
backrest is properly secured.
WARNING
•Make sure that the rear backrest is securely locked in position so that
the seat belt can provide proper protection on the centre rear seat.•The rear backrest must always be securely latched so that objects
stored in the luggage compartment will not fly forward during sudden
braking.Caution
When returning the backrest to an upright position, make sure that the seat
b e l t s f o r t h e o u t e r r e a r s e a t s a r e i n t h e i r g u i d e s , s o t ha t t h e y ca n n o t b e ca u g h t
up and damaged in the catches for the backrest.Rear shelf
The rear shelf behind the rear backrest can be used to store
light items of clothing.
WARNING
Do not store any heavy or hard objects on the rear shelf. These could cause
injury if the brakes are applied suddenly.
Caution
Please note that hard objects could chafe against the wires of the heating
element in the rear window and cause damage.
Note
Make sure that the slots between the rear window and the rear shelf are kept
clear to ensure unimpaired ventilation.
Fig. 116 Backrest release
lever
AA
AB
exeo_EN.book Seite 144 Montag, 30. August 2010 4:45 16

Seats and storage compartments145
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Ski bag*
You can use the ski bag to transport skis or other extra-long
objects safely inside the vehicle without soiling or damaging
the upholstery.
Loading
–Open the tailgate.
– Press the release catch for the ski bag cover ⇒fig. 117 -arrow-
and swivel the cover downwards.
– Pull down the centre rear armrest.
– From the passenger compartment, press down the release catch for the ski bag cover and pull out the cover.
– Pull out and unfold the ski bag.
– The long items can now be loaded through the luggage compart- ment into the ski bag ⇒.
Securing
– Insert the fastening belt ⇒fig. 118 of the ski bag into the
centre seat belt buckle .
– Pull the free end of belt to tighten.
Storing
– Close the cover of the load-through hatch in the luggage compartment.
– Carefully fold away the ski bag.
– Close the inside cover of the load-through hatch from the passenger compartment.
Fig. 117 Detailed view of
the rear of the rear back-
rest: Ski bag coverFig. 118 Securing the ski
bag on the centre seat
belt buckle on the rear
seat bench
AAABAC
exeo_EN.book Seite 145 Montag, 30. August 2010 4:45 16

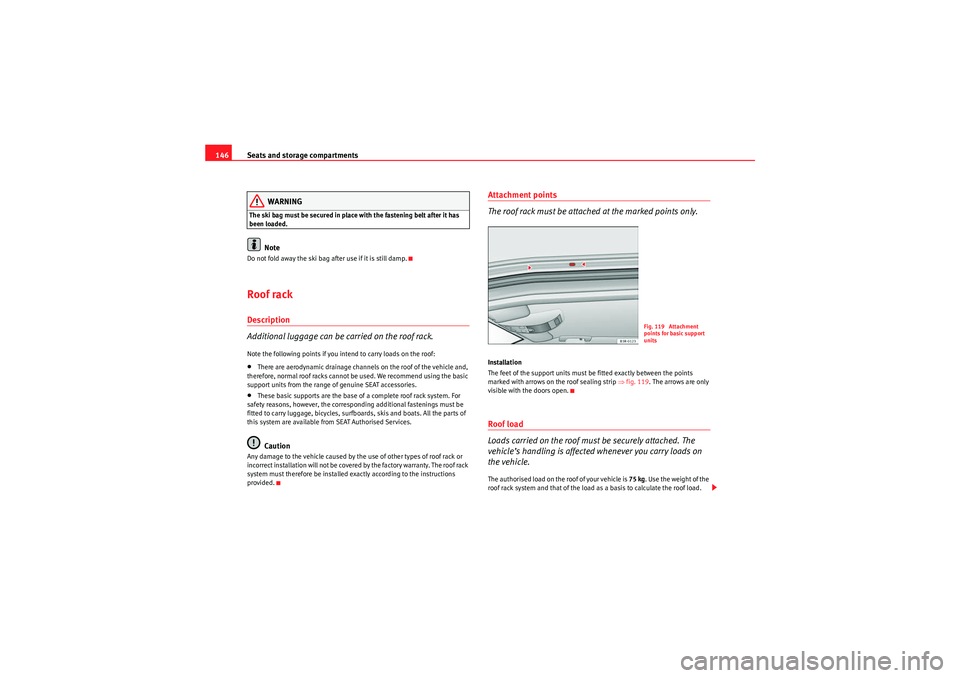

Seats and storage compartments
146
WARNING
The ski bag must be secured in place with the fastening belt after it has
been loaded.
Note
Do not fold away the ski bag after use if it is still damp.Roof rackDescription
Additional luggage can be carried on the roof rack.Note the following points if you intend to carry loads on the roof:•There are aerodynamic drainage channels on the roof of the vehicle and,
therefore, normal roof racks cannot be used. We recommend using the basic
support units from the range of genuine SEAT accessories.•These basic supports are the base of a complete roof rack system. For
safety reasons, however, the corresponding additional fastenings must be
fitted to carry luggage, bicycles, surfboards, skis and boats. All the parts of
this system are available from SEAT Authorised Services.Caution
Any damage to the vehicle caused by the use of other types of roof rack or
incorrect installation will not be covered by the factory warranty. The roof rack
system must therefore be installed exactly according to the instructions
provided.
Attachment points
The roof rack must be attached at the marked points only.Installation
The feet of the support units must be fitted exactly between the points
marked with arrows on the roof sealing strip ⇒fig. 119 . The arrows are only
visible with the doors open.Roof load
Loads carried on the roof must be securely attached. The
vehicle’s handling is affected whenever you carry loads on
the vehicle.The authorised load on the roof of your vehicle is 75 kg. Use the weight of the
roof rack system and that of the load as a basis to calculate the roof load.
Fig. 119 Attachment
points for basic support
units
exeo_EN.book Seite 146 Montag, 30. August 2010 4:45 16

Seats and storage compartments147
Safety First
Operating Instructions
Practical Tips
Technical Specifications
If less resistant systems are used, the roof rack must not be loaded to the
maximum weight permitted. If less resistant systems are used, these must
only be loaded to the maximum weight permitted indicated in the assembly
instructions.
WARNING
•Loads carried on the roof must be securely attached. Failure to do so
could result in an accident.•Do not exceed the maximum roof load for the vehicle, the maximum
axle loads or the maximum gross vehicle weight. Failure to do so could
result in an accident.•When transporting heavy or bulky loads on the roof, bear in mind that
the vehicle’s handling is affected by the extra weight on the roof and a
possible susceptibility to cross winds. Adjust your speed and driving style
accordingly to avoid accidents.For the sake of the environment
Roof racks are often left attached for convenience, even when they are not
being used. However, the increased air resistance means that the vehicle
uses more fuel. For this reason you should always take off the roof rack when
it is not in use.
Drink holderFront drink holder

– To open the drink holder, press the symbol
 on the drink holder
lid ⇒fig. 120
– To close the drink holder, press it in until it engages.
WARNING
•Do not put any hot drinks in the drink holder while the vehicle is
moving. You can be scalded if the hot liquid is spilt.•Do not use hard china cups or glasses. These could cause injury in the
event of an accident.
Fig. 120 Detailed view of
the dash panel: Drink
holder
exeo_EN.book Seite 147 Montag, 30. August 2010 4:45 16

Seats and storage compartments
148Drink holder in the rear armrest*Opening the drink holder
–Press the symbol
 ⇒fig. 121 .
Adjusting the retainer arm
– To adjust one of the retainer arms , release it by pressing in the direction indicated (arrow) and move it as required.
The retainer arm should be positioned against the drink holder so that it is
held securely.
One or two drink holders can be held in the centre console.
WARNING
•Do not put any hot drinks in the drink holder while the vehicle is
moving. You can be scalded if the hot liquid is spilt.
•Do not use hard china cups or glasses. These could cause injury in the
event of an accident.
Ashtray*, cigarette lighter* and electric
sockets*Front ashtray*Opening the ashtray
– Lightly press the front part of the ashtray ⇒fig. 122 .
Removing the ashtray
– Take hold of the sides of the ashtray ⇒fig. 122 and lift it out.
Fig. 121 Drink holder in
the rear armrest
AA
AB
WARNING (continued)
Fig. 122 Centre console:
Open ashtrayAA
AB
exeo_EN.book Seite 148 Montag, 30. August 2010 4:45 16
