Fitting the ashtray casing
– Insert the casing and press it into its mountings.
WARNING
Never put waste paper in the ashtray, as this could cause a fire.Rear ashtrayOpening the ashtray
– Lift the lid.
Removing the ashtray
– Take hold of the lid ⇒fig. 123 and lift out the ashtray. Fitting the ashtray casing
– Open the lid on the ashtray and press the casing into the
mounting as far as it will go.
WARNING
Never put waste paper in the ashtray, as this could cause a fire.Cigarette lighter*
The 12 volt socket for the cigarette lighter can also be used as
a power source for other electrical appliances.Using the cigarette lighter
–Press in the ciga rette lighter button.
– Wait for the lighter to pop out slightly.
Fig. 123 Rear ashtray
Fig. 124 Cigarette lighter
in the centre console
exeo_EN.book Seite 149 Montag, 30. August 2010 4:45 16

Seats and storage compartments
150
– Pull out the cigarette lighter immediately.
– Use the glowing heater element of the cigarette lighter to light your cigarette.
– Put the cigarette lighter back in its socket.
Operating the socket
– Take out the cigarette lighter.
– Insert the plug of the electrical appliance into the cigarette lighter socket.The cigarette lighter ⇒page 149, fig. 124 employs a standard 12 volt socket,
which can also be used as a power source for electrical appliances. The appli-
ances connected to the socket must not exceed a power rating of 100 W.
WARNING
•Be careful when using the electric cigarette lighter. Carelessness or
negligence when using the cigarette lighter can cause burns.•The lighter will only work when the ignition is switched on.•The electrical sockets and, therefore, any appliances connected to
them will only work when the ignition is switched on.Caution
Always use the correct type of plugs to avoid damaging the sockets.
Note
The use of electrical appliances with the engine switched off will cause a
battery discharge.
Power socket*
Electrical equipment can be connected to the 12 volt socket.– Lift the power socket cover ⇒fig. 125 .
– Insert the plug of the electrical appliance into the socket.Electrical equipment can be connected to the 12 volt socket. The appliances
connected to the socket must not exceed a power rating of 100 W.
WARNING
The electrical sockets and, therefore, any appliances connected to them
will only work when the ignition is switched on.
Caution
Always use the correct type of plugs to avoid damaging the sockets.
Fig. 125 Detailed view of
the side trim in the
luggage compartment: 12
volt socket
exeo_EN.book Seite 150 Montag, 30. August 2010 4:45 16

Seats and storage compartments151
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Note
The use of electrical appliances with the engine switched off will cause a
battery discharge.230 volt socket for Europlug*
Electrical equipment can also be connected to the 230 volt
socket in the centre console.The 230 Volt socket can only be used when the engine is running
⇒.
In vehicles with folding cover:
– Hold the cover of the socket at the lower recess.
– Lift the cover to open ⇒ fig. 126. Inserting the Europlug
– Insert the Europlug in the socket. The childproof safety device on
the socket is deactivated.
– If necessary, press the Europlug as far as possible into the socket
to ensure it is correctly inserted and will not jump out of place
while driving over a bump or similar.
LED warning lamp above socket
Equipment which may be connected
The 230 volt socket can be used to connect electrical equipment with a Euro-
plug. Please note that the power consumption in this socket must not exceed
150 watts (peaks of 300 watts).
Even when more than one appliance is connected, the total consumption of
all the appliances must not exceed 150 watts. If necessary, please refer to the
manufacturer’s label to confirm the power consumption of the connected
equipment.
All connected appliances should be in perfect working order without any
faults.
WARNING
•Heavy appliances or connectors (for example, adapters) which hang
down directly from the Europlug socket may damage the socket with the
resultant risk of injury.
Fig. 126 Centre console:
230 volt socket
Steady green
light:
The childproof safety device is disconnected. The socket
is ready for use
Flashing red
light:
There is a fault, for example, disconnection due to
excess current or temperature
exeo_EN.book Seite 151 Montag, 30. August 2010 4:45 16

Seats and storage compartments
152•Ensure that appliances connected to the socket are secure to prevent
them from being thrown around the vehicle in the event of sharp braking or
an accident. This could result in severe injury or loss of life ⇒page 16,
“Storing objects”.•Never spill liquid over the socket – there is a risk of death. If any mois-
ture enters the socket, ensure that it is thoroughly dry before using.•Improper use of the sockets or electrical accessories can lead to serious
injuries or cause a fire, with the resultant risk of injury.•Children must never be left alone in the vehicle with the engine
running. They could cause an accident.•Appliances connected to the socket do not behave in the same way as
when they are connected to the mains power supply. They may overheat
during use and cause injury.•When using adapters and extension leads, the childproof safety device
on the 230 volt socket is disconnected and the socket is live. Risk of injury!.•Never insert objects which conduct electricity, such as a needle, in the
pins of the 230 volt socket. There is a risk of death.•Always switch off electrical appliances connected to the socket if the
inverter goes off as a result of overheating. Failure to comply could result
in injuries.Caution
•The instructions for handling appliances connected to the socket must be
observed.•If the power consumption of the appliances connected exceeds 150
watts, the socket inverter will overheat. If the temperature exceeds a certain
value, the inverter will switch off. It may also switch off if the outside temper-
ature is very high, even if the power consumption is normal. The inverter will
switch on again automatically after it has cooled down. Appliances connected to the socket, and which have been left switched on, will automat-
ically come back on
⇒.
•Do not connect neon lamps to the socket. For technical reasons, these
could break down.•Do not connect 115 volt appliances to the 230 volt power socket, as they
could be damaged. If you have any queries, please check the manufacturer’s
label for details of the power supply accepted by the appliance.•With some adapters, for example for laptops, their built-in overload
disconnection system prevents the equipment from switching on in the event
of an excessive star t-up current. In this case, disconnect the adapter from the
power supply and try to reconnect after ten seconds.Note
•Non-insulated equipment may cause interference to the radio or vehicle
electronics.•The Europlug socket has a built-in childproof device and only carries live
current when the Europlug is correctly plugged in.•Some appliances may not operate correctly in the absence of adequate
power (watts).•In some countries this socket is 115 volts. Therefore the socket should
have a different inverter installed at the factory. You can obtain retrofit kits
from your Authorised Technical Service. Do not connect 115 Volt appliances
to the 230 Volt socket.•The use of electrical equipment in the vicinity of the aerial in the rear
window may cause interference to the reception of stations broadcasting in
AM.
WARNING (continued)
exeo_EN.book Seite 152 Montag, 30. August 2010 4:45 16

Seats and storage compartments153
Safety First
Operating Instructions
Practical Tips
Technical Specifications
CompartmentsOverview
There are several storage compartments at various points in
the vehicle.Your vehicle has the following storage compartments:
Some of the compartments listed are only provided in certain models or are
optional extras.
Glove compartment
The lockable glove compartment is equipped with a light.Opening the glove compartment
– Pull the handle on the lid in the direction indicated (arrow)
⇒fig. 127 and open the lid.
Closing the glove compartment
– Close the lid and push it in until it engages.If the side lights or headlights are switched on, the light in the glove compart-
ment comes on when it is opened.
The lid has separate holders for a pen and a note pad.
First-aid kit*Emergency triangle*Glove compartment
⇒ page 153
Storage compartment in the centre consoleOn-board documentation compartment*Compartments in the door trims
⇒page 154
Coat hooks
⇒page 154
Rear shelf
⇒page 144
Side storage compartment in luggage com-
partment
Fig. 127 Glove compart-
ment
exeo_EN.book Seite 153 Montag, 30. August 2010 4:45 16

Seats and storage compartments
154
WARNING
For safety reasons, the glove compartment must always be closed when
the vehicle is moving. Failure to do so could result in an accident.Compartments in the door trim
Storage compartments are provided in the door trims.
WARNING
The storage compartments in the door trims should only be used to store
small objects. Make sure that they are stored safely inside the compart-
ment, as they might otherwise impair the protection offered by the side
airbags.
Coat hooks
There is a coat hook above each of the rear doors.
WARNING
•Please make sure that any items of clothing hanging from the coat
hooks do not obstruct your view to the rear.•The coat hooks should only be used for lightweight clothing. Do not
leave any heavy or sharp objects in the pockets.•Do not use clothes hangers to hang up the clothing, as this could inter-
fere with the function of the head-protection airbags*.

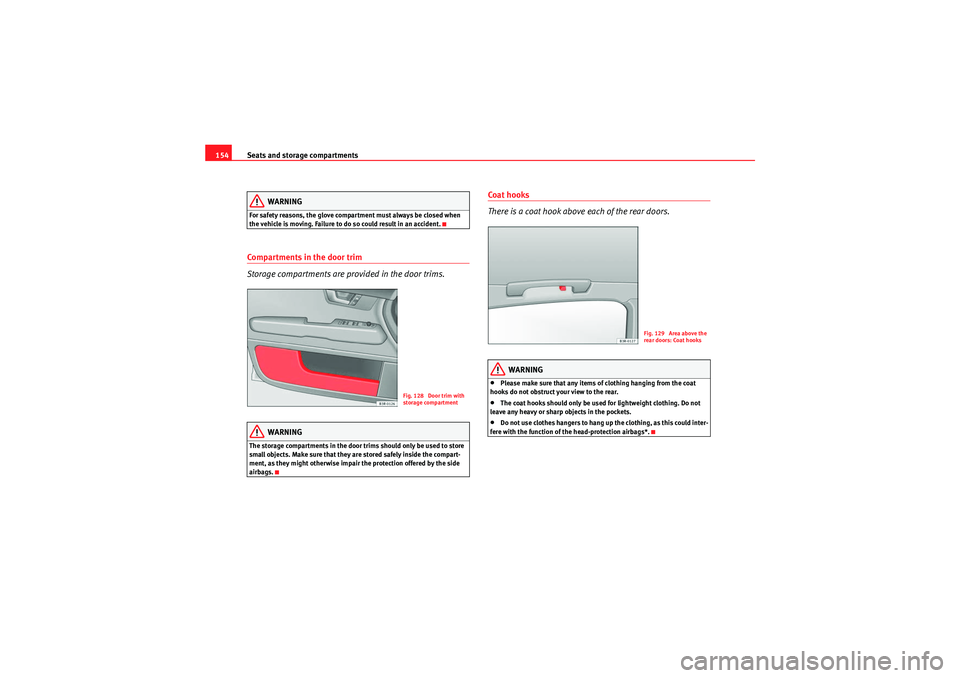

Fig. 128 Door trim with
storage compartment
Fig. 129 Area above the
rear doors: Coat hooks
exeo_EN.book Seite 154 Montag, 30. August 2010 4:45 16

Seats and storage compartments155
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Compartments in the front seats*
There is a storage compartment with a lid at the front of each
front seat.Opening
– Pull the handle to open the compartment.
Closing
– Close the lid and push it in until it engages.
NoteThe compartments will hold a maximum weight of 1 kg.
exeo_EN.book Seite 155 Montag, 30. August 2010 4:45 16

Air conditioning
156Air conditioning2C-ClimatronicDescription
The air conditioner is designed to automatically keep the
passenger compartment at the temperature you find most
comfortable at all times of the year.Recommended settings:
– Set the temperature to 22°C (71°F).
–Press the button ⇒page 158, fig. 130 .The following setting quickly provides a comfortable temperature inside the
vehicle. We therefore recommend you do not modify the setting unless you
find this temperature uncomfortable or where circumstances require as such.
The air conditioner provides heating and ventilation and also cools and dehu-
midifies the air inside the vehicle.
The air conditioner is fully automatic and will constantly maintain the temper-
ature which has been set. To achieve this, the temperature of the air supplied
to the interior, the blower speed (volume of air delivery) and the air distribu-
tion are regulated automatically. The system also takes solar radiation into
account and, therefore, no subsequent manual readjustments are required.
Therefore, automatic mode ⇒ page 159 should be used for the comfort of all
the passengers in virtually all conditions throughout the year.
Please note the following points:
The humidity of the air is automatically reduced when the system cools the
interior of the vehicle. This helps to prevent condensation on the windows. If the humidity and temperature outside the vehicle are high,
condensation
can drip off the evaporator in the air cooling system and form a pool under-
neath the vehicle. This is normal and does not indicate a leak.
If the outside temperature is low, the blower normally only switches to a
higher speed once the coolant has warmed up sufficiently (this does not
apply to the defrost setting).
In order to achieve maximum engine power, the air conditioner compressor is
temporarily switched off when pulling away from standstill with full throttle.
The compressor also switches off if the coolant temperature is excessively
high to ensure adequate engine cooling under extreme loads.
Pollution filter
The pollution filter (a combined particulate filter and activated charcoal filter)
serves as a barrier against impurities in the outside air, including dust and
pollen.
For the air conditioner to work with maximum efficiency, the pollution filter
element must be replaced at the intervals specified in the Service Plan.
If the vehicle is driven in areas with a high level of air pollution and the filter
is no longer fully effective, it may be necessary to change the filter element
more frequently.
Caution
•If you suspect that the air conditioner system is damaged, switch over to
ECON mode to prevent further damage and have the system checked by a
qualified workshop.•Repairs to the air conditioner require specialist knowledge and special
tools. For this reason, please contact a qualified workshop if the system is not
working properly.
AUTO
exeo_EN.book Seite 156 Montag, 30. August 2010 4:45 16

Air conditioning157
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Note
•Keep the air intake slots in front of the windscreen clear of snow, ice and
leaves to ensure unimpaired heating and cooling and to prevent the windows
misting over.•The air from the outlets flows through the passenger compartment and
out through the slots below the rear window. Therefore, do not cover these
slots with items of clothing or other objects.•The air conditioner operates most effectively with the windows and the
sliding/tilting sunroof* closed. However, if the vehicle has heated up after
standing in the sun for some time, the air inside can be cooled more quickly
by opening the windows briefly.
exeo_EN.book Seite 157 Montag, 30. August 2010 4:45 16

Air conditioning
158Controls
This overview will help you become quickly fami liar with the controls for the air conditioner.The left-hand display shows the temperature selected for the left-hand side
and the right-hand display the temperature for the right-hand side.
The functions can be switched on or off by briefly pressing the buttons. The
diode on the buttons lights up when the function is enabled.
The grille between buttons and must be kept clear, as the tempera-
ture sensors are located behind the grille.•Do not cover the grille.•Do not clean the grille with a vacuum cleaner, as this could damage the
temperature sensors located behind the grille.
Fig. 130 Air conditioner controls


Button(s)
MeaningAutomatic mode

(left and right
sides)
Temperature selection for the driver
and front passenger sidesDefrostManual air recirculation modeSwitches off air coolingSwitches off air conditioner (instead of )Automatic air recirculation mode (instead of )
AUTO-+<ECONOFF


OFF
exeo_EN.book Seite 158 Montag, 30. August 2010 4:45 16
