technical specifications Seat Exeo 2010 Owner's manual

Technical Specifications
298Trailer weight
Engine oil capacityPetrol engine 2.0 147 kW (200 PS)Engine specifications
Performance Trailer without brakes
740
Trailer with brakes, gradients up to 8% 1600
Trailer with brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.6 litres
Power output in kW (PS) rpm 147 (200) / 5100-6000
Maximum torque in Nm at rpm 280 / 1800-5000
No. of cylinders/ capacity in cm
3
4 / 1984
Fuel Super 98 RON
a)/Super 95 RON
b)
a)Research- Octane- Number = Anti-detonation rating of the petrol.b)Slight power loss.
Manual Automatic
Maximum speed in km/h 241235
Acceleration from 0-80 km/h in sec. 5.45.3
Acceleration from 0-100 km/h in sec. 7.37.3
exeo_EN.book Seite 298 Montag, 30. August 2010 4:45 16

Technical Specifications299
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Weights
Trailer weight
Engine oil capacity
Petrol engine 2.0 155 kW (210 PS)Engine specifications
Manual
Automatic
Gross vehicle weight in kg 19902015
Weight in running order (with driver) in kg 15051530
Gross front axle weight in kg 10901120
Gross rear axle weight in kg 10301030
Permitted roof load in kg 7575
Manual Automatic
Trailer without brakes 750750
Trailer with brakes, gradients up to 8% 16001700
Trailer with brakes, gradients up to 12% 14001500
Approximate engine oil capacity with oil filter change 4.5 litres
Power output in kW (PS) rpm 155 (210) / 4600-6000
Maximum torque in Nm at rpm 320 / 1500-4600
No. of cylinders/ capacity in cm
3
4 / 1984
Fuel Super 95 RON
a)/Super 91 RON
b)
a)Research- Octane- Number = Anti-detonation rating of the petrol.b)Slight power loss.
exeo_EN.book Seite 299 Montag, 30. August 2010 4:45 16

Technical Specifications
300Performance
Weights
Trailer weight
Engine oil capacity Maximum speed
in km/h 244
Acceleration from 0-80 km/h in sec. 5.3
Acceleration from 0-100 km/h in sec. 7.1
Gross vehicle weight in kg 1990
Weight in running order (with driver) in kg 1505
Gross front axle weight in kg 1090
Gross rear axle weight in kg 1030
Permitted roof load in kg 75
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1700
Trailer with brakes, gradients up to 12% 1500
Approximate engine oil capacity with oil filter change 4.6 litres
exeo_EN.book Seite 300 Montag, 30. August 2010 4:45 16

Technical Specifications301
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Diesel engine 2.0 TDI CR 88 kW (120 PS)Engine specifications
Performance
Weights
Trailer weightPower output in kW (PS)
rpm 88 (120) / 4000
Maximum torque in Nm at rpm 290 / 1750-2500
No. of cylinders/ capacity in cm
3
4 / 1968
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the dieselMaximum speed in km/h 204
Acceleration from 0-80 km/h in sec. 7.2
Acceleration from 0-100 km/h in sec. 10.5
Gross vehicle weight in kg 1990
Weight in running order (with driver) in kg 1505
Gross front axle weight in kg 1100
Gross rear axle weight in kg 1015
Permitted roof load in kg 75
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1300
exeo_EN.book Seite 301 Montag, 30. August 2010 4:45 16

Technical Specifications
302Engine oil capacityDiesel engine 2.0 TDI CR 105 kW (143 PS)Engine specifications
Performance
Weights Approximate engine oil capacity with oil filter change
4.3 litres
Power output in kW (PS) rpm 105 (143) / 4200
Maximum torque in Nm at rpm 320 / 1750-2500
No. of cylinders/ capacity in cm
3
4 / 1968
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the dieselMaximum speed in km/h 215
Acceleration from 0-80 km/h in sec. 6.3
Acceleration from 0-100 km/h in sec. 9.2
Gross vehicle weight in kg 1990
Weight in running order (with driver) in kg 1505
Gross front axle weight in kg 1100
Gross rear axle weight in kg 1015
Permitted roof load in kg 75
exeo_EN.book Seite 302 Montag, 30. August 2010 4:45 16

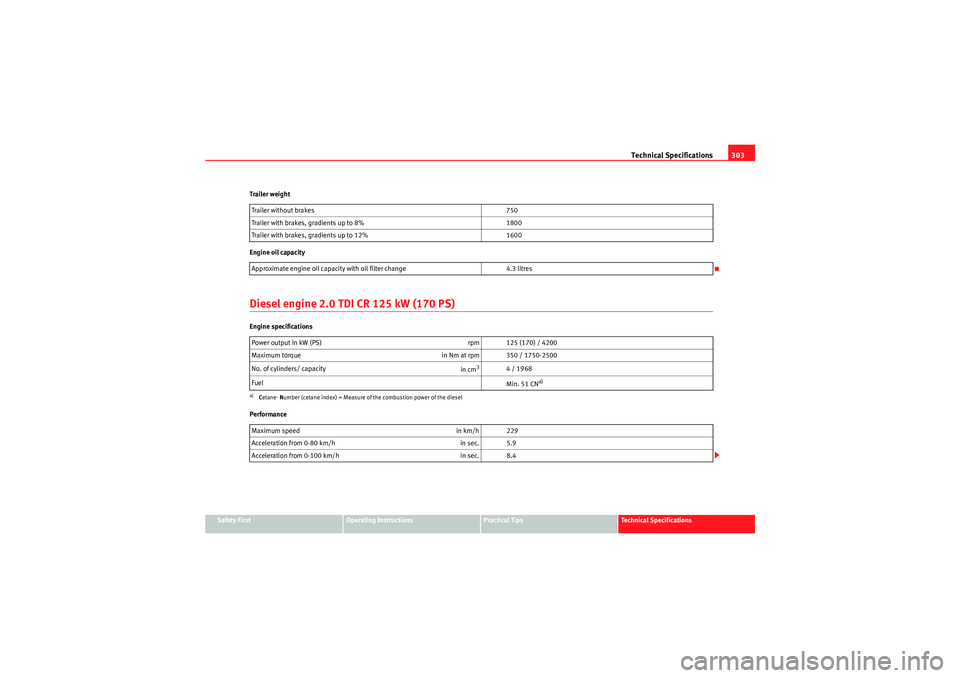

Technical Specifications303
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Trailer weight
Engine oil capacity
Diesel engine 2.0 TDI CR 125 kW (170 PS)Engine specifications
Performance
Trailer without brakes
750
Trailer with brakes, gradients up to 8% 1800
Trailer with brakes, gradients up to 12% 1600
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (PS) rpm 125 (170) / 4200
Maximum torque in Nm at rpm 350 / 1750-2500
No. of cylinders/ capacity in cm
3
4 / 1968
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the dieselMaximum speed in km/h 229
Acceleration from 0-80 km/h in sec. 5.9
Acceleration from 0-100 km/h in sec. 8.4
exeo_EN.book Seite 303 Montag, 30. August 2010 4:45 16

Technical Specifications
304Weights
Trailer weight
Engine oil capacity Gross vehicle weight
in kg 2015
Weight in running order (with driver) in kg 1530
Gross front axle weight in kg 1115
Gross rear axle weight in kg 1030
Permitted roof load in kg 75
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1800
Trailer with brakes, gradients up to 12% 1600
Approximate engine oil capacity with oil filter change 4.3 litres
exeo_EN.book Seite 304 Montag, 30. August 2010 4:45 16

Technical Specifications305
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Dimensions and capacities
Dimensions
Length, width 4661-4741
a) mm/ 1772 mm
a)With towing eye.Height at kerb weight1430 mm
Front and rear projection 976 mm/ 1043-1123
a) mm
Wheelbase 2642 mm
Turning circle 11.2 m
Track width
b)
b)This data will change depending on the type of wheel rim.
Front Rear
1522 mm 1523 mm
Capacities
Fuel tank 70 l. Reserve 10 l.
Windscreen washer fluid container with headlight washer 4.8 l.
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
exeo_EN.book Seite 305 Montag, 30. August 2010 4:45 16
