sensor Seat Exeo 2010 Owner's Guide

Intelligent technology187
Safety First
Operating Instructions
Practical Tips
Technical Specifications

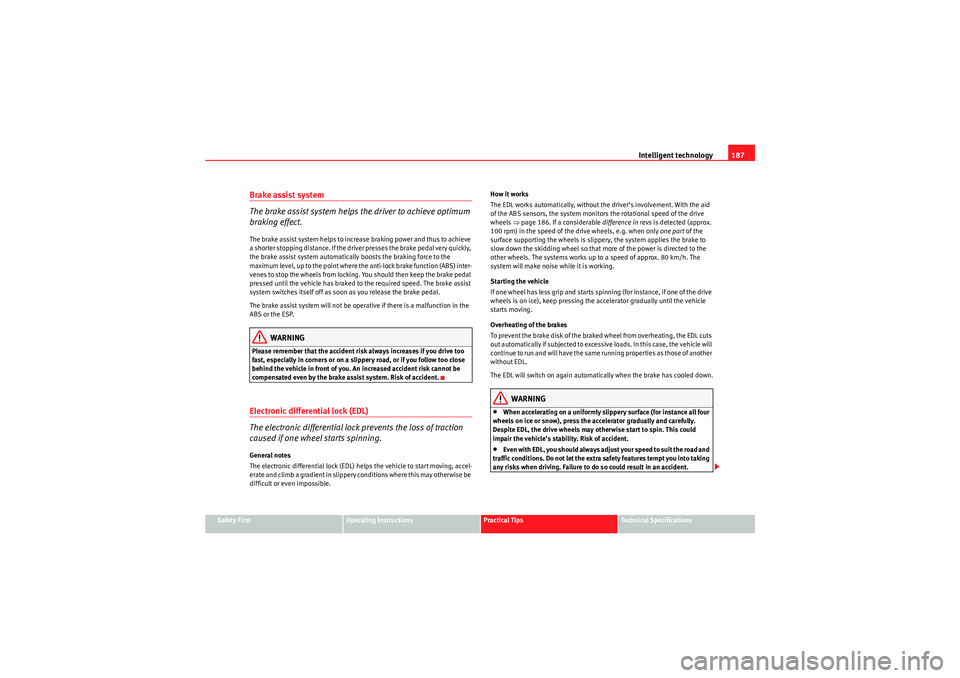

Brake assist system
The brake assist system helps the driver to achieve optimum
braking effect.The brake assist system helps to increase braking power and thus to achieve
a shorter stopping distance. If the driver presses the brake pedal very quickly,
the brake assist system automatically boosts the braking force to the
maximum level, up to the point where the anti-lock brake function (ABS) inter-
venes to stop the wheels from locking. You should then keep the brake pedal
pressed until the vehicle has braked to the required speed. The brake assist
system switches itself off as soon as you release the brake pedal.
The brake assist system will not be operative if there is a malfunction in the
ABS or the ESP.
WARNING
Please remember that the accident risk always increases if you drive too
fast, especially in corners or on a slippery road, or if you follow too close
behind the vehicle in front of you. An increased accident risk cannot be
compensated even by the brake assist system. Risk of accident.Electronic differential lock (EDL)
The electronic differential lock prevents the loss of traction
caused if one wheel starts spinning.General notes
The electronic differential lock (EDL) helps the vehicle to start moving, accel-
erate and climb a gradient in slippery conditions where this may otherwise be
difficult or even impossible. How it works
The EDL works automatically, without the driver’s involvement. With the aid
of the ABS sensors, the system monitors the rotational speed of the drive
wheels
⇒page 186. If a considerable difference in revs is detected (approx.
100 rpm) in the speed of the drive wheels, e.g. when only one part of the
surface supporting the wheels is slippery, the system applies the brake to
slow down the skidding wheel so that more of the power is directed to the
other wheels. The systems works up to a speed of approx. 80 km/h. The
system will make noise while it is working.
Starting the vehicle
If one wheel has less grip and starts spinning (for instance, if one of the drive
wheels is on ice), keep pressing the accelerator gradually until the vehicle
starts moving.
Overheating of the brakes
To prevent the brake disk of the braked wheel from overheating, the EDL cuts
out automatically if subjected to excessive loads. In this case, the vehicle will
continue to run and will have the same running properties as those of another
without EDL.
The EDL will switch on again automatically when the brake has cooled down.
WARNING
•When accelerating on a uniformly slippery surface (for instance all four
wheels on ice or snow), press the accelerator gradually and carefully.
Despite EDL, the drive wheels may otherwise start to spin. This could
impair the vehicle’s stability. Risk of accident.•Even with EDL, you should always adjust your speed to suit the road and
traffic conditions. Do not let the extra safety features tempt you into taking
any risks when driving. Failure to do so could result in an accident.
exeo_EN.book Seite 187 Montag, 30. August 2010 4:45 16

Intelligent technology
188
NoteIf the ABS warning lamp lights up, this can also mean there is a fault in the
EDL. Please take the vehicle to a qualified workshop as soon as possible.Traction control system (TCS)
The traction control system prevents the drive wheels from
spinning when the vehicle is accelerating.General notes
The traction control system (TCS) is one of the functions incorporated in the
Electronic Stability Programme (ESP).
The traction control system (TCS) helps the vehicle to start moving, accelerate
or climb a gradient in slippery conditions where this may otherwise be diffi-
cult or even impossible.
How it works
The TCS acts automatically, without the driver’s intervention. With the aid of
the ABS sensors ⇒page 186, the TCS monitors the speed of the drive
wheels. If the wheels start to spin, the engine speed is reduced automatically
to match the amount of grip available. The system is active across the entire
speed range.
The TCS works in conjunction with the ABS. If a malfunction occurs in the ABS,
the TCS will also be inoperative.
Note
To ensure that the TCS works properly, all four wheels must be fitted with
identical tyres. The difference in size of the wheels may lead to an undesired
reduction in engine power. Also see ⇒page 244.
exeo_EN.book Seite 188 Montag, 30. August 2010 4:45 16

Wheels and tyres
240Significant tyre pressure lossThe tyre symbol
~ is d i s p la y e d a n d i n d i ca te s t h a t t h e t yr e p r e s s u r e o f a t l e as t
one tyre is insufficient.
- Stop the vehicle.
- Switch the engine off.
- Check the tyre(s).
- Change the tyre if necessary.
Tyre pressure monitoring (RKA+)*
The tyre pressure monitor display on the instrument panel
indicates if the pressure is too low.The tyre pressure monitoring system makes use of the ABS sensors to
compare the rolling circumference and the frequency characteristics of the wheels. If the rolling circumference or frequency characteristic changes on
one or more wheels, the tyre pressure warning lamp
~ will light up. The fault
will also be indicated by a warning buzzer. The position of the affected tyre
will also be shown (if only one tyre is affected) on the centre display of the
instrument panel.
The rolling circumference and frequency characteristics can change if:
•the tyre pressure is too low.•the tyre has suffered structural damage.•the wheels or the inflation pressures have been changed without initial-
ising the system (see Adjusting the tyre pressure settings).•there is a greater load on the wheels of one axle (e.g. if you are carrying
more passengers or luggage).•the road surface under the left wheels is different to the road surface
under the right wheels for a long period.•when driving with snow chains.
Adjusting the tyre pressure settings (initialising the tyre pressure
monitoring system)
After any incident regarding the wheels of your vehicle, e.g. after modify the
tyre pressure ⇒page 241 or after changing or swapping around wheels ⇒
page 180 - with the vehicle at a standstill and the engine running - press
⇒ fig. 173. The yellow warning lamp
~ will light up. Hold the button down
for 2 seconds until the warning lamp goes out and an acoustic warning is
given. You can now release the button.
If the wheels are subjected to extreme stress (e.g. heavy load), the tyre pres-
sure must be increased to the recommended value for the maximum load
(see the adhesive label on the inside of the fuel tank flap) and then initialise
the system.
Tyre pressure warning lamp on
When you switch on the ignition, the tyre pressure warning lamp
~ will light
up for about 2 seconds. There is a fault in the system if the indicator stays on
permanently after switching on the ignition. The instrument panel also
Fig. 173 Detailed view of
the centre console: Button
for the tyre pressure
monitoring system
exeo_EN.book Seite 240 Montag, 30. August 2010 4:45 16

If and when259
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Fuse assignment
This list shows the fuses which can be replaced relatively
easily by the owner.No.
Consumer
Amps
1
Air conditioner
10
2
Footwell lamps
5
3
Heated washer jets
5
4
Radiator fan
5
5
Parking aid, automatic gearbox
10
6
Air conditioner (air purity sensor), pressure sensor
5
7
Electronic Stability Programme (ESP), brake light
switch, clutch pedal switch, steering angle sensor
10
8
Te le p hon e
5
9
Va can t
10
Adaptive headlights right
5
11
Airbag and disconnection of the front passenger air-
bag
5
12
Diagnostic socket
10
13
Steering column unit
10
14
Brake lights
10
15
Instrument panel
10
16
Va can t
17
Tyre pressure control, rain/light sensor
10
18
Adaptive headlights left
5
19
Va can t
20
Va can t
21
Va can t
22
Driver door / front passenger door
15
23
Rear doors
15
24
Central electrics unit for convenience equipment
20
25
Heater blower
30
26
Rear window heater
30
27
Power socket for trailer (control unit)
30
28
Fuel pump, auxiliary pump for diesel
20
29
Va can t
30
Sliding/tilting sunroof
20
31
Diagnosis connection, automatic anti-dazzle interior
mirror, reverse light, automatic gearbox
15
32
Towi ng s ocke t
15
33
Lighter
20
34
Lambda probe heater
5
35
Luggage compartment power socket*
20
36
Wiper system
30
37
Pump for windscreen washer and headlight washer
system
30
38
Luggage compartment illumination, alarm
15
39
Radio, Amplifier
20
40
Horn
25
No.
Consumer
Amps
exeo_EN.book Seite 259 Montag, 30. August 2010 4:45 16

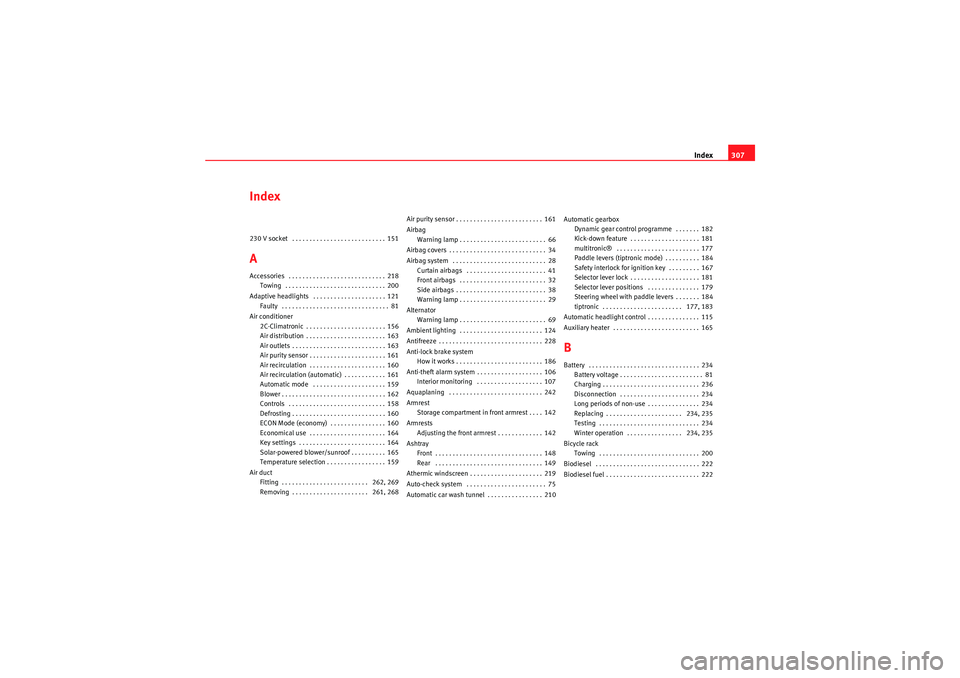

Index307
Index230 V socket . . . . . . . . . . . . . . . . . . . . . . . . . . . 151AAccessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Adaptive headlights . . . . . . . . . . . . . . . . . . . . . 121 Faulty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Air conditioner 2C-Climatronic . . . . . . . . . . . . . . . . . . . . . . . 156
Air distribution . . . . . . . . . . . . . . . . . . . . . . . 163
Air outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Air purity sensor . . . . . . . . . . . . . . . . . . . . . . 161
Air recirculation . . . . . . . . . . . . . . . . . . . . . . 160
Air recirculation (automatic) . . . . . . . . . . . . 161
Automatic mode . . . . . . . . . . . . . . . . . . . . . 159
Blower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
ECON Mode (economy) . . . . . . . . . . . . . . . . 160
Economical use . . . . . . . . . . . . . . . . . . . . . . 164
Key settings . . . . . . . . . . . . . . . . . . . . . . . . . 164
Solar-powered blower/sunroof . . . . . . . . . . 165
Temperature selection . . . . . . . . . . . . . . . . . 159
Air duct Fitting . . . . . . . . . . . . . . . . . . . . . . . . . 262, 269
Removing . . . . . . . . . . . . . . . . . . . . . . 261, 268 Air purity sensor . . . . . . . . . . . . . . . . . . . . . . . . . 161
Airbag
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 66
Airbag covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 41
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . 32
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 29
Alternator Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 69
Ambient lighting . . . . . . . . . . . . . . . . . . . . . . . . 124
Antifreeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Anti-lock brake system How it works . . . . . . . . . . . . . . . . . . . . . . . . . 186
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . 106 Interior monitoring . . . . . . . . . . . . . . . . . . . 107
Aquaplaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Armrest Storage compartment in front armrest . . . . 142
Armrests Adjusting the front armrest . . . . . . . . . . . . . 142
Ashtray Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Athermic windscreen . . . . . . . . . . . . . . . . . . . . . 219
Auto-check system . . . . . . . . . . . . . . . . . . . . . . . 75
Automatic car wash tunnel . . . . . . . . . . . . . . . . 210 Automatic gearbox
Dynamic gear control programme . . . . . . . 182
Kick-down feature . . . . . . . . . . . . . . . . . . . . 181
multitronic® . . . . . . . . . . . . . . . . . . . . . . . . 177
Paddle levers (tiptronic mode) . . . . . . . . . . 184
Safety interlock for ignition key . . . . . . . . . 167
Selector lever lock . . . . . . . . . . . . . . . . . . . . 181
Selector lever positions . . . . . . . . . . . . . . . 179
Steering wheel with paddle levers . . . . . . . 184
tiptronic . . . . . . . . . . . . . . . . . . . . . . . 177, 183
Automatic headlight control . . . . . . . . . . . . . . . 115
Auxiliary heater . . . . . . . . . . . . . . . . . . . . . . . . . 165
BBattery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234 Battery voltage . . . . . . . . . . . . . . . . . . . . . . . . 81
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Disconnection . . . . . . . . . . . . . . . . . . . . . . . 234
Long periods of non-use . . . . . . . . . . . . . . . 234
Replacing . . . . . . . . . . . . . . . . . . . . . . 234, 235
Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Winter operation . . . . . . . . . . . . . . . . 234, 235
Bicycle rack Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Biodiesel fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
exeo_EN.book Seite 307 Montag, 30. August 2010 4:45 16

Index
310Electronic Stability Programme
Description . . . . . . . . . . . . . . . . . . . . . . . . . 166
How the system works . . . . . . . . . . . . . . . . 185
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 167
Emergencies Changing a wheel . . . . . . . . . . . . . . . . . . . . 249
Disconnecting the battery . . . . . . . . . . . . . 234
Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247, 252
Sunroof emergency activation . . . . . . . . . . 113
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Tyre mobility system . . . . . . . . . . . . . . . . . . 248
Engine Running in . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Engine compartment Safety instructions . . . . . . . . . . . . . . . . . . . 224
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225 Checking oil level . . . . . . . . . . . . . . . . . . . . 226
Consumption . . . . . . . . . . . . . . . . . . . . . . . . 226
Oil pressure too low . . . . . . . . . . . . . . . . . . . 78
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . 226
Oil sensor defective . . . . . . . . . . . . . . . . . . . 80
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Engine speed governing . . . . . . . . . . . . . . . . . . . 80
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . 194 Environmental friendliness . . . . . . . . . . . . 196
Roof racks . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Environmental tip Avoiding pollution . . . . . . . . . . . . . . . . . . . . 221
Environmentally friendly driving . . . . . . . . . . . 194 ESP
See Electronic Stability Programme . . . . . . 166
Exhaust gas purification system . . . . . . . . . . . 193
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 212
FFabric trim cleaning . . . . . . . . . . . . . . . . . . . . . 216
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Front drink holder . . . . . . . . . . . . . . . . . . . . . . . 147
Front passenger airbag deactivation . . . . . . . . . 44
Fuel Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Fuel level low . . . . . . . . . . . . . . . . . . . . . . . . . 80
Instantaneous fuel consumption . . . . . . . . . 85
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Fuel tank opening the fuel tank flap . . . . . . . . . . . . . 220
Fuel: save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Fuse Assignment . . . . . . . . . . . . . . . . . . . . . . . . . 259
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
GGear display . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Gear shift pattern . . . . . . . . . . . . . . . . . . . . . . . 177
General overview of the engine compartment 295
Glove compartment . . . . . . . . . . . . . . . . . . . . . 153Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
GRA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174HHandbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Hazard warning lights . . . . . . . . . . . . . . . . . . . . 121
Head restraint Rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Head restraints Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Removing and fitting . . . . . . . . . . . . . . . . . 141
Headlight range control . . . . . . . . . . . . . . . . . . 119 Dynamic . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Faulty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Headlights Adaptive headlights . . . . . . . . . . . . . . . . . . 121
Automatic headlight control . . . . . . . . . . . 116
Automatic headlight control photosensors 116
Coming home function . . . . . . . . . . . . . . . . 118
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 197
Front fog lights . . . . . . . . . . . . . . . . . . . . . . 117
Headlight range control . . . . . . . . . . . . . . . 119

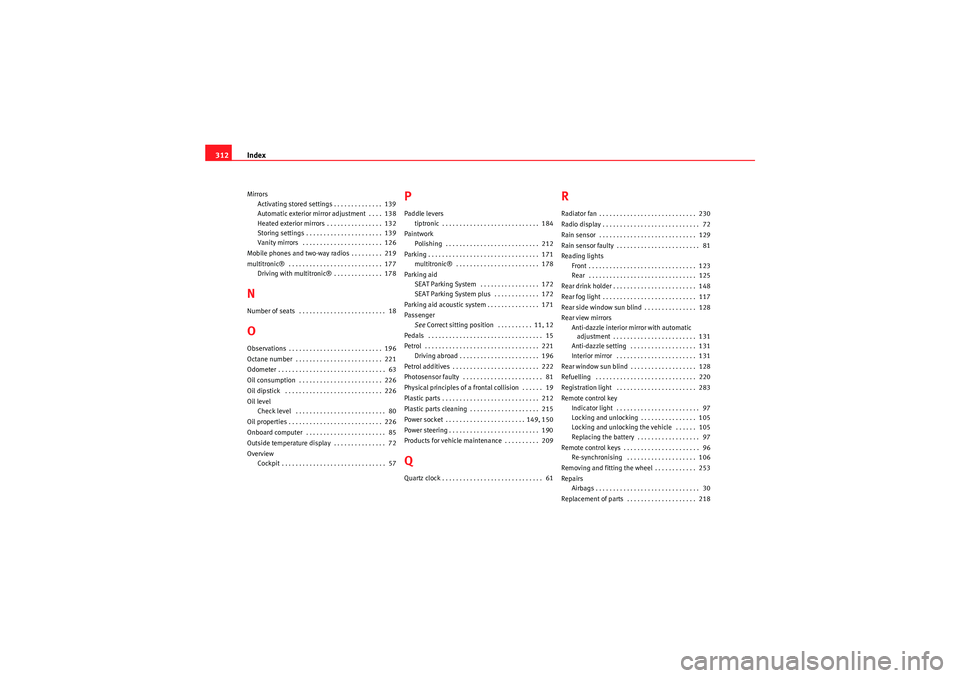

exeo_EN.book Seite 310 Montag, 30. August 2010 4:45 16

Index
312Mirrors
Activating stored settings . . . . . . . . . . . . . . 139
Automatic exterior mirror adjustment . . . . 138
Heated exterior mirrors . . . . . . . . . . . . . . . . 132
Storing settings . . . . . . . . . . . . . . . . . . . . . . 139
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . 126
Mobile phones and two-way radios . . . . . . . . . 219
multitronic® . . . . . . . . . . . . . . . . . . . . . . . . . . . 177 Driving with multitronic® . . . . . . . . . . . . . . 178NNumber of seats . . . . . . . . . . . . . . . . . . . . . . . . . 18OObservations . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Octane number . . . . . . . . . . . . . . . . . . . . . . . . . 221
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Oil consumption . . . . . . . . . . . . . . . . . . . . . . . . 226
Oil dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Oil level
Check level . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Onboard computer . . . . . . . . . . . . . . . . . . . . . . . 85
Outside temperature display . . . . . . . . . . . . . . . 72
Overview Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
PPaddle leverstiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Paintwork Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171 multitronic® . . . . . . . . . . . . . . . . . . . . . . . . 178
Parking aid SEAT Parking System . . . . . . . . . . . . . . . . . 172
SEAT Parking System plus . . . . . . . . . . . . . 172
Parking aid acoustic system . . . . . . . . . . . . . . . 171
Passenger See Correct sitting position . . . . . . . . . . 11, 12
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221 Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 196
Petrol additives . . . . . . . . . . . . . . . . . . . . . . . . . 222
Photosensor faulty . . . . . . . . . . . . . . . . . . . . . . . 81
Physical principles of a frontal collision . . . . . . 19
Plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Plastic parts cleaning . . . . . . . . . . . . . . . . . . . . 215
Power socket . . . . . . . . . . . . . . . . . . . . . . . 149, 150
Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Products for vehicle maintenance . . . . . . . . . . 209QQuartz clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
RRadiator fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Radio display . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Rain sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Rain sensor faulty . . . . . . . . . . . . . . . . . . . . . . . . 81
Reading lights Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Rear drink holder . . . . . . . . . . . . . . . . . . . . . . . . 148
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Rear side window sun blind . . . . . . . . . . . . . . . 128
Rear view mirrors Anti-dazzle interior mirror with automatic adjustment . . . . . . . . . . . . . . . . . . . . . . . . 131
Anti-dazzle setting . . . . . . . . . . . . . . . . . . . 131
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . 131
Rear window sun blind . . . . . . . . . . . . . . . . . . . 128
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Registration light . . . . . . . . . . . . . . . . . . . . . . . 283
Remote control key Indicator light . . . . . . . . . . . . . . . . . . . . . . . . 97
Locking and unlocking . . . . . . . . . . . . . . . . 105
Locking and unlocking the vehicle . . . . . . 105
Replacing the battery . . . . . . . . . . . . . . . . . . 97
Remote control keys . . . . . . . . . . . . . . . . . . . . . . 96 Re-synchronising . . . . . . . . . . . . . . . . . . . . 106
Removing and fitting the wheel . . . . . . . . . . . . 253
Repairs Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Replacement of parts . . . . . . . . . . . . . . . . . . . . 218
exeo_EN.book Seite 312 Montag, 30. August 2010 4:45 16

Index315
Electronic Stability Programme . . . . . . . . . . 68
Engine management (EPC) . . . . . . . . . . . . . . 69
Exhaust emission control system . . . . . . . . . 66
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Red symbols in central display . . . . . . . . . . . 77
Seat belt warning lamp . . . . . . . . . . . . . . . . . 68
Yellow symbols in central display . . . . . . . . 79
Warning lamps - overview . . . . . . . . . . . . . . . . . . 65
Washer fluid level . . . . . . . . . . . . . . . . . . . . . . . . 81
Washing by hand . . . . . . . . . . . . . . . . . . . . . . . . 210
Washing with high pressure cleaners . . . . . . . 211
Wear indicators . . . . . . . . . . . . . . . . . . . . . . . . . 242
Wearing suitable shoes . . . . . . . . . . . . . . . . . . . . 15
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294 Tightening torque . . . . . . . . . . . . . . . . . . . . 245
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . 238, 294 Changing a wheel . . . . . . . . . . . . . . . . . . . . 249
Why assume the correct sitting position? . . . . . 28
Why should head restraints be correctly adjusted? 13
Why wear seat belts? . . . . . . . . . . . . . . . 18, 19, 28
Windows Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Windscreen washer system . . . . . . . . . . . . . . . 231
Windscreen wiper blades Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Windscreen wipers . . . . . . . . . . . . . . . . . . . . . . 129 Changing blades . . . . . . . . . . . . . . . . . . . . . 232
Rain sensor . . . . . . . . . . . . . . . . . . . . . . . . . 129
Washer jets . . . . . . . . . . . . . . . . . . . . . . . . . 129 Winter
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Winter conditions Defrost function . . . . . . . . . . . . . . . . . . . . . . 160
Winter driving Diesel engine . . . . . . . . . . . . . . . . . . . . . . . . 222
Winter operation Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Wiper and washer system . . . . . . . . . . . . . . . . . 129
Wooden trim cleaning . . . . . . . . . . . . . . . . . . . . 216
exeo_EN.book Seite 315 Montag, 30. August 2010 4:45 16
