Seats and storage compartments143
Safety First
Operating Instructions
Practical Tips
Technical Specifications

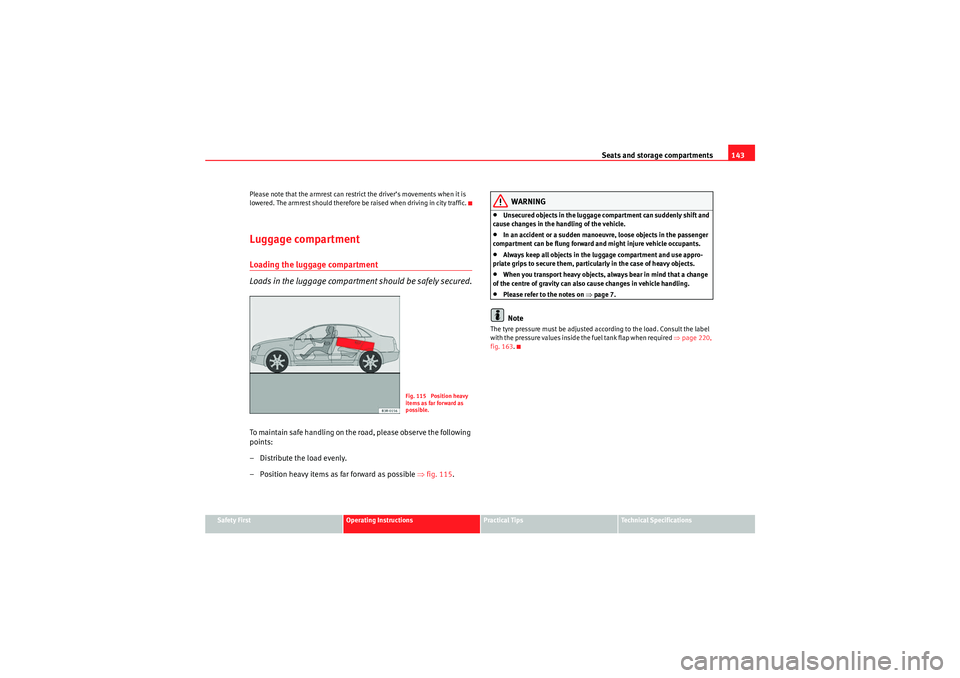

Please note that the armrest can restrict the driver’s movements when it is
lowered. The armrest should therefore be raised when driving in city traffic.
Luggage compartmentLoading the luggage compartment
Loads in the luggage compartment should be safely secured.To maintain safe handling on the road, please observe the following
points:
– Distribute the load evenly.
– Position heavy items as far forward as possible
⇒fig. 115 .
WARNING
•Unsecured objects in the luggage compartment can suddenly shift and
cause changes in the handling of the vehicle.•In an accident or a sudden manoeuvre, loose objects in the passenger
compartment can be flung forward and might injure vehicle occupants.•Always keep all objects in the luggage compartment and use appro-
priate grips to secure them, particularly in the case of heavy objects.•When you transport heavy objects, always bear in mind that a change
of the centre of gravity can also cause changes in vehicle handling.•Please refer to the notes on ⇒page 7.Note
The tyre pressure must be adjusted according to the load. Consult the label
with the pressure values inside the fuel tank flap when required ⇒ page 220,
fig. 163 .
Fig. 115 Position heavy
items as far forward as
possible.
exeo_EN.book Seite 143 Montag, 30. August 2010 4:45 16

Seats and storage compartments145
Safety First
Operating Instructions
Practical Tips
Technical Specifications

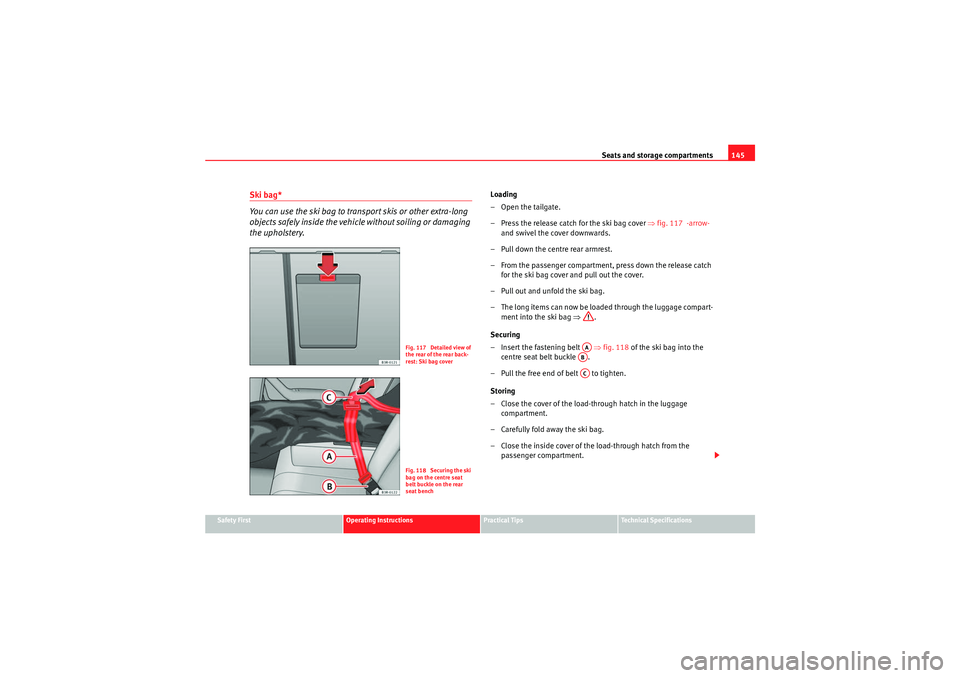

Ski bag*
You can use the ski bag to transport skis or other extra-long
objects safely inside the vehicle without soiling or damaging
the upholstery.
Loading
–Open the tailgate.
– Press the release catch for the ski bag cover ⇒fig. 117 -arrow-
and swivel the cover downwards.
– Pull down the centre rear armrest.
– From the passenger compartment, press down the release catch for the ski bag cover and pull out the cover.
– Pull out and unfold the ski bag.
– The long items can now be loaded through the luggage compart- ment into the ski bag ⇒.
Securing
– Insert the fastening belt ⇒fig. 118 of the ski bag into the
centre seat belt buckle .
– Pull the free end of belt to tighten.
Storing
– Close the cover of the load-through hatch in the luggage compartment.
– Carefully fold away the ski bag.
– Close the inside cover of the load-through hatch from the passenger compartment.
Fig. 117 Detailed view of
the rear of the rear back-
rest: Ski bag coverFig. 118 Securing the ski
bag on the centre seat
belt buckle on the rear
seat bench
AAABAC
exeo_EN.book Seite 145 Montag, 30. August 2010 4:45 16

Seats and storage compartments147
Safety First
Operating Instructions
Practical Tips
Technical Specifications

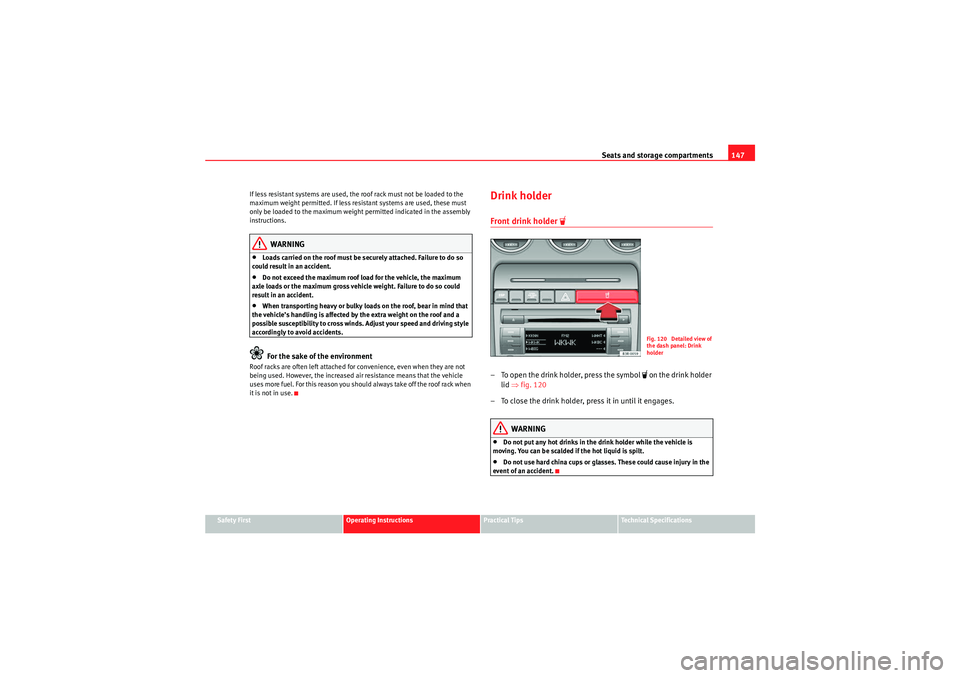

If less resistant systems are used, the roof rack must not be loaded to the
maximum weight permitted. If less resistant systems are used, these must
only be loaded to the maximum weight permitted indicated in the assembly
instructions.
WARNING
•Loads carried on the roof must be securely attached. Failure to do so
could result in an accident.•Do not exceed the maximum roof load for the vehicle, the maximum
axle loads or the maximum gross vehicle weight. Failure to do so could
result in an accident.•When transporting heavy or bulky loads on the roof, bear in mind that
the vehicle’s handling is affected by the extra weight on the roof and a
possible susceptibility to cross winds. Adjust your speed and driving style
accordingly to avoid accidents.For the sake of the environment
Roof racks are often left attached for convenience, even when they are not
being used. However, the increased air resistance means that the vehicle
uses more fuel. For this reason you should always take off the roof rack when
it is not in use.
Drink holderFront drink holder

– To open the drink holder, press the symbol
 on the drink holder
lid ⇒fig. 120
– To close the drink holder, press it in until it engages.
WARNING
•Do not put any hot drinks in the drink holder while the vehicle is
moving. You can be scalded if the hot liquid is spilt.•Do not use hard china cups or glasses. These could cause injury in the
event of an accident.
Fig. 120 Detailed view of
the dash panel: Drink
holder
exeo_EN.book Seite 147 Montag, 30. August 2010 4:45 16

Seats and storage compartments149
Safety First
Operating Instructions
Practical Tips
Technical Specifications

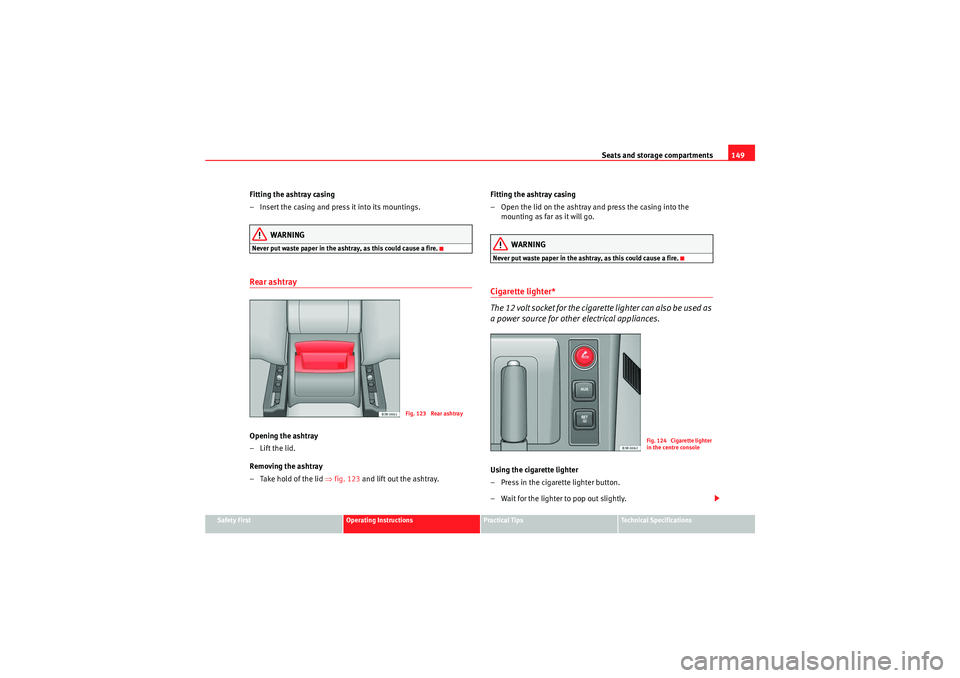

Fitting the ashtray casing
– Insert the casing and press it into its mountings.
WARNING
Never put waste paper in the ashtray, as this could cause a fire.Rear ashtrayOpening the ashtray
– Lift the lid.
Removing the ashtray
– Take hold of the lid ⇒fig. 123 and lift out the ashtray. Fitting the ashtray casing
– Open the lid on the ashtray and press the casing into the
mounting as far as it will go.
WARNING
Never put waste paper in the ashtray, as this could cause a fire.Cigarette lighter*
The 12 volt socket for the cigarette lighter can also be used as
a power source for other electrical appliances.Using the cigarette lighter
–Press in the ciga rette lighter button.
– Wait for the lighter to pop out slightly.
Fig. 123 Rear ashtray
Fig. 124 Cigarette lighter
in the centre console
exeo_EN.book Seite 149 Montag, 30. August 2010 4:45 16

Seats and storage compartments151
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Note
The use of electrical appliances with the engine switched off will cause a
battery discharge.230 volt socket for Europlug*
Electrical equipment can also be connected to the 230 volt
socket in the centre console.The 230 Volt socket can only be used when the engine is running
⇒.
In vehicles with folding cover:
– Hold the cover of the socket at the lower recess.
– Lift the cover to open ⇒ fig. 126. Inserting the Europlug
– Insert the Europlug in the socket. The childproof safety device on
the socket is deactivated.
– If necessary, press the Europlug as far as possible into the socket
to ensure it is correctly inserted and will not jump out of place
while driving over a bump or similar.
LED warning lamp above socket
Equipment which may be connected
The 230 volt socket can be used to connect electrical equipment with a Euro-
plug. Please note that the power consumption in this socket must not exceed
150 watts (peaks of 300 watts).
Even when more than one appliance is connected, the total consumption of
all the appliances must not exceed 150 watts. If necessary, please refer to the
manufacturer’s label to confirm the power consumption of the connected
equipment.
All connected appliances should be in perfect working order without any
faults.
WARNING
•Heavy appliances or connectors (for example, adapters) which hang
down directly from the Europlug socket may damage the socket with the
resultant risk of injury.
Fig. 126 Centre console:
230 volt socket
Steady green
light:
The childproof safety device is disconnected. The socket
is ready for use
Flashing red
light:
There is a fault, for example, disconnection due to
excess current or temperature
exeo_EN.book Seite 151 Montag, 30. August 2010 4:45 16

Seats and storage compartments153
Safety First
Operating Instructions
Practical Tips
Technical Specifications

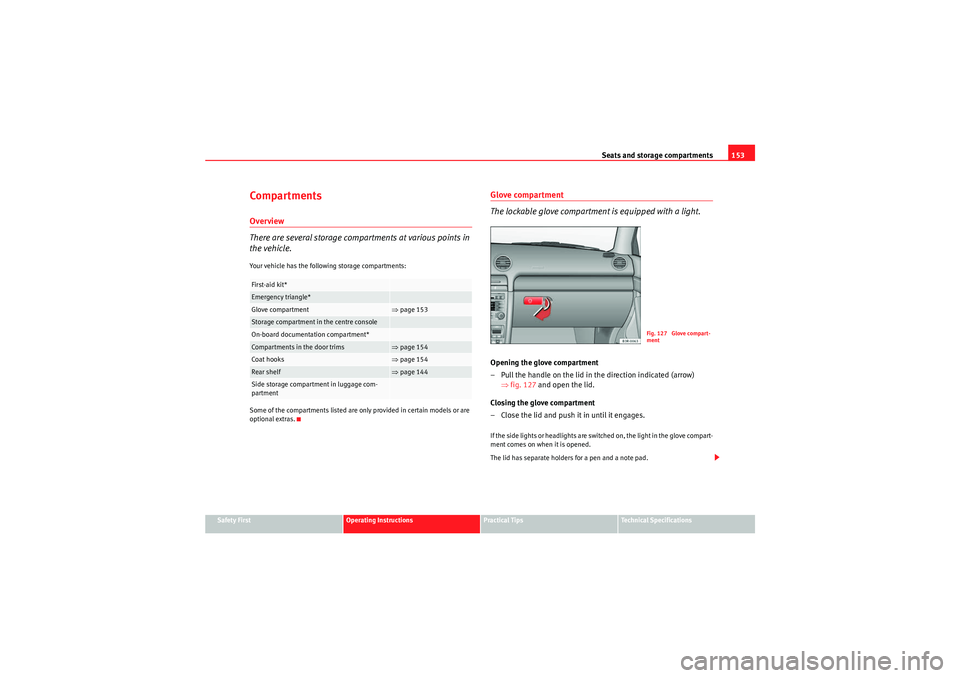

CompartmentsOverview
There are several storage compartments at various points in
the vehicle.Your vehicle has the following storage compartments:
Some of the compartments listed are only provided in certain models or are
optional extras.
Glove compartment
The lockable glove compartment is equipped with a light.Opening the glove compartment
– Pull the handle on the lid in the direction indicated (arrow)
⇒fig. 127 and open the lid.
Closing the glove compartment
– Close the lid and push it in until it engages.If the side lights or headlights are switched on, the light in the glove compart-
ment comes on when it is opened.
The lid has separate holders for a pen and a note pad.
First-aid kit*Emergency triangle*Glove compartment
⇒ page 153
Storage compartment in the centre consoleOn-board documentation compartment*Compartments in the door trims
⇒page 154
Coat hooks
⇒page 154
Rear shelf
⇒page 144
Side storage compartment in luggage com-
partment
Fig. 127 Glove compart-
ment
exeo_EN.book Seite 153 Montag, 30. August 2010 4:45 16

Seats and storage compartments155
Safety First
Operating Instructions
Practical Tips
Technical Specifications

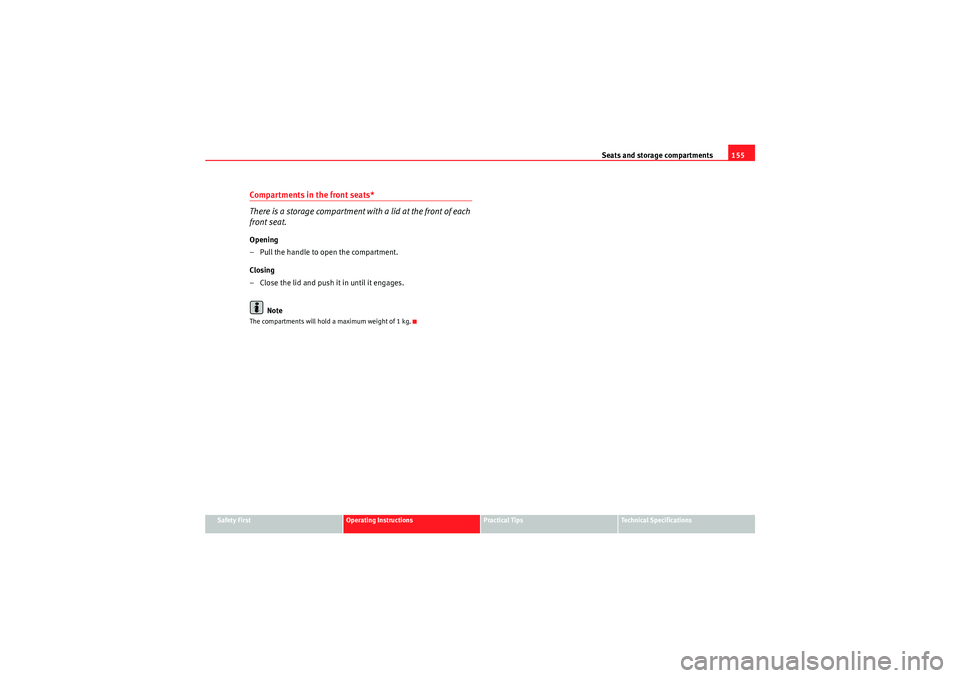

Compartments in the front seats*
There is a storage compartment with a lid at the front of each
front seat.Opening
– Pull the handle to open the compartment.
Closing
– Close the lid and push it in until it engages.
NoteThe compartments will hold a maximum weight of 1 kg.
exeo_EN.book Seite 155 Montag, 30. August 2010 4:45 16

Air conditioning157
Safety First
Operating Instructions
Practical Tips
Technical Specifications

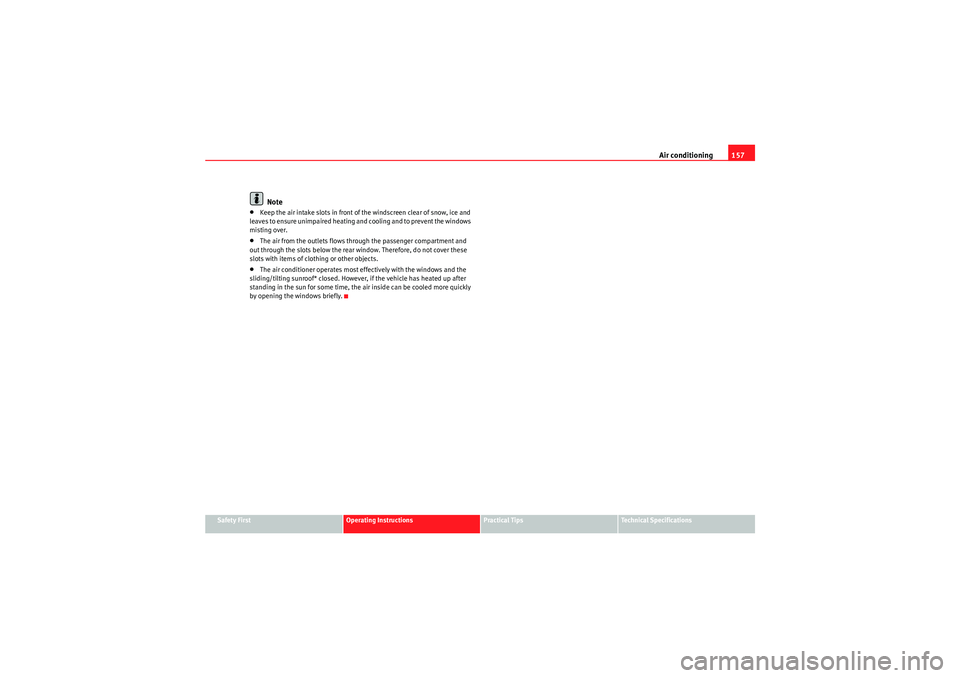

Note
•Keep the air intake slots in front of the windscreen clear of snow, ice and
leaves to ensure unimpaired heating and cooling and to prevent the windows
misting over.•The air from the outlets flows through the passenger compartment and
out through the slots below the rear window. Therefore, do not cover these
slots with items of clothing or other objects.•The air conditioner operates most effectively with the windows and the
sliding/tilting sunroof* closed. However, if the vehicle has heated up after
standing in the sun for some time, the air inside can be cooled more quickly
by opening the windows briefly.
exeo_EN.book Seite 157 Montag, 30. August 2010 4:45 16

Air conditioning159
Safety First
Operating Instructions
Practical Tips
Technical Specifications
The , and buttons (which regulate air distribution) can either be
selected individually or in combination.
Automatic mode
Standard setting for all seasons.Switching on automatic mode
– Select a temperature between +18°C (64°F) and +29°C (86°F).
– Press the button
⇒page 158, fig. 130 .The automatic mode maintains a constant temperature inside the vehicle and
dehumidifies the air. Air temperature, air delivery and air distribution are
regulated automatically to reach the desired interior temperature as quickly
as possible, and then to maintain this temperature. The system automatically
compensates for any variations in the outside temperature and for the effect
of direct sunlight.
The automatic temperature regulation only operates at temperature settings
between +18°C and +29°C. If a temperature below +18°C is selected, LO
appears on the display. If a temperature is selected which is higher than
+29°C, the display will show HI. In the maximum and minimum settings, the
climate control operates continuously with maximum cooling or heating output and the temperature is not regulated automatically. The temperature
is not regulated.
Note
By keeping the button on the driver side pressed for several seconds,
the temperature of the passenger side can be set to the temperature of the
driver side or vice versa. The display indicates the new temperature value.Selecting the temperature
Separate temperatures can be selected for the driver and
front passenger sides.– Press the or buttons below the displays
⇒page 158,
fig. 130 until the desired temperature is selected for the driver
side or front passenger side.The currently selected temperature setting is shown in the display above the
buttons.
By keeping the button on the driver side pressed for several seconds,
the temperature of the passenger side can be set to the temperature of the
driver side or vice versa. The display indicates the new temperature value. The
previous temperature setting can be restored by resetting the display on the
driver or passenger side as required.

(centre buttons)
Adjusts blower speedAir to the windowsAir from the dashboard outletsAir to the footwells
Button(s)
Meaning
-+


AUTO
AUTO
AUTO
-+
-
+
AUTO
exeo_EN.book Seite 159 Montag, 30. August 2010 4:45 16

Air conditioning161
Safety First
Operating Instructions
Practical Tips
Technical Specifications
due to a defect in one of the air conditioner components. If a malfunction
should occur, please contact a specialised workshop.
Air recirculation: automatic activation*
If the outside air is polluted by diesel and petrol emissions,
an air quality sensor in the vehicle will automatically switch
on the air recirculation.Activating air recirculation mode
– Press the button
⇒fig. 131 .
Deactivating air recirculation mode
– Press the button again or
– Press the button or – Press button .
The automatic air recirculation mode should normally be left switched on at
all times.
The system is ready to operate approx. 30 seconds after the engine ignition
key has been turned. During this initial period, fresh air is fed into the vehicle.
If the
air purity sensor in the air conditioner detects a certain concentration
of fumes in the outside air, the control unit will either pass the incoming air
through the pollution filter or automatically switch on the air recirculation. If
there is a high concentration of pollution in the outside air, the air conditioner
automatically switches to air recirculation and the supply of air from the
outside is cut off. As soon as the level of pollution decreases, air is fed into
the vehicle from the outside again.
The automatic air recirculation operates for a maximum period of 12 minutes.
If the windows mist up when the automatic air recirculation is on, press the button immediately.
The automatic air recirculation switches itself off under certain circumstances
(for instance if or is selected). In “ECON” and at temperatures lower
than approx. 8°C below zero, the automatic air recirculation mode is limited
to 12 seconds.Switching the temperature displa y from °C to °F and vice versa
The temperature display can be switched from °C (degrees
Celsius) to °F (degrees Fahrenheit) and vice versa.– Press and hold the button for air recirculation mode and
briefly press the plus button of the left-hand temperature
selector ⇒page 158, fig. 130 .
Fig. 131 Button for auto-
matic air recirculation

AUTO
<
<
<


exeo_EN.book Seite 161 Montag, 30. August 2010 4:45 16
