Seat Exeo ST 2009 Owner's manual

Lights and visibility119
Safety First
Controls and equipment
Practical tips
Technical Data
Coming home and leaving home functions*
The coming home and leaving home functions are used to
light up the surroundings in the dark. The front fog lights, the
rear side lights and the number plate light switch on.Enabling the functions
– Briefly press the knob ⇒ fig. 87 to release it from its set position.
– Turn the knob to position 1.
– Press the knob in again to prevent the setting from being changed unintentionally.
Disabling the functions
– Briefly press the knob ⇒ fig. 87 to release it from its set position.
– Turn the knob to position 0. – Press the knob in again to prevent the setting from being
changed unintentionally.
The coming home and leaving home functions are controlled by light sensors
in the rear view mirror housing. The system will function when the following
requirements are met:•The knob is set to position 1.•The headlights and the ignition are switched off.•Dark conditions; the sensors register little or no light.
Coming home
When the system is enabled and it is dark, the corresponding exterior lights
switch on as soon as the driver's door is opened.
The exterior lights will stay on for up to a maximum of 2 minutes as long as
one of the doors or the tailgate is open.
The exterior lights stay on for about 30 seconds to light up the area in front of
the car after all the doors and the tailgate have been closed.
This time interval is factory-set, but you can have it changed by a specialist
garage to suit your own requirements (max. setting is 60 seconds).
Leaving home
The exterior lights are switched on when the vehicle is unlocked with the
button on the remote control key.
The exterior lights go out when the driver's door is opened or after 60
seconds when the vehicle locks itself again automatically ⇒page 106.WARNING
Before leaving the vehicle, remove the key from the ignition, as the lights
will not go out if the coming home is enabled. This will lead to battery
discharge and vehicle breakdown.
Fig. 87 Detailed view of
the instrument panel:
Coming home and leaving
home functions

ExeoST_EN.book Seite 119 Donnerstag, 3. September 2009 12:24 12

Lights and visibility
120
Note•If you always wish to use the coming home and leaving home functions,
you can leave them permanently switched on. As the system is controlled via
a light sensor, it will only work in dark conditions.•Permanent use of the coming home and leaving home functions, particu-
larly on short journeys, will increase the load on the battery. To make sure the
battery is always sufficiently charged, occasionally drive longer distances.•If the fog lights have been switched on by the coming home and leaving
home functions, they will always be switched off when you switch on the igni-
tion.•Observe all relevant legal requirements when using the signalling and
lighting systems described here.Instrument lighting
The brightness of the instrument lighting, displays and
centre console lighting can be varied as required.
– Press the button to increase the brightness.
– Press the button to reduce the brightness.With the ignition switched on
The lighting of the digital displays will adjust automatically, depending on
the ambient light.
With the vehicle's lights switched on
When the vehicle's lights are switched on, the brightness of the instrument
lighting, displays and centre console lighting can be varied by pressing the and buttons.Headlight range control

When the dipped beam headlights are switched on, the range
of the headlights can be adjusted to suit the load being
carried.
Fig. 88 Instrument panel
lighting
+-
+
-
Fig. 89 Headlight range
control
ExeoST_EN.book Seite 120 Donnerstag, 3. September 2009 12:24 12

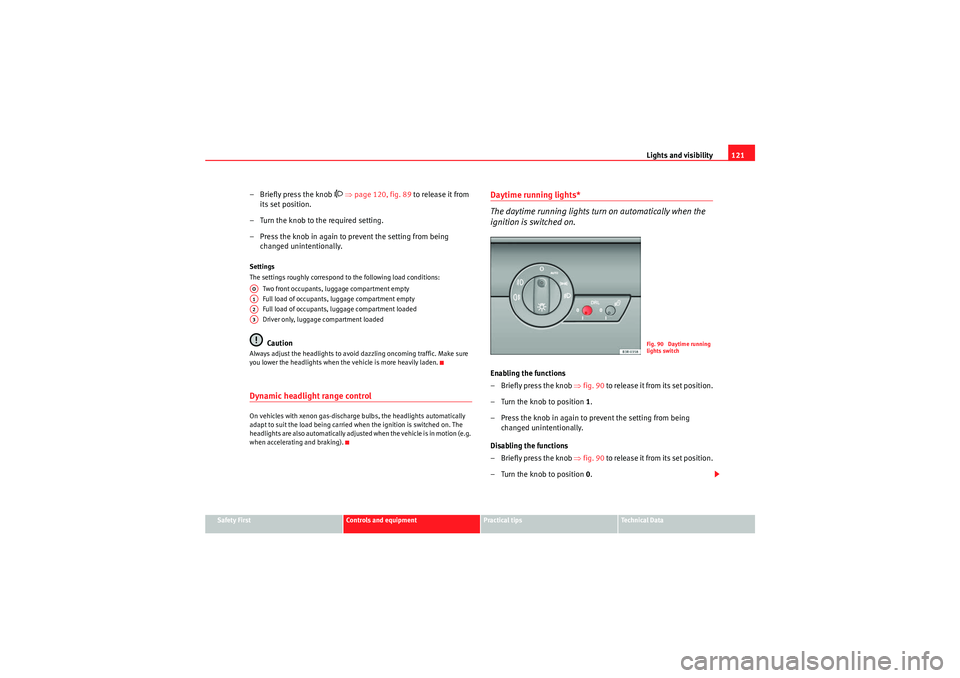

Lights and visibility121
Safety First
Controls and equipment
Practical tips
Technical Data
– Briefly press the knob
 ⇒ page 120, fig. 89 to release it from
its set position.
– Turn the knob to the required setting.
– Press the knob in again to prevent the setting from being changed unintentionally.
Settings
The settings roughly correspond to the following load conditions:
Two front occupants, luggage compartment empty
Full load of occupants, luggage compartment empty
Full load of occupants, luggage compartment loaded
Driver only, luggage compartment loaded
Caution
Always adjust the headlights to avoid dazzling oncoming traffic. Make sure
you lower the headlights when the vehicle is more heavily laden.Dynamic headlight range controlOn vehicles with xenon gas-discharge bulbs, the headlights automatically
adapt to suit the load being carried when the ignition is switched on. The
headlights are also automatically adjusted when the vehicle is in motion (e.g.
when accelerating and braking).
Daytime running lights*
The daytime running lights turn on automatically when the
ignition is switched on.Enabling the functions
– Briefly press the knob ⇒ fig. 90 to release it from its set position.
– Turn the knob to position 1.
– Press the knob in again to prevent the setting from being changed unintentionally.
Disabling the functions
– Briefly press the knob ⇒ fig. 90 to release it from its set position.
– Turn the knob to position 0.
AOA1A2A3
Fig. 90 Daytime running
lights switch
ExeoST_EN.book Seite 121 Donnerstag, 3. September 2009 12:24 12

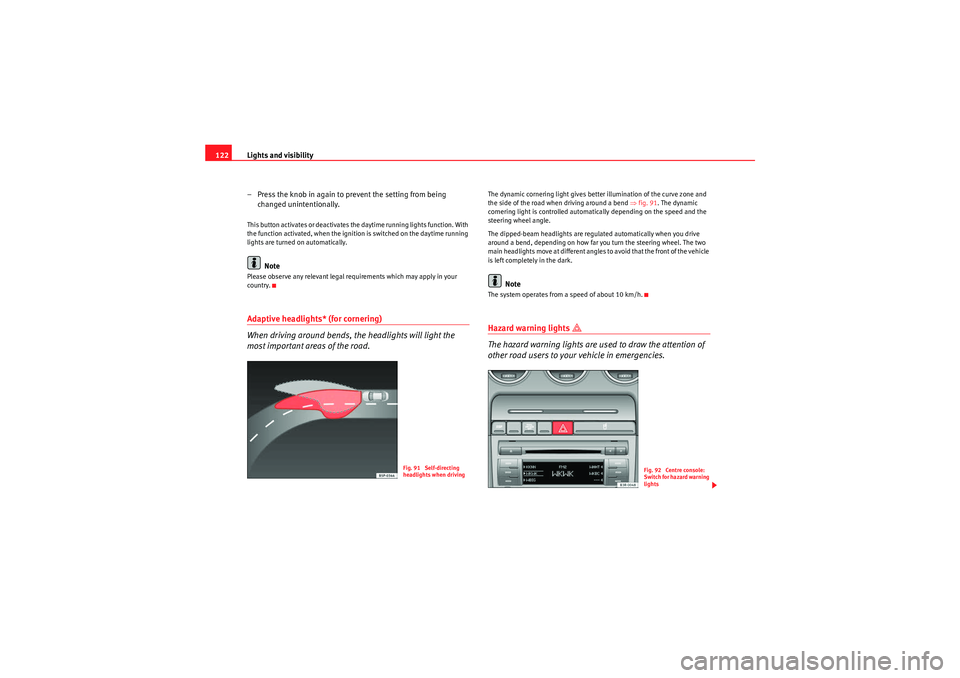

Lights and visibility
122
– Press the knob in again to prevent the setting from being changed unintentionally.This button activates or deactivates the daytime running lights function. With
the function activated, when the ignition is switched on the daytime running
lights are turned on automatically.
Note
Please observe any relevant legal requirements which may apply in your
country.Adaptive headlights* (for cornering)
When driving around bends, the headlights will light the
most important areas of the road.
The dynamic cornering light gives better illumination of the curve zone and
the side of the road when driving around a bend ⇒fig. 91 . The dynamic
cornering light is controlled automatically depending on the speed and the
steering wheel angle.
The dipped-beam headlights are regulated automatically when you drive
around a bend, depending on how far you turn the steering wheel. The two
main headlights move at different angles to avoid that the front of the vehicle
is left completely in the dark.
Note
The system operates from a speed of about 10 km/h.Hazard warning lights

The hazard warning lights are used to draw the attention of
other road users to your vehicle in emergencies.
Fig. 91 Self-directing
headlights when driving
Fig. 92 Centre console:
Switch for hazard warning
lights
ExeoST_EN.book Seite 122 Donnerstag, 3. September 2009 12:24 12

Lights and visibility123
Safety First
Controls and equipment
Practical tips
Technical Data
–Press the switch
 ⇒ page 122, fig. 92 to switch the hazard
warning lights on or off.
All four indicators flash simultaneously when the hazard warning lights are
switched on. The hazard warning light indication lamps
  and the turn
signal indication lamp itself
 flash at the same time. The hazard warning
lights also work when the ignition is switched off.
In an accident in which the airbags are triggered, the hazard warning lights
are switched on automatically.
Note
You should switch on the hazard warning lights to warn other road users, e.g.•When reaching the tail end of a traffic jam•If your vehicle breaks down or there is an emergency•If your vehicle is being towed away or if you are towing another vehicle
Indicator
  and main beam headlight lever

The turn signal and main beam headlight lever also operates
the parking lights and the headlight flasher.The turn signal and main beam headlight lever has the following
functions:
Indicators
 
– Move the lever all the way up to indicate right or all the way down to indicate left ⇒fig. 93 .
– Move the lever up or down just as far as the point of resistance and hold it there: the indicators flash for as long as you hold the
lever (for instance when changing a lane).
– Move the lever briefly up or down as far as the point of resistance and release it to signal briefly (the indicators flash three times).
Fig. 93 Turn signal and
main beam headlight
lever
ExeoST_EN.book Seite 123 Donnerstag, 3. September 2009 12:24 12

Lights and visibility
124
Main beam headlights

– Press the lever forward to switch on the main beams.
– Pull the lever back towards you to switch the main beam head-lights off again.
Headlight flasher

– Pull the lever towards the steering wheel to operate the flasher.
Parking light

– Switch the ignition off.
– Move the lever up or down to turn on the right or left-hand
parking lights respectively.Notes on these functions•The indicators only work when the ignition is switched on. The indicator
lamp  or  flashes in the instrument panel when the turns signals
⇒ page 65 are working.
•The indicators are cancelled automatically when the steering wheel is
returned to the straight-ahead position.•The main beam headlights can only be switched on if the dipped beam
headlights are already on. The main beam headlight indicator lamp
 then
comes on in the instrument panel.
•The headlight flasher co m es on fo r as long as you pull th e le ve r, ev en if n o
other lights are switched on. The main beam headlight indicator lamp

then comes on in the instrument panel.
•When the parking lights are switched on, the headlight and the rear light
on one side of the car light up with reduced intensity. The parking lights will
only work with the ignition off.
Caution
Never use the main beam headlights or the headlight flasher if this would
dazzle oncoming traffic.Interior lightsFront interior lights and glove compartment light
The front interior light also incorporates the reading lights for
the driver and passenger.The rocker switch ⇒ fig. 94 for the front interior light has the
following functions:
Fig. 94 Details of head-
liner: front interior lights
AA
ExeoST_EN.book Seite 124 Donnerstag, 3. September 2009 12:24 12

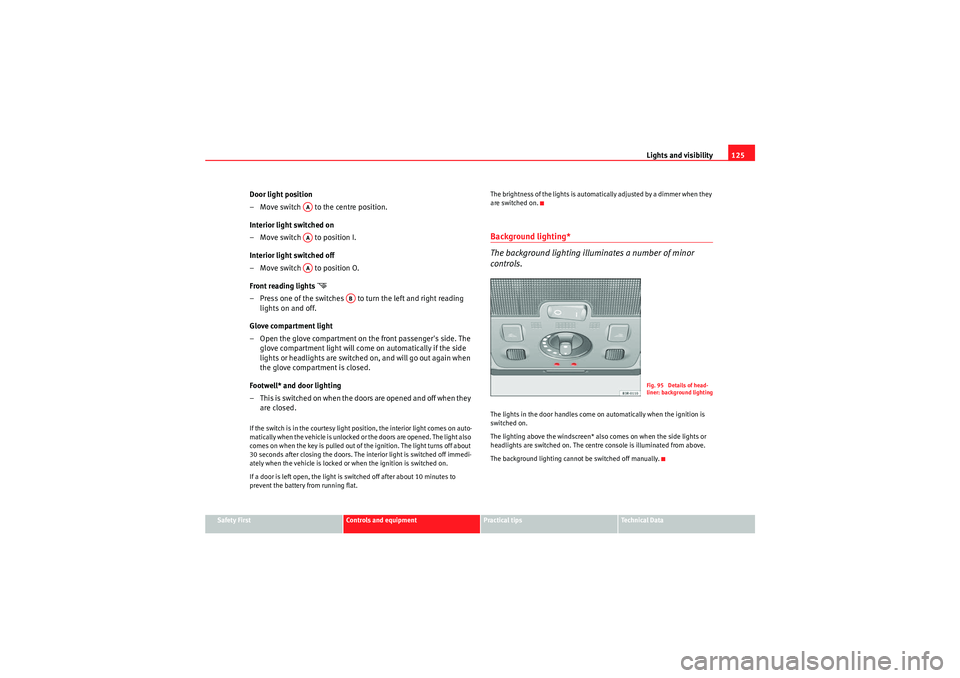

Lights and visibility125
Safety First
Controls and equipment
Practical tips
Technical Data
Door light position
– Move switch to the centre position.
Interior light switched on
– Move switch to position I.
Interior light switched off
– Move switch to position O.
Front reading lights

– Press one of the switches to turn the left and right reading
lights on and off.
Glove compartment light
– Open the glove compartment on the front passenger's side. The glove compartment light will come on automatically if the side
lights or headlights are switched on, and will go out again when
the glove compartment is closed.
Footwell* and door lighting
– This is switched on when the doors are opened and off when they are closed.If the switch is in the courtesy light position, the interior light comes on auto-
matically when the vehicle is unlocked or the doors are opened. The light also
comes on when the key is pulled out of the ignition. The light turns off about
30 seconds after closing the doors. The interior light is switched off immedi-
ately when the vehicle is locked or when the ignition is switched on.
If a door is left open, the light is switched off after about 10 minutes to
prevent the battery from running flat. The brightness of the lights is automatically adjusted by a dimmer when they
are switched on.
Background lighting*
The background lighting illuminates a number of minor
controls.The lights in the door handles come on automatically when the ignition is
switched on.
The lighting above the windscreen* also comes on when the side lights or
headlights are switched on. The centre console is illuminated from above.
The background lighting cannot be switched off manually.
AAAAAA
AB
Fig. 95 Details of head-
liner: background lighting
ExeoST_EN.book Seite 125 Donnerstag, 3. September 2009 12:24 12

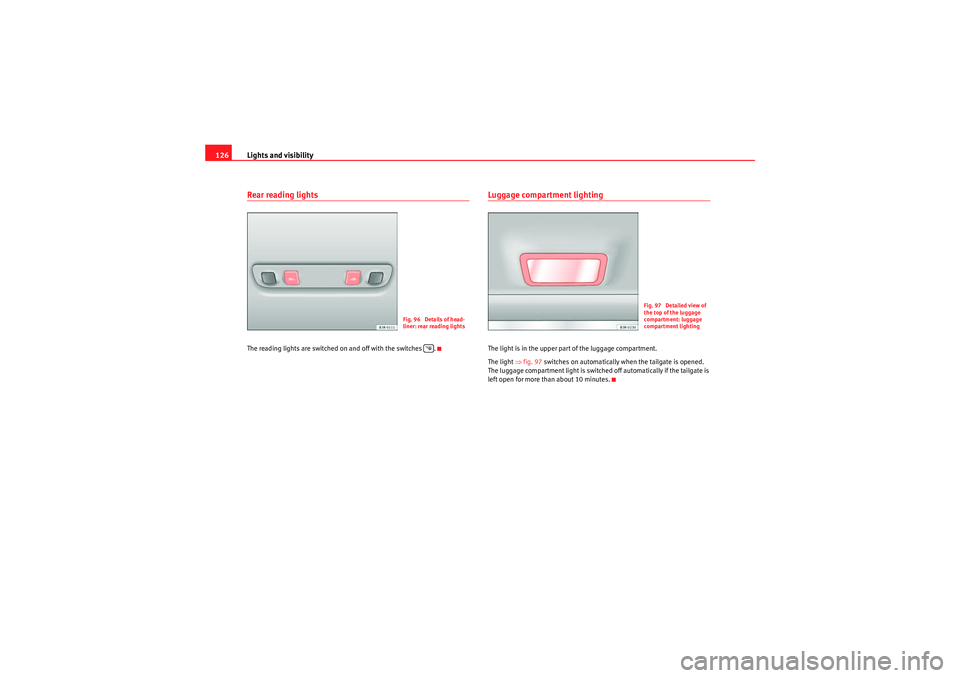

Lights and visibility
126Rear reading lightsThe reading lights are switched on and off with the switches .
Luggage compartment lightingThe light is in the upper part of the luggage compartment.
The light ⇒fig. 97 switches on automatically when the tailgate is opened.
The luggage compartment light is switched off automatically if the tailgate is
left open for more than about 10 minutes.
Fig. 96 Details of head-
liner: rear reading lights

Fig. 97 Detailed view of
the top of the luggage
compartment: luggage
compartment lighting
ExeoST_EN.book Seite 126 Donnerstag, 3. September 2009 12:24 12

Lights and visibility127
Safety First
Controls and equipment
Practical tips
Technical Data

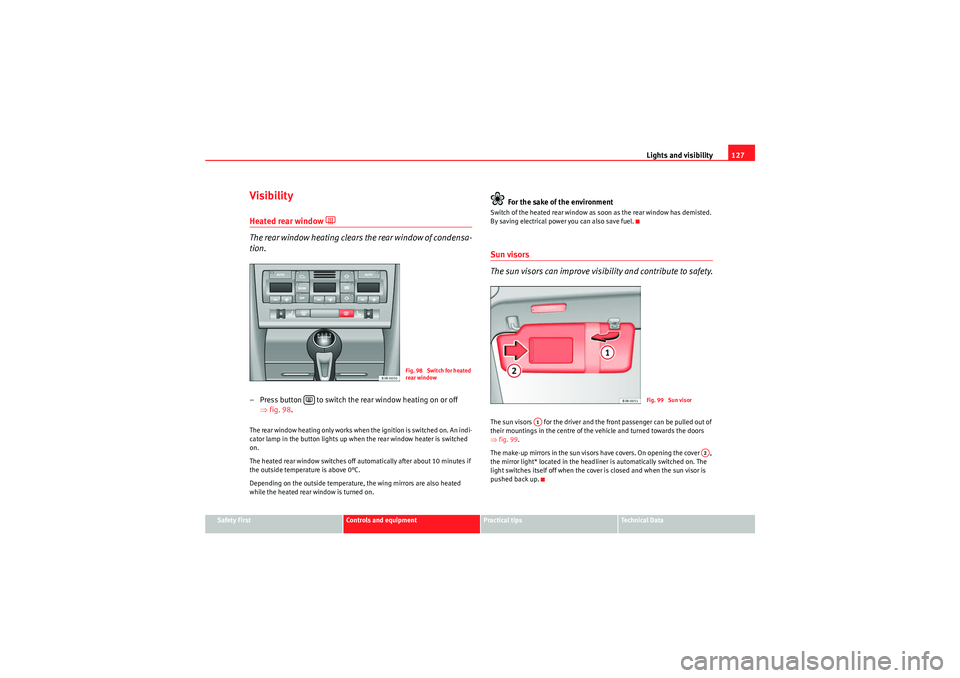

VisibilityHeated rear window

The rear window heating clears the rear window of condensa-
tion.– Press button to switch the rear window heating on or off
⇒fig. 98.The rear window heating only works when the ignition is switched on. An indi-
cator lamp in the button lights up when the rear window heater is switched
on.
The heated rear window switches off automatically after about 10 minutes if
the outside temperature is above 0°C.
Depending on the outside temperature, the wing mirrors are also heated
while the heated rear window is turned on.
For the sake of the environment
Switch of the heated rear window as soon as the rear window has demisted.
By saving electrical power you can also save fuel.Sun visors
The sun visors can improve visibility and contribute to safety.The sun visors for the driver and the front passenger can be pulled out of
their mountings in the centre of the vehicle and turned towards the doors
⇒fig. 99 .
The make-up mirrors in the sun visors have covers. On opening the cover ,
the mirror light* located in the headli ner is automatically switched on. The
light switches itself off when the cover is closed and when the sun visor is
pushed back up.
Fig. 98 Switch for heated
rear window

Fig. 99 Sun visor
A1
A2
ExeoST_EN.book Seite 127 Donnerstag, 3. September 2009 12:24 12

Lights and visibility
128Sun blind*
The rear side windows are fitted with sun blinds.Sun blinds (rear side windows)
– Pull out the blind and hook it into the hooks at the top of the door
frame ⇒fig. 100 .
Windscreen wipersWindscreen wipers

The windscreen wiper lever controls the windscreen wipers
and the automatic wash and wipe.The windscreen wiper lever ⇒fig. 101 has the following settings:
Brief wipe
– Move the lever down to position to give the windscreen a brief
wipe.
Intermittent wipe
 / Rain sensor* (enabling)
– Move the lever up to position .
– Move the switch up or down to set the wiper intervals.
Fig. 100 Sun blind
extended to cover rear
side window
Fig. 101 Windscreen
wiper lever
A1A2
AA
ExeoST_EN.book Seite 128 Donnerstag, 3. September 2009 12:24 12
