It is advisable to secure the items by means of a strap secured to the
fastening rings on the left and the right hand side.Side storage compartment
The CD-ROM player for the navigation system* is located in
the left side storage compartment of the luggage compart-
ment.– To open the storage compartment, pull the handle forwards
⇒fig. 126 .
CD-ROM player for navigation system*
The CD-ROM player for the navigation system is located in this storage
compartment in the luggage compartment. Separate operating instructions
are enclosed for this system.Extending the luggage compartment
The two sections of the backrest can be folded forwards either
together or separately to increase the capacity of the luggage
compartment.Folding the backrest forwards
– Press the release lever ⇒fig. 127 in the direction indicated
by the arrow.
–Fold down the backrest.
Fig. 126 Luggage
compartment: Side trim
with closed storage
compartment
Fig. 127 Backrest release
lever
AA
ExeoST_EN.book Seite 149 Donnerstag, 3. September 2009 12:24 12

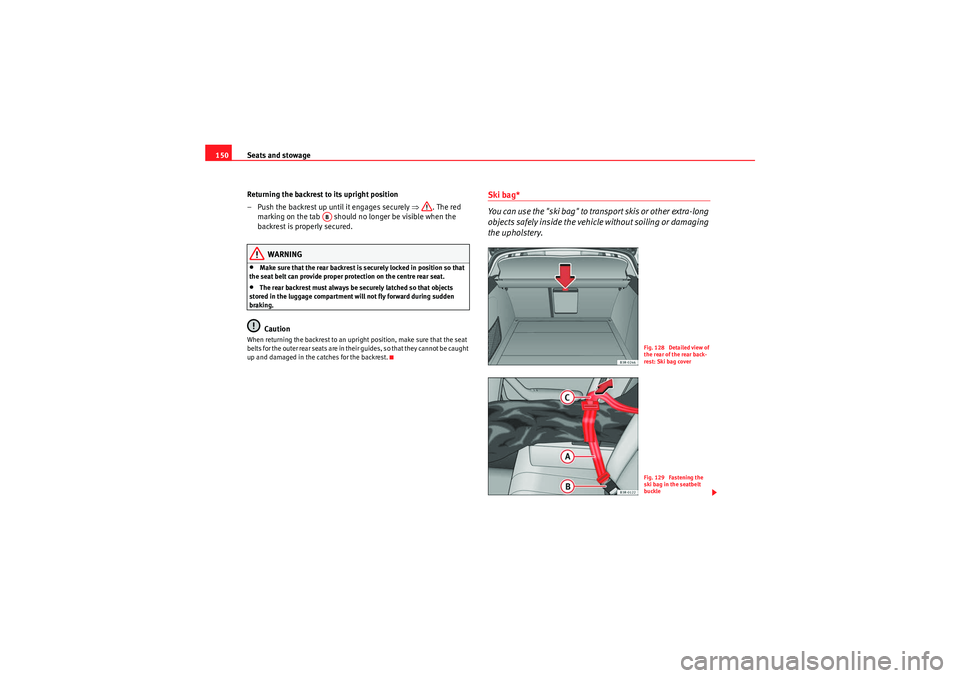

Seats and stowage
150
Returning the backrest to its upright position
– Push the backrest up until it engages securely ⇒ . The red
marking on the tab should no longer be visible when the
backrest is properly secured.
WARNING
•Make sure that the rear backrest is securely locked in position so that
the seat belt can provide proper protection on the centre rear seat.•The rear backrest must always be securely latched so that objects
stored in the luggage compartment will not fly forward during sudden
braking.Caution
When returning the backrest to an upright position, make sure that the seat
b e l t s f o r t h e o u t e r r e a r s e a t s a r e i n t h e i r g u i d e s , s o t ha t t h e y ca n n o t b e ca u g h t
up and damaged in the catches for the backrest.
Ski bag*
You can use the "ski bag" to transport skis or other extra-long
objects safely inside the vehicle without soiling or damaging
the upholstery.
AB
Fig. 128 Detailed view of
the rear of the rear back-
rest: Ski bag coverFig. 129 Fastening the
ski bag in the seatbelt
buckle
ExeoST_EN.book Seite 150 Donnerstag, 3. September 2009 12:24 12

Seats and stowage151
Safety First
Controls and equipment
Practical tips
Technical Data
Loading
–Open the tailgate.
– Press the release catch for the ski bag cover ⇒page 150,
fig. 128 -arrow- and swivel the cover downwards.
– Pull down the centre rear armrest.
– From the passenger compartment, press down the release catch for the ski bag cover and pull out the cover.
– Pull out and unfold the ski bag.
– The long items can now be loaded through the luggage compart- ment into the ski bag ⇒.
Securing
– Insert the fastening belt ⇒page 150, fig. 129 of the ski bag
into the centre seat belt buckle .
– Pull the free end of belt to tighten.
Storing
– Close the cover of the load-through hatch in the luggage compartment.
– Carefully fold away the ski bag.
– Close the inside cover of the load-through hatch from the passenger compartment.
WARNING
The ski bag must be secured in place with the fastening belt after it has
been loaded.
Note
Do not fold away the ski bag after use if it is still damp.Roof carrier / roof rails*Description
Additional luggage can be carried on the roof carrier.Note the following points if you intend to carry loads on the roof:•We recommend using the cross bars from the of SEAT Genuine Accesso-
ries range.•These cross bars form the basic elements of a complete roof carrier
system. For safety reasons, however, the corresponding additional fastenings
must be fitted to carry luggage, bicycles, surfboards, skis and boats. All the
components of this system are available from Authorised Service Centres.Caution
Any damage to the vehicle caused by the use of other types of roof rack or
incorrect installation will not be covered by the factory warranty. The roof
carrier system must therefore be installed exactly according to the instruc-
tions provided.
AA
AB
AC
ExeoST_EN.book Seite 151 Donnerstag, 3. September 2009 12:24 12

Seats and stowage
152Attachment points
The roof carrier must be attached at the marked points only.The cross-bars must be fitted exactly between the points marked on the roof
railings ⇒fig. 130 . The markings are visible on the inside of the railings.
Caution
A roof carrier unit must not be used if the vehicle is not equipped with roof
rails (basic support).Roof load
Loads carried on the roof must be securely attached. The car's
handling is affected whenever you carry loads on the vehicle.The authorised load on the roof of your vehicle is 75 kg. Use the weight of the
roof carrier system and that of the load as a basis to calculate the roof load. If less resistant systems are used, the roof carrier must not be loaded to the
maximum weight permitted. If less resistant systems are used, these must
only be loaded to the maximum weight permitted indicated in the assembly
instructions.
WARNING
•Loads carried on the roof must be securely attached. Failure to do so
could result in an accident.•Do not exceed the maximum roof load for the vehicle, the maximum
axle loads or the maximum gross vehicle weight. Failure to do so could
result in an accident.•When transporting heavy or bulky loads on the roof, bear in mind that
t h e ca r ' s ha n d l i ng is a f fe c te d by t h e e x t ra w e i g h t o n t h e ro o f a n d a p os s ibl e
susceptibility to cross winds. Adjust your speed and driving style accord-
ingly to avoid accidents.Caution
Please take extra care not to let the tailgate strike the roof load when open.
For the sake of the environment
Roof carriers are often left attached for convenience, even when they are not
being used. However, the increased air resistance means that the vehicle
uses more fuel. For this reason you should always take off the roof carrier
when it is not in use.
Fig. 130 Attachment
points for cross bars
ExeoST_EN.book Seite 152 Donnerstag, 3. September 2009 12:24 12

Seats and stowage153
Safety First
Controls and equipment
Practical tips
Technical Data
Drink holdersFront drink holders

– To open the drink holder, press the symbol
 on the drink holder
lid ⇒fig. 131
– To close the drink holder, press it in until it engages.
WARNING
•Do not put any hot drinks in the drink holder while the vehicle is
moving. You can be scalded if the hot liquid is spilt.•Do not use hard china cups or glasses. These could cause injury in the
event of an accident.
Drinks holder in the rear armrest*Opening the drink holder
–Press the symbol
 ⇒fig. 132 .
Adjusting the retainer arm
– To adjust one of the retainer arms , release it by pressing in the direction indicated (arrow) and move it as required.
The retainer arm should be positioned against the drinks holder so that it is
held securely.
One or two drinks holders can be held in the centre armrest.
WARNING
•Do not put any hot drinks in the drink holder while the vehicle is
moving. You can be scalded if the hot liquid is spilt.
Fig. 131 Detailed view of
instrument panel: Drink
holders
Fig. 132 Drink holder in
the rear armrest
AA
AB
ExeoST_EN.book Seite 153 Donnerstag, 3. September 2009 12:24 12

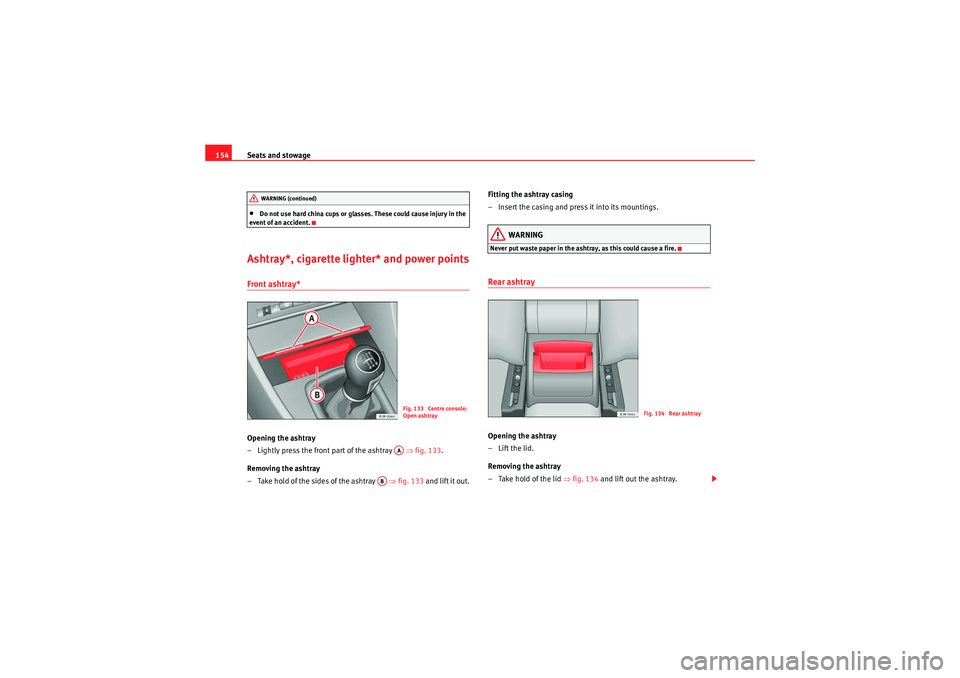

Seats and stowage
154•Do not use hard china cups or glasses. These could cause injury in the
event of an accident.
Ashtray*, cigarette lighter* and power pointsFront ashtray*Opening the ashtray
– Lightly press the front part of the ashtray ⇒fig. 133 .
Removing the ashtray
– Take hold of the sides of the ashtray ⇒fig. 133 and lift it out. Fitting the ashtray casing
– Insert the casing and press it into its mountings.
WARNING
Never put waste paper in the ashtray, as this could cause a fire.Rear ashtrayOpening the ashtray
– Lift the lid.
Removing the ashtray
–Take hold of the lid ⇒
fig. 134 and lift out the ashtray.
WARNING (continued)
Fig. 133 Centre console:
Open ashtrayAA
AB
Fig. 134 Rear ashtray
ExeoST_EN.book Seite 154 Donnerstag, 3. September 2009 12:24 12

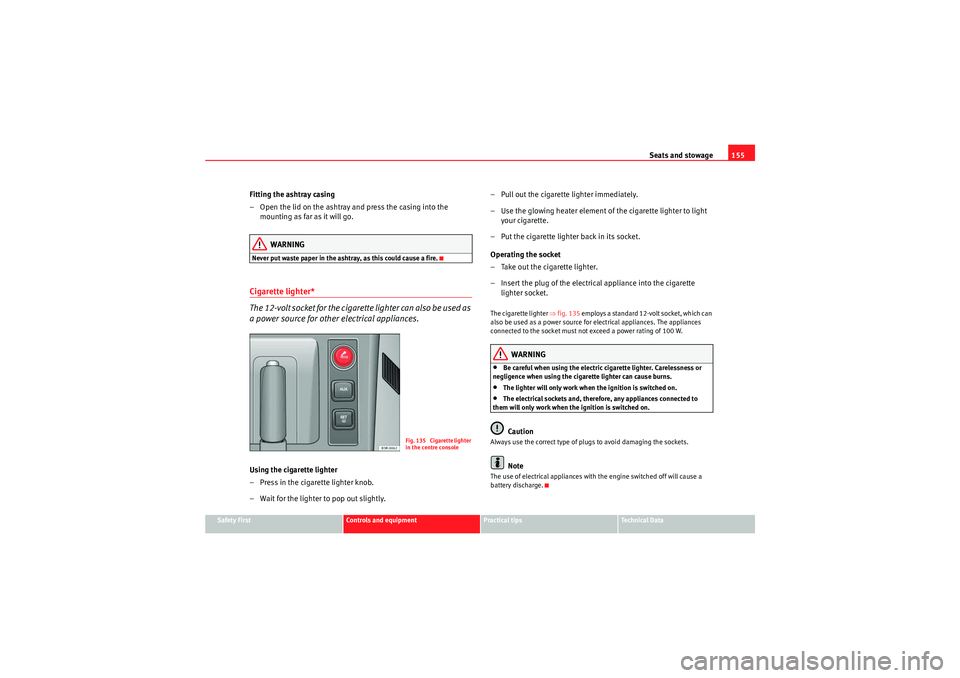

Seats and stowage155
Safety First
Controls and equipment
Practical tips
Technical Data
Fitting the ashtray casing
– Open the lid on the ashtray and press the casing into the
mounting as far as it will go.
WARNING
Never put waste paper in the ashtray, as this could cause a fire.Cigarette lighter*
The 12-volt socket for the cigarette lighter can also be used as
a power source for other electrical appliances.Using the cigarette lighter
–Press in the ciga rette lighter knob.
– Wait for the lighter to pop out slightly. – Pull out the cigarette lighter immediately.
– Use the glowing heater element of the cigarette lighter to light
your cigarette.
– Put the cigarette lighter back in its socket.
Operating the socket
– Take out the cigarette lighter.
– Insert the plug of the electrical appliance into the cigarette lighter socket.
The cigarette lighter ⇒fig. 135 employs a standard 12-volt socket, which can
also be used as a power source for electrical appliances. The appliances
connected to the socket must not exceed a power rating of 100 W.
WARNING
•Be careful when using the electric cigarette lighter. Carelessness or
negligence when using the cigarette lighter can cause burns.•The lighter will only work when the ignition is switched on.•The electrical sockets and, therefore, any appliances connected to
them will only work when the ignition is switched on.Caution
Always use the correct type of plugs to avoid damaging the sockets.
Note
The use of electrical appliances with the engine switched off will cause a
battery discharge.
Fig. 135 Cigarette lighter
in the centre console
ExeoST_EN.book Seite 155 Donnerstag, 3. September 2009 12:24 12

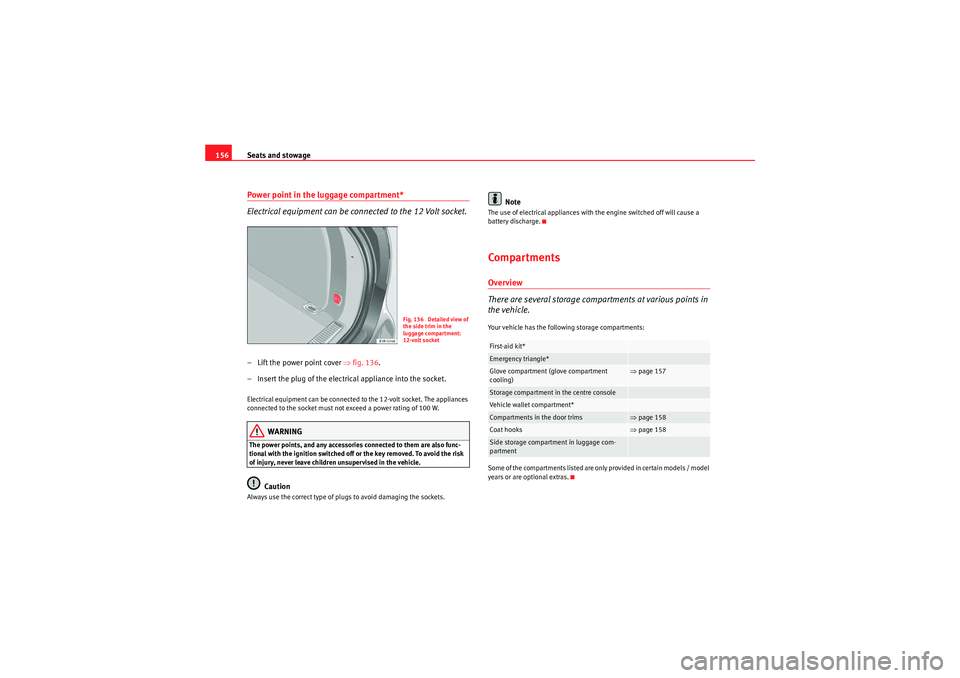

Seats and stowage
156Power point in the luggage compartment*
Electrical equipment can be connected to the 12 Volt socket.– Lift the power point cover ⇒fig. 136 .
– Insert the plug of the electrical appliance into the socket.Electrical equipment can be connected to the 12-volt socket. The appliances
connected to the socket must not exceed a power rating of 100 W.
WARNING
The power points, and any accessories connected to them are also func-
tional with the ignition switched off or the key removed. To avoid the risk
of injury, never leave children unsupervised in the vehicle.
Caution
Always use the correct type of plugs to avoid damaging the sockets.
Note
The use of electrical appliances with the engine switched off will cause a
battery discharge.CompartmentsOverview
There are several storage compartments at various points in
the vehicle.Your vehicle has the following storage compartments:
Some of the compartments listed are only provided in certain models / model
years or are optional extras.
Fig. 136 Detailed view of
the side trim in the
luggage compartment:
12-volt socket
First-aid kit*Emergency triangle*Glove compartment (glove compartment
cooling)
⇒ page 157
Storage compartment in the centre consoleVehicle wallet compartment*Compartments in the door trims
⇒page 158
Coat hooks
⇒page 158
Side storage compartment in luggage com-
partment
ExeoST_EN.book Seite 156 Donnerstag, 3. September 2009 12:24 12

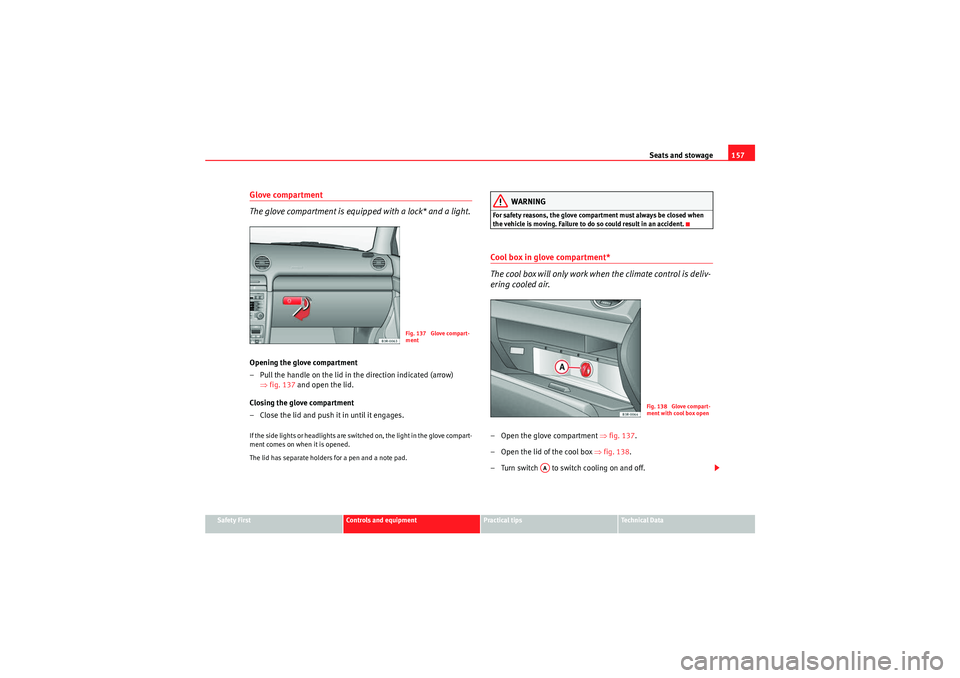

Seats and stowage157
Safety First
Controls and equipment
Practical tips
Technical Data
Glove compartment
The glove compartment is equipped with a lock* and a light.Opening the glove compartment
– Pull the handle on the lid in the direction indicated (arrow)
⇒fig. 137 and open the lid.
Closing the glove compartment
– Close the lid and push it in until it engages.If the side lights or headlights are switched on, the light in the glove compart-
ment comes on when it is opened.
The lid has separate holders for a pen and a note pad.
WARNING
For safety reasons, the glove compartment must always be closed when
the vehicle is moving. Failure to do so could result in an accident.Cool box in glove compartment*
The cool box will only work when the climate control is deliv-
ering cooled air.– Open the glove compartment ⇒fig. 137 .
– Open the lid of the cool box ⇒fig. 138 .
– Turn switch to switch cooling on and off.
Fig. 137 Glove compart-
ment
Fig. 138 Glove compart-
ment with cool box open
AA
ExeoST_EN.book Seite 157 Donnerstag, 3. September 2009 12:24 12

Seats and stowage
158The cool box will only work when the climate control is delivering cooled air.
We recommend you switch off the cool box if the climate control is delivering
warm air to heat the interior.
Note
The “non-slip” mat in the cool box can be removed for cleaning.Compartments in the door trim

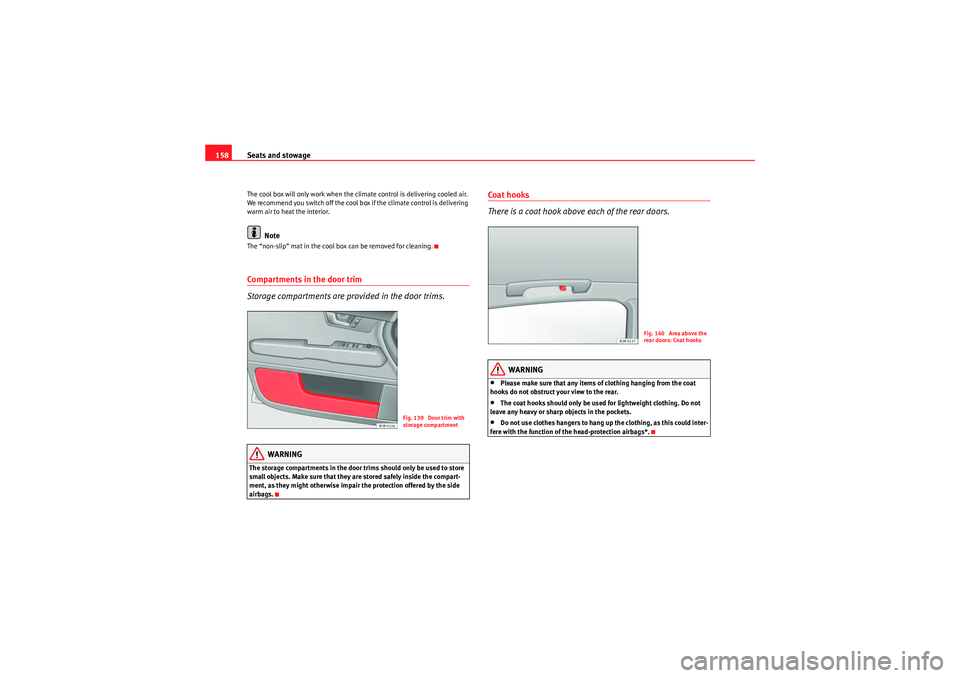

Storage compartments are provided in the door trims.
WARNING
The storage compartments in the door trims should only be used to store
small objects. Make sure that they are stored safely inside the compart-
ment, as they might otherwise impair the protection offered by the side
airbags.
Coat hooks
There is a coat hook above each of the rear doors.
WARNING
•Please make sure that any items of clothing hanging from the coat
hooks do not obstruct your view to the rear.•The coat hooks should only be used for lightweight clothing. Do not
leave any heavy or sharp objects in the pockets.•Do not use clothes hangers to hang up the clothing, as this could inter-
fere with the function of the head-protection airbags*.
Fig. 139 Door trim with
storage compartment
Fig. 140 Area above the
rear doors: Coat hooks
ExeoST_EN.book Seite 158 Donnerstag, 3. September 2009 12:24 12
