Seat Exeo ST 2013 Owner's manual

309

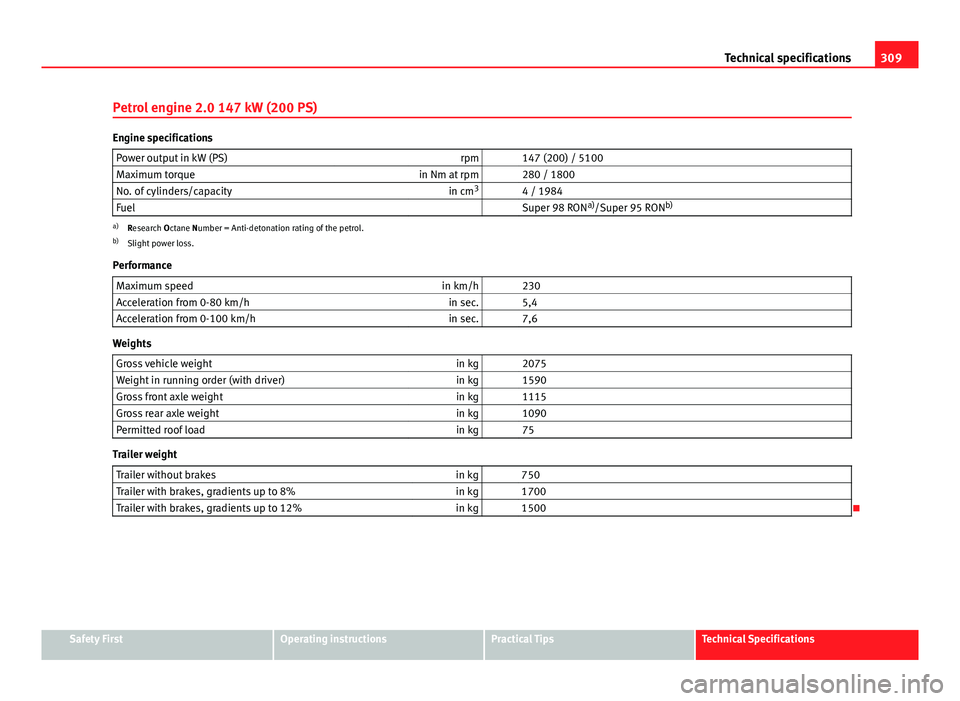

Technical specifications
Petrol engine 2.0 147 kW (200 PS)
Engine specifications Power output in kW (PS) rpm 147 (200) / 5100
Maximum torque in Nm at rpm 280 / 1800
No. of cylinders/capacity in cm3
4 / 1984
Fuel Super 98 RON a)
/Super 95 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h 230
Acceleration from 0-80 km/h in sec. 5,4
Acceleration from 0-100 km/h in sec. 7,6
Weights
Gross vehicle weight in kg 2075
Weight in running order (with driver) in kg 1590
Gross front axle weight in kg 1115
Gross rear axle weight in kg 1090
Permitted roof load in kg 75
Trailer weight
Trailer without brakes in kg 750
Trailer with brakes, gradients up to 8% in kg 1700
Trailer with brakes, gradients up to 12% in kg 1500

Safety FirstOperating instructionsPractical TipsTechnical Specifications

310Technical specifications
Petrol engine 2.0 155 kW (211 PS)
Engine specifications
Power output in kW (PS) rpm 155 (211) / 4600-6000
Maximum torque in Nm at rpm 320 / 1500-4600
No. of cylinders/capacity in cm3
4 / 1984
Fuel Super 95 RON a)
/Super 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h 239
Acceleration from 0-80 km/h in sec. 5,4
Acceleration from 0-100 km/h in sec. 7,3
Weights
Gross vehicle weight in kg 2050
Weight in running order (with driver) in kg 1565
Gross front axle weight in kg 1090
Gross rear axle weight in kg 1135
Permitted roof load in kg 75
Trailer weight
Trailer without brakes in kg 750
Trailer with brakes, gradients up to 8% in kg 1700
Trailer with brakes, gradients up to 12% in kg 1500


311
Technical specifications
Diesel engine 2.0 TDI CR 88 kW (120 PS)
Engine specifications Power output in kW (PS) rpm 88 (120) / 4000
Maximum torque in Nm at rpm 290 / 1750-2500
No. of cylinders/capacity in cm3
4 / 1968
Fuel Min, diesel acc. to DIN EN 590 51 CN a)
a)
Cetane Number (cetane index) = Measure of the combustion power of the diesel
Performance Maximum speed in km/h 196
Acceleration from 0-80 km/h in sec. 7,5
Acceleration from 0-100 km/h in sec. 10,9
Weights
Gross vehicle weight in kg 2050
Weight in running order (with driver) in kg 1565
Gross front axle weight in kg 1100
Gross rear axle weight in kg 1105
Permitted roof load in kg 75
Trailer weight
Trailer without brakes in kg 750
Trailer with brakes, gradients up to 8% in kg 1500
Trailer with brakes, gradients up to 12% in kg 1300

Safety FirstOperating instructionsPractical TipsTechnical Specifications

312Technical specifications
Diesel engine 2.0 TDI CR 105 kW (143 PS)
Engine specifications
Power output in kW (PS) rpm 105 (143) / 4200
Maximum torque in Nm at rpm 320 / 1750-2500
No. of cylinders/capacity in cm3
4 / 1968
Fuel Min, diesel acc. to DIN EN 590 51 CN a)
a)
Cetane Number (cetane index) = Measure of the combustion power of the diesel
Performance ManualAutomatic
Maximum speed in km/h 209 201
Acceleration from 0-80 km/h in sec. 6,5 6,4
Acceleration from 0-100 km/h in sec. 9,6 9,6
Weights
Manual Automatic
Gross vehicle weight in kg 2050 2090
Weight in running order (with driver) in kg 1565 1605
Gross front axle weight in kg 1100 1135
Gross rear axle weight in kg 1105 1090
Permitted roof load in kg 75 75
Trailer weight
ManualAutomatic
Trailer without brakes in kg 750 750
Trailer with brakes, gradients up to 8% in kg 1800 1900
Trailer with brakes, gradients up to 12% in kg 1400 1700


313
Technical specifications
Diesel engine 2.0 TDI CR 125 kW (170 PS)
Engine specifications Power output in kW (PS) rpm 125 (170) / 4200
Maximum torque in Nm at rpm 350 / 1750-2500
No. of cylinders/capacity in cm3
4 / 1968
Fuel Min, diesel acc. to DIN EN 590 51 CN a)
a)
Cetane Number (cetane index) = Measure of the combustion power of the diesel
Performance Maximum speed in km/h 224
Acceleration from 0-80 km/h in sec. 6,1
Acceleration from 0-100 km/h in sec. 8,6
Weights
Gross vehicle weight in kg 2075
Weight in running order (with driver) in kg 1590
Gross front axle weight in kg 1115
Gross rear axle weight in kg 1135
Permitted roof load in kg 75
Trailer weight
Trailer without brakes in kg 750
Trailer with brakes, gradients up to 8% in kg 1800
Trailer with brakes, gradients up to 12% in kg 1600

Safety FirstOperating instructionsPractical TipsTechnical Specifications

314Technical specifications
Dimensions and capacities
Dimensions
Length, width 4661-4741a)
mm/ 1772 mm
Height at kerb weight 1454 mm with roof bars
Front and rear projection 976 mm/ 1048-1123a)
mm
Wheelbase 2642 mm
Turning circle 11.2 m
Track width b) Front
Rear
1522 mm 1523 mm
Capacities
Fuel tank 70 litres. Reserve 10 litres.
Windscreen washer fluid container with headlight washer 4.8 l.
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
a) With towing eye.
b) This data will change depending on the type of wheel rim. 

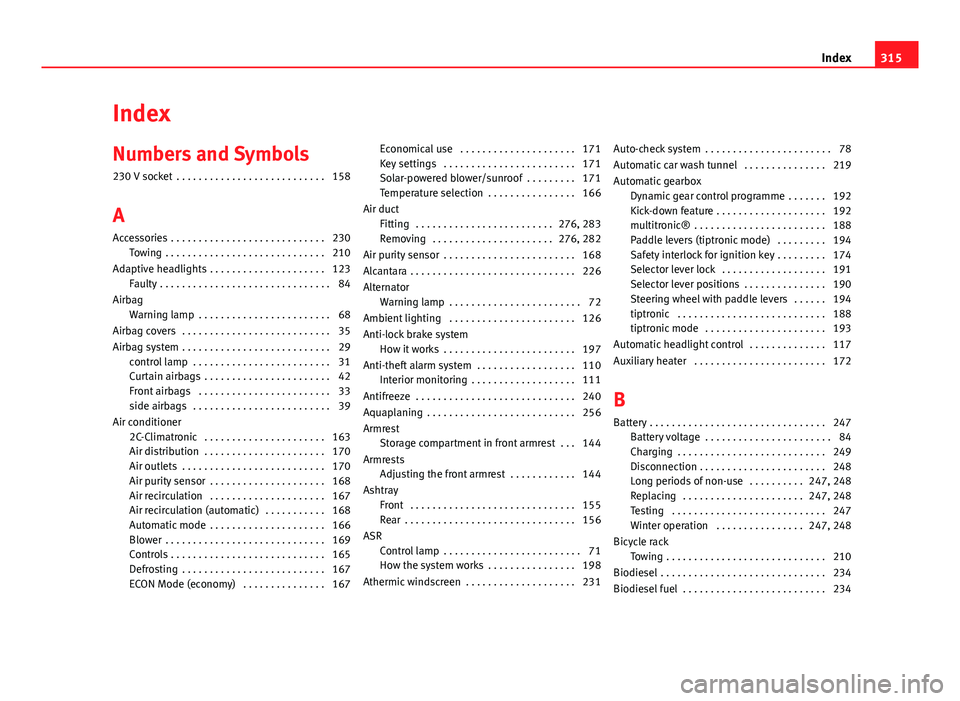

Index
Numbers and Symbols
230 V socket . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
A
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230 Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Adaptive headlights . . . . . . . . . . . . . . . . . . . . . 123 Faulty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Airbag Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 68
Airbag covers . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 31
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 42
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . 33
side airbags . . . . . . . . . . . . . . . . . . . . . . . . . 39
Air conditioner 2C-Climatronic . . . . . . . . . . . . . . . . . . . . . . 163
Air distribution . . . . . . . . . . . . . . . . . . . . . . 170
Air outlets . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Air purity sensor . . . . . . . . . . . . . . . . . . . . . 168
Air recirculation . . . . . . . . . . . . . . . . . . . . . 167
Air recirculation (automatic) . . . . . . . . . . . 168
Automatic mode . . . . . . . . . . . . . . . . . . . . . 166
Blower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . 167
ECON Mode (economy) . . . . . . . . . . . . . . . 167 Economical use . . . . . . . . . . . . . . . . . . . . . 171
Key settings . . . . . . . . . . . . . . . . . . . . . . . . 171
Solar-powered blower/sunroof . . . . . . . . . 171
Temperature selection . . . . . . . . . . . . . . . . 166
Air duct Fitting . . . . . . . . . . . . . . . . . . . . . . . . . 276, 283
Removing . . . . . . . . . . . . . . . . . . . . . . 276, 282
Air purity sensor . . . . . . . . . . . . . . . . . . . . . . . . 168
Alcantara . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Alternator Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 72
Ambient lighting . . . . . . . . . . . . . . . . . . . . . . . 126
Anti-lock brake system How it works . . . . . . . . . . . . . . . . . . . . . . . . 197
Anti-theft alarm system . . . . . . . . . . . . . . . . . . 110 Interior monitoring . . . . . . . . . . . . . . . . . . . 111
Antifreeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Aquaplaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
Armrest Storage compartment in front armrest . . . 144
Armrests Adjusting the front armrest . . . . . . . . . . . . 144
Ashtray Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
ASR Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 71
How the system works . . . . . . . . . . . . . . . . 198
Athermic windscreen . . . . . . . . . . . . . . . . . . . . 231 Auto-check system . . . . . . . . . . . . . . . . . . . . . . . 78
Automatic car wash tunnel . . . . . . . . . . . . . . . 219
Automatic gearbox
Dynamic gear control programme . . . . . . . 192
Kick-down feature . . . . . . . . . . . . . . . . . . . . 192
multitronic® . . . . . . . . . . . . . . . . . . . . . . . . 188
Paddle levers (tiptronic mode) . . . . . . . . . 194
Safety interlock for ignition key . . . . . . . . . 174
Selector lever lock . . . . . . . . . . . . . . . . . . . 191
Selector lever positions . . . . . . . . . . . . . . . 190
Steering wheel with paddle levers . . . . . . 194
tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
tiptronic mode . . . . . . . . . . . . . . . . . . . . . . 193
Automatic headlight control . . . . . . . . . . . . . . 117
Auxiliary heater . . . . . . . . . . . . . . . . . . . . . . . . 172
B
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247 Battery voltage . . . . . . . . . . . . . . . . . . . . . . . 84
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Disconnection . . . . . . . . . . . . . . . . . . . . . . . 248
Long periods of non-use . . . . . . . . . . 247, 248
Replacing . . . . . . . . . . . . . . . . . . . . . . 247, 248
Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Winter operation . . . . . . . . . . . . . . . . 247, 248
Bicycle rack Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Biodiesel fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 234
315

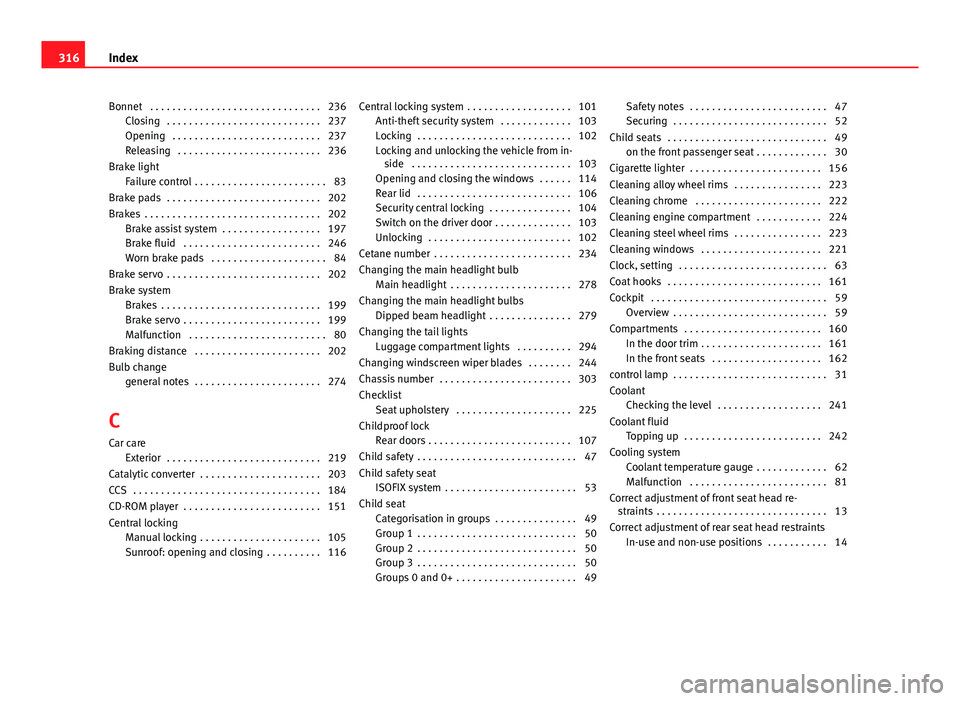

Index

Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Releasing . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Brake light Failure control . . . . . . . . . . . . . . . . . . . . . . . . 83
Brake pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202 Brake assist system . . . . . . . . . . . . . . . . . . 197
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . 246
Worn brake pads . . . . . . . . . . . . . . . . . . . . . 84
Brake servo . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Brake system Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Brake servo . . . . . . . . . . . . . . . . . . . . . . . . . 199
Malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 80
Braking distance . . . . . . . . . . . . . . . . . . . . . . . 202
Bulb change general notes . . . . . . . . . . . . . . . . . . . . . . . 274
C
Car care Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . 203
CCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
CD-ROM player . . . . . . . . . . . . . . . . . . . . . . . . . 151
Central locking Manual locking . . . . . . . . . . . . . . . . . . . . . . 105
Sunroof: opening and closing . . . . . . . . . . 116 Central locking system . . . . . . . . . . . . . . . . . . . 101
Anti-theft security system . . . . . . . . . . . . . 103
Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Locking and unlocking the vehicle from in-side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Opening and closing the windows . . . . . . 114
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Security central locking . . . . . . . . . . . . . . . 104
Switch on the driver door . . . . . . . . . . . . . . 103
Unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Cetane number . . . . . . . . . . . . . . . . . . . . . . . . . 234
Changing the main headlight bulb Main headlight . . . . . . . . . . . . . . . . . . . . . . 278
Changing the main headlight bulbs Dipped beam headlight . . . . . . . . . . . . . . . 279
Changing the tail lights Luggage compartment lights . . . . . . . . . . 294
Changing windscreen wiper blades . . . . . . . . 244
Chassis number . . . . . . . . . . . . . . . . . . . . . . . . 303
Checklist Seat upholstery . . . . . . . . . . . . . . . . . . . . . 225
Childproof lock Rear doors . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Child safety seat ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . 53
Child seat Categorisation in groups . . . . . . . . . . . . . . . 49
Group 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Group 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Group 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Groups 0 and 0+ . . . . . . . . . . . . . . . . . . . . . . 49 Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 47
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 on the front passenger seat . . . . . . . . . . . . . 30
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . 156
Cleaning alloy wheel rims . . . . . . . . . . . . . . . . 223
Cleaning chrome . . . . . . . . . . . . . . . . . . . . . . . 222
Cleaning engine compartment . . . . . . . . . . . . 224
Cleaning steel wheel rims . . . . . . . . . . . . . . . . 223
Cleaning windows . . . . . . . . . . . . . . . . . . . . . . 221
Clock, setting . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Coat hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Compartments . . . . . . . . . . . . . . . . . . . . . . . . . 160 In the door trim . . . . . . . . . . . . . . . . . . . . . . 161
In the front seats . . . . . . . . . . . . . . . . . . . . 162
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Coolant Checking the level . . . . . . . . . . . . . . . . . . . 241
Coolant fluid Topping up . . . . . . . . . . . . . . . . . . . . . . . . . 242
Cooling system Coolant temperature gauge . . . . . . . . . . . . . 62
Malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 81
Correct adjustment of front seat head re- straints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Correct adjustment of rear seat head restraints In-use and non-use positions . . . . . . . . . . . 14
316 Index

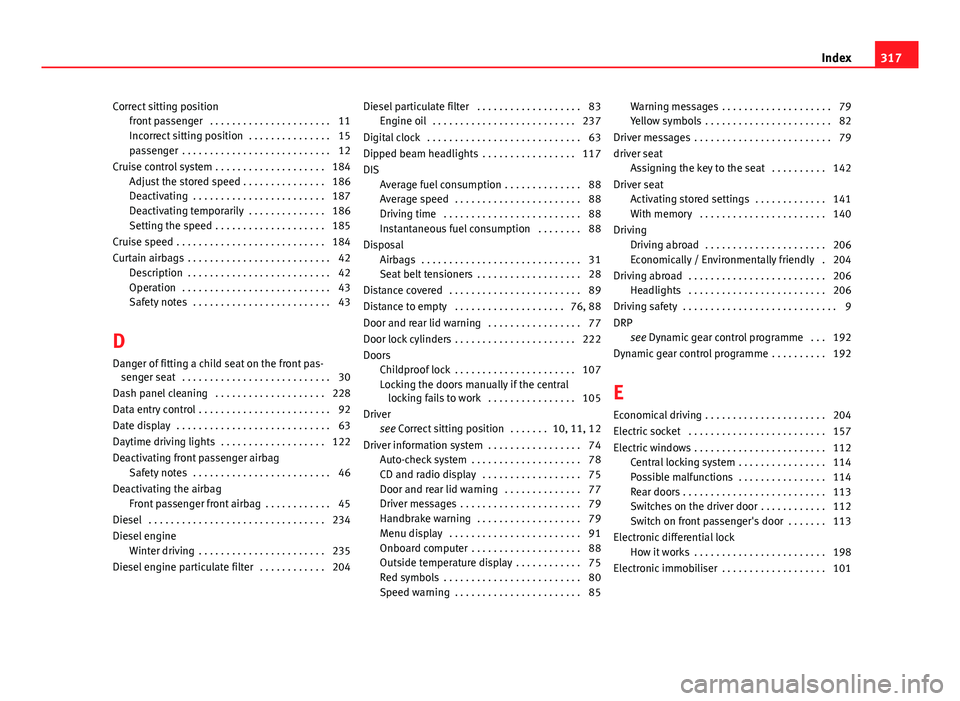

Correct sitting positionfront passenger . . . . . . . . . . . . . . . . . . . . . . 11
Incorrect sitting position . . . . . . . . . . . . . . . 15
passenger . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cruise control system . . . . . . . . . . . . . . . . . . . . 184 Adjust the stored speed . . . . . . . . . . . . . . . 186
Deactivating . . . . . . . . . . . . . . . . . . . . . . . . 187
Deactivating temporarily . . . . . . . . . . . . . . 186
Setting the speed . . . . . . . . . . . . . . . . . . . . 185
Cruise speed . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 43
D Danger of fitting a child seat on the front pas- senger seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Dash panel cleaning . . . . . . . . . . . . . . . . . . . . 228
Data entry control . . . . . . . . . . . . . . . . . . . . . . . . 92
Date display . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Daytime driving lights . . . . . . . . . . . . . . . . . . . 122
Deactivating front passenger airbag Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 46
Deactivating the airbag Front passenger front airbag . . . . . . . . . . . . 45
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Diesel engine Winter driving . . . . . . . . . . . . . . . . . . . . . . . 235
Diesel engine particulate filter . . . . . . . . . . . . 204 Diesel particulate filter . . . . . . . . . . . . . . . . . . . 83
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Dipped beam headlights . . . . . . . . . . . . . . . . . 117
DIS Average fuel consumption . . . . . . . . . . . . . . 88
Average speed . . . . . . . . . . . . . . . . . . . . . . . 88
Driving time . . . . . . . . . . . . . . . . . . . . . . . . . 88
Instantaneous fuel consumption . . . . . . . . 88
Disposal Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Seat belt tensioners . . . . . . . . . . . . . . . . . . . 28
Distance covered . . . . . . . . . . . . . . . . . . . . . . . . 89
Distance to empty . . . . . . . . . . . . . . . . . . . . 76, 88
Door and rear lid warning . . . . . . . . . . . . . . . . . 77
Door lock cylinders . . . . . . . . . . . . . . . . . . . . . . 222
Doors Childproof lock . . . . . . . . . . . . . . . . . . . . . . 107
Locking the doors manually if the centrallocking fails to work . . . . . . . . . . . . . . . . 105
Driver see Correct sitting position . . . . . . . 10, 11, 12
Driver information system . . . . . . . . . . . . . . . . . 74 Auto-check system . . . . . . . . . . . . . . . . . . . . 78
CD and radio display . . . . . . . . . . . . . . . . . . 75
Door and rear lid warning . . . . . . . . . . . . . . 77
Driver messages . . . . . . . . . . . . . . . . . . . . . . 79
Handbrake warning . . . . . . . . . . . . . . . . . . . 79
Menu display . . . . . . . . . . . . . . . . . . . . . . . . 91
Onboard computer . . . . . . . . . . . . . . . . . . . . 88
Outside temperature display . . . . . . . . . . . . 75
Red symbols . . . . . . . . . . . . . . . . . . . . . . . . . 80
Speed warning . . . . . . . . . . . . . . . . . . . . . . . 85 Warning messages . . . . . . . . . . . . . . . . . . . . 79
Yellow symbols . . . . . . . . . . . . . . . . . . . . . . . 82
Driver messages . . . . . . . . . . . . . . . . . . . . . . . . . 79
driver seat Assigning the key to the seat . . . . . . . . . . 142
Driver seat Activating stored settings . . . . . . . . . . . . . 141
With memory . . . . . . . . . . . . . . . . . . . . . . . 140
Driving Driving abroad . . . . . . . . . . . . . . . . . . . . . . 206
Economically / Environmentally friendly . 204
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . 206 Headlights . . . . . . . . . . . . . . . . . . . . . . . . . 206
Driving safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
DRP see Dynamic gear control programme . . . 192
Dynamic gear control programme . . . . . . . . . . 192
E
Economical driving . . . . . . . . . . . . . . . . . . . . . . 204
Electric socket . . . . . . . . . . . . . . . . . . . . . . . . . 157
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . 112 Central locking system . . . . . . . . . . . . . . . . 114
Possible malfunctions . . . . . . . . . . . . . . . . 114
Rear doors . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Switches on the driver door . . . . . . . . . . . . 112
Switch on front passenger's door . . . . . . . 113
Electronic differential lock How it works . . . . . . . . . . . . . . . . . . . . . . . . 198
Electronic immobiliser . . . . . . . . . . . . . . . . . . . 101
317
Index

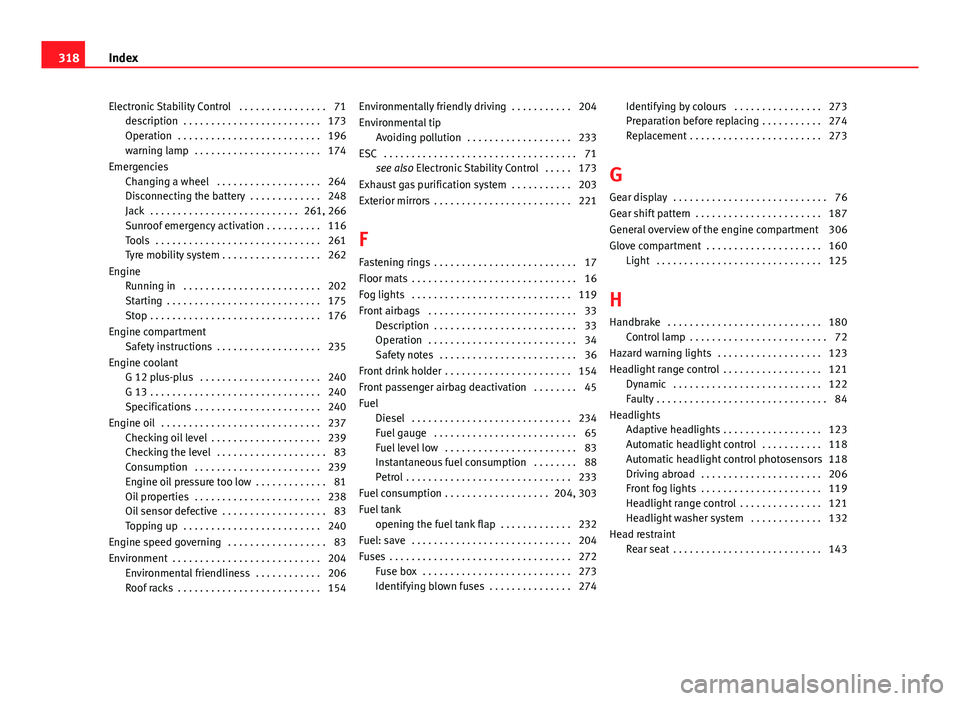

Electronic Stability Control . . . . . . . . . . . . . . . . 71description . . . . . . . . . . . . . . . . . . . . . . . . . 173
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . 196
warning lamp . . . . . . . . . . . . . . . . . . . . . . . 174
Emergencies Changing a wheel . . . . . . . . . . . . . . . . . . . 264
Disconnecting the battery . . . . . . . . . . . . . 248
Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . 261, 266
Sunroof emergency activation . . . . . . . . . . 116
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261
Tyre mobility system . . . . . . . . . . . . . . . . . . 262
Engine Running in . . . . . . . . . . . . . . . . . . . . . . . . . 202
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Engine compartment Safety instructions . . . . . . . . . . . . . . . . . . . 235
Engine coolant G 12 plus-plus . . . . . . . . . . . . . . . . . . . . . . 240
G 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Specifications . . . . . . . . . . . . . . . . . . . . . . . 240
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237 Checking oil level . . . . . . . . . . . . . . . . . . . . 239
Checking the level . . . . . . . . . . . . . . . . . . . . 83
Consumption . . . . . . . . . . . . . . . . . . . . . . . 239
Engine oil pressure too low . . . . . . . . . . . . . 81
Oil properties . . . . . . . . . . . . . . . . . . . . . . . 238
Oil sensor defective . . . . . . . . . . . . . . . . . . . 83
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . 240
Engine speed governing . . . . . . . . . . . . . . . . . . 83
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . 204 Environmental friendliness . . . . . . . . . . . . 206
Roof racks . . . . . . . . . . . . . . . . . . . . . . . . . . 154 Environmentally friendly driving . . . . . . . . . . . 204
Environmental tip
Avoiding pollution . . . . . . . . . . . . . . . . . . . 233
ESC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 see also Electronic Stability Control . . . . . 173
Exhaust gas purification system . . . . . . . . . . . 203
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 221
F
Fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 36
Front drink holder . . . . . . . . . . . . . . . . . . . . . . . 154
Front passenger airbag deactivation . . . . . . . . 45
Fuel Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Fuel level low . . . . . . . . . . . . . . . . . . . . . . . . 83
Instantaneous fuel consumption . . . . . . . . 88
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Fuel consumption . . . . . . . . . . . . . . . . . . . 204, 303
Fuel tank opening the fuel tank flap . . . . . . . . . . . . . 232
Fuel: save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272 Fuse box . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
Identifying blown fuses . . . . . . . . . . . . . . . 274 Identifying by colours . . . . . . . . . . . . . . . . 273
Preparation before replacing . . . . . . . . . . . 274
Replacement . . . . . . . . . . . . . . . . . . . . . . . . 273
G
Gear display . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Gear shift pattern . . . . . . . . . . . . . . . . . . . . . . . 187
General overview of the engine compartment 306
Glove compartment . . . . . . . . . . . . . . . . . . . . . 160 Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
H
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 72
Hazard warning lights . . . . . . . . . . . . . . . . . . . 123
Headlight range control . . . . . . . . . . . . . . . . . . 121 Dynamic . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Faulty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Headlights Adaptive headlights . . . . . . . . . . . . . . . . . . 123
Automatic headlight control . . . . . . . . . . . 118
Automatic headlight control photosensors . .118
Driving abroad . . . . . . . . . . . . . . . . . . . . . . 206
Front fog lights . . . . . . . . . . . . . . . . . . . . . . 119
Headlight range control . . . . . . . . . . . . . . . 121
Headlight washer system . . . . . . . . . . . . . 132
Head restraint Rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
318 Index
