radio Seat Ibiza 2017 MEDIA SYSTEM PLUS - NAVI SYSTEM

SEAT S.A. is permanently concerned about continuous development of its t\
ypes and models. For this reason we ask you to under-
stand, that at any given time, changes regarding shape, equipment and te\
chnique may take place on the car delivered. For this reason
no right at all may derive based on the data, drawings and descriptions \
in this current handbook.
All texts, illustrations and standards in this handbook are based on the\
status of information at the time of printing. Except for error
or omission, the information included in the current handbook is valid a\
s of the date of closing print.
Re-printing, copying or translating, whether total or partial is not all\
owed unless SEAT allows it in written form.
SEAT reserves all rights in accordance with the “Copyright” Act.
All rights on changes are reserved.
❀This paper has been manufactured using bleached non-chlorine cellulose.
© SEAT S.A. - Reprint: 15.11.17
About this manual
This manual contains information, recommen -
dations, advice and warnings related to your
radio system. The other publications in the
vehicle documentation contain further infor -
mation of which you should be aware for your
own safety and for that of your passengers.
Ensure that the onboard documentation is
kept in the vehicle at all times. This is espe -
cially important when lending or selling the
vehicle to another person.
This manual contains a description of the
equipment supplied with the vehicle at the
time of press. Some of the units described
herein will not be available until a later date or
is only available in certain markets.
The illustrations are intended as a general
guide and may vary from the equipment tted
in your vehicle in some details.
The screen colour and the colour of the infor -
mation displayed on it can vary according to
vehicle model. Directions and positions
of components (e.g.
right, left, front, rear) are always relative to the
direction of travel of the vehicle unless other -
wise stated.
The audiovisual material only is intended to
help users to understand certain car function -
alities better. It does not replace the instruc -
tion manual. Please use the instruction manu -
al to obtain more comprehensive information
and indications.
The equipment marked with an aster -
isk* is tted as standard only in certain
versions, and is only supplied as op -
tional extras for some versions, or are
only offered in certain countries.
® All registered marks are indicated with
®. Although the copyright symbol does
not appear, it is a copyrighted mark.
>> The section is continued on the follow -
ing page.
WARNING
Texts preceded by this symbol contain infor -
mation on safety. They warn you about possi -
ble dangers of accident or injury.
CAUTION
Texts with this symbol draw your attention to
potential sources of damage to your vehicle.
For the sake of the environment
Texts preceded by this symbol contain rele-
vant information concerning environmental
protection.
Note
Texts preceded by this symbol contain additio -
nal information.

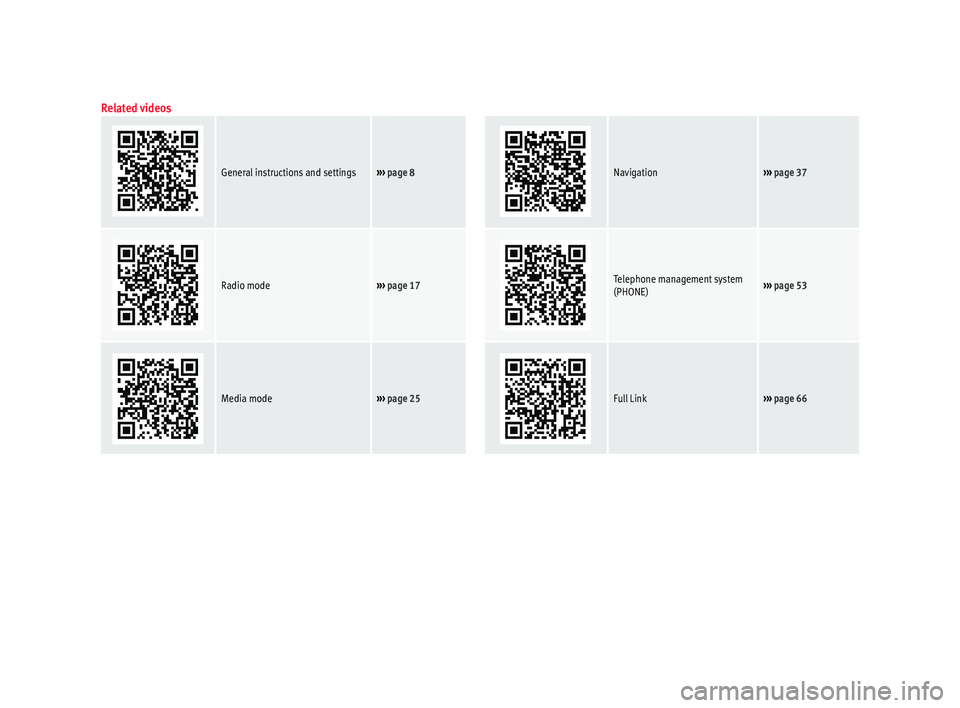

Related videos
General instructions and settings››› page 8Navigation››› page 37
Radio mode››› page 17Telephone management system
(PHONE)››› page 53
Media mode››› page 25Full Link››› page 66

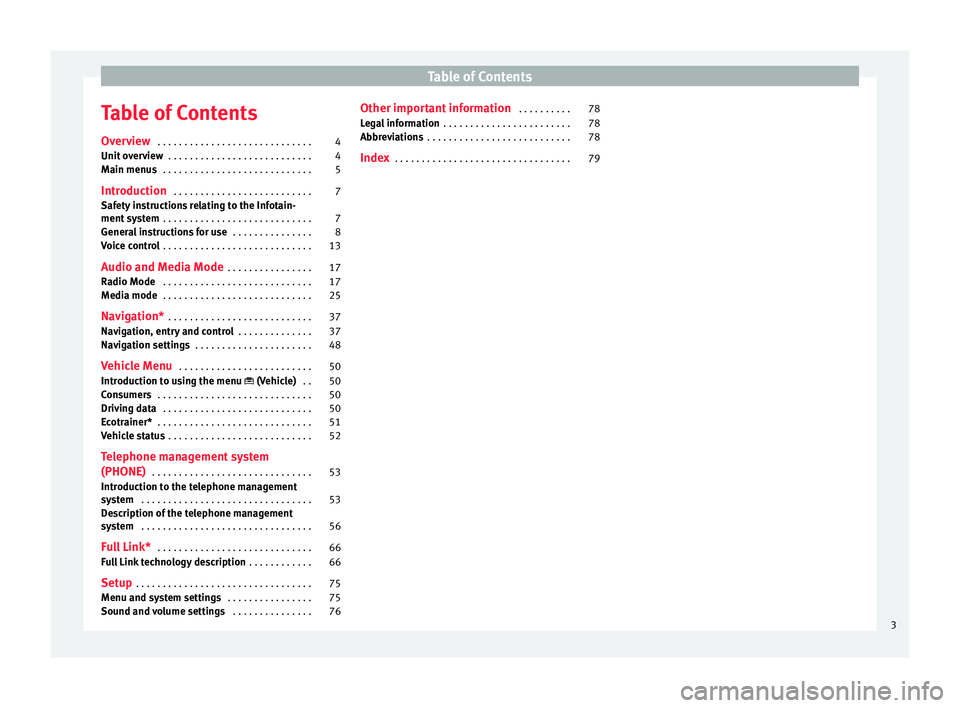

Table of Contents
Table of Contents
Ov er
v
iew . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Unit overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Main menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety instructions relating to the Infotain-
ment sys
tem . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
General instructions for use . . . . . . . . . . . . . . . 8
Voice control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Audio and Media Mode . . . . . . . . . . . . . . . . 17
Radio Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Media mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Navigation* . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Navigation, entry and control . . . . . . . . . . . . . . 37
Navigation settings . . . . . . . . . . . . . . . . . . . . . . 48
Vehicle Menu . . . . . . . . . . . . . . . . . . . . . . . . . 50
Introduction to using the menu  (Vehicl
e) . . 50
Consumers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Driving data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Ecotrainer* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Vehicle status . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Telephone management system
(PHONE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Introduction to the telephone management
syst
em . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Description of the telephone management
syst
em . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Full Link* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Full Link technology description . . . . . . . . . . . . 66
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Menu and system settings . . . . . . . . . . . . . . . . 75
Sound and volume settings . . . . . . . . . . . . . . . 76 Other important information
. . . . . . . . . . 78
Legal information . . . . . . . . . . . . . . . . . . . . . . . . 78
Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
3

Overview
Radio
››› page 17
RADIO main menu ››› page 17
RDS radio data services ››› page 18

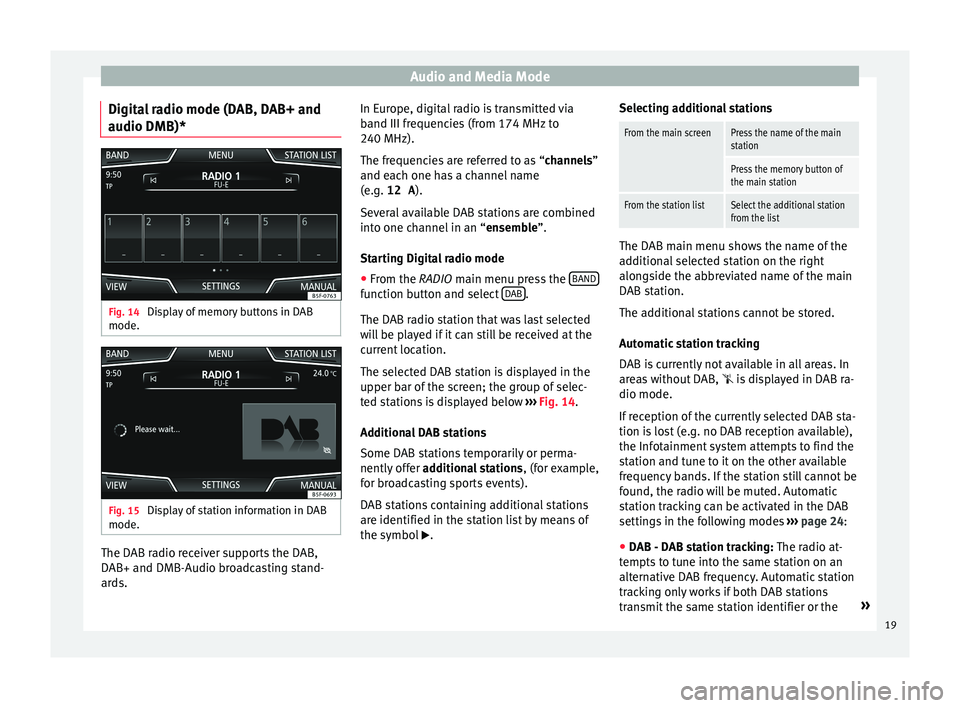

Digital radio mode ››› page 19
Memory buttons ››› page 20
Storing station logos ››› page 21
Select, tune and store stations ››› page 21
Scan function ››› page 22
TP traffic news ››› page 22
Settings ››› page 23 
Media
››› page 25
Data and file storage devices ››› page 25
Playing order ››› page 27 ››› page 27
Changing the media source ››› page 29
Changing tracks ››› page 29
Selecting an album by its cover ››› page 30
Selecting of a track from a list of tracks ››› page 30
Database view ››› page 31
Inserting or ejecting a CD ››› page 32
Memory card ››› page 32
External data storage device connected to the USB port
››› page 33
External audio source connected to the AUX-IN multime-
dia socket ››› page 34
External audio source with Bluetooth ®
››› page 34
Images ››› page 35
Settings ››› page 35 ››› page 36 
Telephone
››› page 53
Pairing ››› page 55
Bluetooth ®
››› page 54
Function buttons ››› page 57
Entering a number ››› page 59
Phonebook ››› page 60
Short messages (SMS) ››› page 61
Call list ››› page 62
Speed dial buttons ››› page 62
Settings ››› page 63 
Navigation
››› page 37
New destination ››› page 38
Route options ››› page 39 ››› page 40
My destinations ››› page 41
Points of interest (POI) ››› page 42
View ››› page 43
Split screen ››› page 43
Map display ››› page 44
Traffic reports and dynamic route guidance to the desti-
nation (TRAFFIC) ››› page 45
Predictive navigation ››› page 46
Importing vCards ››› page 46
Importing Personal POI ››› page 46
Navigation with images ››› page 47
Traffic signs ››› page 47
Route guidance in Demo mode ››› page 47
Settings ››› page 48 
Traffic
››› page 45
TP Traffic Information station (Traffic Program)
››› page 22
Traffic reports and dynamic route guidance to the desti-
nation (TRAFFIC) ››› page 45 
Vehicle
››› Booklet Instruction Manual
Consumers ››› page 50
Driving data ››› page 50
Ecotrainer ››› page 51
Vehicle status ››› page 52 
Full Link
››› page 66
Requirements ››› page 68
Activation of Full Link ››› page 69
Pairing portable devices ››› page 70
MirrorLink ®
››› page 71
Apple CarPlay™ ››› page 72
Android Auto™ ››› page 72
Frequently asked questions ››› page 74 
Images
››› page 35 
Sound
››› page 76 
Settings
››› page 75 6

Introduction
Introduction Saf ety
in
structions relating to the In-
fotainment system Travelling on today's roads requires the driv-
er's f
u

ll attention at all times.
Only operate the radio and its various func-
tions when the traffic situation really permits
this. WARNING
● Bef or

e starting the trip, you should famili-
arise yourself with the different radio func-
tions.
● High audio volume may represent a danger
to y
ou and to others.
● Adjust the volume in a way that you can
distin
guish surrounding noise, for example,
horns and sirens, etc.
● Changes to the Infotainment system set-
tings
should be made when the car is stop-
ped, or by a passenger. WARNING
Distracting the driver in any way can lead to
an acc ident

and cause injuries. Operating the
Infotainment system can distract your atten-
tion from the traffic.
● Always drive carefully and responsibly. ●
Select

volume settings that allow you to
easily hear signals from outside the vehicle
at all times (e.g. emergency services sirens
and horns).
● Hearing may be impaired if using too high a
volume settin
g, even if only for short periods
of time. WARNING
The volume level may suddenly change when
y ou sw it

ch audio source or connect a new au-
dio source.
● Lower the base volume before connecting
or switc
hing audio sources. WARNING
The driving recommendations and traffic indi-
cation s

shown on the navigation system may
differ from the current traffic situation.
● Traffic signs and traffic regulations have
priority ov
er the recommendations and dis-
plays provided by the navigation system.
● Adjust your vehicle speed and driving style
to suit
visibility, weather, road and traffic
conditions. WARNING
Connecting, inserting or removing a data me-
dium whil e driv

ing can distract your attention
from the traffic and cause an accident. WARNING
Connecting leads for external devices may
ob s

truct the driver.
● Arrange the connecting leads so that they
do not ob
struct the driver. WARNING
External devices that are loose or not proper-
ly sec ur

ed could move around the passenger
compartment during a sudden driving or
braking manoeuvre or an accident and cause
damage or injury.
● Never place or fit external devices to the
doors, wind
screen, steering wheel, dash pan-
el, the backs of the seats, on top of or near
the area marked “AIRBAG” or between these
areas and the occupants. External devices
can cause serious injury in an accident, espe-
cially when the airbags inflate. WARNING
The armrest may obstruct the driver's arm
mov ement

s, which could cause an accident
and severe injuries.
● Always keep the armrest closed while the
vehicl
e is in motion. WARNING
Opening a CD player's housing can lead to in-
juries fr

om invisible laser radiation.
● Have CD players repaired only by a quali-
fied workshop
. » 7

Introduction
››› Fig. 8 if any parameters have not been set
or if the NEVER f
unction button has not been
pressed.
Function
buttonFunction
CLOSE
Closes the Configuration Wizard, and the
main menu or last mode in which you
used the Infotainment system will ap-
pear. The next time you switch on the
system, the Configuration Wizard will
start up again.
NEVER
Disables the possibility of changing the
settings of the Infotainment system. If
you want to perform the initial system
setup, you must enter via System set-
up and select Configuration Wiz-
ard ››› page 75.
STARTStarts up the Configuration Wizard.
APress to configure the time and date (if it
has a navigation system it will be config-
ured automatically with the GPS).
BPress to search and store to memory the
radio stations that have the best recep-
tion at that moment.
CPress to link your mobile telephone to
the Infotainment system.
Da)Press to select your home address using
your current position or by manually en-
tering an address.
Function
buttonFunction
PREVIOUS

NEXT
To go to the previous or next parameter
to set.
When a parameter has been set, the only
way to reset it is from the main menu,
clicking on it, and not using the Previ-
ous/Next buttons.
When setting any parameter, a confirma-
tion mark will appear on it
.
FINISH
Once one or more settings have been ap-
plied, click on this in the main menu of
the wizard to confirm and finalize the
settings.
If there are any parameters you have not
set, the next time you connect the Info-
tainment system, the Initial Configura-
tion Wizard will start up.
a) Only valid for Navi System.
Voice control
Operation Fig. 9
Voice control: main screen (model dis-
p l
a

yed: Navi System) Many radio, media, telephone and navigation
f
u
nction

s may be performed through voice
commands.
The Infotainment system's voice control will
only be available for the language selected in
System setup ››› page 75.
Setup of voice control ››› page 15.
Start and stop the voice control
● To activate the voice control, briefly press
the button on the mu
lti-function steering
wheel  or on the infotainment system.
● When you activate voice control, a tone will
be heard f
or the start of the dialogue and the
voice control main screen will be displayed, »
13

Introduction
main commands and the modes in which
sy s
t
em works are shown.
From here, you can tell the system which
mode you want to activate or directly give a
voice command.
When you select any of the modes (Naviga-
tion, Telephone, Radio, Media, Voice control)
a menu will appear listing the main com-
mands and, in each one, brief explanations
to help understand how they work.
Voice control (RADIO)
LISTEN TO THE RADIOListen to the radio
SELECT STATIONStation NAME STATION 1
Set station
SELECT FREQUENCYFrequency 87.9
Set frequency
CHANGING BANDSBand FM
Change band Voice control (MEDIA)
SELECT A SOURCEPlay CD
Listen to CD
SELECTING MUSICSelect track / album / ar-
tist / genre Voice control (PHONE)
CALL CONTACTS
Call Forename Surname
Landline
Call Forename Surname
Mobile
CALL NUMBERSCall 01234
Call number
CALL LISTShow all calls
Missed calls
REDIALRedial
CALL MAILBOXCall mailbox
SMSRead out text message
SERVICEAssistance call
INFORMATIONInformation call
Voice control (NAV)*
ENTER AN ADDRESS
Enter address
Navigate to City, Street,
Number
HOME ADDRESSHome address
LAST DESTINATIONSLast destinations
NAVIGATE TO CONTACTSNavigate to Forename Sur-
name
ROUTE GUIDANCEStart route guidance
Route information Voice control
VOICE CONTROL
Pardon?
Back
Main menu
Cancel voice control
Pause voice control
HELPHelp
What can I say?
PUSH-TO-TALK
Note
Voice control is unavailable during parking
manoeu vr

es Voice control settings
●
Press the Infotainment button 
› ›
›

Fig. 1 12 to open the main menuSystem
settings .
● Press the function button Settin
g
s to access
the sy s
t

em setup.
● Press the function button Voice c
ontrol .
»
15

Audio and Media Mode
Audio and Media Mode
R a
dio Mode
R
elated video Fig. 10
Radio mode RADIO main menu
Fig. 11
RADIO main menu. Fig. 12
Radio mode: station list (FM). Press the Infotainment button
 ››
›
Fig. 1 1 to open the RADIO main menu
››
› Fig. 11.
RADIO main menu function buttons
Function button: function
1To change the group of memory buttons
slide a finger over the memory buttons
from left to right or vice-versa
BANDAllows you to select the frequency band.
STATION
LISTOpens the list of currently receivable ra-
dio stations ››› page 21.
MANUALAllows you to select the frequency man-
ually ››› page 21.
VIEW
Allows you to select the information
shown on the screen ››› page 20. The
function button is only available in DAB
mode.
Function button: function
SETTINGSOpens the setup menu of the active fre-
quency band (FM, AM or DAB)
››› page 23. 
/ 
Selects the previous or next stored sta-
tion (or available station). Adjustment of
the arrow buttons in the Settings menu
(FM, AM, DAB).
1 to 18Memory buttons
››› page 20.
SCANStops the scan function (only visible
when the function is under way). Information and possible icons
Display: Meaning
A
View the frequency or the name of the sta-
tion and, where applicable, the radio text.
The name of the radio station and the radio
text will only be displayed if equipped with
RDS and if it is active
››› page 18.
RDS OffThe RDS radio data service is deactivated.
TPTraffic news is available ››› page 22. 
No stations with traffic news are available.

The radio station is stored on a memory
button.
AF offThe tracking of alternative frequencies is
disabled.»
17

Audio and Media Mode
Note
● The avai l
ability of AM and DAB bands de-
pends on the country and/or equipment. In
the event that the AM and DAB bands are not
available, the BAND function button text will
not be shown.
● Bear in mind that being underground, in
tunnel
s, in areas with tall buildings or moun-
tains can interfere with radio signals.
● Foil or metal-coated stickers attached to
the window
s may affect reception on vehicles
with a window aerial. RDS radio data services (FM band)
Fig. 13
Standard representation: FM station
li s
t

menu The RDS (Radio Data System) offers addition-
al
inf
orm

ation in FM such as the visualisation
of the station name, automatic station track- ing (AF), text emitted by radio (Radio Text),
traffic r

eports (TP) and station types (PTY).
Depending on the country and the unit in
question, the RDS can be deactivated in the FM setup menu ››› page 23.
Without RDS it is not possible to use radio
data services.
Name of the station and automatic station
tracking
If equipped with the RDS function, the names
of the stations can be displayed in the main
RADIO menu and in the FM station list .
FM radio stations may occasionally or contin-
uously broadcast different content on differ-
ent regional frequencies under the same sta-
tion name (e.g. Station 3).
By default, automatic station tracking always
switches to the currently selected station's
frequency that offers the best reception, as
the vehicle travels from one area to the next.
As a result, this may cause the regional sig-
nal to be lost.
Automatic frequency changing and automatic
station tracking can be deactivated in FM setup ››› page 23.
Setting a station name
In some cases the name of the station is too
long. This text may be blocked/unblocked by
pressing on the station name for 3 seconds until hearing an audible signal (a dot will ap-
pear/dis
appear on the left and right of the
station name).
Radio text
Some RDS-enabled stations also broadcast
additional text information known as radio
text.
Radio Text is displayed in the upper half of
the screen above the memory buttons
››› Fig. 11 A .
The R a
dio

Text display can be deactivated in
FM setup ››› page 23.
Station list order
Stations that are available at a certain time
are displayed on the station list screen ( STA-
TION LIST function button). This list may
be ordered by station group, by genre or al-
phabetically ››› Fig. 13. Note
● Ra dio s

tations are responsible for the con-
tent of the information they transmit.
● Due to matters of infrastructure, RDS func-
tions m
ay be limited in certain countries, and
you may not be able to receive traffic an-
nouncements, automatic station tracking (AF)
or programme types (PTY). 18

Audio and Media Mode
Digital radio mode (DAB, DAB+ and
audio DMB)* Fig. 14
Display of memory buttons in DAB
mode. Fig. 15
Display of station information in DAB
mode. The DAB radio receiver supports the DAB,
D
AB+ and DMB-Audio br
o
adcasting stand-
ards. In Europe, digital radio is transmitted via
band III frequenc

ies (from 174 MHz to
240 MHz).
The frequencies are referred to as “channels”
and each one has a channel name
(e.g. 12 A ).
Several available DAB stations are combined
into one channel in an “ensemble”.
Starting Digital radio mode ● From the RADIO main menu pre
ss the BAND function button and select
D
AB .
The D AB r
a
dio station that was last selected
will be played if it can still be received at the
current location.
The selected DAB station is displayed in the
upper bar of the screen; the group of selec-
ted stations is displayed below ››› Fig. 14.
Additional DAB stations
Some DAB stations temporarily or perma-
nently offer additional stations , (for example,
for broadcasting sports events).
DAB stations containing additional stations
are identified in the station list by means of
the symbol . Selecting additional stations
From the main screenPress the name of the main
station
Press the memory button of
the main station
From the station listSelect the additional station
from the list
The DAB main menu shows the name of the
ad
dition

al selected station on the right
alongside the abbreviated name of the main
DAB station.
The additional stations cannot be stored.
Automatic station tracking
DAB is currently not available in all areas. In
areas without DAB, 
is displayed in DAB ra-
dio mode.
If reception of the currently selected DAB sta-
tion is lost (e.g. no DAB reception available),
the Infotainment system attempts to find the
station and tune to it on the other available
frequency bands. If the station still cannot be
found, the radio will be muted. Automatic
station tracking can be activated in the DAB
settings in the following modes ›››
page 24:
● DAB - DAB station tracking: The ra dio at
-
tempts to tune into the same station on an
alternative DAB frequency. Automatic station
tracking only works if both DAB stations
transmit the same station identifier or the »
19
