navigation Seat Ibiza 2018 MEDIA SYSTEM PLUS - NAVI SYSTEM

Table of ContentsTable of ContentsOverview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Unit overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
Main menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Safety instructions relating to the Info-
tainment system . . . . . . . . . . . . . . . . . . . . . . . . . .
7
General instructions for use . . . . . . . . . . . . . .
8
Voice control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13
Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17
Data transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17
Full Link* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17
SEAT Media Control . . . . . . . . . . . . . . . . . . . . . . .
26
WLAN hotspot . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27
Audio and Media Mode . . . . . . . . . . . . . . .
29
Radio Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29
Media mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
38
Navigation* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
52
Navigation, entry and control . . . . . . . . . . . .
52
Navigation settings . . . . . . . . . . . . . . . . . . . . . . .
63
Vehicle Menu . . . . . . . . . . . . . . . . . . . . . . . . . . .
65
Introduction to using the
Vehicle
menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
65
Instrument panel* . . . . . . . . . . . . . . . . . . . . . . . .
65
Consumers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
65
Driving data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
66
Ecotrainer* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
66
Vehicle status . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
68Telephone management system
. . .69Introduction to the telephone manage-
ment system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
Description of the telephone manage-
ment system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
72
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
82
Menu and system settings . . . . . . . . . . . . . . . .
82
Sound and volume settings . . . . . . . . . . . . . . .
83
Other important information . . . . . . . .
85
Legal information . . . . . . . . . . . . . . . . . . . . . . . . .
85
Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
85
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
873

ConnectivityFrequently asked questions about Full LinkWhat is the connection method?USB cable.Will the USB cable be supplied with the vehicle?No. The USB cable supplied with the device should be used.Is navigation possible?Navigation is possible in each one of the Full Link technologies if the technology is available in yourcountry and if you have the Navigation app.What is the difference between using the Full Link system naviga-tor (via telephone) instead of another navigator?Advantages: Daily updates.
Issues: data consumption, reception problems.Can I send voice messages?With certified application, it can be used to reply, not send.What apps will be visible as I am driving?Depending on the technology:

ConnectivitySEAT Media ControlIntroduction
 Only available for the model: Navi System with
WLAN connection
Fig. 19
Related video
The SEAT Media Control 1)
app can be used
to remotely operate some partial functions in
Radio mode, Media mode and Navigation
mode. Information can be exchanged be- tween a device and the Infotainment System.
Each one of the functions is operated bymeans of a Tablet or partially by means of a
mobile phone.
Operating requirements:

Navigation*Navigation*Navigation, entry and con-
trol
IntroductionFig. 39
Related video
General information
The current vehicle position is determined by
means of the GPS satellite system (Global Positioning System). Sensors in the vehiclemeasure distances that have been driven.
The measurement values are compared with
the detailed map data and the road informa- tion stored therein. Traffic reports, if any, will
also be taken into account in the route calcu- lation (dynamic route guidance

Navigation*Note

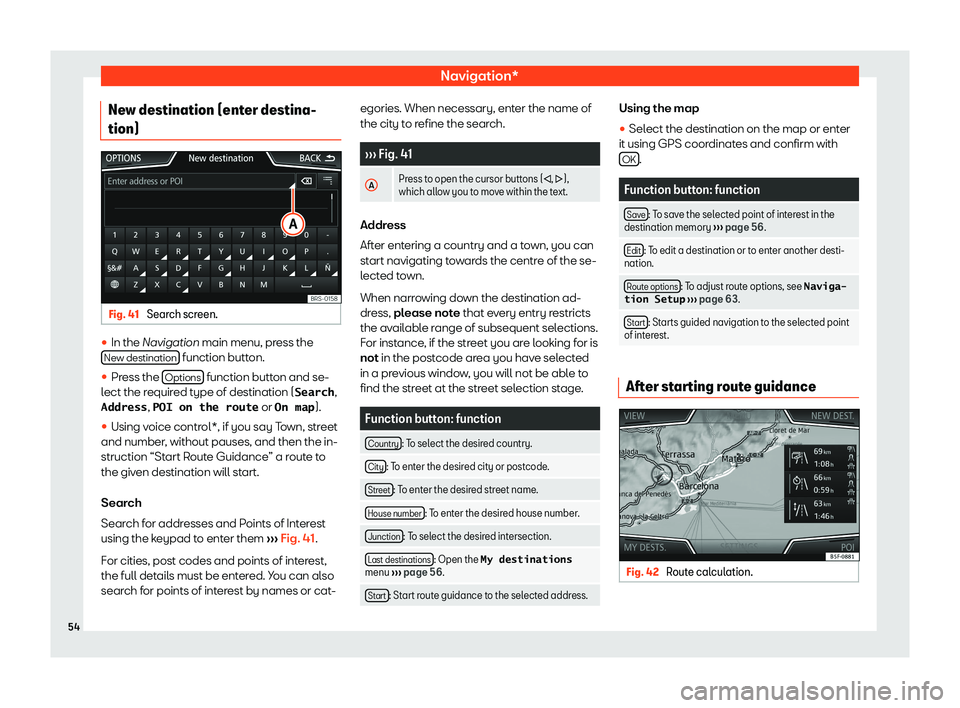

Navigation*New destination (enter destina-
tion)Fig. 41
Search screen.

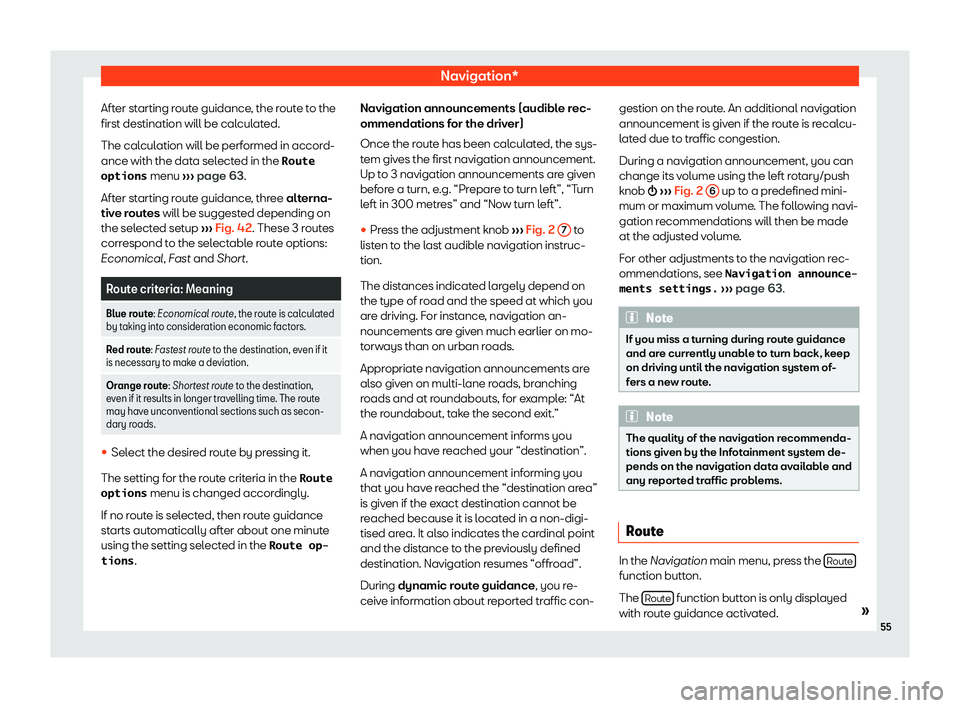

Navigation*After starting route guidance, the route to thefirst destination will be calculated.
The calculation will be performed in accord-ance with the data selected in the Route
options menu

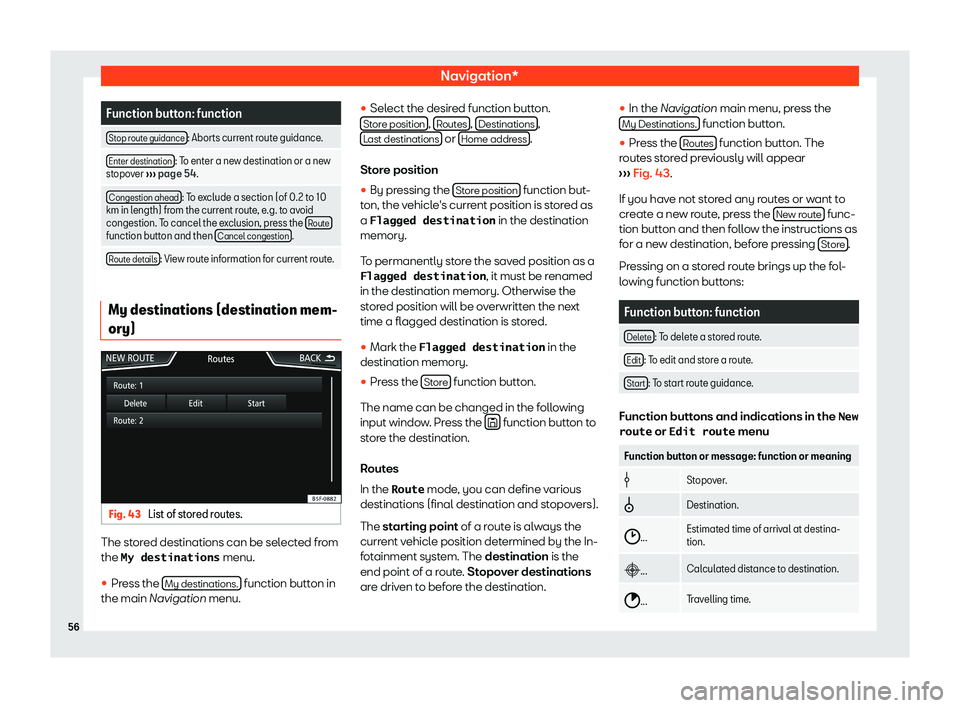

Navigation*Function button: functionStop route guidance: Aborts current route guidance.Enter destination: To enter a new destination or a new
stopover

Navigation**...Distance to the next stopover.Press on the destination to display the function
buttons.Delete destination.

To start guidance direct to the selec-
ted destination. Destinations that
come before the selected destinationare ignored.To open the detailed view of the desti-
nation in question.Available function buttons.New dest.To add a new destination to the tour.Destina-
tionsTo add a new destination from My
destinations to the tour.StoringTo store the created tour in the tour
memory.StartTo start route guidance.CalculateTo update calculated distance and es-
timated arrival time. a)StopTo stop route guidance to the active
destination. b)cTo move a stopover or a destination to
another position on the list. Press and
drag to move the destination.a)
This function button is only displayed with route
guidance activated and when a destination has been
added to the tour.
b)
This function button is only displayed with route
guidance activated.
Last destinations
View of destinations for which a route has al- ready been started.
My destinations

Navigation*of interest categories. Each point of interest
category is assigned a symbol for display on the map.
If a database of points of interest has been imported into the Infotainment system,
