belt Seat Ibiza 2018 Owner's manual

Table of Contents
Table of Contents The essential s
. . . . . . . . . . . . . . . . . . . . . . . . . .
7
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Driver-side general instrument panel
(left-hand driv
e) . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Driver-side general instrument panel
(right-hand drive)
. . . . . . . . . . . . . . . . . . . . . . . . . 10
Passenger-side general instrument pan-
el (left-hand driv
e) . . . . . . . . . . . . . . . . . . . . . . . . 11
Passenger-side general instrument pan-
el (right-hand drive)
. . . . . . . . . . . . . . . . . . . . . . 12
Centre console . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Interior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
How it works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Opening and closing . . . . . . . . . . . . . . . . . . . . . . . 15
Before driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 21
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 23
Starting the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 31
Lights and visibility . . . . . . . . . . . . . . . . . . . . . . . . . 31
Easy Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
34
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Gearbox lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 41
Fluid level control . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 50
Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 51
Action in the event of a puncture . . . . . . . . . . . 51
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
57 Emergency towing of the vehicle . . . . . . . . . . . 58
How to jump start . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Changing the windscreen wiper blades . . . . 61
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
63
Safe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Advice about driving . . . . . . . . . . . . . . . . . . . . . . . . 63
Correct position of the vehicle occu-
pants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 64
Pedal area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Why wear a seat belt . . . . . . . . . . . . . . . . . . . . . . . 69
How to properly adjust your seat belt . . . . . . 72
Seat belt tensioners* . . . . . . . . . . . . . . . . . . . . . . . 73
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Airbag safety instructions . . . . . . . . . . . . . . . . . . . 76
Deactivating airbags . . . . . . . . . . . . . . . . . . . . . . . 78
Transporting children safely . . . . . . . . . . . . . . 80
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 82
Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84Self-help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Emergency equipment . . . . . . . . . . . . . . . . . . . . . 84
Tyre repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 85
Changing the windscreen wiper blades . . . . 87
Towing or tow-starting . . . . . . . . . . . . . . . . . . . . . . 87
Fuses and bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 91
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Change the front bulbs . . . . . . . . . . . . . . . . . . . . . 94
Changing the tail light bulbs . . . . . . . . . . . . . . . . 96
Changing the interior bulbs . . . . . . . . . . . . . . . . 98 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Controls and displays . . . . . . . . . . . . . . . . . . . . 101
General instrument panel . . . . . . . . . . . . . . . . . . 100
Instruments and warning/control
lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
102
Dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Using the instrument panel . . . . . . . . . . . . . . . . . 116
Control and warning lamps . . . . . . . . . . . . . . . . 118
Multifunction steering wheel* . . . . . . . . . . . . . . 119
Opening and closing . . . . . . . . . . . . . . . . . . . . . . 125
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 125
Central locking system . . . . . . . . . . . . . . . . . . . . . 127
Anti-theft alarm* . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 136
Controls for the windows . . . . . . . . . . . . . . . . . . . 136
Sunroof* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 138
Lights and visibility . . . . . . . . . . . . . . . . . . . . . . . . 141
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . 141
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 146
Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 147
Windscreen wiper and rear window wiper
systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 14
8
Rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Seats and head restraints . . . . . . . . . . . . . . . . 150
Adjusting the seat and head restraints . . . . . . 150
Seat functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 152
Transport and practical equipment . . . . . . 155
Practical equipment . . . . . . . . . . . . . . . . . . . . . . . . 155
Luggage compartment . . . . . . . . . . . . . . . . . . . . . 157
Roof carrier* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 161
Air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Heating, ventilation and cooling . . . . . . . . . . . . 163
Heating and fresh air . . . . . . . . . . . . . . . . . . . . . . . 167
Manual air conditioning* . . . . . . . . . . . . . . . . . . . 169
Climatronic* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
5

The essentials

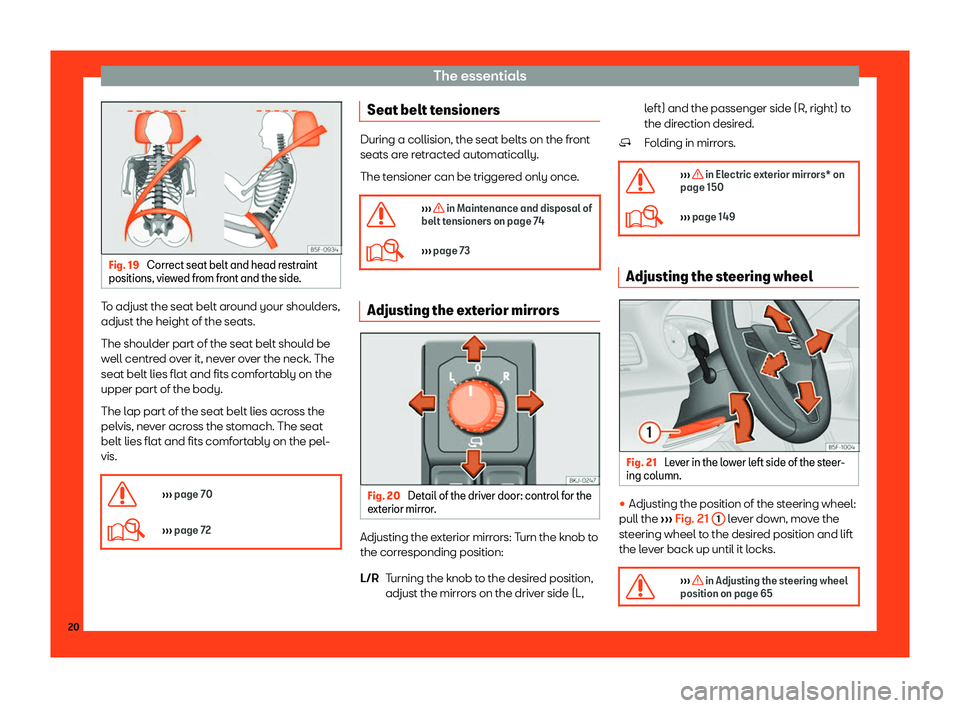

Fig. 19
Correct seat belt and head restraint
positions, view ed fr
om front and the side.To adjust the seat belt around your shoulders,
adjust the height of the seats.
The shoul
der part of the seat belt shoul
d be
w

ell centred over it, never over the neck. The
seat belt lies flat and fits comfortably on the
upper part of the body.
The lap part of the seat belt lies across the
pelvis, never across the stomach. The seat
belt lies flat and fits comfortably on the pel-
vis.

The essentials

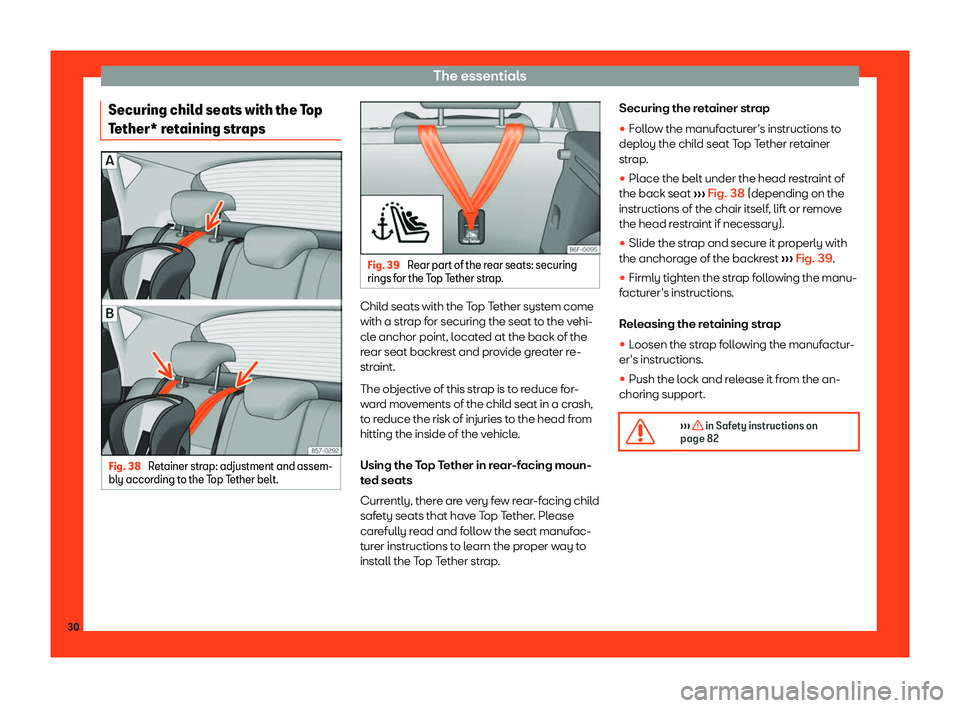

Securing child seats with the Top
T ether* r
et
aining strapsFig. 38
Retainer strap: adjustment and assem-
bly accor ding to the T

op Tether belt. Fig. 39
Rear part of the rear seats: securing
rings for the T op T

ether strap. Child seats with the Top Tether system come
with a str
ap f
or securing the seat t

o the vehi-
cle anchor point, located at the back of the
rear seat backrest and provide greater re-
straint.
The objective of this strap is to reduce for-
ward movements of the child seat in a crash,
to reduce the risk of injuries to the head from
hitting the inside of the vehicle.
Using the Top Tether in rear-facing moun-
ted seats
Currently, there are very few rear-facing child
safety seats that have Top Tether. Please
carefully read and follow the seat manufac-
turer instructions to learn the proper way to
install the Top Tether strap. Securing the retainer strap

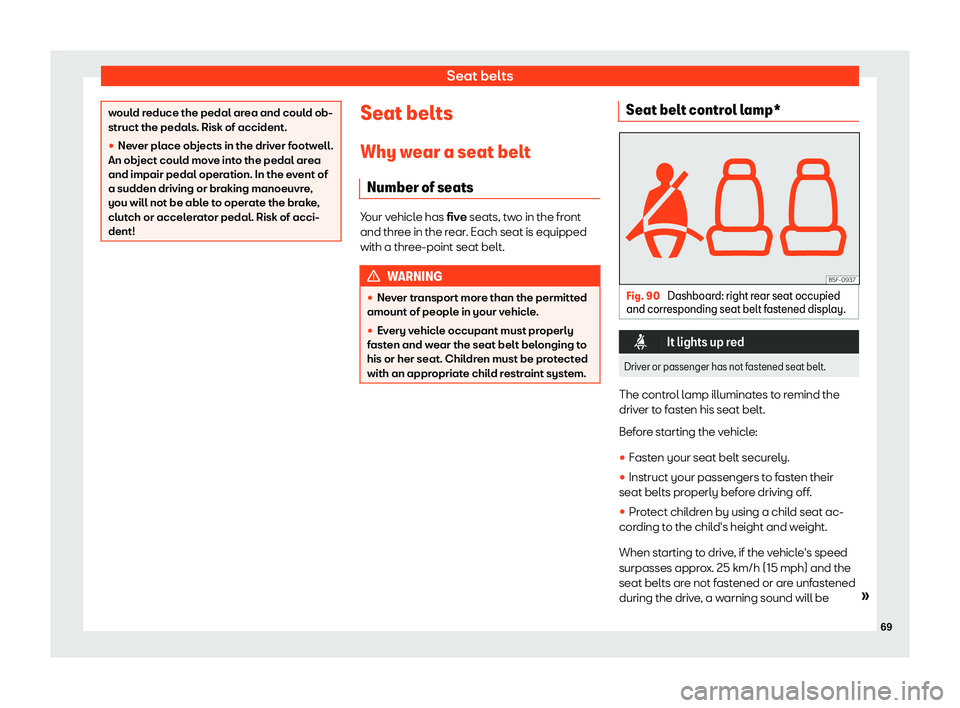

Seat belts
would reduce the pedal area and could ob-
struct the pedals. Risk of accident.

Safety

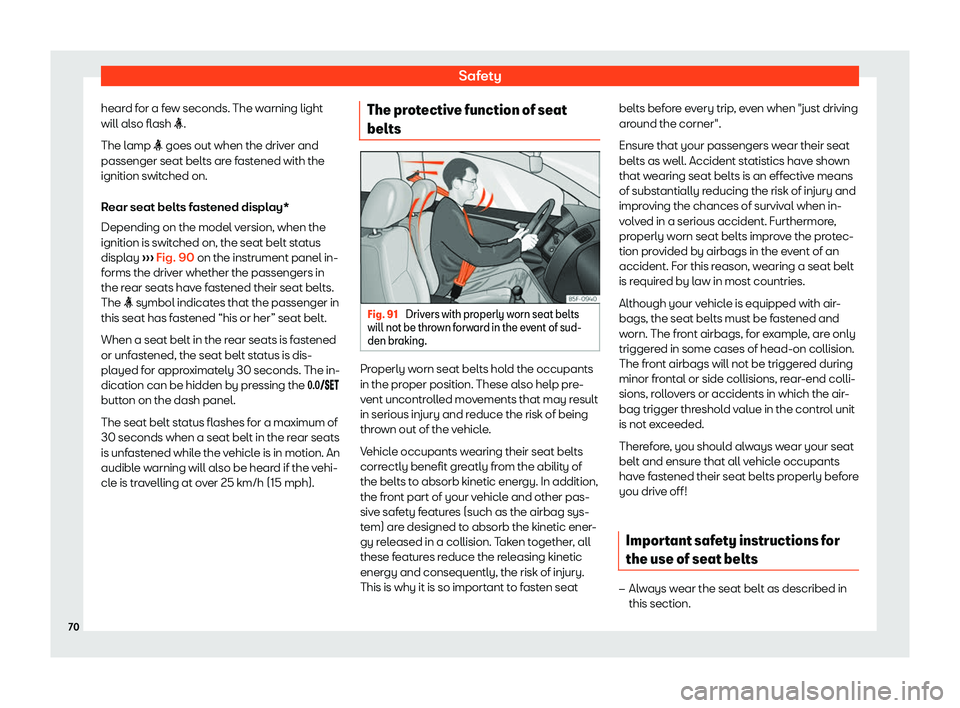

heard for a few seconds. The warning light
will al so fl
ash
i.
The lamp i goes out when the driver and
passenger seat belts are fastened with the
ignition switched on.
Rear seat belts fastened display*
Depending on the model version, when the
ignition is switched on, the seat belt status
display

Seat belts

Safety
moment a vehicle starts moving, a type of en-
er gy call
ed “kinetic ener
gy” starts acting on
both the vehicle and its passengers.
The amount of “kinetic energy” depends on
the speed of the vehicle and on the weight of
the vehicle and of its passengers. The higher
the speed and the greater the weight, the
more energy there is to be “absorbed” in an
accident.
The most significant factor, however, is the
speed of the vehicle. If the speed doubles
from 25 km/h (15 mph) to 50 km/h (30 mph),
for example, the corresponding kinetic ener-
gy is multiplied by four.
Because the vehicle occupants in our exam-
ple are not restrained by seat belts, in the
event of crashing against a wall, all of the oc-
cupants

Seat belts

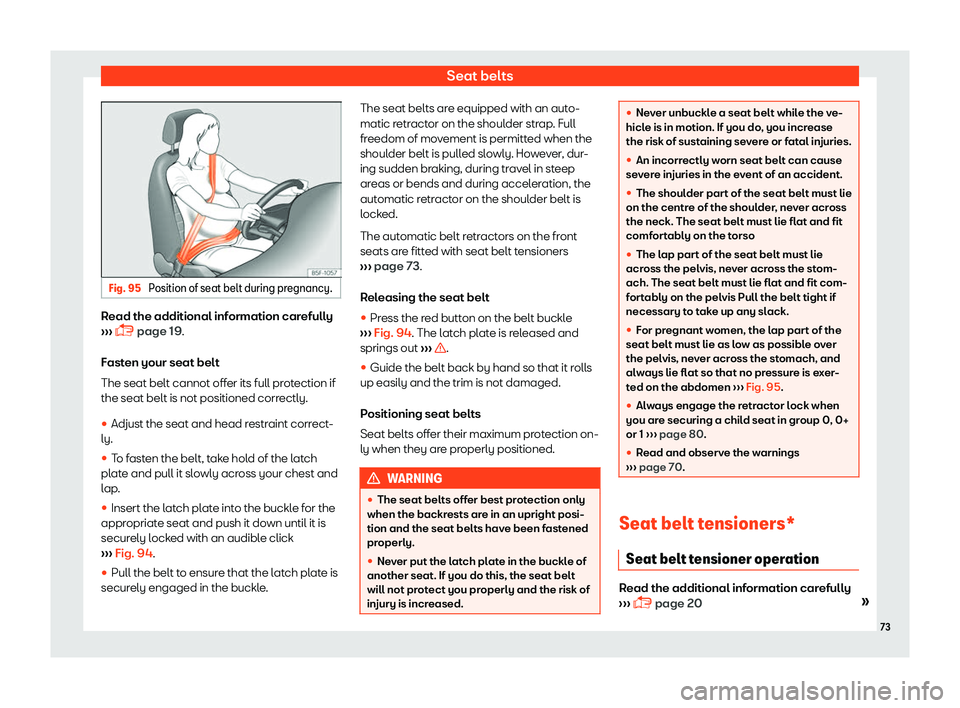

Fig. 95
Position of seat belt during pregnancy. Read the additional information carefully

Safety

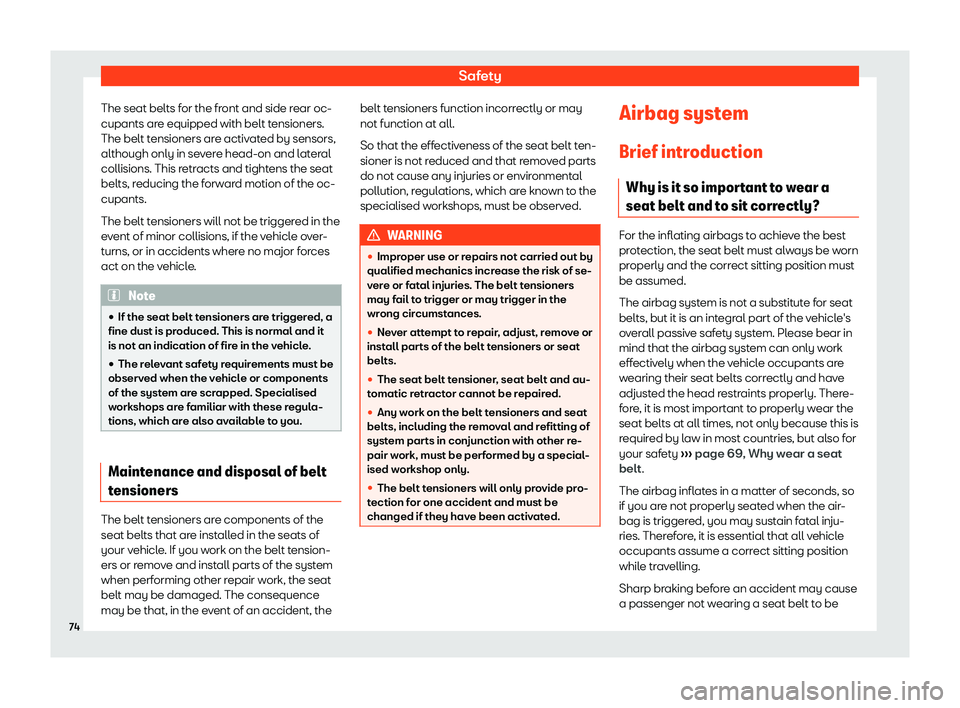

The seat belts for the front and side rear oc-
cupants ar e equipped with belt t
ensioners.
The belt t
ensioners are activated by sensors,
although only in severe head-on and lateral
collisions. This retracts and tightens the seat
belts, reducing the forward motion of the oc-
cupants.
The belt tensioners will not be triggered in the
event of minor collisions, if the vehicle over-
turns, or in accidents where no major forces
act on the vehicle. Note

Safety
prescribed sitting position must always be
maintained with seat belts f
ast
ened while
travelling.
