Seat belts
belt webbing, contact a specialised work-
shop f
or help with any special de
vices to
ensure the optimum protection of the seat
belt and airbag. SEAT recommends taking
your car in for technical service. Seat belt tensioners
Ho w the seat belt t

ensioner worksThe seat belts for the front seats and the side
r
ear seats 1)
ar

e equipped with belt tensioners.
The belt tensioners are activated by sensors,
although only in severe head-on, lateral and
rear-end collisions. This retracts and tightens
the seat belts, reducing the forward motion of
the occupants.
The belt pre-tensioners work in combination
with the airbag system. In case of overturn,
the pre-tensioners do not activate unless the
head airbags are deployed. Note

Emergencies
No. Consumer/Amps
40 Light switch, diagnosis input, head-
l
amp r
ange regulator, LSS steering
column: lamps, halogen lamps,
switch, reverse gear, electrochromic
mirror, RKA without radio. 7.5
41 Regulation of unfolded exterior mir-
r
ors, 7.5
4

2 Clutch pedal, ignition relays, CNG
r
el

ay coil, AC pressure sensor 7.5
43 DWP relay coil, rear window wiper motor 15
44

Airbag 7.5
45 Left full LED headlight 7.5
46 Right full LED headlight 7.5
48 Steering column lock, Kessy Control
Unit 7.5
49 SCR relay 7.5
53 Automatic gearbox lever, ZSS 7.5
58 Windscreen washer pump 7.5
59 Heated rear view mirrors 10
60 Tow hook 30
61 Tow hook 30 Fuse arrangement in engine compartment
No. Consumer/Amps
1 MPI Engine Injection Module
10
TSI Engine Injection Module 15
Diesel Engine Injection Module 30
2 Fuel metering valve (TJ4/T6P/TJ7),
L
o

w temperature coolant pump
(TJ4/T6P/TJ7); Oil pressure regulat-
ing valve (TJ1), AGR coolant valve
(TJ1), High and low pressure water
pumps (TJ1), SCR relay coil, cylin-
der head water valve 7.5
3 Lambda probes 15
4 Engine petrol pump relay (MPI),
Gauge contr
ol unit (T

SI and diesel)15
5 Electric fan (EC), LDR valve, canni-
ster and v

ariable distribution valve,
oil pressure regulating valve, cylin-
der disconnection valves, WIV sen-
sor and CNG pressure regulator 10
6 Spark plugs (MPI and TSI)
20
Glow plug relay, Suction hose resis-
t or (diesel) 7.5
7

Vacuum pump (TSI, CNG) 15
8 Injectors and EKP relay coil (MPI),
Fuel metering v

alve (diesel) 10
9 Servo sensor 7.5 No. Consumer/Amps
10 Vref Battery: Gateway, BDM and
BCM 7.5
12 Detachable compressor 10
14 ESC, Relay 87 coil and engine con-
tr
oll

er of engines (+ TJ1 / TJ4 / TH4 /
T5I / T6P / TJ7 / TC5 / T5Y). 7.5
15 Automatic gearbox DQ200 and
AQ160 30
17 50 Diag 7.5
18 BDM starter motor 30
20 ESC (Pump)
60
ABS (Pump) 40
21 ESC/ABS (Valves) 25
24 TH4 Electric fan without A/C for
moder
at

e climate countries 30
25 TH4 fan with A/C or T5I for moder-
ate climat

e countries 20
PTC1 40
26 TJ1/TJ4/TJ7/T6P or TH4/T5I Electric
fan f

or warm climate countries 50
27 TH4 fan with A/C or T5I for moder-
ate climat

e countries 30
PTC2 40
28 PTC3 4058

Operation
Depending on the equipment, the vehicle
may hav e the K
eyless Access system.
Keyless Access is a key-free locking and igni-
tion system to unlock and lock the vehicle
without actively using its key. To do this, all
that is required is to have a valid vehicle key in
the detection area where you are attempting
to access the vehicle ››› Fig. 87
and to touch
one of the sensor surfaces on the door han-
dles ››› Fig. 88

››› .
The v ehicl

e can only be unlocked and locked
via the driver's door. When doing so, the re-
mote control key must be no further than ap-
prox. 1.5 m away from the door handle.
It does not matter where you carry the key,
e.g. in your jacket pocket.
Once the doors have been locked, they can-
not be opened again immediately. This will
enable you to check that the doors are prop-
erly closed.
If you wish you may unlock only the corre-
sponding door or the entire vehicle. The nec-
essary adjustments can be made in vehicles
with a driver information system
››› page 90
››› page 73.
General information
If a valid key is in the proximity of the car
››› Fig. 87, the Keyless Access locking and
starting system gives the key entry as soon as one of the sensor surfaces on the front door
handles is t

ouched.
The following features are then available
without having to use the vehicle key actively:

Operation
Sun blind
The sun blind is opened and cl osed manually
(independently of the sliding sunr
oof).
Convenience function to open or
close the sunr
oof*Fig. 97
Door handle: sensor surface. The sunroof can be opened and closed with
the conv
enience function, just lik

e the win-
dows.
Using the door lock*

Introduction
Technical data Radio with integrated hardware (8.25 ")
1)
The f act
ory-mounted radio in the vehicle with
integrated hardware includes country-specif-
ic components and software for connectivity
and for the execution of vehicle, comfort and
infotainment functions.
The corresponding indications are shown on
the radio screen and partly on the instrument
panel.

v Capacitive colour screen:

v 8.25 inch version, TFT, WVGA: 1082 x 480
pixels.

v Touch operation via the device screen, ro-
tary push-button, menu button and buttons
on the multifunction steering wheel.
Central computer with control and display
unit (10") 2)
The factory-mounted central computer in the
vehicle includes country-specific compo-
nents and software for connectivity and for
the execution of vehicle, comfort and infotain-
ment functions. The corresponding indications are shown on
the contr
ol and displ

ay unit screen and partly
on the instrument panel.

v Capacitive colour screen:

v Using the equipment with:

v Touch zones Touch operation.

v Buttons on the multifunction steering
wheel.

v Approach sensors (driver and passenger
side recognition, gesture control).
Vehicle and comfort functions

v Driver assistance system settings.

v Heating and air conditioning settings.

v Lights and visibility function settings.

v Vehicle comfort settings.

v Parking and manoeuvring settings.
Sound system Basic equipment:
The inf
ot

ainment system that is supplied from
the factory is equipped as follows:

v Speakers in different locations and with dif-
ferent power levels (watts).

v Internal amplifier depending on the system:
v
4 speakers: 2 x 20 W

v 6 speak

ers: 5 x 20 W

v Setting options:

v Equaliser, depending on the system:

v 4 speakers: treble, mid and bass.

v 6 speakers: 5 frequency bands or pre-
defined settings.

v Sound distribution, depending on the sys-
tem:

v4 speakers: Balance (left / right)

v 6 speakers: Balance + Fader (left /
right / front / rear).

v Sound optimisation by zones (valid for the
6-speaker system):

vManual (Driver and All)

v Automatic depending on the seats oc-
cupied.
Optional sound system
The infotainment system can be extended
with an optional sound system as follows:
v 7 speakers in different locations and with
different power levels (watts).

v 300W external amplifier (Ethernet or CAN,
depending on the infotainment system),
which processes the audio signals sent by
the central computer. »1)
Equipment name: Media System
2) Equipment name: Connect System.
155

Infotainment system
Navigation* Intr oduction Fig. 132
Schematic representation: Navigation
vie w A global satellite system determines the cur-
r
ent position of the v
ehicle and the sensors
mounted on the vehicle analyse the routes
taken. All measured values and possible traf-
fic events are compared with the available
maps to allow optimal navigation to the des-
tination.
Navigation announcements and graphic rep-
resentations will guide you to your destina-
tion.
Navigation management is carried out on the
screen.
Depending on the country, some functions of
the infotainment system will not be available on the screen when travelling above a certain
speed. It is not a malfunction, but is due to
compliance with l
egislation.
Navigation announcements
Navigation announcements are acoustic indi-
cations for driving referred to the current
route.
The type and frequency of navigation an-
nouncements depend on the driving situation,
for example, starting the guide to the destina-
tion, driving on the motorway or on a round-
about and the settings. If the exact destination cannot be reached
because, f
or example, it is in a non-digitised
area, indications relating to the address and
the distance to the destination are displayed
on the screen.
During dynamic route guidance, you will re-
ceive information about reported traffic con-
gestion on the route. An additional navigation
announcement is provided if the route is re-
calculated due to traffic congestion.
While a navigation announcement is playing,
its volume can be adjusted. The following
navigation announcements provided will be
played with the newly adjusted volume.
178

Infotainment operation
Limitations during navigation
If the inf ot
ainment system cannot receive da-
ta from GPS satellites, for example, in a tunnel
or in an underground garage, navigation con-
tinues using the vehicle's sensors.
In areas that are not digitised or are only par-
tially digitised on the infotainment memory,
the infotainment system will still attempt to
provide route guidance.
In the case of missing or incomplete naviga-
tion data, it may not be possible to determine
the exact position of the vehicle. This may
mean that navigation is not as precise as usu-
al.
Roads and streets are subject to constant
change (e.g. new roads, road works, roads
closed to traffic, changes to street names
and building numbers). If the navigation data
is obsolete, this may lead to errors or inaccur-
acies during the route guidance.
Managing the navigation map
To allow an optimal view, you can also man-
age the navigation map with additional finger
movements.
Move the map (tip: use your index finger).

Driving

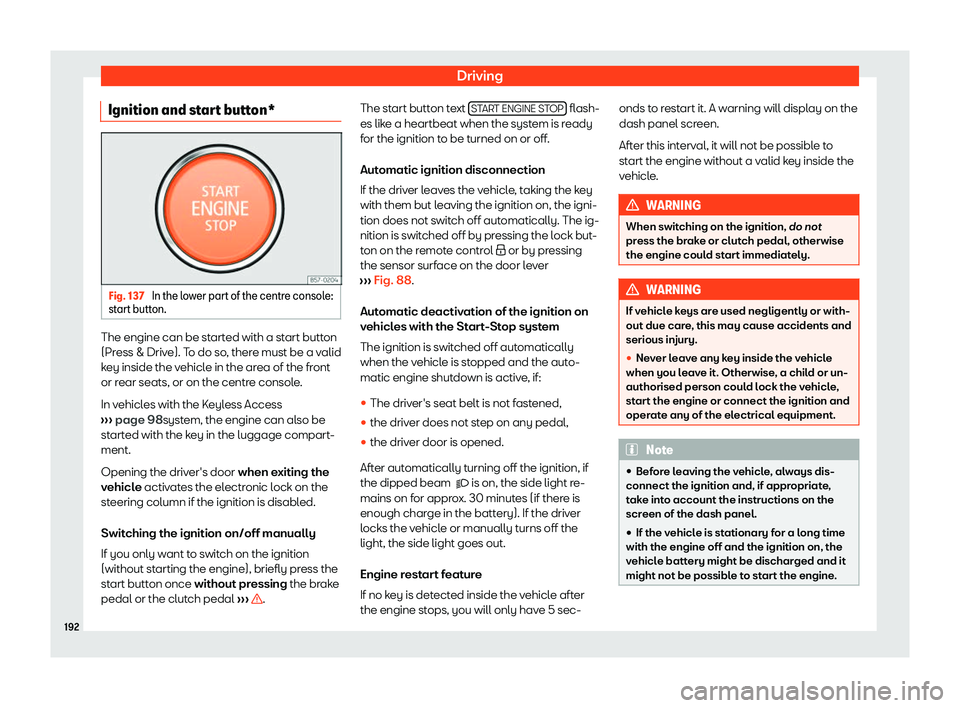

Ignition and start button* Fig. 137
In the lower part of the centre console:
st art butt
on. The engine can be started with a start button
(Pr
ess & Driv

e). To do so, there must be a valid
key inside the vehicle in the area of the front
or rear seats, or on the centre console.
In vehicles with the Keyless Access
››› page 98system, the engine can also be
started with the key in the luggage compart-
ment.
Opening the driver's door when exiting the
vehicle activates the electronic lock on the
steering column if the ignition is disabled.
Switching the ignition on/off manually
If you only want to switch on the ignition
(without starting the engine), briefly press the
start button once without pressing the brake
pedal or the clutch pedal ››› .The start button text
ST

ART ENGINE STOP flash-
es lik e a heartbeat when the syst
em is ready
for the ignition to be turned on or off.
Automatic ignition disconnection
If the driver leaves the vehicle, taking the key
with them but leaving the ignition on, the igni-
tion does not switch off automatically. The ig-
nition is switched off by pressing the lock but-
ton on the remote control  or by pressing
the sensor surface on the door lever
››› Fig. 88.
Automatic deactivation of the ignition on
vehicles with the Start-Stop system
The ignition is switched off automatically
when the vehicle is stopped and the auto-
matic engine shutdown is active, if:

Driver assistance systems
Ultrasound sensors The bumpers are fitted with ultrasound sen-
sors t
o perf
orm the following functions:
