Seat Ibiza 5D 2005 Maintenance programme

SEAT inspection and maintenance service
9
Caution
•
Vehicles bearing the sticker “NOT SUITABLE FOR BIODIE
SEL” on the fuel
cap, cannot use biodiesel fuel.•
Consult an Authorised Service Centre for reliable info
rmation on the
possibility of using biodiesel, in
accordance with DIN EN 14214 (FAME).
Note
Besides the inspection service, further jobs will be requi
red depending on the
age and mileage of the vehicle
Œpage 11.
Range of servicesOil Change ServiceWork to be carried out•
Engine oil and oil filter: Change
•
Engine oil and oil filter: Change
every 7,500 km (only diesel vehicles
using fuel that does not comply with the DIN EN 590
standard)
1)
•
Fuel filter (diesel engine): Clean (only Ibiza, Córdoba a
nd Alhambra
biodiesel models, or using fuel that does not comply w
ith the DIN EN 590
standard)
1)
•
Front and rear brake pads: Check thickness
•
Service interval indicator: return to zero
•
Next service sticker: Note the next service and apply
sideways to the
dashboard, driver side, or the door pillar
Caution
•
Vehicles bearing the sticker “NOT
SUITABLE FOR BIODIESEL” on the fuel
cap, cannot use biodiesel fuel.•
Consult an Authorised Service Centre for reliable infor
mation on the
possibility of using biodiesel, in
accordance with DIN EN 14214 (FAME).
Inspection serviceWork to be carried out•
Engine oil and oil filter: Change
•
Engine oil and oil filter: Change
every 7,500 km (only diesel vehicles
using fuel that does not comply with the DIN EN 590 s
tandard)
2)
•
Fuel filter (diesel engine): Clean (only Ibiza, Córdoba and A
lhambra
biodiesel models, or using fuel that
does not comply with the DIN EN 590
standard)
2)
•
Exhaust system: check fittings and inspect for leaks a
nd damage
•
Engine compartment and engine: inspect for leaks and da
mage
•
Cooling system: Check concentration of coolant and to
p up if necessary
•
Fault memory in all self-diagnosis systems: consult
•
Brake linings: Check thickness in front and rear
•
Brake system: inspect for leaks and damage
•
Brake fluid: check level depending on brake lining we
ar
•
Gearbox, final drive and joint protections: inspect for l
eaks and damage
•
Axle joints cover: inspect for leaks and damage
•
Link rods: check fittings, check play and protections
•
Battery: check
1)Your Authorised Service Centre can inform you wh
ich countries use diesel fuel with a
high sulphur content
2)Your Authorised Service Centre can inform you whic
h countries use diesel fuel with a
high
sulphur
content
s11g.book Seite 9 Montag, 9. Mai 2005 8:41 08

SEAT inspection and maintenance service
10
•
Tyres, including the spare: Check level of tread and th
e tread surface.
Check the tyre pressure and correct if necessary (up
date system in vehicles
with pressure control)•
Door handles and holding pins: lubricate
•
Exterior lights (front and rear), in
dicators, simultaneous indicators and
luggage compartment light: check operation•
Interior lights, glove compartment,
dashboard indicato
rs, ignition and
horn: check operation•
Airbag units (if installed): visual inspection for extern
al damage
•
Windscreen washer-wiper and headlight washer system:
Check operation
and settings; adjust nozzles and add liquid if necessar
y
•
Windscreen wipers: check condition,
rest position and the angle of the
wiping arm; adjust or replace as required. In the Altea,
Toledo and León 1P
models, it is not necessary to adjust the wiper arms•
Service interval indicator: return to zero
•
Next service sticker: Note the next service and apply s
ideways to the
dashboard, driver side, or the door pillar•
Test drive, final checkCaution
•
Vehicles bearing the sticker “NOT SUI
TABLE FOR BIODIESEL” on the fuel
cap, cannot use biodiesel fuel.•
Consult an Authorised Service Centre for reliable info
rmation on the
possibility of using biodiesel, in
accordance with DIN EN 14214 (FAME).
s11g.book Seite 10 Montag, 9. Mai 2005 8:41 08

SEAT inspection and maintenance service
11
Additional operationsCost of additional operationsBesides the oil change service and the inspection ser
vice, there are other
maintenance jobs that are related to the condition
s of use and the equip-
ment. The need for these additional operations will de
pend on the age and
mileage of the vehicle, to ensure good performance. Y
our SEAT dealer will
inform you in detail of any additional work requir
ed with a service. These can
also be performed independently from the mandator
y services, bearing in
mind the status of the inspection and maintenanc
e plan (or the sticker with
the next service). SEAT dealers will carry out an individual
assessment and
detailed breakdown of the cost of the additional w
ork. The additional work
carried out is indicated in the workshop note which is attac
hed to the
invoice.Every 30,000 km•
Poly-V belt: Check condition and tens
ion; tighten if necessary (only vehi-
cles without automatic tensor)•
Fuel filter (diesel engine): Clean (only Ibiza, Córdoba a
nd Alhambra
models)•
Fuel filter (diesel engine): Replace (only biodiesel eng
ine models, or
using fuel that does not comply with the DIN EN 590
standard)
3)
•
Haldex clutch: Change oil
•
Manual gearbox and final drive: Check oil level, top up
if required
•
Dust and pollen filter for the passenger compartment:
Replace (only Ibiza,
Córdoba and Alhambra models)
•
Underbody protection: Visual inspection for damage
•
Headlights: Check range and, adjust if necessary
•
Sliding roof: Clean and lubricate guide railCaution
•
Vehicles bearing the sticker “NOT
SUITABLE FOR BIODIESEL” on the fuel
cap, cannot use biodiesel fuel.•
Consult an Authorised Service Centre for reliable infor
mation on the
possibility of using biodiesel, in
accordance with DIN EN 14214 (FAME).
Every 60,000 km•
Sparkplugs: Replace
•
Air filter:Change cartridge and clean housing (only Ibiz
a and Córdoba)
•
Fuel filter (diesel engine): Replac
e (only Ibiza, Córdoba and Alhambra
models)•
Dust and pollen filter for the passenger compartment:
Replace (only Altea,
Toledo and León 1P models)•
Haldex Clutch: Change oil
filter (petrol engines only)
•
Poly-V belt: Check condition
•
Power steering: Check level of hydraulic liquid, top up i
f required
•
Automatic gearbox: Check level of ATF liquid, top up i
f required
•
Automatic gearbox and final drive: Check oil level, top up
if required
•
DSG Gearbox 02E: Replace ATF liquid and filter
3)Your Authorised Service Centre can inform you wh
ich countries use diesel fuel with a
high sulphur content
s11g.book Seite 11 Montag, 9. Mai 2005 8:41 08

SEAT inspection and maintenance service
12
Every 90,000 km•
Notched belt for driving cam shaft:
Replace (only Alhambra TDI engines
with pump injection)•
Air filter: Replace cartridge and clean housing (only in A
lhambra, Altea,
Toledo and León 1P models)•
Fuel filter: Replace cartridge and clean housing (only i
n Altea, Toledo and
León 1P models)Every 90,000 km (the first ti
me), and every 30,000 km
afterwards•
Check notched drive belt for cam shaft: Check condition (o
nly petrol
engines)Every 100,000 km•
Haldex Clutch: Change oil
filter (diesel engines only)
Every 120,000 km•
Notched belt for driving
cam shaft: Replace (only TDI engines with pump
injection, except Alhambra)
Every 150,000 km•
Check notched drive belt for cam shaft: Replace (only T
DI and SDI
engines)Every 180,000 km•
Notched drive belt for cam shaft: Replace (only 5-valv
e cylinder 2.0 l FSI
petrol engines)•
Roller tensor for notched belt: Replace (only Alhambra
models with pump
injection TDI engines)Every 240,000 km•
Roller tensor for notched belt: Replac
e (only models with pump injection
TDI engines, except Alhambra)Every two years•
Brake fluid: Replace (coincide with inspection service
, if possible)
•
Dust and Pollen filter: Replace (all vehicles with under 30
,000 km on the
clock, or in the case of Altea, Toledo and León 1P, less t
han 60,000 km in two
years)
s11g.book Seite 12 Montag, 9. Mai 2005 8:41 08

SEAT inspection and maintenance service
13
Every four years•
Air filter: Replace and clean housing (all vehicles with
less than 60,000
km, or 90,000 km for the Alhambra, every four years)•
Haldex oil filter: Replace (only vehicles with petrol engi
nes that have less
than 60,000 km, or diesel engines with less than 100,000
km every four
years)•
Sparkplugs: Replace (only vehicles with under 60,000km
every four
years)•
Anti puncture kit: Check expiry date on sealant bottle, a
nd replace if
necessaryEvery six years•
Air filter: Replace and clea
n housing (all Altea, Toledo and León 1P models
with less than 90,000 km every 6 years.
If the seal of the filter housing is
broken, the period for replacement will be four years)
s11g.book Seite 13 Montag, 9. Mai 2005 8:41 08

SEAT inspection and maintenance service
14
Additional service offersLegal inspection service Legal inspections must be carried out in the stipulated periods.Many countries have legal requirements for regular vehic
le checks
concerning safety issues for road use and the comp
osition of exhaust gases.
These checks must be supervised by authorised
centres.
Your Authorised Service Centre can inform you of the m
andatory legal inspec-
tions and can check whether your vehicle meets th
e required standards. This
will save you time and money. Your Authorised Service Centre can carr
y out the required inspections, at the
clients request.Even if you decide not to use this service, and you wish
to take your car to be
checked in an authorised centre, it is advisable to inform th
e head of your
Authorised Service Centre. He will inform you of the aspects to consider, to av
oid problems and so the
obligation to repeat the inspection.Official Spare PartsAll the parts of the vehicle have been authorised by S
EAT, especially those
related to safety. For this reason, the spare parts used in
the programmed
inspection service and any repairs to the vehicle should m
atch the manufac-
turer's specifications exactly. The authorised spare p
arts have been designed
exclusively for your vehicle. We recommend
that you always use official spare
parts.
The SEAT authorised Service Centres ha
ve the most important official spare
parts. If for extraordinary circumstances a part is not av
ailable, in general it
can be supplied quickly in most cases.The SEAT Authorised Service Centres within the EU apply
a 24 month guar-
antee
4) to official spare parts from the moment of fitting or s
ale. For this
reason, the invoice from your Authorised Service Centre shoul
d be kept as
proof of the starting date of the guarantee. Ask your Authorised Servic
e Centre for more details.
Official ReplacementsOfficial replacements, in accordance with the manufa
cturer's instructions,
are another service at your disposal, offering the p
ossibility of replacing
complete sections, the most common be
ing: lighter engines, gearboxes,
cylinder heads, control units, electrical parts, etc.These parts are, naturally
Approved Parts
and, as such enjoy the same guar-
antee as the factory parts.However, their price is far lower, because the factory t
akes used parts and
reconditions them. Keep the invoice for the official repla
cements as proof of
the start of the guarantee period. Ask your Authorised Servic
e Centre for more details.
4)This guarantee does not apply to all export mark
ets. Ask your Authorised Service Cen-
tre for further information
s11g.book Seite 14 Montag, 9. Mai 2005 8:41 08

SEAT inspection and maintenance service
15
Original Accessories We recommend that you only use original and authorised accessories.If you wish to equip your vehicle with
accessories, you should bear in mind
the following: We recommend only fitting authorised accessories, and
those accessories
approved by SEAT.The Authorised Service Centres apply a guarantee to origin
al accessories,
effective from the date of fitting or purchase. For this rea
son, the invoice from
your Authorised Service Centre should be kept as proof
of the starting date of
the guarantee. Ask your Authorised Service Centre for more details
.
The Accessory Service also includes assessment from qualif
ied personnel,
professional fitting, if requested. The Authorised Service Centres also stock the materials nec
essary for caring
for the vehicle, as well as those parts subjected to wear
, such as tyres,
batteries and lamps.Bodywork and paint serviceSEAT vehicles are designed so that, in the case of dam
age to the bodywork,
only the parts directly affected need be replaced and re
painted.
Both operations can be done according
to the manufacturer's specifications,
which is essential for the maintenance of the bodyw
ork and paint
guarantee.
s11g.book Seite 15 Montag, 9. Mai 2005 8:41 08

SEAT inspection and maintenance service
16
GuaranteeFault free guaranteeIn accordance with the guarantees applicable to SEAT
vehicles contained in
the purchasing contract, from the date of purchase a
2-Year Fault Free Guar-
antee, in accordance with legal requirements
5) 6)
is applied.
Natural wear, and damage caused by abuse of the
vehicle's performance,
inappropriate use, or incorrect modifi
cations excluded from this guarantee.
The rights to the guarantee are lost also when dam
age is caused to the
vehicle by the use of unauthorized parts or accessories wh
ich are not SEAT
approved, or when damage is due to non-observan
ce of the requirements for
repairs and maintenance.Bodywork and paint guarantee Authorised Service Centres offer a bodywork and paint guar- antee fro vehicles sold in the EU.As a complement to the guarantee clauses applicable
to new SEAT vehicles in
the purchase contract, a guarantee is also offered t
o cover paintwork and rust
damage to the bodywork for a specified period.•
3 years from the delivery date for paintwork (except th
e Alhambra model)
•
12 years from the delivery date for co
rrosion of the bodywork through rust
(6 years for the Alhambra)
Should said damage occur, any Authorised Service Ce
ntre in the EU will take
charge of repairs without any charge for either labour or m
aterials.
This guarantee does not apply when•
said damage is caused by external agents, or inadeq
uate care of the
vehicle, or•
if any damage to the bodywork has not been repaired i
n time, or in a
professional manner, or in accordance
with the requirements of the manufac-
turer, using approved parts and materials, or•
if the corrosion damage is due to the use of parts and m
aterials which are
not approved or original, and the manu
facturer's instructions for bodywork
repairs have not been followed Once the repairs to the bodywork or pa
intwork have been carried out, the
Authorised Service Centre will certify the guarantee cov
ering corrosion in the
affected areas.
5)This guarantee does not apply to all export mark
ets. Ask your Authorised Service Cen-
tre for further information6)SEAT offers a supplementary guarantee to its client
s in some European countries, in
addition to its ordinary guarantee. The conditio
ns of this guarantee complement
those contained in the vehicle purchase contr
act
s11g.book Seite 16 Montag, 9. Mai 2005 8:41 08

SEAT inspection and maintenance service
17

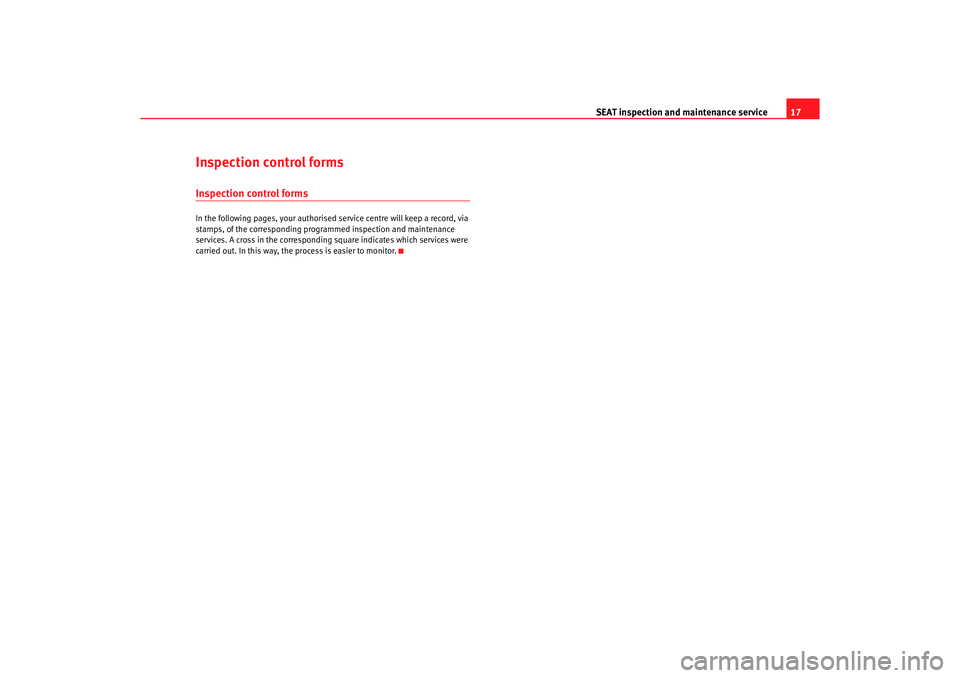

Inspection control formsInspection control formsIn the following pages, your authorised service centre
will keep a record, via
stamps, of the corresponding progra
mmed inspection and maintenance
services. A cross in the corresponding square indicate
s which services were
carried out. In this way, the process is easier to mo
nitor.
s11g.book Seite 17 Montag, 9. Mai 2005 8:41 08

SEAT inspection and maintenance service
18
Inspection control formsDate:
km:
Work carried out:
yes no
Oil Change Service

Inspection service

Work supplementary to the inspection service:
Inspection carried out:
Km

Yea r s

Brake fluid service

Stamp of Authorised Service Centre
Replacement of notched belt

Replacement of air filter cartridge

Recommended repairs

Next Service to be carried out: Date: Km:
(whichever occurs first)
s11g.book Seite 18 Montag, 9. Mai 2005 8:41 08
