Intelligent technology

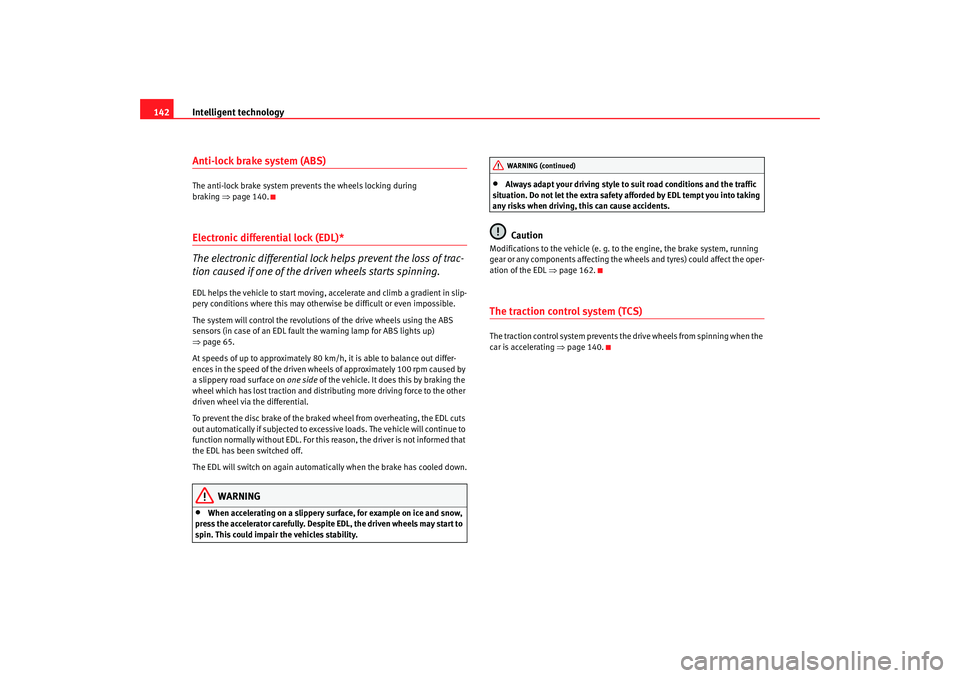

142Anti-lock brake system (ABS)The anti-lock brake system prevents the wheels locking during
braking ⇒ page 140.Electronic differential lock (EDL)*
The electronic differential lock helps prevent the loss of trac-
tion caused if one of the driven wheels starts spinning.EDL helps the vehicle to start moving, accelerate and climb a gradient in slip-
pery conditions where this may otherwise be difficult or even impossible.
The system will control the revolutions of the drive wheels using the ABS
sensors (in case of an EDL fault the warning lamp for ABS lights up)
⇒page 65.
At speeds of up to approximately 80 km/h, it is able to balance out differ-
ences in the speed of the driven wheel s of approximately 100 rpm caused by
a slippery road surface on one side of the vehicle. It does this by braking the
wheel which has lost traction and distributing more driving force to the other
driven wheel via the differential.
To prevent the disc brake of the braked wheel from overheating, the EDL cuts
out automatically if subjected to excessive loads. The vehicle will continue to
function normally without EDL. For this reason, the driver is not informed that
the EDL has been switched off.
The EDL will switch on again automatically when the brake has cooled down.
WARNING
•
When accelerating on a slippery surface, for example on ice and snow,
press the accelerator carefully. Despite EDL, the driven wheels may start to
spin. This could impair the vehicles stability.
•
Always adapt your driving style to suit road conditions and the traffic
situation. Do not let the extra safety afforded by EDL tempt you into taking
any risks when driving, this can cause accidents.Caution
Modifications to the vehicle (e. g. to the engine, the brake system, running
gear or any components affecting the wh eels and tyres) could affect the oper-
ation of the EDL ⇒ page 162.The traction control system (TCS)The traction control system prevents the drive wheels from spinning when the
car is accelera ting ⇒
page 140.WARNING (continued)
ibiza_ingles Seite 142 Mittwoch, 5. Oktober 2005 5:17 17

If and when199
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

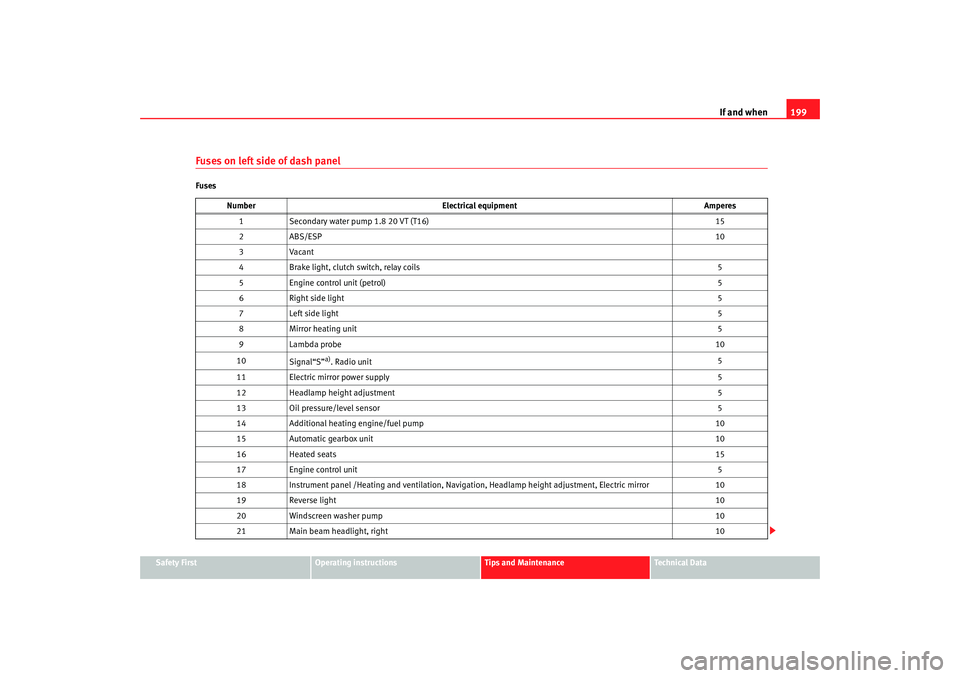

Fuses on left side of dash panelFuses
Number Electrical equipment Amperes
1 Secondary water pump 1.8 20 VT (T16) 15
2A BS/E S P 10
3 Vacant
4 Brake light, clutch switch, relay coils 5
5 Engine control unit (petrol) 5
6 Right side light 5
7 Left side light 5
8 Mirror heating unit 5
9 Lambda probe 10
10 Signal“S”
a). Radio unit 5
11 Electric mirror power supply 5
12 Headlamp height adjustment 5
13 Oil pressure/level sensor 5
14 Additional heating engine/fuel pump 10
15 Automatic gearbox unit 10
16 Heated seats 15
17 Engine control unit 5
18 Instrument panel /Heating and ventilation, Navigation, Headlamp height adjustment, Electric mirror 10
19 Reverse light 10
20 Windscreen washer pump 10
21 Main beam headlight, right 10
ibiza_ingles Seite 199 Mittwoch, 5. Oktober 2005 5:17 17

If and when
200

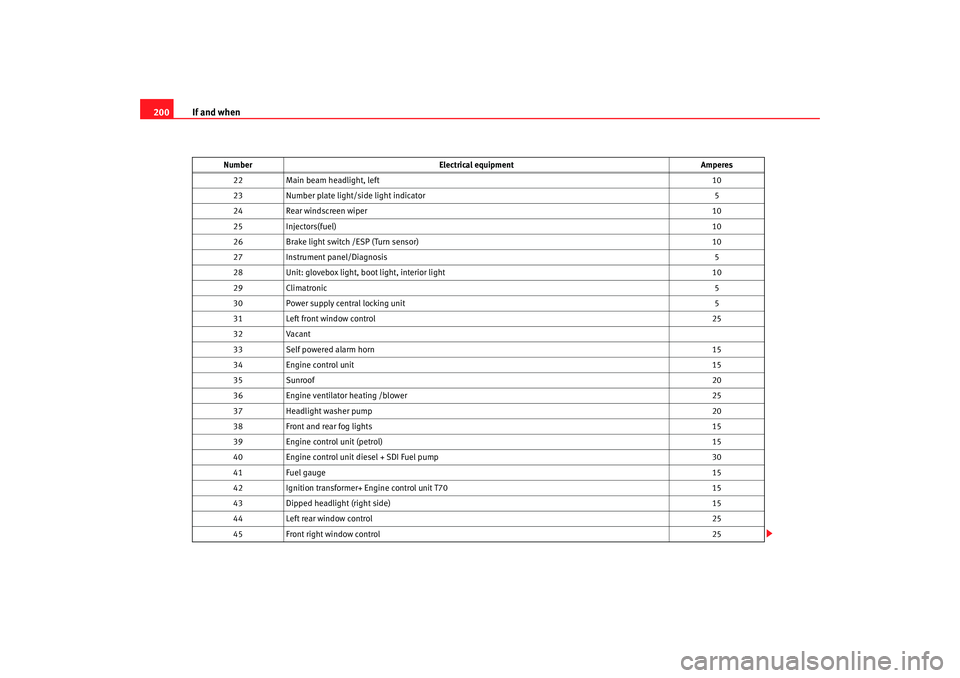

22 Main beam headlight, left 10
23 Number plate light/si de light indicator 5
24 Rear windscreen wiper 10
25 Injectors(fuel) 10
26 Brake light switch /ESP (Turn sensor) 10
27 Instrument panel/Diagnosis 5
28 Unit: glovebox light, boot light, interior light 10
29 Climatronic 5
30 Power supply central locking unit 5
31 Left front window control 25
32 Vacant
33 Self powered alarm horn 15
34 Engine control unit 15
35 Sunroof 20
36 Engine ventilator heating /blower 25
37 Headlight washer pump 20
38 Front and rear fog lights 15
39 Engine control unit (petrol) 15
40 Engine control unit diesel + SDI Fuel pump 30
41 Fuel gauge 15
42 Ignition transformer+ Engine control unit T70 15
43 Dipped headlight (right side) 15
44 Left rear window control 25
45 Front right window control 25
Number
Electrical equipment Amperes
ibiza_ingles Seite 200 Mittwoch, 5. Oktober 2005 5:17 17

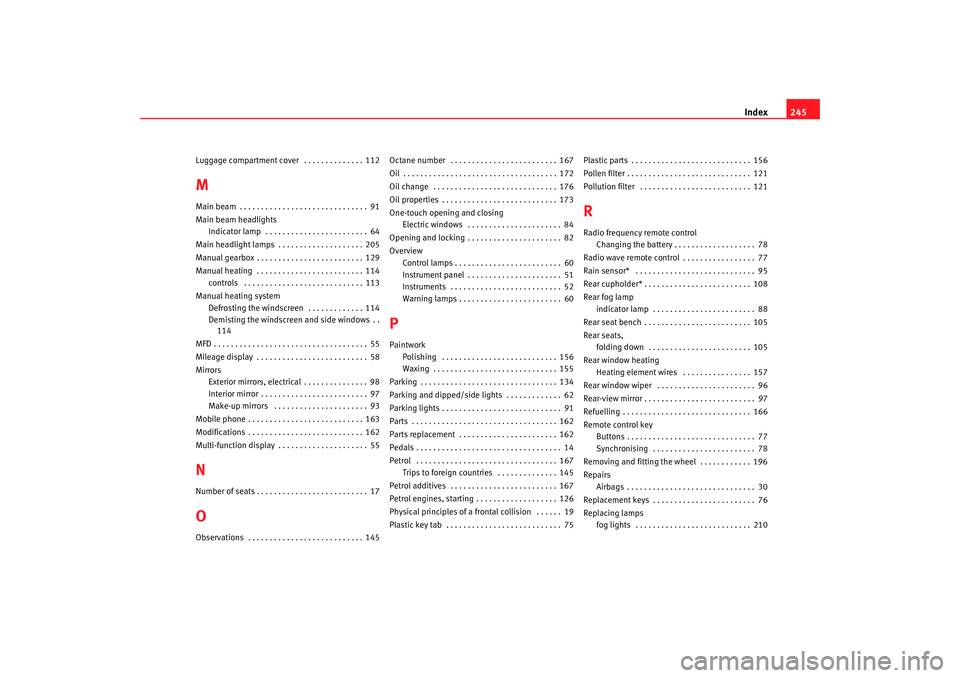

Index245
Luggage compartment cover . . . . . . . . . . . . . . 112MMain beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Main beam headlights
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . . 64
Main headlight lamps . . . . . . . . . . . . . . . . . . . . 205
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . 129
Manual heating . . . . . . . . . . . . . . . . . . . . . . . . . 114 controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Manual heating system Defrosting the windscreen . . . . . . . . . . . . . 114
Demisting the windscreen and side windows . .114
MFD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Mileage display . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Mirrors Exterior mirrors, electrical . . . . . . . . . . . . . . . 98
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . 97
Make-up mirrors . . . . . . . . . . . . . . . . . . . . . . 93
Mobile phone . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Modifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Multi-function display . . . . . . . . . . . . . . . . . . . . . 55NNumber of seats . . . . . . . . . . . . . . . . . . . . . . . . . . 17OObservations . . . . . . . . . . . . . . . . . . . . . . . . . . . 145 Octane number . . . . . . . . . . . . . . . . . . . . . . . . . 167
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
One-touch opening and closing
Electric windows . . . . . . . . . . . . . . . . . . . . . . 84
Opening and locking . . . . . . . . . . . . . . . . . . . . . . 82
Overview Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . 60
Instrument panel . . . . . . . . . . . . . . . . . . . . . . 51
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . 60
PPaintworkPolishing . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Waxing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Parking and dipped/si de lights . . . . . . . . . . . . . 62
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Parts replacement . . . . . . . . . . . . . . . . . . . . . . . 162
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167 Trips to foreign countries . . . . . . . . . . . . . . 145
Petrol additives . . . . . . . . . . . . . . . . . . . . . . . . . 167
Petrol engines, starting . . . . . . . . . . . . . . . . . . . 126
Physical principles of a frontal collision . . . . . . 19
Plastic key tab . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 Plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Pollen filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Pollution filter . . . . . . . . . . . . . . . . . . . . . . . . . . 121
RRadio frequency remote control
Changing the battery . . . . . . . . . . . . . . . . . . . 78
Radio wave remote control . . . . . . . . . . . . . . . . . 77
Rain sensor* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Rear cupholder* . . . . . . . . . . . . . . . . . . . . . . . . . 108
Rear fog lamp indicator lamp . . . . . . . . . . . . . . . . . . . . . . . . 88
Rear seat bench . . . . . . . . . . . . . . . . . . . . . . . . . 105
Rear seats, folding down . . . . . . . . . . . . . . . . . . . . . . . . 105
Rear window heating Heating element wires . . . . . . . . . . . . . . . . 157
Rear window wiper . . . . . . . . . . . . . . . . . . . . . . . 96
Rear-view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Remote control key Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Synchronising . . . . . . . . . . . . . . . . . . . . . . . . 78
Removing and fitting the wheel . . . . . . . . . . . . 196
Repairs Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Replacement keys . . . . . . . . . . . . . . . . . . . . . . . . 76
Replacing lamps fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
ibiza_ingles Seite 245 Mittwoch, 5. Oktober 2005 5:17 17

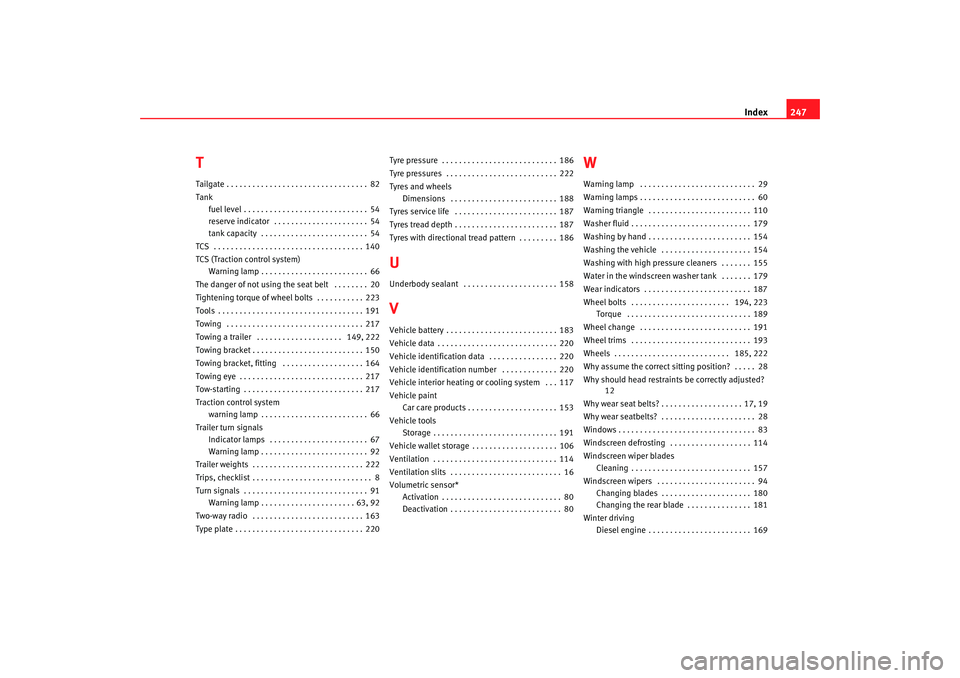

Index247
TTailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Tank
fuel level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
reserve indicator . . . . . . . . . . . . . . . . . . . . . . 54
tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . 54
TCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
TCS (Traction control system) Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 66
The danger of not using the seat belt . . . . . . . . 20
Tightening torque of wheel bolts . . . . . . . . . . . 223
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Towing a trailer . . . . . . . . . . . . . . . . . . . . 149, 222
Towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Towing bracket, fitting . . . . . . . . . . . . . . . . . . . 164
Towing eye . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Traction control system warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 66
Trailer turn signals Indicator lamps . . . . . . . . . . . . . . . . . . . . . . . 67
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 92
Trailer weights . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Trips, checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Turn signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91 Warning lamp . . . . . . . . . . . . . . . . . . . . . . 63, 92
Two-way radio . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Type plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220 Tyre pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Tyres and wheels
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 188
Tyres service life . . . . . . . . . . . . . . . . . . . . . . . . 187
Tyres tread depth . . . . . . . . . . . . . . . . . . . . . . . . 187
Tyres with directional tread pattern . . . . . . . . . 186
UUnderbody sealant . . . . . . . . . . . . . . . . . . . . . . 158VVehicle battery . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Vehicle data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Vehicle identification data . . . . . . . . . . . . . . . . 220
Vehicle identification number . . . . . . . . . . . . . 220
Vehicle interior heating or cooling system . . . 117
Vehicle paint Car care products . . . . . . . . . . . . . . . . . . . . . 153
Vehicle tools Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Vehicle wallet storage . . . . . . . . . . . . . . . . . . . . 106
Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Ventilation slits . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Volumetric sensor* Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Deactivation . . . . . . . . . . . . . . . . . . . . . . . . . . 80
WWarning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Warning triangle . . . . . . . . . . . . . . . . . . . . . . . . 110
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Washing by hand . . . . . . . . . . . . . . . . . . . . . . . . 154
Washing the vehicle . . . . . . . . . . . . . . . . . . . . . 154
Washing with high pressure cleaners . . . . . . . 155
Water in the windscreen washer tank . . . . . . . 179
Wear indicators . . . . . . . . . . . . . . . . . . . . . . . . . 187
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . 194, 223Torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Wheel change . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Wheel trims . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . 185, 222
Why assume the correct sitting position? . . . . . 28
Why should head restraints be correctly adjusted? 12
Why wear seat belts? . . . . . . . . . . . . . . . . . . . 17, 19
Why wear seatbelts? . . . . . . . . . . . . . . . . . . . . . . 28
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Windscreen defrosting . . . . . . . . . . . . . . . . . . . 114
Windscreen wiper blades Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Windscreen wipers . . . . . . . . . . . . . . . . . . . . . . . 94 Changing blades . . . . . . . . . . . . . . . . . . . . . 180
Changing the rear blade . . . . . . . . . . . . . . . 181
Winter driving Diesel engine . . . . . . . . . . . . . . . . . . . . . . . . 169
ibiza_ingles Seite 247 Mittwoch, 5. Oktober 2005 5:17 17
