12Alana/Alana MP3

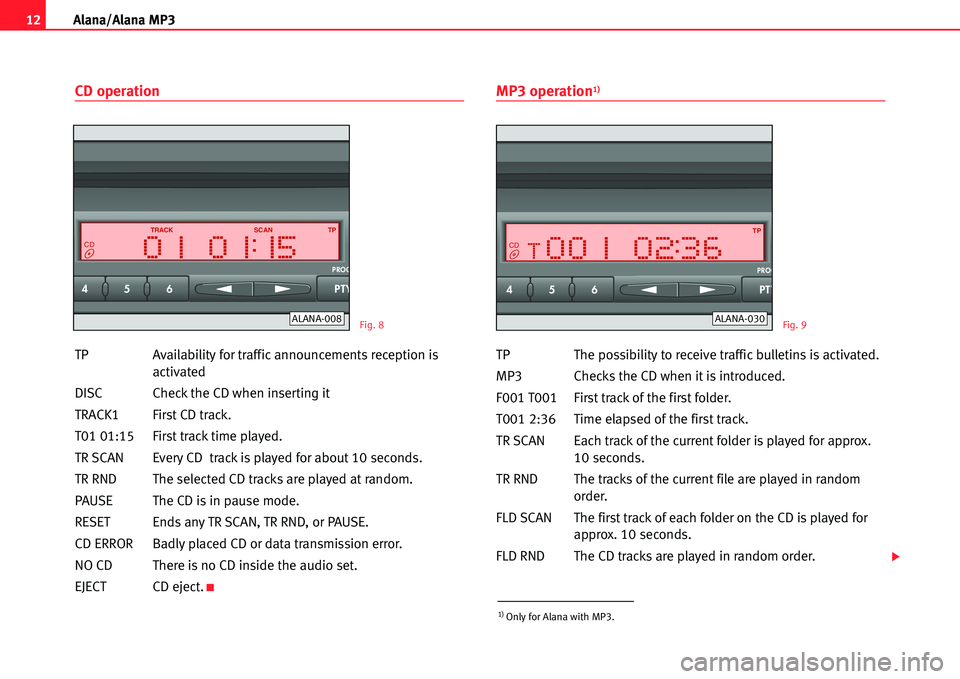

CD operation
TP Availability for traffic announcements reception is
activated
DISCCheck the CD when inserting it
TRACK1 First CD track.
T01 01:15 First track time played.
TR SCAN Every CD track is played for about 10 seconds.
TR RNDThe selected CD tracksare played at random.
PAUSE The CD is in pause mode.
RESET Ends any TR SCAN, TR RND, or PAUSE.
CD ERROR Badly placed CD or data transmission error.
NO CD There is no CD inside the audio set.
EJECTCD eject.
K
MP3 operation1)
TP The possibility to receive traffic bulletins is activated.
MP3Checks the CD when it is introduced.
F001 T001 First track of the first folder.
T001 2:36 Time elapsed of the first track.
TR SCANEach track of the current folder is played for approx.
10 seconds.
TR RNDThe tracksofthe current file are played in random
order.
FLD SCANThe firsttrackofeach folder on the CD is played for
approx. 10 seconds.
FLD RND The CD tracks are played in random order.
Fig. 9ALANA030
1) Onlyfor Alana with MP3.
Fig. 8ALANA008
23
1 456PTYTPSCANALANAPROGSRCRDSBANDCDBASSTREBFADBAL001 02 36 TPCDT 23
1 456PTYTPSCANALANAPROGSRCRDSBANDCDFLAIX FMLEARNRDS1BASSTREBFADBAL 01 01 15 SCAN TP
T RACKCD

13

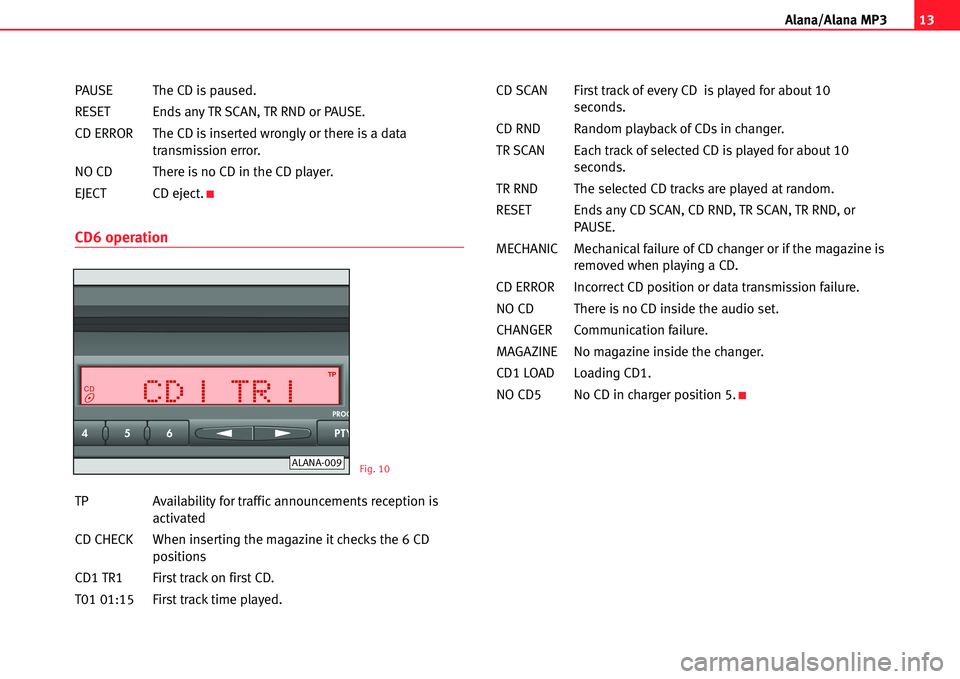

A lana/Alana MP3
PAUSE The CD is paused.
RESET Ends any TR SCAN, TR RND or PAUSE.
CD ERROR The CD is inserted wrongly or there is a data
transmission error.
NO CD There is no CD in the CD player.
EJECT CD eject.
K
CD6 operation
TP Availability for traffic announcements reception is
activated
CD CHECK When inserting the magazine it checks the 6 CD
positions
CD1 TR1First track on first CD.
T01 01:15 First track time played.CD SCAN First track of every CD is played for about 10
seconds.
CD RND Random playback of CDs in changer.
TR SCAN Each track of selected CD is played for about 10
seconds.
TR RND The selected CD tracks are played at random.
RESET Ends any CD SCAN, CD RND, TR SCAN, TR RND, or
PAUSE.
MECHANIC Mechanical failure of CD changer or if the magazine is
removed when playing a CD.
CD ERRORIncorrectCD position or data transmission failure.
NO CD There is no CD inside the audio set.
CHANGER Communication failure.
MAGAZINE No magazine inside the changer.
CD1 LOAD Loading CD1.
NO CD5 No CD in charger position 5.
K
Fig. 10ALANA00923
1 456PTYTPSCANALANAPROGSRCRDSBANDCDFLAIX FMLEARNRDS1BASSTREBFADBAL CD1 TR1 TPCD
