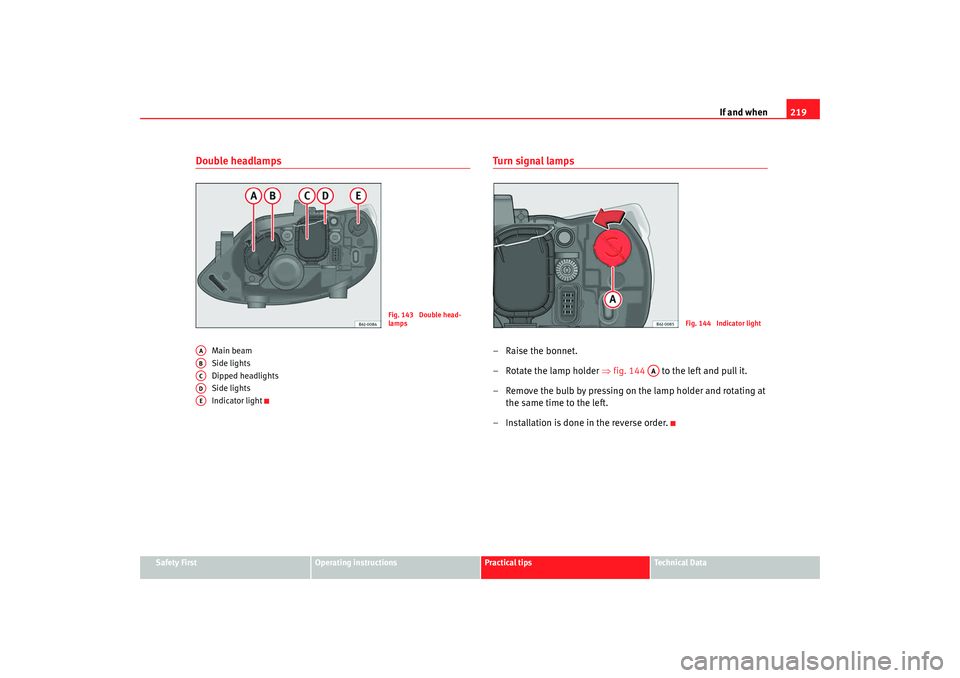

Double headlamps
Main beam
Side lights
Dipped headlights
Side lights
Indicator light
Tu r n si g nal la m ps– Raise the bonnet.
– Rotate the lamp holder ⇒ fig. 144 to the left and pull it.
– Remove the bulb by pressing on the lamp holder and rotating at the same time to the left.
– Installation is done in the reverse order.
Fig. 143 Double head-
lamps
AAABACADAE
Fig. 144 Indicator light
AA
Ibiza SC_EN.book Seite 219 Dienstag, 8. Juli 2008 5:36 17

If and when
220Dipped and side lights

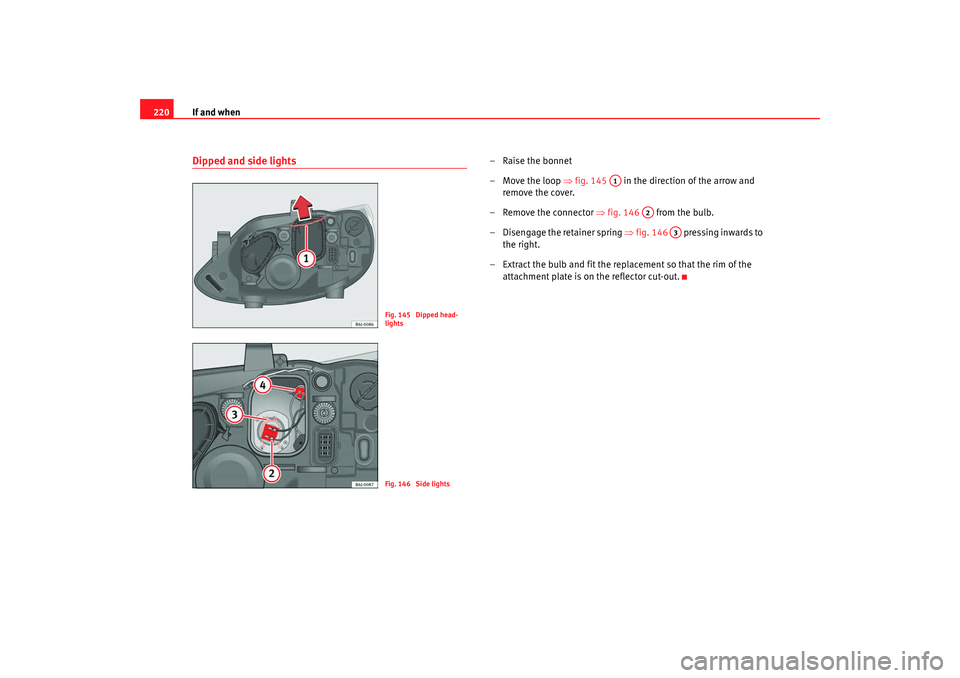

–Raise the bonnet
– Move the loop ⇒fig. 145 in the direction of the arrow and
remove the cover.
– Remove the connector ⇒fig. 146 from the bulb.
– Disengage the retainer spring ⇒fig. 146 pressing inwards to
the right.
– Extract the bulb and fit the replacement so that the rim of the attachment plate is on the reflector cut-out.
Fig. 145 Dipped head-
lightsFig. 146 Side lights
A1
A2
A3
Ibiza SC_EN.book Seite 220 Dienstag, 8. Juli 2008 5:36 17

If and when221
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

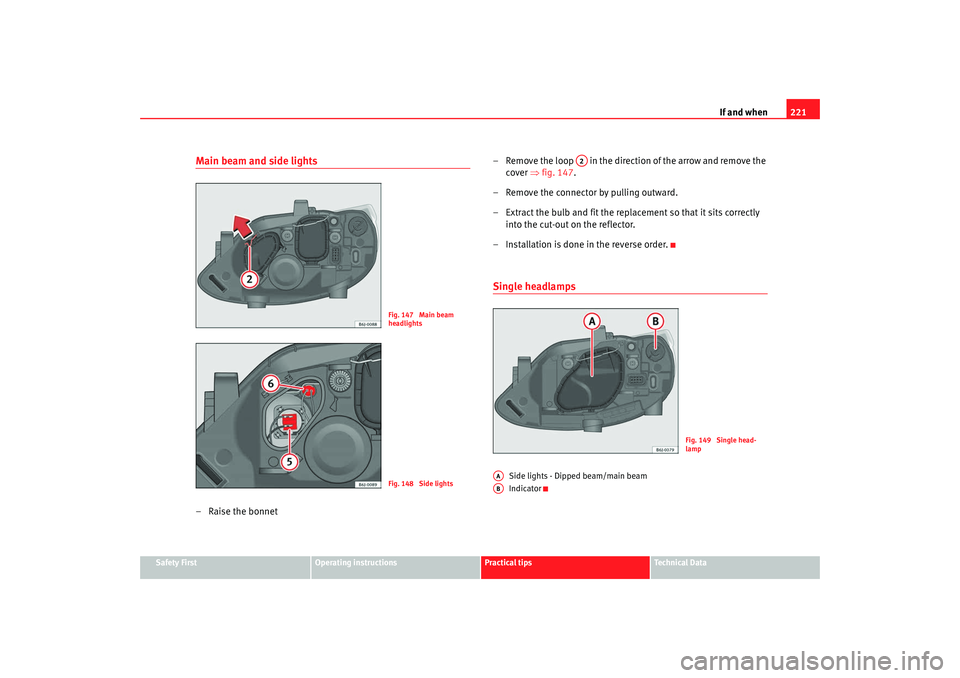

Main beam and side lights–Raise the bonnet – Remove the loop in the direction of the arrow and remove the
cover ⇒fig. 147.
– Remove the connector by pulling outward.
– Extract the bulb and fit the replacement so that it sits correctly into the cut-out on the reflector.
– Installation is done in the reverse order.
Single headlamps
Side lights - Dipped beam/main beam
Indicator
Fig. 147 Main beam
headlightsFig. 148 Side lights
A2
Fig. 149 Single head-
lamp
AAAB
Ibiza SC_EN.book Seite 221 Dienstag, 8. Juli 2008 5:36 17

If and when

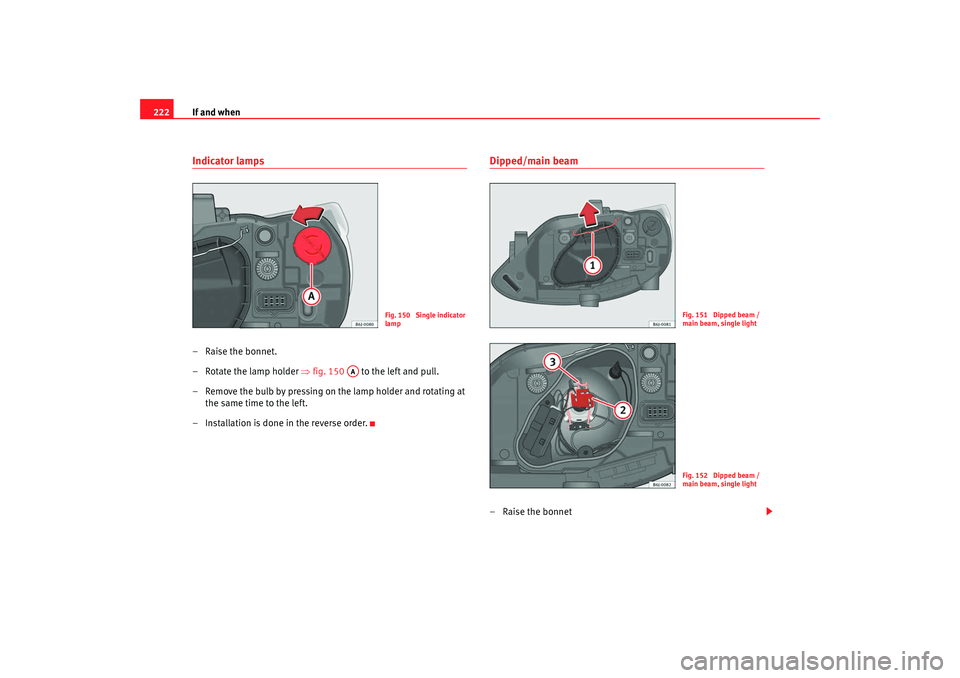

222Indicator lamps– Raise the bonnet.
– Rotate the lamp holder ⇒fig. 150 to the left and pull.
– Remove the bulb by pressing on the lamp holder and rotating at the same time to the left.
– Installation is done in the reverse order.
Dipped/main beam–Raise the bonnet
Fig. 150 Single indicator
lamp
AA
Fig. 151 Dipped beam /
main beam, single lightFig. 152 Dipped beam /
main beam, single light
Ibiza SC_EN.book Seite 222 Dienstag, 8. Juli 2008 5:36 17

If and when223
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

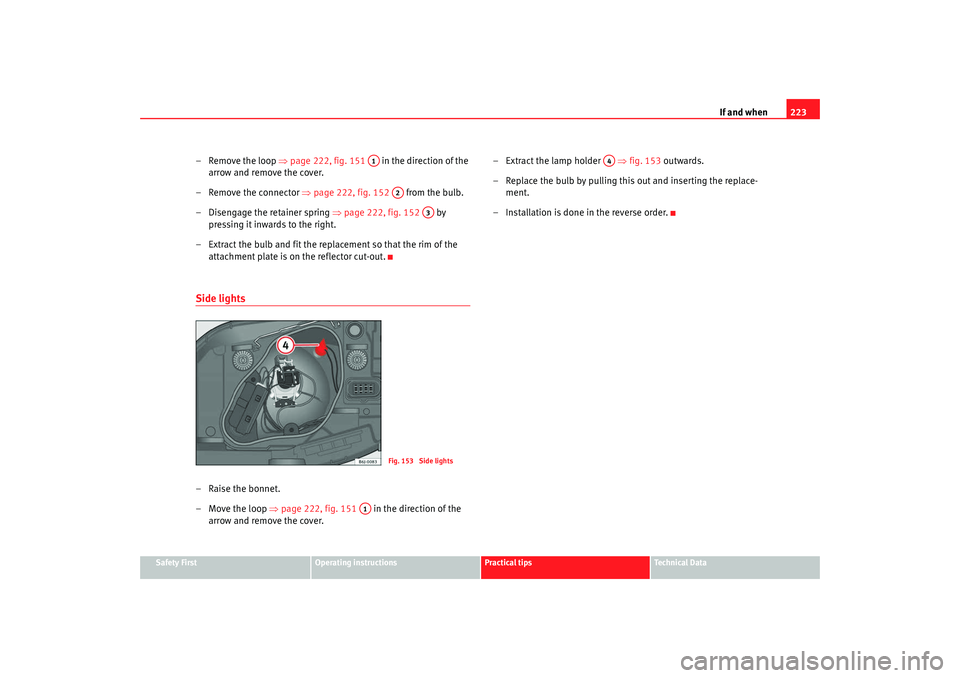

– Remove the loop ⇒page 222, fig. 151 in the direction of the
arrow and remove the cover.
– Remove the connector ⇒page 222, fig. 152 from the bulb.
– Disengage the retainer spring ⇒page 222, fig. 152 by
pressing it inwards to the right.
– Extract the bulb and fit the replacement so that the rim of the attachment plate is on the reflector cut-out.Side lights–Raise the bonnet.
– Move the loop ⇒page 222, fig. 151 in the direction of the
arrow and remove the cover. – Extract the lamp holder
⇒fig. 153 outwards.
– Replace the bulb by pulling this out and inserting the replace- ment.
– Installation is done in the reverse order.
A1
A2
A3
Fig. 153 Side lights
A1
A4
Ibiza SC_EN.book Seite 223 Dienstag, 8. Juli 2008 5:36 17

If and when

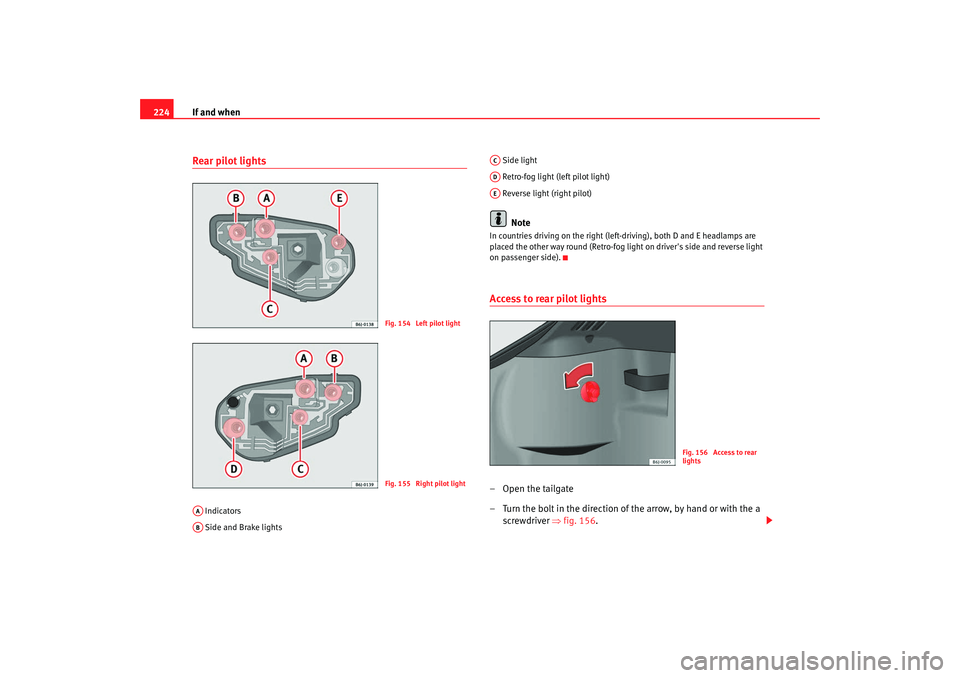

224Rear pilot lights Indicators
Side and Brake lights Side light
Retro-fog light (left pilot light)
Reverse light (right pilot)
Note
In countries driving on the right (lef
t-driving), both D and E headlamps are
placed the other way round (Retro-fog light on driver's side and reverse light
on passenger side).Access to rear pilot lights–Open the tailgate
– Turn the bolt in the direction of the arrow, by hand or with the a
screwdriver ⇒fig. 156 .
Fig. 154 Left pilot lightFig. 155 Right pilot light
AAAB
ACADAE
Fig. 156 Access to rear
lights
Ibiza SC_EN.book Seite 224 Dienstag, 8. Juli 2008 5:36 17

If and when225
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

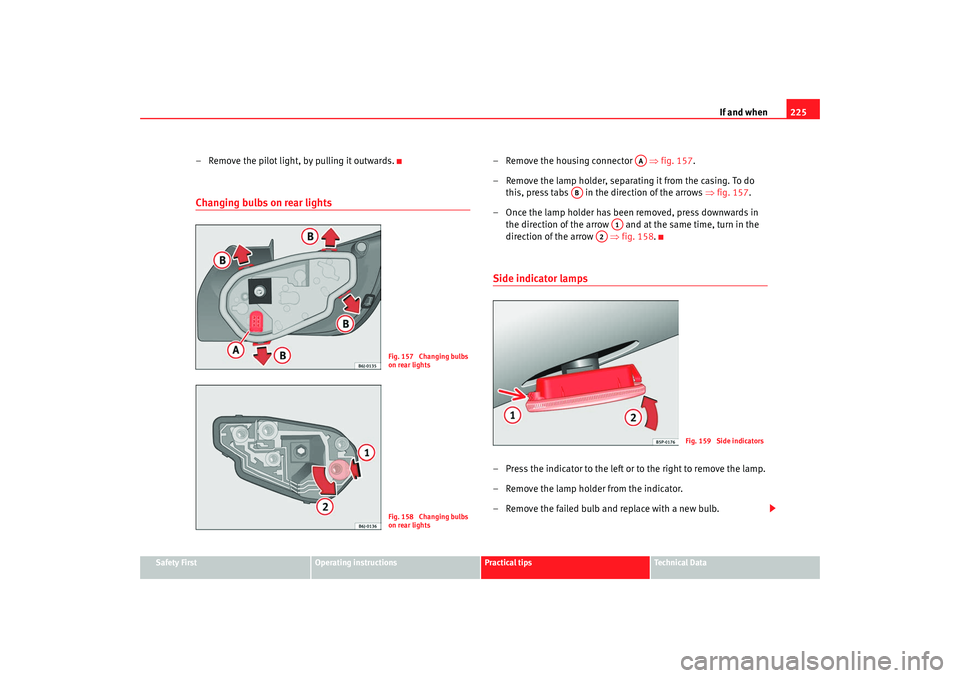

– Remove the pilot light, by pulling it outwards.Changing bulbs on rear lights
– Remove the housing connector ⇒fig. 157.
– Remove the lamp holder, separating it from the casing. To do this, press tabs in the direction of the arrows ⇒fig. 157 .
– Once the lamp holder has been removed, press downwards in the direction of the arrow and at the same time, turn in the
direction of the arrow ⇒ fig. 158.Side indicator lamps– Press the indicator to the left or to the right to remove the lamp.
– Remove the lamp holder from the indicator.
– Remove the failed bulb and replace with a new bulb.
Fig. 157 Changing bulbs
on rear lightsFig. 158 Changing bulbs
on rear lights
AA
AB
A1
A2
Fig. 159 Side indicators
Ibiza SC_EN.book Seite 225 Dienstag, 8. Juli 2008 5:36 17

If and when
226

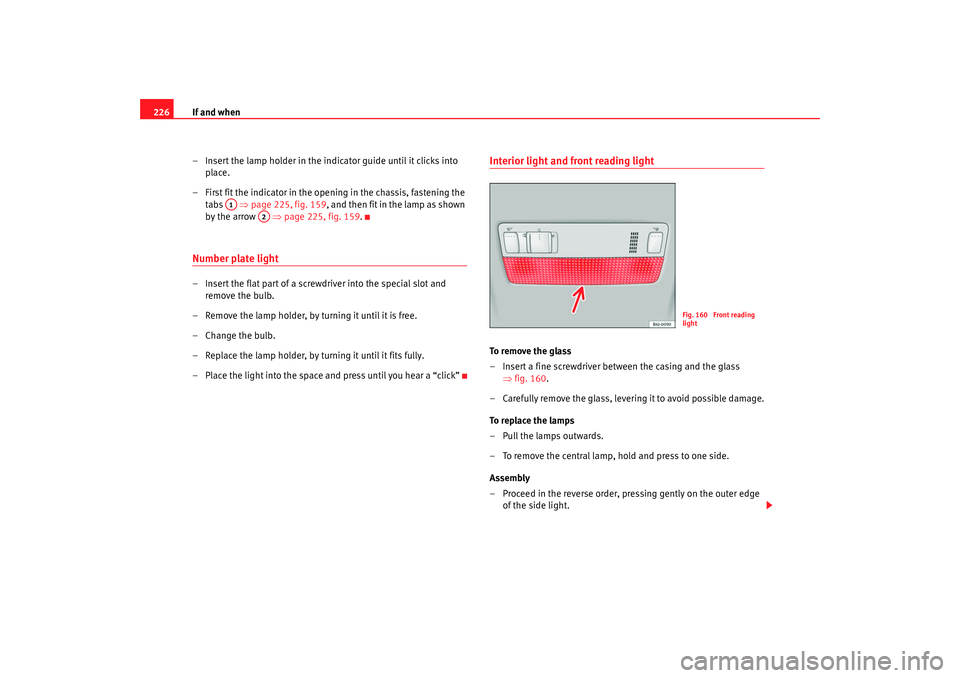

– Insert the lamp holder in the indicator guide until it clicks into place.
– First fit the indicator in the opening in the chassis, fastening the tabs ⇒page 225, fig. 159 , and then fit in the lamp as shown
by the arrow ⇒page 225, fig. 159 .Number plate light– Insert the flat part of a screwdriver into the special slot and
remove the bulb.
– Remove the lamp holder, by turning it until it is free.
– Change the bulb.
– Replace the lamp holder, by turning it until it fits fully.
– Place the light into the space and press until you hear a “click”
Interior light and front reading light To r e m o v e t h e g l a s s
– Insert a fine screwdriver between the casing and the glass ⇒fig. 160.
– Carefully remove the glass, levering it to avoid possible damage.
To replace the lamps
– Pull the lamps outwards.
– To remove the central lamp, hold and press to one side.
Assembly
– Proceed in the reverse order, pressing gently on the outer edge of the side light.
A1
A2
Fig. 160 Front reading
light
Ibiza SC_EN.book Seite 226 Dienstag, 8. Juli 2008 5:36 17

If and when227
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
– First fit the glass with the fastening tabs over the frame of the
switch. Next press the front part until the two long tabs click on

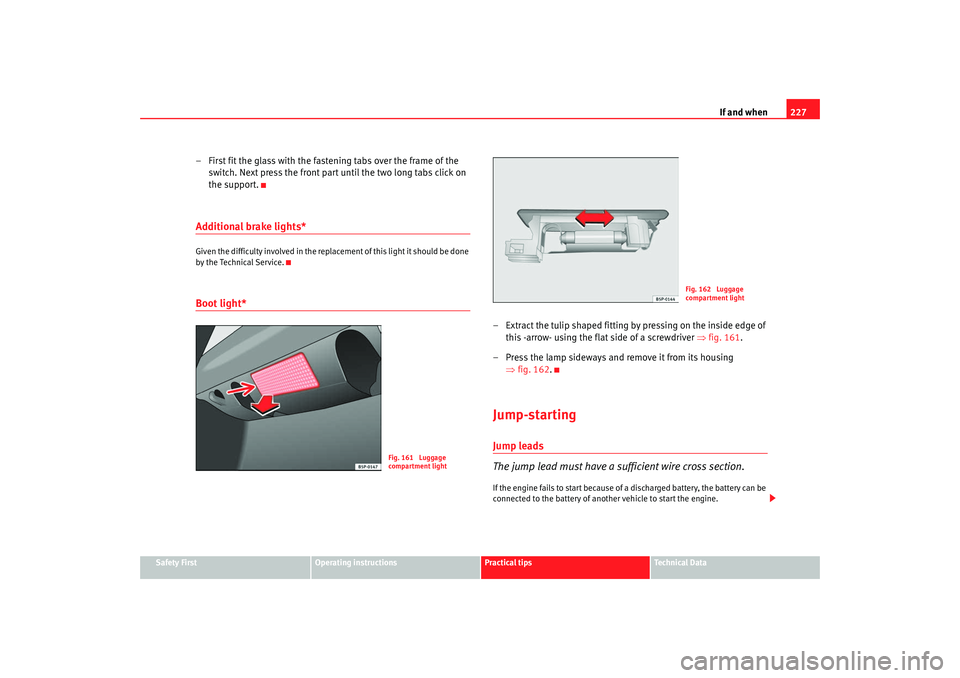

the support.Additional brake lights*Given the difficulty involved in the replacement of this light it should be done
by the Technical Service.Boot light*
– Extract the tulip shaped fitting by pressing on the inside edge of this -arrow- using the flat side of a screwdriver ⇒fig. 161.
– Press the lamp sideways and remove it from its housing ⇒fig. 162.Jump-startingJump leads
The jump lead must have a sufficient wire cross section.If the engine fails to start because of a discharged battery, the battery can be
connected to the battery of another vehicle to start the engine.
Fig. 161 Luggage
compartment light
Fig. 162 Luggage
compartment light
Ibiza SC_EN.book Seite 227 Dienstag, 8. Juli 2008 5:36 17

If and when
228Jump leads
Jump leads must comply with the standard DIN 72553 (see manufacturer's
documentation). The wire cross section must be at least 25 mm
2 for petrol
engines and at least 35 mm
2 for diesel engines.
Note
•
The vehicles must not touch each other, otherwise electricity could flow as
soon as the positive terminals are connected.
•
The discharged battery must be properly connected to the vehicle elec-
trical system.

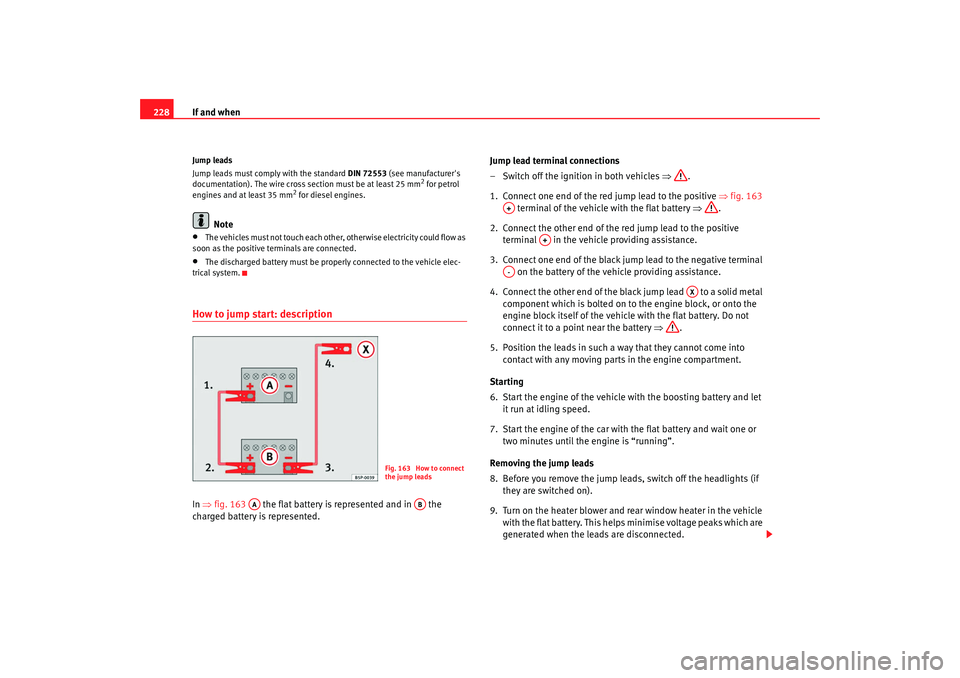

How to jump start: descriptionIn ⇒ fig. 163 the flat battery is represented and in the
charged battery is represented. Jump lead terminal connections
– Switch off the ignition in both vehicles
⇒.
1. Connect one end of the red jump lead to the positive ⇒fig. 163
terminal of the vehicle with the flat battery ⇒.
2. Connect the other end of the red jump lead to the positive terminal in the vehicle providing assistance.
3. Connect one end of the black jump lead to the negative terminal on the battery of the vehicle providing assistance.
4. Connect the other end of the black jump lead to a solid metal component which is bolted on to the engine block, or onto the
engine block itself of the vehicle with the flat battery. Do not
connect it to a point near the battery ⇒.
5. Position the leads in such a way that they cannot come into contact with any moving parts in the engine compartment.
Starting
6. Start the engine of the vehicle with the boosting battery and let it run at idling speed.
7. Start the engine of the car with the flat battery and wait one or two minutes until the engine is “running”.
Removing the jump leads
8. Before you remove the jump leads, switch off the headlights (if they are switched on).
9. Turn on the heater blower and rear window heater in the vehicle with the flat battery. This helps minimise voltage peaks which are
generated when the leads are disconnected.
Fig. 163 How to connect
the jump leads
AA
AB
A+
A+
A-
AX
