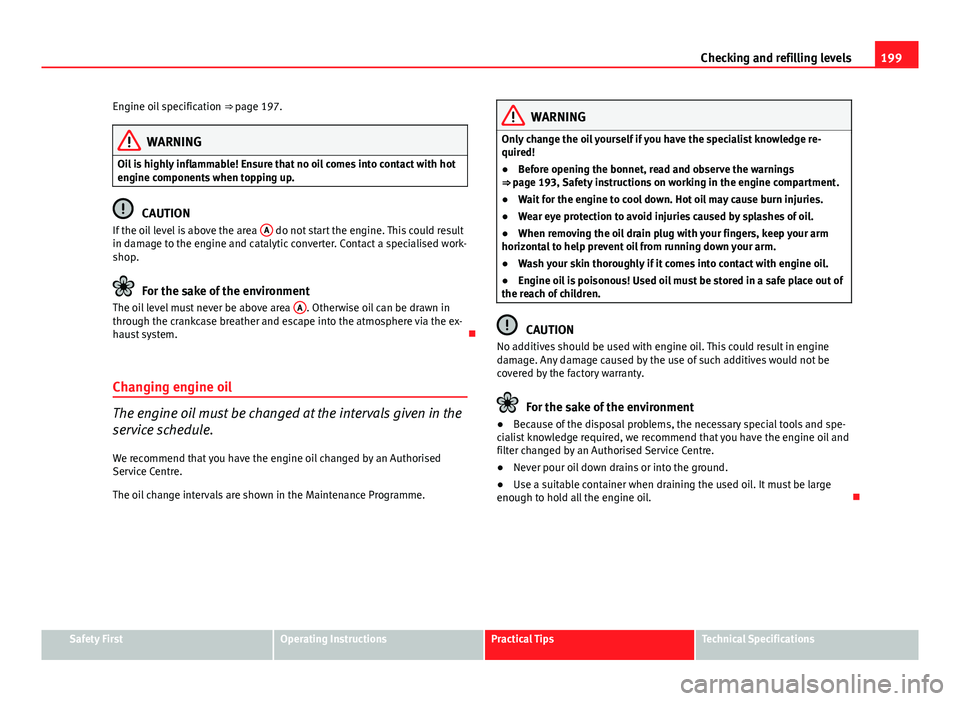

Page 201 of 278

Seat Ibiza SC 2011  Owners manual 199
Checking and refilling levels
Engine oil specification  ⇒ page 197.
WARNING
Oil is highly inflammable! Ensure that no oil comes into contact with hot
engine components when topping up.
CAUTION

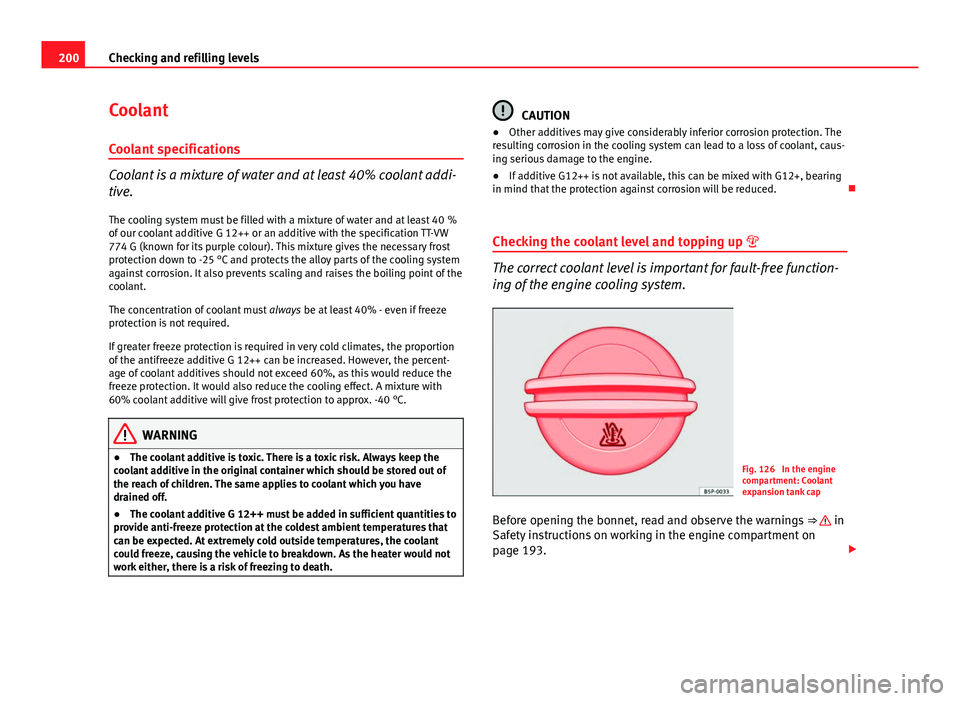

Page 202 of 278

Seat Ibiza SC 2011  Owners manual 200Checking and refilling levels
Coolant
Coolant specifications
Coolant is a mixture of water and at least 40% coolant addi-
tive. The cooling system must be filled with a mixture of water and at leas

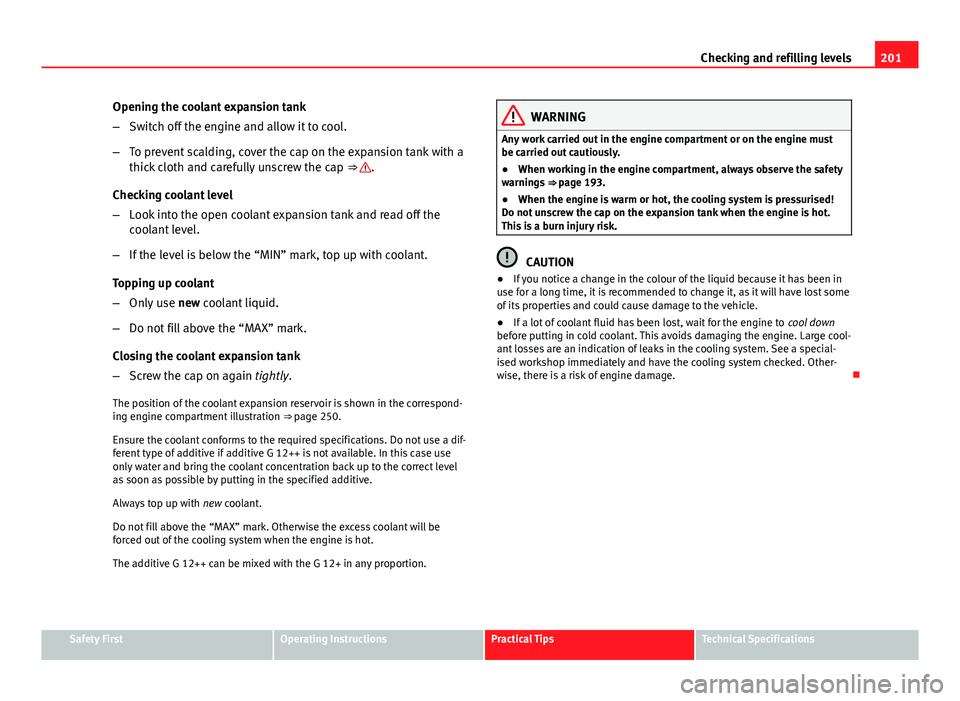

Page 203 of 278

Seat Ibiza SC 2011  Owners manual 201
Checking and refilling levels
Opening the coolant expansion tank
– Switch off the engine and allow it to cool.
– To prevent scalding, cover the cap on the expansion tank with a
thick cloth and

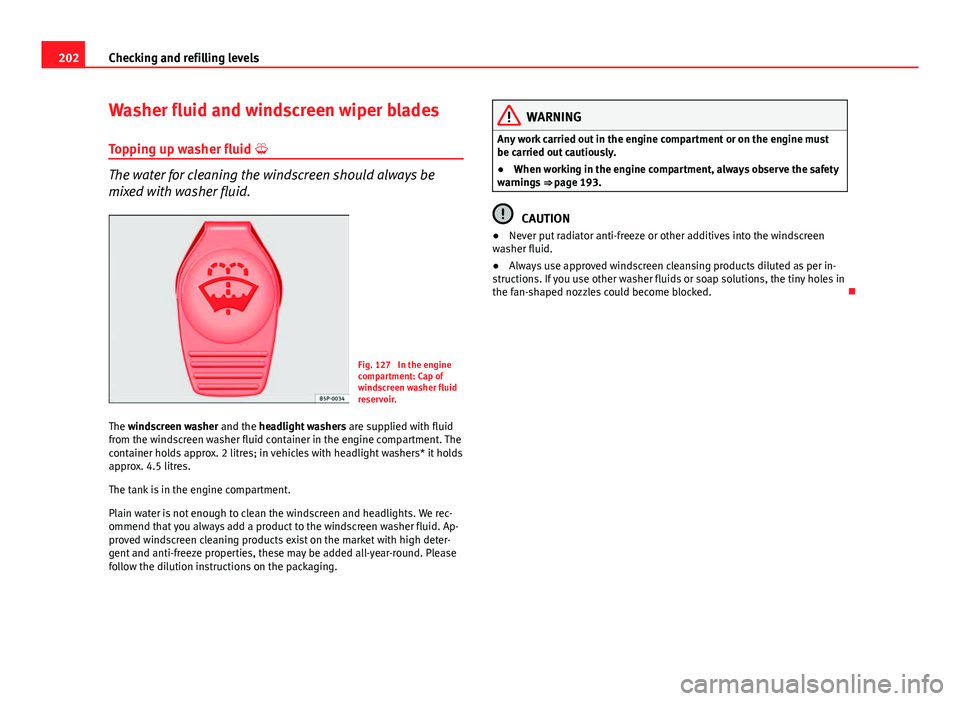

Page 204 of 278

Seat Ibiza SC 2011  Owners manual 202Checking and refilling levels
Washer fluid and windscreen wiper blades
Topping up washer fluid 
The water for cleaning the windscreen should always be
mixed with washer fluid.
Fig. 127  In the e

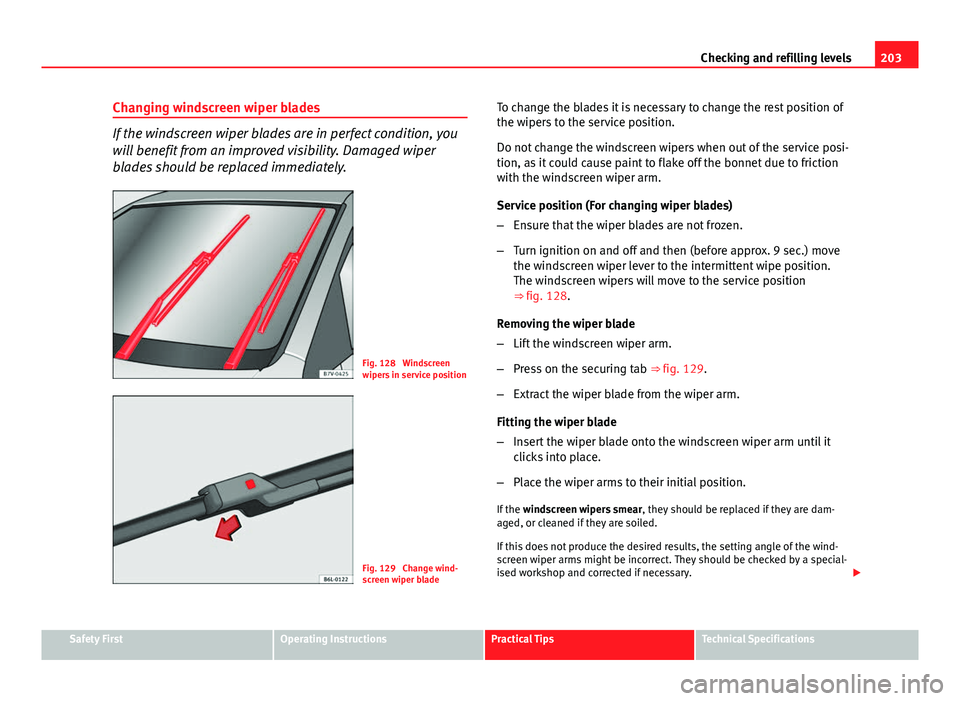

Page 205 of 278

Seat Ibiza SC 2011  Owners manual 203
Checking and refilling levels
Changing windscreen wiper blades
If the windscreen wiper blades are in perfect condition, you
will benefit from an improved visibility. Damaged wiper
blades should be

Page 206 of 278

Seat Ibiza SC 2011  Owners manual 204Checking and refilling levels
WARNING
Do not drive unless you have good visibility through all windows!
● Clean the windscreen wiper blades and all windows regularly.
● The wiper blades should

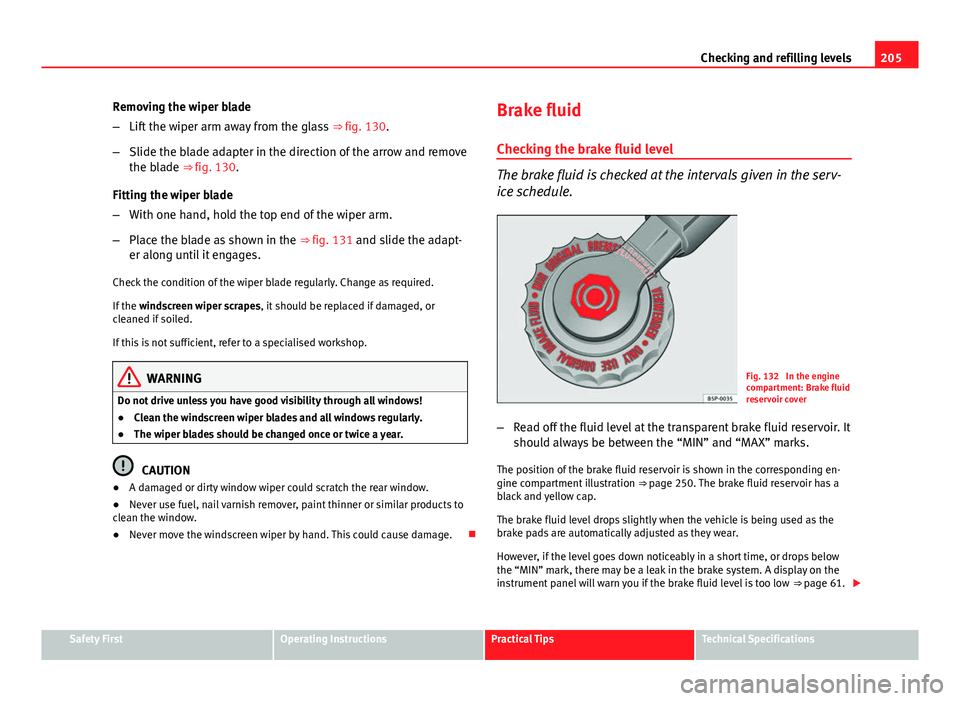

Page 207 of 278

Seat Ibiza SC 2011  Owners manual 205
Checking and refilling levels
Removing the wiper blade
– Lift the wiper arm away from the glass  ⇒ fig. 130.
– Slide the blade adapter in the direction of the arrow and remove
the blade

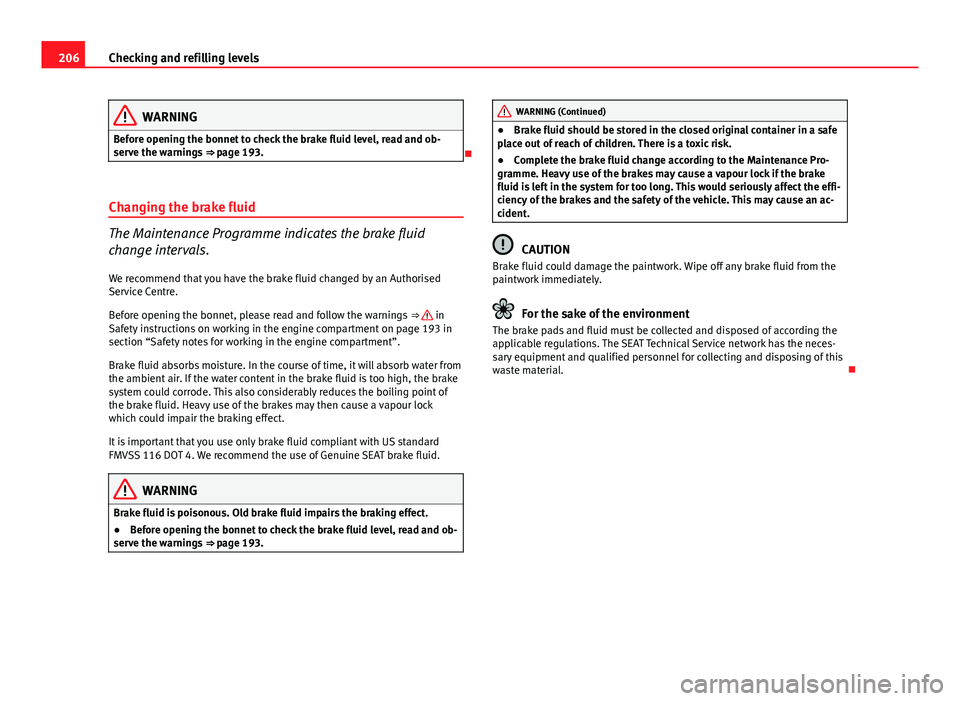

Page 208 of 278

Seat Ibiza SC 2011  Owners manual 206Checking and refilling levels
WARNING
Before opening the bonnet to check the brake fluid level, read and ob-
serve the warnings  ⇒ page 193.

Changing the brake fluid
The Maintenance Program

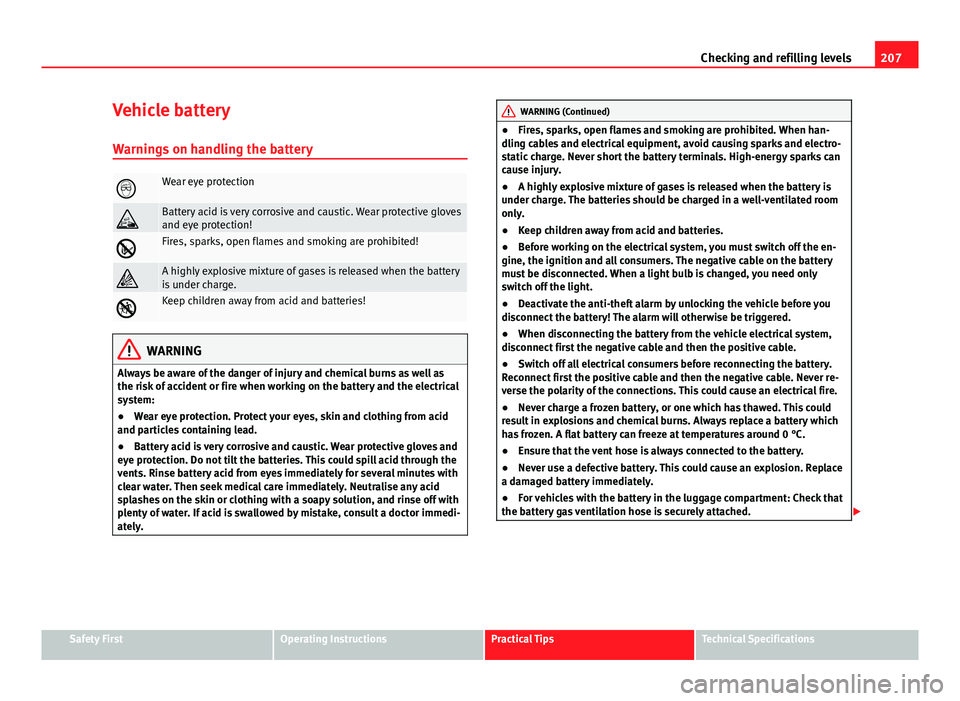

Page 209 of 278

Seat Ibiza SC 2011  Owners manual 207
Checking and refilling levels
Vehicle battery
Warnings on handling the battery
Wear eye protection
Battery acid is very corrosive and caustic. Wear protective gloves
and eye protection!
F

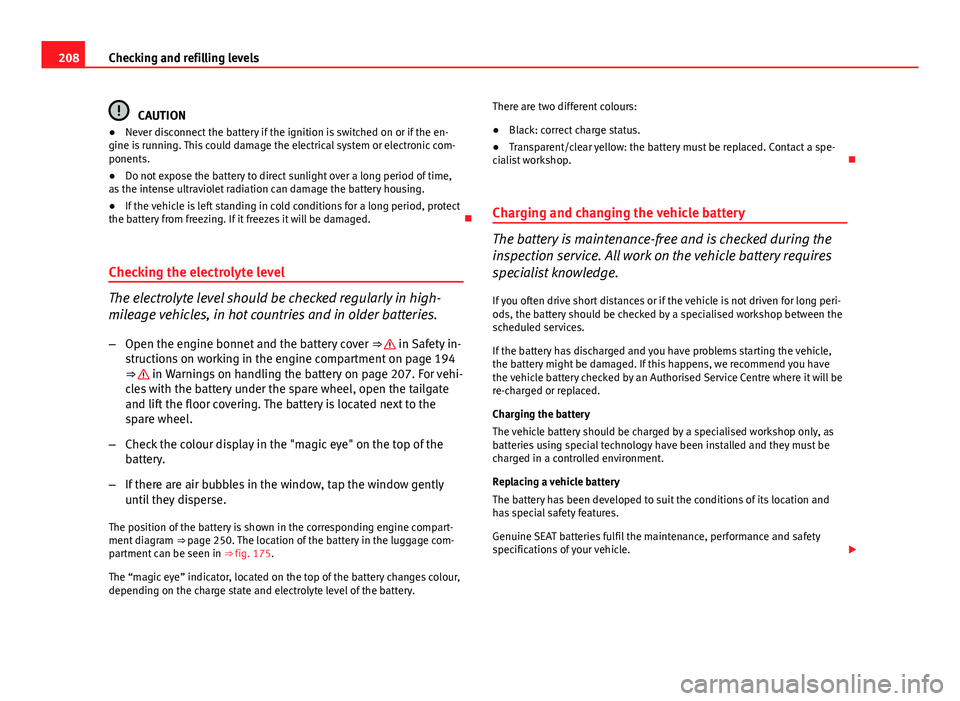

Page 210 of 278

Seat Ibiza SC 2011  Owners manual 208Checking and refilling levels
CAUTION
● Never disconnect the battery if the ignition is switched on or if the en-
gine is running. This could damage the electrical system or electronic com-
ponen
