166Driving and the environment
Driving and the environment
Running-in Running in a new engine
The engine needs to be run in over the first 1500 km.
Up to 1000 kilometres
– Do not drive at speeds of more than 2/3 the maximum speed.
– Do not accelerate hard.
– Avoid high engine revolutions.
– Do not tow a trailer.
From 1000 to 1500 kilometres
– Speeds can be gradually increased to the maximum road speed
or maximum permissible engine speed (rpm).
During its first few hours of running, the internal friction in the engine is
greater than later on, when all the moving parts have bedded in.
For the sake of the environment
If the engine is run in gently, its life will be increased and its oil consump-
tion reduced. Braking capacity and braking distance
The braking capacity and braking distance are influenced by
driving situations and road conditions.
The efficiency of the brakes depends directly on the
brake pad wear. The
rate of wear of the brake pads depends to a great extent on the conditions
under which the vehicle is operated and the way the vehicle is driven. If you
often drive in town traffic, drive short distances or have a sporty driving
style, we recommend that you have the thickness of your brake pads
checked by an Authorised Service Centre more frequently than recommen-
ded in the Service Plan.
If you drive with wet brakes, for example, after crossing areas of water, in
heavy rainfall or even after washing the vehicle, the effect of the brakes is
lessened as the brake discs are wet or even frozen (in winter). In this case
the brakes should be dried by pressing the brake pedal several times.
WARNING
Longer braking distances and faults in the brake system increase the risk
of accidents.
● New brake pads must be run in and do not have the correct friction
during the first 200 km. However, the reduced braking capacity may be
compensated by pressing on the brake pedal a little harder. This also ap-
plies when the brake pads have to be changed further on.
● If brakes are wet or frozen, or if you are driving on roads which have
been salted, braking power may be lower than normal. 

251

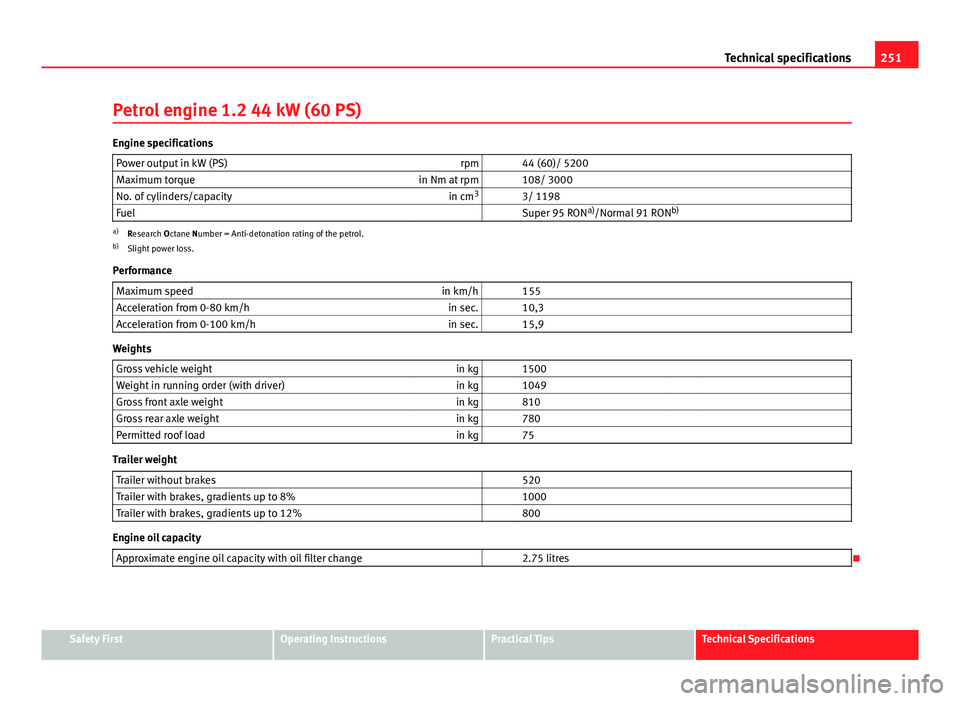

Technical specifications
Petrol engine 1.2 44 kW (60 PS)
Engine specifications Power output in kW (PS) rpm 44 (60)/ 5200
Maximum torque in Nm at rpm 108/ 3000
No. of cylinders/capacity in cm3
3/ 1198
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h 155
Acceleration from 0-80 km/h in sec. 10,3
Acceleration from 0-100 km/h in sec. 15,9
Weights
Gross vehicle weight in kg 1500
Weight in running order (with driver) in kg 1049
Gross front axle weight in kg 810
Gross rear axle weight in kg 780
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 520
Trailer with brakes, gradients up to 8% 1000
Trailer with brakes, gradients up to 12% 800
Engine oil capacity
Approximate engine oil capacity with oil filter change 2.75 litres

Safety FirstOperating InstructionsPractical TipsTechnical Specifications

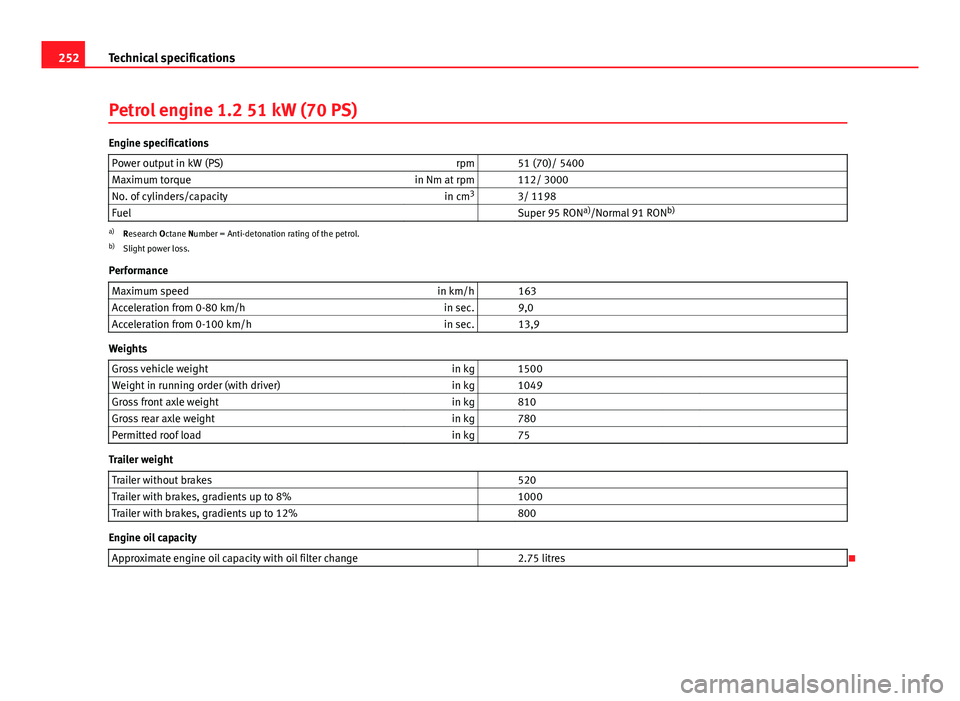

252Technical specifications
Petrol engine 1.2 51 kW (70 PS)
Engine specifications
Power output in kW (PS) rpm 51 (70)/ 5400
Maximum torque in Nm at rpm 112/ 3000
No. of cylinders/capacity in cm3
3/ 1198
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h 163
Acceleration from 0-80 km/h in sec. 9,0
Acceleration from 0-100 km/h in sec. 13,9
Weights
Gross vehicle weight in kg 1500
Weight in running order (with driver) in kg 1049
Gross front axle weight in kg 810
Gross rear axle weight in kg 780
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 520
Trailer with brakes, gradients up to 8% 1000
Trailer with brakes, gradients up to 12% 800
Engine oil capacity
Approximate engine oil capacity with oil filter change 2.75 litres


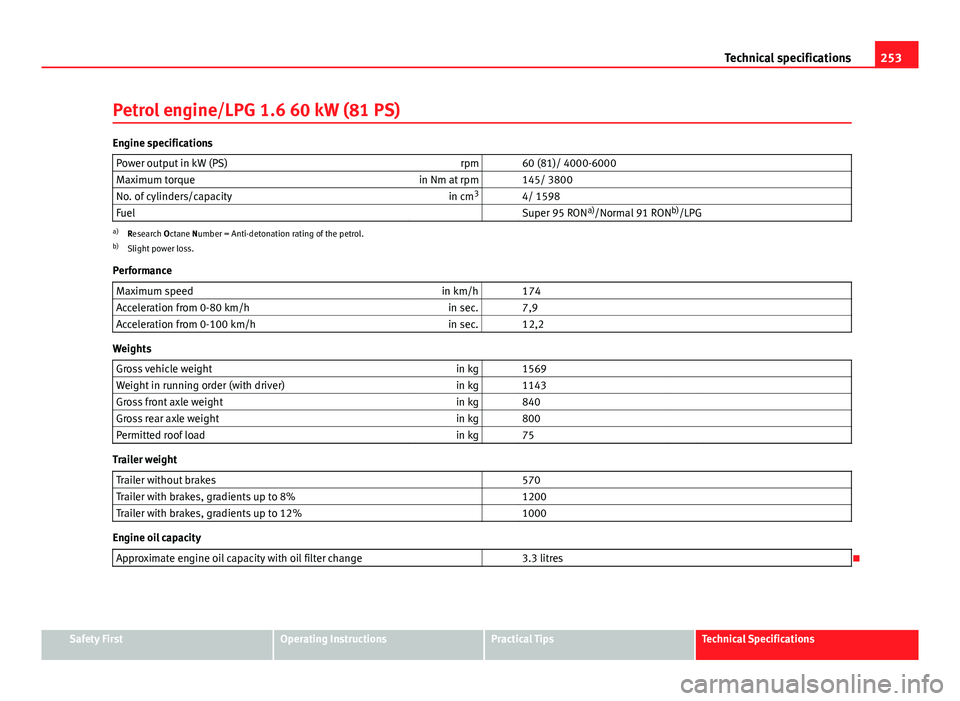

253
Technical specifications
Petrol engine/LPG 1.6 60 kW (81 PS)
Engine specifications Power output in kW (PS) rpm 60 (81)/ 4000-6000
Maximum torque in Nm at rpm 145/ 3800
No. of cylinders/capacity in cm3
4/ 1598
Fuel Super 95 RON a)
/Normal 91 RON b)
/LPG
a) Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h 174
Acceleration from 0-80 km/h in sec. 7,9
Acceleration from 0-100 km/h in sec. 12,2
Weights
Gross vehicle weight in kg 1569
Weight in running order (with driver) in kg 1143
Gross front axle weight in kg 840
Gross rear axle weight in kg 800
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 570
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000
Engine oil capacity
Approximate engine oil capacity with oil filter change 3.3 litres

Safety FirstOperating InstructionsPractical TipsTechnical Specifications

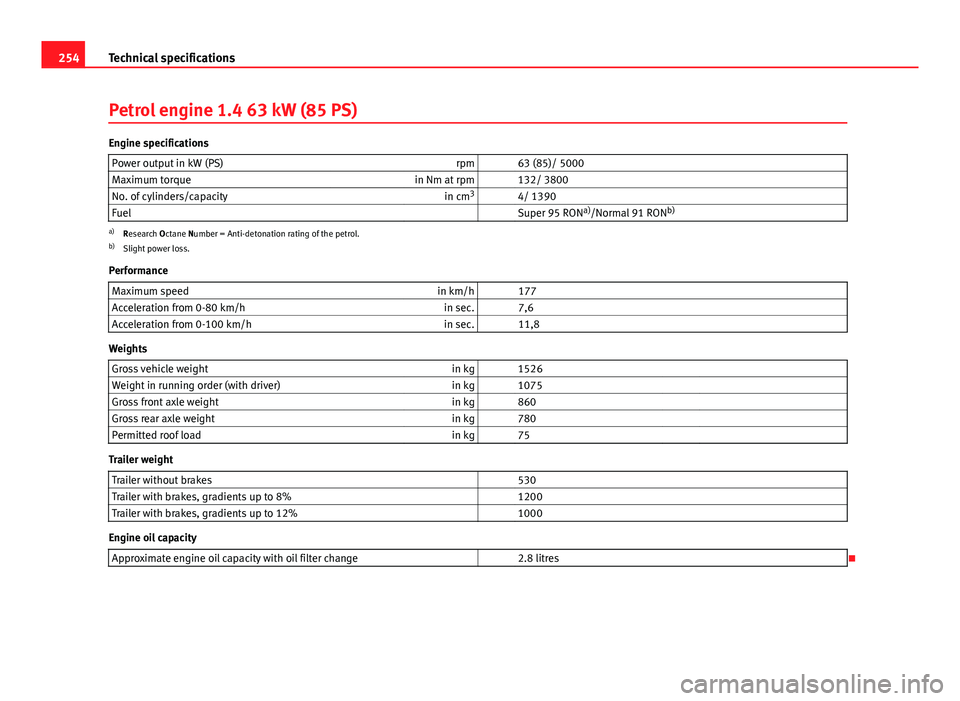

254Technical specifications
Petrol engine 1.4 63 kW (85 PS)
Engine specifications
Power output in kW (PS) rpm 63 (85)/ 5000
Maximum torque in Nm at rpm 132/ 3800
No. of cylinders/capacity in cm3
4/ 1390
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h 177
Acceleration from 0-80 km/h in sec. 7,6
Acceleration from 0-100 km/h in sec. 11,8
Weights
Gross vehicle weight in kg 1526
Weight in running order (with driver) in kg 1075
Gross front axle weight in kg 860
Gross rear axle weight in kg 780
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 530
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000
Engine oil capacity
Approximate engine oil capacity with oil filter change 2.8 litres


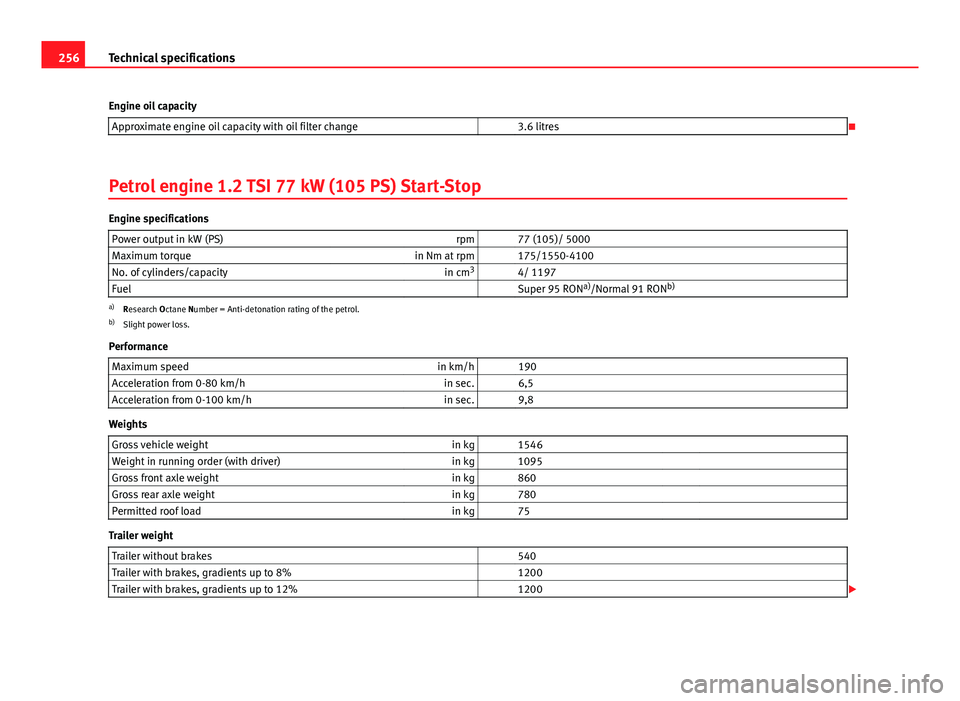

256Technical specifications
Engine oil capacity Approximate engine oil capacity with oil filter change 3.6 litres

Petrol engine 1.2 TSI 77 kW (105 PS) Start-Stop
Engine specifications Power output in kW (PS) rpm 77 (105)/ 5000
Maximum torque in Nm at rpm 175/1550-4100
No. of cylinders/capacity in cm3
4/ 1197
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h 190
Acceleration from 0-80 km/h in sec. 6,5
Acceleration from 0-100 km/h in sec. 9,8
Weights
Gross vehicle weight in kg 1546
Weight in running order (with driver) in kg 1095
Gross front axle weight in kg 860
Gross rear axle weight in kg 780
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 540
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1200

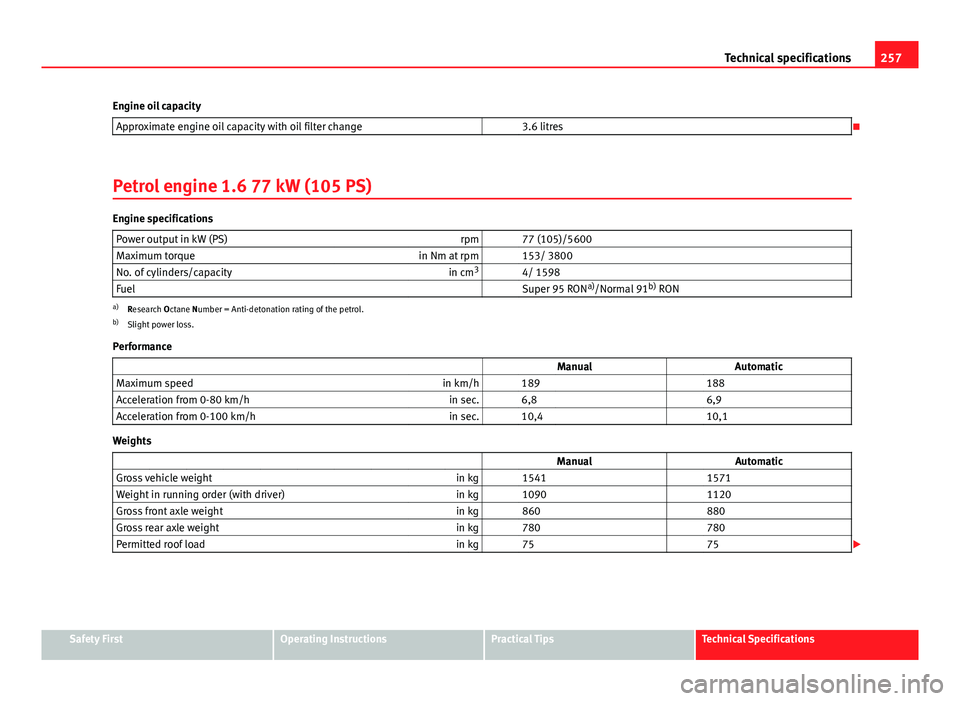

257
Technical specifications
Engine oil capacity Approximate engine oil capacity with oil filter change 3.6 litres

Petrol engine 1.6 77 kW (105 PS)
Engine specifications Power output in kW (PS) rpm 77 (105)/5600
Maximum torque in Nm at rpm 153/ 3800
No. of cylinders/capacity in cm3
4/ 1598
Fuel Super 95 RON a)
/Normal 91 b)
RON
a) Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance ManualAutomatic
Maximum speed in km/h 189 188
Acceleration from 0-80 km/h in sec. 6,8 6,9
Acceleration from 0-100 km/h in sec. 10,4 10,1
Weights
Manual Automatic
Gross vehicle weight in kg 1541 1571
Weight in running order (with driver) in kg 1090 1120
Gross front axle weight in kg 860 880
Gross rear axle weight in kg 780 780
Permitted roof load in kg 75 75
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

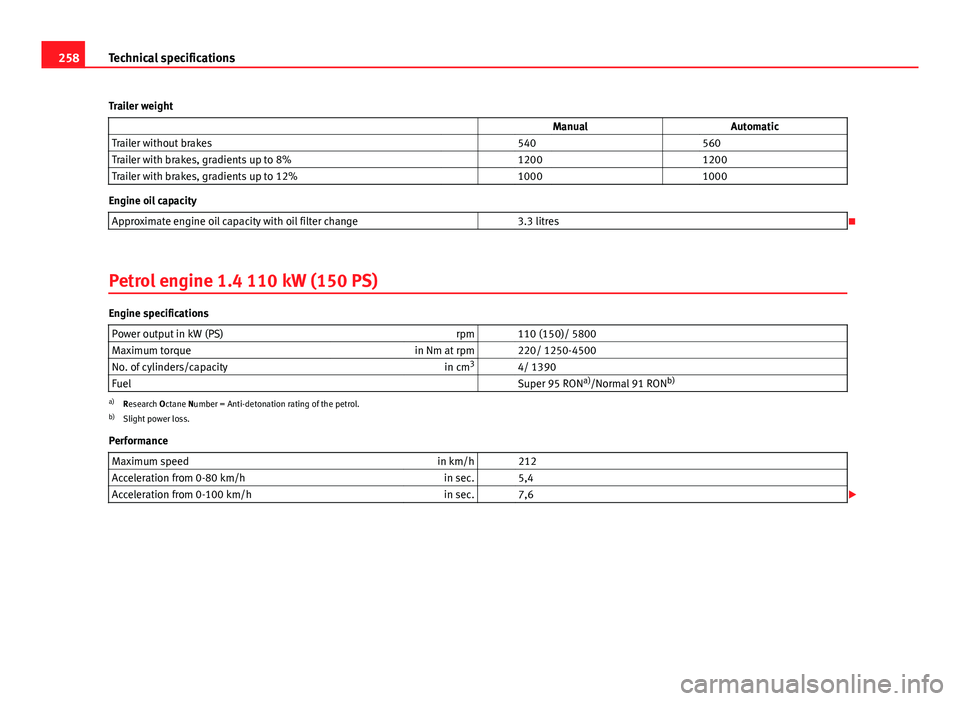

258Technical specifications
Trailer weight ManualAutomatic
Trailer without brakes 540 560
Trailer with brakes, gradients up to 8% 1200 1200
Trailer with brakes, gradients up to 12% 1000 1000
Engine oil capacity
Approximate engine oil capacity with oil filter change 3.3 litres

Petrol engine 1.4 110 kW (150 PS)
Engine specifications Power output in kW (PS) rpm 110 (150)/ 5800
Maximum torque in Nm at rpm 220/ 1250-4500
No. of cylinders/capacity in cm3
4/ 1390
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h 212
Acceleration from 0-80 km/h in sec. 5,4
Acceleration from 0-100 km/h in sec. 7,6 

259
Technical specifications
Weights Gross vehicle weight in kg 1705
Weight in running order (with driver) in kg 1254
Gross front axle weight in kg 930
Gross rear axle weight in kg 820
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 620
Trailer with brakes, gradients up to 8% 1300
Trailer with brakes, gradients up to 12% 1200
Engine oil capacity
Approximate engine oil capacity with oil filter change 3.6 litres

Petrol engine 1.4 132 kW (180 PS) - Cupra
Engine specifications Power output in kW (PS) rpm 132 (180)/ 6200
Maximum torque in Nm at rpm 250/ 2000-4500
No. of cylinders/capacity in cm3
4/ 1390
Fuel Super 98 RON a)
/Super 95 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h 225
Acceleration from 0-80 km/h in sec. 5,3
Acceleration from 0-100 km/h in sec. 7,2 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

260Technical specifications
Weights Gross vehicle weight in kg 1685
Weight in running order (with driver) in kg 1259
Gross front axle weight in kg 930
Gross rear axle weight in kg 820
Permitted roof load in kg 75
Engine oil capacity
Approximate engine oil capacity with oil filter change 3.6 litres

Diesel engine 1.2 TDI CR 55 kW (75 PS) DPF Start-Stop Ecomotive
Engine specifications Power output in kW (PS) rpm 55 (75)/ 4200
Maximum torque in Nm at rpm 180/ 2000
No. of cylinders/capacity in cm3
3/ 1199
Fuel Min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
Performance Maximum speed in km/h 173
Acceleration from 0-80 km/h in sec. 9,2
Acceleration from 0-100 km/h in sec. 13,9 
