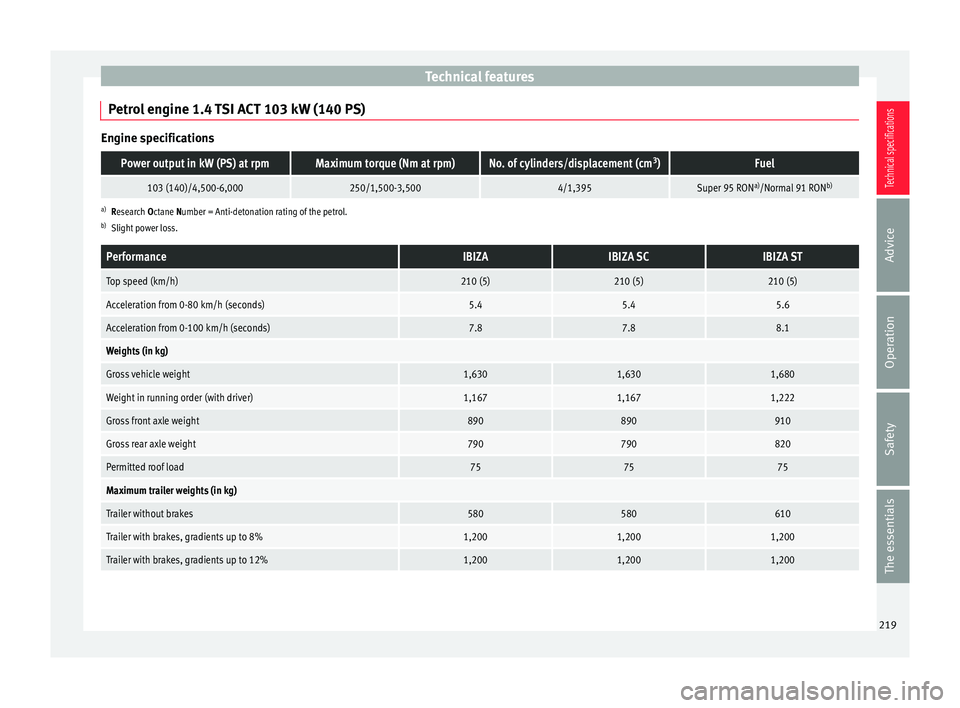

Page 221 of 240
Technical features
Petrol engine 1.4 TSI ACT 103 kW (140 PS) Engine specificationsPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
103 (140)/4,500-6,000250/1,500-3,5004/1,395Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
PerformanceIBIZAIBIZA SCIBIZA ST
Top speed (km/h)210 (5)210 (5)210 (5)
Acceleration from 0-80 km/h (seconds)5.45.45.6
Acceleration from 0-100 km/h (seconds)7.87.88.1
Weights (in kg)
Gross vehicle weight1,6301,6301,680
Weight in running order (with driver)1,1671,1671,222
Gross front axle weight890890910
Gross rear axle weight790790820
Permitted roof load757575
Maximum trailer weights (in kg)
Trailer without brakes580580610
Trailer with brakes, gradients up to 8%1,2001,2001,200
Trailer with brakes, gradients up to 12%1,2001,2001,200 219
Technical specifications
Advice
Operation
Safety
The essentials

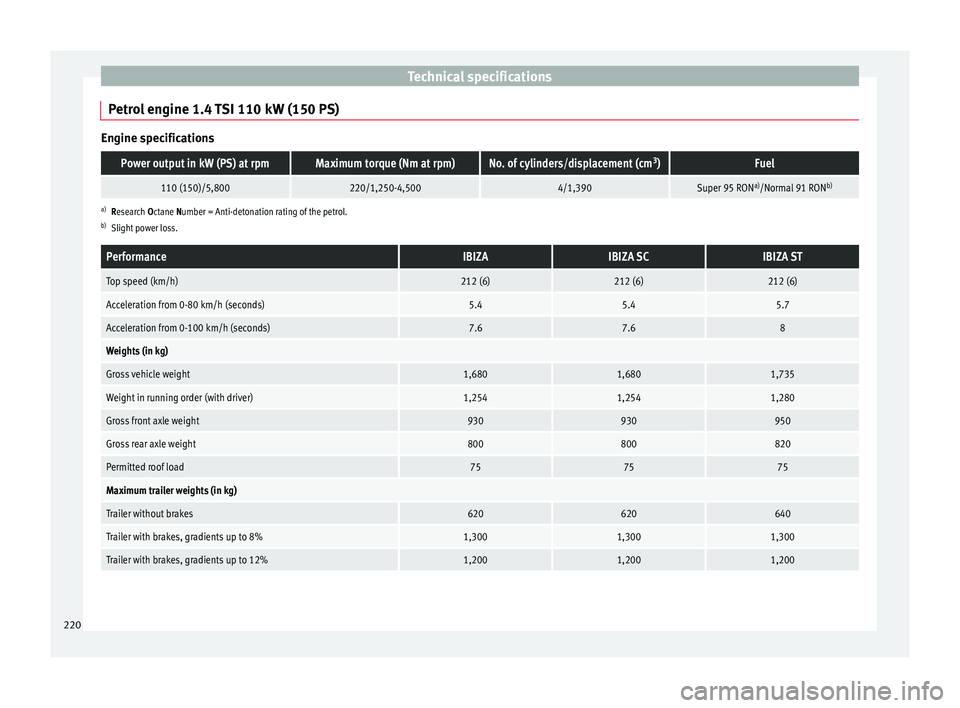

Page 222 of 240
Technical specifications
Petrol engine 1.4 TSI 110 kW (150 PS) Engine specificationsPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
110 (150)/5,800220/1,250-4,5004/1,390Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
PerformanceIBIZAIBIZA SCIBIZA ST
Top speed (km/h)212 (6)212 (6)212 (6)
Acceleration from 0-80 km/h (seconds)5.45.45.7
Acceleration from 0-100 km/h (seconds)7.67.68
Weights (in kg)
Gross vehicle weight1,6801,6801,735
Weight in running order (with driver)1,2541,2541,280
Gross front axle weight930930950
Gross rear axle weight800800820
Permitted roof load757575
Maximum trailer weights (in kg)
Trailer without brakes620620640
Trailer with brakes, gradients up to 8%1,3001,3001,300
Trailer with brakes, gradients up to 12%1,2001,2001,200 220
Page 223 of 240
Technical features
Petrol engine 1.4 132 kW (180 PS) - Cupra Engine specificationsPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
132 (180)/6,200250/2,000-4,5004/1,390Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
PerformanceIBIZA SC
Top speed (km/h)228 (6)
Acceleration from 0-80 km/h (seconds)5.2
Acceleration from 0-100 km/h (seconds)6.9
Weights (in kg)
Gross vehicle weight1,670
Weight in running order (with driver)1,259
Gross front axle weight930
Gross rear axle weight800
Permitted roof load75 221
Technical specifications
Advice
Operation
Safety
The essentials

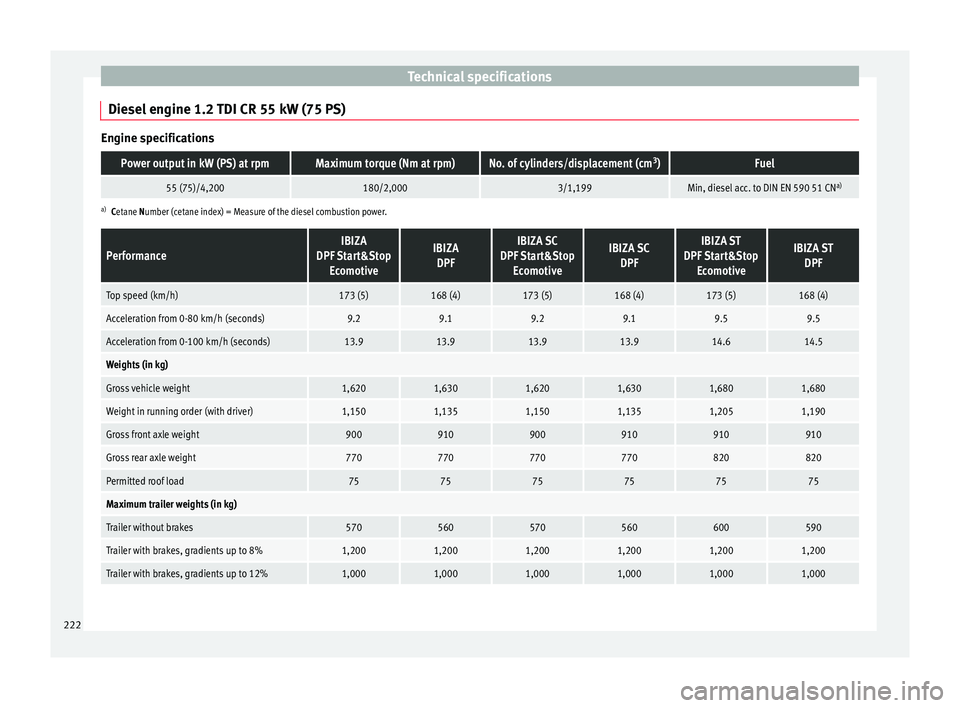

Page 224 of 240
Technical specifications
Diesel engine 1.2 TDI CR 55 kW (75 PS) Engine specificationsPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
55 (75)/4,200180/2,0003/1,199Min, diesel acc. to DIN EN 590 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
PerformanceIBIZA
DPF Start&Stop EcomotiveIBIZADPFIBIZA SC
DPF Start&Stop EcomotiveIBIZA SCDPFIBIZA ST
DPF Start&Stop EcomotiveIBIZA STDPF
Top speed (km/h)173 (5)168 (4)173 (5)168 (4)173 (5)168 (4)
Acceleration from 0-80 km/h (seconds)9.29.19.29.19.59.5
Acceleration from 0-100 km/h (seconds)13.913.913.913.914.614.5
Weights (in kg)
Gross vehicle weight1,6201,6301,6201,6301,6801,680
Weight in running order (with driver)1,1501,1351,1501,1351,2051,190
Gross front axle weight900910900910910910
Gross rear axle weight770770770770820820
Permitted roof load757575757575
Maximum trailer weights (in kg)
Trailer without brakes570560570560600590
Trailer with brakes, gradients up to 8%1,2001,2001,2001,2001,2001,200
Trailer with brakes, gradients up to 12%1,0001,0001,0001,0001,0001,000 222

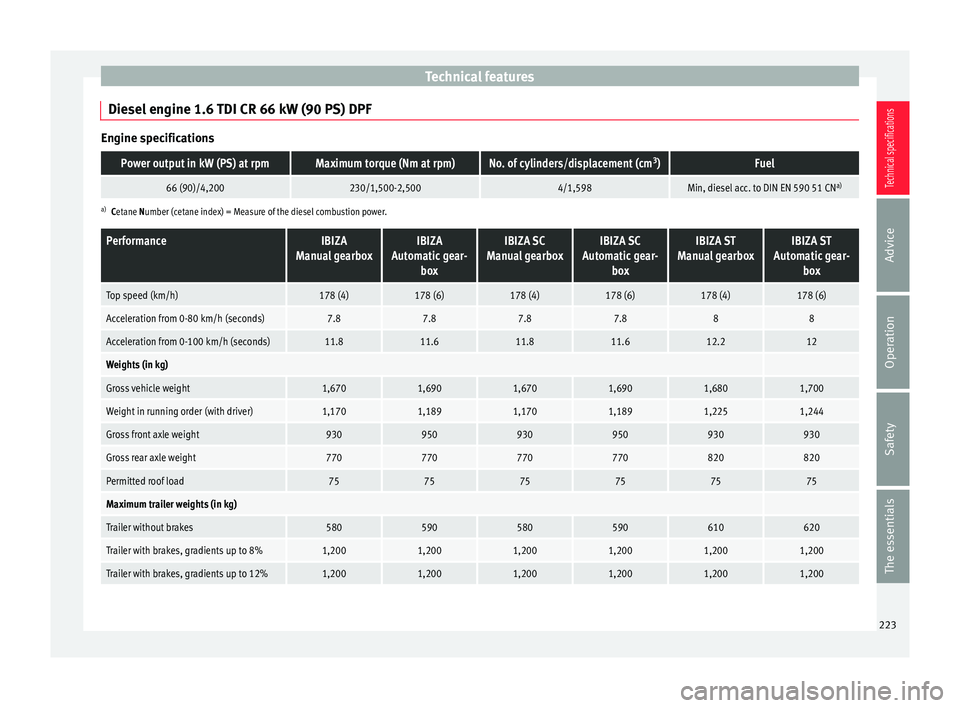

Page 225 of 240
Technical features
Diesel engine 1.6 TDI CR 66 kW (90 PS) DPF Engine specificationsPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
66 (90)/4,200230/1,500-2,5004/1,598Min, diesel acc. to DIN EN 590 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
PerformanceIBIZA
Manual gearboxIBIZA
Automatic gear- boxIBIZA SC
Manual gearboxIBIZA SC
Automatic gear- boxIBIZA ST
Manual gearboxIBIZA ST
Automatic gear- box
Top speed (km/h)178 (4)178 (6)178 (4)178 (6)178 (4)178 (6)
Acceleration from 0-80 km/h (seconds)7.87.87.87.888
Acceleration from 0-100 km/h (seconds)11.811.611.811.612.212
Weights (in kg)
Gross vehicle weight1,6701,6901,6701,6901,6801,700
Weight in running order (with driver)1,1701,1891,1701,1891,2251,244
Gross front axle weight930950930950930930
Gross rear axle weight770770770770820820
Permitted roof load757575757575
Maximum trailer weights (in kg)
Trailer without brakes580590580590610620
Trailer with brakes, gradients up to 8%1,2001,2001,2001,2001,2001,200
Trailer with brakes, gradients up to 12%1,2001,2001,2001,2001,2001,200 223
Technical specifications
Advice
Operation
Safety
The essentials

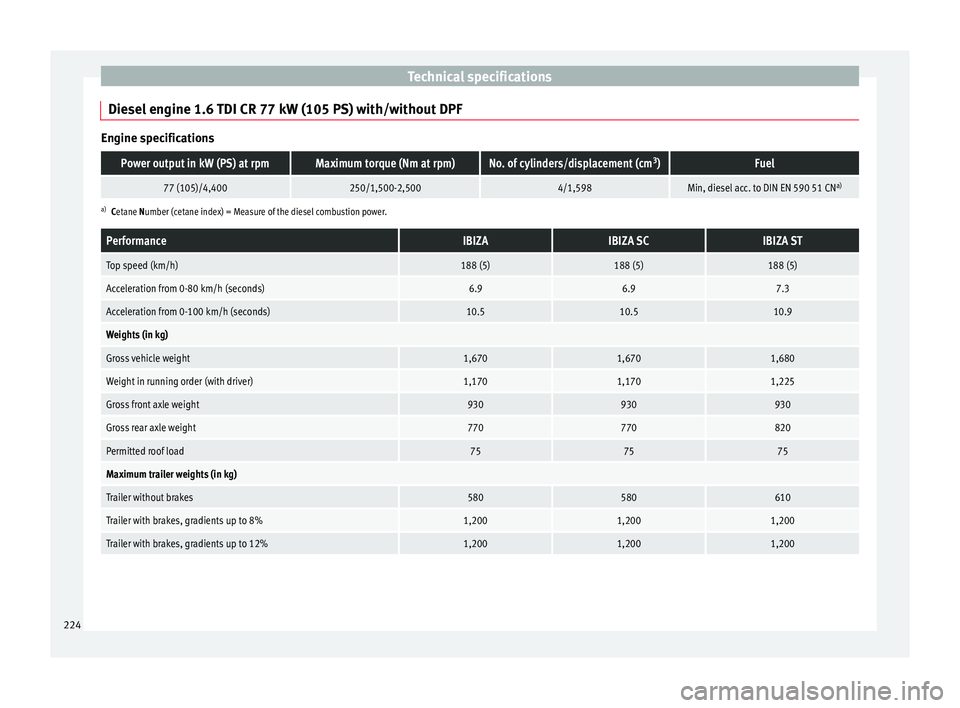

Page 226 of 240
Technical specifications
Diesel engine 1.6 TDI CR 77 kW (105 PS) with/without DPF Engine specificationsPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
77 (105)/4,400250/1,500-2,5004/1,598Min, diesel acc. to DIN EN 590 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
PerformanceIBIZAIBIZA SCIBIZA ST
Top speed (km/h)188 (5)188 (5)188 (5)
Acceleration from 0-80 km/h (seconds)6.96.97.3
Acceleration from 0-100 km/h (seconds)10.510.510.9
Weights (in kg)
Gross vehicle weight1,6701,6701,680
Weight in running order (with driver)1,1701,1701,225
Gross front axle weight930930930
Gross rear axle weight770770820
Permitted roof load757575
Maximum trailer weights (in kg)
Trailer without brakes580580610
Trailer with brakes, gradients up to 8%1,2001,2001,200
Trailer with brakes, gradients up to 12%1,2001,2001,200 224
Page 227 of 240
Technical features
Diesel engine 2.0 TDI CR 105 kW (143 PS) DPF Engine specificationsPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
105 (143)/4,200320/1,750-2,5004/1,968Min, diesel acc. to DIN EN 590 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
PerformanceIBIZAIBIZA SC
Top speed (km/h)210 (5)210 (5)
Acceleration from 0-80 km/h (seconds)5.75.7
Acceleration from 0-100 km/h (seconds)8.28.2
Weights (in kg)
Gross vehicle weight1,6901,690
Weight in running order (with driver)1,2451,245
Gross front axle weight950950
Gross rear axle weight800800
Permitted roof load7575
Maximum trailer weights (in kg)
Trailer without brakes620620
Trailer with brakes, gradients up to 8%1,3001,300
Trailer with brakes, gradients up to 12%1,2001,200 225
Technical specifications
Advice
Operation
Safety
The essentials
Page 228 of 240
Technical specifications

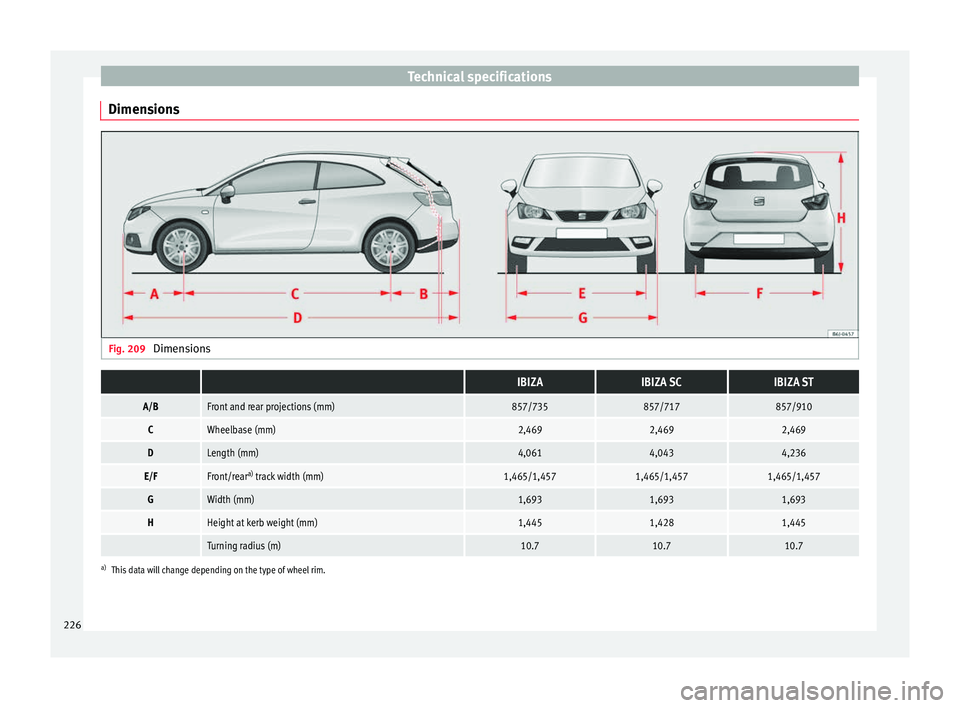

Dimensions Fig. 209
Dimensions IBIZAIBIZA SCIBIZA ST
A/BFront and rear projections (mm)857/735857/717857/910
CWheelbase (mm)2,4692,4692,469
DLength (mm)4,0614,0434,236
E/FFront/rear a)
track width (mm)1,465/1,4571,465/1,4571,465/1,457
GWidth (mm)1,6931,6931,693
HHeight at kerb weight (mm)1,4451,4281,445
Turning radius (m)10.710.710.7
a) This data will change depending on the type of wheel rim.
226

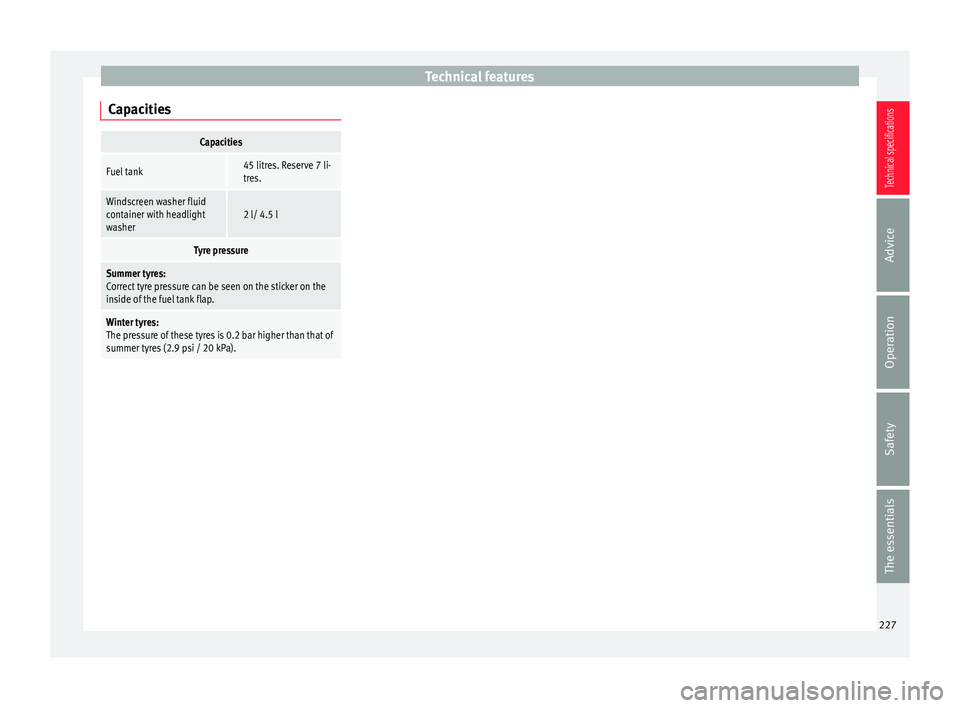

Page 229 of 240
Technical features
CapacitiesCapacities
Fuel tank 45 litres. Reserve 7 li-
tres.
Windscreen washer fluid
container with headlight
washer 2 l/ 4.5 l
Tyre pressure
Summer tyres:
Correct tyre pressure can be seen on the sticker on the
inside of the fuel tank flap.
Winter tyres:
The pressure of these tyres is 0.2 bar higher than that of
summer tyres (2.9 psi / 20 kPa). 227
